Honda Hornet 250 Motorcycles


1996 Honda Hornet 250

Engine

Engine Type Liquid cooled, four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.
Displacement 249cc
Bore and Stroke 48.5 x 33.8 mm
Compression Ratio 11.5:1
Max Power 40 hp 29.2 kW @ 14000 rpm
Max Torque 24 Nm @ 11000 rpm

DRIVETRAIN

Transmission 6-speed
Final drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 40mm telescopic forks
Rear Suspension Monoshock preload adjustable.
Front Brakes Single 296mm disc 2 piston caliper
Rear Brakes Single 220mm disc 1 piston caliper
Front Tire 130/70-16
Rear Tire 180/55-17

DIMENSION

Dry-Weight 151 kg (332 lb)
Fuel Capacity 16 Litres (4.2 Gal)

OTHER

1999 Honda Hornet 250

Engine

Engine Type 249 cc, 4 Stroke – Liquid Cooled – Inline Four
Valves DOHC, 4 valves/cylinder
Bore and Stroke 48.5 mm x 33.8 mm
Compression Ratio 11.5:1
Fuel Delivery VP05
Ignition System Full transistor type battery Ignition System
Horsepower 40 hp (29.8 kW) @ 14000 rpm
Maximum Torque 24 Nm (17.7 ft. lbs) @ 11000 rpm

DRIVETRAIN

Transmission 6-speed
Final drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Brakes Single 296mm disc 2 piston caliper
Rear Brakes Single 220mm disc 1 piston caliper
Front Tire 130/70-16
Rear Tire 180/55-17

DIMENSION

Dry-Weight (without fluids): 151 kg (332.9 pounds)
Fuel Capacity 16 litres (4.2 Gal)
Overall Length 2045 mm (80.5 inches)
Overall Width 740 mm (29.1 inches)
Overall Height 1055 mm (41.5 inches)
Seat Height 760 mm (29.9 inches)
Wheelbase 1415 mm (55.7 inches)

OTHER

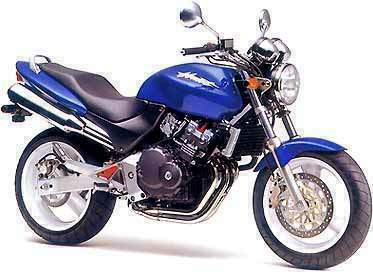

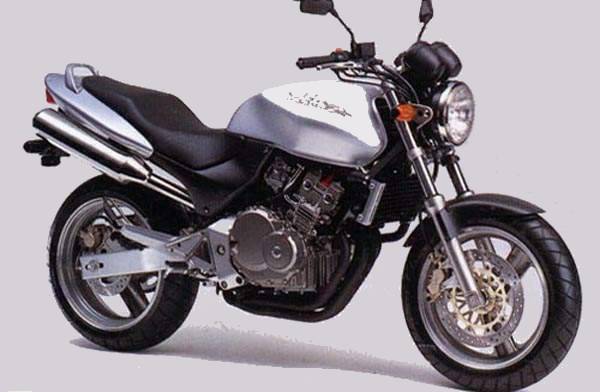

Hornet 250 Image Gallery
