Honda CRF150F Motorcycles


2003 CRF150F

2004 CRF150F

Engine

Engine Type 156.8cc air-cooled single-cylinder four-stroke
Bore And Stroke 63.5mm x 49.5mm
Compression Ratio 9.0:1
Fuel Delivery 24mm piston-valve
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel
Front Brakes Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 216.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve

OTHER

Model ID
Color Red
Warranty 6 months

2005 CRF150F

Engine

Engine Type 156.8cc air-cooled single-cylinder four-stroke
Bore And Stroke 63.5mm x 49.5mm
Compression Ratio 9.0:1
Fuel Delivery 24mm piston-valve
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel
Front Brakes Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 216.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve

OTHER

Model ID
Color Red
Warranty 6 months

2006 CRF150F

Engine

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore And Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Fuel Delivery 24mm piston-valve
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.9-inch travel
Front Brakes Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 223.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve

OTHER

Model ID CRF150F
Color Red
Warranty

2007 CRF150F

Overview: This is the bike that’s a perfect fit for countless riders looking for full-sized fun in a mid-size machine. From its five-speed, manual-shift transmission and strong 149cc four-stroke engine to its adjustable rear shock, the electric-start CRF150F is just the ticket for beginner or veteran riders who want to step up their fun factor.

Engine

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore And Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Fuel Delivery 24mm piston-valve
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.9-inch travel
Front Brakes Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 223.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve

OTHER

Model ID CRF150F
Color Red
Warranty

2008 CRF150F

Overview: Smooth, easy-to-use power, plush suspension and responsive handling make the CRF150F full-sized off-road fun in a mid-size package. With electric starting, a five-speed, manual-shift gearbox, new, narrower seat, fuel tank, and dependable 149cc four-stroke engine, it’s the ideal machine for recreational riders, teen-size to grown-up.

Engine

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore And Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Fuel Delivery 24mm piston-valve
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.9-inch travel
Front Brakes Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Curb Weight TBD
Fuel Capacity 1.9 gallons, including 0.4-gallon reserve

OTHER

Emissions Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Model ID CRF150F
Color Red
Warranty 6 monthsTransferable, limited warranty

2009 CRF150F

Engine

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore And Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Fuel Delivery 24mm piston-valve
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.9-inch travel
Front Brakes Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Curb Weight 236 pounds
Fuel Capacity 1.9 gallons, including 0.4-gallon reserve

OTHER

Emissions Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Model ID CRF150F
Color
  • Red
  • Black (special order)
Warranty 6 monthsTransferable, limited warranty

2011 CRF150F

Engine

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore And Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Fuel Delivery Single 22 mm piston-valve carb
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed with manual clutch
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35 mm leading-axle Showa fork; 207 mm (8.1 in.) travel
Rear Suspension Pro-Link Showa single shock; 227 mm (8.9 in.) travel
Front Brakes 240 mm disc with dual-piston caliper
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake
Trail
Wheelbase 1,328 mm (52.3 in.)
Seat Height 832 mm (32.8 in.)
Ground Clearance 257 mm (10.1 in.)
Curb Weight 106 kg (234 lb) including required fluids and full tank of gas – ready to ride
Fuel Capacity 7 litres, including 1.6-litre reserve

OTHER

MSRP $3,999
Model ID CRF150F
Color Extreme Red
Warranty 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus

2012 CRF150F

Engine

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore And Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Fuel Delivery
  • Canada: Single 22 mm piston-valve carb
  • USA: 24mm piston-valve carburetor
Spark plug
Plug gap
Valve Train SOHC; two-valve
Ignition CDI

DRIVETRAIN

Transmission Five-speed with manual clutch
Final Drive #520 O-ring-sealed chain
Front sprocket 13T
Rear sprocket
  • Canada: 47T
  • USA: 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35 mm leading-axle Showa fork; 207 mm (8.1 in.) travel
Rear Suspension Pro-Link Showa single shock; 227 mm (8.9 in.) travel
Front Brakes Single 240 mm disc with dual-piston caliper
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7° (Caster Angle)
Trail 87mm (3.4 inches)
Wheelbase 1,328 mm (52.3 in.)
Seat Height 832 mm (32.8 in.)
Ground Clearance 257 mm (10.1 in.)
Curb Weight 106 kg (234 lb) including required fluids and full tank of gas – ready to ride
Fuel Capacity 7 litres (1.9 GalUS), including 1.6-litre (0.4 Gal) reserve

OTHER

Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
MSRP $4,149
Model ID CRF150F
Color Extreme Red
Warranty 6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus

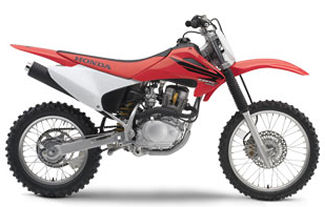

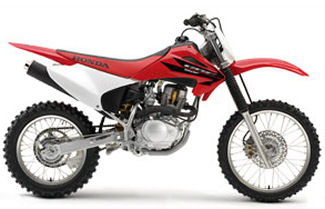

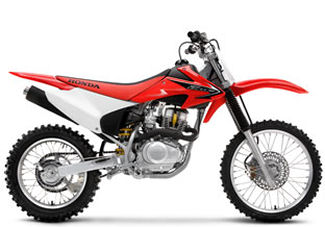

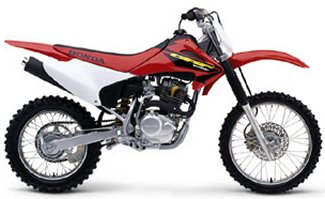

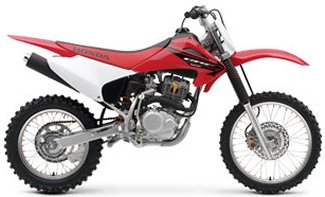

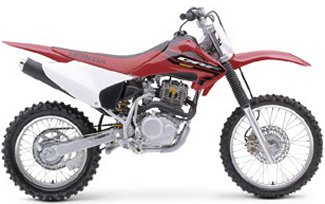

Honda CRF150F Photo Gallery
