Honda Benly Touring 125(C92, CA92, & CD125) Benly Super Sport (CB92, CS92) Motorcycles

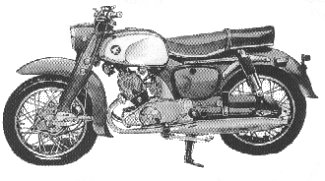

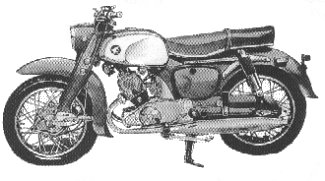

1959 Benly Touring 125 (C92 and CA92)

Engine

Engine Type 124cc OHC parallel twin
Carburetor Single
Starter both electric start and kick start

DRIVETRAIN

Transmission 4-speed

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

OTHER

Colorst
  • Scarlet Red
  • Blue
  • Black
  • The headlight was square and the headlight shell housed the speedometer
  • The chain was enclosed
  • The C92 handlebars were mounted low and made with pressed steel and the turn signals were secured to the handlebars
  • The CA92 handlebars were mounted high and were made of tubular chrome without signal lights
  • The serial number began C92-100001 and CA92-100001.

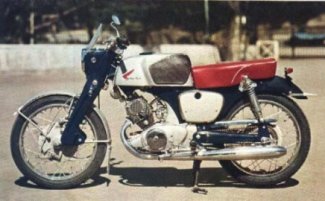

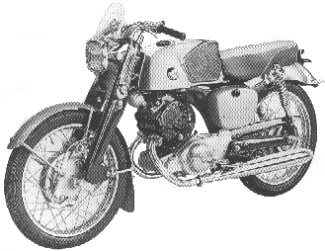

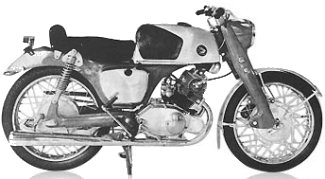

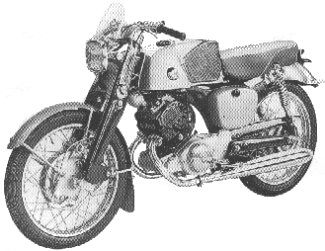

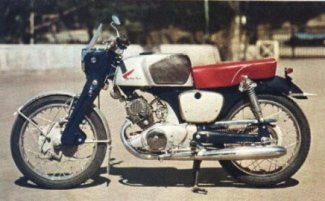

1959-64 CB92 Benly Super Sport 125

Engine

Engine Type 124cc OHC parallel twin
Carburetor Single
Starter both electric start and kick start

DRIVETRAIN

Transmission 4-speed

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

Colorst
  • Silver with Red (and a Black seat)
  • Silver with Blue (with a Red seat)
  • Colors in other countries like Germany:
    1. blue with red with red seat
    2. silver with red with black seat
    3. silver with black with black seat
  • The gas tank, side covers, and front fender were silver
  • The front forks, frame, and rear fender were red or blue
  • A small windshield was mounted to the square headlight
  • The early models had alloy gas tanks, fenders, and side covers
  • The serial number began CB92-010001
  • Click for large brochure page from Germany

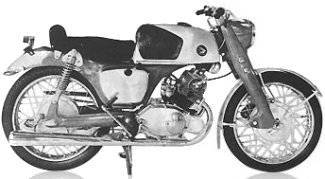

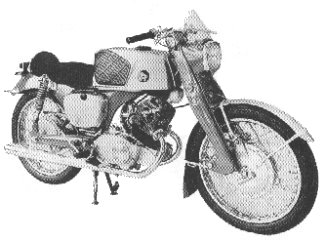

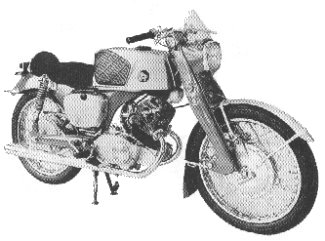

1961-62 CB92R Benly S.S. Racer 125

Engine

Engine Type 124cc OHC parallel twin
Carburetor Single
Starter both electric start and kick start

DRIVETRAIN

Transmission 4-speed

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

Colorst one color Silver with Red with a black seat
  • It had a solo racing seat
  • The exhaust pipes were chrome megaphones
  • The tachometer replaced the speedometer in the headlight housing
  • As a modified racing version, the horsepower was increased over the CB92
  • The serial number began CB92R-200001

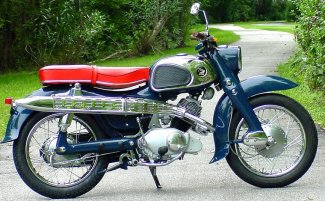

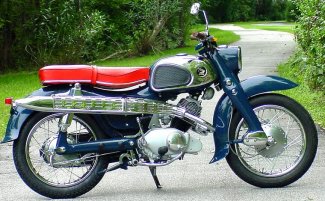

1959-64 CS92 Benly 125

Engine

Engine Type 124cc OHC parallel twin
Carburetor Single
Starter both electric start and kick start

DRIVETRAIN

Transmission 4-speed

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

Colorst
  • Silver with Red (and a Black seat)
  • Silver with Blue (with a Red seat)
  • The gas tank, side covers, and front fender were silver
  • The front forks, frame, and rear fender were red or blue
  • The headlight was square
  • The exhaust was upswept much like the scramblers
  • The early models had alloy gas tanks, fenders, and side covers
  • The serial number began CS92-010001

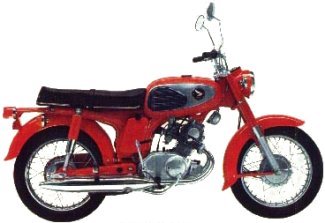

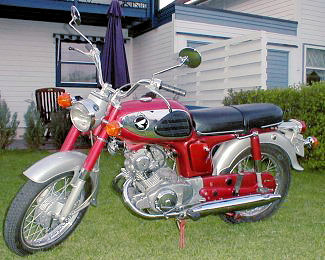

Touring CD125

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • It was almost identical to the CA125 Benly Touring.

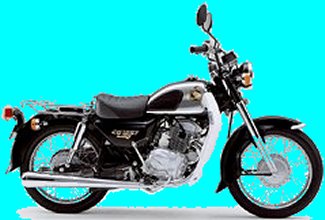

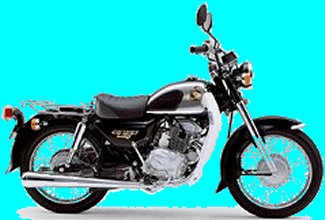

2002 Honda Benly CD125 T

Engine

Engine Type Air-cooled Four-stroke twin cylinder OHC
Displacement 124cc (7.57 cu. in)
Bore and Stroke 33mm x 41mm
Compression Ratio 9.4:1
Fuel system Carburetor
Power 11 hp (8.0 kW) @ 9000 rpm
Torque 9.8 Nm (1.0 kgf-m) (7.2 ft.lb) @ 6500 rpm

DRIVETRAIN

Transmission 5-speed

CHASSIS / SUSPENSION / BRAKES

Front Brakes Mechanical expanding
Rear Brakes Mechanical expanding

DIMENSION

Fuel capacity 10.0 liters (2.6 Gal.)
Seat Height 730mm (28.7 in.)
Wheelbase 1280mm (50.4 in.)
Dry Weight 133 kg (293 lb)
Length 1980mm (78 in.)
Height 1050mm (41.3 in.)
Width 780mm (30.7 in.)
Ground Clearance 140mm (5.5 in.)

OTHER

Color black
