The 2021 Suzuki DR-Z400SM Brings Off-Road Fun to the City
Why take a DR-Z400S and build a supermoto on your own, when you can have Suzuki Motorcycles do it for you? The DR-Z400SM is the supermoto version of the DR-Z400S, taking offroad ingenuity and technology and stuffing it into a street-legal supermotard package perfect for flying around the city. It’s a solid addition to the 2021 lineup.
This Japanese-built factory supermoto has a top speed of 94 mph thanks to Suzuki’s legendary 398cc, liquid cooled, four-stroke engine producing 39 horsepower and 29 lb-ft of torque. That might not seem like much, but with a curb weight of 322 pounds, it’s more than enough power to fulfill all your hooligan needs.

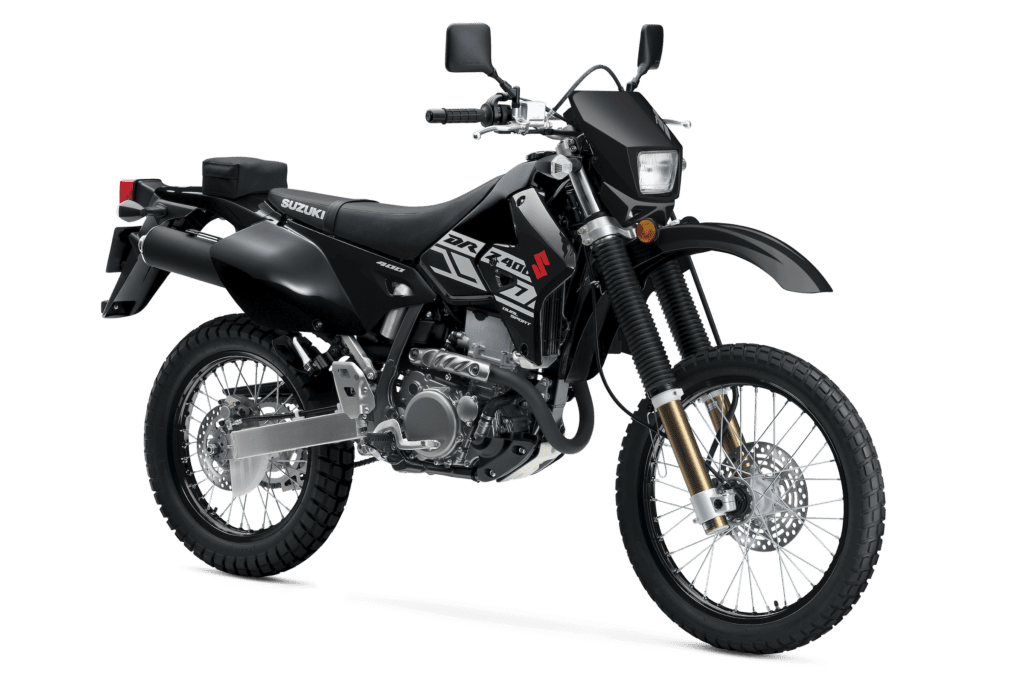

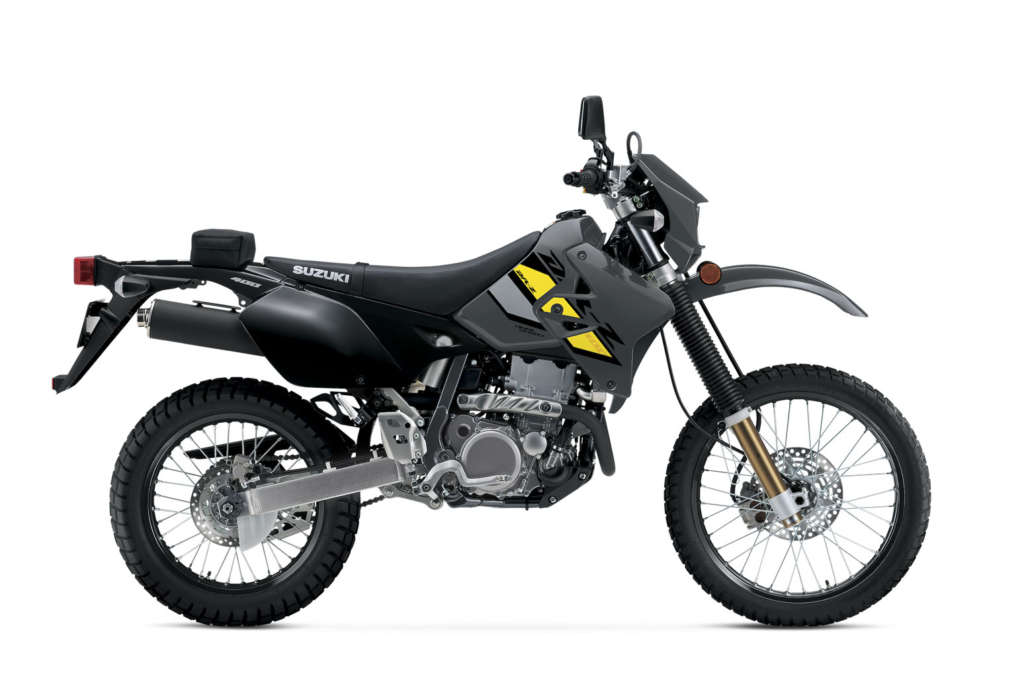

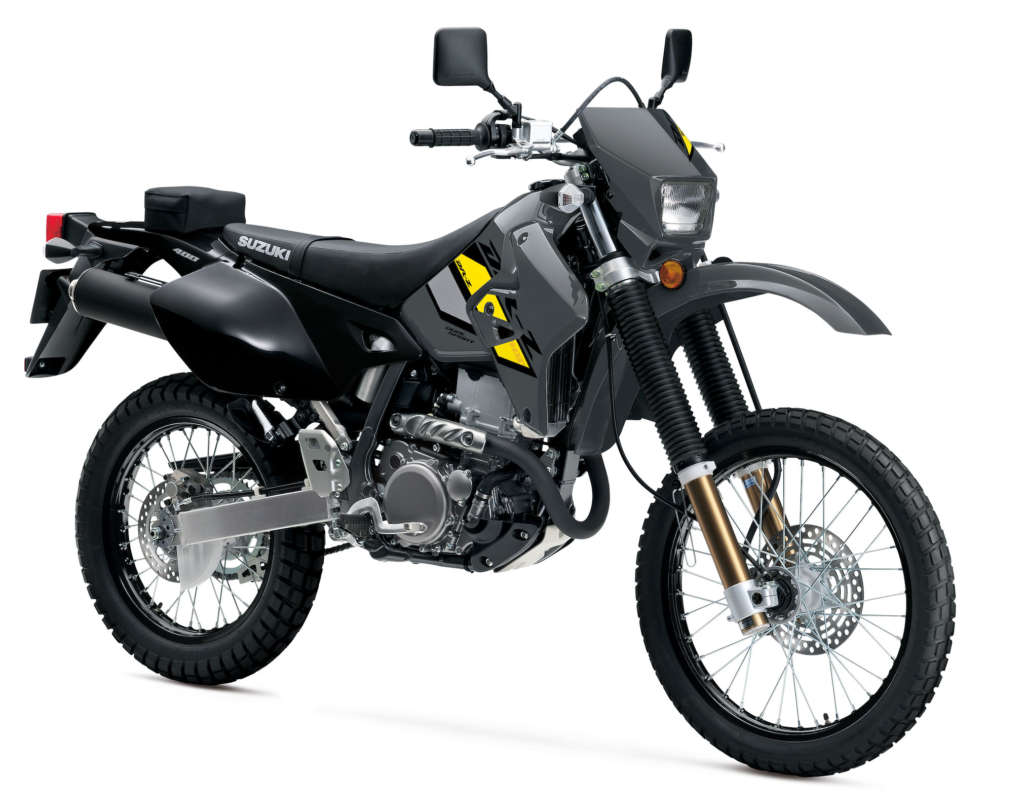

When compared to the DR-Z400S (hyperlink), it’s good to take note of the other features Suzuki has added to make this bike more suited for the road: inverted front fork, wider spoked rims, and a much larger 300mm front brake for increased stopping power on pavement. We also get new colour and graphic options when compared to last year’s 2020 model.
If you’re in the market for an extremely reliable city commuter, with the potential to do some off-roading in the event you decide to take a shortcut on the way home, then this is the bike for you.
The 2021 Suzuki DR-Z400SM starts at $7,499 USD / $9,848.81 CAD
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 Suzuki DR-Z400SM in one place.
2021 Suzuki DR-Z400SM Specifications
|Engine||398 cc, 4-stroke, liquid-cooled, single cylinder, DOHC|
|Bore x Stroke||90.0 x 62.6 mm (3.54 in. x 2.44 in.)|
|Fuel System||Mikuni BSR36, single carburetor|
|Transmission||5-speed constant mesh|
|Final Drive||Chain, RK520KZ0, 110 links|
|Suspension Front||Inverted telescopic, coil spring, oil damped, adjustable damping force|
|Suspension Rear||Link type, coil spring, oil damped, adjustable spring preload and damping force|
|Brakes Front||Disc brake, single floating rotor|
|Brakes Rear||Disc brake, single rotor|
|Tires Front||120/70 R17 M/C 58H, tube type|
|Tires Rear||140/70 R17 M/C 66H, tube type|
|Fuel Tank Capacity||10.0 L (2.6 US gal.) / 9.5 L (2.5 US gal.) CA model|
|Color||Solid Black or Solid Special White No. 2|
|Ignition||Electronic ignition (CDI)|
|Spark Plug||NGK CR8E or DENSO U24ESR-N|
|Headlight||12V 60/55W (H4)|
|Tail light||12V 21/5W|
|Overall Length||2225 mm (87.6 in.)|
|Overall Width||855 mm (33.7 in.)|
|Overall Height||1200 mm (47.2 in.)|
|Wheelbase||1460 mm (57.5 in.)|
|Ground Clearance||260 mm (10.2 in.)|
|Seat Height||890 mm (35.0 in.)|
|Curb Weight||146 kg (322 lb.)|
|Warranty||12-month unlimited mileage limited warranty|
|Extensions||Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).|
2021 Suzuki DR-Z400SM Features
Versatile and strong, 398cc, DOHC, liquid-cooled, dry-sump engine has push-button starting.
SuperMoto boasts fully adjustable MX-style suspension plus high-grip sportbike tires on strong spoke wheels featuring anodized, aluminum Excel rims.
Solid Black or Solid Special White No. 2 bodywork with new, angular graphics complement the motorcycle’s styling.
Compact, four-valve cylinder head has 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle, and shim-under-bucket valve adjustment system.
Simple electric starting is powered via a lightweight starter motor with an automatic mechanical decompression system.
SCEM-plated cylinder (nickel-silicon-phosphorus) is lighter and more durable than an iron liner and has excellent heat transfer properties.
Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.
Fed by a six-liter air box, the Mikuni™ 36mm carburetor incorporates a deceleration enricher circuit to help provide smooth throttle response when accelerating or engine braking.
The left side body cover has quick-release fasteners for easy access to the air filter.
The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.
Thermostatically-controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic.
Magnesium-alloy clutch, magneto, and cylinder head covers contribute to the bike’s low weight.
Low-maintenance, long-life, sealed O-ring type drive chain produces minimal sounds when riding.
Strong braking performance is supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus a 240mm rear disc brake with single-piston caliper.
Long travel, Showa inverted front fork is derived from a RM250 and features adjustable compression/rebound damping and a special coating on inner tube surfaces for smooth action.
A fully adjustable rear shock absorber with high/low speed compression damping adjuster and a tapered RM-inspired aluminum swingarm combine for precise rear wheel control.
Renthal tapered aluminum handlebar has an aggressive look, reduces vibration, and has a great bend for spirited riding.
Chrome-moly steel frame tuned for Supermotard style riding is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank.
A bolt-on aluminum sub-frame helps reduce weight, simplify maintenance, and contribute to the trim rear fender appearance.
Front and rear axle sliders, and special designed mirrors that rotate, help protect against damage in the case of a tip-over.
Derived from the off-road DR-Z400, the black or white bodywork features new, angular graphics for race-ready appearance.
A pouch on the rear fender carries the tool kit, owner’s manual or other cargo.
On-road legal lighting includes bright 60/55-watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.
Electrical systems, including the easy-push button starter, are powered by a compact, 6.5-amp, maintenance-free battery.
A variety of Genuine Suzuki Accessories for DR-Z400SM owners are available, including a low-profile seat, cargo rack, handguard set, and a large selection of Suzuki logo apparel.
