2020 Suzuki DR-Z400S

The 2020 Suzuki DR-Z400S is a dual-sport motorcycle that is a fantastic bike for both on and off-road situations. The bike looks far more like a dirtbike and acts like one, too. However, it does have some good on-road manners.

The bike gets a liquid-cooled single-cylinder engine with a carburetor and a displacement of 398cc. The engine makes 39 hp and 26 lb-ft of torque, and it is mated to a five-speed manual transmission. The DR-Z400S is a bike built for multiple environments. It’s a seriously versatile machine.

The Suzuki DR-Z400S is a tried-and-true machine. It’s a bike dirtbike riders and commuter riders will love. It offers a good mix of horsepower and torque, looks great, and can handle just about anything that’s thrown at it. The DR-Z400S has a starting price of $6,799.

The motorcycle is available in only one color, and that color is Solid Black.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Suzuki DR-Z400S in one place.

2020 Suzuki DR-Z400S


Model Overview

General Info

  • Price:  $6,799
  • Key Features:
    • Compact and Powerful
    • Electric starting
    • Low-maintenance

Key Specs

  • Engine type: 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
  • Power: 39 hp
  • Curb weight: 144 kg (317 lb.)
  • Seat height: 36.8 in

Key Competitors




2020 Suzuki DR-Z400S Specifications

From Suzuki

Engine

Engine 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke 90.0 mm x 62.6 mm (3.54 in. x 2.44 in.)
Compression Ratio 11.3:1
Fuel System Mikuni BSR36, single carburetor
Starter Electric
Lubrication Semi-dry sump

Drivetrain

Clutch Wet multi-plate
Transmission 5-speed constant mesh
Final Drive Chain, RK520KZ0, 112 links

Chassis

Suspension Front Telescopic, coil spring, oil damped, adjustable damping force
Suspension Rear Link type, coil spring, oil damped, adjustable spring preload and damping force
Brakes Front Disc brake, single rotor
Brakes Rear Disc brake, single rotor
Tires Front 80/100-21 M/C 51P, tube type
Tires Rear 120/90-18 M/C 65P, tube type
Fuel Tank Capacity 10.0 L (2.6 US gal.) / 9.5 L (2.5 US gal.) CA model
Color Solid Black

Electrical

Ignition Electronic ignition (CDI)
Spark Plug NGK CR8E or DENSO U24ESR-N
Headlight 12V 60/55W (H4)
Tail Light 12V 21/5W

Dimensions

Overall Length 2310 mm (90.9 in.)
Overall Width 875 mm (34.4 in.)
Overall Height 1230 mm (48.4 in.)
Wheelbase 1485 mm (58.5 in.)
Ground Clearance 300 mm (11.8 in.)
Seat Height 935 mm (36.8 in.)
Curb Weight 144 kg (317 lb.)

Warranty

Warranty 12-month unlimited mileage limited warranty
Extensions Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).




2020 Suzuki DR-Z400S Features

Engine Features

Simple electric starting via a lightweight starter motor with an automatic mechanical decompression system.

A compact design, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong low-rpm power. Its compact, four-valve cylinder head features large 36mm intake valves and 29mm exhaust valves to help produce broad, tractable power and torque that’s ready for any terrain.

Suzuki Composite Electrochemical Materials (SCEM) cylinder is durable and lightweight and provides superior heat transfer.

Digitally-mapped DC-CDI system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.

Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.

Fed by a six-liter air box, the Mikuni™ 36mm carburetor incorporates a deceleration enricher circuit to help provide smooth throttle response when accelerating or engine braking.

The left side body cover has quick-release fasteners for easy access to the air filter.

The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.

Magnesium-alloy clutch, magneto, and cylinder head covers contribute to the bike’s low weight.

Thermostatically-controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature.

Transmission Features

Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.

Low-maintenance, long-life sealed O-ring type drive chain produces minimal sounds when riding.

Chassis Features

A pouch on the rear fender carries the tool kit, owner’s manual, or other cargo.

A narrow frame combines thin chrome-moly steel tubes for exceptional torsional rigidity with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank. A bolt-on aluminum sub-frame helps reduce weight and simplify maintenance.

Long travel (11.3-inch), 49mm cartridge-style fork has protective rubber boots plus adjustable compression/rebound damping and adjustable spring preload for smooth performance on all types of on- and off-road terrain.

Rear shock absorber features 11.6 inches of travel, compression damping/preload adjustments, and connects to a lightweight aluminum swingarm through a progressive linkage system.

Spoke-style 21-inch front and 18-inch rear wheels with new blacked-out aluminum rims are fitted with Dunlop D208 dual-purpose tires. The wheels are sized perfectly to accept popular dual sport tires and are set up to accept rim-locks when a more aggressive tread pattern is used.

Sure stopping power is supplied by a 250mm front disc with a dual-piston caliper and a 220mm rear disc brake with a single-piston caliper.

Electrical Features

Electric start system provides convenient operation and features a lightweight starter motor and a compact, 6.5-amp, maintenance-free battery.

Compact digital instrument cluster includes speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, timer, and stopwatch functions.

On-road legal lighting includes bright 60/55-watt H4 halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.

Additional Features

Special design mirrors rotate to avoid damage in case of impact.

Genuine Suzuki Accessories include a low-profile seat, cargo rack, handguard set, and more.

12-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP).

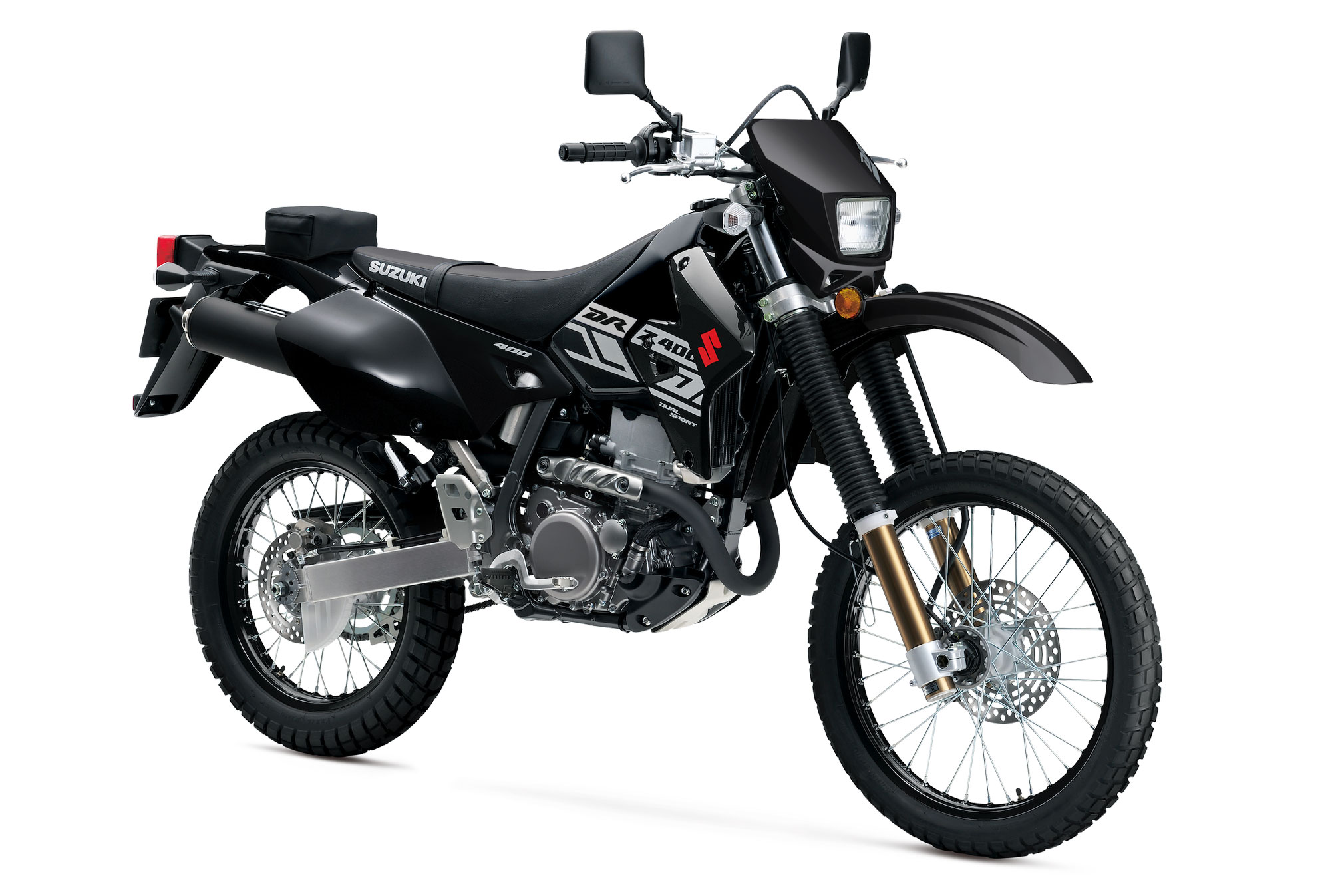

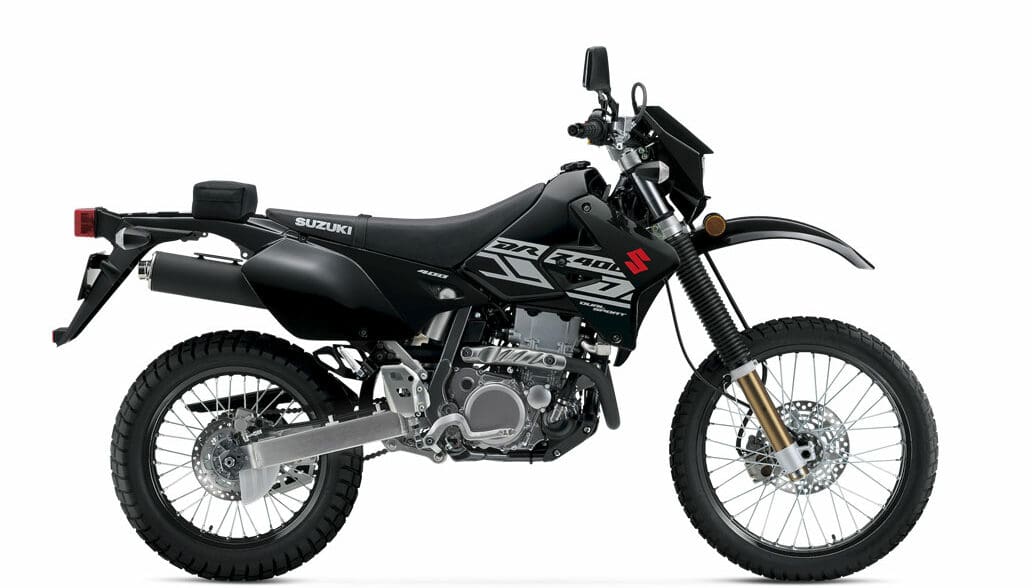

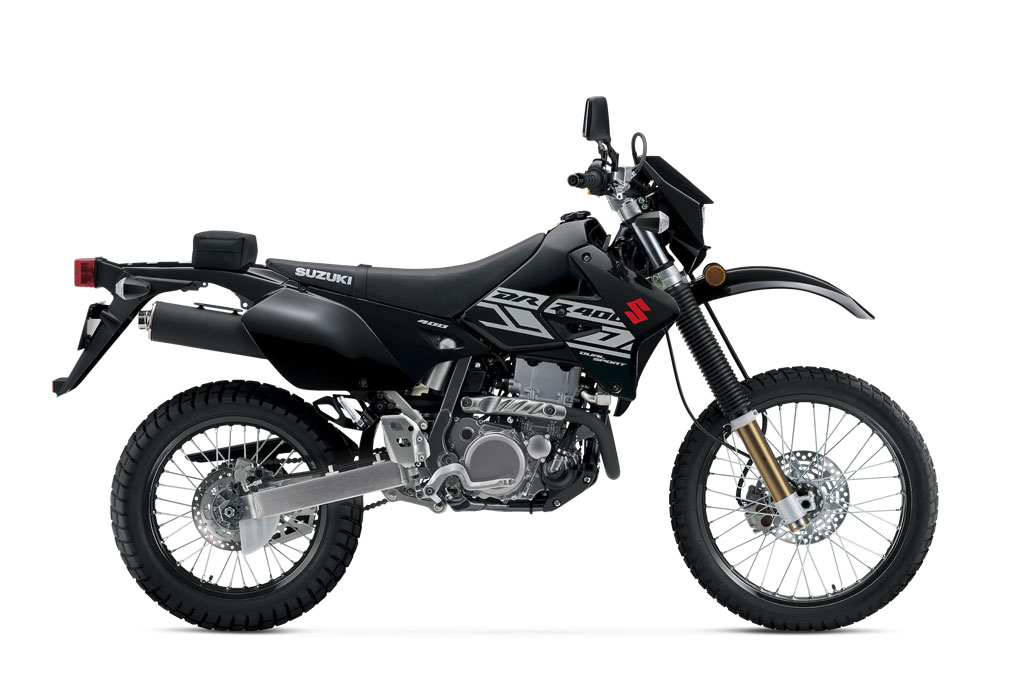

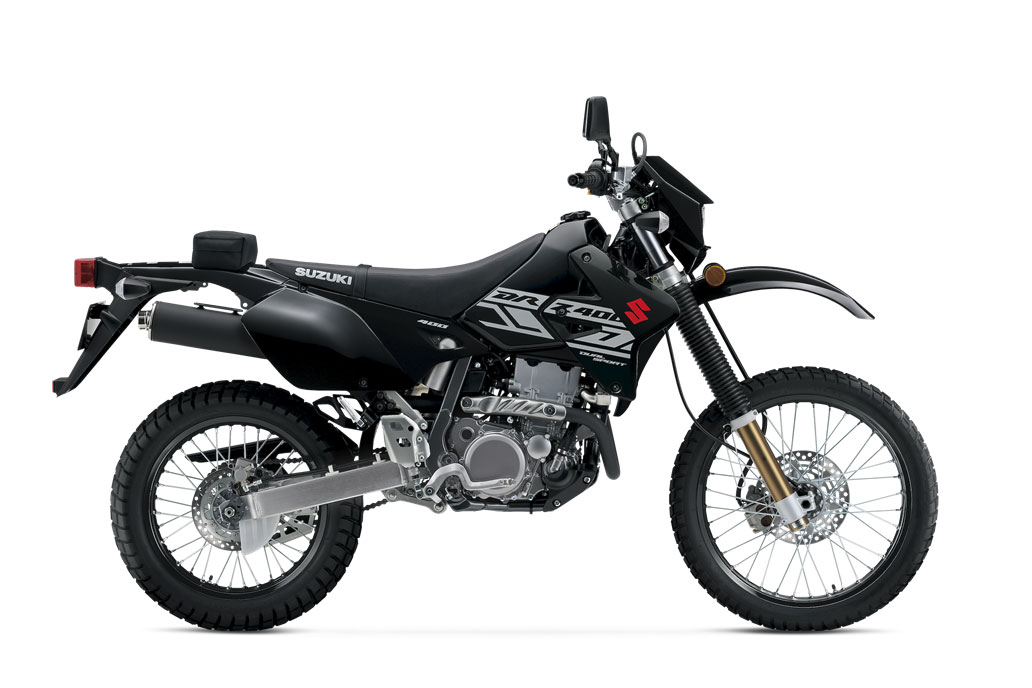

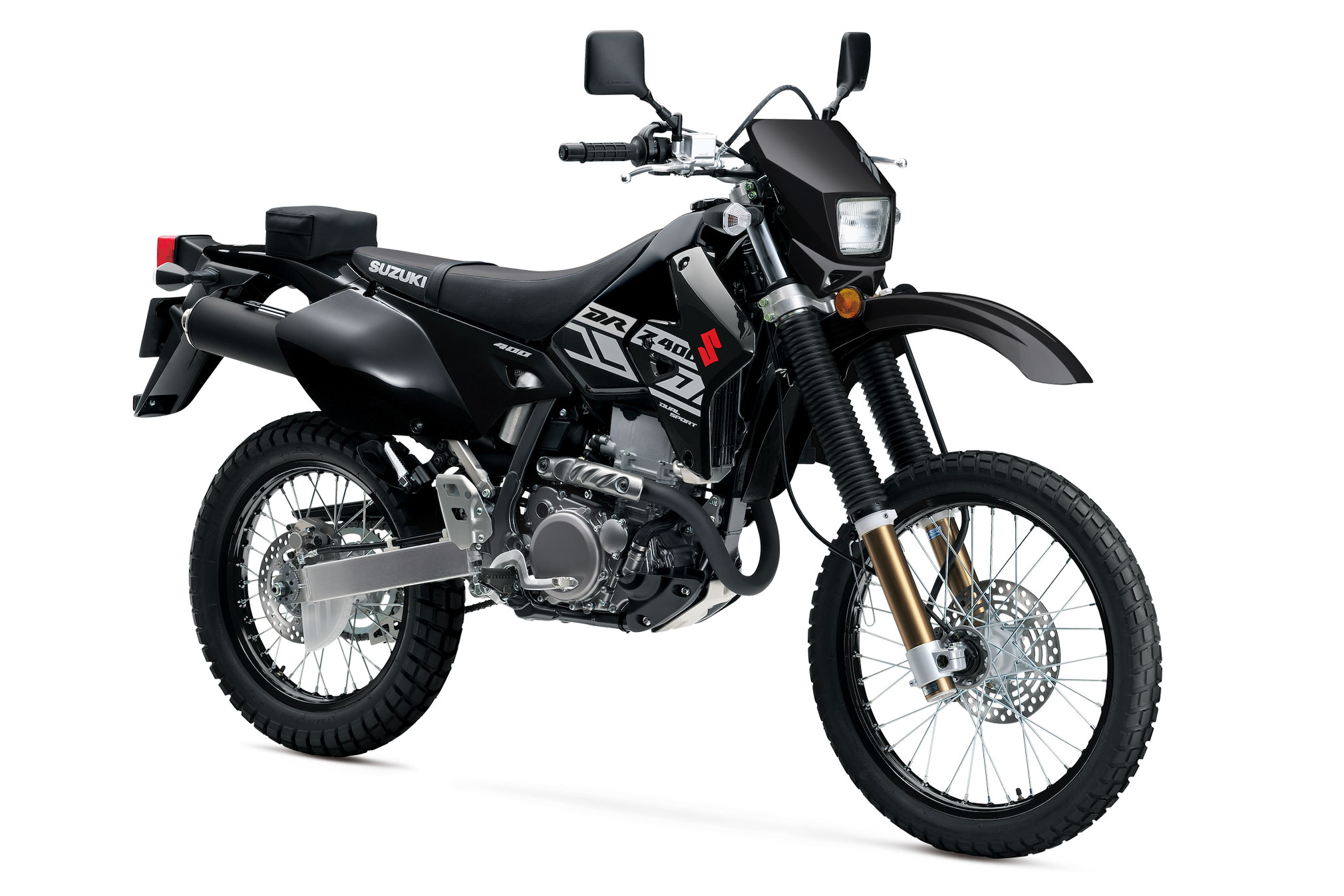

2020 Suzuki DR-Z400S Photos
