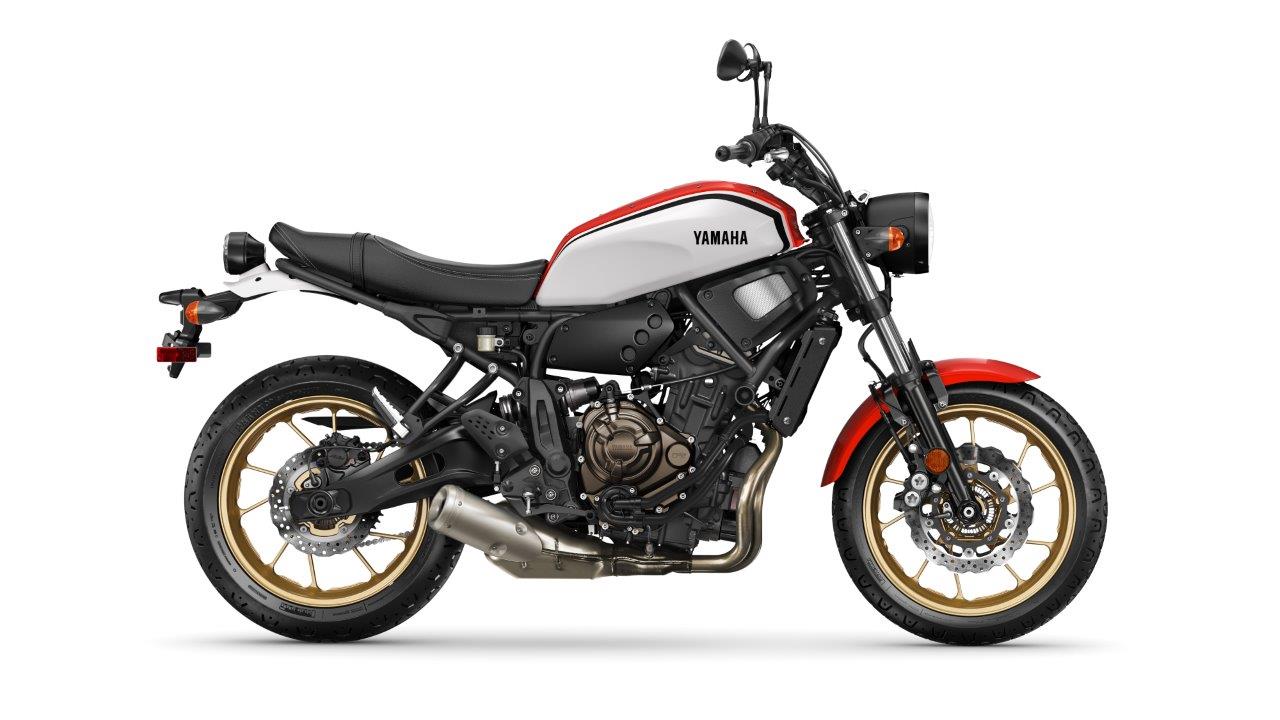

2020 Yamaha XSR700

Much like it’s bigger brother, the 2020 Yamaha XSR700 is almost entirely an MT-07 underneath. This means the same amazing 270-degree crossplane crankshaft with built-in counterbalancers churning out 74 crank HP and 50 lbs-ft of crank torque. However, unlike the MT-07, the XSR700 does feature a different style handlebar for more upright riding, and a different dash cluster from the MT series.

The XSR700 also shares the excellent horizontal rear suspension from the MT07 but has a narrower profile seat and longer, lower fuel tank, evoking the old street sport bikes of the 1970s. Standard equipment includes dual-zone ABS, traction control, and throttle-by-wire.

The 2020 Yamaha XSR700 starts at $8,499 US/ $9,599 CA.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Yamaha XSR700 in one place.

2020 Yamaha XSR700


Model Overview

General Info

  • Price: $8,499 US / $9,599 CA
  • Key Features:
    • Powerful Braking with ABS
    • Advanced Instrumentation
    • Classically-styled Lighting

Key Specs

  • Engine type: 689cc liquid-cooled DOHC inline twin-cylinder
  • Power: 74 hp
  • Wet weight: 410 lb
  • Seat height: 32.9 in

2020 Yamaha XSR700


2020 Yamaha XSR700 Specifications

From Yamaha

ENGINE

Engine 689cc liquid-cooled DOHC inline twin cylinder; 8 valves
Power 74 hp
Bore x Stroke 80.0mm x 68.6mm
Compression Ratio 11.5:1
Fuel System Fuel Injection
Starter Electric
Lubrication

DRIVETRAIN

Clutch Multiplate wet clutch
Transmission 6-speed
Final Drive Chain

CHASSIS

Suspension Front 41mm telescopic fork; 5.1-in travel
Suspension Rear Single shock, adjustable preload; 5.1-in travel
Brakes Front Dual hydraulic disc, 282mm; ABS
Brakes Rear Hydraulic disc, 245mm; ABS
Tires Front 120/70ZR17 Pirelli® Phantom Sportcomp
Tires Rear 180/55ZR17 Pirelli® Phantom Sportcomp
Fuel Tank Capacity 14 L (3.7 US gal.)
Color Radical White/Rapid Red

ELECTRICAL

Ignition TCI: Transistor Controlled Ignition
Spark Plugs
Headlight Multi-reflector headlight
Tail Light LED

DIMENSIONS

Overall Length
Overall Width
Overall Height
Wheelbase 55.3 in (1405 mm)
Ground Clearance 5.5 in (140 mm)
Seat Height 32.9 in (835 mm)
Curb Weight 410 lbs (186 kg)

WARRANTY

Warranty 1 Year (Limited Factory Warranty)
Extension

2020 Yamaha XSR700


2020 Yamaha XSR700 Features

TOP FEATURES

  • Standout Style
    The XSR700™ blends Yamaha’s world-class engineering with timeless style, creating a new type of machine for riders looking for an authentic and honest motorcycle that doesn’t sacrifice performance. Drawing influence from Yamaha’s classic “XS” series of motorcycles, the XSR® oozes class, with exposed aluminum details, retro-influenced bodywork, stepped seat and custom lighting and instrumentation.
  • Advanced Crossplane Crankshaft Concept Engine
    The compact 2-cylinder engine provides a unique power character, with outstanding torque and throttle response, combined with strong high-rpm pulling power. It also features Yamaha’s “Crossplane Concept” 270-degree crank that provides linear torque development in response to the rider’s throttle input.
  • Powerful Braking with ABS
    The XSR700 provides exceptional braking power with confidence thanks to modern brake components backed up with the security of ABS.
  • Compact, Sporty Chassis
    The narrow frame design features sport-oriented geometry to achieve light and nimble handling, aided by the minimalist 410-pound wet weight and refined ergonomics.

ENGINE

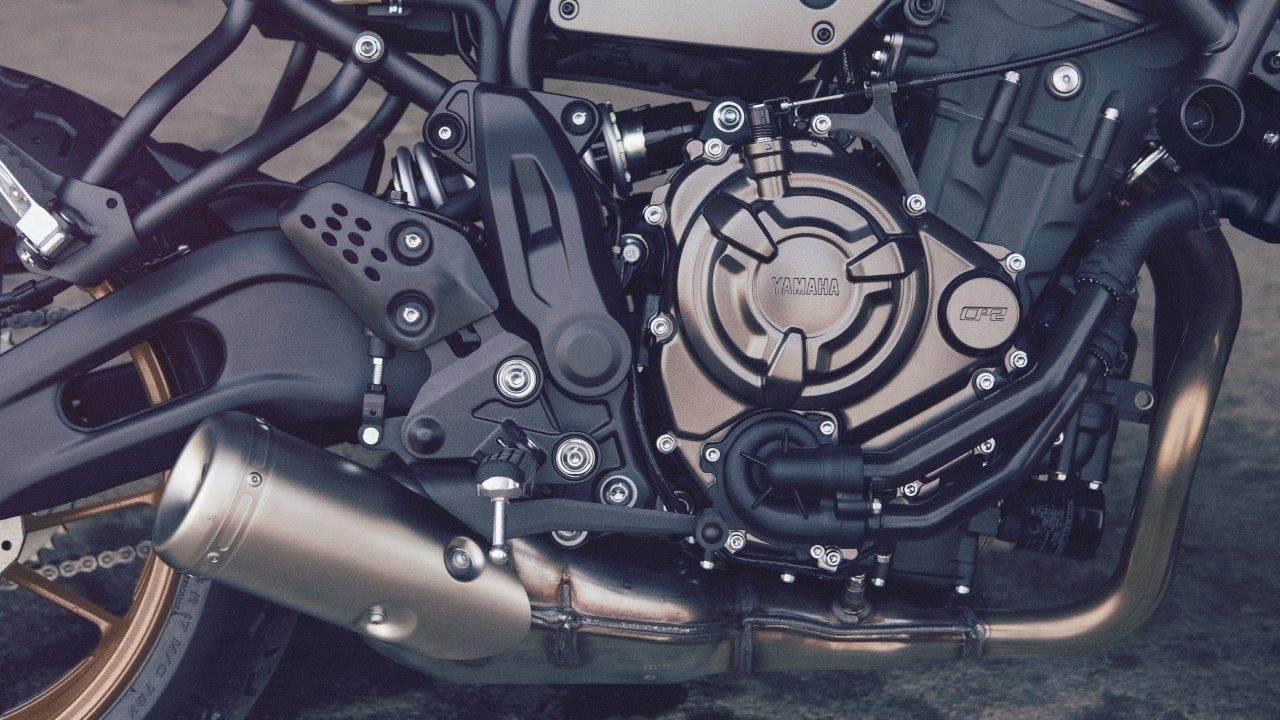

  • Advanced Twin Cylinder Engine

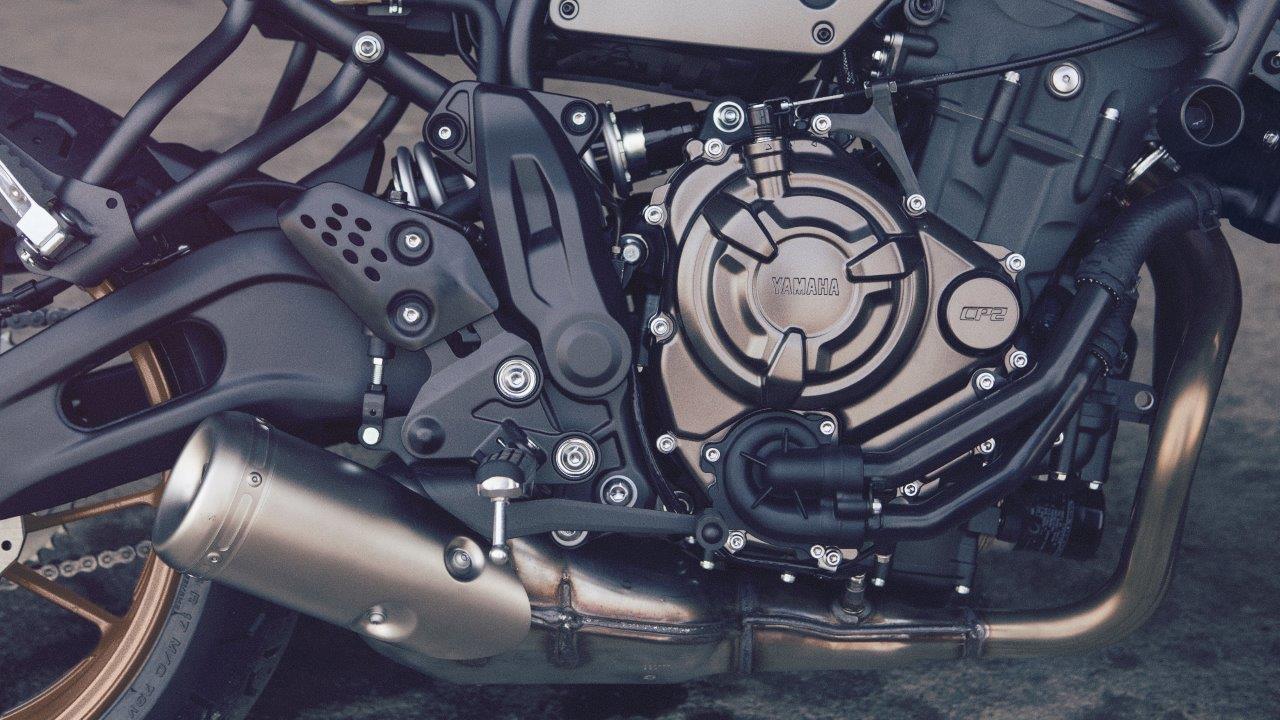

    The XSR700 features a compact 689cc liquid-cooled, inline twin-cylinder, DOHC engine with fuel injection. This engine provides a unique power character, with outstanding low- to mid-range torque and very linear throttle response, combined with strong high-rpm pulling power. This motor develops 50 foot-pounds of torque and is designed to maximize riding excitement in the real world.
  • Crossplane Crankshaft Concept
    The 2-cylinder engine features Yamaha’s “Crossplane Concept” 270-degree crank that provides linear torque development in response to the rider’s throttle input. The CP2® engine is also light, slim and compact and offers an excellent level of rider/machine communication
  • Offset Cylinder Block
    The paired cylinders of the XSR engine are shifted slightly forward compared to the center of the crankshaft. This reduces drag during each combustion stroke of the pistons and improves efficiency.
  • Vibration-Reducing Counterbalancer
    To reduce vibration and provide a smooth, modern engine character, the motor uses a geared counterbalancer, mounted low and forward on the engine.
  • Refined, Efficient Fuel Injection
    Electronic fuel injection settings deliver a smooth throttle response to enhance riding enjoyment from open roads to the urban sprawl. The system delivers outstanding torque in the low- and mid-rpm range along with an exciting acceleration in the upper rpm range. Combined with the efficient overall engine design, the XSR700 delivers an exceptional 58 mpg.
  • Compact 6-Speed Transmission
    The XSR700’s 6-speed transmission takes full advantage of the low-to-mid-range torque and excellent response of the twin-cylinder motor, while further enhancing the compact engine design thanks to triangulated input and outputs shafts.

CHASSIS/SUSPENSION

  • Standout Style
    The XSR700 blends Yamaha’s world-class engineering with timeless style, creating a new type of machine for riders looking for an authentic and honest motorcycle that doesn’t sacrifice performance. Drawing influence from Yamaha’s classic “XS” series of motorcycles, the XSR oozes class, with exposed aluminum details, retro-influenced bodywork, stepped seat and custom lighting and instrumentation.
  • Compact, Sporty Chassis
    A lightweight diamond-type high tensile steel frame provides an optimized rigidity balance for light, agile handling and stability. The engine is a stressed member of the chassis, allowing a lighter, more compact main frame design.
  • Street-Focused Suspension
    The 41mm front fork and link-type Monocross rear shock each provide 5.1 inches of suspension travel and are tuned to provide a balance of comfort and control ideal for the street. The shock uses an almost horizontal alignment, which helps make the chassis much more compact, while rear spring preload adjustment allows the rider to tailor the suspension to match rider weight or load.
  • Powerful Braking with ABS
    The XSR700 provides strong, controllable braking power thanks to modern braking components, including paired floating 282mm front discs with 4-piston calipers and a 245mm rear disc. ABS comes standard to prevent wheel lock under hard deceleration.
  • Lightweight Wheels
    Lightweight 10-spoke cast-aluminum wheels are fitted with a 120/70ZR17 front tire and 180/55ZR17 rear tire for excellent traction and handling feel. The XSR700 also features Pirelli® Phantom Sportcomp tires that combine modern construction and performance with a stylish retro design.

ADDITIONAL FEATURES

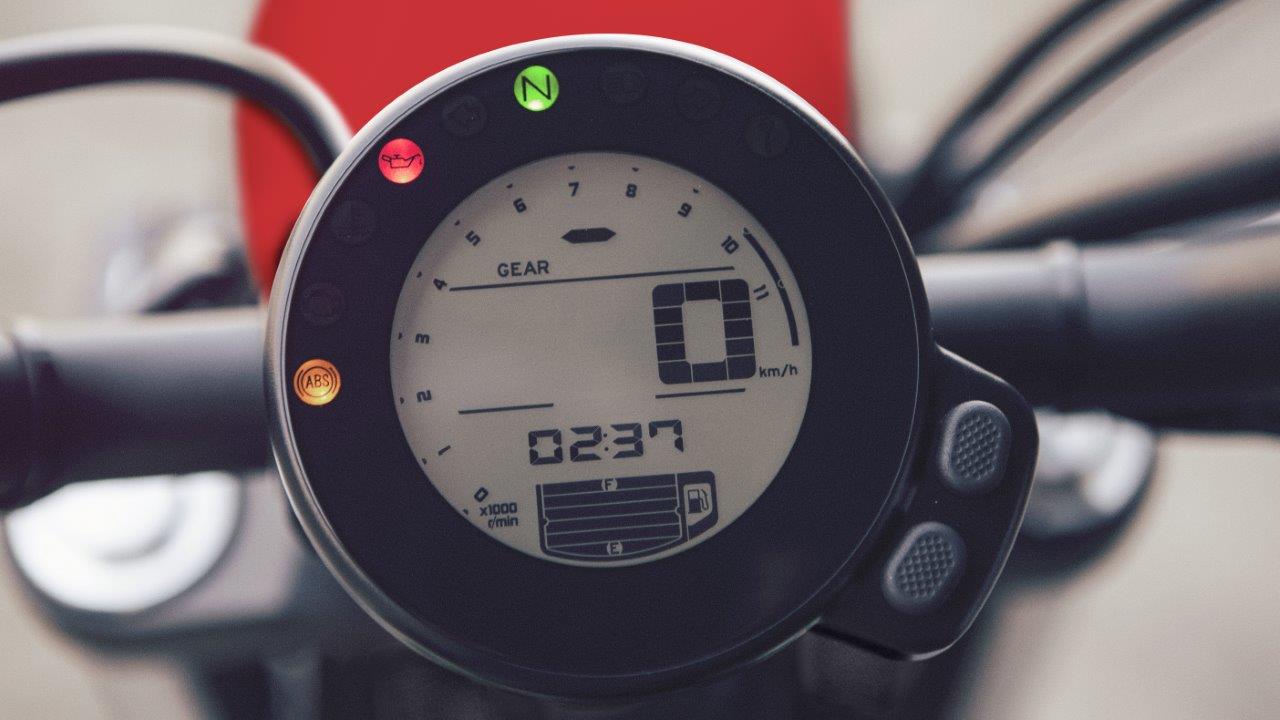

  • Advanced Instrumentation

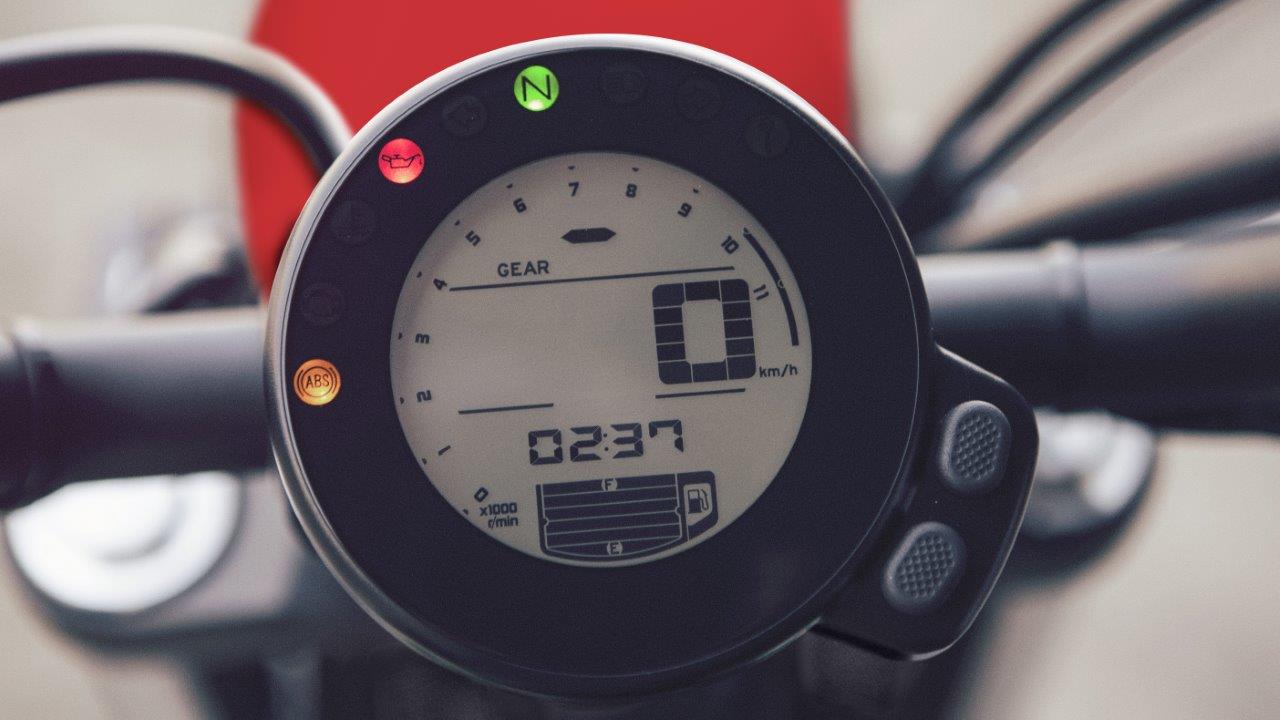

    The new round LCD panel features a ton of information: digital tachometer, speedometer, gear position, eco mode indicator, ambient and coolant temperature, a fuel gauge and range of trip computer functions, including a clock, instant, and average fuel consumption, fuel reserve trip meter and the usual trip meters.
  • Classically-styled Lighting
    Up front, a large, round multi-reflector headlight provides both style and illumination in equal measure, complete with trick aluminum supports, while out back, a round all-LED tail and brake light are mounted above the rear fender.
  • Stylish and Ergonomic Fuel Tank
    A compact 3.7-gallon fuel tank is shrouded by beautifully shaped and hand-finished aluminum side covers for a timeless design.
  • Casual but Sporty Ergonomics
    A tall, wide handlebar, stitched two-level seat, and perfectly placed foot controls provide a comfortably upright riding position ideal for urban traffic or hustling down a twisty road.
  • Unique XSR700 Detailing

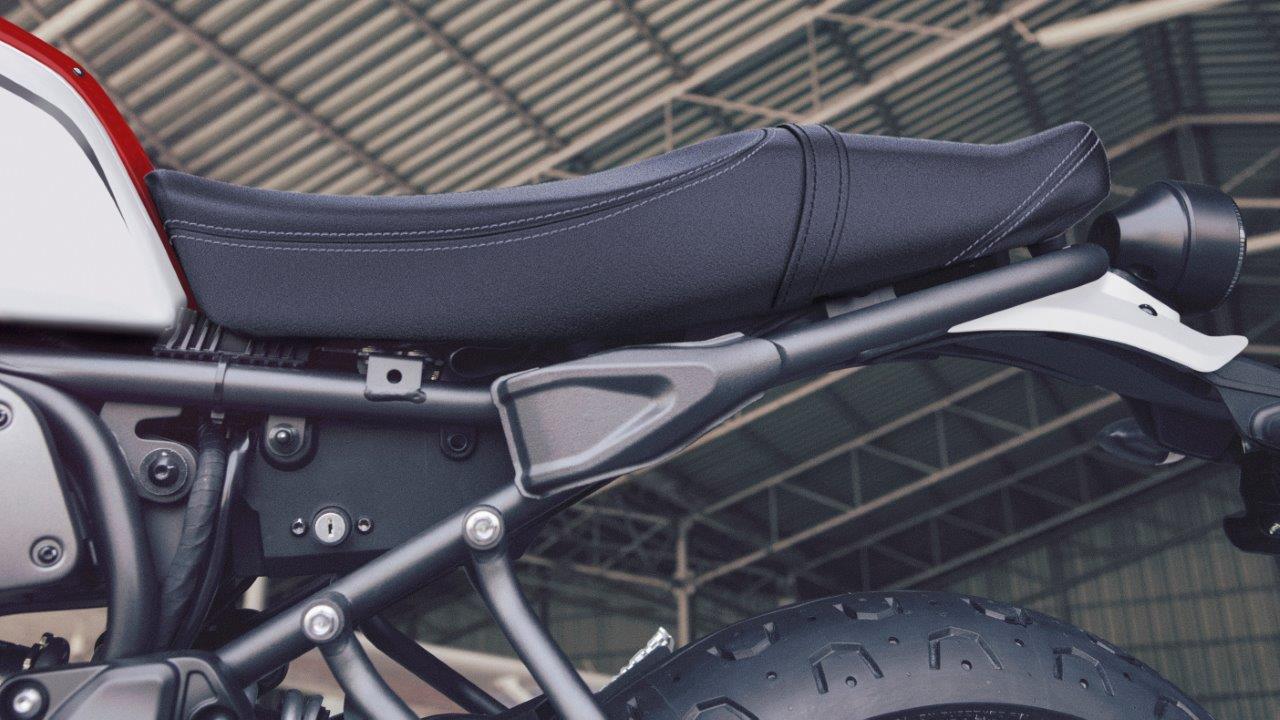

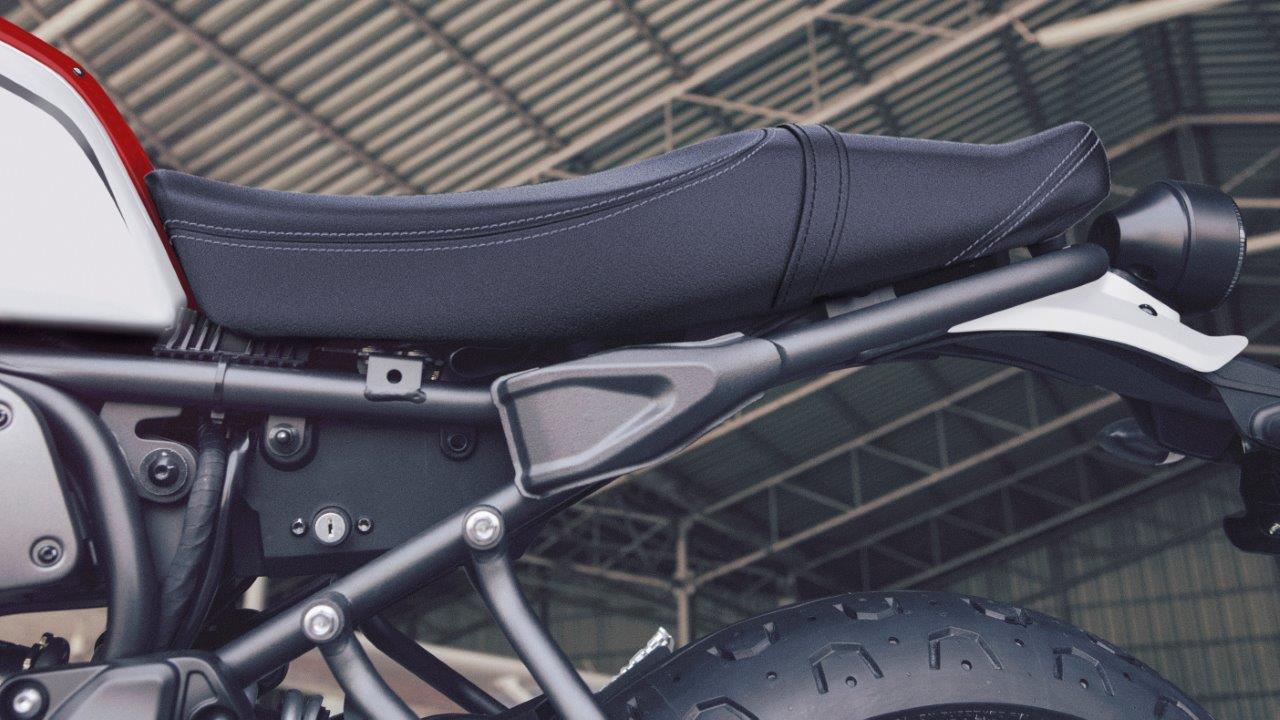

    Every aspect of the XSR700 shows Yamaha’s attention to detail: The single-piece stitched saddle. The classic teardrop mirrors with excellent rearward visibility. The compact radiator, flanked by exposed aluminum covers. A removable subframe that simplifies customization. The naked aluminum accents and fender mount. The XSR700 demands a second look, every time.


2020 Yamaha XSR700 Photos


2020 Yamaha XSR700 Videos
