Honda XL200R Motorcycles

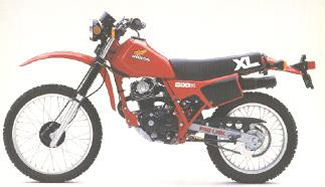

1983 XL200R’83

Engine

Engine Type OHC single cylinder
Displacement 195cc

DRIVETRAIN

Transmission 5-speed

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

Color just one color: Monza Red
  • The fuel tank, side covers, fenders, and frame were red
  • The side cover panels, seat, and fork boots were black
  • The “200R” side cover decal was solid white
  • The California model serial number began JH2MD0611DK000001 while the other 49 states models had a serial number which began JH2MD0602DK000001.

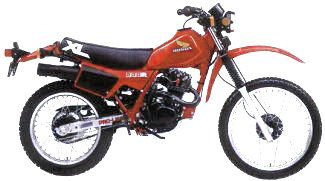

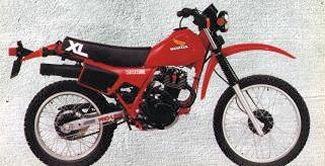

1984 XL200R’84



Engine

Engine Type OHC single cylinder
Displacement 195cc

DRIVETRAIN

Transmission 5-speed

CHASSIS / SUSPENSION / BRAKES

N/A
Front Suspension Air-assisted fork
Rear Suspension Pro-LinkTM
Front wheel travel 220mm (8.7 in.)
Rear wheel travel 190mm (7.5 in.)

DIMENSION

Wheelbase 1373mm (54 in.)
Dry weight 106 kg (233.6 lb)
Seat height Seat height

OTHER

  • It also came in one color: Monza Red
  • It was just like the 1983 model except the “200R” side cover decal was red with a white outline
  • The California model serial number began JH2MD0616EK100001 while the other 49 states models had a serial number which began JH2MD0607EK000001.

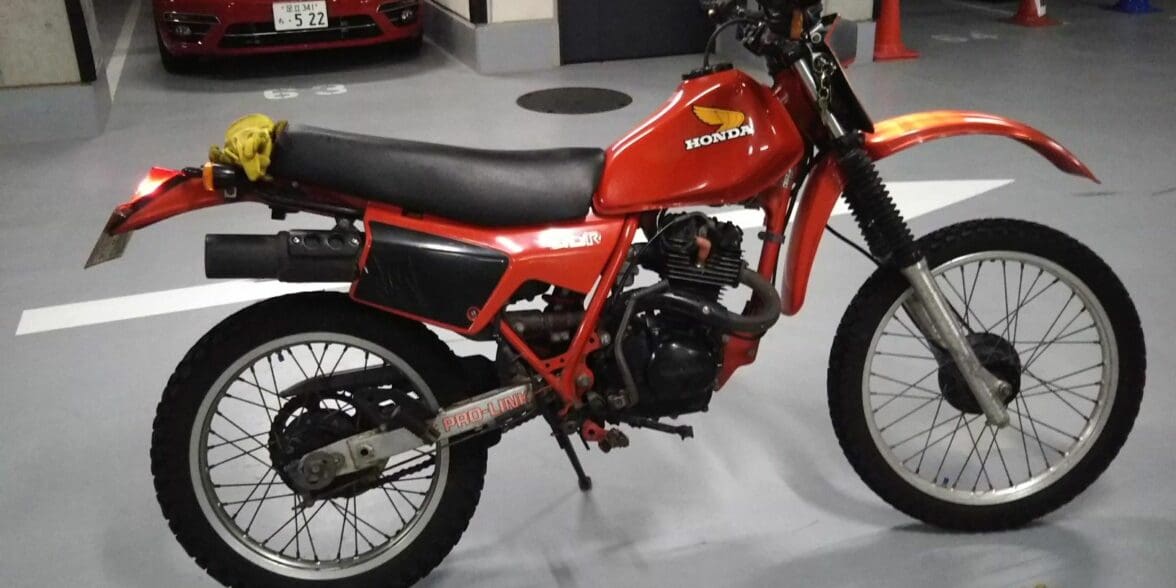

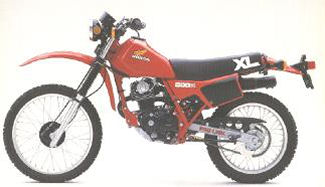

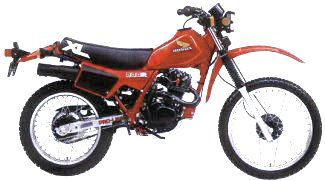

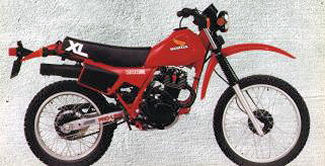

XL200R Image Gallery
