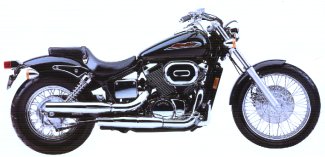

Honda Shadow Spirit 750 (VT750C) Motorcycles


2001 VT750DC’01 SHADOW SPIRIT 750

Engine

Engine Type 745cc Liquid cooled, 52° V-twin, single pin crank
Bore And Stroke 79mm x 76mm
Compression Ratio 9:1
Carburetion Twin 36mm, diaphragm-type CV
Valve Train SOHC; three valves per cylinder
Ignition
Starting

DRIVETRAIN

Transmission Wide-Ratio, 5-speed
Final Drive “O” ring chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork, 130mm travel
Rear Suspension Dual shocks with 5-way spring preload adjustment, 90mm travel
Front Brakes Single 296mm disc with twin piston caliper
Rear Brake Mechanical drum
Front Tire 110/80H-19
Rear Tire 160/80H-15

DIMENSION

Rake
Trail
Wheelbase 1640mm (64.8″)
Seat Height 676mm (26.6″)
Dry Weight 225 kg (496 lb)
Fuel Tank Capacity 13.6 liters

OTHER

Color Black or White
Warranty

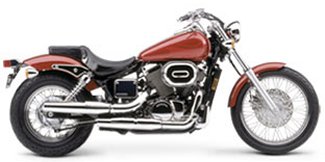

2003 VT750DC

Engine

Engine Type 745cc liquid-cooled 52° V-twin
Bore And Stroke
Compression Ratio 9.0:1
Carburetion
Valve Train
Ignition
Starting

DRIVETRAIN

Transmission Wide-Ratio, 5-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension
Rear Suspension
Front Brakes
Rear Brake
Front Tire 110/80-19
Rear Tire 160/80-15

DIMENSION

Rake
Trail
Wheelbase 1645mm (64.8 in.)
Seat Height 675mm (26.6 in.)
Dry Weight 225 kg (496 lb)
Fuel Tank Capacity 13.6 liters

OTHER

Color
  • Candy Dark Red Flame
  • Pearl Purple Flame
  • Black
Warranty

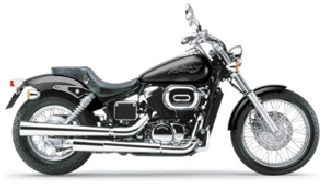

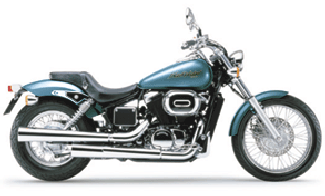

2004 Shadow VT750DC

Engine

Engine Type 745cc Liquid-cooled 4-stroke SOHC 52° degrees V-twin
Bore And Stroke 79 x 76mm
Compression Ratio 9.0:1
Carburetion 34mm CV-type x 2
Valve Train
Max Power Output 44bhp at 5,500 rpm
Max Torque 63Nm at 5,000 rpm
Ignition Capacitor Discharge (CDI) with electronic advance
Starting Electric

DRIVETRAIN

Transmission 5-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm telescopic fork, 108mm axle travel
Rear Suspension Dual conventional dampers with 5-step adjustable spring preload, 80mm axle travel
Front Brakes 296mm hydraulic disc with dual-piston caliper
Rear Brake 180mm leading/trailing drum
Front Tire 110/80-19 (59S)
Rear Tire 160/80-15M/C (74S)

DIMENSION

Length x Width x Height 2,310 x 800 x 1,070mm
Ground Clearance 140mm
Wheelbase 1,640mm
Seat Height 675mm
Dry Weight 221kg
Fuel Tank Capacity 13.4 litres (including 4.8 litre reserve)

OTHER

Color
Warranty

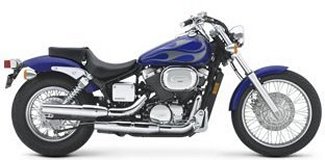

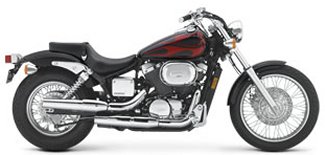

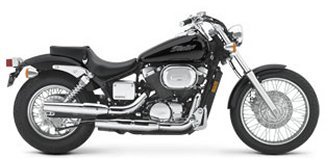

2005 Shadow Spirit 750 VT750DC

Engine

Engine Type 745cc liquid-cooled 52-degree V-twin
Bore And Stroke 79 x 76mm
Compression Ratio 9.0:1
Carburetion Two 34mm diaphragm-type CV
Valve Train
Max Power Output
Max Torque
Ignition CD with electronic advance, two spark plugs per cylinder
Starting

DRIVETRAIN

Transmission Wide-ratio five-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 5.1-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
Front Brakes Single 296mm disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/80-19
Rear Tire 160/80-15

DIMENSION

Length x Width x Height
Ground Clearance
Wheelbase 64.8 inches
Seat Height 26.6 inches
Dry Weight 496.0 pounds
Fuel Tank Capacity 3.6 gallons, including 1.3-gallon reserve

OTHER

Color
  • Black
  • Black/Red Flame
  • Pearl Blue/Metallic Silver Flame
Warranty
Emissions California version differs slightly due to emissions equipment.
Model ID VT750DC
Warranty 1 year

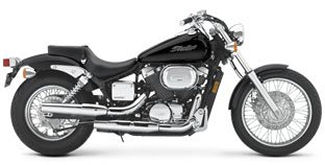

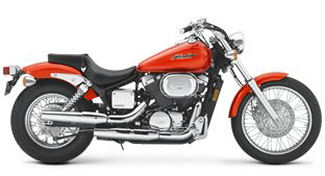

2006 VT750DC Shadow Spirit

Engine

Engine Type 745cc liquid-cooled 52-degree V-twin
Bore And Stroke 79 x 76mm
Compression Ratio 9.0:1
Carburetion Two 34mm diaphragm-type CV
Valve Train SOHC; three valves per cylinder
Max Power Output
Max Torque
Ignition CD with electronic advance, two spark plugs per cylinder
Starting

DRIVETRAIN

Transmission Wide-ratio five-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 5.1-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
Front Brakes Single 296mm disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/80-19
Rear Tire 160/80-15

DIMENSION

Rake 34-degree
Trail 152mm (6.0 inches)
Wheelbase 64.8 inches
Seat Height 26.6 inches
Dry Weight 496.0 pounds
Fuel Tank Capacity 3.6 gallons, including 1.3-gallon reserve

OTHER

Color
  • Candy Dark Red/Flame
  • Candy Orange
  • Black
  • Titanium/Flame
Warranty
Emissions California version differs slightly due to emissions equipment.
Model ID VT750DC
Warranty

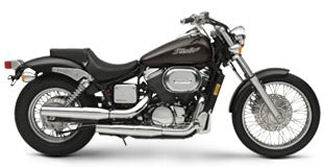

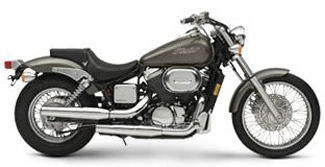

2007 VT750DC Shadow Spirit 750

Engine

Engine Type 745cc liquid-cooled 52-degree V-twin
Bore And Stroke 79 x 76mm
Compression Ratio 9.0:1
Carburetion Two 34mm diaphragm-type CV
Valve Train SOHC; three valves per cylinder
Max Power Output
Max Torque
Ignition CD with electronic advance, two spark plugs per cylinder
Starting

DRIVETRAIN

Transmission Wide-ratio five-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 5.1-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
Front Brakes Single 296mm disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/80-19
Rear Tire 160/80-15

DIMENSION

Rake 34-degree
Trail 152mm (6.0 inches)
Wheelbase 64.8 inches
Seat Height 26.6 inches
Dry Weight 496.0 pounds
Fuel Tank Capacity 3.6 gallons, including 1.3-gallon reserve

OTHER

Color
  • Candy Dark Red
  • Black
  • Black/Red Pinstripe Flame
  • Metallic Titanium
Warranty
Emissions California version differs slightly due to emissions equipment.
Model ID VT750DC
Warranty

2008 VT750DC Shadow Spirit 750

Engine

Engine Type 745cc liquid-cooled 45 degree V-twin
Bore And Stroke 79 x 76mm
Compression Ratio 9.0:1
Carburetion Two 34mm diaphragm-type CV
Valve Train
Max Power Output
Max Torque
Ignition CD with electronic advance, two spark plugs per cylinder
Starting

DRIVETRAIN

Transmission Wide-ratio five-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 5.1-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
Front Brakes Single 296mm disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/80-19
Rear Tire 160/80-15

DIMENSION

Rake
Trail
Wheelbase 64.8 inches
Seat Height 26.6 inches
Curb Weight N/A lbs.
Fuel Tank Capacity N/A gal.

OTHER

Color Candy Dark Red, Black, Black/Red Pinstripe Flame, Metallic Titanium
Warranty 1 Year
Emissions
Model ID
Price $6449
