Honda Reflex 250 (NSS250) Motorcycles


2001 NSS250 Reflex 250

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER

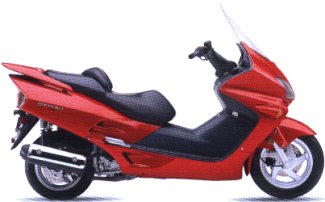

2002 Reflex (NSS250)

OVERVIEW

  • It was a scooter with an automatic transmission that needed no shifting even into Neutral or Park

Engine

Engine Type 249cc liquid-cooled, four-stroke, single-cylinder, SOHC
Bore And Stroke 72.7 x 60mm
Compression Ratio 10.5:1
Carburetor 30mm CV, auto-choke
Valve Train SOHC; two valves per cylinder
Ignition Transistorized
Starter
Max Power
Max Torque

DRIVETRAIN

Transmission Automatic V-MaticTM
Final Drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension 3.9 in. travel
Rear Suspension 4.7 in. travel, 7-way preload adjustment
Front Brakes Triple piston, single 240mm disc
Rear Brake Single piston, single 220mm disc
Front Tire 110/90-13
Rear Tire 130/70-12

DIMENSION

Rake
Luggage capacity 33 liters
Wheelbase 60.8 inches (1544 mm)
Seat Height 28.3 inches (719 mm)
Dry Weight 351 pounds (160 kg) – ABS Dryweight: 362 pounds (165 kg)
Fuel Tank Capacity 3.2 gallons (12 liters)

OTHER

Model Reflex NSS250
Color
  • Metallic Red
  • Metallic Silver
  • Gold
  • Candy Dark Red
Warranty

2003 Reflex 250 (NS250)

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER

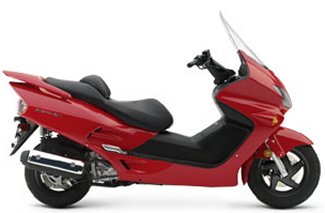

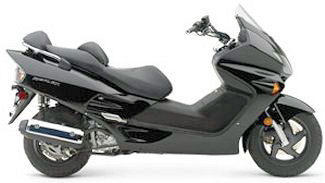

2004 Reflex 250 (NS250)

Engine

Engine Type 249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke 72.7 x 60mm
Compression Ratio 10.5:1
Fuel Delivery 30mm CV with auto-enricher
Valve Train SOHC; two valves per cylinder
Ignition Fully transitorized
Starter
Max Power
Max Torque

DRIVETRAIN

Transmission Automatic V-MaticTM
Final Drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes Single 240.0mm disc with CBS three-piston caliper
Rear Brake Single 220.0mm disc with CBS single-piston caliper
Front Tire 110/90-13
Rear Tire 130/70-12

DIMENSION

Rake
Luggage capacity
Wheelbase 60.8 inches (1544 mm)
Seat Height 28.3 inches (719 mm)
Dry Weight 351 pounds (160 kg)
Fuel Tank Capacity 3.2 gallons (12 liters)

OTHER

Emissions California version differs slightly due to emissions equipment.
Color
  • Black
  • Red
Warranty 1 year

2004 Reflex 250 ABS (NS250A)

Engine

Engine Type 249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke 72.7 x 60mm
Compression Ratio 10.5:1
Fuel Delivery 30mm CV with auto-enricher
Valve Train SOHC; two valves per cylinder
Ignition Fully transitorized
Starter
Max Power
Max Torque

DRIVETRAIN

Transmission Automatic V-MaticTM
Final Drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes Single 240.0mm disc with CBS three-piston caliper with Anti-Lock Braking System®
Rear Brake Single 220.0mm disc with CBS single-piston caliper with Anti-Lock Braking System®
Front Tire 110/90-13
Rear Tire 130/70-12

DIMENSION

Rake
Luggage capacity
Wheelbase 60.8 inches (1544 mm)
Seat Height 28.3 inches (719 mm)
Dry Weight 362.0 pounds
Fuel Tank Capacity 3.2 gallons (12 liters)

OTHER

Emissions California version differs slightly due to emissions equipment.
Color
  • Black
  • Red
Warranty 1 year

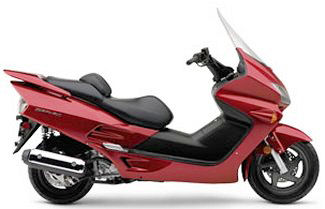

2005 Reflex 250 (NS250)

Engine

Engine Type 249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke 72.7 x 60mm
Compression Ratio 10.5:1
Fuel Delivery 30.0mm CV with auto-enricher
Valve Train SOHC; two valves per cylinder
Ignition Fully transitorized
Starter
Max Power
Max Torque

DRIVETRAIN

Transmission Automatic V-Matic belt drive
Final Drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes Single 240.0mm disc with CBS three-piston caliper
Rear Brake Single 220.0mm disc with CBS single-piston caliper (Opt: Anti-Lock Braking System®)
Front Tire 110/90-13
Rear Tire 130/70-12

DIMENSION

Rake
Luggage capacity
Wheelbase 60.8 inches (1544 mm)
Seat Height 28.3 inches (719 mm)
Dry Weight 375 pounds (ABS: 379 pounds)
Fuel Tank Capacity 3.2 gallons (12 liters)

OTHER

Emissions California version differs slightly due to emissions equipment.
Color Candy Dark Red
Warranty 1 year

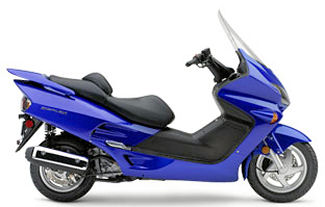

2006 NSS250

OVERVIEW

  • Overview: Where will you be riding? The highway? Back roads? Around town? The Reflex has got you covered. Featuring a smooth 249cc, liquid-cooled four-stroke engine, seamless automatic transmission, comfy two-up seating, it’s perfect for going just about anywhere.

Engine

Engine Type 249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke 72.7 x 60mm
Compression Ratio 10.5:1
Fuel Delivery 30.0mm CV with auto-enricher
Valve Train SOHC; two valves per cylinder
Ignition Fully transitorized
Starter
Max Power
Max Torque

DRIVETRAIN

Transmission Automatic V-Matic belt drive
Final Drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes Single 240.0mm disc with Combined Braking System three-piston caliper
Rear Brake Single 220.0mm disc with Combined Braking System single-piston caliper (Opt: ABS)
Front Tire 110/90-13
Rear Tire 130/70-12

DIMENSION

Rake
Luggage capacity
Wheelbase 60.8 inches (1544 mm)
Seat Height 28.3 inches (719 mm)
Dry Weight 375 pounds (ABS: 379 pounds)
Fuel Tank Capacity 3.2 gallons (12 liters)

OTHER

Emissions California version differs slightly due to emissions equipment.
Color Candy Blue
Model ID NSS250

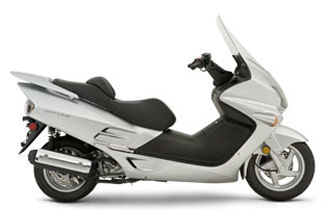

2007 NSS250

OVERVIEW

  • Overview: From city streets to country roads to long stretches of highway, the Reflex is one scooter that’s built for any number of rides. Its smooth 249cc engine, automatic transmission and comfortable seating for two deliver the goods to get you going, wherever the day takes you.

Engine

Engine Type 249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke 72.7 x 60mm
Compression Ratio 10.5:1
Fuel Delivery 30.0mm CV with auto-enricher
Valve Train SOHC; two valves per cylinder
Ignition Fully transitorized
Starter
Max Power
Max Torque

DRIVETRAIN

Transmission Automatic V-Matic belt drive
Final Drive

CHASSIS / SUSPENSION / BRAKES

Front Suspension 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brakes Single 240mm disc with Combined Braking System three-piston caliper
Rear Brake Single 220mm disc with Combined Braking System single-piston caliper (Opt: ABS)
Front Tire 110/90-13
Rear Tire 130/70-12

DIMENSION

Rake
Luggage capacity
Wheelbase 60.8 inches (1544 mm)
Seat Height 28.3 inches (719 mm)
Dry Weight 375 pounds (ABS: 379 pounds)
Fuel Tank Capacity 3.2 gallons (12 liters)

OTHER

Emissions California version differs slightly due to emissions equipment.
Color Light Silver Metallic
Model ID NSS250

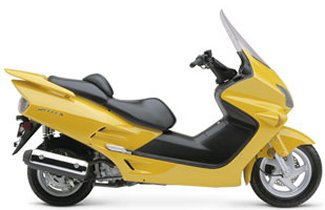

Honda Reflex 250 Photo Gallery
