Honda Magna250 Motorcycles

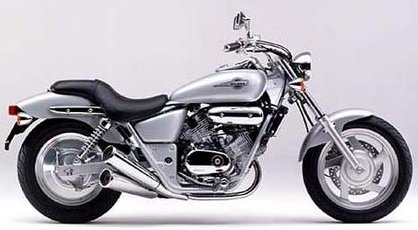

2002 Honda Magna 250



Engine

Displacement 249cc
Type Four-stroke DOHC V-2 cylinder
Bore & Stroke 60.0 x 44.1 mm
Compression 11.0:1
Valving 4 valves per cylinder
Cooling Liquid
Power 19.7 kW (27.0 HP) @ 10000 rpm
Torque 23.0 Nm (17 ft.lb) @ 7500 rpm
Fuel delivery Carburetor

DRIVETRAIN

Transmission 5-speed with a manual clutch

CHASSIS / SUSPENSION / BRAKES

Front brakes Single disc
Rear brakes Drum
Front tire 120/80-17 61S
Rear tire 150/80-15 M/C 70S

DIMENSION

Wheelbase 1620 mm (63.8″)
Overall height 1065 mm (41.9″)
Overall length 2315 mm (91.1″)
Overall width 880 mm (34.6″)
Lowest seat height 690 mm (27.2″) adjustable
Ground clearance 130 mm (5.1″)
Weight 171.0 kg (376.2 lb)
Fuel capacity 11.0 litres (2.90 Gal-US)
