Honda CRF150F Motorcycles

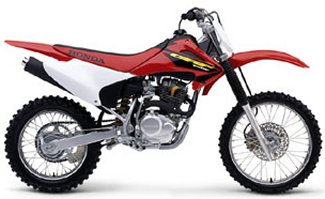

2003 CRF150F

Engine Type 156.8cc air-cooled single-cylinder four-stroke
Bore and Stroke 63.5mm x 49.5mm
Compression Ratio 9.0:1
Valve Train SOHC; two-valve
Fuel Delivery 24mm piston-valve
Ignition CDI
Transmission Five-speed
Final Drive #520 O-ring-sealed chain; 13T/48T
Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel
Front Brake Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16
Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 216.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve
Colors Red
Warranty 6 months

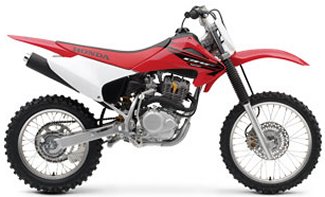

2005 CRF150F

Engine Type 156.8cc air-cooled single-cylinder four-stroke
Bore and Stroke 63.5mm x 49.5mm
Compression Ratio 9.0:1
Valve Train SOHC; two-valve
Fuel Delivery 24mm piston-valve
Ignition CDI
Transmission Five-speed
Final Drive #520 O-ring-sealed chain; 13T/48T
Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel
Front Brake Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16
Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 216.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve
Colors Red
Warranty 6 months

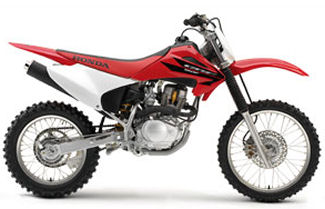

2006 CRF150F

Engine Type 156.8cc air-cooled single-cylinder four-stroke
Bore and Stroke 63.5mm x 49.5mm
Compression Ratio 9.0:1
Valve Train SOHC; two-valve
Fuel Delivery 24mm piston-valve
Ignition CDI
Transmission Five-speed
Final Drive #520 O-ring-sealed chain; 13T/48T
Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel
Front Brake Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16
Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 216.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve
Colors Red
Model ID CRF150F

2007 CRF150F

Overview:

This is the bike that’s a perfect fit for countless riders looking for full-sized fun in a mid-size machine. From its five-speed, manual-shift transmission and strong 149cc four-stroke engine to its adjustable rear shock, the electric-start CRF150F is just the ticket for beginner or veteran riders who want to step up their fun factor.

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore and Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Valve Train SOHC; two-valve
Fuel Delivery 24mm piston-valve
Ignition CDI
Transmission Five-speed
Final Drive #520 O-ring-sealed chain; 13T/48T
Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel
Front Brake Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16
Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 216.0 pounds
Fuel Capacity 2.2 gallons, including 0.4-gallon reserve
Colors Red
Model ID CRF150F

2009 CRF150F

Engine Type 149.0cc air-cooled single-cylinder four-stroke
Bore and Stroke 57.3mm x 57.8mm
Compression Ratio 9.5:1
Valve Train SOHC; two-valve
Fuel Delivery 57.3mm x 57.8mm
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain; 13T/48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35mm leading-axle Showa fork; 9.1-inch travel
Rear Suspension Pro-Link Showa single-shock; 8.8-inch travel
Front Brake Single 240mm disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 26.7 degrees
Trail 87.0mm (3.4 inches)
Wheelbase 52.2 inches
Seat Height 32.5 inches
Ground Clearance 10.0 inches
Dry Weight 216.0 pounds
Fuel Capacity 1.9 gallons, including 0.4-gallon reserve

OTHER

Emissions Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Available Colors Red
Model Id CRF150F
FACTORY WARRANTY 6 months; Transferable, limited warranty

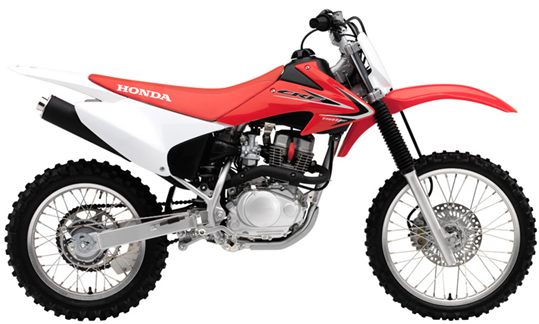

2012 CRF150F



Engine Type Air-cooled single-cylinder four-stroke
Displacement 149 cc
Bore and Stroke 57.3 mm x 57.8 mm
Compression Ratio 9.5:1
Valve Train SOHC; two-valve
Fuel Delivery
  • Canada: Single 22 mm piston-valve carb
  • USA: 24mm piston-valve carburetor
Ignition CDI

DRIVETRAIN

Transmission Five-speed
Final Drive #520 O-ring-sealed chain; 13T/48T
Rear Sprocket
  • Canada: 47T
  • USA: 48T

CHASSIS / SUSPENSION / BRAKES

Front Suspension 35 mm leading-axle Showa fork; 207 mm (8.1 in.) travel
Rear Suspension Pro-Link Showa single shock; 227 mm (8.9 in.) travel
Front Brake Single 240mm disc with dual-piston caliper
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSION

Rake 6.7° (Caster Angle)
Trail 87mm (3.4 inches)
Wheelbase 1,328 mm (52.3 in.)
Seat Height 832 mm (32.8 in.)
Ground Clearance 257 mm (10.1 in.)
Curb Weight 106 kg (234 lb) including required fluids and full tank of gas – ready to ride
Fuel Capacity 7 litres (1.9 GalUS), including 1.6-litre (0.4 Gal) reserve

OTHER

Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
 Colors Extreme Red
Model Id CRF150F
 WARRANTY 6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
MSRP $4,149

CRF150F Image Gallery
