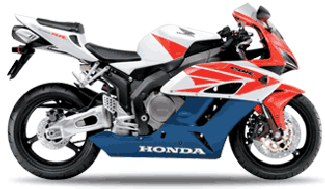

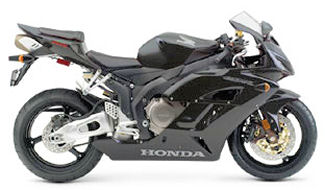

Honda CBR1000RR Motorcycles

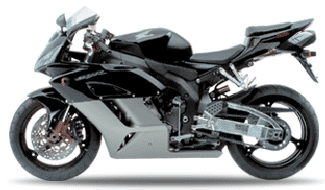

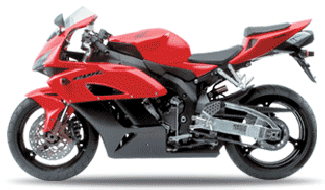

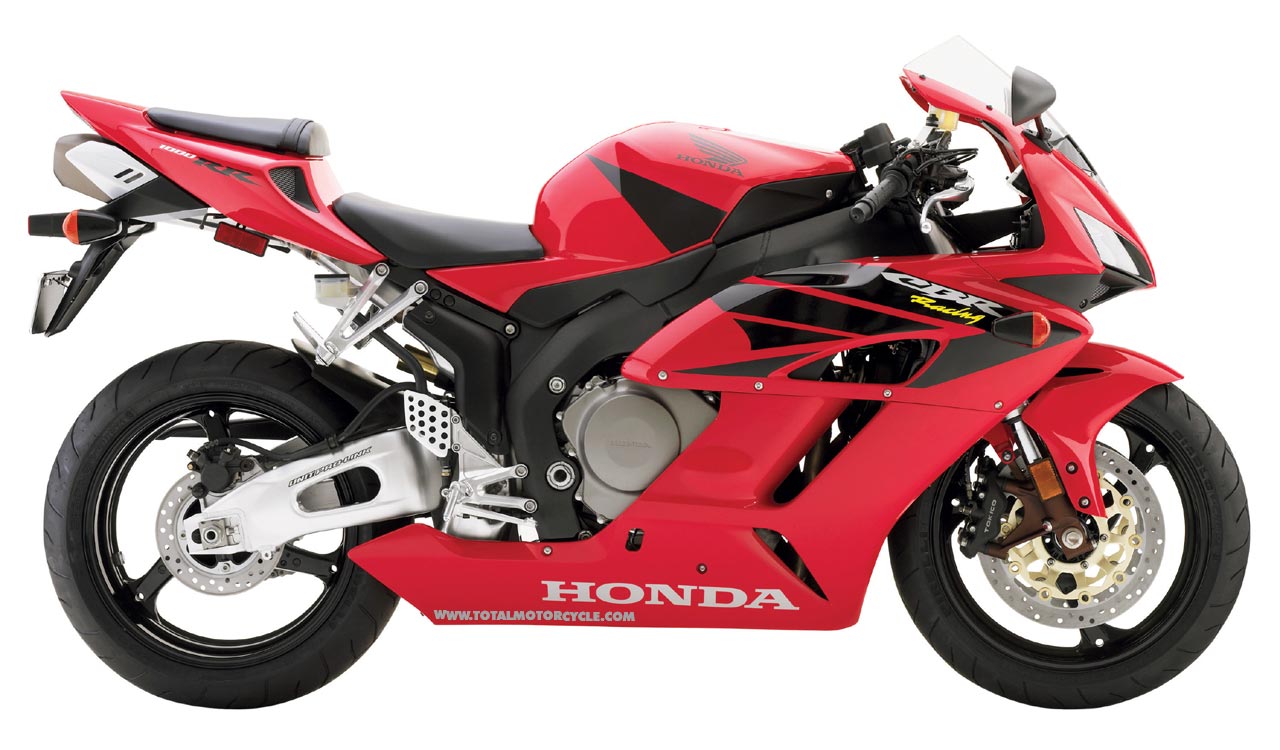

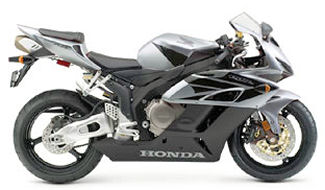

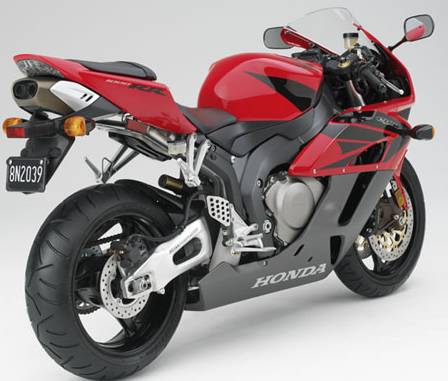

CBR1000RR

OVERVIEW

  • In 2003, the engine of the FireBlade was 954cc. The increase came from a longer stroke (54mm to 56.5mm)

Engine

Engine Type 998cc liquid-cooled inline four-cylinder
Bore and Stroke 75.0mm x 56.5mm
Compression Ratio 11.9:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Cassette-type, close-ratio six-speed
Final drive #530 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel
Rear Suspension HMAS Pro-Link single shock with spring-preload, rebound- and compression-damping adjustability; 5.3-inch travel
Front Brakes: Dual full-floating 310.0mm discs with four-piston radial-mounted calipers
Rear Brake Single 220.0mm disc with single-piston caliper
Tires 120/70ZR-17 radial
Brakes 190/50ZR-17 radial

DIMENSION

Rake 23.75 degrees
Trail 102.0mm (4.0 inches)
Wheelbase 55.6 inches
Seat Height 32.5 inches
Fuel Capacity 4.8 gallons, including 1.06-gallon reserve

OTHER

Colors
  • Black
  • Metallic Silver/Black
  • Red/Black
Emissions California version meets CARB 2004 emissions standards.
Model ID CBR1000RR
Warranty 1 year

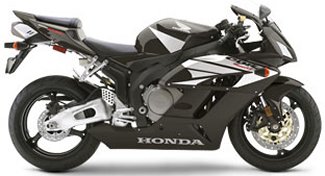

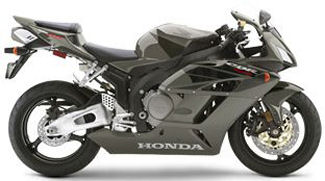

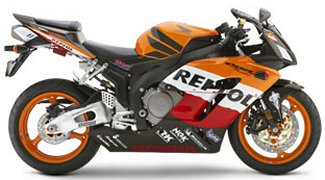

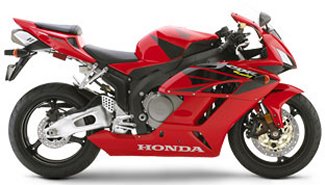

2005 CBR1000RR

Engine

Engine Type 998cc liquid-cooled inline four-cylinder
Bore and Stroke 75.0mm x 56.5mm
Compression Ratio 11.9:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Cassette-type, close-ratio six-speed
Final drive #530 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel
Rear Suspension HMAS Pro-Link single shock with spring-preload, rebound- and compression-damping adjustability; 5.3-inch travel
Front Brakes: Dual full-floating 310.0mm discs with four-piston radial-mounted calipers
Rear Brake Single 220.0mm disc with single-piston caliper
Tires 120/70ZR-17 radial
Brakes 190/50ZR-17 radial

DIMENSION

Rake 23.75 degrees
Trail 102.0mm (4.0 inches)
Wheelbase 55.6 inches
Seat Height 32.5 inches
Fuel Capacity 4.8 gallons, including 1.06-gallon reserve

OTHER

Colors
  • Black/Metallic Silver
  • Red/Black
  • Titanium/Black
  • Blue/Orange/White/Red
Emissions N/A
Model ID CBR1000RR
Warranty 1 year

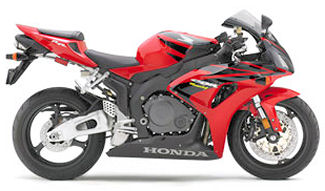

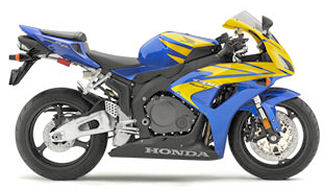

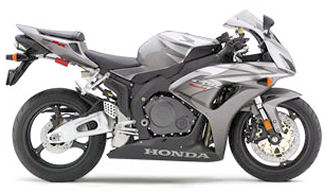

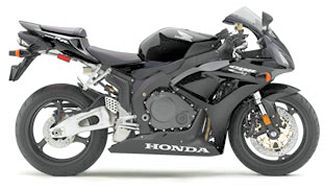

2006 CBR1000RR

Engine

Engine Type 998cc liquid-cooled inline four-cylinder
Bore and Stroke 75.0mm x 56.5mm
Compression Ratio 12.2:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Cassette-type, close-ratio six-speed
Final drive #530 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel
Rear Suspension HMAS Pro-Link single shock with spring-preload, rebound- and compression-damping adjustability; 5.3-inch travel
Front Brakes: Dual full-floating 310.0mm discs with four-piston radial-mounted calipers
Rear Brake Single 220.0mm disc with single-piston caliper
Tires 120/70ZR-17 radial
Brakes 190/50ZR-17 radial

DIMENSION

Rake 23.75 degrees
Trail 100.0mm (3.9 inches)
Wheelbase 55.2 inches
Seat Height 32.3 inches
Dry Weight 388.0 pounds
Fuel Capacity 4.8 gallons, including 1.06-gallon reserve

OTHER

Colors
  • Black
  • Candy Blue/Yellow
  • Red/Black
  • Silver/Metallic Silver
Emissions Meets current CARB and EPA standards
Model ID CBR1000RR

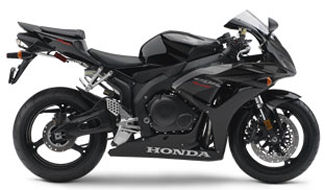

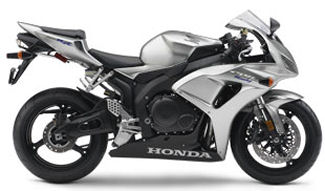

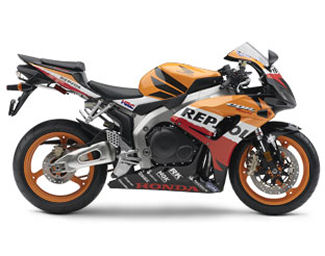

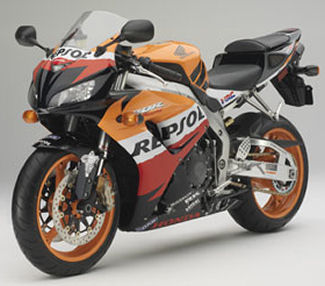

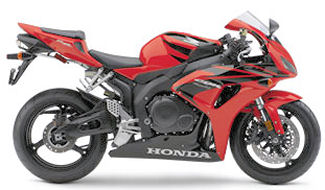

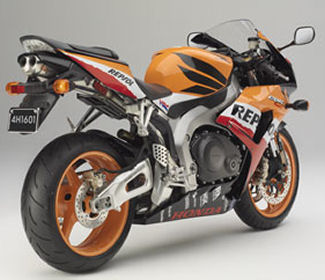

2007 CBR1000RR

OVERVIEW

  • Calling the CBR1000RR a “Superbike” almost doesn’t do this machine justice. Where else can you find so much Honda RC211V MotoGP technology — 998cc DOHC inline four with dual-stage fuel injection, all-aluminum frame, Unit Pro-Link rear suspension, center-up exhaust — packed into one leading-edge literbike? Hint: Nowhere.

Engine

Engine Type 998cc liquid-cooled inline four-cylinder
Bore and Stroke 75.0mm x 56.5mm
Compression Ratio 12.2:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Cassette-type, close-ratio six-speed
Final drive #530 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel
Rear Suspension HMAS Pro-Link single shock with spring-preload, rebound- and compression-damping adjustability; 5.3-inch travel
Front Brakes: Dual full-floating 310.0mm discs with four-piston radial-mounted calipers
Rear Brake Single 220.0mm disc with single-piston caliper
Tires 120/70ZR-17 radial
Brakes 190/50ZR-17 radial

DIMENSION

Rake 23.75 degrees
Trail 100.0mm (3.9 inches)
Wheelbase 55.2 inches
Seat Height 32.3 inches
Dry Weight 388.0 pounds
Fuel Capacity 4.8 gallons, including 1.06-gallon reserve

OTHER

Colors
  • Light Silver Metallic
  • Red/Black
  • Black/Metallic Gray
  • Blue/Orange/White/Red
Emissions Meets current CARB and EPA standards. California version differs slightly due to emissions standards.
Model ID CBR1000RR

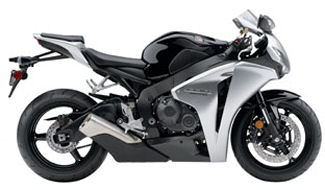

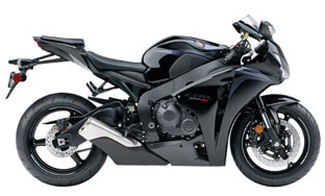

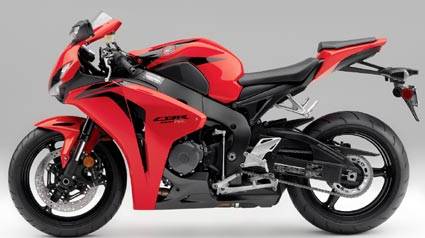

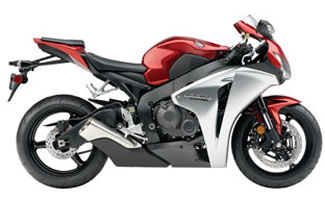

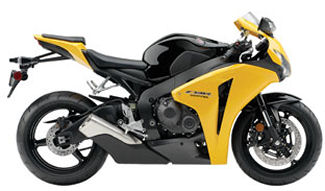

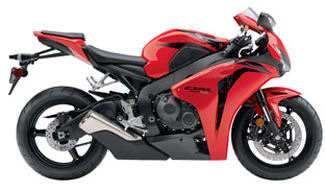

2008 CBR1000RR

OVERVIEW

  • There’s nothing like a liter-bike when it comes to awesome performance. But for 2008, Honda’s taking that level of performance — and handling — to a whole new level. New engine. New chassis. MotoGP-style exhaust. The all-new CBR1000RR is a Superbike that handles like a 600, but is built to dominate the Superbike class.

Engine

Engine Type 999cc liquid-cooled inline four-cylinder
Bore and Stroke 76mm x 55.1mm
Compression Ratio  12.3:1
Valve Train DOHC; four valves per cylinder
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Cassette-type, close-ratio six-speed
Final drive #530 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel
Rear Suspension HMAS Pro-Link single shock with spring-preload, rebound- and compression-damping adjustability; 5.3-inch travel
Front Brakes: Dual full-floating 310.0mm discs with four-piston radial-mounted calipers
Rear Brake Single 220.0mm disc with single-piston caliper
Tires 120/70ZR-17 radial
Brakes 190/50ZR-17 radial

DIMENSION

Rake (Caster Angle): 23.3°
Trail 96.2mm (3.8 inches)
Wheelbase 55.4 inches
Seat Height 32.3 inches
Dry Weight TBD
Fuel Capacity 4.7 gallons, including 1.06-gallon reserve

OTHER

Colors
  • Red / Black
  • Black / Metallic Silver
  • Pearl Yellow / Black
  • Candy Dark Red / Metallic Silver
  • Black / Metallic Gray (2008 special color)
Emissions Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Model ID CBR1000RR

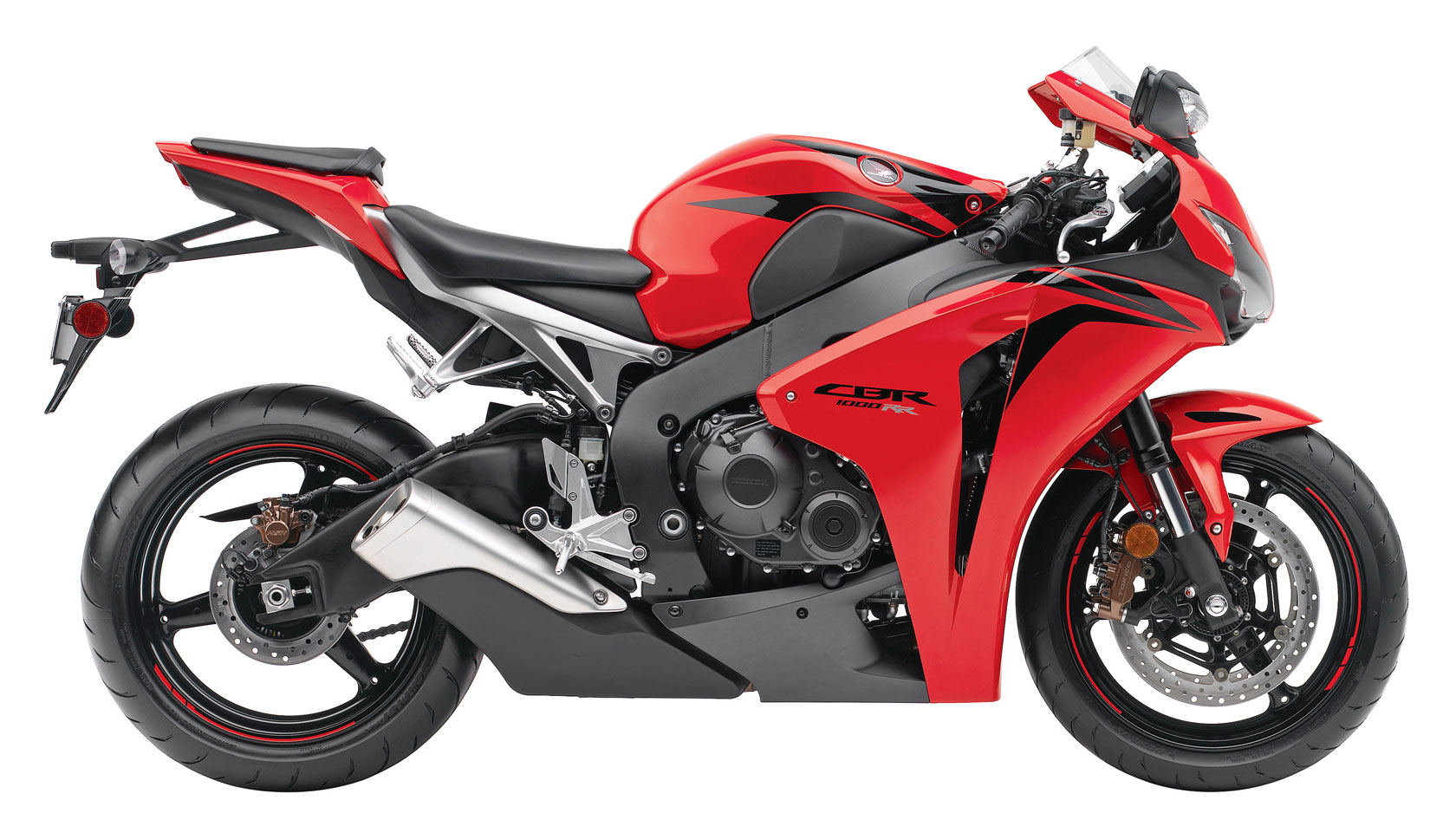

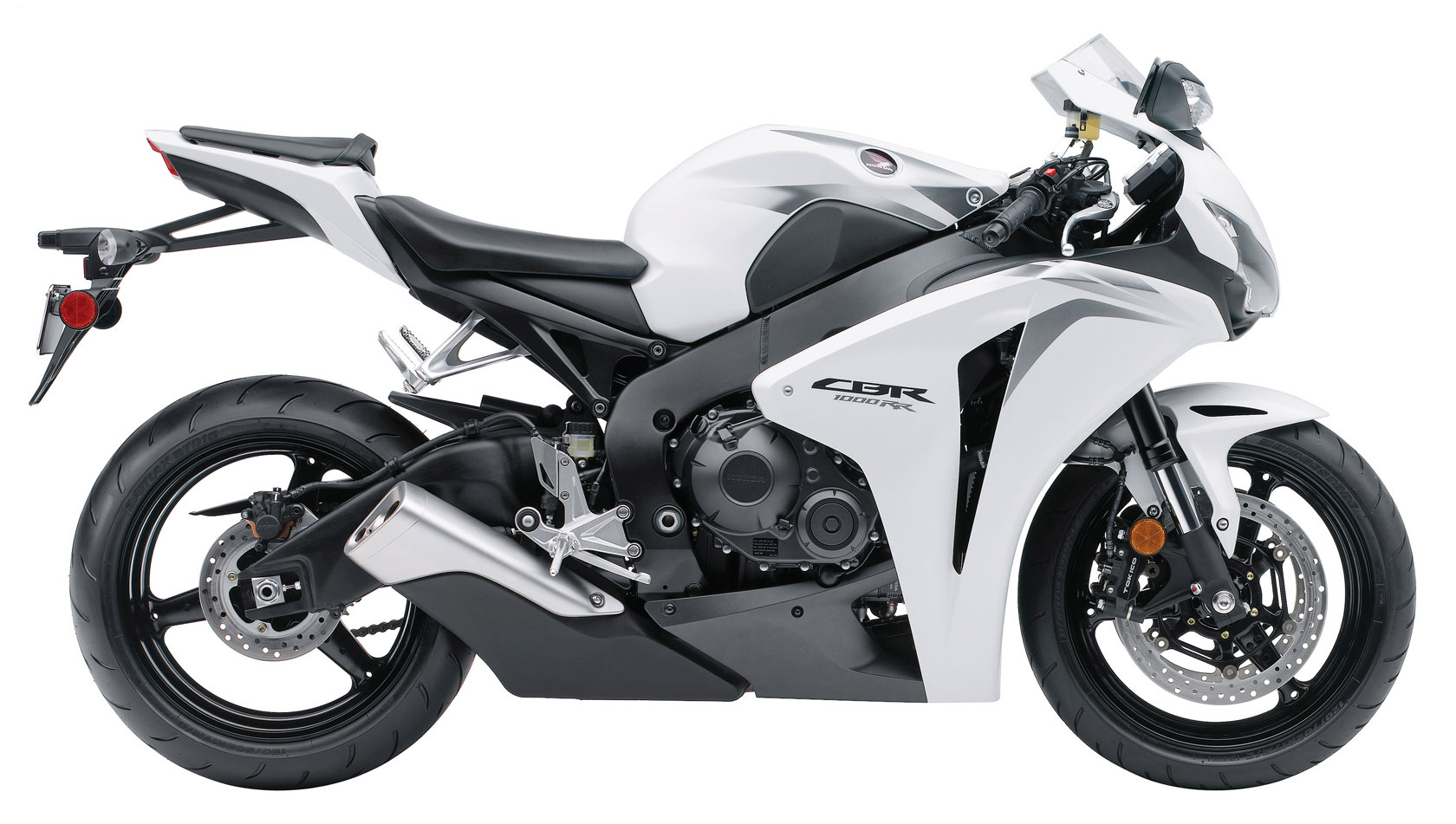

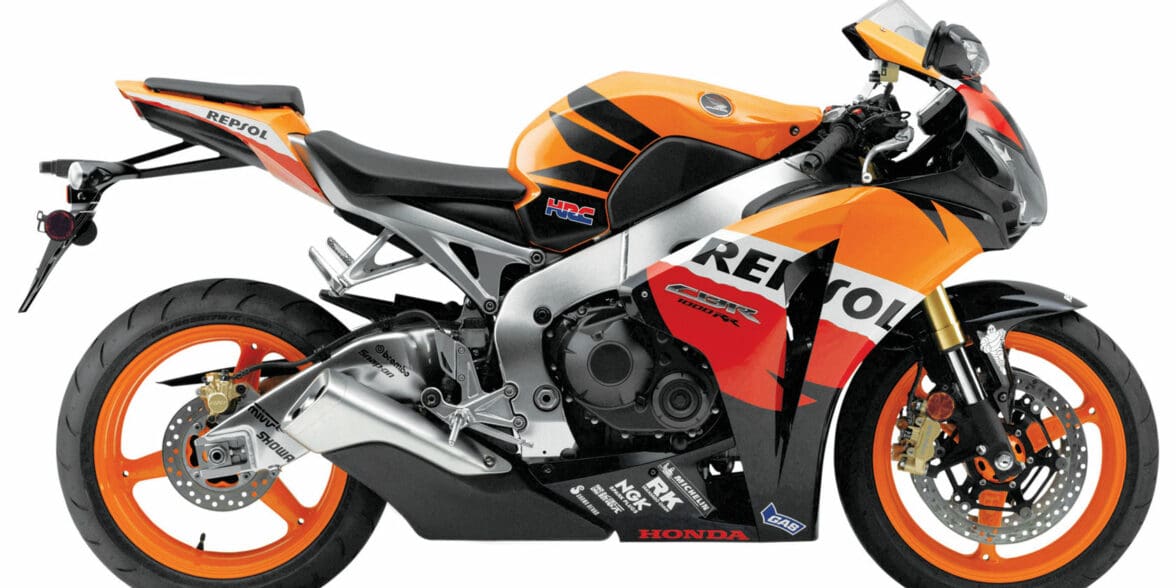

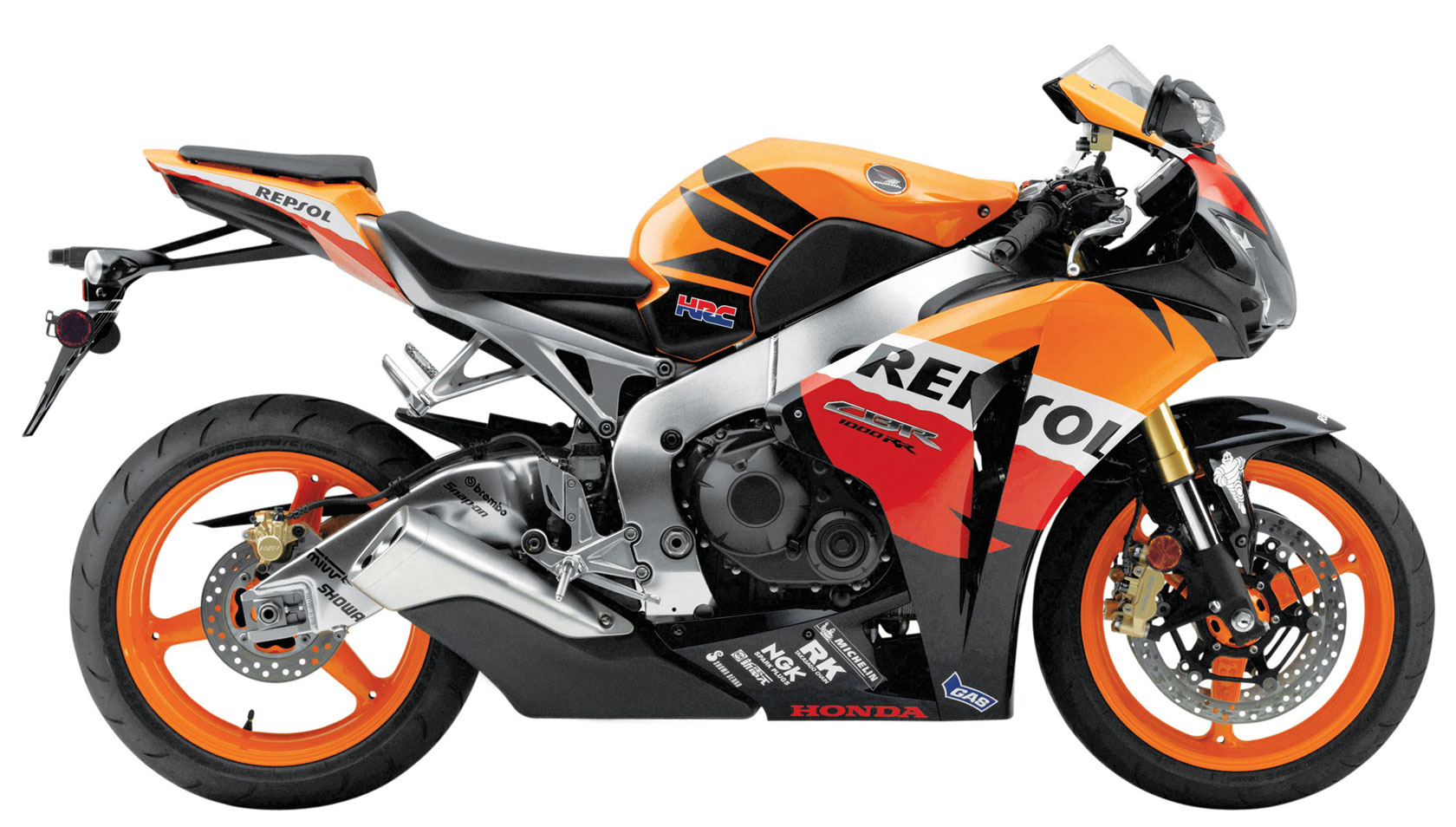

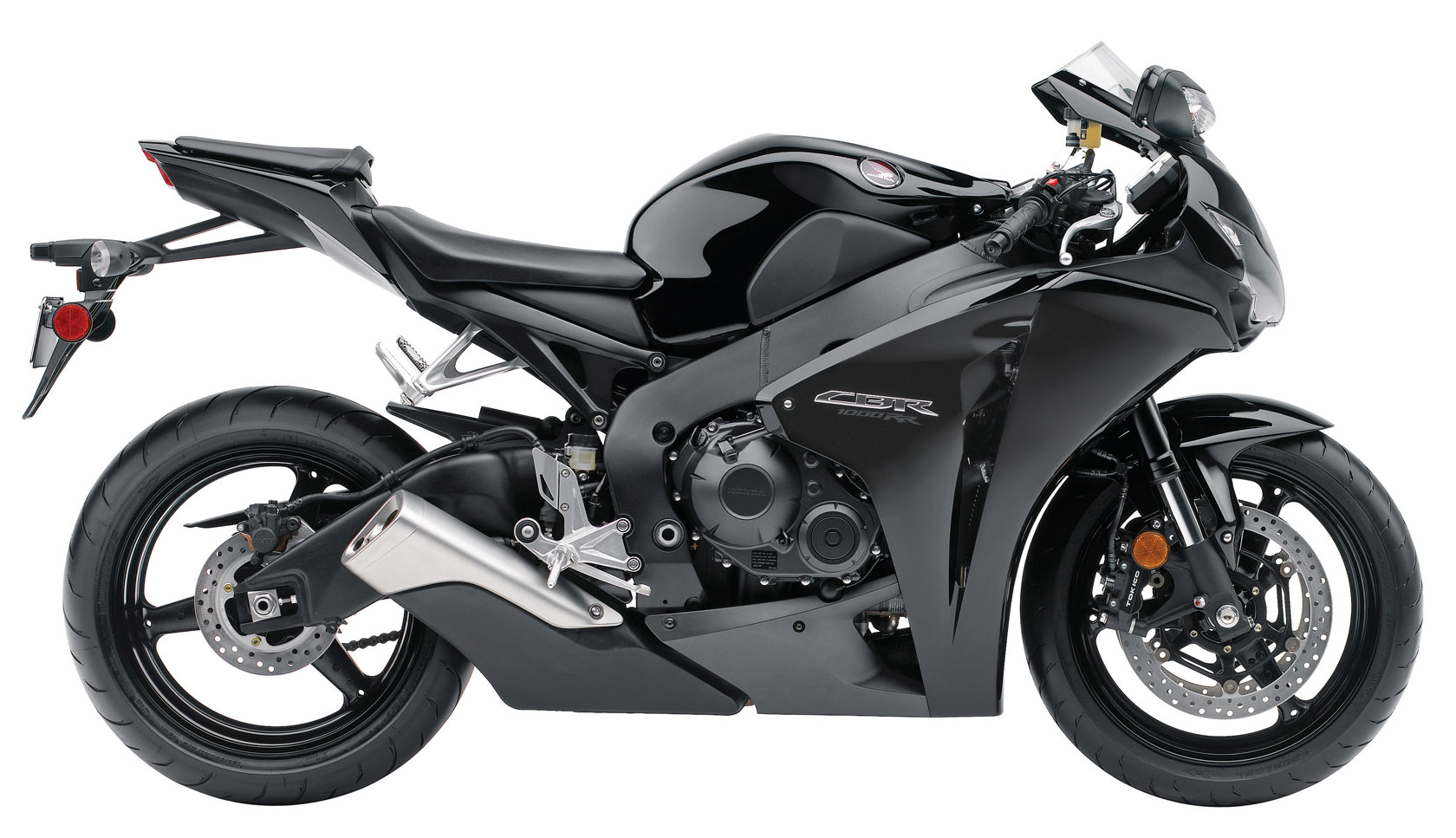

2009 CBR 1000RR

Engine

Engine Type 999cc
Bore and Stroke 76mm x 55.1mm
Compression Ratio  12.3:1
Fuel System Dual Stage Fuel Injection (DSFI)
Fuel Delivery N/A
Ignition Computer-controlled digital transistorized with three-dimensional mapping

DRIVETRAIN

Transmission Cassette-type, close-ratio six-speed
Final drive #530 O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.3 inches travel
Rear Suspension Unit Pro-Link® HMAS™ single shock with spring preload rebound and compression-damping adjustability; 5.4 inches travel
Front Brakes: Dual radial-mounted four-piston calipers with 320 mm discs
Rear Brake Single 220 mm disc
Tires 120/70ZR-17 radial
Brakes 190/50ZR-17 radial

DIMENSION

Wheelbase 55.4 in.
Seat Height 32.3 in.
Curb Weight 439 lbs. (461 lb ABS)
Fuel Capacity 4.7 gal.

OTHER

Colors Pearl White/Light Silver Metallic, Repsol Edition (Blue/White/Orange/Red)
Emissions N/A
Warranty 1 Year

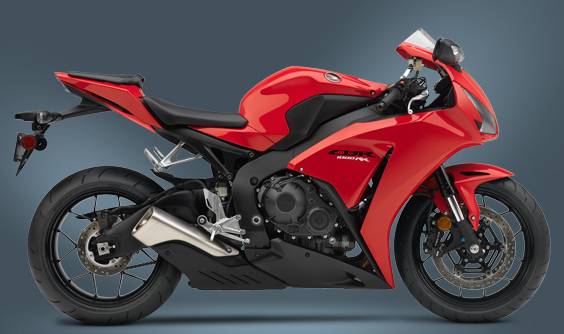

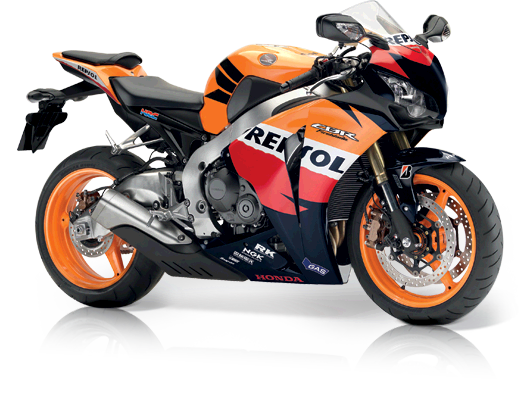

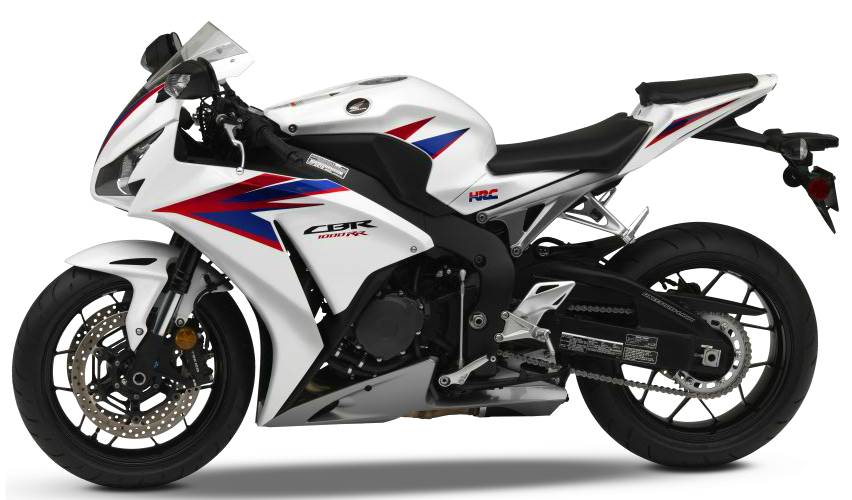

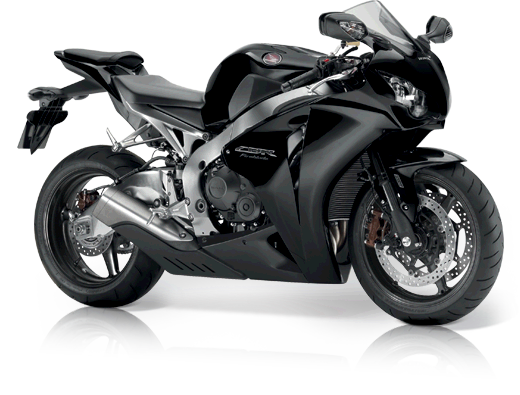

2012 CBR1000RR

Engine

Engine Type Liquid-cooled 4-stroke 16-valve DOHC
Engine Displacement 999.8cc
Bore and Stroke 76 x 55.1mm
Compression Ratio 12.3:1
Valve Train DOHC; four valves per cylinder
Max. Power Output 131kW/12,000min-1 (95/1/EC)
Max. Torque 112Nm/8,500min-1 (95/1/EC)
Fuel System Dual Stage Fuel Injection (DSFI)
Fuel Delivery Dual Stage Fuel Injection (DSFI)
Ignition Computer-controlled digital transistorized with 3-D mapping and electronic advance

DRIVETRAIN

Transmission Close-ratio six-speed
Final drive #530 O-ring sealed chain
Front Wheels Hollow-section triple-spoke cast aluminium 17M/C x MT3.5
Rear Wheels Hollow-section triple-spoke cast aluminium 17M/C x MT6

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43mm inverted Big Piston HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm axle travel
Rear Suspension Unit Pro-Link&/174; Balance Free Rear Shock with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 135mm axle travel
Front Brakes: 220 x 5mm hydraulic disc with single-piston caliper, Combined ABS and sintered metal pads
Rear Brake Single 220 mm disc
Tires 120/70-ZR17M/C (58W)
Brakes 190/50-ZR17M/C (73W)

DIMENSION

Rake 23.3 degrees (Caster Angle)
Trail 96.0mm (3.8 inches)
Wheelbase 1410mm (55.5 inches)
Overall Length 2080mm (81.9 inches)
Overall Width 685mm (27 inches)
Overall Height 1130mm (44.5 inches)
Seat Height 820mm (32.3 inches)
Curb Weight 210 kg (462 lb)

    Front: 109 kg (240 lb) Rear: 101 kg (222 lb)
Fuel Capacity 17.7 Litres (4.7 GalUS) (including 4-Litre (1 Gal) LCD-indicated reserve)

OTHER

Colors
  • Red
  • Black
  • Pearl White/Blue/Red
Emissions Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Warranty One Year: Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
Model Id CBR1000RR

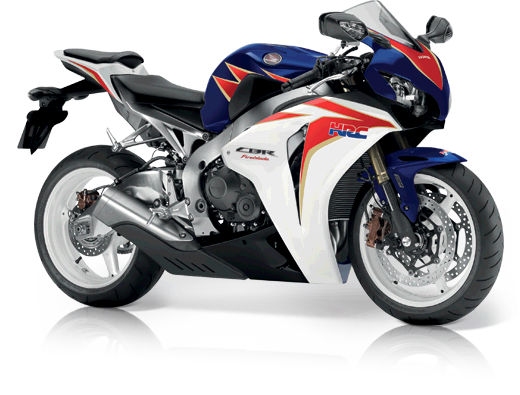

2012 CBR1000RR Fireblade 20th Anniversary

Engine

Engine Type Liquid-cooled 4-stroke 16-valve DOHC inline-4
Engine Displacement 999.8cc
Bore and Stroke 76 x 55.1mm
Compression Ratio 12.3:1
Throttle Bore 46mm ( inches)
Ignition Timing 3.2° BTDC (idle) ~ 45° BTDC (7,500min-1)
Max. Torque 112Nm/8,500min-1 (F-type: 86Nm/7,000min-1)
Max. Power Output 131kW/12,000min-1 (F-type: 78kW/11,000min-1)
Fuel System Dual Stage Fuel Injection (DSFI)
Fuel Delivery PGM-DSFI electronic fuel injection
Ignition System Computer-controlled digital transistorised with electronic advance

DRIVETRAIN

Transmission Type: 6-speed
Clutch Wet, multiplate with diaphragm spring
Clutch Operation Mechanical; cable-actuated
Primary Reduction 1.717 (79/46)
Final Reduction 2.625 (42/16)
Final Drive #530 O-ring sealed chain
Front Wheels 12-spoke cast aluminium 17M/C x MT3.5
Rear Wheels 12-spoke cast aluminium 17M/C x MT6

CHASSIS / SUSPENSION / BRAKES

Frame type Diamond; aluminium composite twin-spar
Front Suspension Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment, 120mm stroke
Rear Suspension Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 138.2mm stroke. Rear Balance Free Rear Cushion with preload, compression and rebound adjustment, 62mm stroke
Front Brakes: 320 x 4.5mm dual hydraulic disc with 4-piston calipers and sintered metal pads
Rear Brake 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
Tires 120/70 -ZR17M/C (W)
Brakes 190/50 -ZR17M/C (W)

DIMENSION

Ground Clearance 130mm (5.1 inches)
Trail 96.3mm (3.8 inches)
Caster Angle 23° 18′
Curb Weight 200 kg (440 lb)
Wheelbase 1407mm (55.4 inches)
Overall Length 2077 (81.8 inches)
Overall Width 685mm (27 inches)
Overall Height 1135mm (44.7 inches)
Seat Height 820mm (32.3 inches)
Fuel Capacity 17.7 Litres 4.7

OTHER

Fuel Consumption 5.9 L/100km (10.5 miles/litre) (39.7 mpgUS) (47.7mpg-Imp)

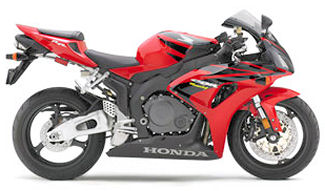

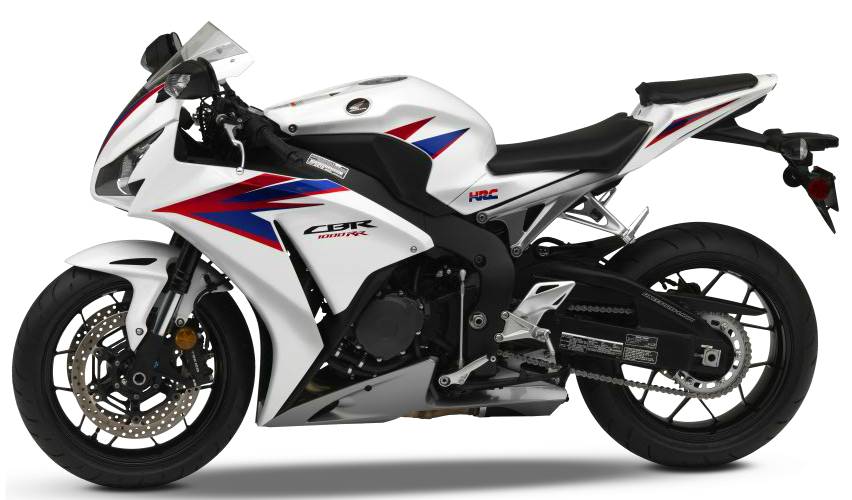

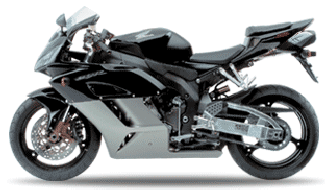

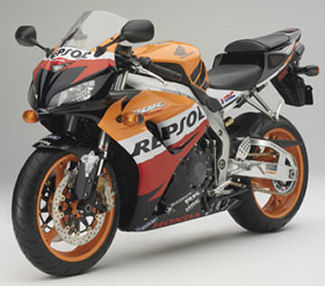

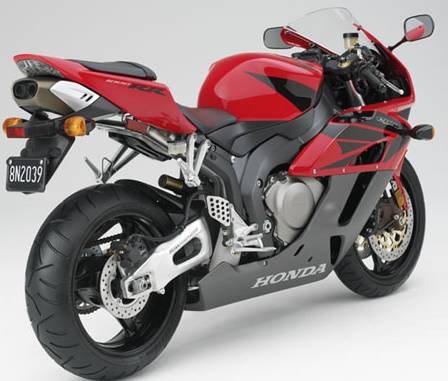

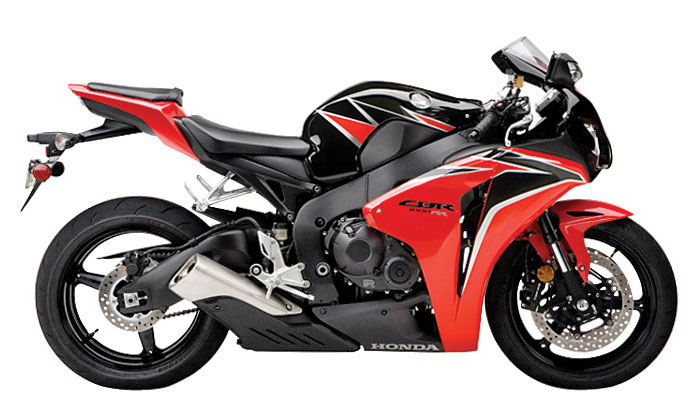

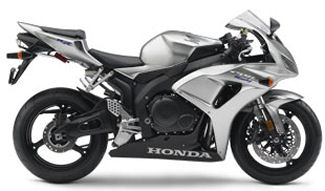

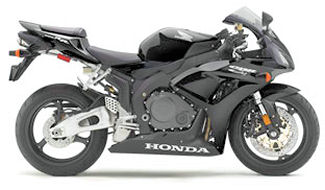

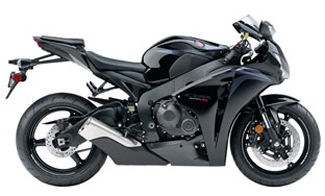

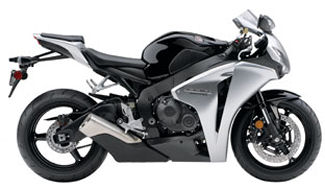

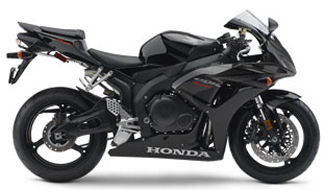

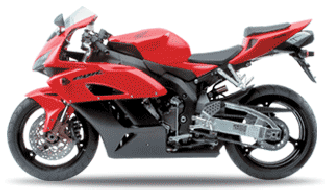

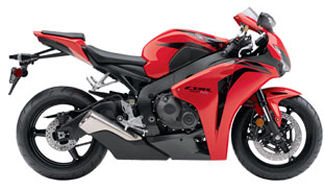

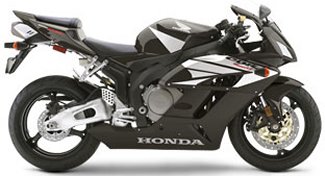

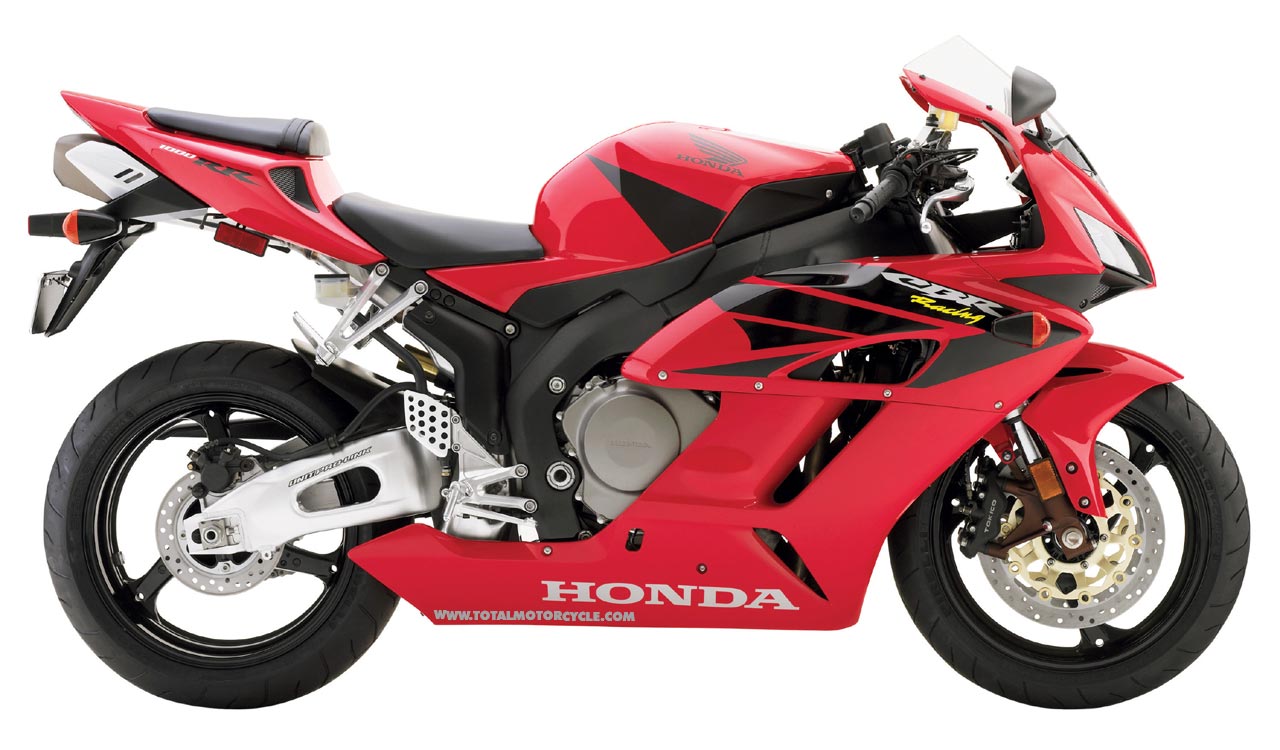

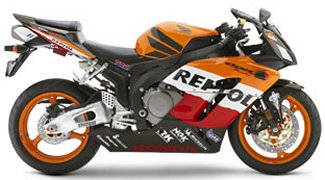

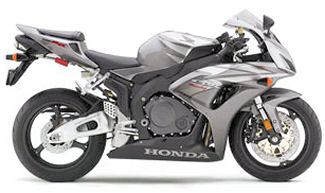

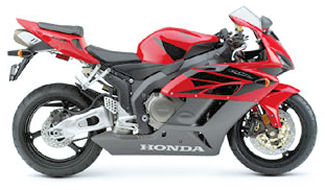

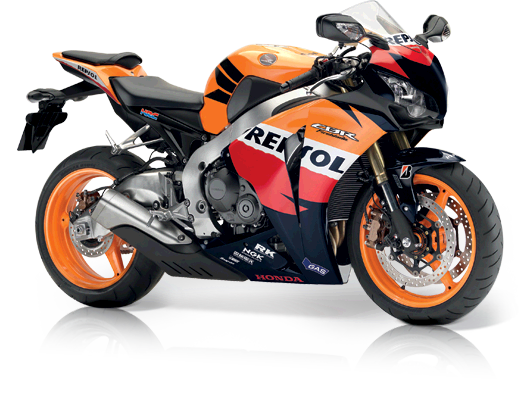

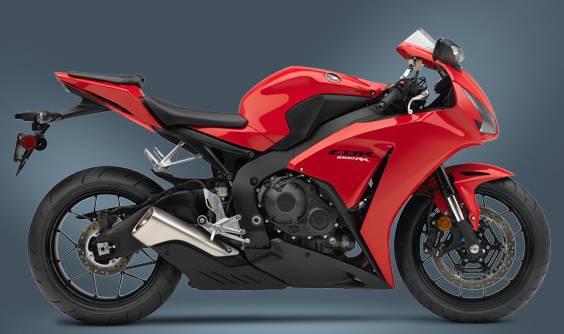

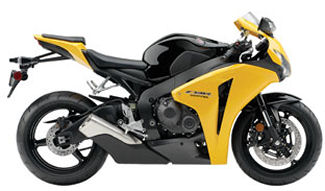

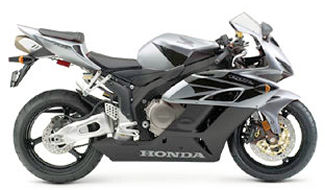

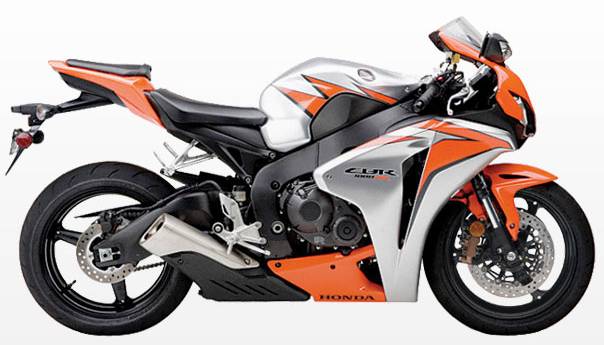

CBR1000RR Image Gallery
