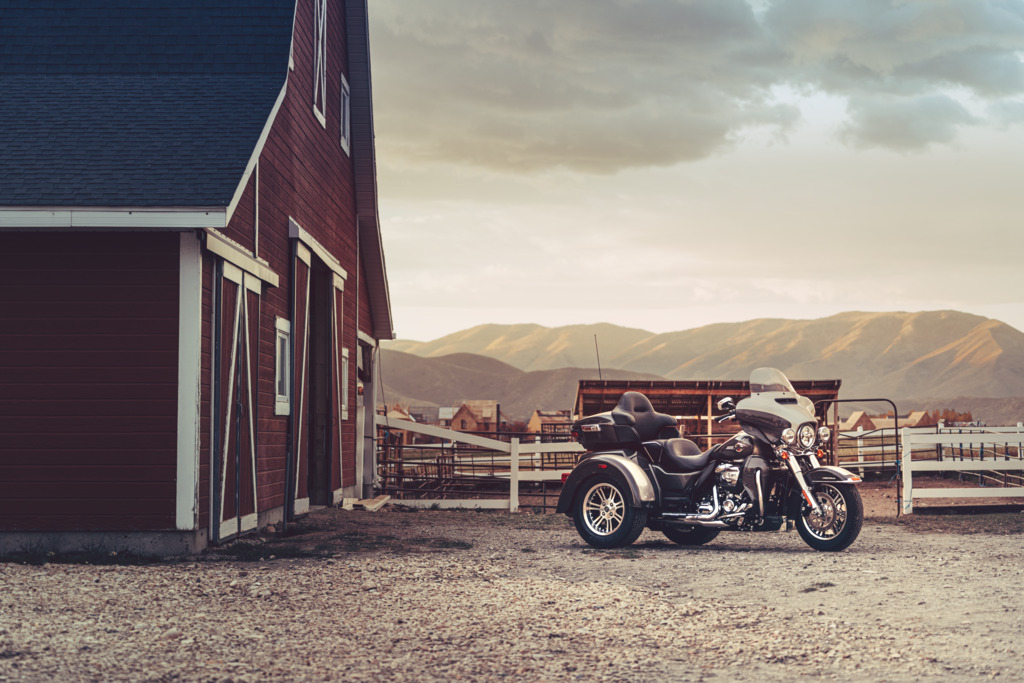

The 2023 Harley Davidson Tri Glide Ultra: Fully Loaded!

Model Overview
Specifications
Features
Photos
Videos
Links

If two is good, three must be better right? Well in the case of the 2023 Harley Davidson lineup, the Tri Glide Ultra is most definitely better.

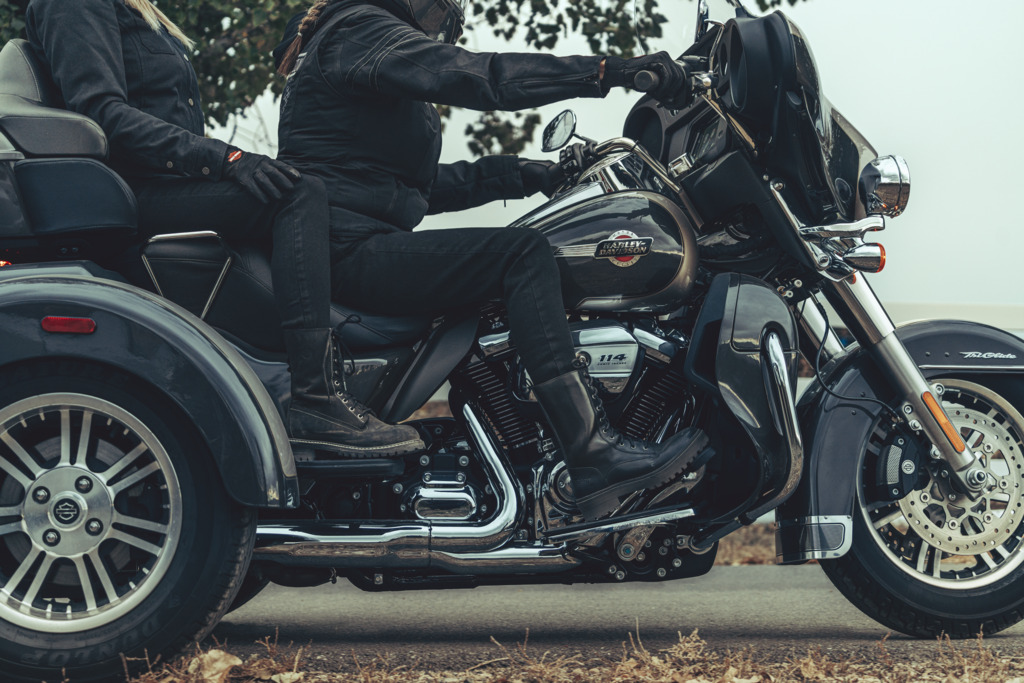

Behind the iconic Batwing fairing, the rider is treated to Reflex™ linked brakes with ABS, an all-new 4-speaker BOOM!™ GTS infotainment system, electronic cruise control, and 6.8 cubic feet of storage space. American iron needs American horsepower to hustle you down the road, and in the Tri Glide Ultra sits a Milwaukee-Eight® 114 throwing down 118 lbs-ft of torque. Looking for a powerful US-made motorcycle? This is it.

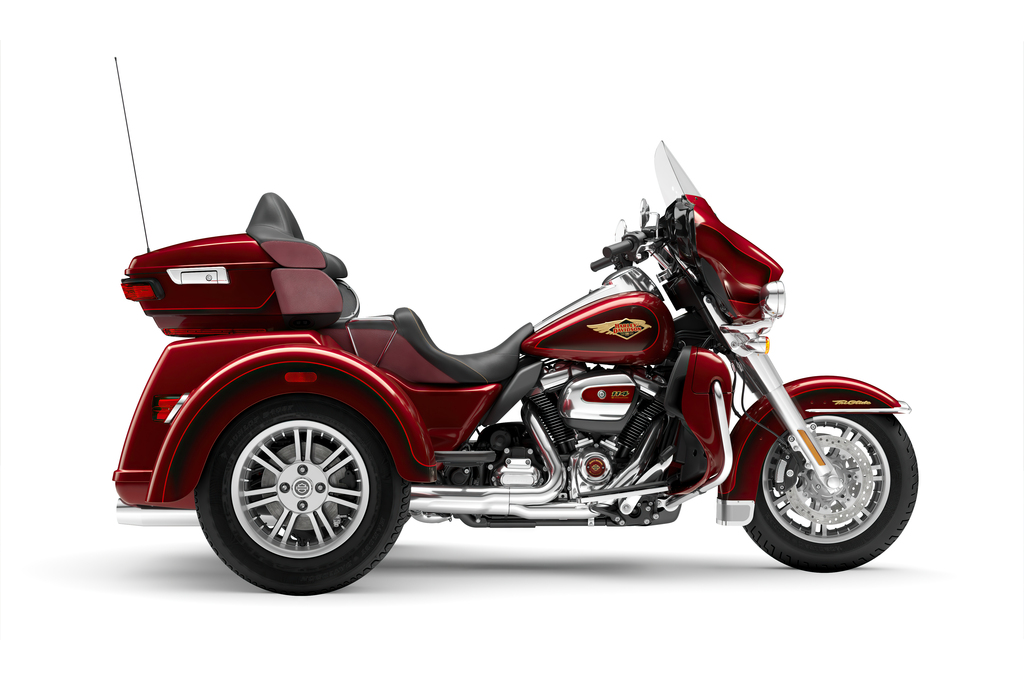

The Tri Glide Ultra is one of Six limited-edition, serialized motorcycle models featuring commemorative paint, finishes, and premium features that celebrate 120 years of Harley Davidson pride and craftsmanship. It can be yours for a $4800 premium.

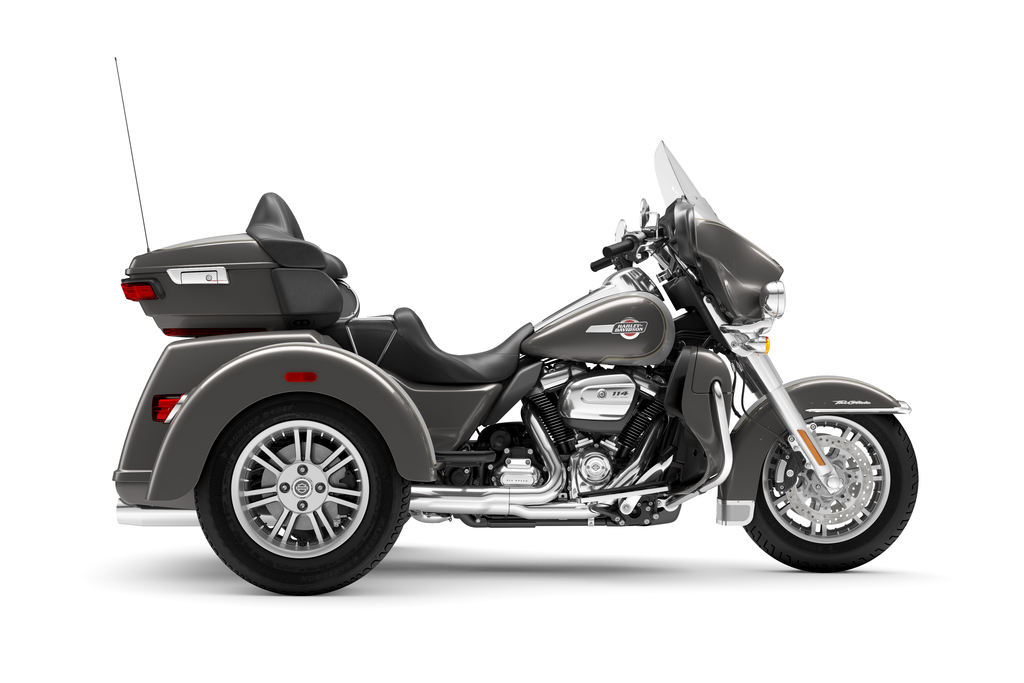

5 Color choices for the 2023 Harley Davidson Tri Glide Ultra: Vivid Black, Atlas Silver Metallic, Gray Haze / Silver Fortune, Prospect Gold / Vivid Black, and Heirloom Red Fade.

The 2023 Harley Davidson Tri Glide Ultra starts at $36,499 USD / $44,699 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Harley Davidson Tri Glide Ultra in one place.

Model Overview

General Info

Price: $36,499 USD / $44,699 CAD

Key Features:
- Milwaukee-Eight® 114 V-Twin engine
- Brembo ABS Brakes
- Tour-Pak™ storage
- Traction Control

Main Specs

Engine: 114 ci V-twin
Power: 100.5 HP (estimated)
Torque: 118 lbs-ft @ 3000 RPM
Wet Weight: 1,237 lb. (561 kg)
Seat Height: 27.1 in. (688 mm)

Competitors

Can-Am Spyder RT
Polaris Slingshot
Ural Gear Up

2023 Harley Davidson Tri Glide Ultra Specifications

From Harley-Davidson

ENGINE
Engine	114 cu in, Twin-Cooled^™ Milwaukee-Eight^® 114
Engine Torque	100.5 HP
Bore x Stroke	4.016 in. X 4.5 in.
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust	2-1-2 dual exhaust with tapered mufflers
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Chain, 34/46 ratio
CHASSIS
Front Fork	49mm dual bending valve
Rear Shocks	Hand-adjustable emulsion rear suspension
Wheels, Front Type	Black, 7-spoke Cast Aluminum
Wheels, Rear Type	Black, 7-spoke Cast Aluminum
Brakes Front	Dual floating rotors, 32mm 4 piston fixed
Brakes Rear	floating 36mm piston integrated park brake
Tires Front	MT90B16 72H
Tires Rear	P205/65R15 92T
Fuel Tank Capacity	6 gal.
Color	Vivid Black, Atlas Silver Metallic, Gray Haze/Silver Fortune, Gray Haze/Silver Fortune, Prospect Gold/Vivid Black, Heirloom Red Fade,
ELECTRICAL
Ignition
Spark Plugs

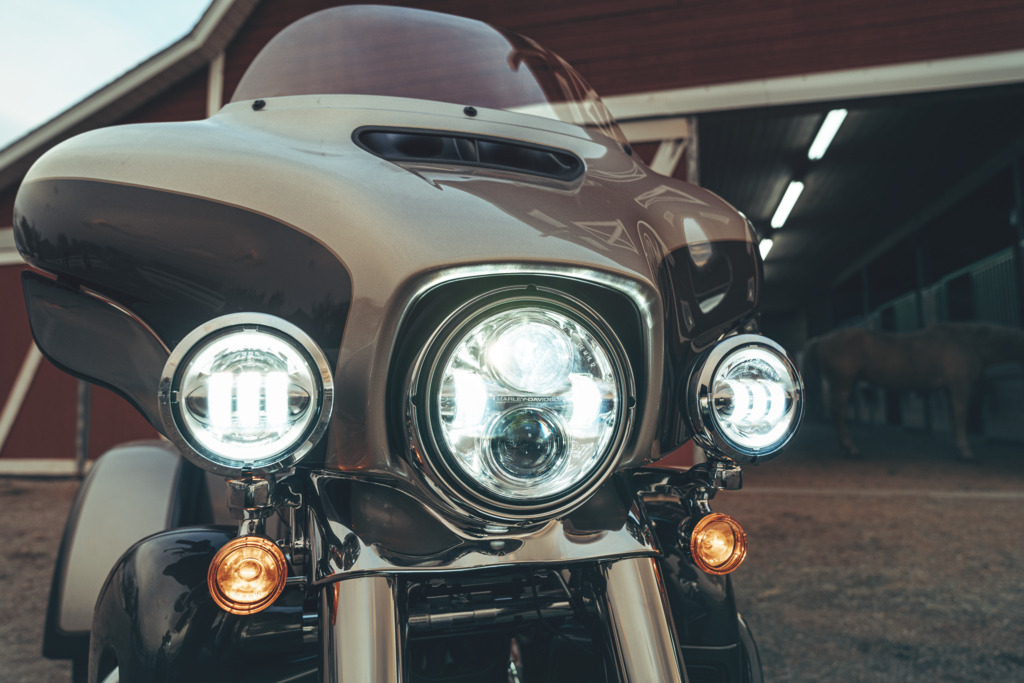

Headlight	All LED headlamp
Tail Light	LED
DIMENSIONS
Length	105.1 in.
Trail	3.94 in.
Rake	26
Wheelbase	65.7 in.
Ground Clearance	4.9 in.
Seat Height	27.1 in.
Weight, As Shipped	1,204 lb.
WARRANTY
Warranty
Extension

2023 Harley Davidson Tri Glide Ultra Features

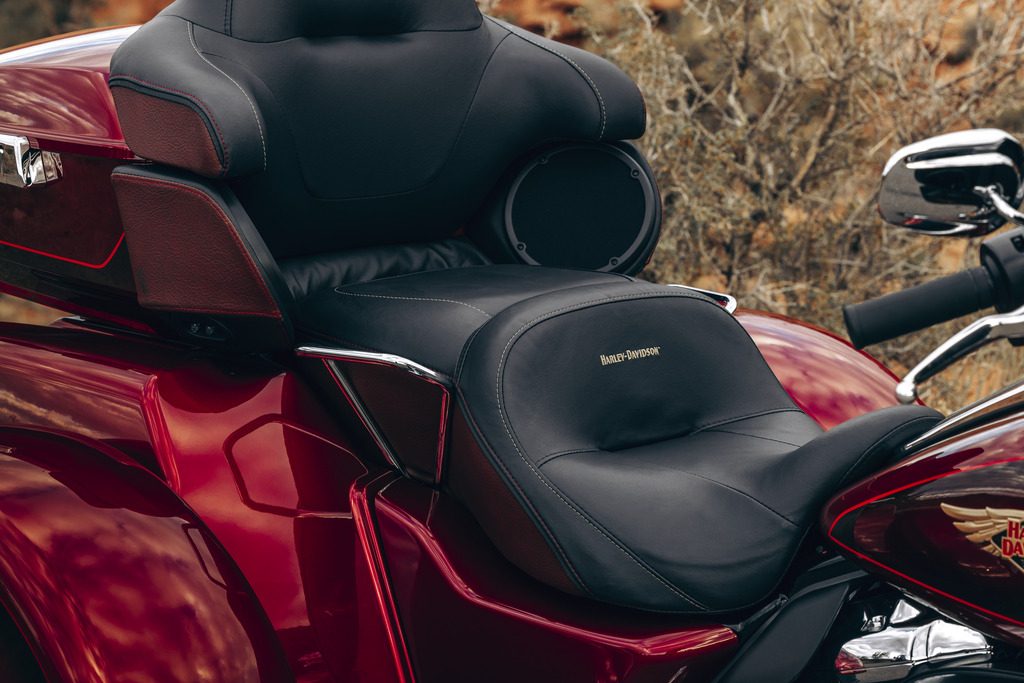

The ultimate in two-up comfort for riders and passengers looking to log miles and experience new adventures.

Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front.

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

Turn any ride into a weekend trip. The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak® luggage carrier adds an additional 2.4 cubic feet storage capacity, combined giving you 6.8 cubic feet of storage.
