After having vanished for the last few years, the Breakout is back in the 2023 Harley Davidson lineup, but now it is massively improved as the Breakout 117.

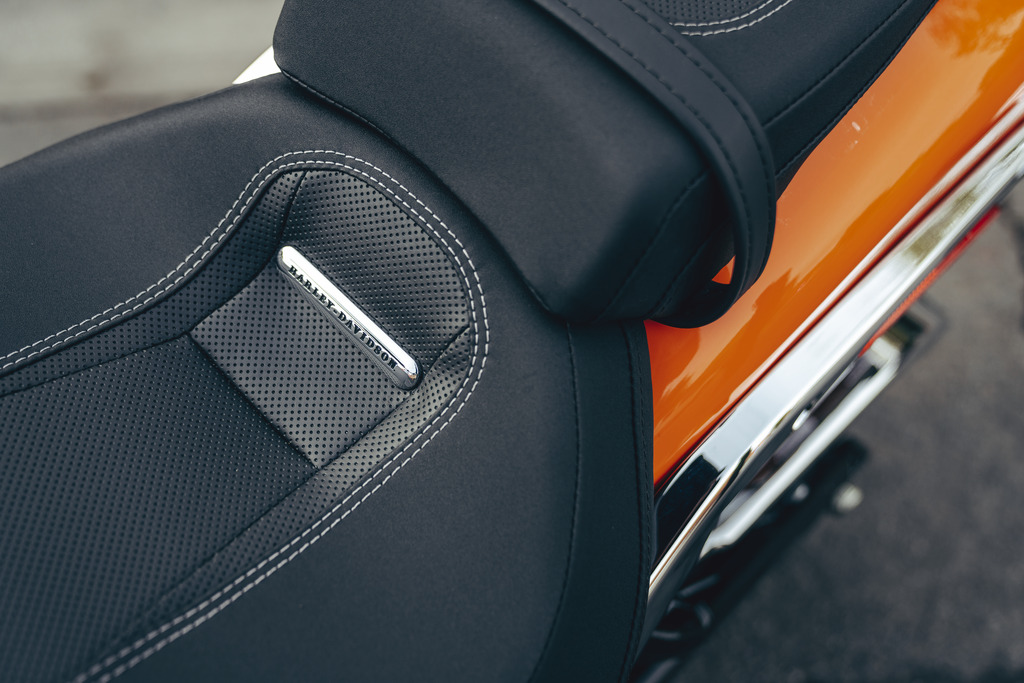

Harley Davidson makes a clear statement about American muscle by packing their biggest engine, the Milwaukee-Eight™ 117, into the Breakout’s Softail frame. The seat is reshaped behind the 5-gallon tank, but the low, raked style is stunning to see up close.

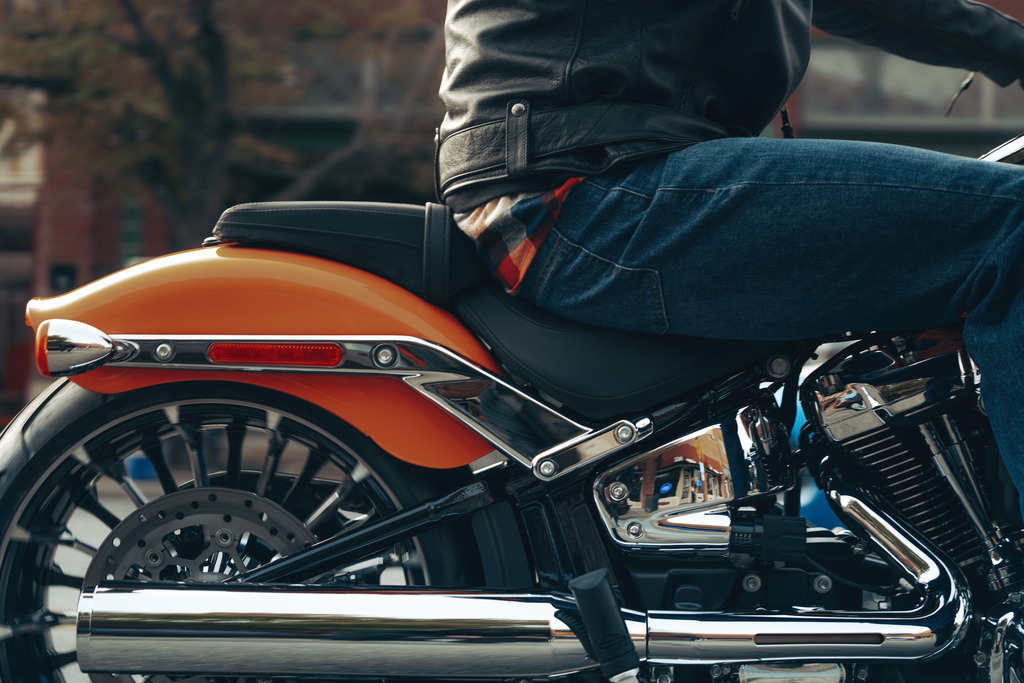

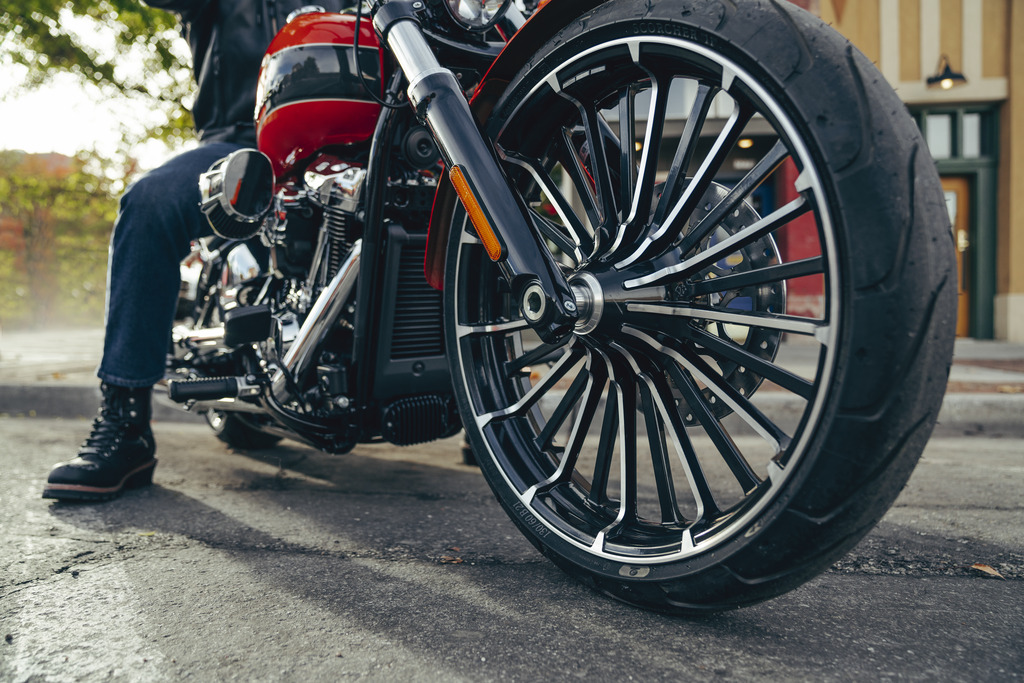

New 26-spoke cast aluminum wheels feature a gloss black finish with machined details 21” up front and 18” at the rear. Sitting nice and low with a sub 26” seat height, your butt and your ears pick up all the rumble from the dual shotgun-style exhaust.

The new and improved Harley Davidson Breakout 117 is back on the street for 2023.

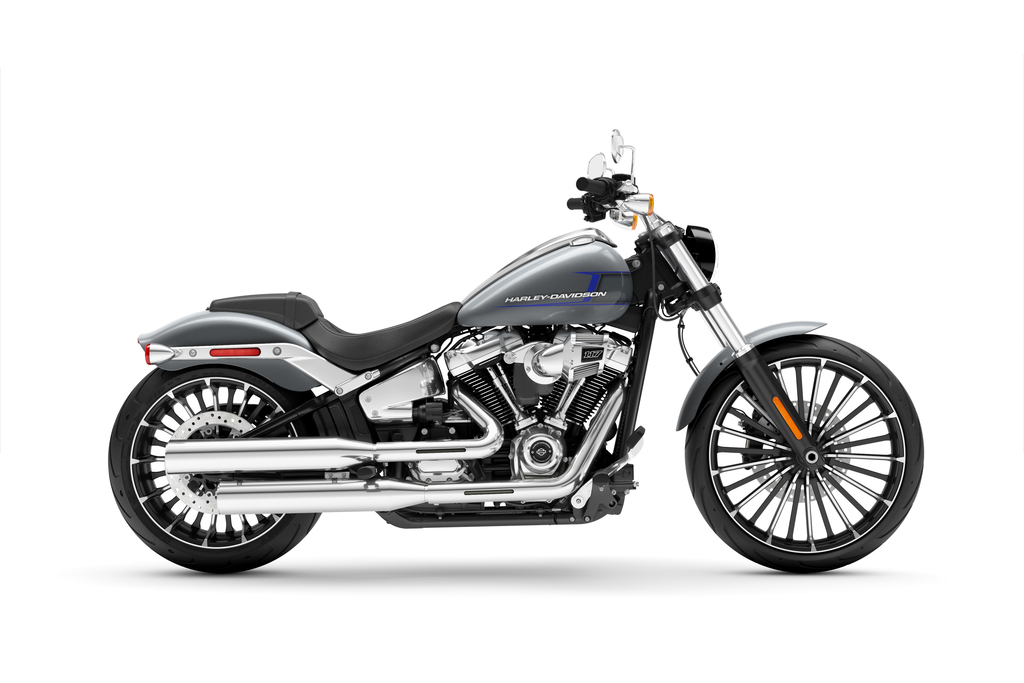

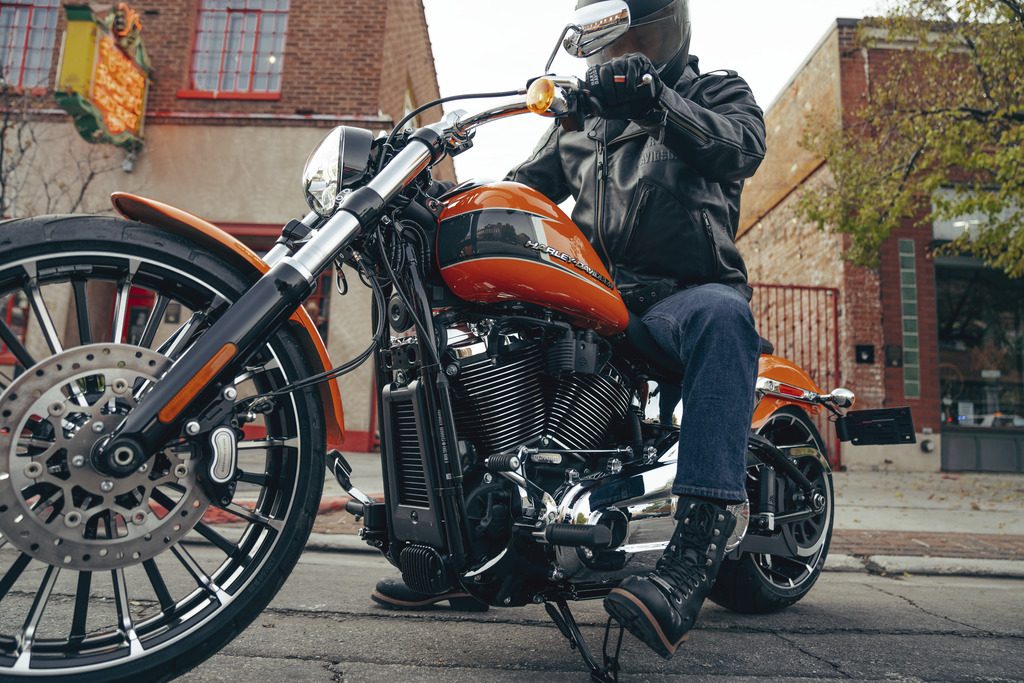

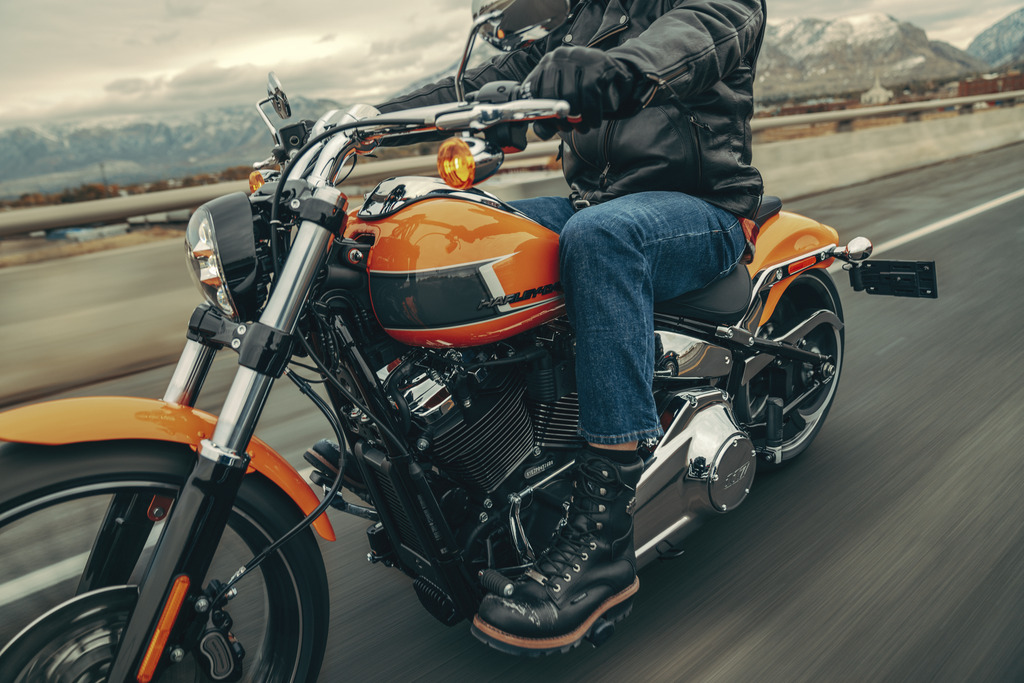

4 color choices exist for the 2023 Harley Davidson Breakout 117: Vivid Black, Black Denim, Baja Orange, and Atlas Silver Metallic.

The 2023 Harley Davidson Breakout 117 starts at $20,999 USD / $26,549 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Harley Davidson Breakout 117 in one place.

Model Overview

General Info

Price: $20,999 USD / $26,549 CAD
Key Features:

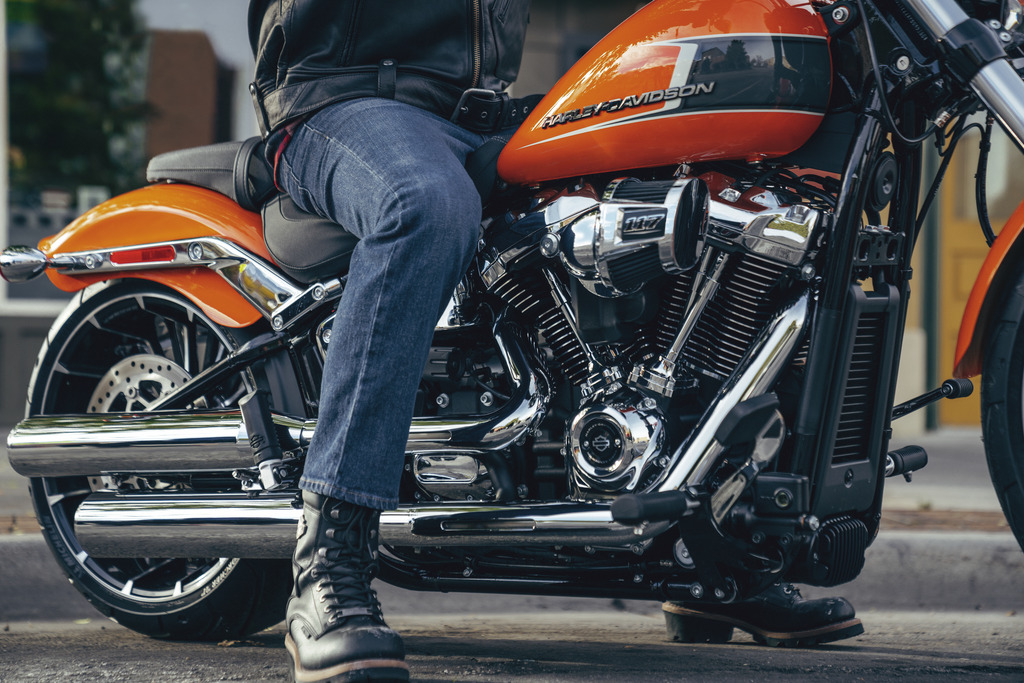

- Milwaukee-Eight™ 117 V-Twin engine
- Low muscular style
- Fat rear tire on a deeply dished wheel
- Adjustable Rear Mono-Shock

Main Specs

Engine: 1,923cc V-twin
Power: 103 HP / 77 kW @ 4750 rpm
Torque: 126 lbs-ft @ 3500 RPM
Wet Weight: 683 lbs (310 kg)
Seat Height: 25.6 in. (665 mm)

Competitors

2023 Harley Davidson Breakout 117 Specifications

From Harley-Davidson

ENGINE
Engine	1,923cc V-twin, Milwaukee-Eight^™ 117
Engine Torque	123 ft-lb
Bore x Stroke	4.075 in x 4.5 in.
Compression Ratio	10.2:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust	2-into-2 staggered; catalyst in muffler
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Chain, 34/46 ratio
CHASSIS
Front Fork	Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear Fork	Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
Wheels, Front Type	Gloss black, 26-spoke cast aluminum
Wheels, Rear Type	Gloss black, 26-spoke cast aluminum
Brakes Front	4-piston fixed
Brakes Rear	2-piston floating
Tires Front	130/60B21,63H,BW
Tires Rear	240/40R18,79V,BW
Fuel Tank Capacity	5 gal.
Color	Vivid Black, Black Denim, Baja Orange, Atlas Silver Metallic
ELECTRICAL
Ignition
Spark Plugs
Headlight	All LED headlamp
Tail Light	LED
DIMENSIONS
Length	93.3 in.
Trail	5.7 in.
Rake	34
Wheelbase	66.7 in.
Ground Clearance	4.5 in.
Seat Height	25.6 in
Weight, As Shipped	653 lb.
