2022 Zero DSR [Specs, Features, Photos]

2022 Zero DSR
Last updated:

The 2022 Zero DSR: An Electric Dual-Sport That’s Ready to Tackle Any Challenge

If you don’t plan on hitting the trails or the dirt often, a dirt bike may be too steep a commitment to make. There’s also the fact that most dirt bikes aren’t road legal and will require you to use a truck or trailer to transport. On the other hand, as the name suggests, a dual-sport motorcycle combines the best of both worlds — tarmac and dirt — to form a bike that can pretty much do anything you set out to do on two wheels.

For American company Zero Motorcycles, the Zero DSR is the top-of-the-line dual-sport offering, sitting above the Zero DS. The bike features the same ZF14.4 kWh battery pack system that also powers the more premium models in the 2022 Zero Motorcycles lineup. You also can upgrade to the ZF14.4 Power Tank (18kwh battery pack), which offers even more range. In top-spec, the Zero DSR will give you 204 miles of range in the city and 97 miles on the highway (at 70mph), which is plenty enough for the kind of bike this is. If you think you’ll need a little extra juice, the DSR offers Zero’s hot-swappable battery tech, so you can strap an extra down on your ride to double your distance.

The Zero DSR comes with the Z-Force 75-7R motor that produces 70hp and 116lb-ft of torque, propelling the bike to 102mph.

Considering its off-road intentions, the Zero DSR comes with fully adjustable Showa suspension at either end. Suspension travel is a respectable 178mm at the front and 179mm at the rear. Braking hardware is pretty neat, too, with J.Juan hardware at either end. Zero Motorcycles has equipped the DSR with Pirelli MT-60 dual-sport tires.

The 2022 Zero DSR starts at $16,195 USD / $20,895 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Zero DSR in one place.

2022 Zero DSR


Motorcycle Overview

General Info

  • Price: $16,195 USD / $20,895 CAD
  • Key Features:
    • 19-inch front wheel for better off-road handling
    • Five-year unlimited mile power pack warranty
    • 2 hour charge time with Charge Tank
    • 102mph top speed
    • 116 lb-ft of torque

Main Specs

  • Engine: 14.4 kWh
  • Power: 70 hp
  • Torque: 116 lb-ft
  • Wet Weight: 419 lbs (190kg)
  • Seat Height: 33.2 inches (843 mm)

2022 Zero DSR


2022 Zero DSR Specifications

From Zero Motorcycles

Engine

Peak torque
116 ft-lb (157 Nm)
Peak power
70 hp (52 kW) @ 3,500 rpm
Top speed (max)
102 mph (163 km/h)
Type
Z-Force® 75-7R passively air-cooled, high efficiency, radial flux, interior permanent hi-temp magnet, brushless motor
Controller
High efficiency, 775 amp, 3-phase brushless controller with regenerative deceleration
Lubrication

Drivetrain

Transmission Clutchless direct drive
Clutch
Final Drive 90T / 20T, Poly Chain® HTD® Carbon™ belt

Chassis

Suspension Front
Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Suspension Rear Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Brakes Front
Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Brakes Rear
Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Tires Front Pirelli MT-60 100/90-19
Tires Rear Pirelli MT-60 130/80-17
Fuel Tank Capacity N/A
Color

Power system

Power pack
Z-Force® Li-Ion intelligent integrated
Charger type
1.3 kW, integrated
Charge time (standard) 9.8 hours (100% charged) / 9.3 hours (95% charged)

Dimensions

Wheelbase
56.2 in (1,427 mm)
Overall Width
Trail
4.6 in (117 mm)
Rake
26.5°
Seat Height 33.2 in (843 mm)
Curb Weight
419 lb (190 kg)

Warranty

Warranty
2 years
Extension

2022 Zero DSR


2022 Zero DSR Features

ALWAYS DIALED

Crossing from smooth asphalt to loose gravel fire roads? All good. Change performance profiles at the press of a button to master any terrain. The Zero DSR is pre-programmed with Eco or Sport modes and performance can be fully customized using the Zero Motorcycles app where you can also see detailed ride stats.

CHARGE UP TO 6X FASTER

Grab lunch. Have a coffee. Recharge. Live your life while adding up to 94 miles of range for every hour you’re plugged in. The Charge Tank option is compatible with Level 2 charge stations and delivers roughly 6x faster charging than when compared to a standard wall outlet. Depending on the battery, a typical recharge can now take as little as an hour.

CHARGING. MEET HOUSEHOLD OUTLET.

No special equipment required: your standard household outlets can be used as fueling stations for a fraction of the cost of gasoline. Plug in at night and start the day with a full tank.

LONG RANGE BATTERY TECH

The Zero DSR carries the highest power and energy density battery in the EV industry. With over thirteen years of rigorous off-road experience, the Z-Force® battery confidently delivers you to your destination.

CHASSIS

Featuring a twin-spar aircraft-grade aluminum chassis, the Zero DS’s frame offers superior torsional rigidity.

SUSPENSION

Custom-tuned for Zero by Showa, the Zero DSR suspension offers 7 inches of plush travel that enables you to tackle virtually any terrain thrown your way. The entire suspension system can be fully and easily adjusted to glide over any city street or rip down your favorite fire road.

DASH

The Zero DSR comes equipped with a full color display to project the specs you need: speed, state of charge, power output, selected riding mode and more. Sync with your smartphone to customize the information that is displayed on your dash.

ONBOARD CHARGER

No additional charging equipment required. The standard 1.3 kW onboard charger plugs into any household outlet. It can be operated in conjunction with the off-board Quick Charger accessory and/or the Charge Tank option to accelerate charge times.

TANK

The standard Zero DSR “tank” is equipped with spacious lockable storage—perfect for stowing personal items like cell phones, wallets, or gloves. Interested in faster charging or greater range? Swap the standard tank for the Charge Tank option for 6x faster charging or the Power Tank accessory that adds an additional 3.6 kWh of battery.

BRAKES

The Bosch anti-lock brake system (ABS) delivers confident braking. Tested for just about any situation you can imagine, the system optimizes deceleration when you hit your brakes hard. Braking is actuated via levers that can be adjusted for improved ergonomics. ABS can be switched on or off by the rider.

DIRECT DRIVE

Strip away clutches, gears, shifting, chains and all their weighty complexities. Seamlessly rocket to speeds in excess of 95 mph with pure efficiency as energy quietly transforms into propulsion. The Zero DSR is direct drive. Its state-of-the-art motor connects directly to the rear wheel using a carbon fiber belt.

WHEELS AND TIRES

Shred confidently on anything from twisting tarmac to loose fire roads, the Zero DSR’s Pirelli MT-60 tires

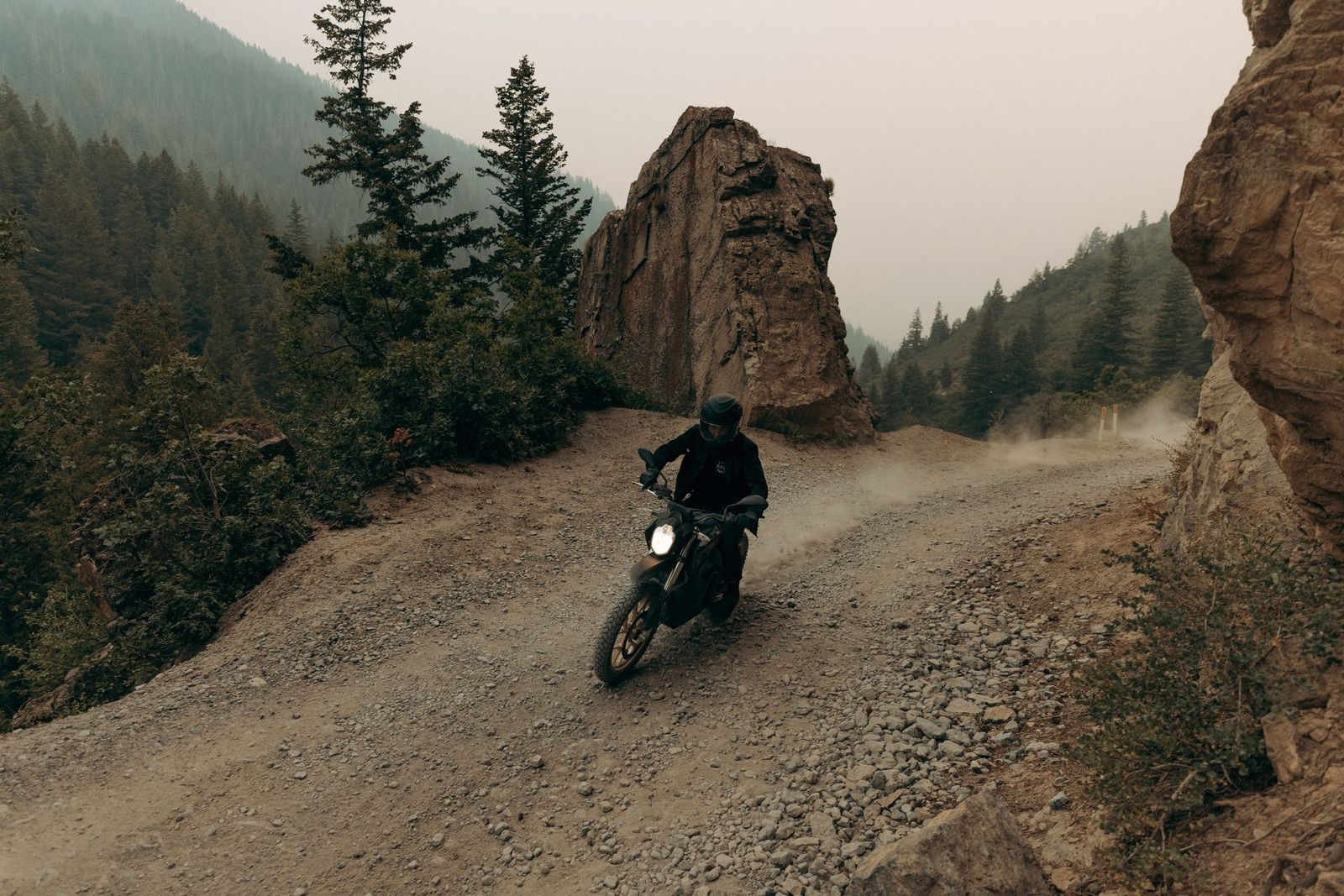

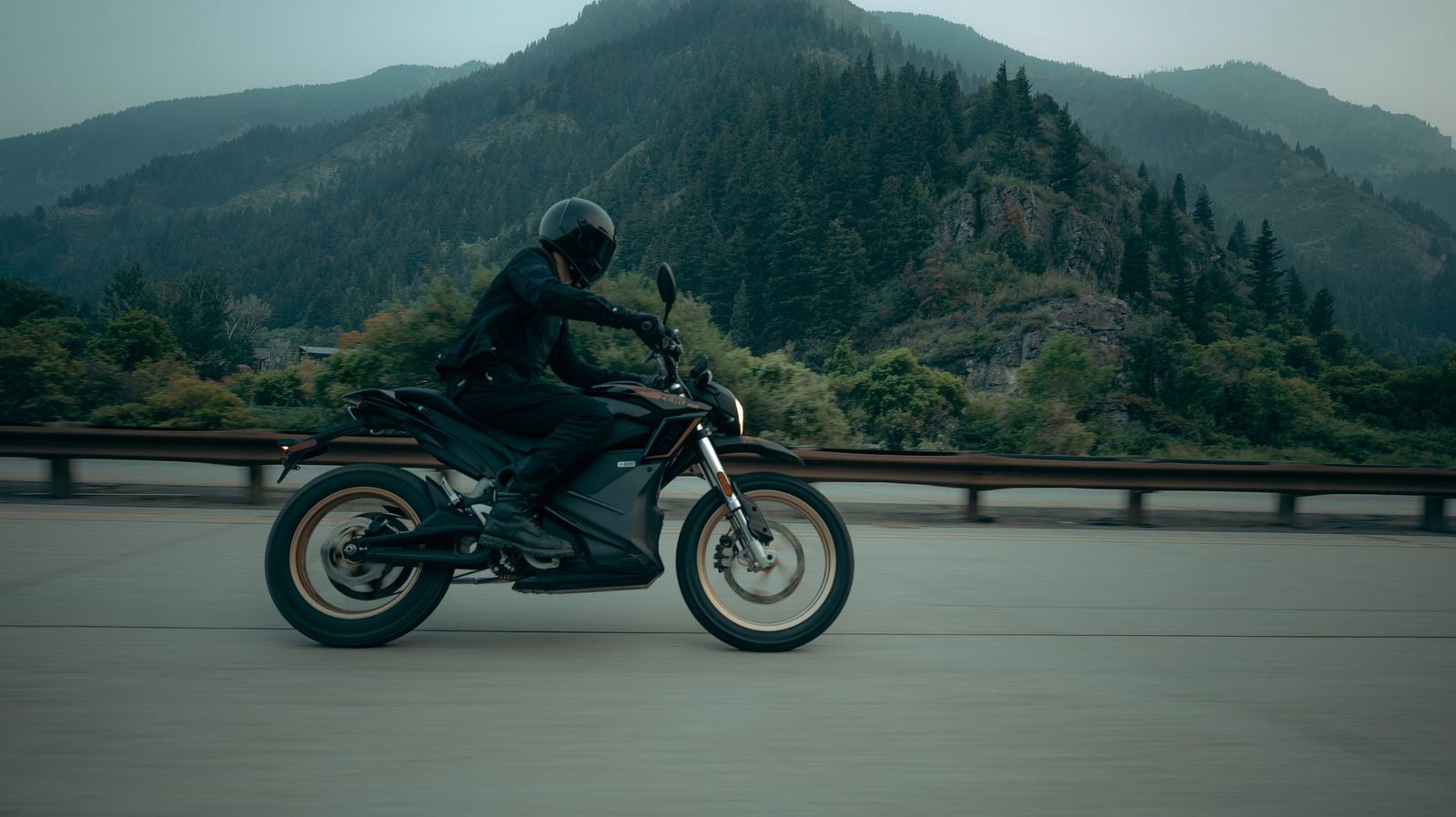

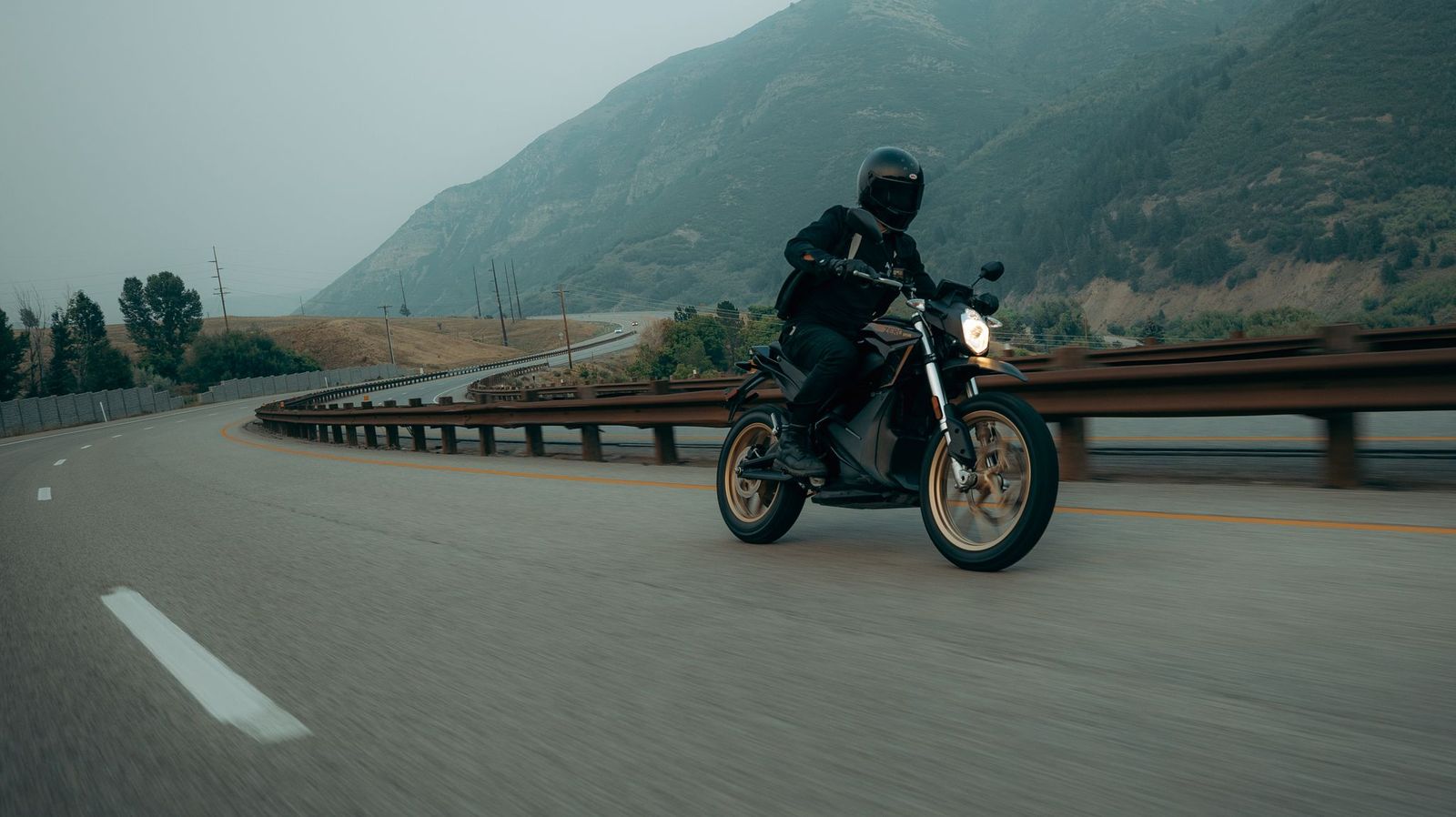

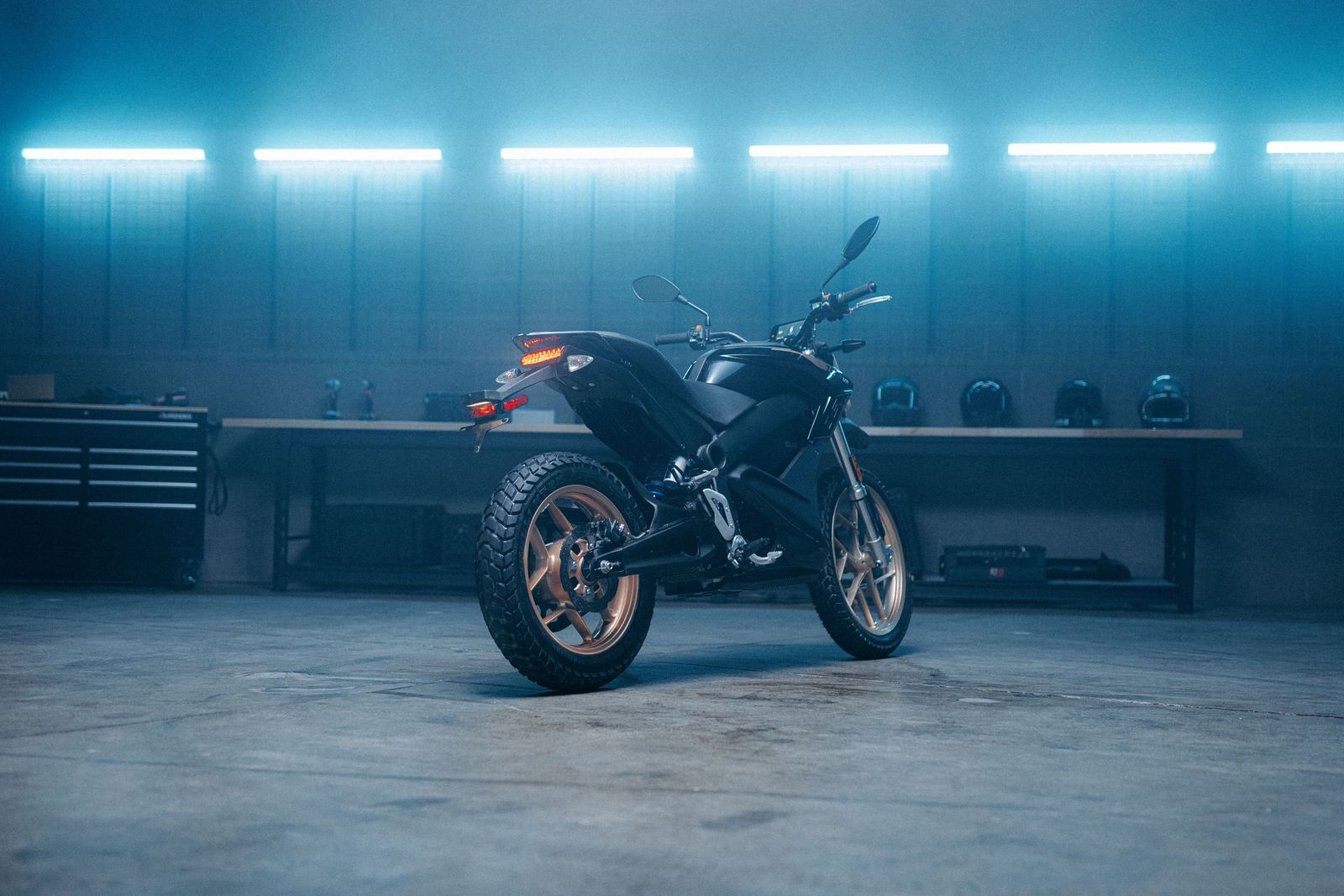

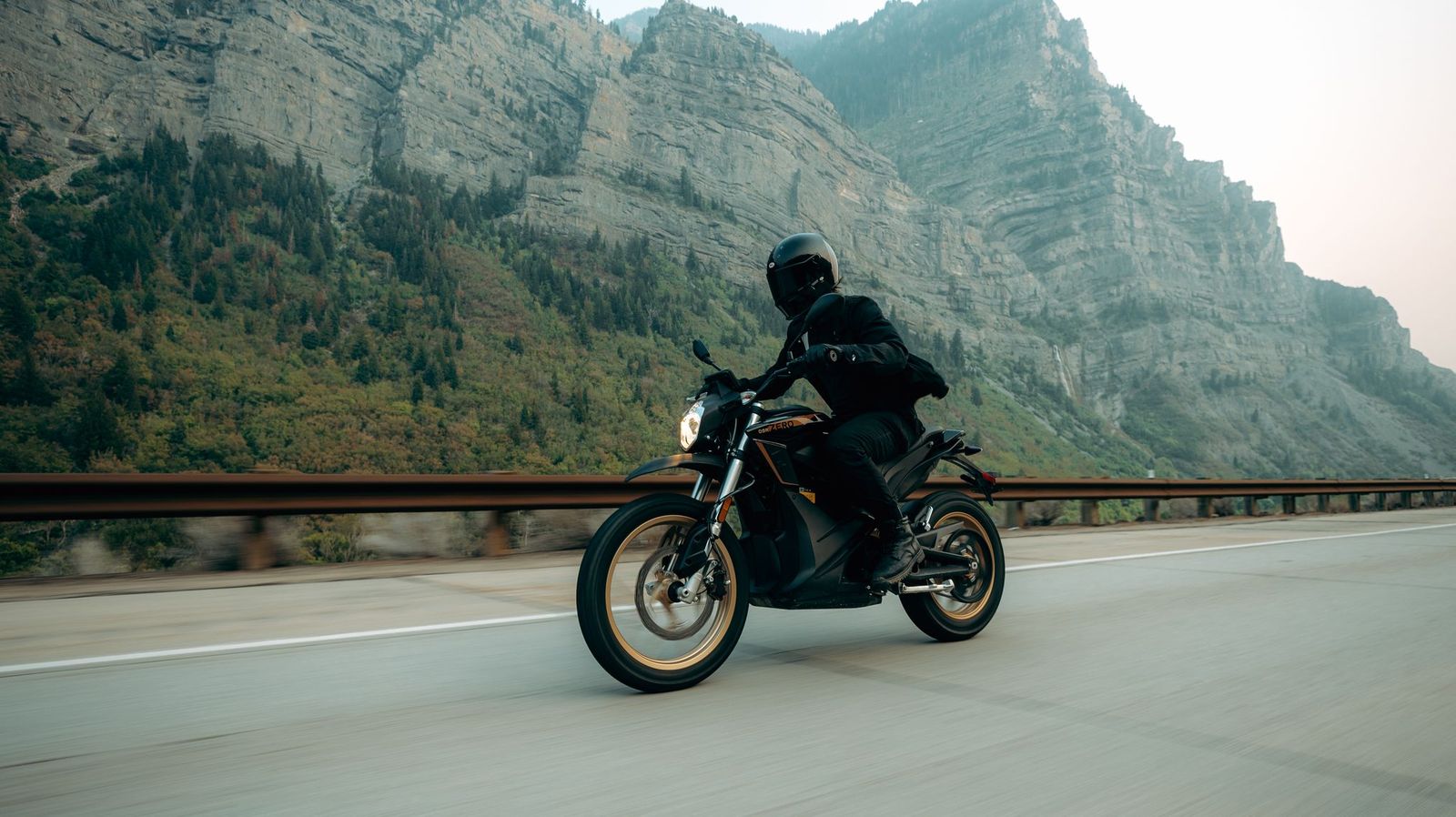

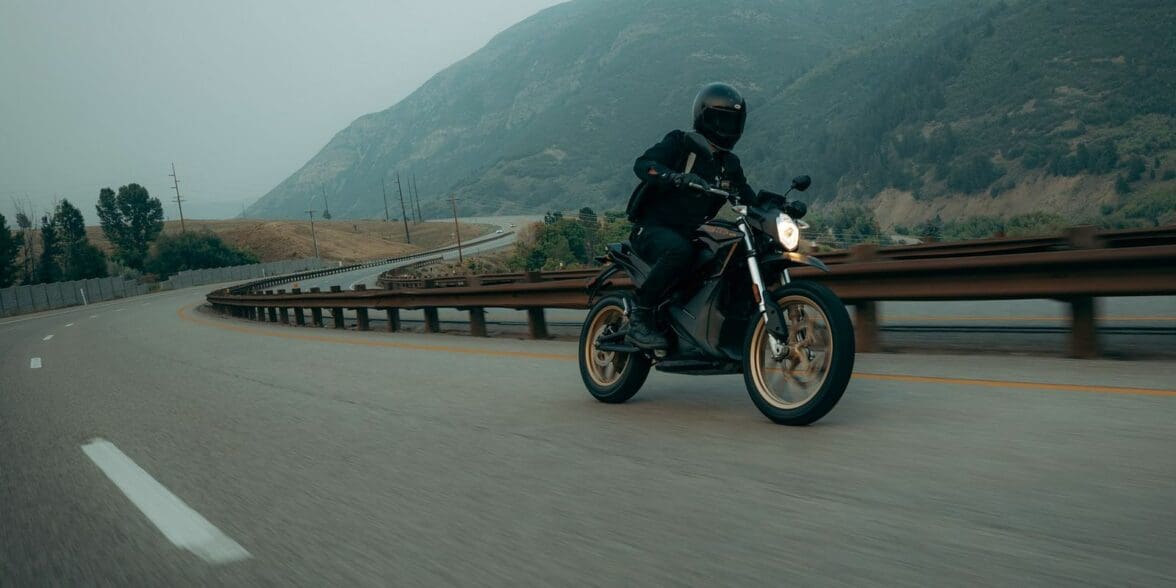

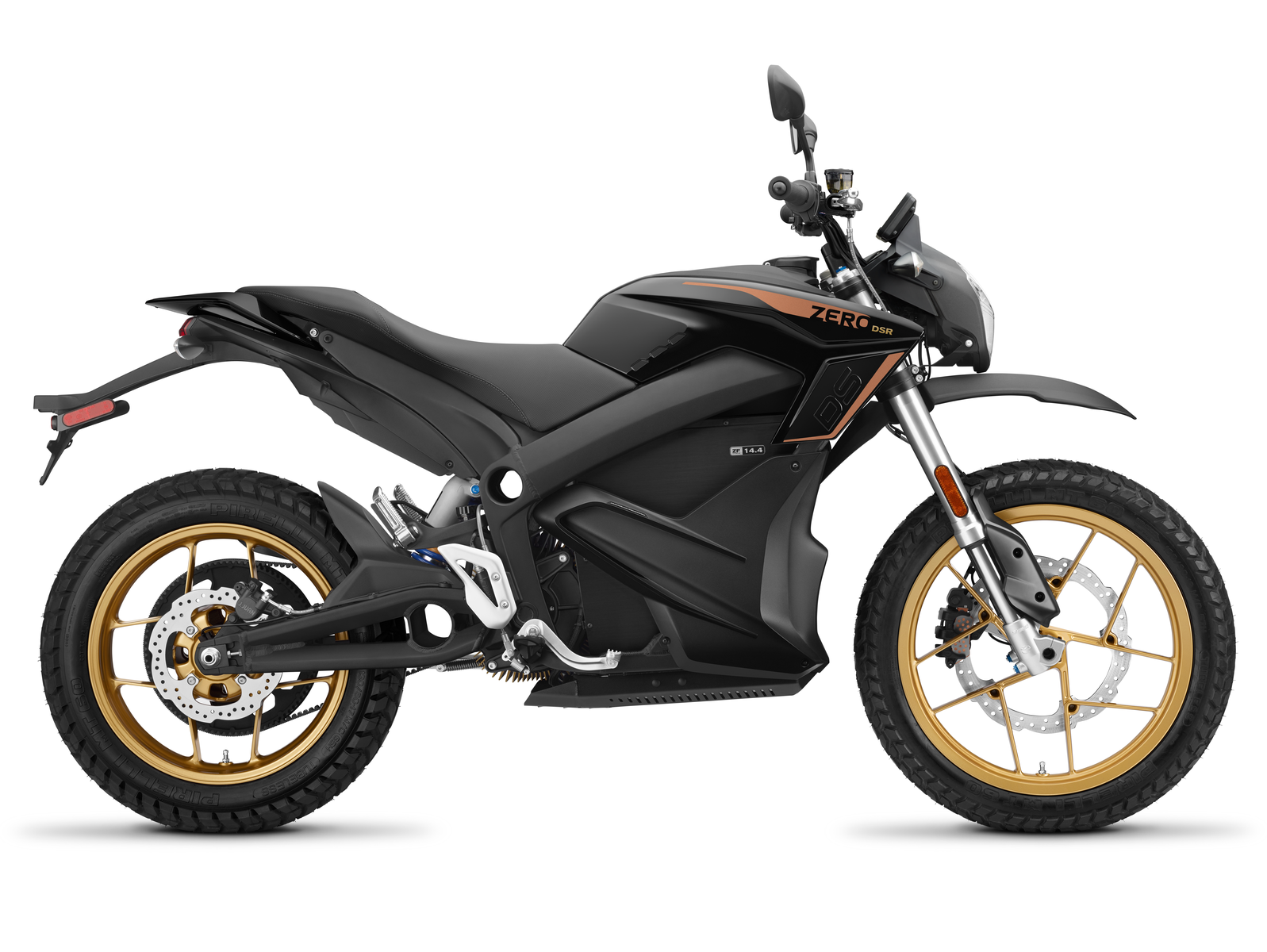

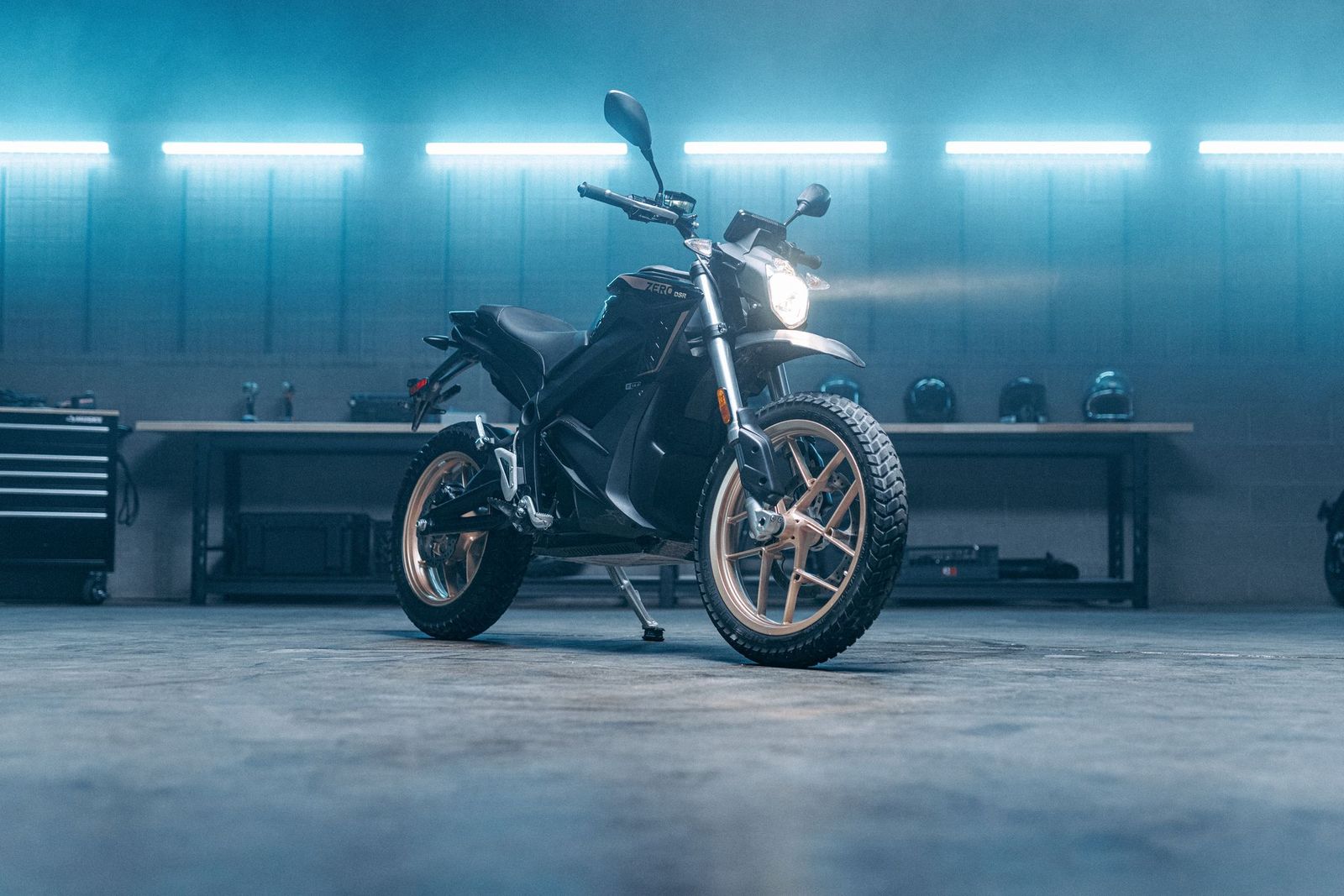

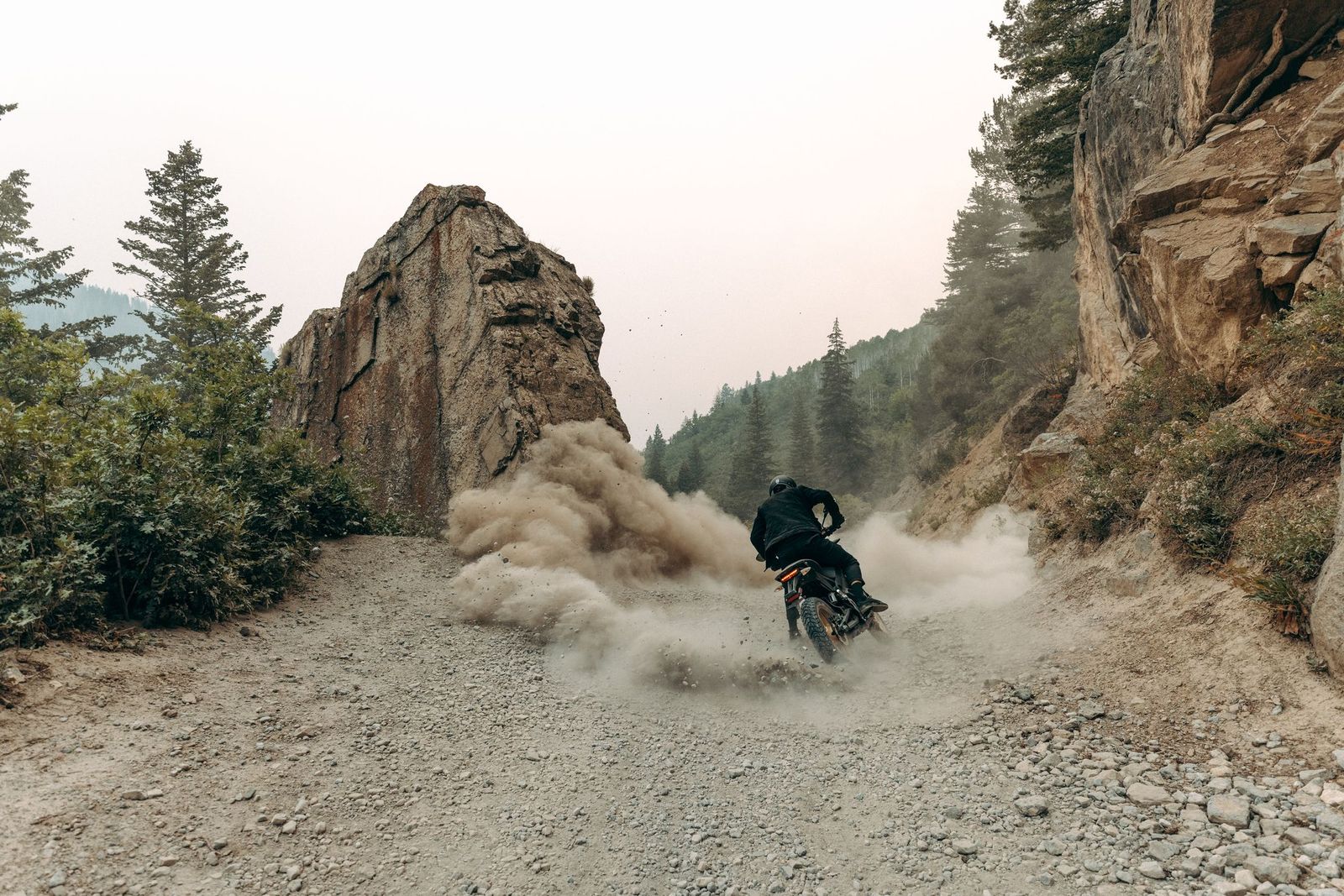

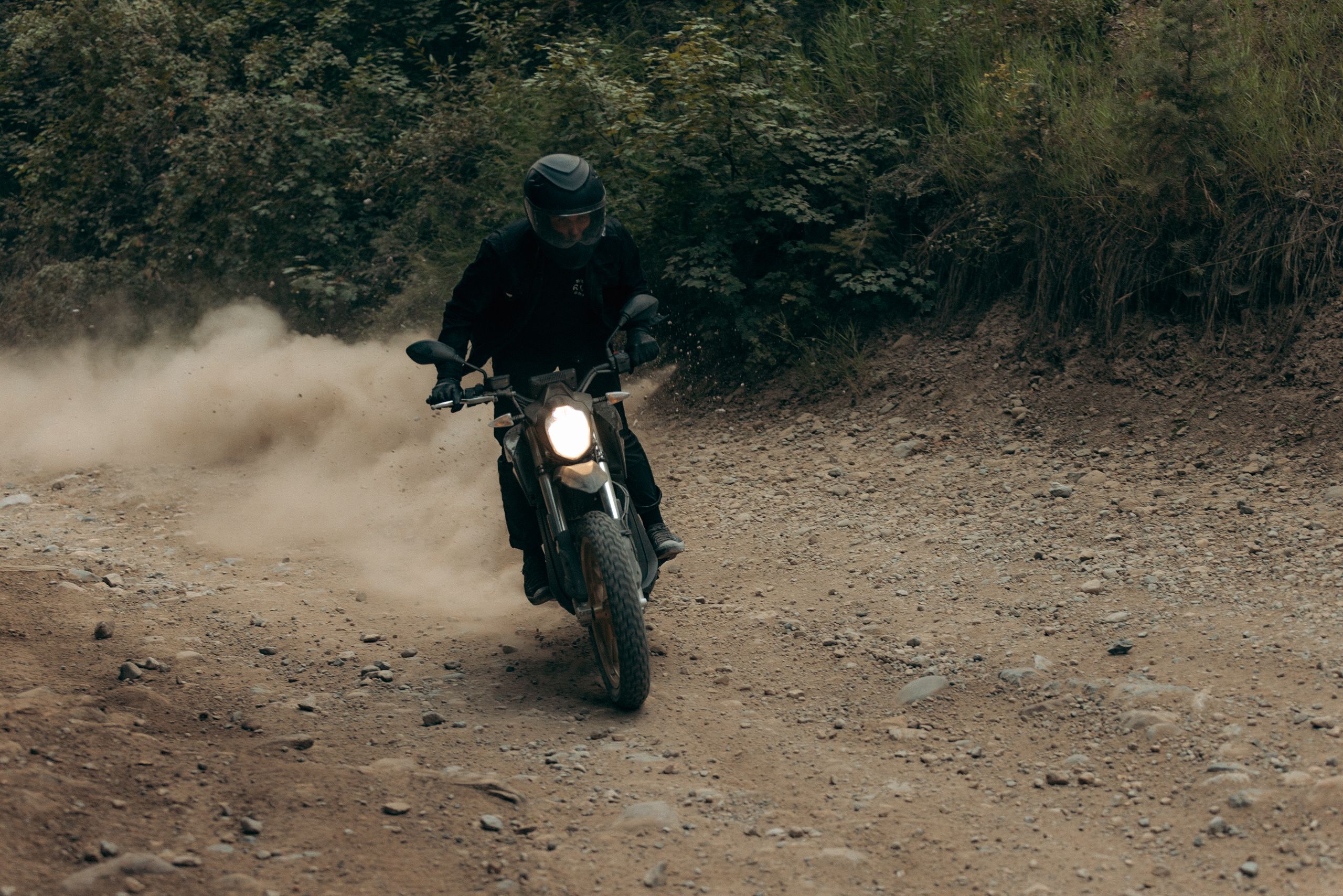

2022 Zero DSR Photos
