2022 Triumph Tiger 900 Rally [Specs, Features, Photos]

2022 Triumph Tiger 900 Rally

2022 Triumph Tiger 900 Rally Range: For the Most Demanding Off-Road Conditions

The Triumph Tiger 900 range is divided into the Tiger 900 GT models and the Tiger 900 Rally models. As their names suggest, the former comprises more road-biased bikes, while the latter comes with some serious off-roading capabilities. The 2022 Triumph lineup includes the Tiger 900 Rally in two variants — the base Tiger 900 Rally and the Tiger 900 Rally Pro.

Like all the Triumph 900 models, the Tiger 900 Rally and Rally Pro are powered by the same 888cc inline-triple, producing 93.9 hp and 64 lb-ft of peak torque.

Both models have top-spec features, including cornering ABS, switchable traction control, and a 7-inch full-color TFT dash. The base Rally model offers four riding modes — Rain, Road, Sport, and Off-Road — while the Rally Pro comes with two more — Off-Road Pro and a rider-customizable mode. The ride modes alter the intrusion of ABS and traction control, and power delivery.

Additionally, the Tiger 900 Rally Pro gets a bi-directional quick-shifter, tire pressure monitoring system, and heated grips and seats as standard.

The British manufacturer has equipped both bikes with fully-adjustable Showa suspension at either end, tubeless spoked wheels, and off-road tires. The Rally Pro comes with an engine crash guard and a metal bash plate as standard. Triumph Motorcycles also offers a host of accessories, from protection to storage, to kit your bike with.

The 2022 Triumph Tiger lineup also includes a Tiger 900 Bond Edition — limited to just 250 units worldwide — celebrating the partnership between the manufacturer and the iconic film franchise. It comes in a unique blacked-out paint scheme with “007” decals and individual numbers printed on the handlebar clamp with a signed certificate of authenticity. The bike is limited to just 250 units worldwide.

The 2022 Triumph Tiger 900 Rally starts at $15,400 USD / $17,500 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Triumph Tiger 900 Rally in one place.

2022 Triumph Tiger 900 Rally


Model Overview

General Info

  • Price: $15,400 USD / $17,500 CAD
  • Key Features:
    • More power, torque, and character with category-leading acceleration
    • Class-defining lightweight chassis for agile dynamic stability
    • Optimized cornering ABS and traction control
    • Showa adjustable off-road suspension

Main Specs

  • Engine: 888cc inline-triple
  • Power: 93.9 hp
  • Torque: 64 lb-ft
  • Dry Weight: 432 lbs (196 kg)
  • Seat Height: 33.86 – 34.65 inches (860-880 mm)

2022 Triumph Tiger 900 Rally


2022 Triumph Tiger 900 Rally Specifications

From Triumph

ENGINE

Engine 888cc, Liquid-cooled, 12-valve, DOHC, inline 3-cylinder
Power 93.9 HP
Bore x Stroke 78 x 61.9
Compression Ratio 11.27:1
Fuel System Multi-point sequential electronic fuel injection
Starter Electric
Exhaust Stainless steel 3-into-1 header system, side mounted stainless steel silencer

DRIVETRAIN

Clutch Wet, multi-plate
Transmission 6-Speed
Final Drive O-ring chain

CHASSIS

Suspension Front Marzocchi 45 mm upside down forks, manual rebound and compression damping adjustment, 7.08 in (180 mm) travel.
Suspension Rear Marzocchi rear suspension unit, manual preload and rebound damping adjustment, 6.69 in (170 mm) wheel travel.

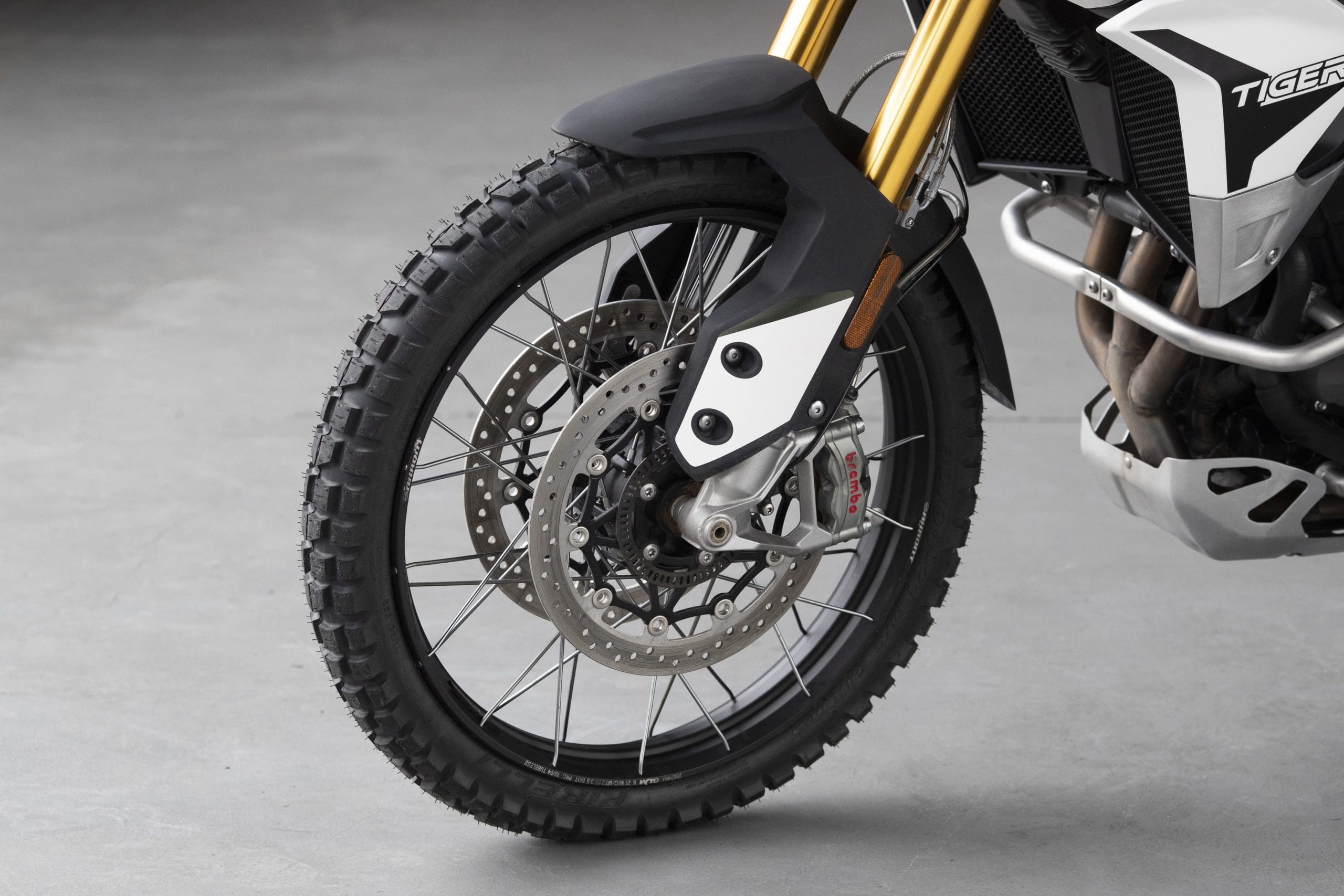

Brakes Front Twin 320 mm floating discs, Brembo Stylema 4-piston Monobloc calipers. Radial front master cylinder, Multi-mode ABS, Optimized Cornering ABS.
Brakes Rear Single 255 mm disc. Brembo single-piston sliding caliper, Multi-mode ABS, Optimized cornering ABS
Tires Front 100/90-19
Tires Rear
150/70R17
Fuel Tank Capacity 5.28 US gal (20 L)
Color

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Width Handlebars 36.61 in (930 mm)
Height Without Mirror 55.51-57.48 in (1,410-1,460 mm)
Wheelbase 61.25 in (1,556 mm)
Trail 5.24 in (133.3 mm)
Seat Height 32.28-33.07 in (820-840 mm)32.28-33.07 in (820-840 mm)
Dry Weight 427 Lbs (194 kg)

WARRANTY

Warranty
Extension

2022 Triumph Tiger 900 Rally


2022 Triumph Tiger 900 Rally Features

EXCITING ADVENTURE OPTIONS

Do you want a powerful new Adventure bike with all the road-going technology, capability and comfort you’ll ever need? Then the Tiger 900 GT is perfectly set up for your needs. Or do you want all that plus the added off-road capability to negotiate even the most extreme adventures with confidence? If so, the Tiger 900 Rally range is the perfect choice for you.

The Tiger 900 GT – Built for maximum urban adventure, proper long-distance travel and everything in between, the GT range has all the performance, equipment and technology to approach every ride with confidence and excitement.

The Tiger 900 Rally – Our most advanced dual-purpose motorcycles, built for maximum off-road adventure and all-day riding capability, control and comfort, the Tiger 900 Rally range sets a new benchmark for handling, specification and style.

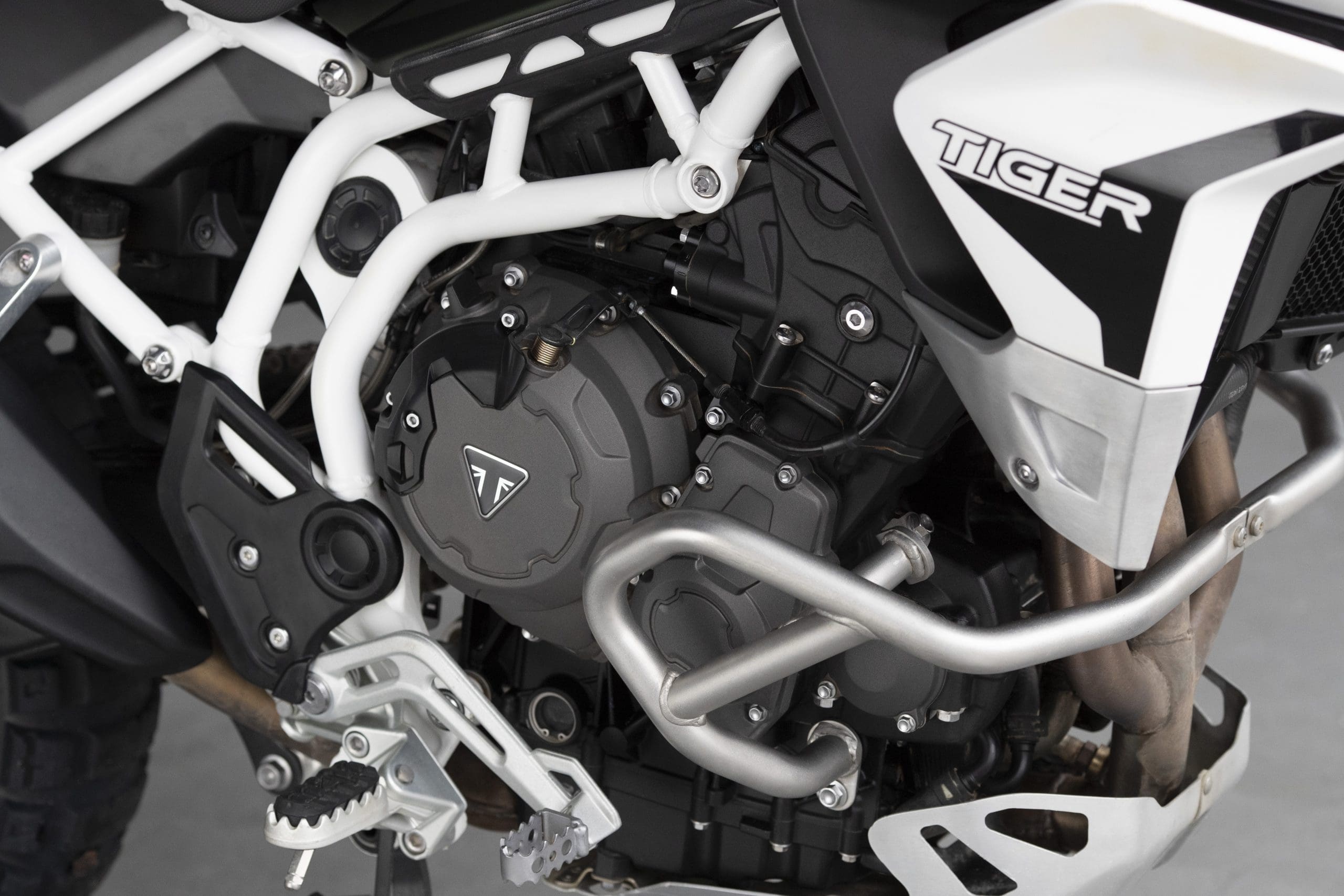

NEW 900CC TRIPLE ENGINE

A larger capacity new 900cc triple engine brings improved performance to the Tiger 900. A new firing order was incorporated for a more engaged Tiger riding experience giving up to 9% more power across the rev range and a high-overall-peak power of 94 HP @ 8,750 rpm, plus 10% more peak torque than the Tiger 800 predecessor. The Tiger 900’s new T-plane triple crank and new 1,3,2 firing order has improved the character, off-road feel and on road performance of the engine and gives a more aggressive and engaging T-plane triple soundtrack with a more distinctive triple bark.

There’s also enhanced cooling performance from an all-new twin radiator set-up which improves air-flow management to reduce the ambient heat levels felt by the rider and reduce the volume of coolant. For added convenience, the new Tiger 900 range has a more easily accessible air filter.

ALL-NEW CLASS-DEFINING CHASSIS

Maximum agility and capability with exceptional handling – The new Tiger 900 is lighter overall by up to 11 pounds. The combination of new lightweight modular frame, new lighter weight engine, high-specification suspension and premium category-leading Brembo brakes delivers a significant improvement in agility and capability, ensuring exceptional handling in all riding scenarios. Each Tiger 900’s center of gravity was revised, moving 1.57 inches forward and 0.78 inches down compared with the predecessor 800 to deliver an enhanced weight distribution between the front and rear wheel and better low speed balance in all riding scenarios, all while maintaining the Tigers’ excellent ground clearance.

Improved ergonomics – Narrower standover width improves rider comfort, particularly when stop-start riding. Handlebars are now 0.39 inches closer to the rider giving a more comfortable upright riding position, and dedicated footrest positions for each Tiger 900 model are optimized for the style of riding.

Adjustable seat height – All models feature a built-in, easily adjustable two-position seat height mechanism which enables the rider to change the seat height by 0.78 inches to their preferred setup. The Tiger 900, Tiger 900 GT and Tiger 900 GT Pro have an 32.28 – 33.07-inch seat height; the Tiger 900 Rally and Tiger 900 Rally Pro have an 33.86 – 34.65-inch seat height; and the Tiger 900 GT Low Ride Height version has a 30.32 – 31.10-inch seat height.

TAILORED SUSPENSION AND BRAKES SETUPS

Tiger 900 and Tiger 900 GT – The models have a tailored suspension setup developed to deliver a ride that raises the bar in the middleweight Adventure segment.

The 900 and GT models have Marzocchi 45mm upside down cartridge front forks that deliver 7.08-inches (180mm) wheel travel. On the GT and GT Pro models, these have manually adjustable compression and rebound damping.

The Rear Suspension Unit delivers 6.69-inches (170mm) wheel travel, and is manually adjustable for preload and rebound damping on the GT model.

The top-spec GT Pro RSU features a new electronically adjustable suspension setup, developed in collaboration with Marzocchi.

Tiger 900 Rally – To reflect the advanced off-road performance of the Tiger 900 Rally range, the ultimate in suspension capability is delivered by a Showa suspension setup.

Both Rally models have 45mm Showa upside down cartridge forks with manual adjustment of preload, rebound and compression damping, and 9.44-inches (240mm) wheel travel. On the rear there is a gas pressurized RSU, adjustable for preload and rebound damping, with 9.05-inches (230mm) rear wheel travel.

All the bikes in the new Tiger 900 lineup feature a category-leading brake setup with top-spec Brembo Stylema® brakes. These are Brembo’s highest performing calipers – lightweight, compact, and carefully-sculpted. The reduced volume around the pistons and brake pads reduces the internal space occupied by brake fluid to deliver a more immediate response, and the increased airflow around the brake pads help the calipers cool quicker for even better performance.

STATE-OF-THE-ART TECHNOLOGY

A host of technology innovations were included on this new Tiger 900 range of motorcycles.

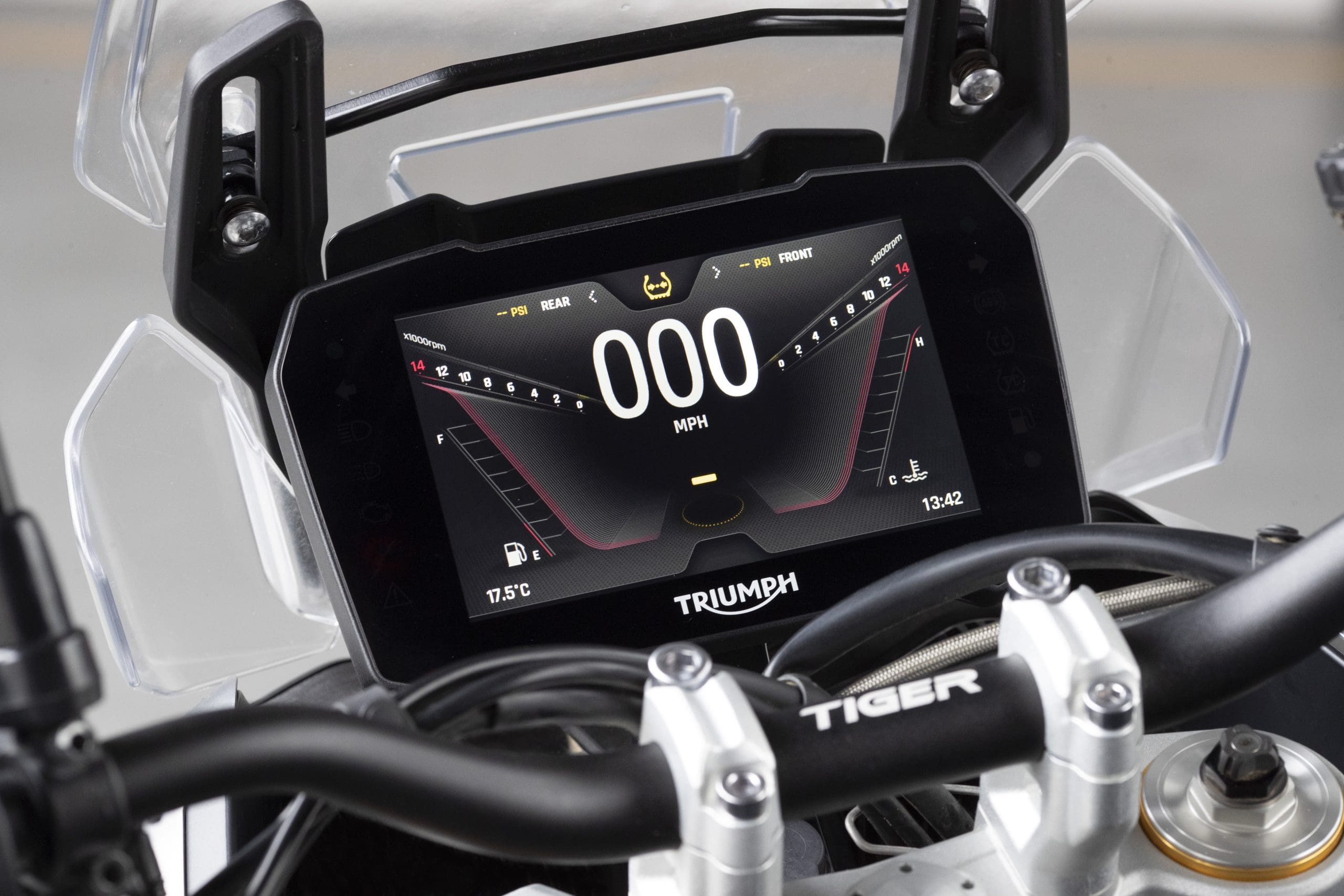

The mid- and top-spec Tiger 900 GT and Rally models feature new full-color 7-inch TFT instruments which display comprehensive ride information, plus new optimized cornering ABS and traction control for improved safety. The range offers up to six riding modes to tailor your ride depending on your needs, and core technology for all GT and Rally models is set at a high level, including all-LED lighting, heated grips, cruise control, handguards, and secure cell phone storage with charging.

Top-spec technology for the GT Pro and Rally Pro models includes the integrated My Triumph connectivity system with Bluetooth® module fitted as standard, enabling phone and music operation, turn-by-turn navigation, and GoPro control via the switch cubes and displayed on the TFT instruments. There is also Triumph Shift Assist that allows up and down gear changes without the use of the clutch, and Tire Pressure Monitoring System for added rider safety and convenience. In addition, heated rider and pillion seats, and LED fog lights are fitted as standard.

ALL-NEW AGGRESSIVE STYLE AND ATTITUDE

As well as an all-new design, new premium bodywork reflects revised finishes and cleaner lines that give the Tiger 900 a more distinctive and dominant adventure stance, with each model having enhanced details and touches that amplify their dual road and off-road bias.

Emphasizing its all-road capability and exceptional agility, the new Tiger 900 has a narrow standover width and is designed with a lighter front-end, reduced bodywork scale, more aggressively styled fuel tank and advanced, lightweight frame.

The GT and Rally ranges come in three premium color schemes: Pure White, Sapphire Black and Korosi Red color options for the GT and GT Pro; and Pure White, Sapphire Black and Matte Khaki color options for the Rally and Rally Pro. The base Tiger 900 model is available in Pure White.
