2022 Indian Springfield Dark Horse [Specs, Features, Photos]

2022 Indian Springfield Dark Horse

The 2022 Indian Springfield Dark Horse Is a Beautiful Mixture of Modern and Retro

The 2022 Indian Motorcycle lineup comprises two Springfield models — the standard Indian Springfield and the Springfield Dark Horse. The latter is a massive, blacked-out cruiser that sets itself apart from the base model with more modern styling and a larger, more powerful engine.

Indian Motorcycle has equipped the Indian Springfield Dark Horse with its Thunderstroke 116 engine — a 1,890cc V-twin unit that produces an impressive 126 lb-ft of torque. The American manufacturer has not revealed an official power output figure for this engine, but private tests have found that it makes just above 90hp.

Since the Springfield Dark Horse is a substantial motorcycle with impressive performance levels, Indian has equipped it with several riding aids. These include ABS, three riding modes (Tour, Standard, and Sport), cruise control, and a cylinder deactivation technology that shuts the rear cylinder off in slow-moving traffic for a smoother ride and better heat management.

Other features that come as standard on the Springfield Dark Horse include keyless ignition, remote locking hard luggage, a tire pressure monitoring system, and a USB charging port. Additionally, owners also have the option of equipping their bike with a host of accessories like extra storage and auxiliary lighting.

The 2022 Indian Springfield Dark Horse starts at $23,499 USD / $28,699 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Indian Springfield Dark Horse in one place.

2022 Indian Springfield Dark Horse

Motorcycle Overview

General Info

  • Price: $23,499 USD / $28,699 CAD
  • Key Features:
    • Blacked-out matte paint finish
    • Powerful Thunderstroke 116 V-twin engine
    • Remote-locking hard saddlebags

Main Specs

  • Engine: 1,890cc V-twin
  • Power: NA
  • Torque: 126 lb-ft
  • Wet Weight: 790 lbs (358 kg)
  • Seat Height: 25.6 in (650 mm)

2022 Indian Springfield Dark Horse

2022 Indian Springfield Dark Horse Specifications

From Indian


Engine 1890cc, Air-cooled Thunderstroke 116
Engine Power
Bore x Stroke 4.063″ x 4.449″ (103.2mm x113mm)
Compression Ratio 11:1
Fuel System Closed loop fuel injection / 54 mm bore
Starter Electric
Exhaust Split Dual Exhaust w/ Cross-over


Clutch Wet, Multi-Plate,Assist
Transmission 6 Speed
Final Drive 2.2 : 1


Suspension Front 46mm, Telescopic Fork
Suspension Rear Single Shock w/ Air adjust
Brakes Front Dual / 300 mm Floating Rotor / 4 Piston Caliper
Brakes Rear Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires Front Metzeler Cruisetec 130/60B19 66H
Tires Rear
Metzeler Cruisetec 180/60R16 80H
Fuel Tank Capacity 5.5 gal (20.8 L)
Color / Graphics Black Smoke, Quartz Gray


Spark Plugs
Headlight LED Headlamp
Tail Light LED Taillight


Overall Length 99.3 in (2,522 mm)
Overall Width 38.3 in / 972 mm
Overall Height 48.3 in / 1226 mm
Wheelbase 67.0 in (1,701 mm)
Ground Clearance 5.1 in (130 mm)
Seat Height 25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
758 lbs (344 kg) / 790 lbs (358 kg)


Warranty 2 Years, Unlimited Miles

2022 Indian Springfield Dark Horse

2022 Indian Springfield Dark Horse Features


The Indian Springfield Dark Horse is for those want more. With a streamlined stance, powerful V-twin engine, and sinister styling, it rides as powerfully as it looks.

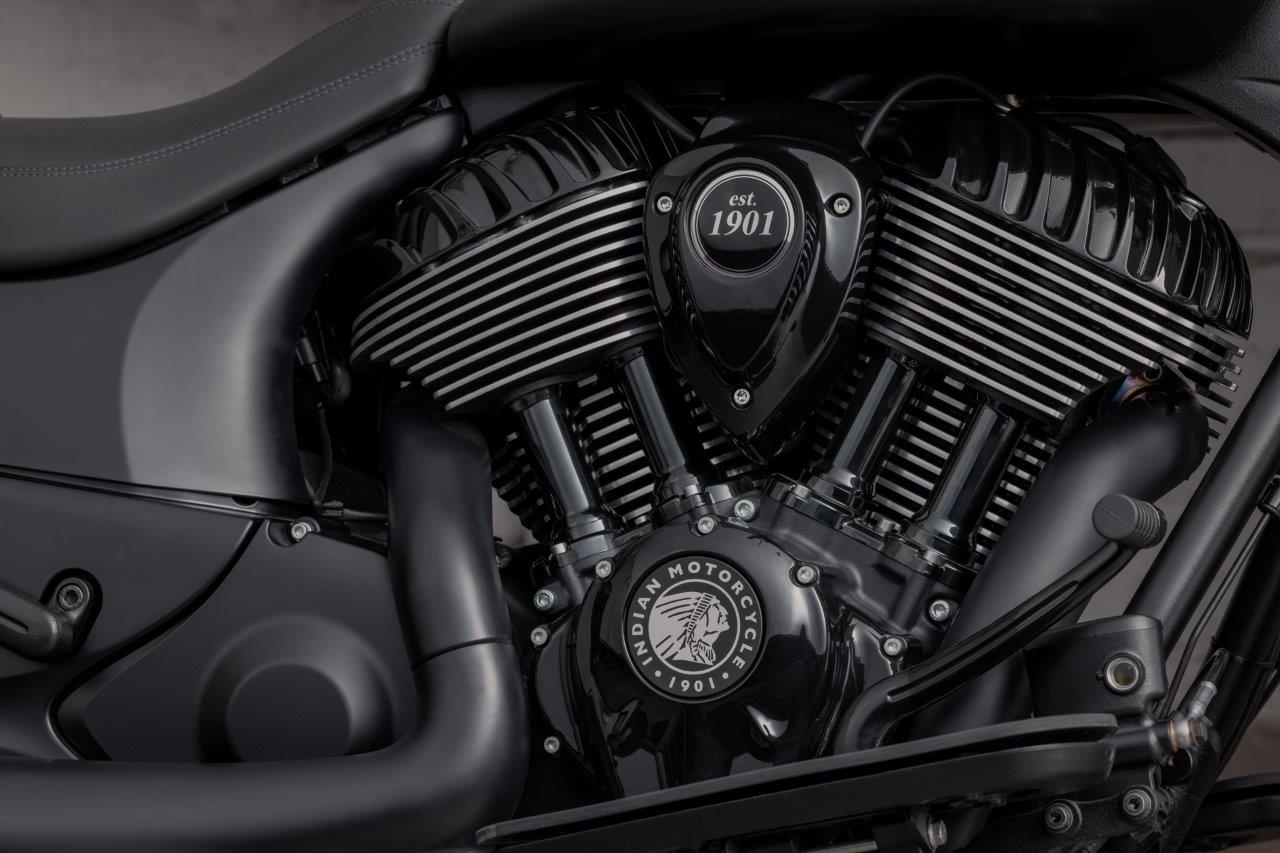

The air-cooled Thunderstroke 116 engine produces 126 ft-lbs of torque for exceptional power at low RPM and a smooth ride at any speed.

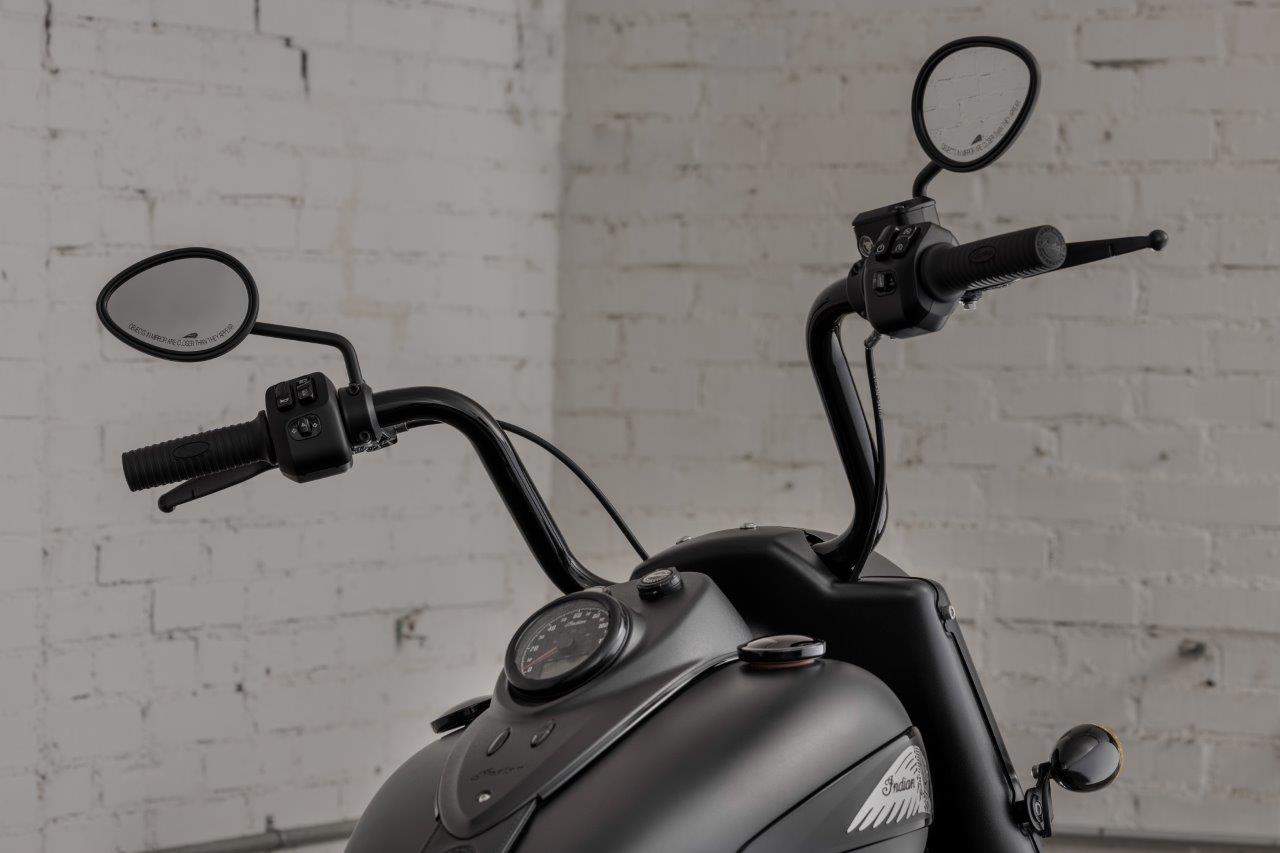

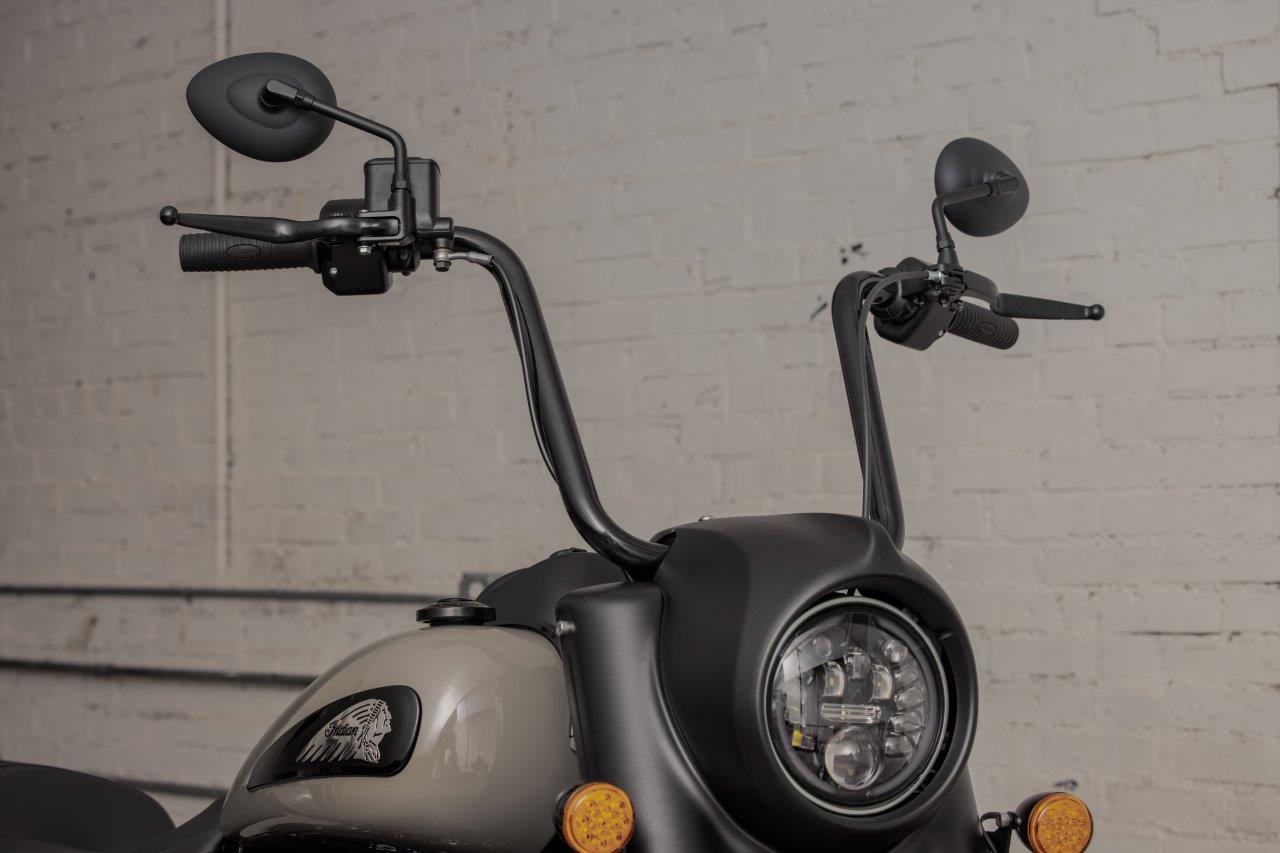

Adding custom style to the bike, the mid-ride handlebars come standard for a relaxed reach that feels great on the road.

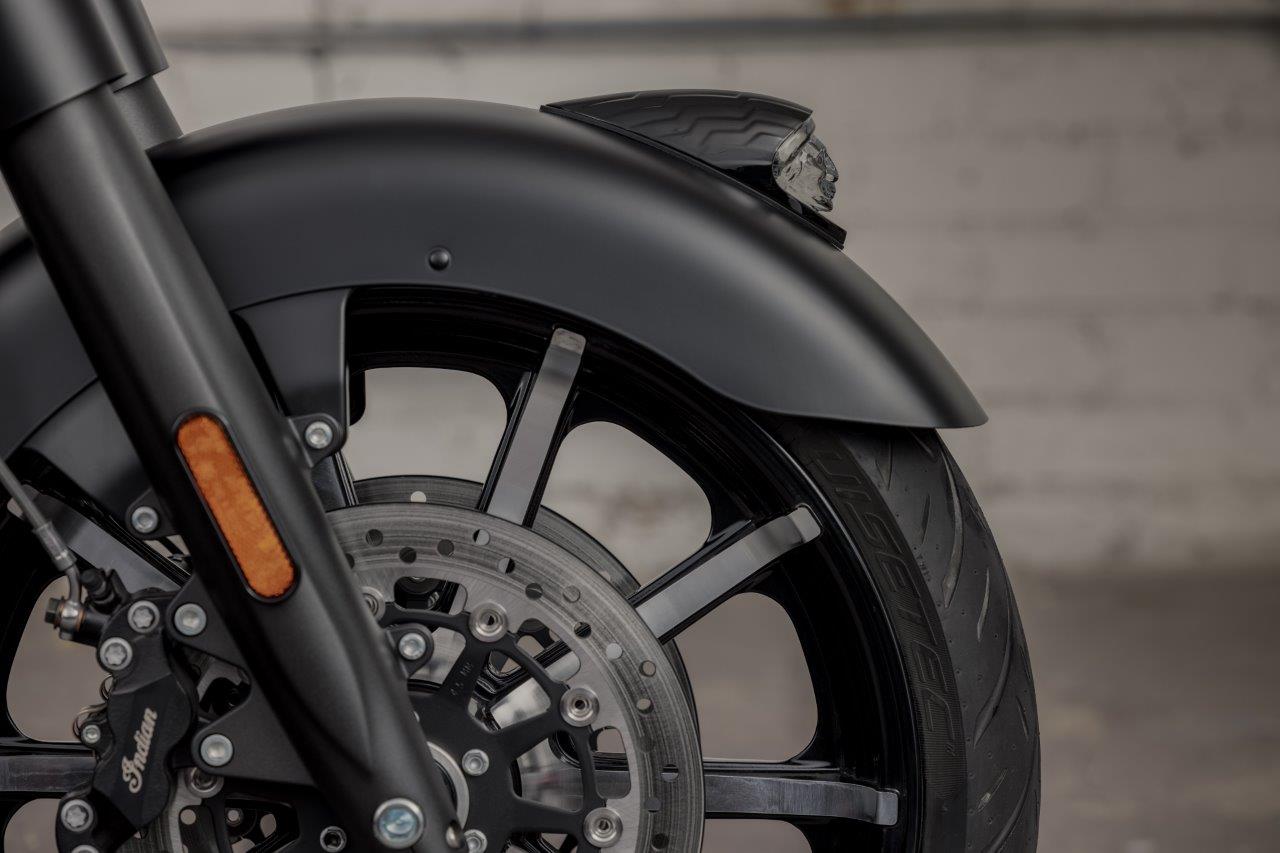

Inspired by the look of custom bikes, an open front fender exposes the 19-inch 10-spoke contrast-cut front wheel, with the iconic Indian Motorcycle headdress leading the way.

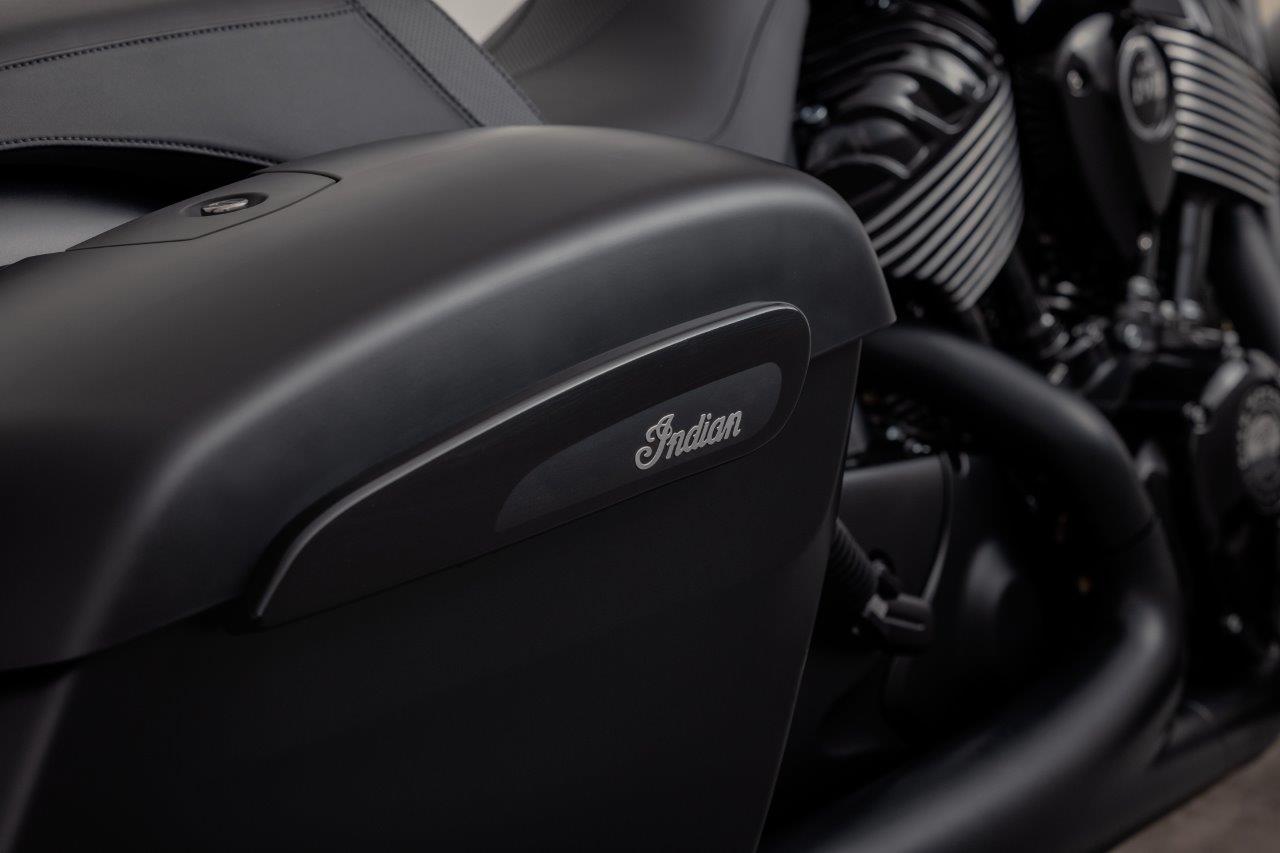

Slammed remote-locking hard saddlebags provide secure storage for weekend getaways and combined with mid-rise handlebars create a menacing profile.


Exacting attention to detail in paint with premium matte and gloss black finishes front-to-back make a bold statement and mean no compromises from a bike that makes its presence known even standing still.

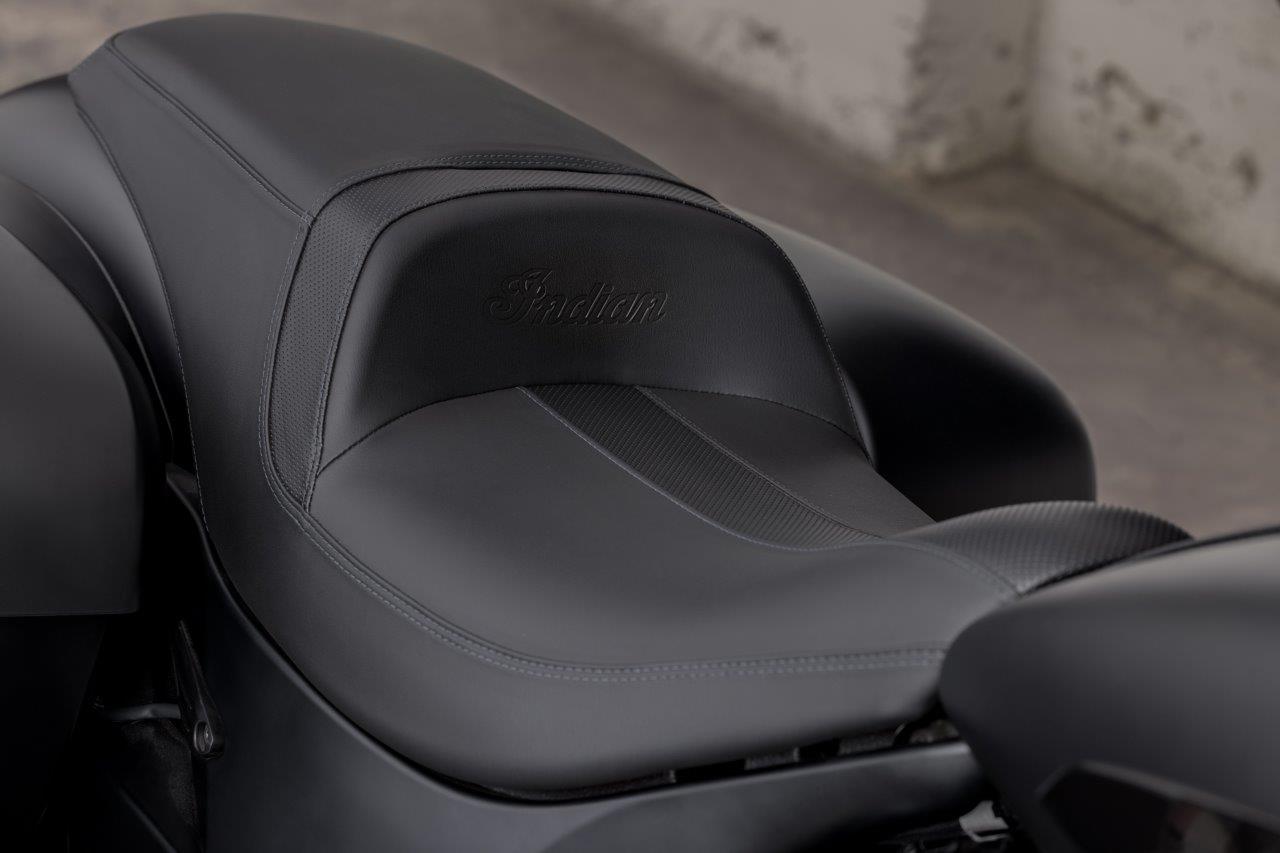

The lightweight, cast aluminum frame and low seat make for an expertly balanced bike that’s easy to handle at all speeds.The Indian Springfield Dark Horse comes loaded with ride-enhancing features like, tire pressure monitoring, cruise control, and keyless ignition.

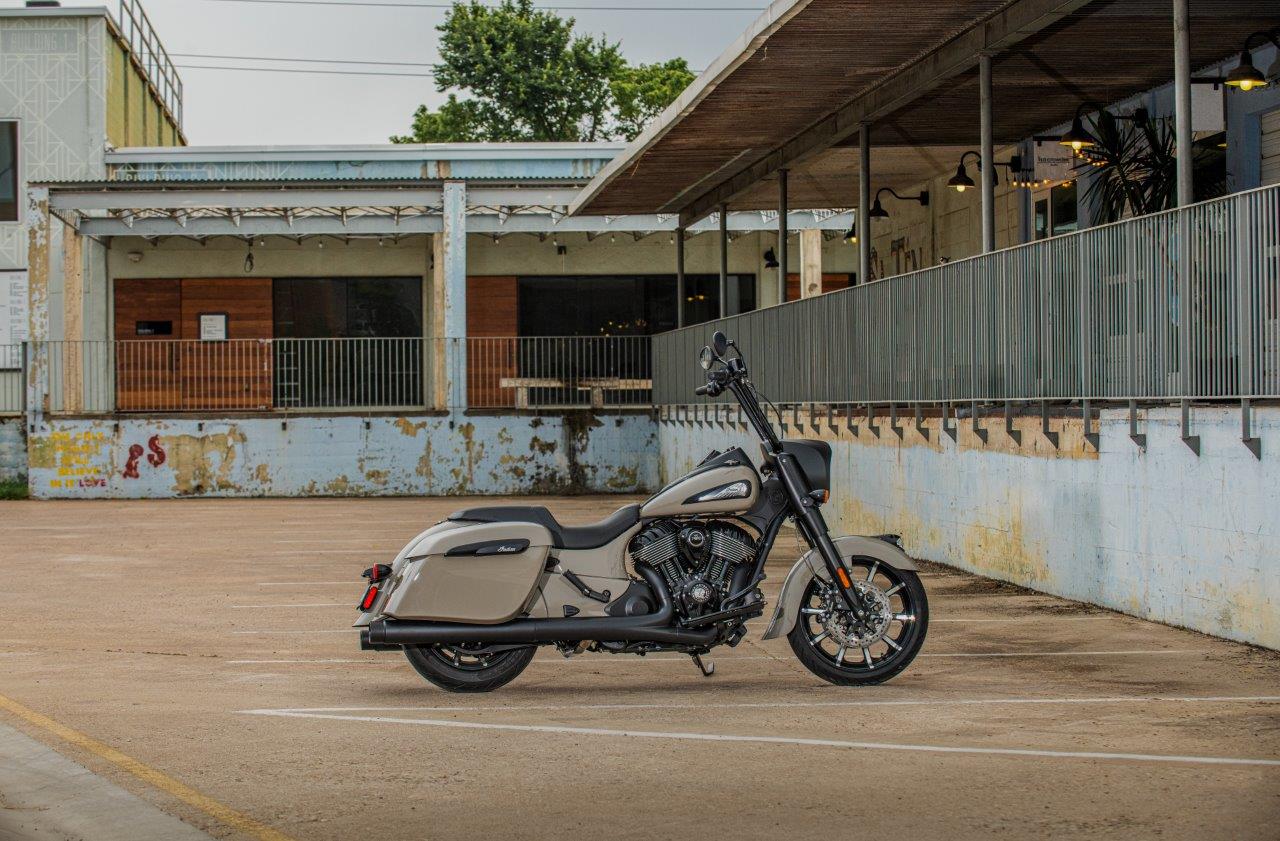

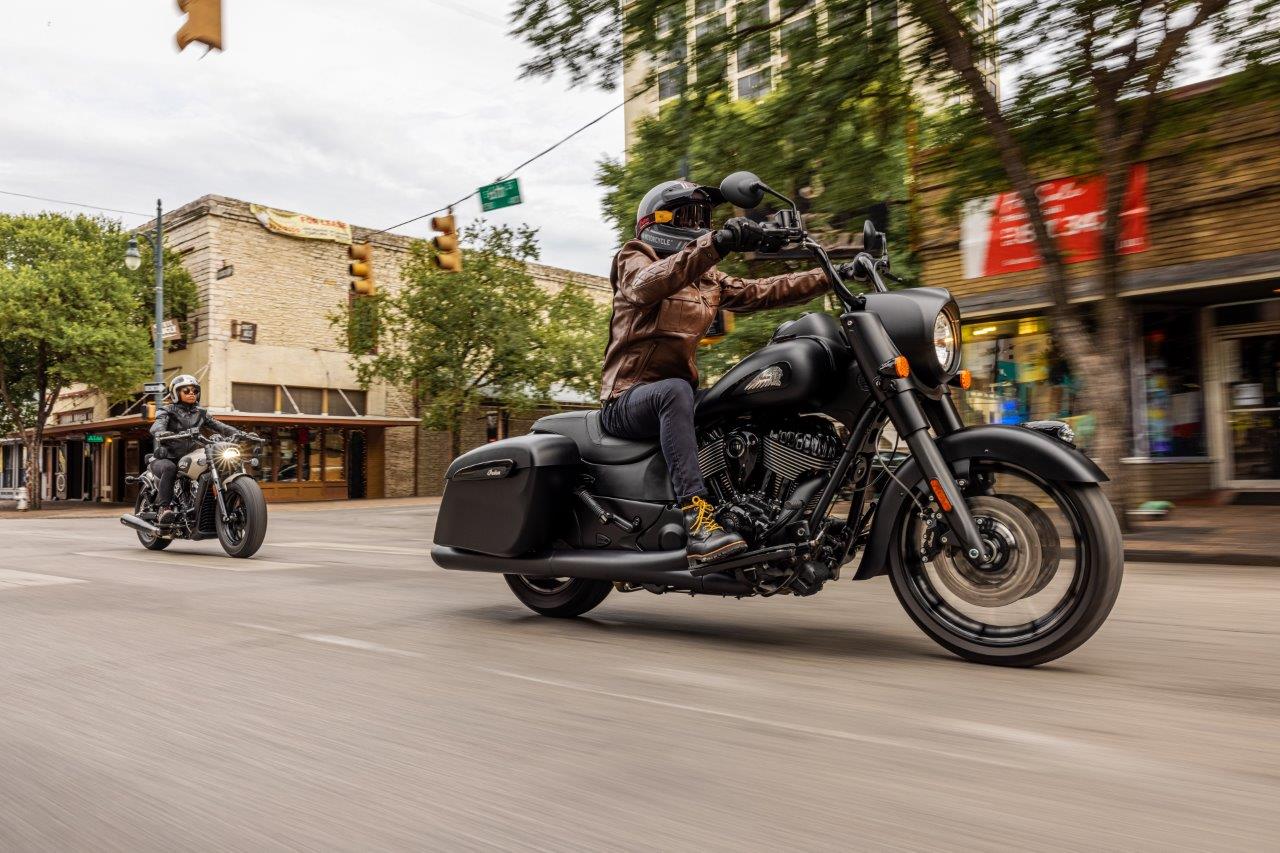

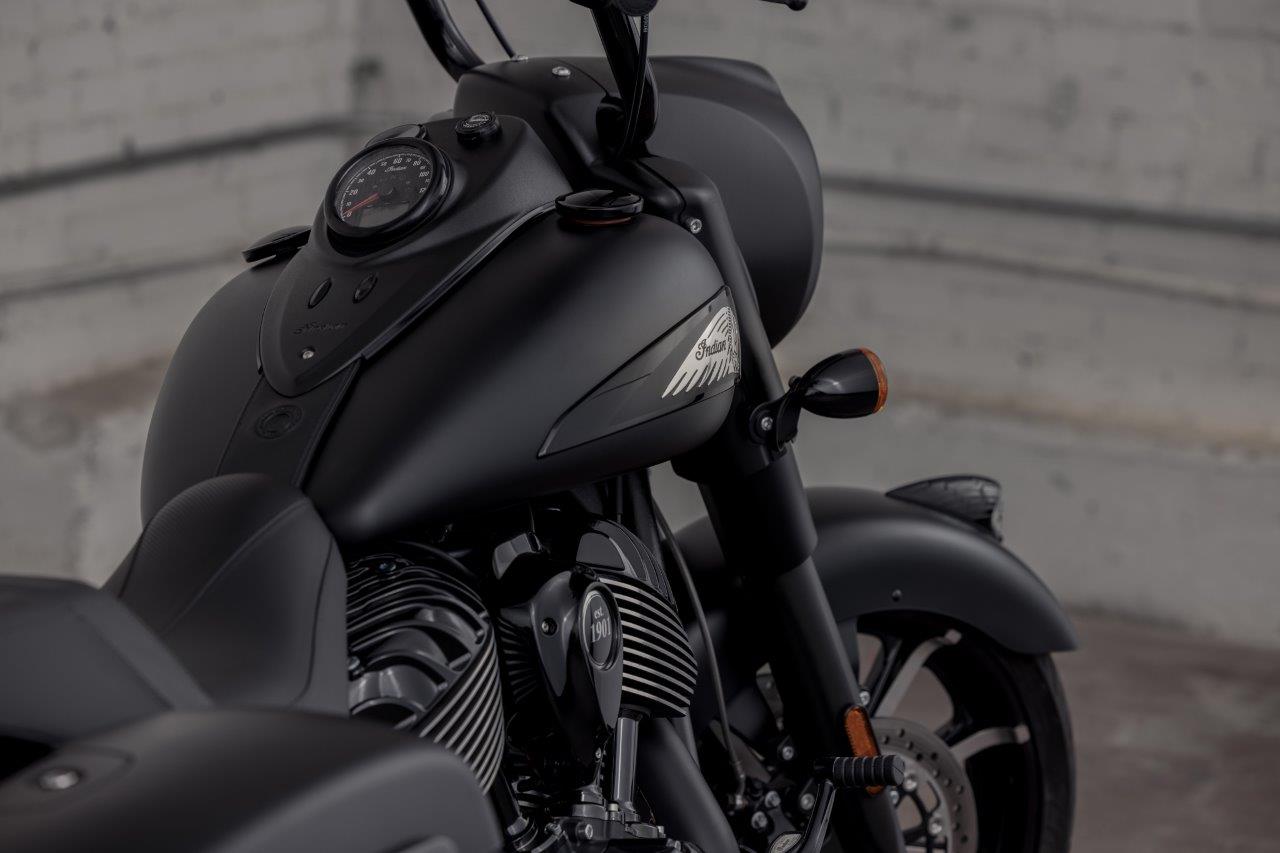

2022 Indian Springfield Dark Horse Photos
