2022 Harley Davidson Tri Glide Ultra [Specs, Features, Photos]

2022 Harley Davidson Tri Glide Ultra

The 2022 Harley Davidson Tri Glide Ultra: Oh So Extra!

One of 3 Trikes in the 2022 Harley Davidson lineup, the Tri Glide Ultra packs The Milwaukee-Eight® 114 engine pounds and its 118 lbs-ft of torque. Behind the iconic Batwing fairing, the rider is treated to Reflex™ linked brakes with ABS, an all-new 4-speaker BOOM!™ GTS infotainment system, electronic cruise control, and 6.8 cubic feet of storage space.

The Tri Glide showcases Harley Davidson’s high level of build quality with premium paint finishes including two-tone options, Daymaker® LED headlamp and LED fog lamps, and unique Tomahawk™ wheels. This American-made machine is set for the long haul.

3 Color choices for the 2022 Harley Davidson Tri Glide Ultra: Vivid Black, Gauntlet Gray Metallic / Vivid Black, Midnight Crimson / Vivid Black.

The 2022 Harley Davidson Tri Glide Ultra starts at $35,699 USD / $43,799 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Tri Glide Ultra in one place.

2022 Harley Davidson Tri Glide Ultra


Model Overview

General Info

  • Price: $35,699 USD / $43,799 CAD
  • Key Features:
    • Milwaukee-Eight® 114 V-Twin engine
    • Brembo ABS Brakes
    • Tour-Pak™ storage
    • Traction Control

Main Specs

  • Engine: 114 ci V-twin
  • Power: 100.5 HP (estimated)
  • Torque: 118 lbs-ft @ 3000 RPM
  • Wet Weight: 1,243 lb. (564 kg)
  • Seat Height: 27.1 in. (688 mm)

Competitors

2022 Harley Davidson Tri Glide Ultra


2022 Harley Davidson Tri Glide Ultra Specifications

From Harley-Davidson

ENGINE

Engine Twin-Cooled Milwaukee-Eight® 114
Engine Torque 100.5 HP
Bore x Stroke 4.016 in. X 4.5 in.
Compression Ratio
10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust 2-1-2 dual exhaust with tapered mufflers

DRIVETRAIN

Clutch
Transmission 6-speed
Primary Drive
Chain, 34/46 ratio

CHASSIS

Front Fork
49mm dual bending valve
Rear Shocks
Hand-adjustable emulsion rear suspension
Wheels, Front Type
Black, 7-spoke Cast Aluminum
Wheels, Rear Type
Black, 7-spoke Cast Aluminum
Brakes Front
Dual floating rotors, 32mm 4 piston fixed
Brakes Rear floating 36mm piston integrated park brake
Tires Front
MT90B16 72H
Tires Rear
P205/65R15 92T
Fuel Tank Capacity 6 gal.
Color Vivid Black,Midnight Crimson/Vivid Black, Mineral Green Denim Deluxe

ELECTRICAL

Ignition
Spark Plugs
Headlight All LED headlamp
Tail Light LED

DIMENSIONS

Length
105.1 in.
Trail
3.94 in.
Rake 26
Wheelbase
65.7 in.
Ground Clearance
4.9 in.
Seat Height
27.1 in.
Weight, As Shipped
1,204 lb.

WARRANTY

Warranty
Extension

2022 Harley Davidson Tri Glide Ultra


2022 Harley Davidson Tri Glide Ultra Features

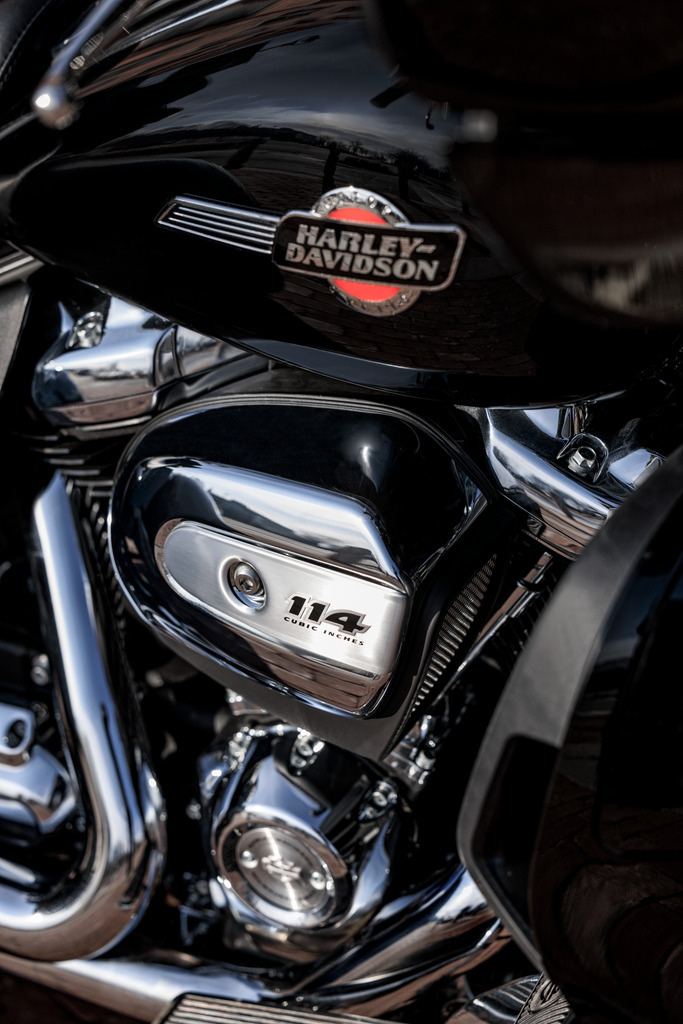

TWIN-COOLED™ MILWAUKEE-EIGHT® 114 ENGINE

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

REFLEX™ LINKED BREMBO® BRAKES WITH STANDARD ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

HIGH PERFORMANCE SUSPENSION

Premium Harley-Davidson touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.

6-SPEED CRUISE DRIVE® TRANSMISSION

Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.

TRUNK AND KING TOUR-PAK® STORAGE

The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak® luggage carrier adds an addtional 2.4 cubic feet storage capacity, combined giving you 6.8 cubic feet of storage.

BATWING FAIRING & SPLITSTEAM AIR VENT

Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front

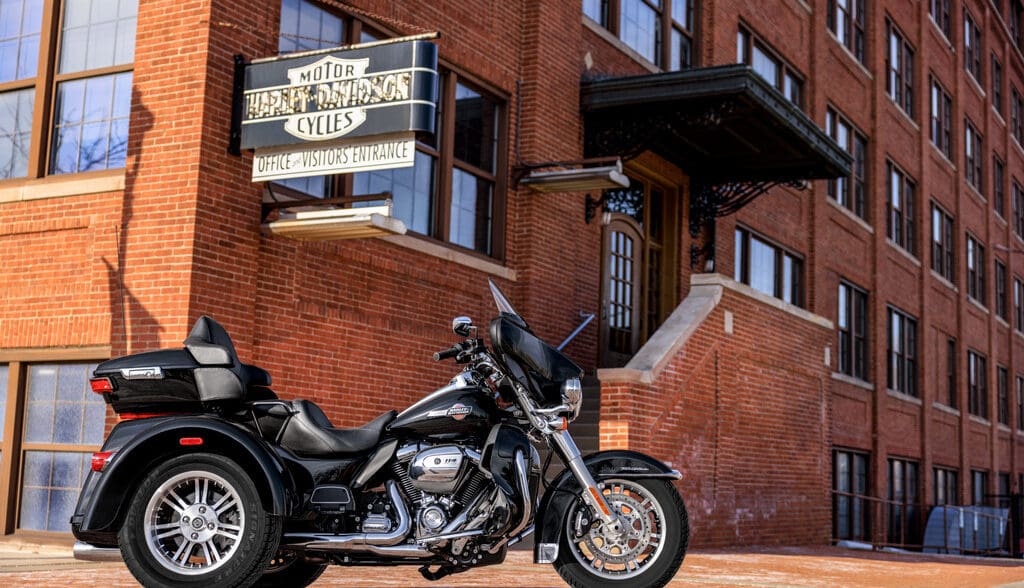

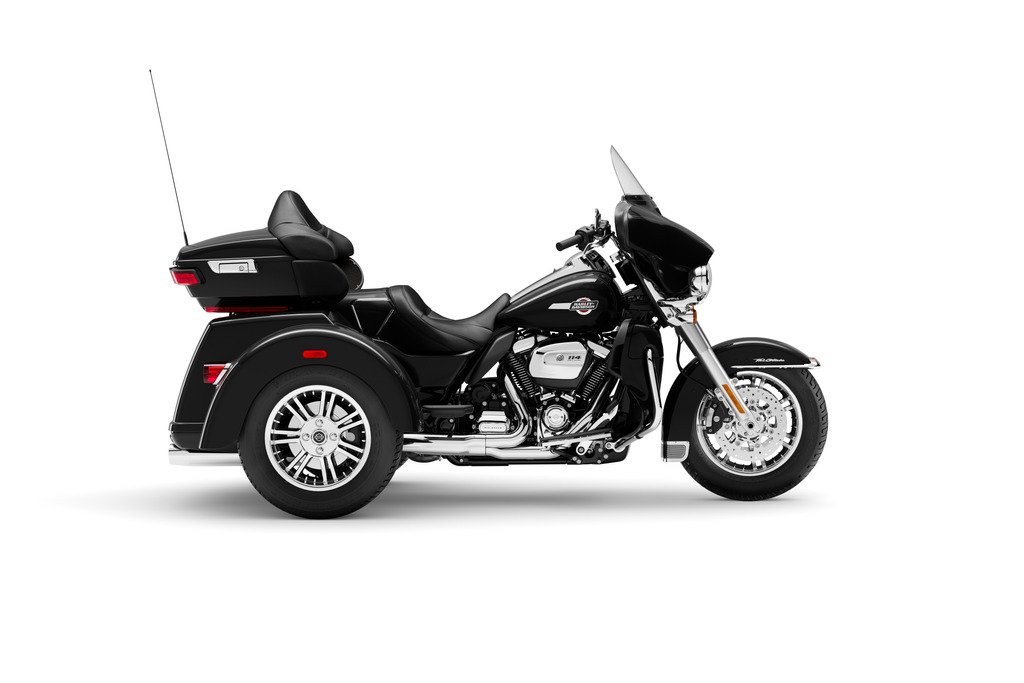

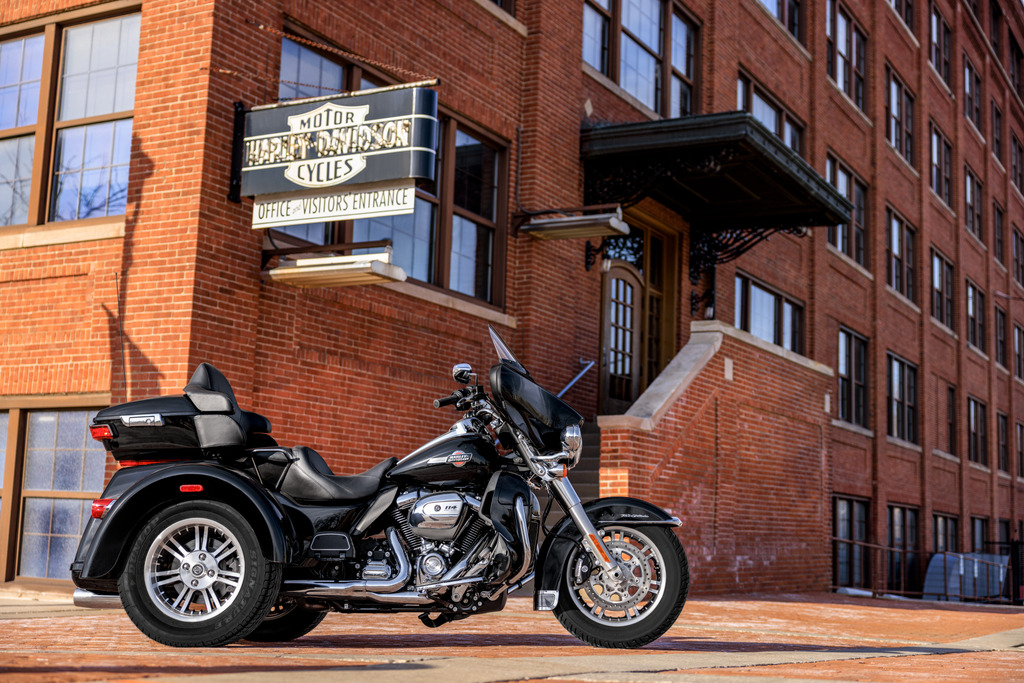

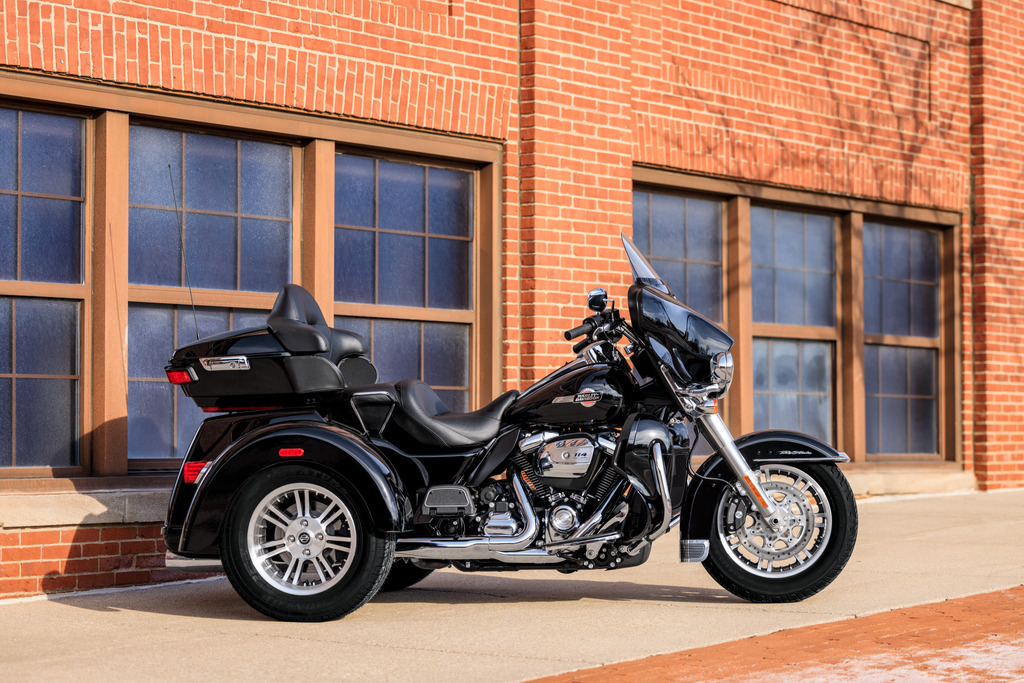

2022 Harley Davidson Tri Glide Ultra Photos
