2022 Harley Davidson Freewheeler [Specs, Features, Photos]

2022 Harley Davidson Freewheeler

The 2022 Harley Davidson Freewheeler: Make It Yours

The Freewheeler is a popular choice for those wanting to stay with an American-made 3-wheeled hot rod..

One of 3 in the 2022 Harley Davidson lineup, the Freewheeler packs The Milwaukee-Eight® 114 engine pounds and its 118 lbs-ft of torque. Setup for owners to customize, Harley Davidson smartly provides gear such as Reflex™ Linked Brembo® Brakes With Standard ABS, 12-inch Mini-Ape hanger bars, classic bobtail fenders, and a huge trunk. Optional is the Reflex™ Defensive Rider Systems suite of electronic rider aids.

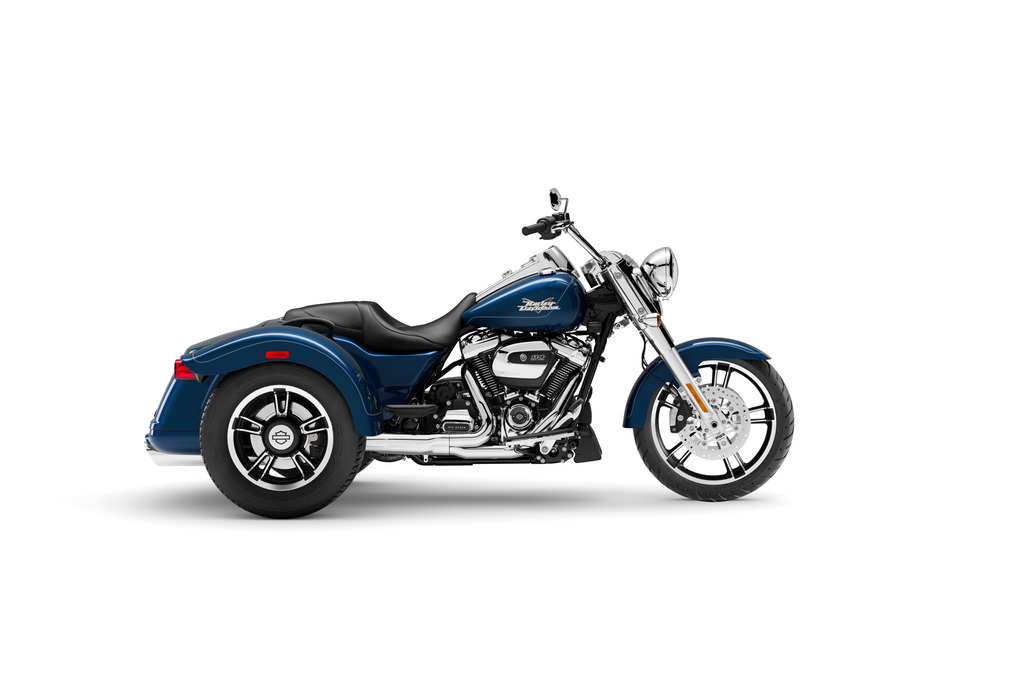

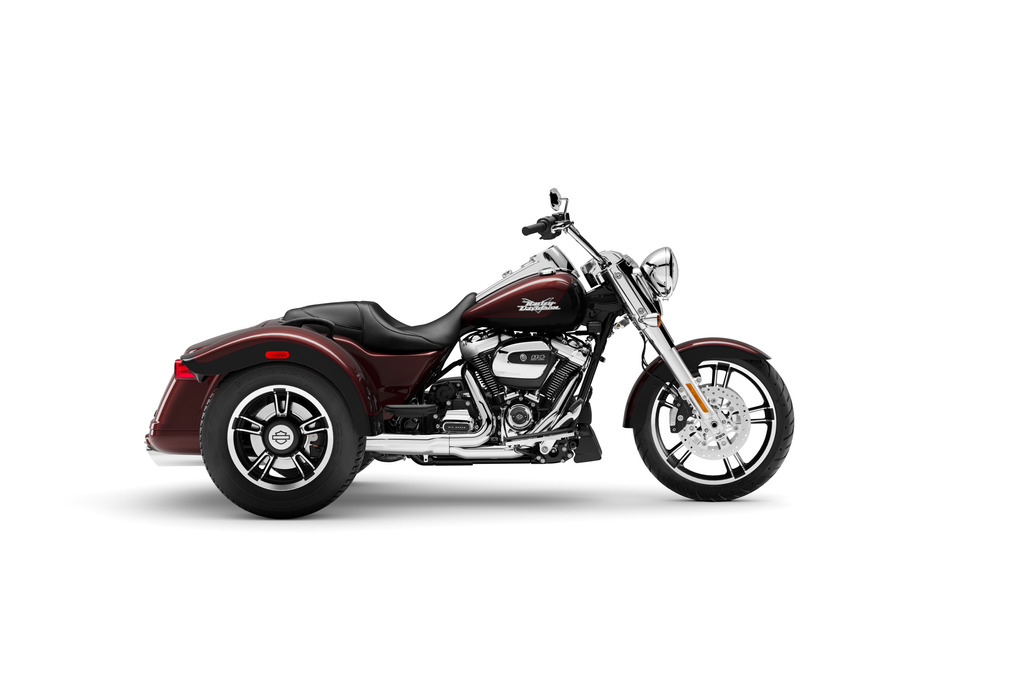

3 Color choices for the 2022 Harley Davidson Freewheeler: Vivid Black, Reef Blue, and Midnight Crimson/Vivid Black

The 2022 Harley Davidson Freewheeler starts at $28,499 USD / $34,599 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Freewheeler in one place.

2022 Harley Davidson Freewheeler


Model Overview

General Info

  • Price: $28,499 USD / $34,599 CAD
  • Key Features:
    • Milwaukee-Eight® 114 V-Twin engine
    • Brembo ABS Brakes
    • 12” Mini Apes
    • Optional RDRS

Main Specs

  • Engine: 114 ci V-twin
  • Power: 100.5 HP (estimated)
  • Torque: 118 lbs-ft @ 3000 RPM
  • Wet Weight: 1,118 lb. (507 kg)
  • Seat Height: 26.2 in. (665 mm)

Competitors

2022 Harley Davidson Freewheeler


2022 Harley Davidson Freewheeler Specifications

From Harley-Davidson

ENGINE

Engine Milwaukee-Eight® 114
Engine Torque 122 ft-lb
Bore x Stroke 4.016 in.X 4.5 in.
Compression Ratio
10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter
Exhaust Shorty slash down-style chrome finish mufflers

DRIVETRAIN

Clutch
Transmission 6-speed
Primary Drive
Chain, 34/46 ratio

CHASSIS

Front Fork
49mm dual bending valve
Rear Shocks
Hand-adjustable emulsion rear suspension
Wheels, Front Type
Enforcer Cast Aluminum
Wheels, Rear Type
Enforcer Cast Aluminum
Brakes Front
32mm 4 piston fixed Dual floating rotors
Brakes Rear Floating 36mm piston integrated park brake
Tires Front
MT 130/60B19 M/C 61H
Tires Rear
P205/65R15
Fuel Tank Capacity 6 gal.
Color

ELECTRICAL

Ignition
Spark Plugs
Headlight All LED headlamp
Tail Light LED

DIMENSIONS

Length
Trail
3.96 in.
Rake 26
Wheelbase
65.7 in.
Ground Clearance
4.9 in.
Seat Height
26.2 in.
Weight, As Shipped
1,085 lb.

WARRANTY

Warranty
Extension

2022 Harley Davidson Freewheeler


2022 Harley Davidson Freewheeler Features

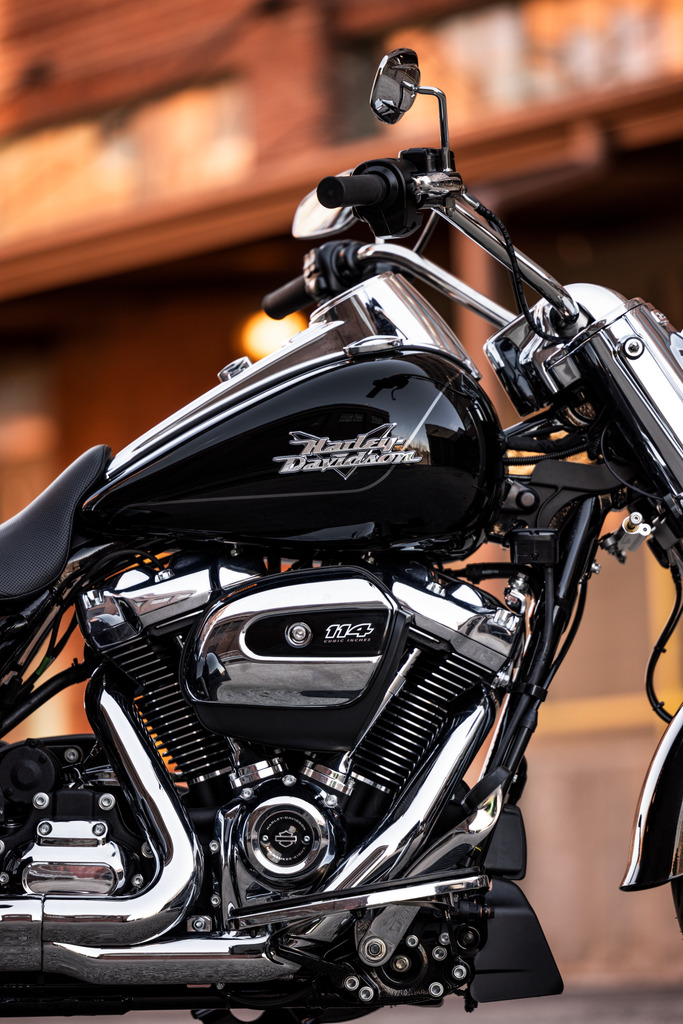

MILWAUKEE-EIGHT® 114 ENGINE

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

REFLEX™ LINKED BREMBO® BRAKES WITH STANDARD ABS

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

HIGH PERFORMANCE SUSPENSION

Premium Harley-Davidson touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.

BOBTAIL REAR FENDERS

The pair of Harley-Davidson® bobtail rear fenders give the bike classic cruiser lines and styling details.

ENFORCER CAST ALUMINUM WHEELS

There’s an Enforcer front wheel leading the way, and you’ve got two more to match in the back. Up front, the brake rotors have been redesigned to show off more of the premium custom look of the wheels.

7-PIECE NACELLE

A classic style chrome headlight nacelle is tucked tight against the frame and forks for a tighter, smaller look. It also accommodates a clean-looking windshield mounting system.

UNIQUE TRUNK SYSTEM

It’s a one-of-a-kind design that opens left to right (with one hand) and extends the entire length of the body for a clean look. Enough cargo space to easily accommodate two full-face helmets.

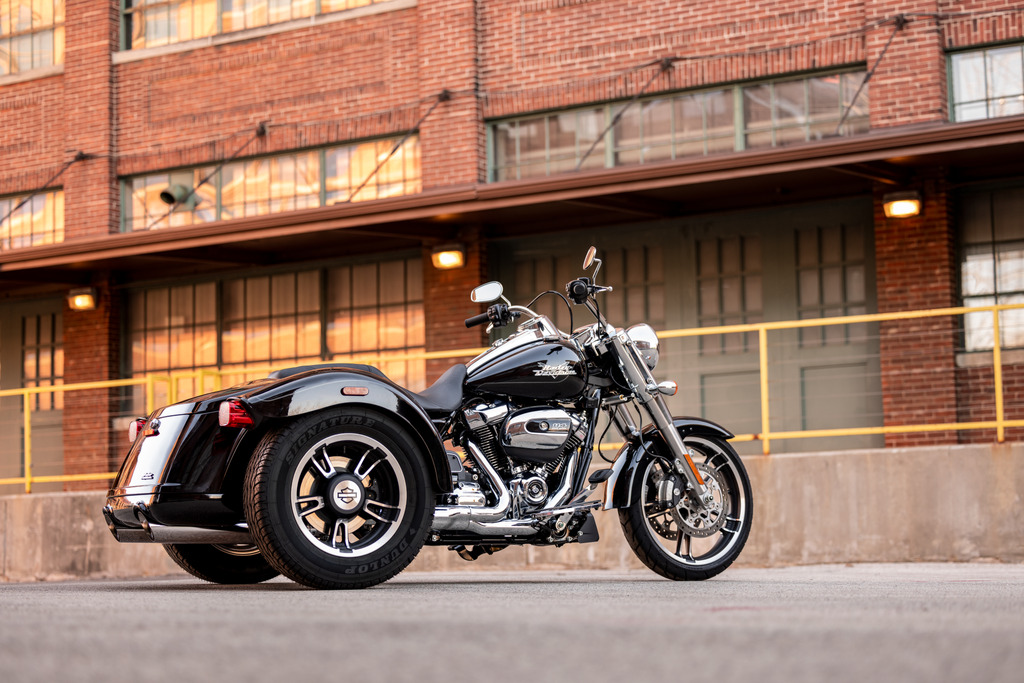

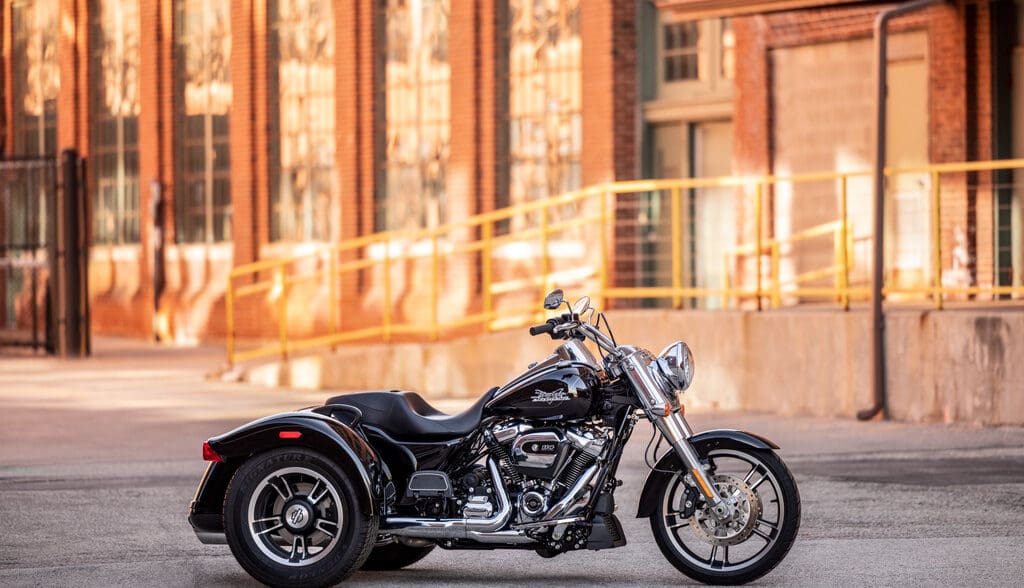

2022 Harley Davidson Freewheeler Photos
