2022 Harley Davidson Fat Bob 114 [Specs, Features, Photos]

2022 Harley Davidson Fat Bob 114
Last updated:

The 2022 Harley Davidson Fat Bob 114: The Brute

There is something rather awe inspiring about the fat tire stance of the Fat Boy 114. Almost as though it is mocking the mere mortals, deciding if you are worthy of putting a leg over.  100% all-American and the muscle choice in the 2022 Harley Davidson lineup, the Fat Bob 114 required no changes from last year’s version but has a stunning two tone paint on the tank.

The Milwaukee-Eight® 114 engine pounds out 118 lbs-ft of torque and a satisfying rumble from the upswept exhaust with its contrasting bronze finish. Fitting the inverted front fork around the massive 150mm wide front tire made space for the distinctive LED headlight. Stopping this burly Harley Davidson are massive dual disc brakes, doing their best to hide the denim black Structure cast aluminum wheels.

2 Color choices for the 2022 Harley Davidson Fat Bob 114: Vivid Black, and White Sand Pearl.

The 2022 Harley Davidson Fat Bob 114 starts at $18330 USD / $23,799 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Fat Bob 114 in one place.

2022 Harley Davidson Fat Bob 114


Model Overview

General Info

  • Price: $18330 USD / $23,799 CAD
  • Key Features:
    • Milwaukee-Eight® 114 V-Twin engine
    • 150mm Wide Front Tire
    • Forward Controls

28o Front For Rake

Main Specs

  • Engine: 114 ci V-twin
  • Power: 100.5 HP (estimated)
  • Torque: 118 lbs-ft @ 3000 RPM
  • Wet Weight: 676 lbs (306 kg)
  • Seat Height: 27.7 inches (710 mm)

2022 Harley Davidson Fat Bob 114


2022 Harley Davidson Fat Bob 114 Specifications

From Harley-Davidson

ENGINE

Engine Milwaukee-Eight® 114
Engine Power 100.0 HP (estimated)
Bore x Stroke 4.016 in x 4.5 in.
Compression Ratio
10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Exhaust 2-into-2 shorty dual; catalyst in muffler

DRIVETRAIN

Clutch
Transmission 6-speed
Primary Drive
Gear, 34/46 ratio

CHASSIS

Front Fork
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Rear Fork
Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
Wheels, Front Type
Denim black, Structure cast aluminum with laser etched graphics
Wheels, Rear Type
Denim black, Structure cast aluminum with laser etched graphics
Brakes Front
4-piston fixed front
Brakes Rear 2-piston floating rear
Tires Front
150/80-16,71H,BW
Tires Rear
180/70B16,77H,BW
Fuel Tank Capacity 3.5 gal.
Color White Sand pearl, Vivid black

ELECTRICAL

Ignition
Spark Plugs
Headlight All LED
Tail Light LED

DIMENSIONS

Length
92.1 in.
Trail
5.2 in.
Rake 28
Wheelbase
63.6 in.
Ground Clearance
4.7 in.
Seat Height
27.7 in.
Weight, As Shipped
653 lb.

WARRANTY

Warranty
Extension

2022 Harley Davidson Fat Bob 114


2022 Harley Davidson Fat Bob 114 Features

MILWAUKEE-EIGHT® BIG TWIN ENGINE

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.

DUAL DISC FRONT BRAKES

These high-performance dual disc brakes help you keep all that power in check when you need to.

2-1-2 EXHAUST

Performance-inspired, upswept exhaust with a custom contrast finish.

RACE-STYLE FORK TECHNOLOGY

Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.

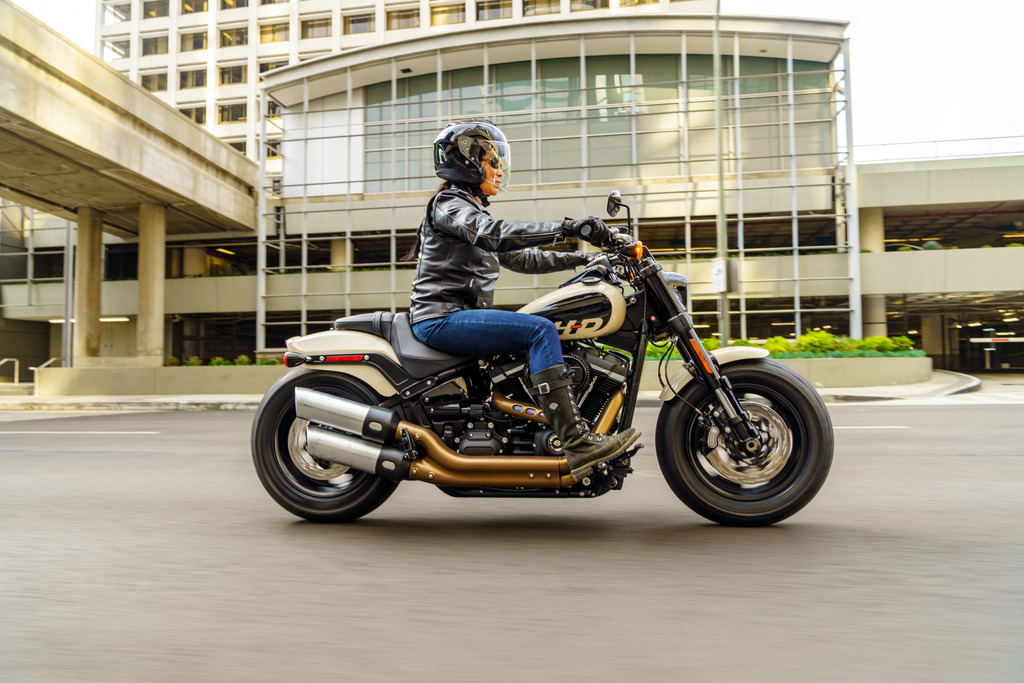

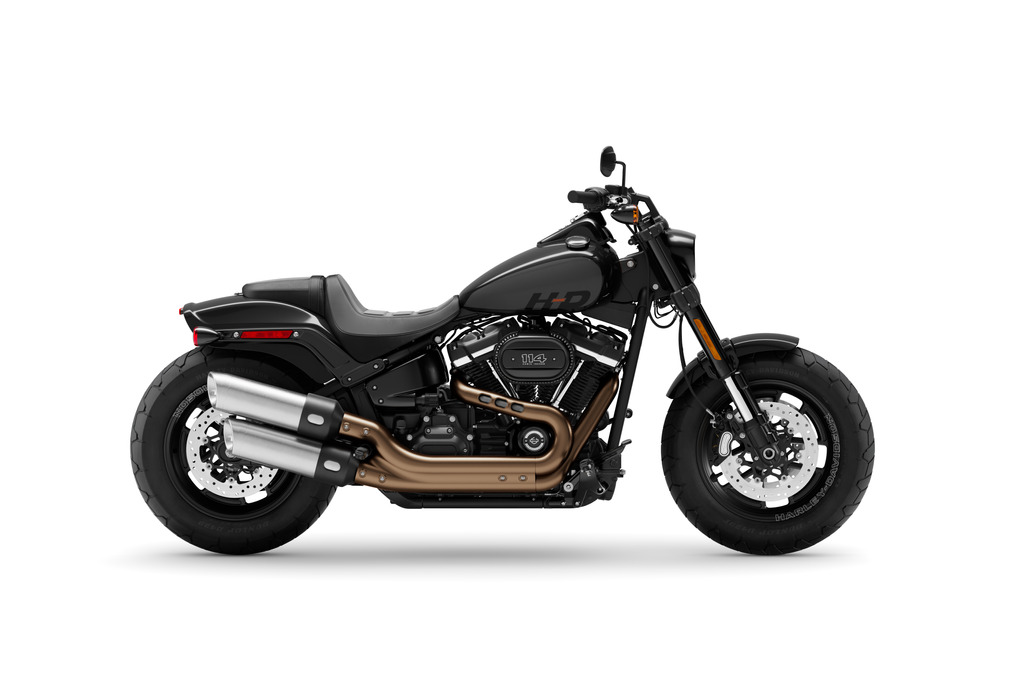

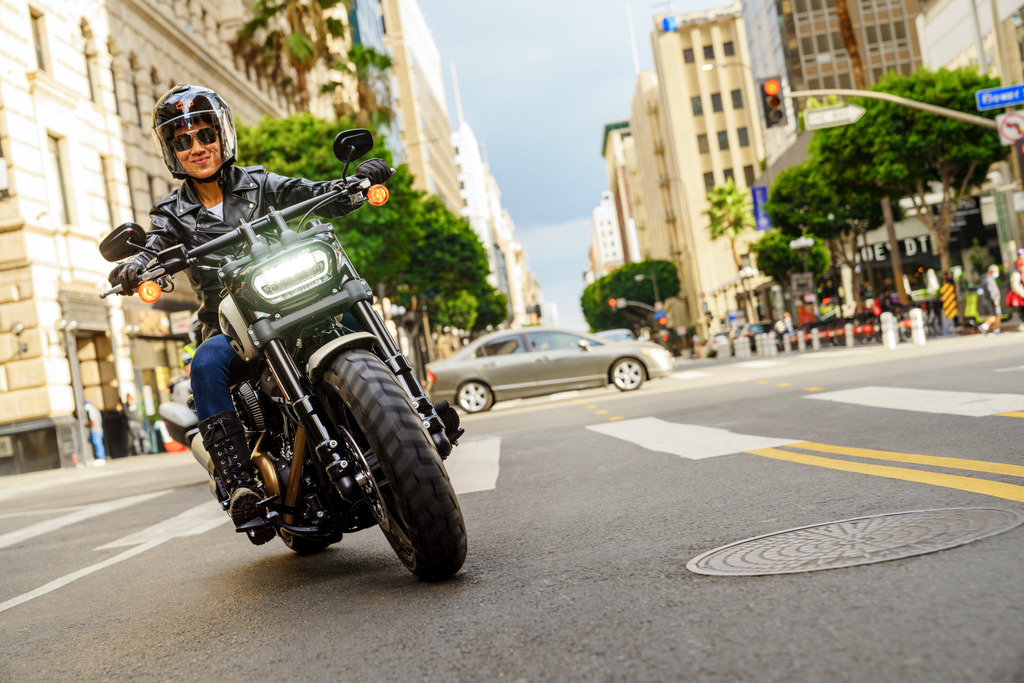

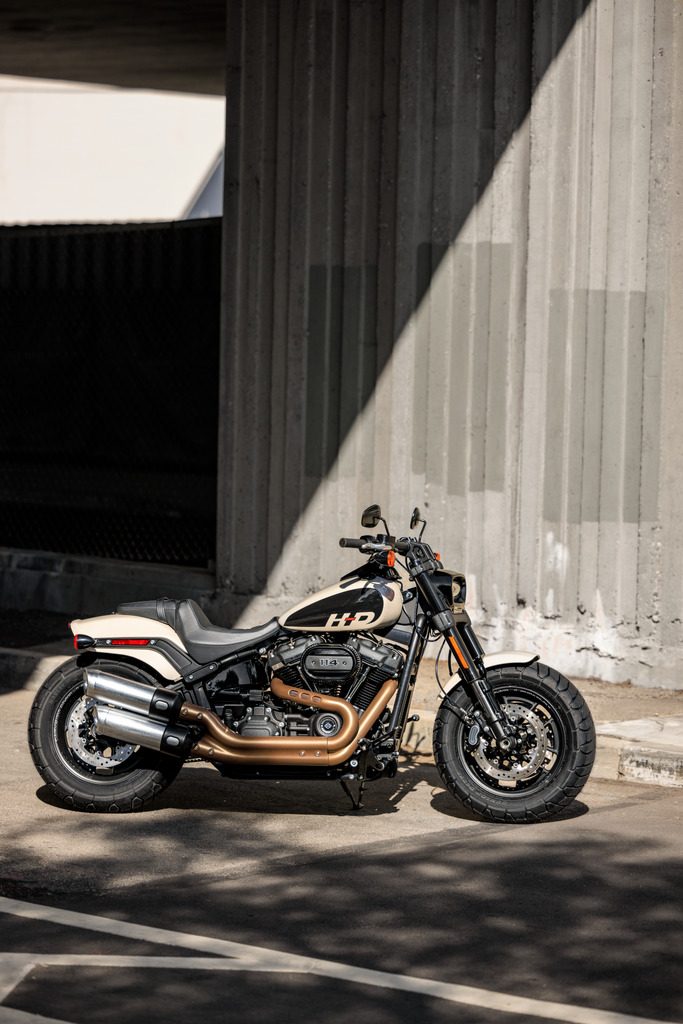

2022 Harley Davidson Fat Bob 114 Photos
