2022 Suzuki Boulevard M109R B.O.S.S. [Specs, Features, Photos]

2022 Suzuki Boulevard M109R B.O.S.S.

The 2022 Boulevard M109R B.O.S.S. Is Suzuki’s Top-of-The-Line Cruiser

Suzuki’s Boulevard M109R B.O.S.S sits at the very top of the Japanese manufacturer’s cruiser portfolio in 2022. In many international markets, the bike misses out on the ‘B.O.S.S’ suffix, which simply stands for ‘Blacked Out Suzuki Special’. Those bikes get a chrome-plated engine, exhaust, fork tubes, and tank cluster, while the B.O.S.S edition — the only one that the North American and Canadian market gets — features the same hardware in a blacked-out finish.

The Boulevard M109R borrows more than a few design cues from classic American cruisers, such as a laid-back riding position, comfortable ergonomics, and a massive V-twin engine. This 1,783cc liquid-cooled, 54-degree behemoth of a V-twin produces 128 hp and 118 lb-ft of torque. One of the most impressive aspects of this engine is the forged aluminum-alloy pistons — some of the largest used on a production vehicle.

This year’s M109R brings no mechanical changes over its predecessor, which means it continues to feature that massive 240mm rear tire — the widest ever used on a Suzuki motorcycle. Braking hardware has been carried over as well, with twin floating discs with dual-piston calipers at the front and a single disc with a single dual-piston caliper at the rear.

Other cool features of the Boulevard M109R B.O.S.S include classic flat-bend drag-style handlebars, a large 5.2 US gal. fuel tank, and a comfortable, low-slung cruiser seat with a passenger pad and seat cowl for solo riding.

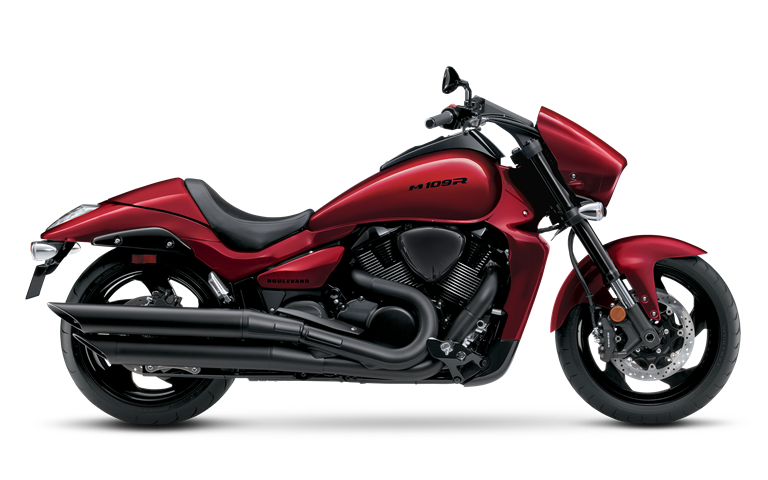

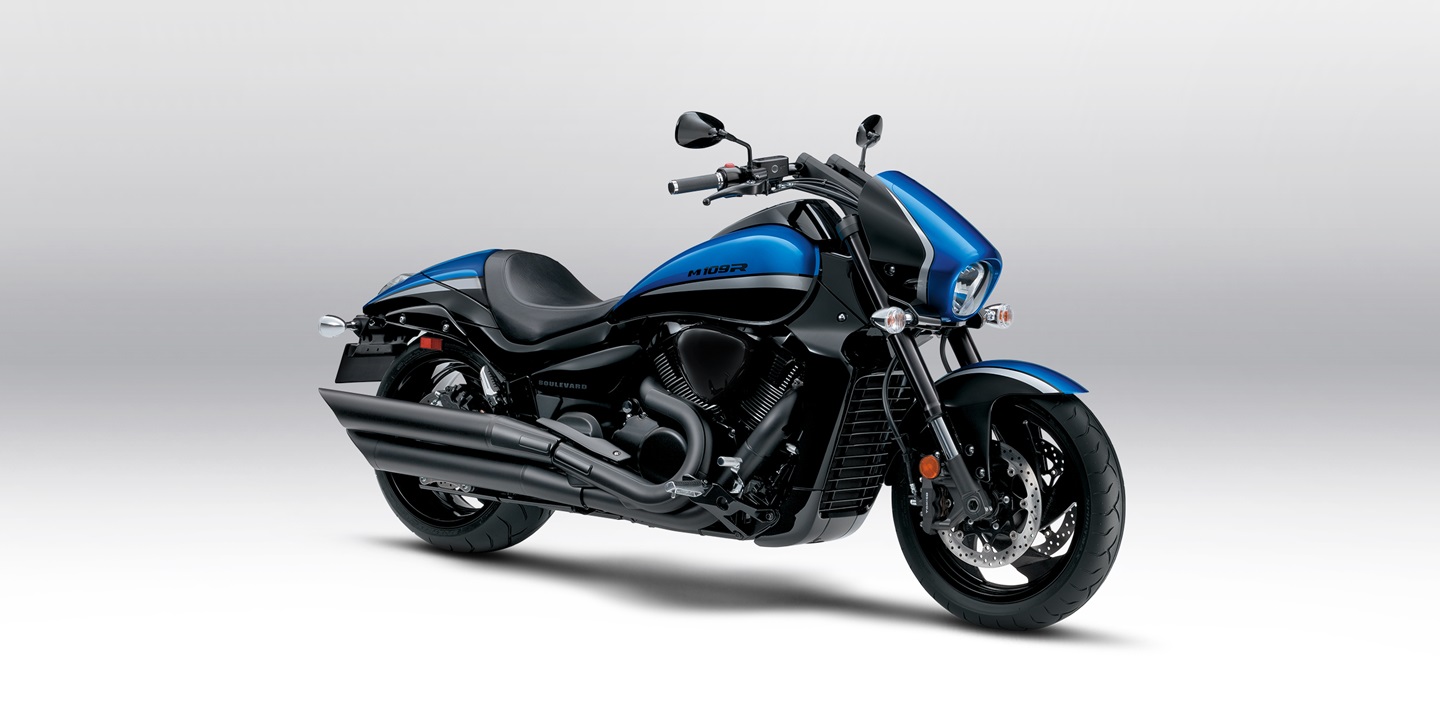

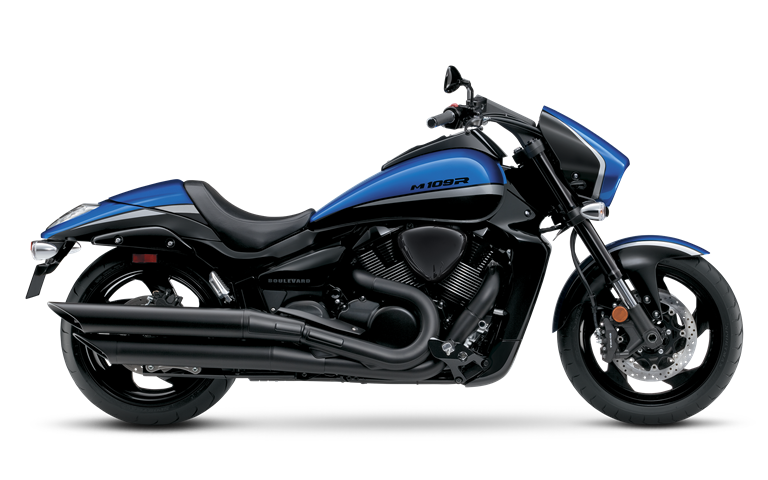

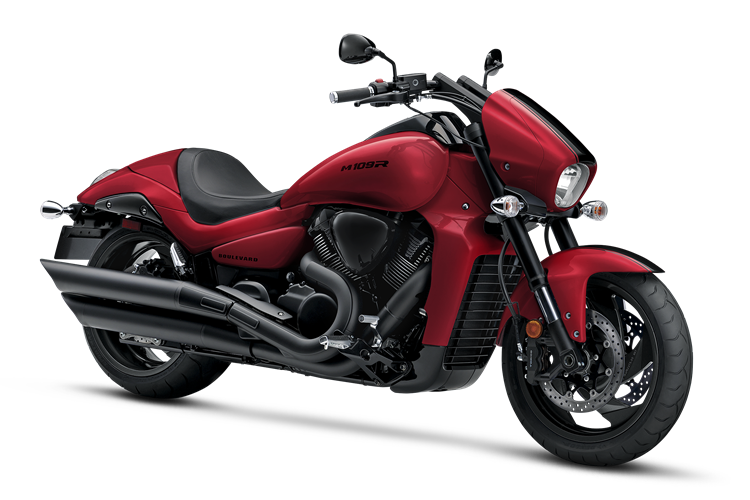

For 2022, the Boulevard M109R B.O.S.S is available in two color options: Metallic Triton Blue with Glass Sparkle Black or Candy Daring Red with Glass Sparkle Black.

The 2022 Suzuki Boulevard M109R B.O.S.S. starts at $15,299 USD / $16,999 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Suzuki Boulevard M109R B.O.S.S. in one place.

2022 Suzuki Boulevard M109R B.O.S.S.

Motorcycle Overview

General Info

  • Price: $15,299 USD / $16,999 CAD
  • Key Features:
    • 1,783 cc, 4-stroke, liquid-cooled, DOHC, 54˚, V-twin
    • Suzuki Advanced Sump System (SASS) lubrication system
    • Radially-mounted twin-disc brake setup at the front

Main Specs

  • Engine: 1,783cc V-twin
  • Power: 128 hp
  • Torque: 118lb-ft
  • Wet Weight: 764 lbs (347kg)
  • Seat Height: 27.8 inches (705mm)

2022 Suzuki Boulevard M109R B.O.S.S.

2022 Suzuki Boulevard M109R B.O.S.S. Specifications

From Suzuki


Engine 1783cc, 4-stroke, liquid-cooled, DOHC, 54˚, V-twin
Bore x Stroke 112.0 mm x 90.5 mm (4.409 in. x 3.563 in.)
Compression Ratio 10.5:1
Fuel System Fuel injection with SDTV
Starter Electric
Lubrication Wet sump


Transmission 5-speed constant mesh
Clutch Wet multi-plate type
Final Drive Shaft drive


Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, solo shock, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Tires Front 130/70R18 M/C (63V), tubeless
Tires Rear 240/40R18 M/C (79V), tubeless
Fuel Tank Capacity 19.5 L (5.2 US gal.) / 18.5 L (4.9 US gal.) CA model
Color Metallic Triton Blue / Glass Sparkle Black or Candy Daring Red / Glass Sparkle Black


Ignition Electronic ignition (transistorized)
Spark Plug NGK CR8EK or DENSO U24ETR x 2
Headlight 12V 60/55W H4
Tail Light LED


Overall Length 2,450 mm (96.5 in.)
Overall Width 875 mm (34.4 in.)
Overall Height 1,130 mm (44.5 in.)
Ground Clearance 130 mm (5.1 in.)
Wheelbase 1,710 mm (67.3 in.)
Seat Height 705 mm (27.8 in.)
Curb Weight 347 kg (764 lb.)


Warranty 12-month unlimited mileage limited warranty
Extension Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP)

2022 Suzuki Boulevard M109R B.O.S.S.

2022 Suzuki Boulevard M109R B.O.S.S. Features

Key Features

Choose from a pair of two-tone paint schemes on the 2022 Boulevard M109R B.O.S.S. – Candy Daring Red and Glass Sparkle Black or the Metallic Triton Blue and Glass Sparkle Black treatment with contrasting graphics. Both high-quality color treatments visually announce that this is a serious muscle cruiser and true to Suzuki’s performance heritage.

The deep, rich paint is flawlessly applied to a long, imposing muscle cruiser that’s unlike any other. From the distinctive headlight nacelle to drag-style handlebars and massive 240mm wide rear tire, this motorcycle is a class of one.

The M109R’s bodywork is sleek and purposeful from nose to tail and looks even sleeker when the optional tail cowl is on in place of the passenger seat.

The 109 cubic inch (1783cc), 54-degree, V-twin engine rumbles through a pair of large-diameter mufflers as it puts power through the shaft drive and down into the 240mm wide rear tire.

Like the brakes from a GSX-R1000R, the M109R’s radial-mounted, dual front brakes deliver sure stopping performance. The large-diameter inverted fork and the 240mm wide rear tire give the bike a tough, aggressive stance that also delivers a smooth, controlled ride.

Engine Features

The 109 cubic inch (1783cc), eight-valve, DOHC, 54-degree, liquid-cooled, V-twin engine is designed to produce a massive tractable power and responsive torque.

Huge 4.4-inch (112mm) forged aluminum-alloy pistons. These are one of the largest reciprocating gasoline engine pistons being used in any production passenger car or motorcycle while featuring a race-proven design to reduce friction and inertial mass.

Each of the large cylinders is lined with Suzuki’s race proven Suzuki Composite Electrochemical Material (SCEM) for optimum heat transfer, tighter piston-to-cylinder clearances, and reduced weight.

Suzuki Advanced Sump System (SASS), a compact dry sump lubrication system, provides reduced engine height, a lower crankshaft position, and a lower center of gravity.

Suzuki’s class-leading electronic fuel-injection system features the Suzuki Dual Throttle Valve system (SDTV) with 56mm throttle bodies, which maintains optimum air velocity for smooth low- to mid-range throttle response.

A unique two-stage cam drive system creates a compact cylinder head design, reduces overall engine height, and creates a lower center of gravity.

A dual spark plug per cylinder ignition system is controlled by a powerful 32-bit ECM for improved combustion efficiency and reduced exhaust emissions.

A three-piece, 9.5-liter volume airbox (with dual intakes) includes two pleated fabric air cleaner elements located on both sides of the engine.

The two-into-one-into-two stainless steel blacked-out exhaust system features Suzuki’s digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and a powerful V-twin sound.

Sculpted engine features blacked-out engine covers that complement the visually striking cylinders with symmetrical, highlighted cooling fins.

A wide-ratio, constant-mesh five-speed transmission features a high fifth gear ratio for relaxed highway cruising.

Low-maintenance shaft drive is clean-running and has minimal torque reaction as it efficiently transmits power to the massive 18-inch rear tire.

Chassis Features

A high-tensile steel double cradle frame is built to comfortably handle all the power and torque while delivering agile handling and a plush, smooth ride.

The massive, low-profile 240/40 x 18 is the widest rear tire ever used on a Suzuki motorcycle.

Blacked-out, inverted front forks feature race-proven cartridge internals with 46mm stanchion tubes and provide 5.1 inches of smooth wheel travel.

Cast aluminum alloy swingarm works with a progressive linkage and a single rear shock absorber; adjustable spring preload to suit rider and passenger weight.

Twin front fully floating disc-brakes with dual-piston calipers and a single-disc rear brake with a single dual-piston caliper are ready to haul the bike down from speed.

Flat-bend, drag-style handlebars are mounted on pull-back risers to be positioned within a short distance from the seat to improve the rider/machine interface, aiding comfort and control.

The long-stretch fuel tank holds a full 5.2 gallons of fuel (4.9 gallons for California model).

The tank-mounted analog speedometer also features an LCD odometer, dual trip meters, a fuel gauge, and a clock.

Instrument cluster including a digital tachometer, gear position indicator, and LED indicator lights is integrated into the top of the headlight cowl.

Both rider and passenger seats are made for comfort, as they allow freedom of movement, accommodate riders of different sizes, and are well cushioned.

A sporty solo-seat cover (included) can be quickly swapped for the passenger seat for an even more aggressive look or for use on solo rides.

The M109R B.O.S.S. (Blacked Out Special Suzuki) features the following:

Blacked-out exhaust system, clutch cover, magneto cover, cylinder head covers, air cleaner cover, and final drive case.

Blacked-out handlebars, clutch and brake levers, handlebar switch cases, rearview mirrors, fuel tank/instrument cover, front and rear wheels, front and rear brake calipers, frame side covers, rear fender stays, sidestand, steering stem clamps, and front forks.

Clear tail light and turn signal lenses.

Additional Features

Genuine Suzuki accessory options for the M109R B.O.S.S. include a black finish engine guard set and trim-fitting, functional saddlebags.

A variety of Genuine Suzuki Accessories for Boulevard owners are available, including a large selection of Suzuki logo apparel.

12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.
