2022 BMW S 1000 XR [Specs, Features, Photos]

2022 BMW S 1000 XR

The 2022 BMW S 1000 XR: Touring? Sporty? Yes!

The design sheet for the S 1000 XR always has me thinking it came from a mad genius. Borrow the engine from the RR and the riding position of the GS bikes. Make it look like a tourer but not too much like one. An aggressive front fairing should solve that. Now stir it all together and you have a European-made delight.

BMW has thrown the book of goodness at the S 1000 XR. Starting with the Dynamic ESA electronic suspension, BMW Motorrad Race ABS, revised aerodynamics, and fairing with an adjustable windshield. Riding Modes Pro (incl. HSC Pro, MSR, ABS Pro & DTC) is standard, and stepping up to the premium package will add heated grips, cruise control, Dynamic ESA Pro, Gear Shift Assist Pro, a center stand and a list that keeps going.

The options list on this BMW is almost as long as the entire 2022 BMW model lineup, from M performance parts to multiple styles of panniers, this is the bike you order exactly as you want it.

3 Color choices for the 2022 BMW S 1000 XR: Racing Red 2, M Package, Style Triple Black

The 2022 BMW S 1000 XR starts at $17,945 USD / $19,995 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 BMW S 1000 XR in one place.

2022 BMW S 1000 XR


Model Overview

General Info

  • Price: $17,945 USD / $19,995 CAD
  • Key Features:
    • Full LED lights
    • Riding Modes Pro (incl. HSC Pro, MSR, ABS Pro & DTC)
    • Dynamic ESA

Main Specs

  • Engine: 999cc In-line 4
  • Power: 165 hp (121 kW) at 11,000 rpm
  • Torque: 84 lb-ft (114 Nm) at 9,250 rpm
  • Wet Weight:  498 lbs (249 kg)
  • Seat Height: 33.0″ (840 mm)

2022 BMW S 1000 XR


2022 BMW S 1000 XR Specifications

From BMW

ENGINE

Engine 999cc, Water/oil-cooled 4-cylinder 4-stroke in-line engine, four valves per cylinder, two overhead camshafts
Engine Power 165 hp at 11,000 rpm
Bore x Stroke 80 mm x 49.7 mm
Compression Ratio 12.5 : 1
Fuel delivery Electronic intake pipe injection
Starter Electric
Max Torque 84 lb-ft at 9,250 rpm

DRIVETRAIN

Clutch Multiplate clutch in oil bath, slipper clutch, self-reinforcing
Transmission Six-speed synchromesh gearbox with spur gears
Drive Chain drive, 17/45

CHASSIS

Suspension Front Upside-down telescopic fork, diameter 45 mm, electronic self-adjusting rebound/compression damping (Dynamic ESA)
Suspension Rear Aluminium double-sided swing-arm, central spring strut, electronic preload adjuster,  electronic self-adjusting rebound/compression damping (Dynamic ESA)
Brakes Front Twin disc brakes, diameter 320 mm, floating discs, radial four-piston fixed calipers
Brakes Rear Single disc brake, diameter 265 mm, twin-piston floating caliper
Tires Front 120/70 ZR 17
Tires Rear 190/55 ZR 17
Fuel Tank Capacity 5.2 gal (20 L)
Color Light White/M Motorsport, Racing Red 2, Triple Black

ELECTRICAL

Alternator 493 W
Battery 12 V / 9 Ah
Headlight
Tail Light LED Tail Light

DIMENSIONS

Overall Length 91.8″ (2,333 mm)
Overall Width 36.1″ (917 mm)
Overall Height 55.5″ (1,411 mm)
Wheelbase 59.9″ (1,522 mm)
Castor 4.5″ (116 mm)
Seat Height 33″ (31.1″ with optional lowered suspension)
Unladen weight, road ready, fully fueled

498 lbs (226 kg)

WARRANTY

Warranty
Extension

2022 BMW S 1000 XR


2022 BMW S 1000 XR Features

A curve that makes you addicted: our torque.

The engine of the S 1000 XR is based on the high-performance engine of the RR and was optimized according to the XR for uncompromising long-distance performance: among other things, special camshaft profiles and designated manifolds deliver impressive torque from the middle and the widest usable speed range in its class. The longer gearbox in the upper gears ensures smooth running – which you can feel and hear.

More dynamic thanks to the lower weight.

Dynamism is also a question of mass. Even fully equipped, the S 1000 XR weighs a full 22 lbs less than its predecessors. In the lightest configuration, this bike is ready to ride at just 498 lbs. You won’t miss a single ounce, but you will feel each individual one – on every yard. In the form of better acceleration, higher agility, shorter braking distances, and easier maneuvering.

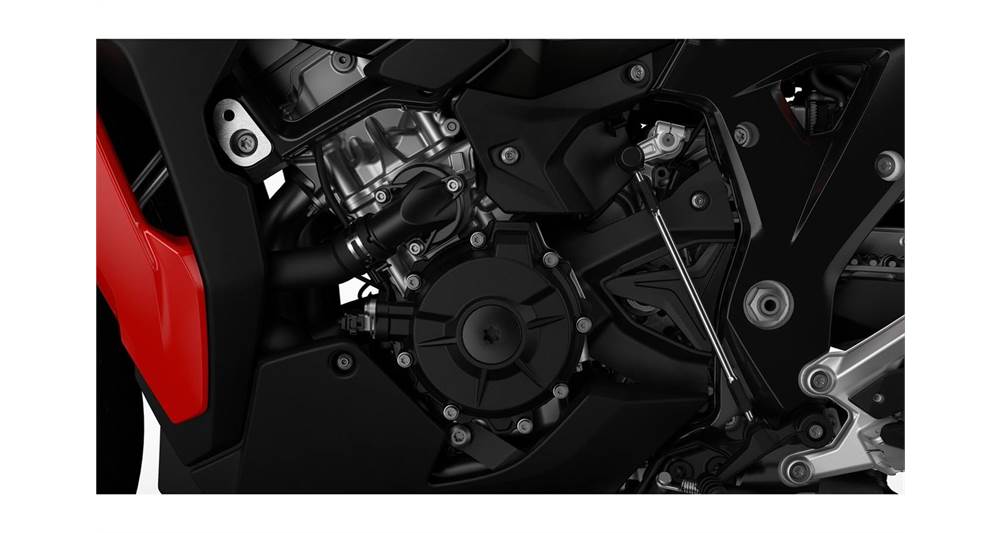

Engine and performance.

Typical to the XR, the engine is uncompromising on long distances and designed to be sporty.

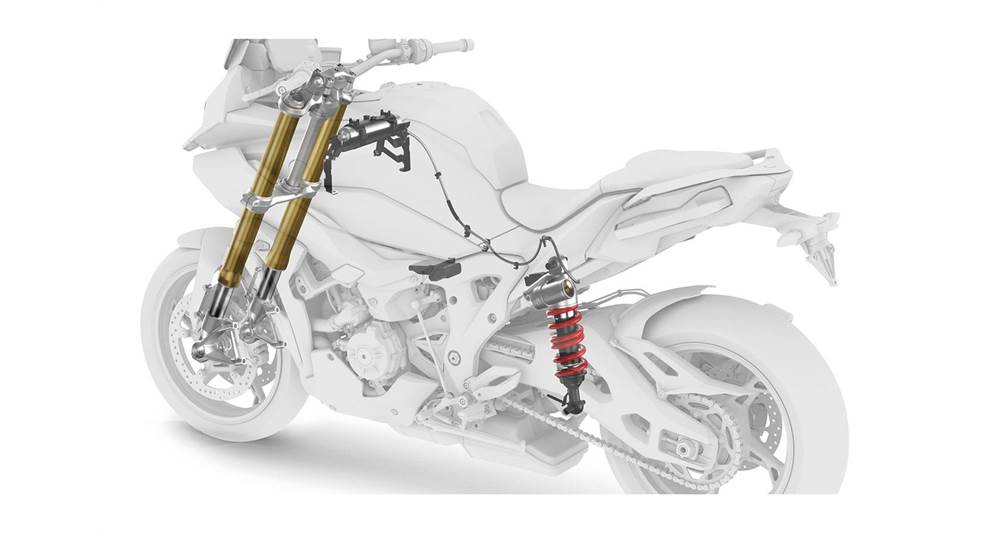

Dynamic ESA Pro.

A new race-inspired valve technology and a shim package: for unprecedented suspension adjustment range between long distances and the racetrack.

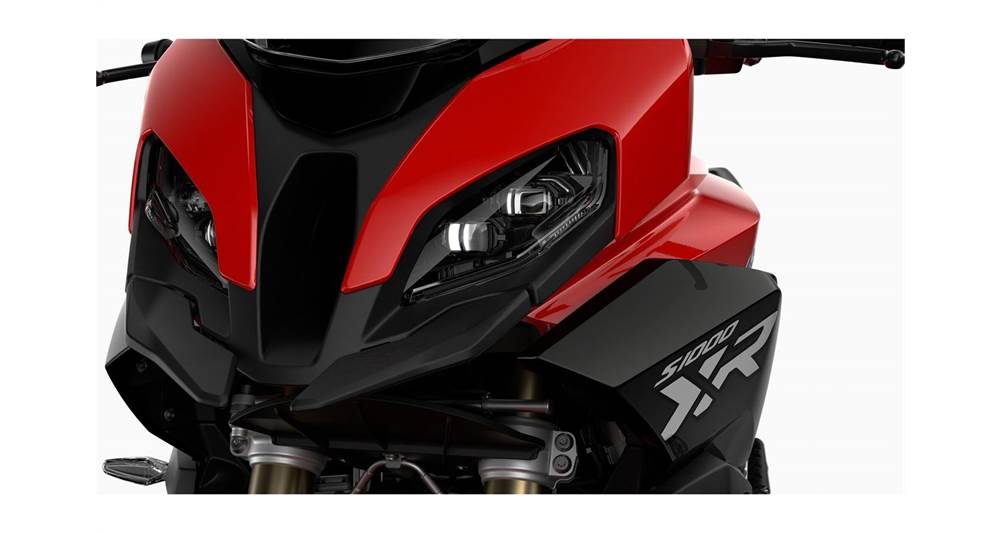

Striking front design with Pro headlight.

Aggressive at all times of day: the fierce, sport front design with LED light.

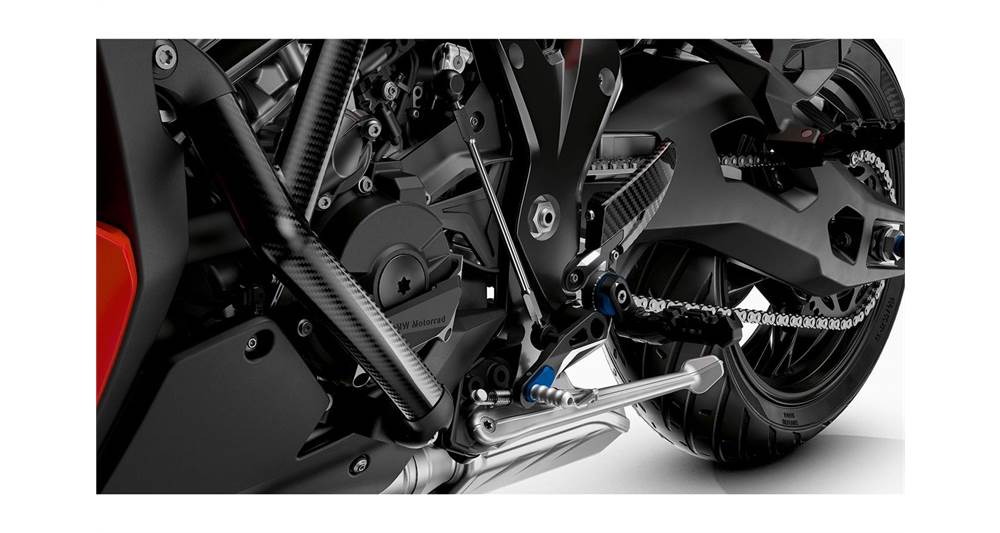

Accessory range like Carbon engine guard.

Whether it’s high-quality milled parts or carbon fibre equipment such as the engine guard: Our M Performance parts from the factory or as accessories are developed for true enthusiasts.

Optimized weight.

The low weight delivers better acceleration and higher agility. In other words: more riding enjoyment – and a sporty head start.

The TFT display with BMW Motorrad Connectivity.

The 6.5” TFT display replaces the instrument panel. BMW Motorrad Connectivity connects smartphone, bike, and helmet via Bluetooth. For navigation, favorite song, and conversations.

Case system and top case.

The integrated magnesium case holder is lightweight, completely uncoupled, and self-centring.
