2020 Suzuki DR-Z400SM

The 2020 Suzuki DR-Z400SM is the company’s lone supermoto motorcycle. This bike brings the DR platform to a city-first motorcycle. The bike looks far more like a dirtbike but it’s been tuned and designed for tearing up city streets.

The bike gets a liquid-cooled single-cylinder engine with a carburetor and a displacement of 398cc. The engine makes 39 hp and 26 lb-ft of torque, and it is mated to a five-speed manual transmission. The DR-Z400SM is a bike most at home on city streets but it can be taken off-road.

The Suzuki DR-Z400SM is just as much of a tried-and-true machine as its more dirt focused sibling. You’ll be hard-pressed to find a better commuting machine than the DR-Z400S. The DR-Z400S has a starting price of $7,399.

The motorcycle is available in two colors, and those colors are Solid Iron Gray or Solid Special White No. 2.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Suzuki DR-Z400SMS in one place.

2020 Suzuki DR-Z400SM


Model Overview

General Info

  • Price:  $7,399
  • Key Features:
    • Compact and Powerful
    • Electric starting
    • Low-maintenance

Key Specs

  • Engine type: 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
  • Power: 39 hp
  • Curb weight: 146 kg (322 lb.)
  • Seat height: 35 in

Key Competitors




2020 Suzuki DR-Z400SM Specifications

From Suzuki

Engine
Engine 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke 90.0 x 62.6 mm (3.54 in. x 2.44 in.)
Compression Ratio 11.3:1
Fuel System Mikuni BSR36, single carburetor
Starter Electric
Lubrication Semi-dry sump
Drivetrain
Clutch Wet multi-plate
Transmission 5-speed constant mesh
Final Drive Chain, RK520KZ0, 110 links
Chassis
Suspension Front Inverted telescopic, coil spring, oil damped, adjustable damping force
Suspension Rear Link type, coil spring, oil damped, adjustable spring preload and damping force
Brakes Front Disc brake, single floating rotor
Brakes Rear Disc brake, single rotor
Tires Front 120/70 R17 M/C 58H, tube type
Tires Rear 140/70 R17 M/C 66H, tube type
Fuel Tank Capacity 10.0 L (2.6 US gal.) / 9.5 L (2.5 US gal.) CA model
Color Solid Iron Gray or Solid Special White No. 2
Electrical
Ignition Electronic ignition (CDI)
Spark Plug NGK CR8E or DENSO U24ESR-N
Headlight 12V 60/55W (H4)
Tail light 12V 21/5W
Dimensions
Overall Length 2225 mm (87.6 in.)
Overall Width 855 mm (33.7 in.)
Overall Height 1200 mm (47.2 in.)
Wheelbase 1460 mm (57.5 in.)
Ground Clearance 260 mm (10.2 in.)
Seat Height 890 mm (35.0 in.)
Curb Weight 146 kg (322 lb.)
Warranty
Warranty 12-month unlimited mileage limited warranty
Extensions Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).

2020 Suzuki DR-Z400SM


2020 Suzuki DR-Z400SM Features

Key Features

Suzuki’s Supermotard model, based on the proven DR-Z400S, combines Supermotard style and features in a narrow, lightweight, street-legal package.

Versatile and strong, 398cc, DOHC, liquid-cooled, dry-sump engine has push-button starting.

SuperMoto boasts fully adjustable MX-style suspension plus high-grip sportbike tires on strong spoke wheels featuring anodized, aluminum Excel rims.

New Solid Iron Gray or Solid Special White No. 2 bodywork with black and blue graphics complement the motorcycle’s styling.

Engine Features

Lightweight, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong, tractable power.

Compact, four-valve cylinder head has 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle, and shim-under-bucket valve adjustment system.

Simple electric starting is powered via a lightweight starter motor with an automatic mechanical decompression system.

SCEM-plated cylinder (nickel-silicon-phosphorus) is lighter and more durable than an iron liner and has excellent heat transfer properties.

Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.

Fed by a six-liter air box, the Mikuni™ 36mm carburetor incorporates a deceleration enricher circuit to help provide smooth throttle response when accelerating or engine braking.

The left side body cover has quick-release fasteners for easy access to the air filter.

The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.

Thermostatically-controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic.

Magnesium-alloy clutch, magneto, and cylinder head covers contribute to the bike’s low weight.

Transmission Features

Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.

Low-maintenance, long-life, sealed O-ring type drive chain produces minimal sounds when riding.

Chassis Features

Wide, blue or black anodized RK Excel aluminum rims with stainless steel spokes are fitted with sporty radial tires: 120/70-R17 front and 140/70-R17 rear.

Strong braking performance is supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus a 240mm rear disc brake with single-piston caliper.

Long travel, Showa inverted front fork is derived from a RM250 and features adjustable compression/rebound damping and a special coating on inner tube surfaces for smooth action.

A fully adjustable rear shock absorber with high/low speed compression damping adjuster and a tapered RM-inspired aluminum swingarm combine for precise rear wheel control.

Renthal tapered aluminum handlebar has an aggressive look, reduces vibration, and has a great bend for spirited riding.

Chrome-moly steel frame tuned for Supermotard style riding is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank.

A bolt-on aluminum sub-frame helps reduce weight, simplify maintenance, and contribute to the trim rear fender appearance.

Front and rear axle sliders, and special designed mirrors that rotate, help protect against damage in the case of a tip-over.

A pouch on the rear fender carries the tool kit, owner’s manual, or other cargo.

Electrical Features

Compact, digital instrument cluster includes speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, and stopwatch functions.

On-road legal lighting includes bright 60/55-watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.

Electrical systems, including the easy-push button starter, are powered by a compact, 6.5-amp, maintenance-free battery.

Additional Features

12-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP).

A variety of Genuine Suzuki Accessories for DR-Z400SM owners are available, including a low-profile seat, cargo rack, handguard set, and a large selection of Suzuki logo apparel.

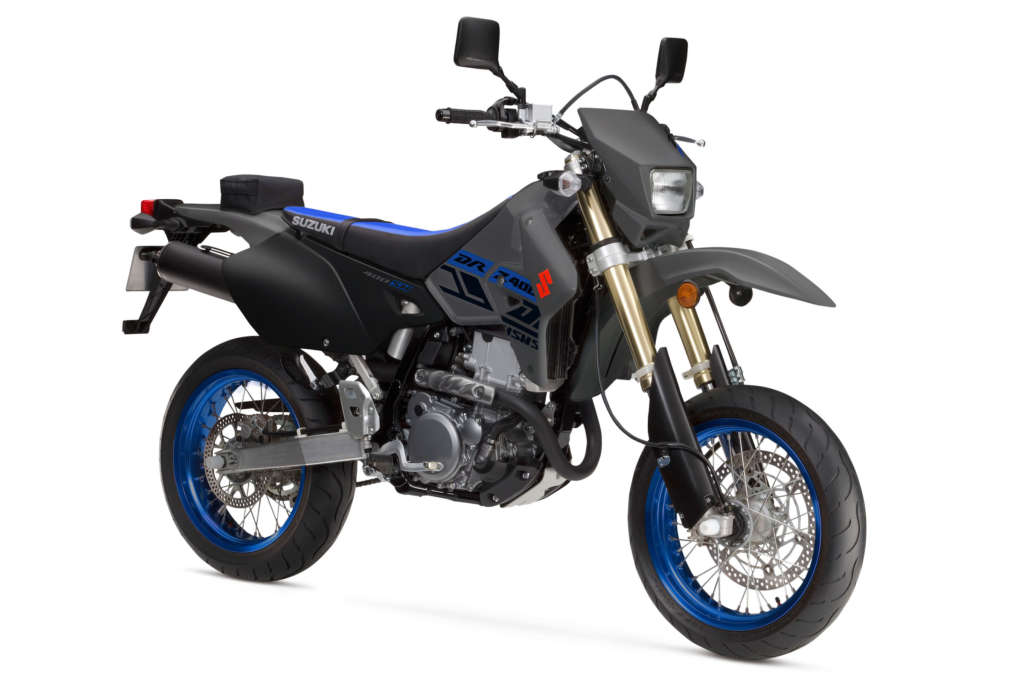

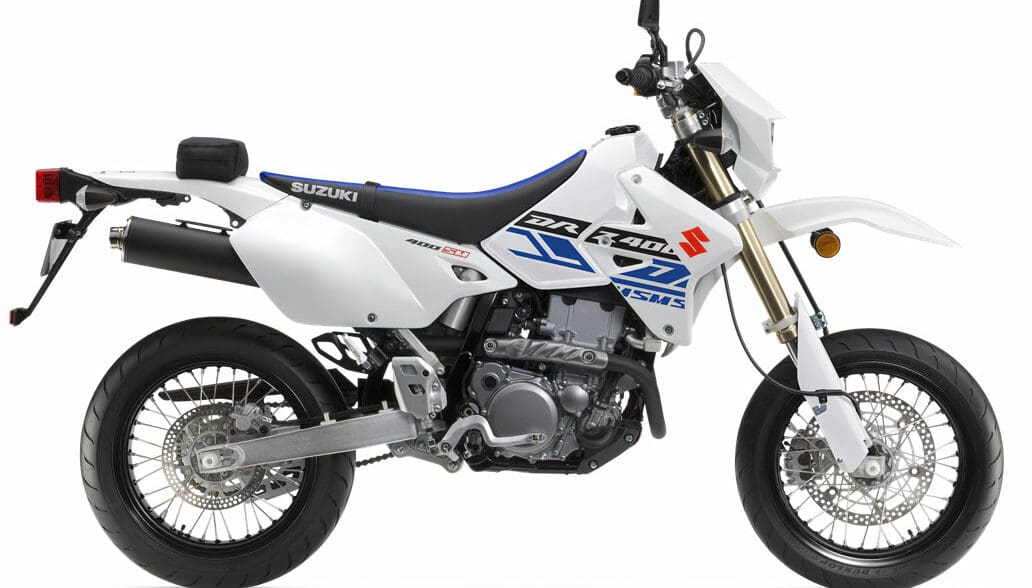

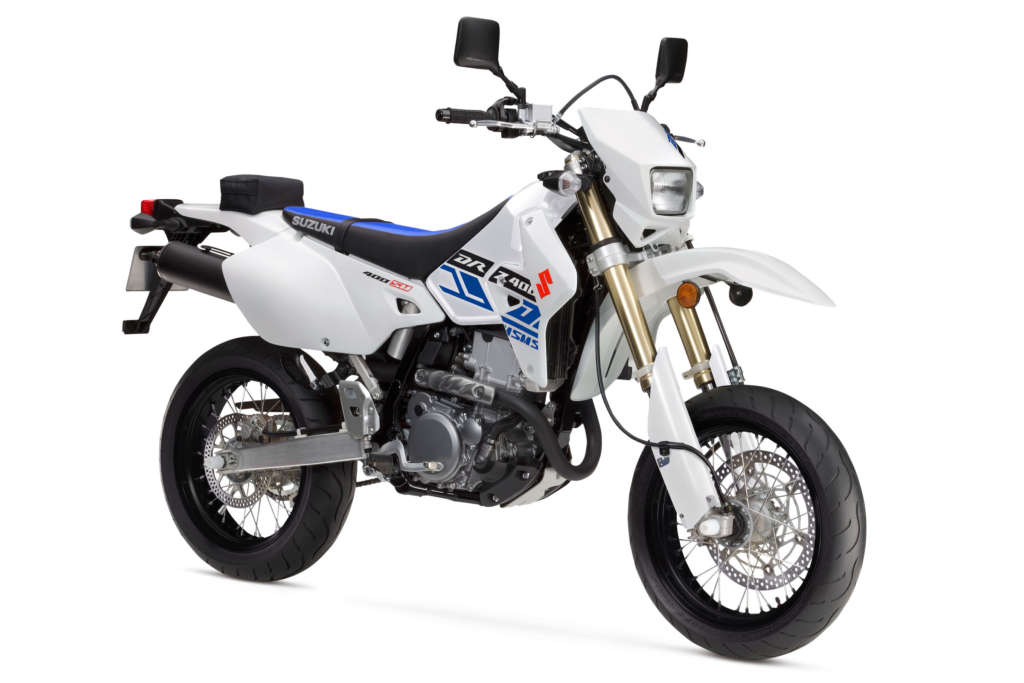

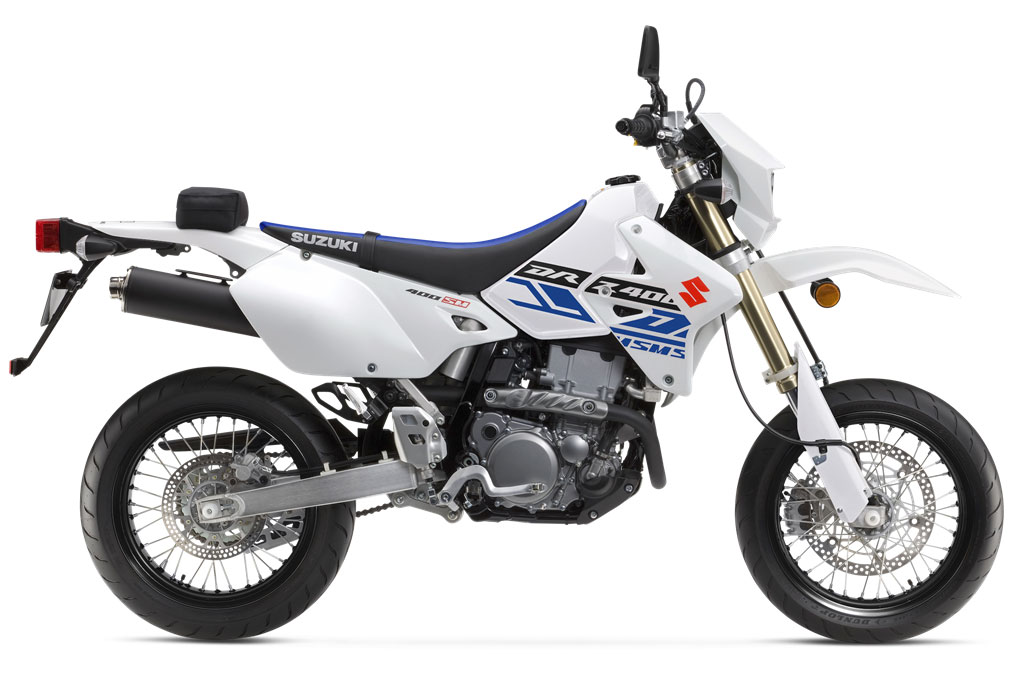

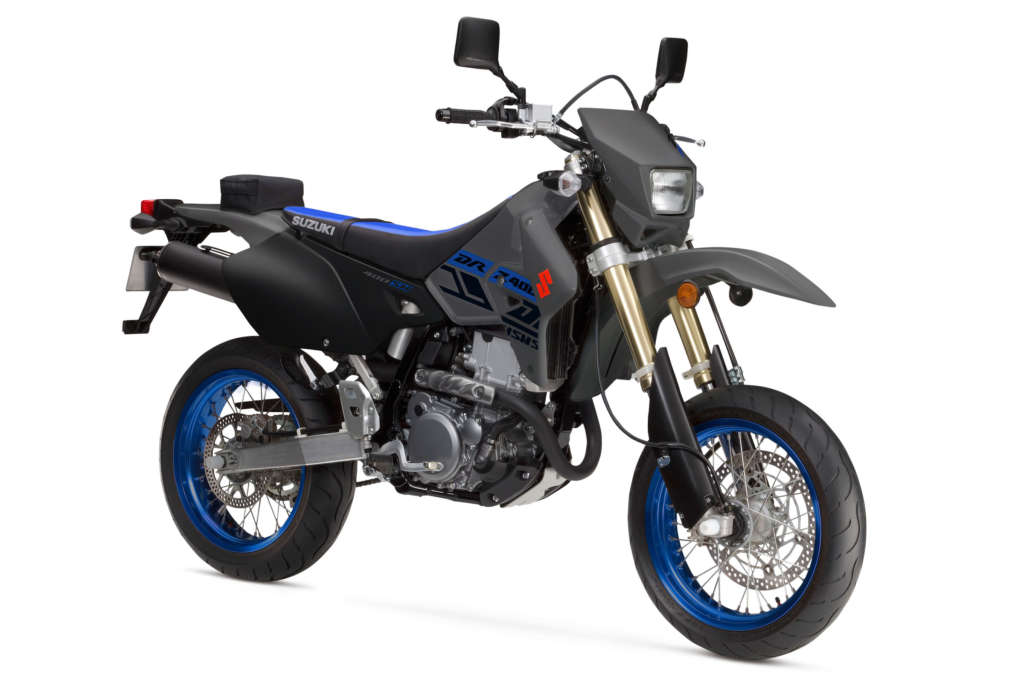

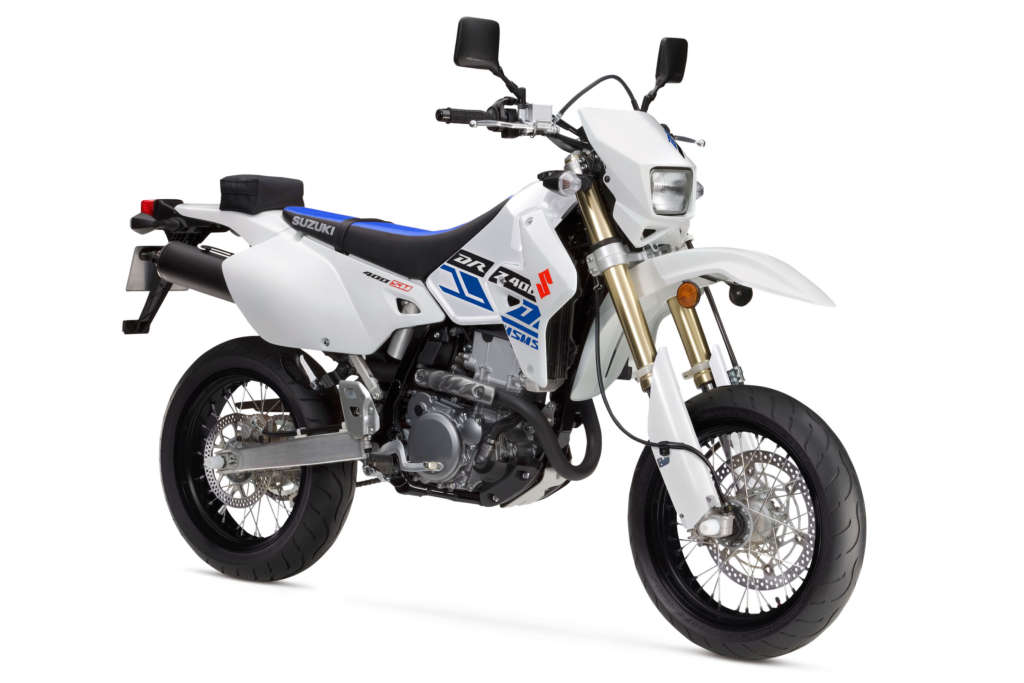

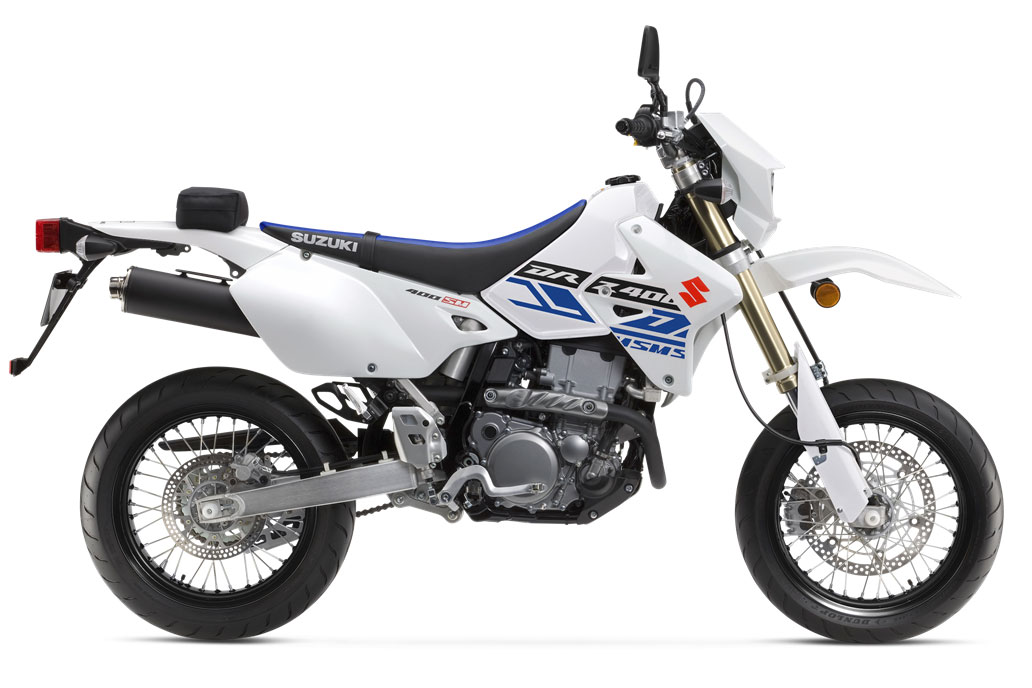

2020 Suzuki DR-Z400SM Photos
