2020 Harley-Davidson FXDR 114 [Model Overview]

2020 Harley-Davidson FXDR 114
Last updated:

2020 Harley-Davidson FXDR 114

The 2020 Harley-Davidson FXDR 114 is a bike that really defies definition. It’s a Softail design, but only just. The bike is a powerful cruiser with a design and a look unlike any of the other bikes in Harley’s lineup.

The FXDR 114 has the Milwaukee-Eight 114 engine. It’s an air-cooled V-twin that has a displacement of 1,868cc. The 114 engine is mated to a six-speed manual transmission and it makes 119 lb-ft of torque.

The FXDR 114is the kind of bike you get if you love the Harley-Davidson brand but you want something with some modern styling and a look completely different than HD’s other bikes. The FXDR 114 is a unique cruiser and unlike other Softail machines. The company has a price tag of $18,999 on it.

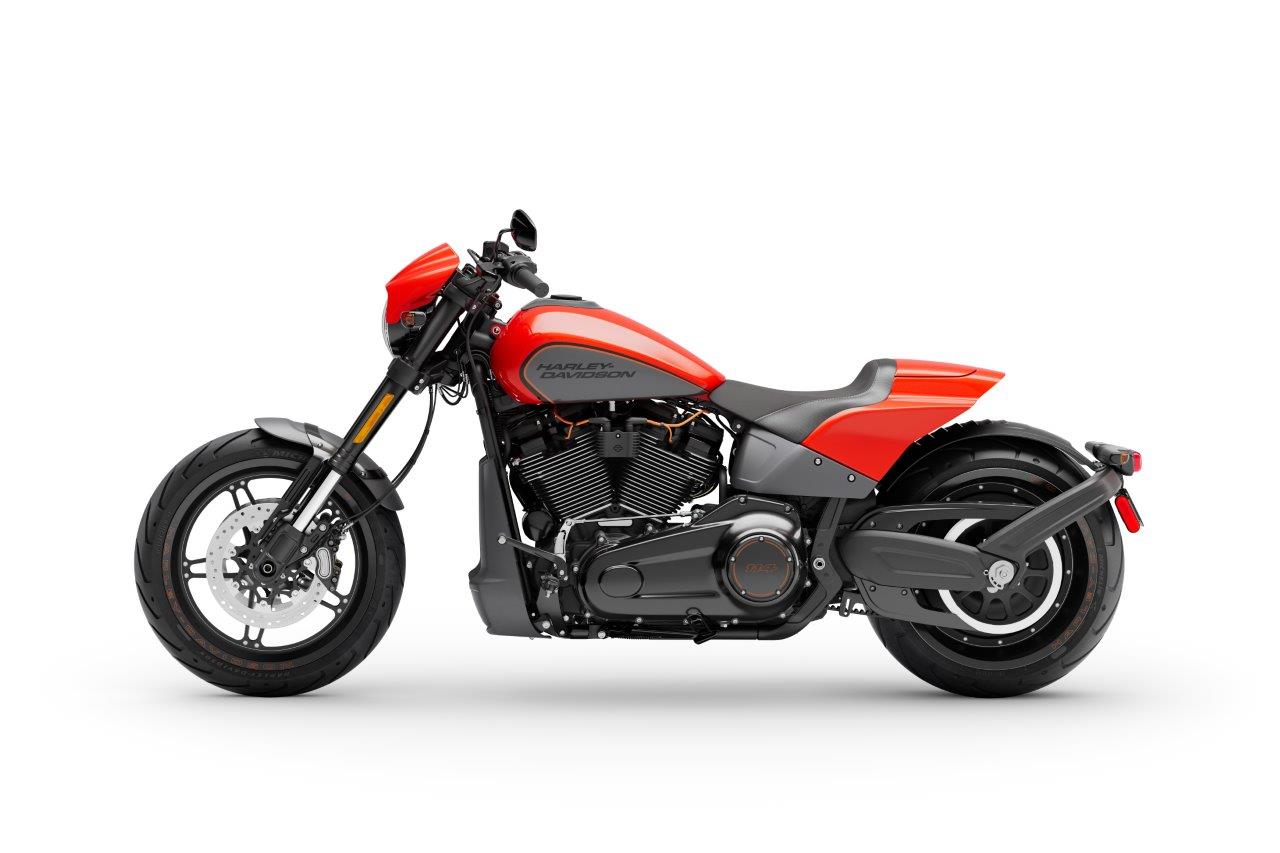

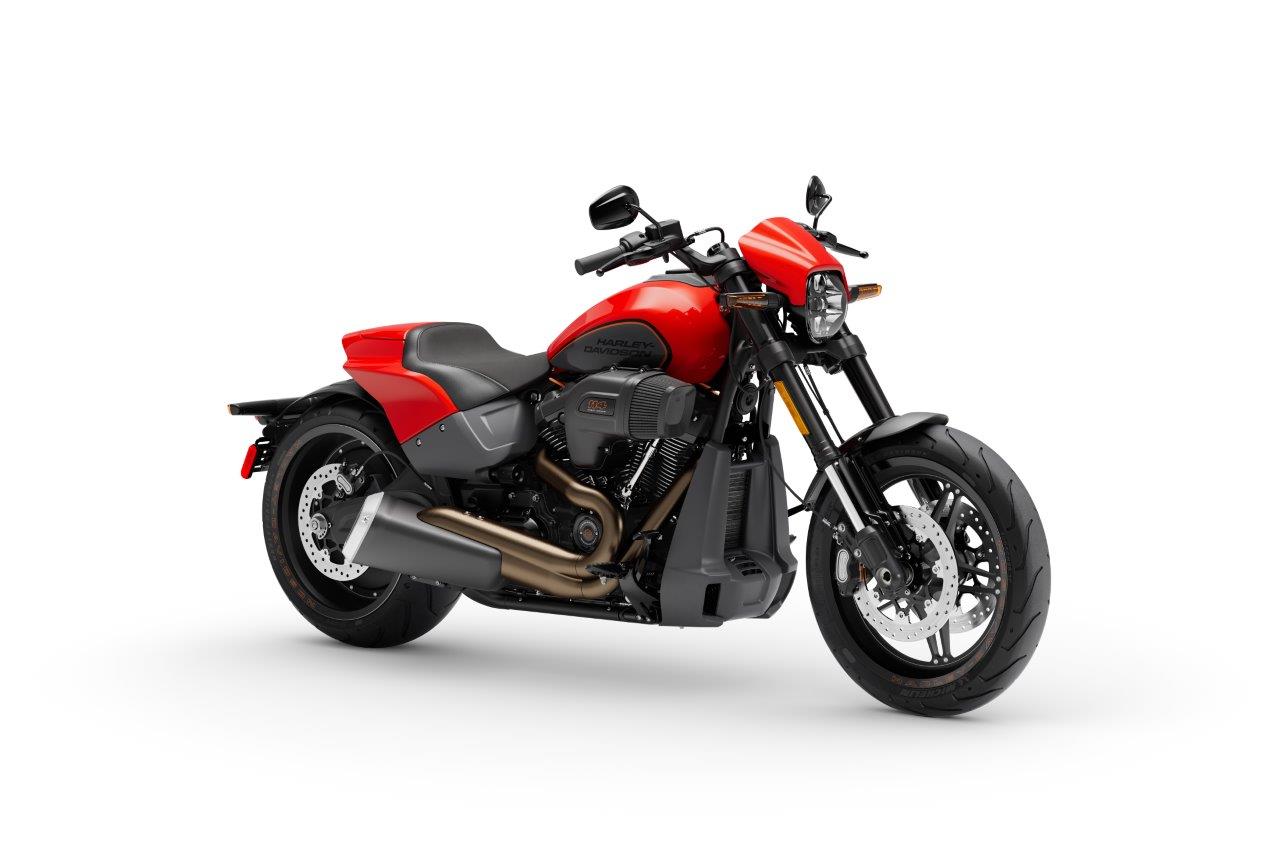

The motorcycle is available in a few different colors: Vivid Black, Barracuda Silver Denim, Black Denim, Performance Orange, and River Rock Gray Denim.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson FXDR 114 in one place.

2020 Harley-Davidson FXDR 114

Model Overview

General Info

  • Price: $ 18,999
  • Key Features:
    • Low Seat Height
    • Softail® Frame
    • LED Lighting

Key Specs

  • Engine type: 1,868cc, Milwaukee-Eight® 107
  • Torque: 119 ft-lb
  • Wet weight: 637 lbs
  • Seat height: 27.7 Inch

2020 Harley-Davidson FXDR 114

2020 Harley-Davidson FXDR 114 Specifications

From Harley-Davidson


Engine 1,868cc, Milwaukee-Eight® 107
Engine Torque 119 ft-lb
Bore x Stroke 4.016 in x 4.5 in
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric


Transmission 6-speed
Final Drive Chain, 34/46 ratio


Suspension Front Gloss/satin black, split 5-spoke, cast aluminum with laser etched graphics
Suspension Rear Gloss/satin black, split 5-spoke, cast aluminum with laser etched graphics
Brakes Front 4-piston fixed front
Brakes Rear 2-piston floating rear
Tires Front 120/70ZR-19 60W
Tires Rear 240/40R-18 79V
Fuel Tank Capacity 16.65 L (4.4 US gal.)
Color Vivid Black, Barracuda Silver Denim, Black Denim, Performance Orange, and River Rock Gray Denim


Spark Plugs
Headlight LED
Tail Light LED


Overall Length 95.5 in (2,425 mm)
Overall Width
Overall Height
Wheelbase 68.3 in (1,735 mm)
Ground Clearance 5.5 in (140 mm)
Seat Height 27.7 in (705 mm)
Curb Weight 637 lbs (289 kg)



2020 Harley-Davidson FXDR 114

2020 Harley-Davidson FXDR 114 Features

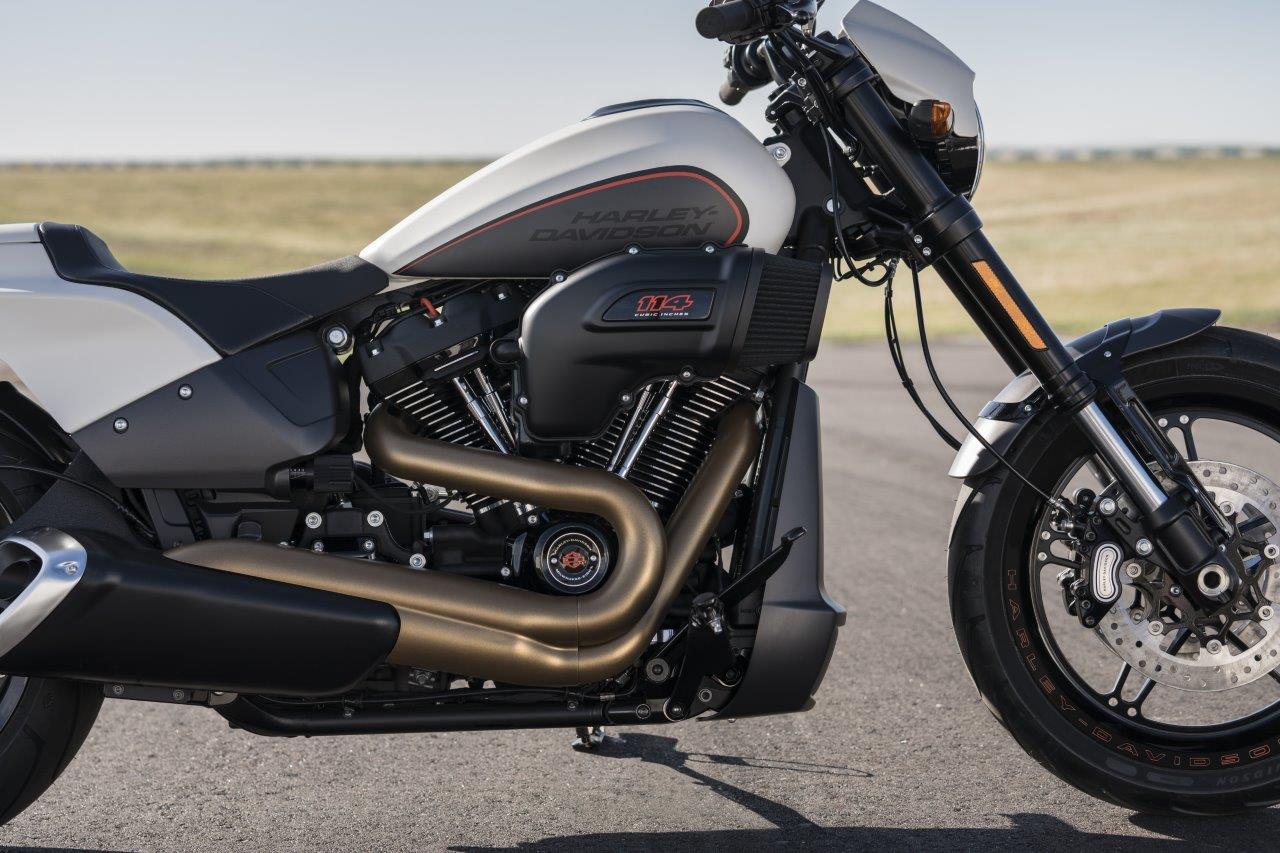

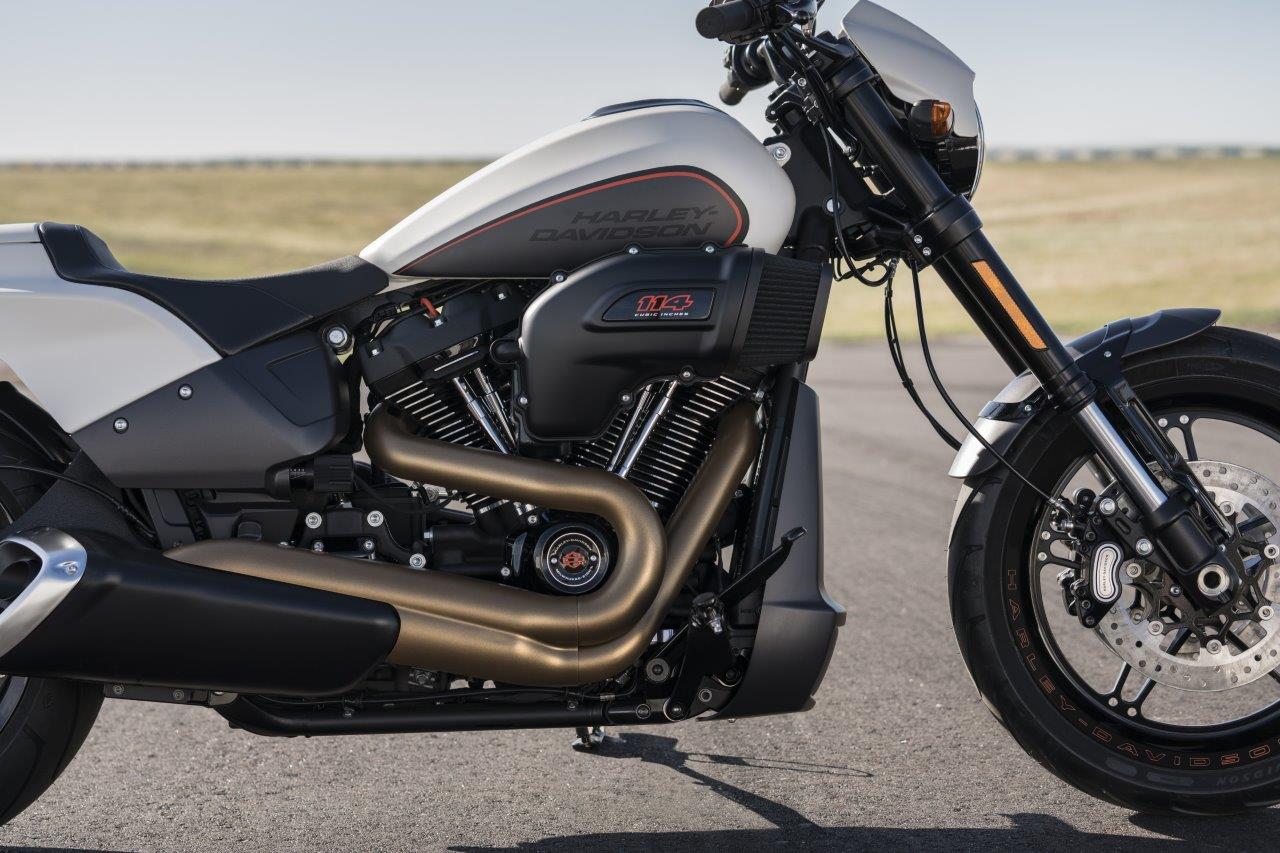

Milwaukee-Eight® 114 Engine

Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Minimal Weight for Maximum Performance

Designed with a number of alloy and composite components to reduce the overall weight, including an aluminum swingarm and subframe. Maximizes acceleration, braking and handling performance.

Bold 2-into-1 Exhaust

Tuned to emit a throaty rumble. Plus dramatic performance-inspired design that won’t interfere with lean angle.

Racing-Style Fork

Inverted race-style design, with single-cartridge technology that improves response to steering input and braking and handling performance.

Air Intake

Inspired by Screamin’ Eagle® NHRA drag bikes and shaped to enhance air flow to the engine. A fresh interpretation of the Heavy Breather with an exposed, forward-facing filter element.

Softail® Frame

The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

High Performance Rear Suspension

Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look.

Stretched Fuel Tank

A sleek design that lengthens the profile of the bike to give it an aggressive look.

Modern Technologies

You get a LED Daymaker™ headlamp, LED rear lighting and LED turn signals; digital riser gauge, and a keyless ignition.
