2020 Harley-Davidson CVO Limited [Model Overview]

2020 Harley-Davidson CVO Limited

2020 Harley-Davidson CVO Limited

The 2020 Harley-Davidson CVO Limited is the ultimate touring machine. It takes all that Harley knows about building a touring motorcycle and rolls it into one impressive machine that has all of the features and creature comforts you and a passenger could want out on the road.

The CVO Limited has the Milwaukee-Eight 117 engine. It’s an air-cooled V-twin that has a displacement of 1,917cc. The 117 engine is mated to a six-speed manual transmission and it makes 125 lb-ft of torque.

The CVO Street Glide is the kind of bike you get if you love the Harley-Davidson brand and you want the absolute best touring machine the company has to offer. The CVO Limited is the best touring machine in the HD lineup and it has a price tag that reflects it. The bike costs $44,039.

The motorcycle is available in a few different colors: Sand Dune, Smoky Gray and Stormcloud, and Moonlight Blue and Deep Sea Blue.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson CVO Limited in one place.

2020 Harley-Davidson CVO Limited


Model Overview

General Info

  • Price: $ 44,039
  • Key Features:
    • Low Seat Height
    • PREMIUM BOOM!™ AUDIO
    • LED Lighting

Key Specs

  • Engine type: 1,917cc, Milwaukee-Eight® 107
  • Torque: 125 ft-lb
  • Wet weight: 906 lbs
  • Seat height: 27.7 Inch

Key Competitors

2020 Harley-Davidson CVO Limited


2020 Harley-Davidson CVO Limited Specifications

From Harley-Davidson

ENGINE

Engine 1,917cc, Milwaukee-Eight® 114
Engine Torque 125 ft-lb
Bore x Stroke 4.075 in x 4.5 in
Compression Ratio 10.2:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Lubrication

DRIVETRAIN

Clutch
Transmission 6-speed
Final Drive Chain, 34/46 ratio

CHASSIS

Suspension Front Gloss Black and Contrast Satin Tomahawk
Suspension Rear Gloss Black and Contrast Satin Tomahawk
Brakes Front 32 mm, 4-piston fixed front
Brakes Rear 32 mm, 4-piston fixed front
Tires Front BW 130/60B19 61H
Tires Rear BW 180/55B18 80H
Fuel Tank Capacity 22.71 L (6 US gal.)
Color Sand Dune, Smoky Gray and Stormcloud, and Moonlight Blue and Deep Sea Blue

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length 102.4 in (2,600 mm)
Overall Width
Overall Height
Wheelbase 64 in (1,625 mm)
Ground Clearance 4.9 in (125 mm)
Seat Height 27.7 in (700 mm)
Curb Weight 906 lbs (410 kg)

WARRANTY

Warranty
Extension

2020 Harley-Davidson CVO Limited


2020 Harley-Davidson CVO Limited Features

Milwaukee-Eight 117 Twin-Cooled™ Engine

The most powerful Twin-Cooled V-Twin engine ever offered from the H-D factory, and only available in CVO™ models. Features color accented Rocker Box Lowers with Blaze Red finish.

H-D™ Connect Service

With subscription-based cellular connectivity, you can connect to your bike through your smart phone using the latest version of the Harley-Davidson® App. Check your bike’s vitals including fuel level, get tamper alerts and stolen-vehicle tracking, and more.

Premium paints and finishes

Exclusive paint colors and designs executed to a level of intricate quality that is unmatched in the motorcycle and automotive categories.

BOOM!™ GTS Infotainment System

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

High-Performance Front and Rear Suspension

Dual bending valve front suspension and emulsion rear suspension with hand-adjustable pre-load put you in control of a plush ride.

Daymaker Adaptive LED Headlamp

The most-advanced headlamp system ever developed for a Harley-Davidson motorcycle. Features a signature LED light outer ring that operates as a position lamp, and additional LED lights that activate based on the lean of the bike to project light into corners to illuminate areas of the road that are unlit by traditional LED headlamps.

Fugitive™ Cast Aluminium Wheels

The premium hot rod bagger look is complete with Front 19-inch and Rear 18-inch wheels finished in Gloss Black/Satin.

Custom Touring Style

Full-on custom treatment from fender to fender. You get custom seat covers and stitching, a heavy breather air cleaner with two paint treatments, billet fairing mount mirrors—the list goes on.

Wireless Headset

The Boom!™ Audio 30K Bluetooth headset lets you call hands-free on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigation and have intercom conversations with your passenger or fellow riders.

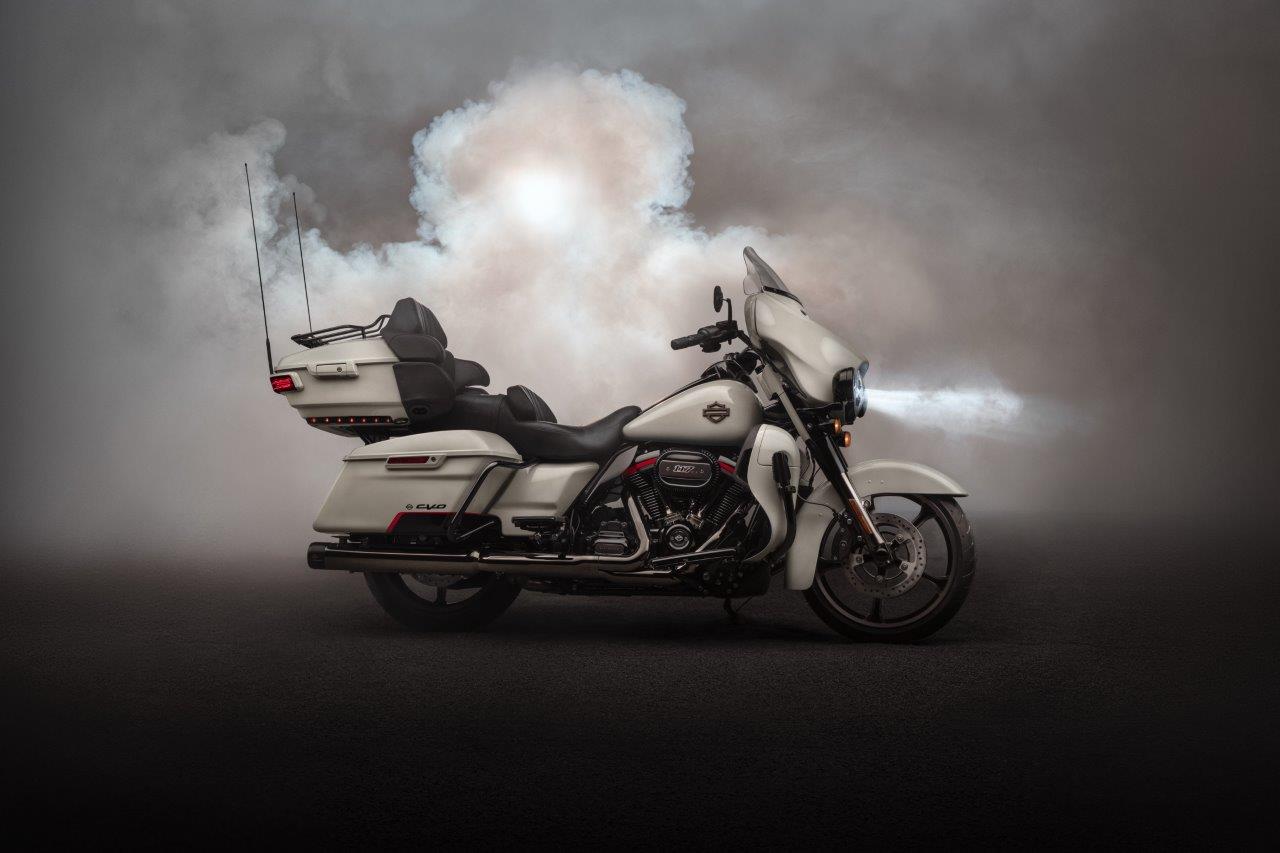

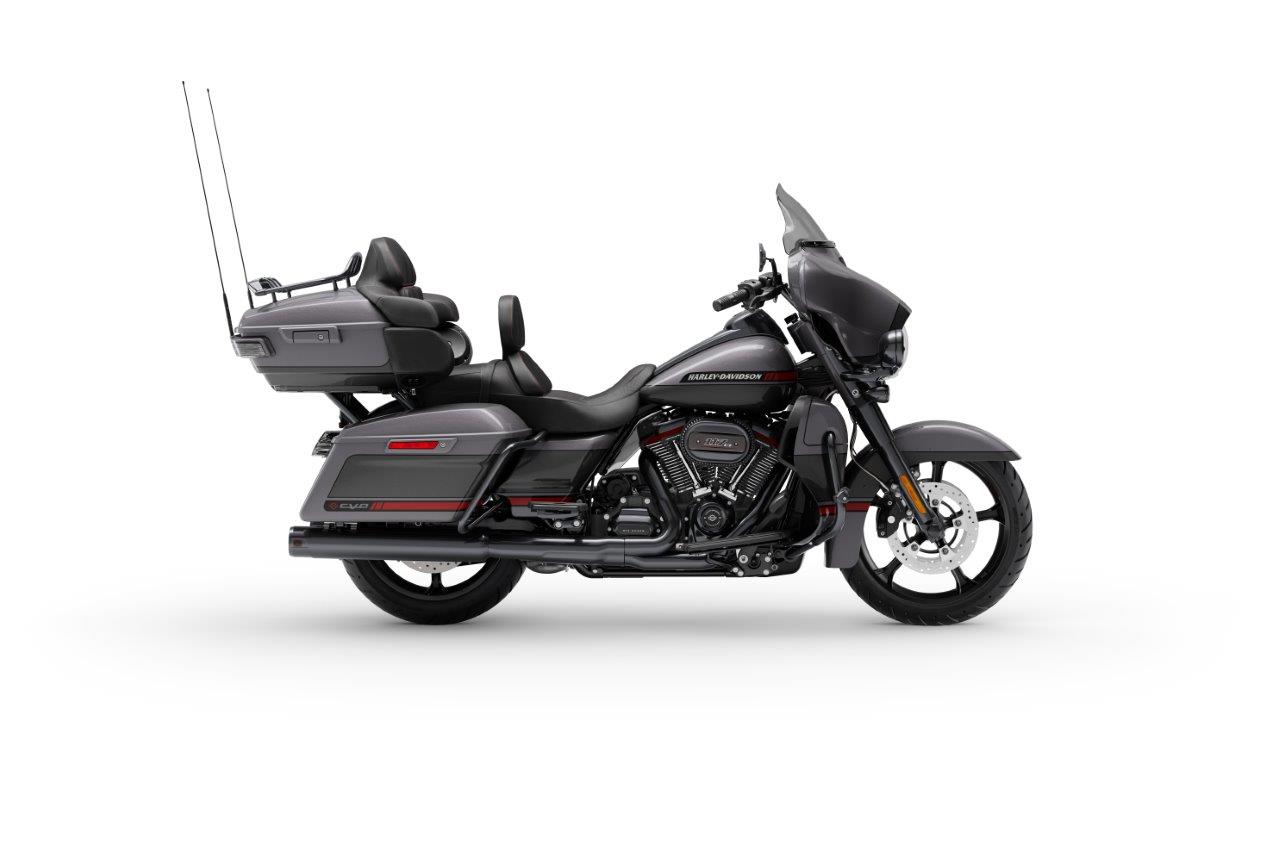

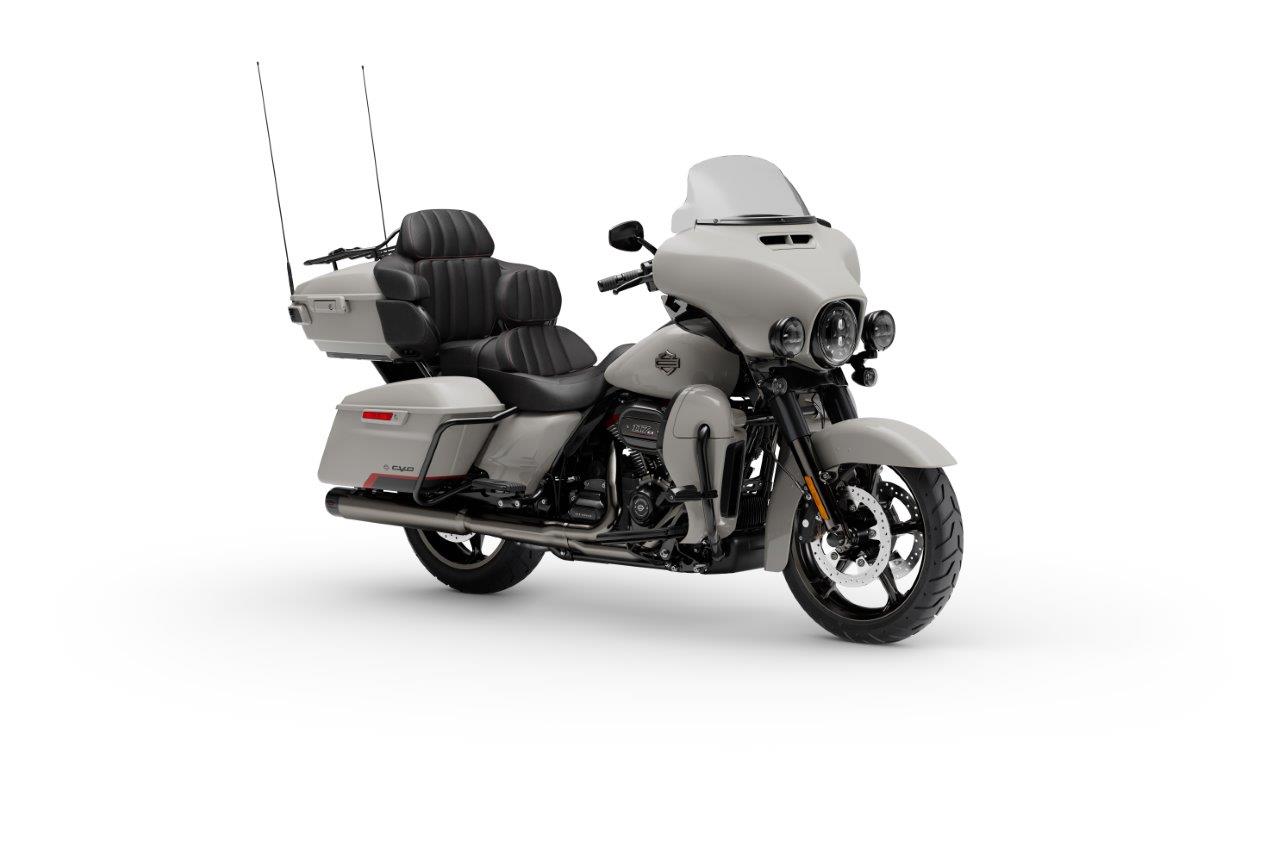

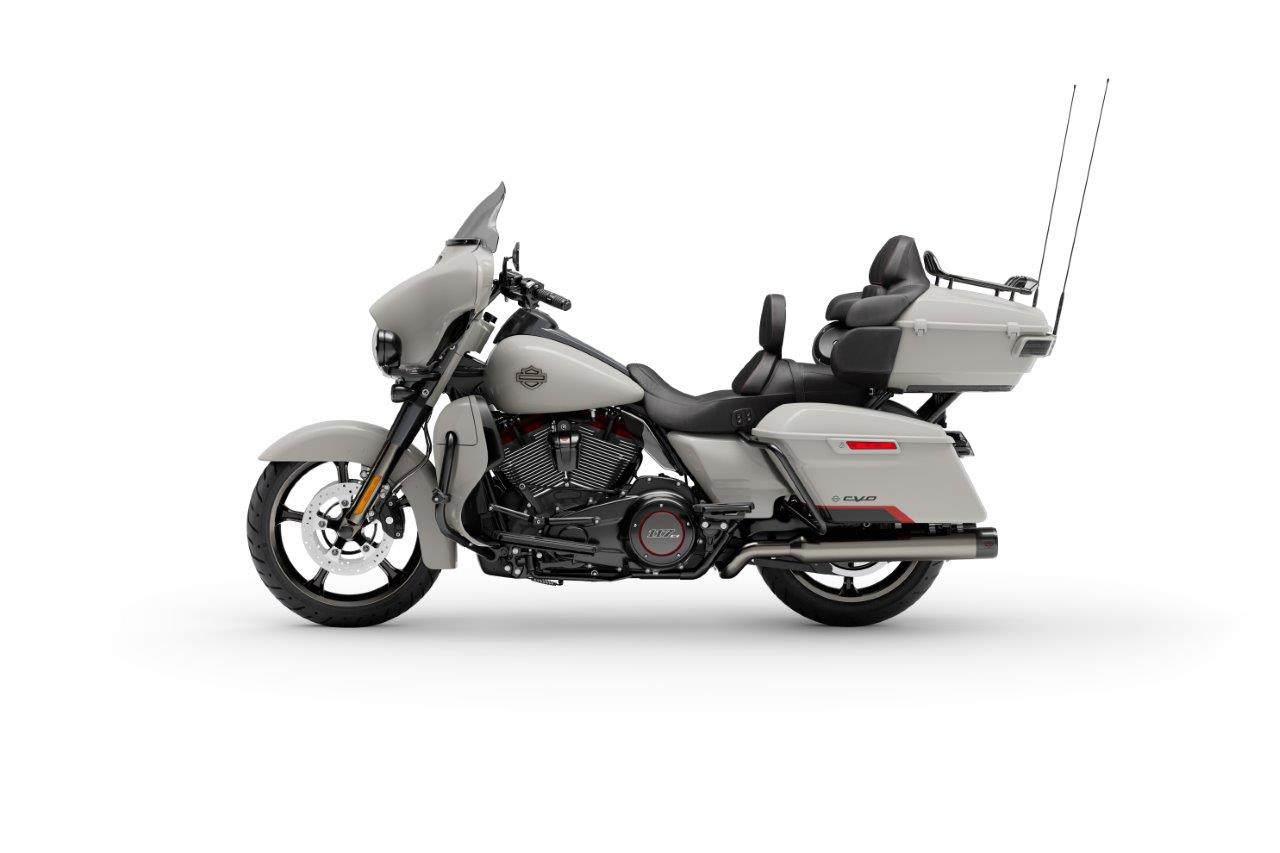

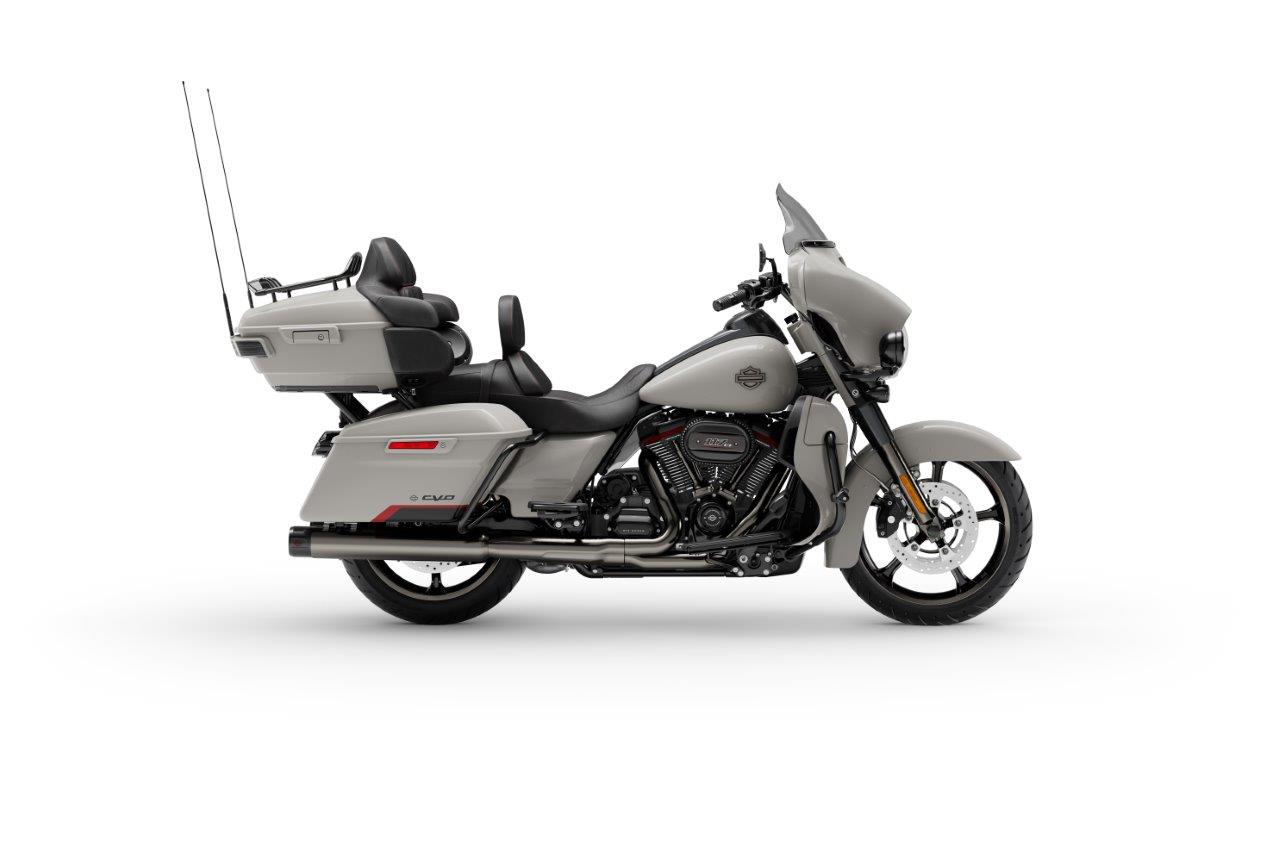

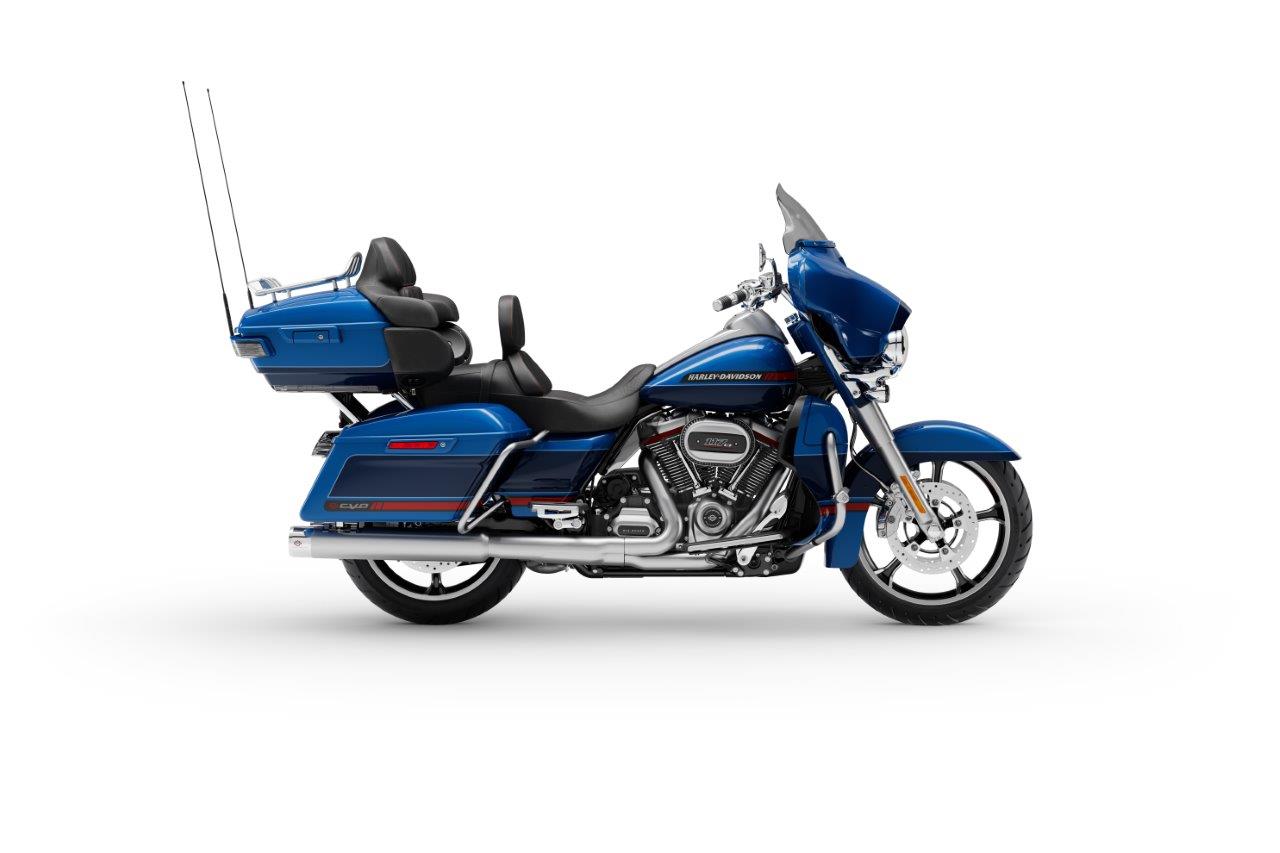

2020 Harley-Davidson CVO Limited Photos
