2020 Harley-Davidson Breakout 114 [Model Overview]

2020 Harley-Davidson Breakout 114
Last updated:

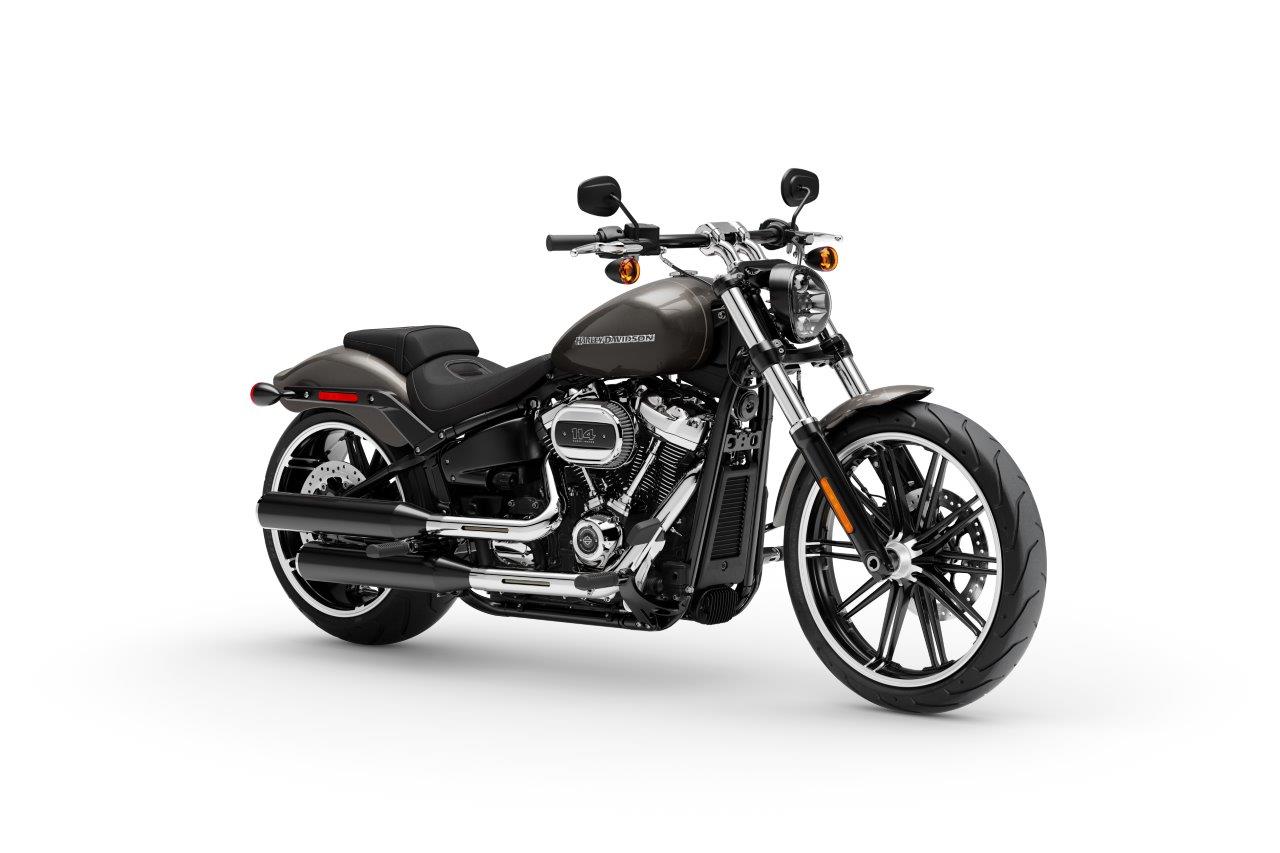

2020 Harley-Davidson Breakout 114

The 2020 Harley-Davidson Breakout 114 utilizes the Softail design to make a modern, muscular-looking cruiser with a longer rake on the front end. The bike is one of the most badass in all of Harley’s lineup.

The Breakout 114 has the Milwaukee-Eight 114 engine. It’s an air-cooled V-twin that has a displacement of 1,868cc. The 114 engine is mated to a six-speed manual transmission and it makes 119 lb-ft of torque.

The Heritage Breakout 114 is a perfect bike for feeling the wind on your face while you cruise around. This is one of the toughest-looking Harley motorcycles out there and has a straight-from-the-factory custom feel to it. The company has a price tag of $20,499 on it.

The motorcycle is available in a few different colors: Vivid Black, Midnight Blue, Barracuda Silver, River Rock Gray Denim, Performance Orange, and Stilleto Red, Zephyr Blue/Black Sunglo.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Breakout 114 in one place.

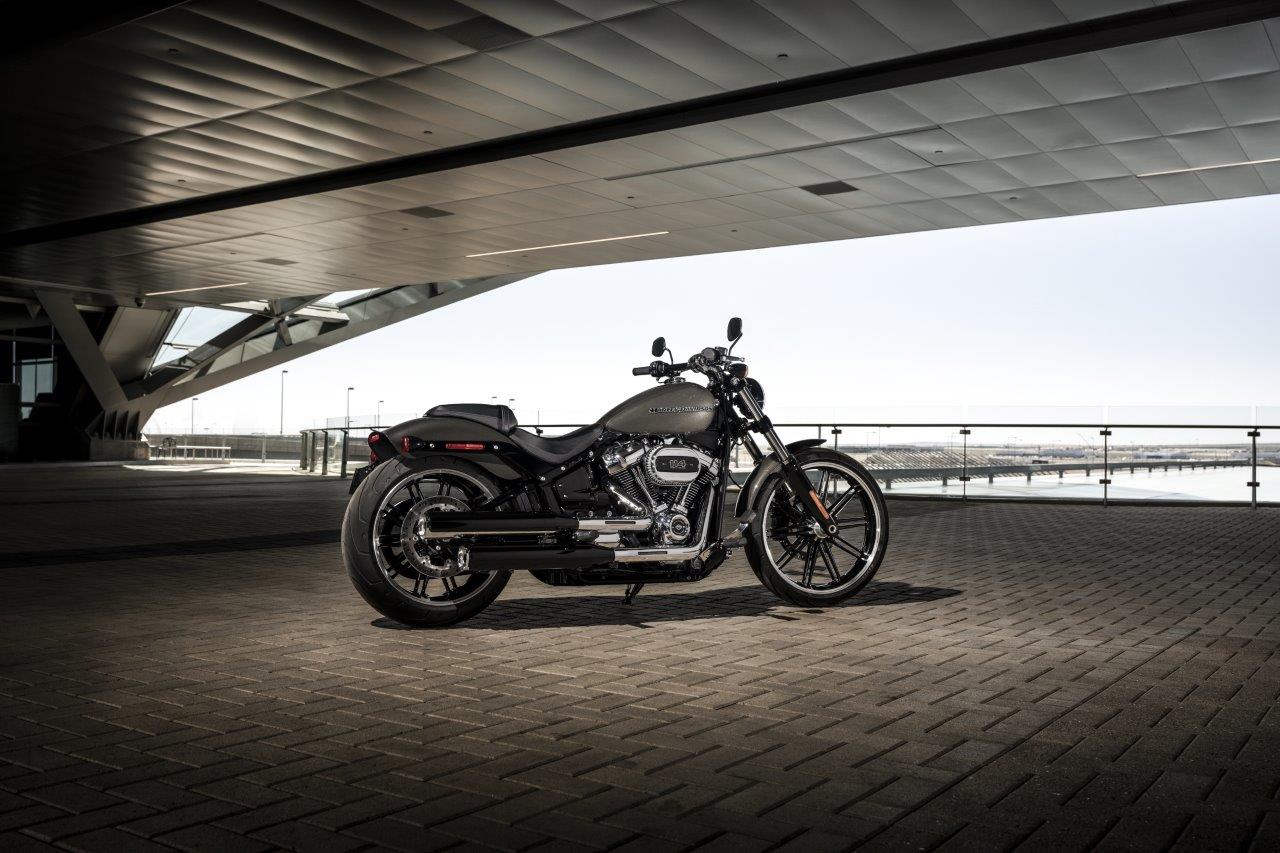

2020 Harley-Davidson Breakout 114

Model Overview

General Info

  • Price: $ 20,499
  • Key Features:
    • Low Seat Height
    • Softail® Frame
    • LED Lighting

Key Specs

  • Engine type: 1,868cc, Milwaukee-Eight® 107
  • Torque: 119 ft-lb
  • Wet weight: 648 lbs
  • Seat height: 25.6 Inch

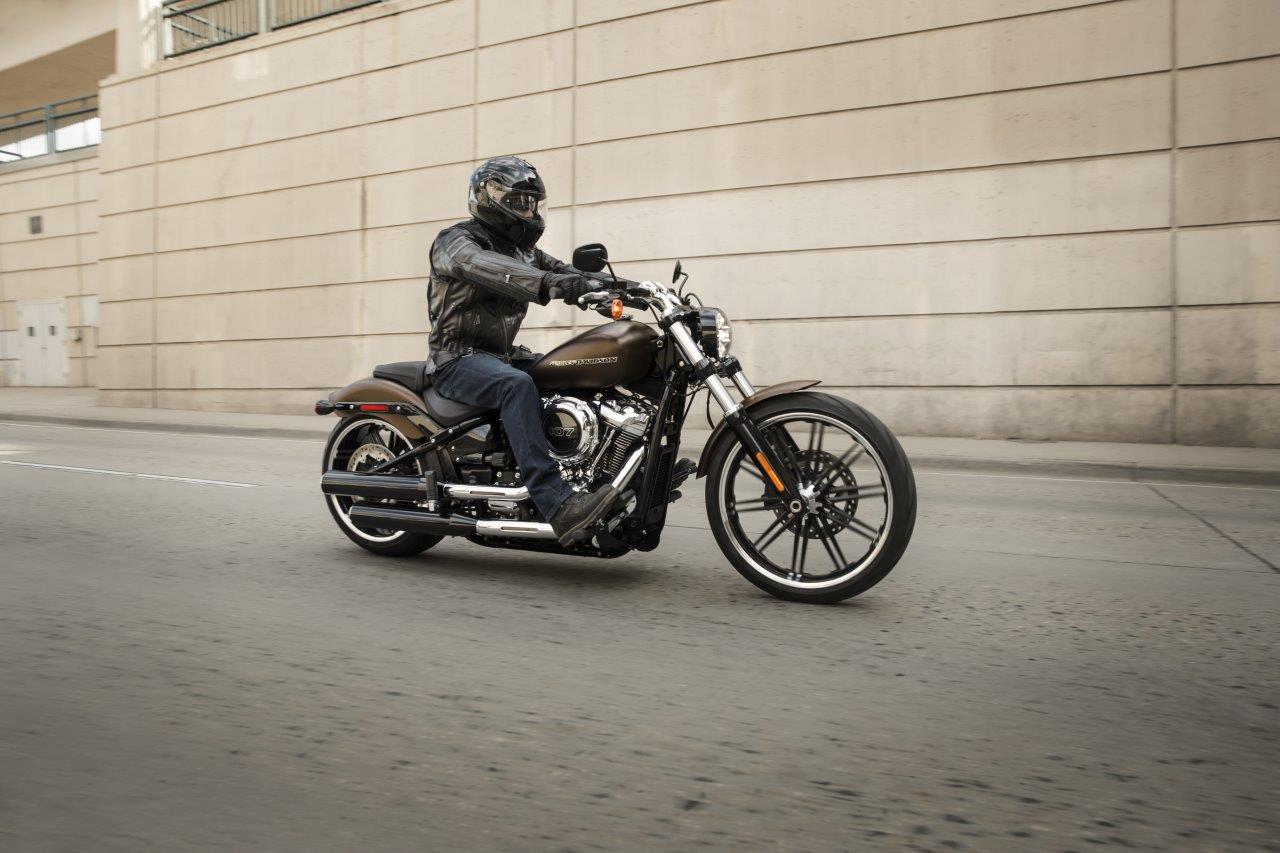

2020 Harley-Davidson Breakout 114

2020 Harley-Davidson Breakout 114 Specifications

From Harley-Davidson


Engine 1,868cc, Milwaukee-Eight® 107
Engine Torque 119 ft-lb
Bore x Stroke 4.016 in x 4.5 in
Compression Ratio 10.5:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric


Transmission 6-speed
Final Drive Chain, 34/46 ratio


Suspension Front Gloss black, Gasser II cast aluminum
Suspension Rear Gloss black, Gasser II cast aluminum
Brakes Front 4-piston fixed front
Brakes Rear 2-piston floating rear
Tires Front 130/60B21,63H,BW
Tires Rear 240/40R18,79V,BW
Fuel Tank Capacity 13.24 L (3.5 US gal.)
Color Vivid Black, Midnight Blue, Barracuda Silver, River Rock Gray Denim, Performance Orange, and Stilleto Red, Zephyr Blue/Black Sunglo


Spark Plugs
Headlight LED
Tail Light LED


Overall Length 93.3 in (2,370 mm)
Overall Width
Overall Height
Wheelbase 66.7 in (1,700 mm)
Ground Clearance 4.5 in (110 mm)
Seat Height 25.6 in (650 mm)
Curb Weight 648 lbs (293 kg)

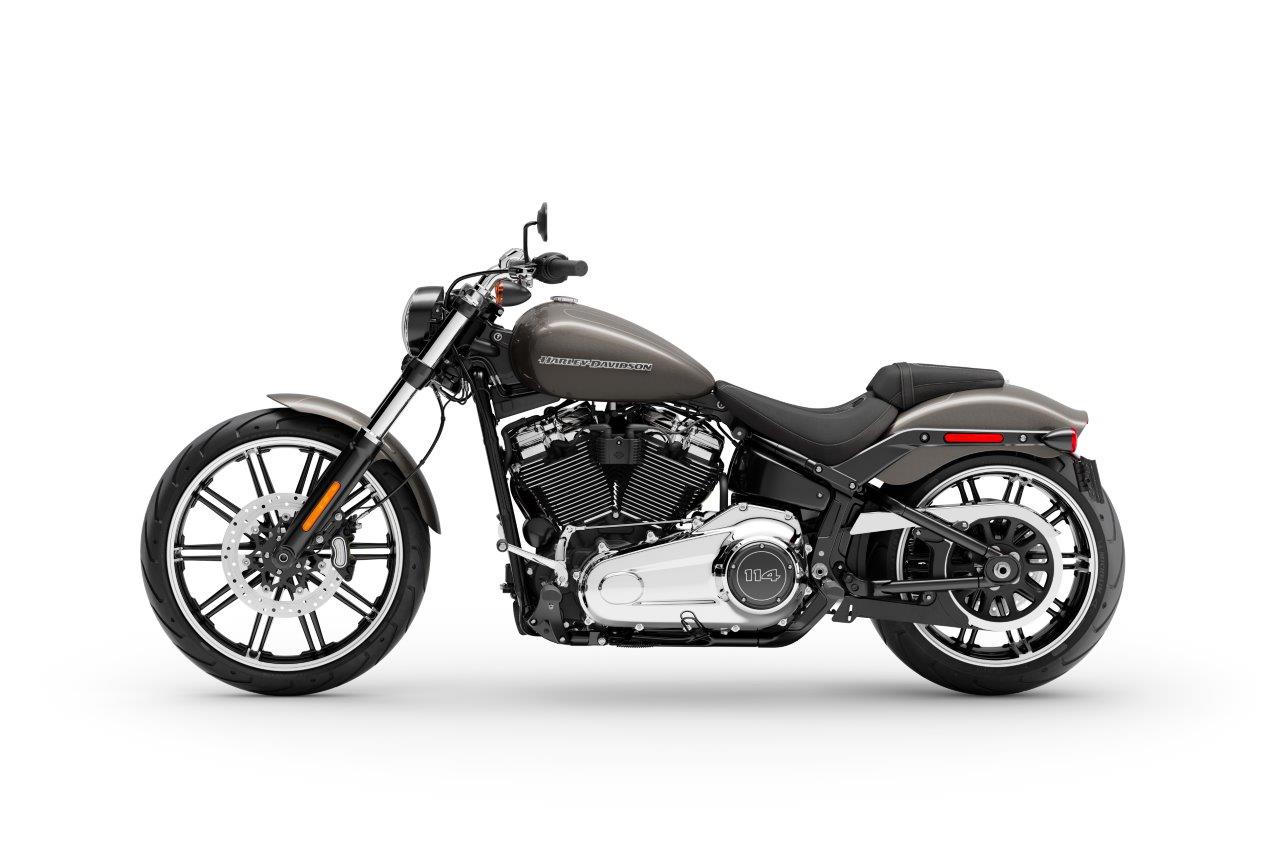

2020 Harley-Davidson Breakout 114

2020 Harley-Davidson Breakout 114 Features

Milwaukee-Eight® 114 Engine

Loads of torque for blasting off from stoplights, hitting entrance ramps and rolling on the passing power. Pure sound with a soul-satisfying rumble.

240mm Rear Tire

A muscular tire that is the perfect embodiment of classic drag-bike heritage pumping through this ride.

Digital Riser Gauge

Wide digital instrumentation, mounted on risers to be close to your field of vision. Speed readout, fuel gauge, and gear indicator.

3.5 Gallon Tank

A smooth top fuel tank that accentuates the big, powerful Milwaukee-Eight® engine.

Softail® Frame

The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

High Performance Front Suspension

Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock

Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look.

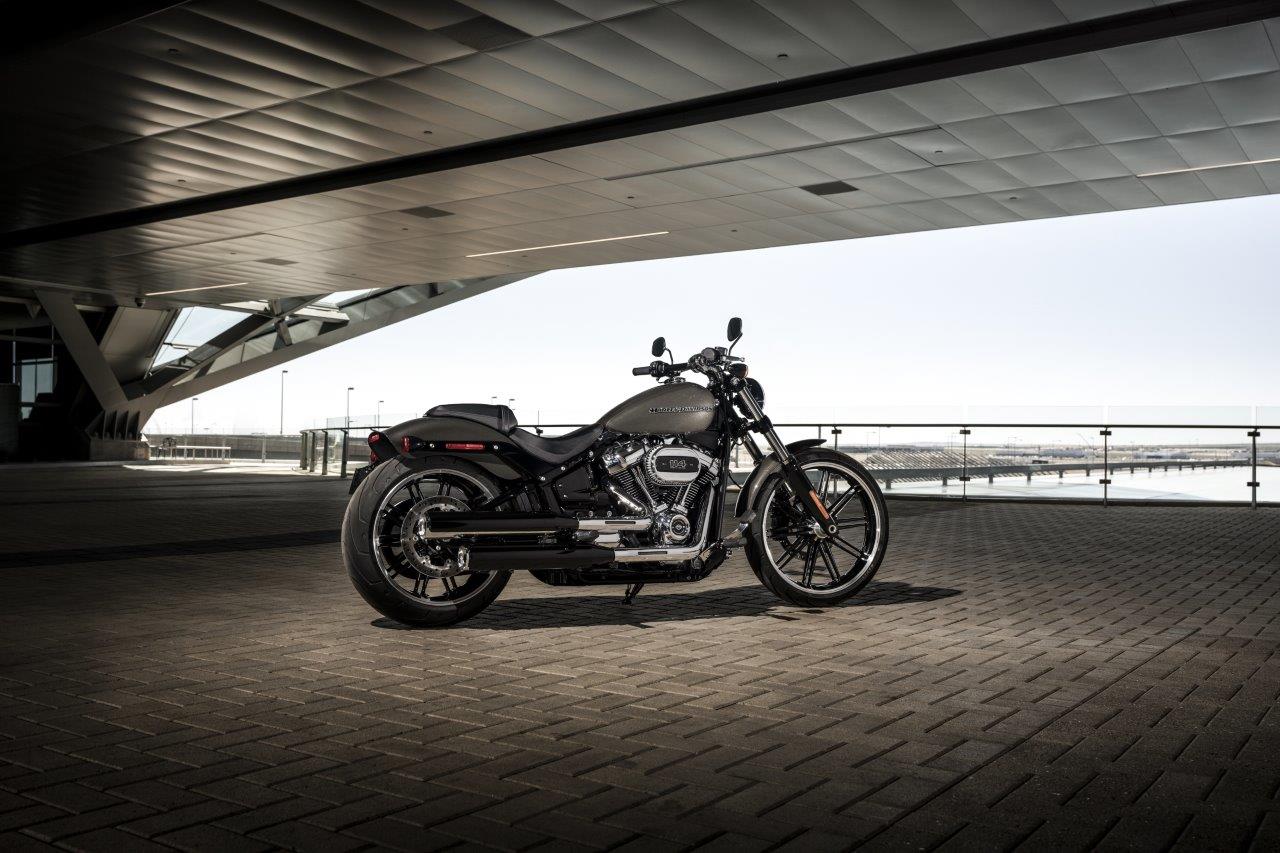

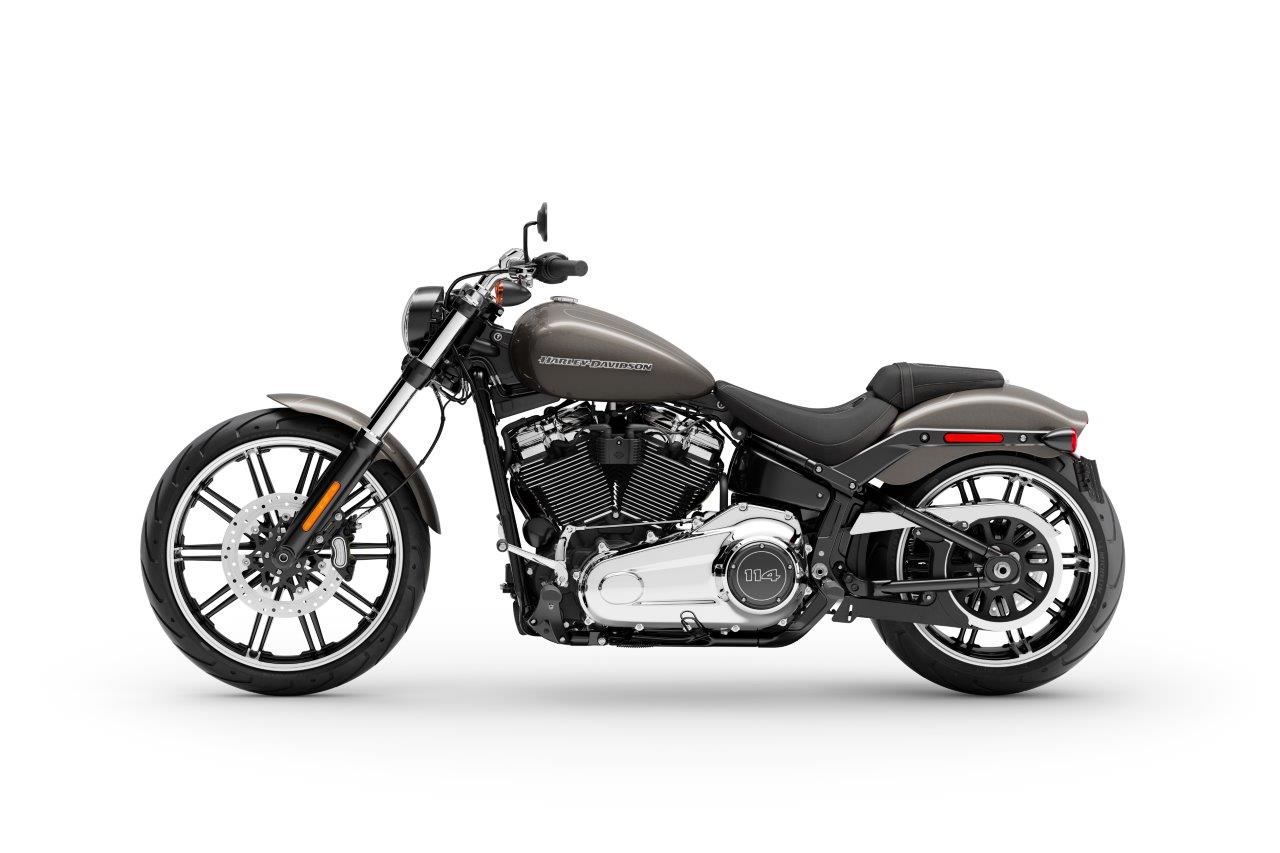

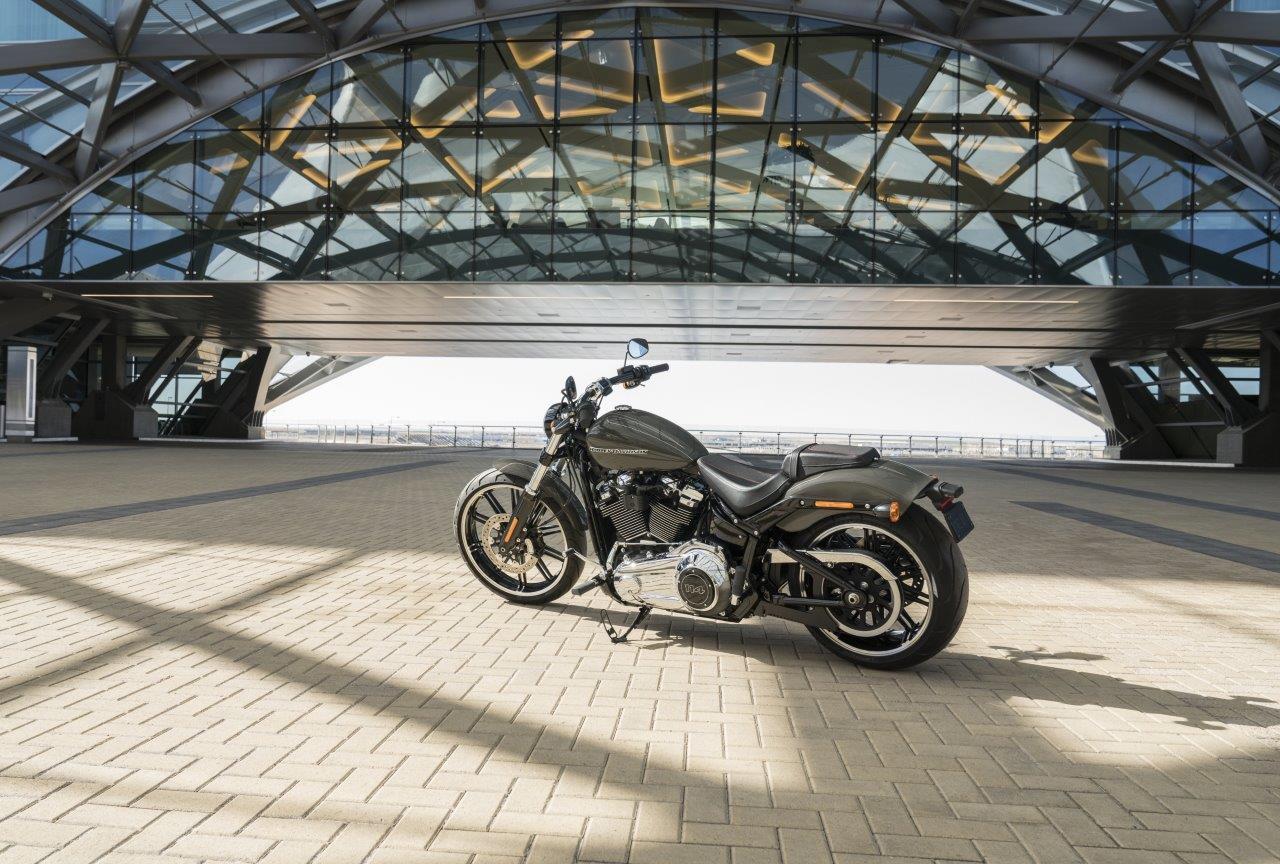

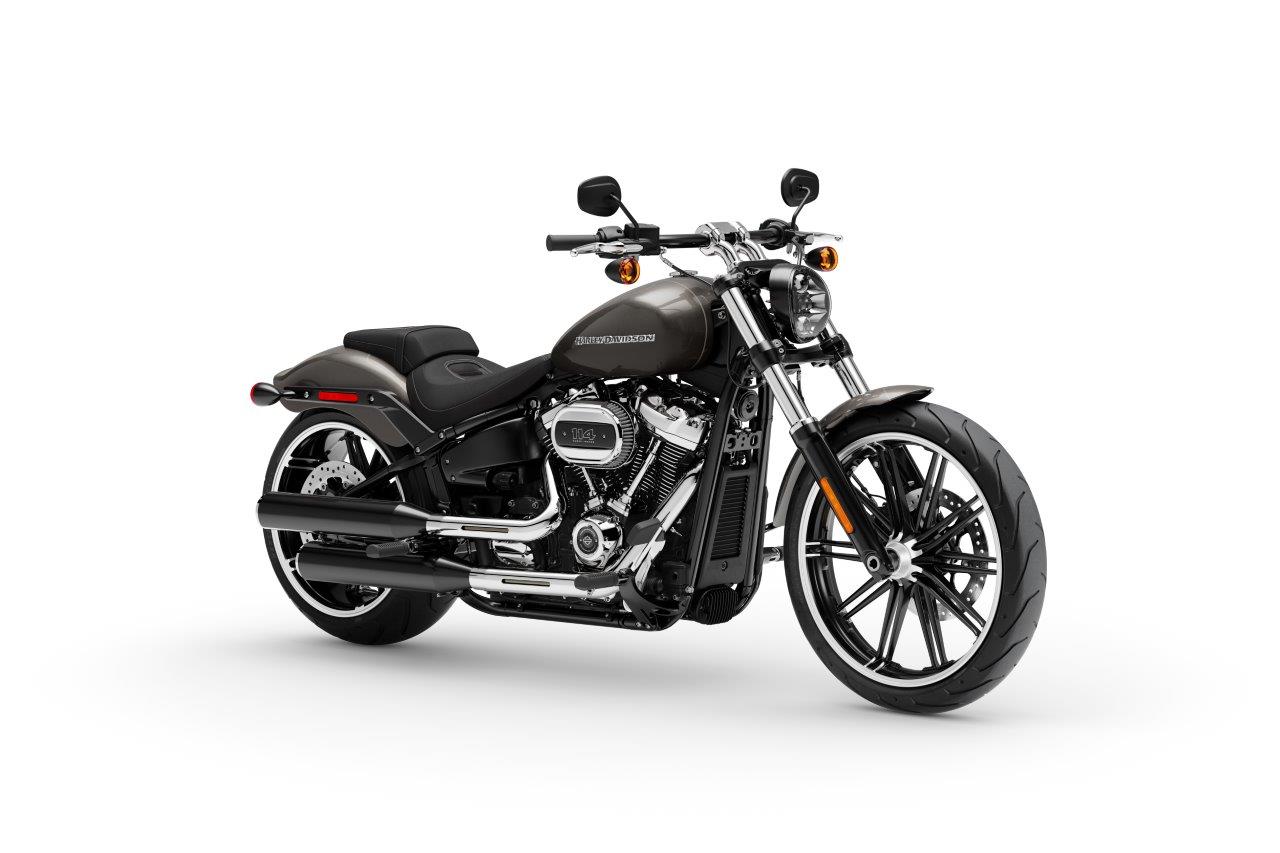

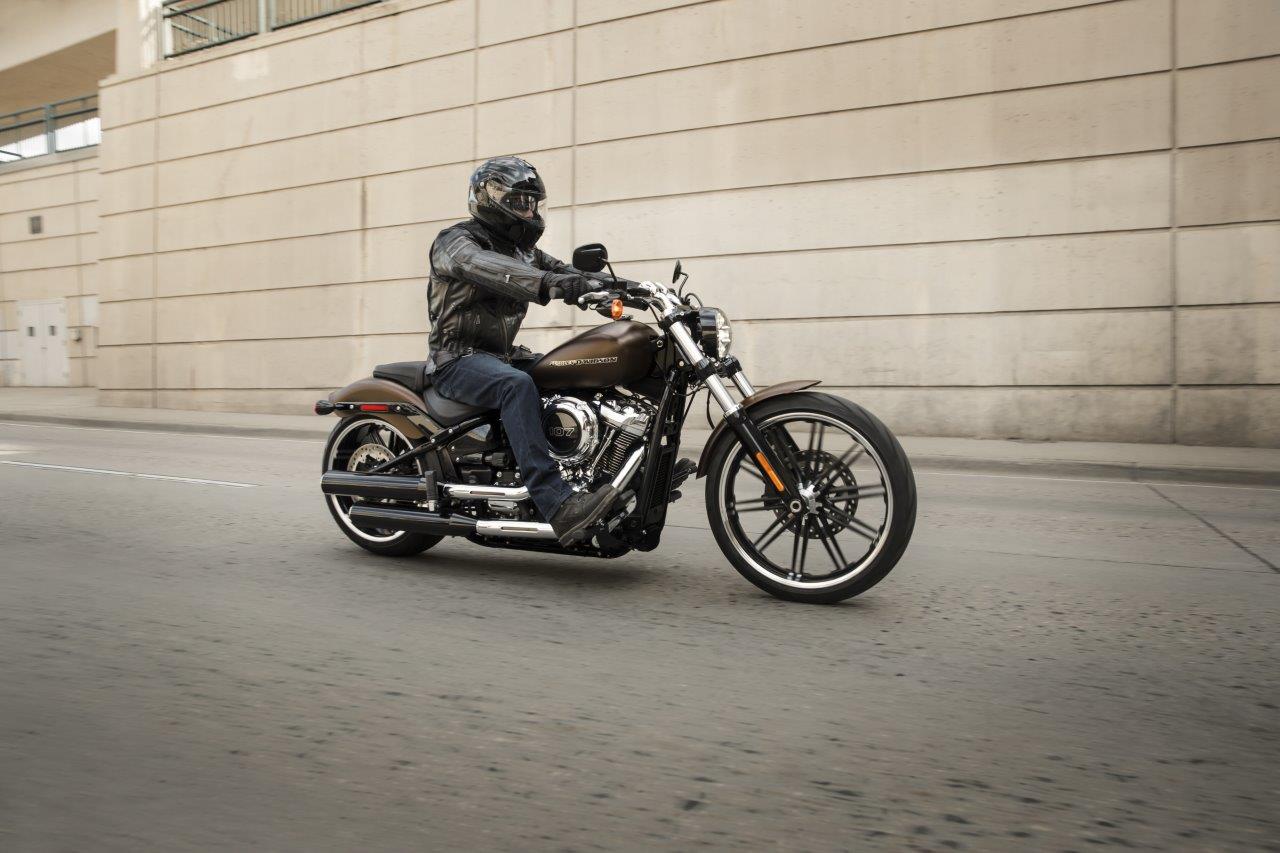

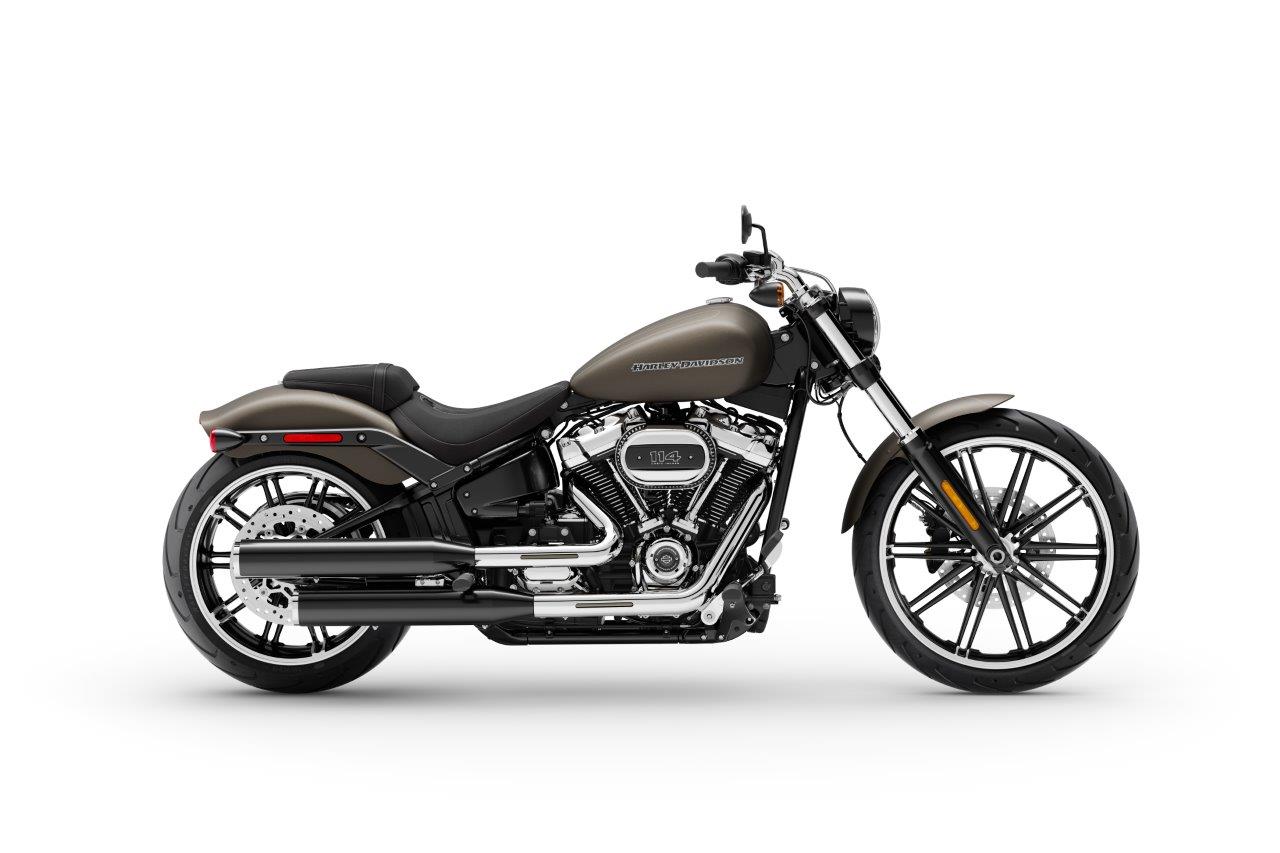

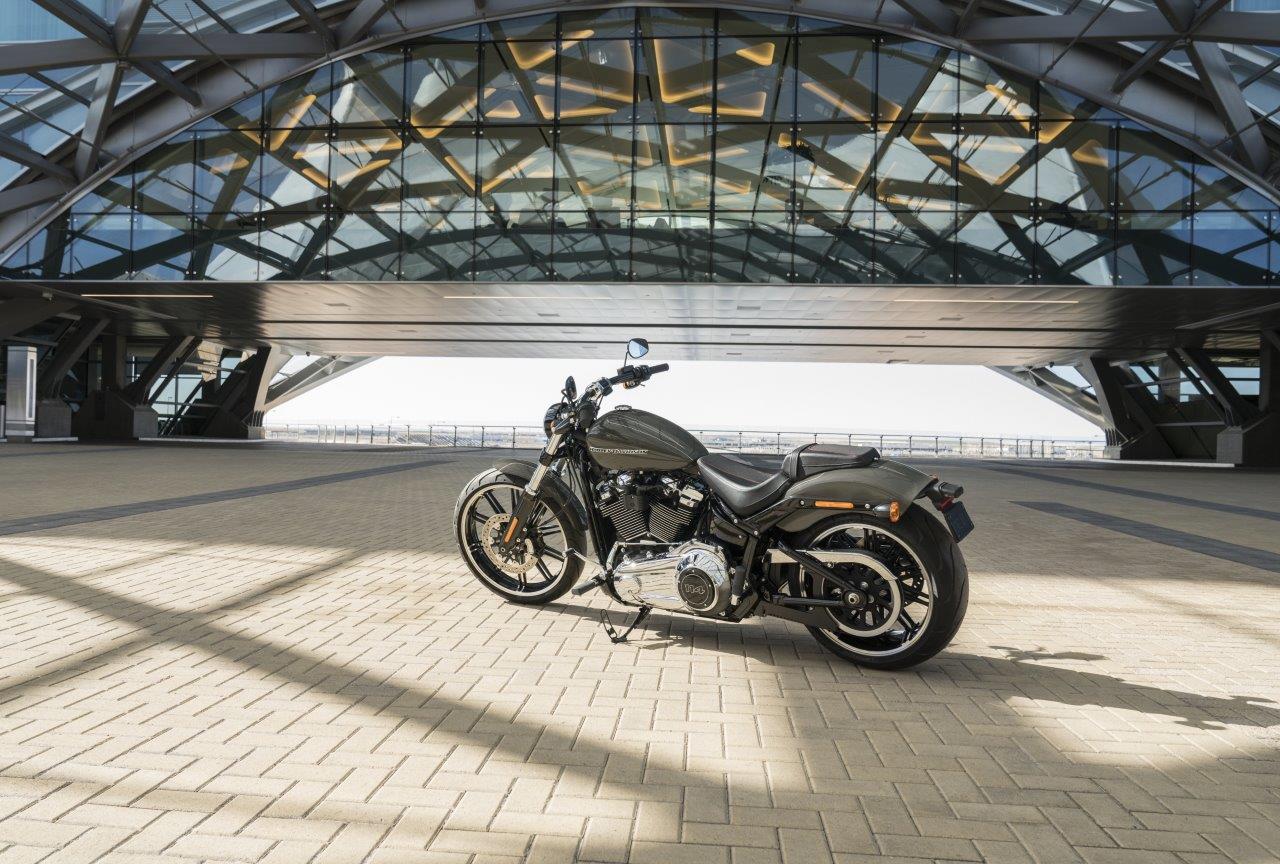

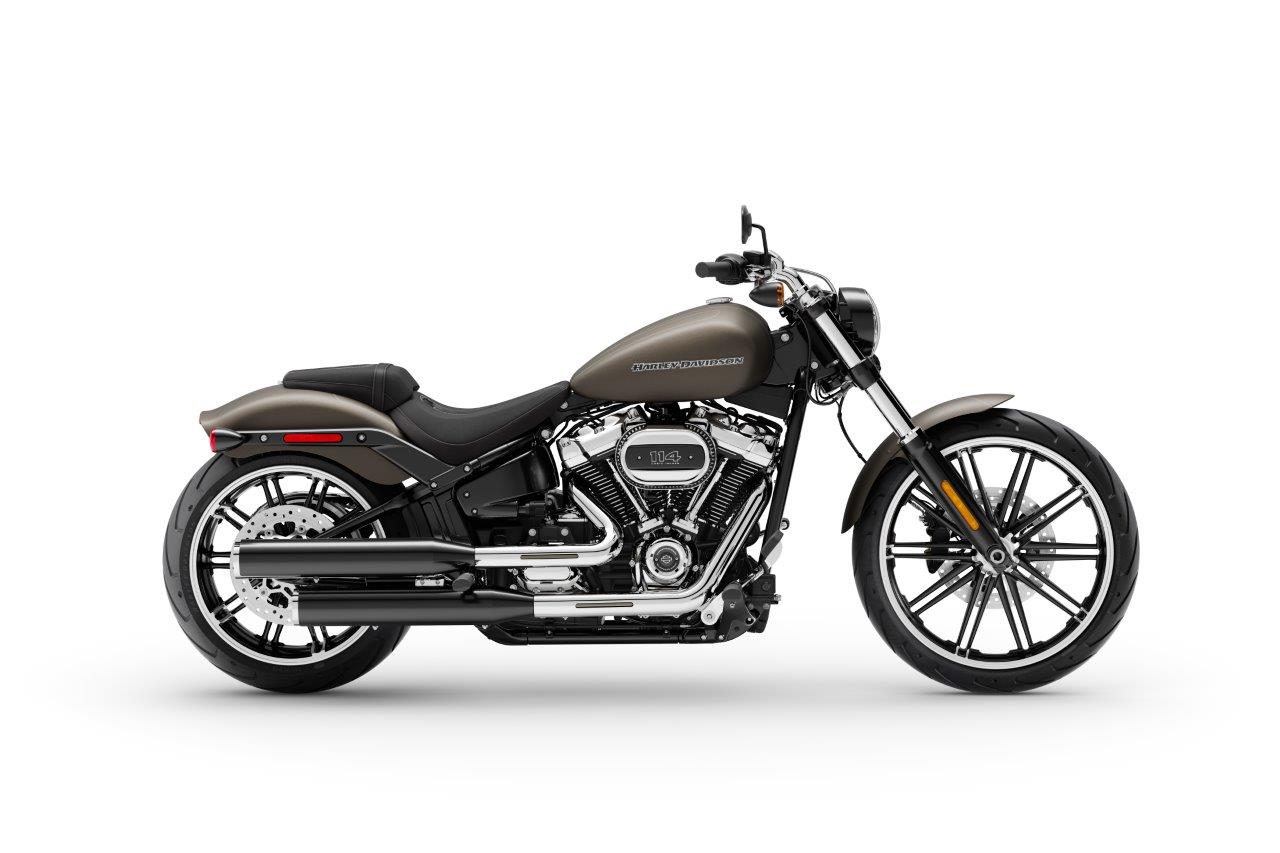

2020 Harley-Davidson Breakout 114 Photos
