Honda VTX1800T Motorcycles


2007 VTX1800T

Engine

Engine Type 1795cc liquid-cooled 52-degree V-twin
Bore and Stroke 101mm x 112mm
Compression Ratio 9.0:1
Valve Train SOHC; three valves per cylinder
Fuel Delivery PGM-FI with automatic choke
Ignition Digital, two spark plugs per cylinder

Drivetrain

Transmission 5-speed
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm inverted fork; 5.1 inches travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9 inches travel
Front Brakes Dual 296mm discs with LBS three-piston calipers
Rear Brakes Single 316mm disc with LBS twin-piston caliper
Front Tires 150/80R-17 radial
Rear Tires 180/70R-16 radial

DIMENSION

Rake 32.0 degrees
Trail 163mm (6.4 inches)
Wheelbase 67.5 inches
Seat Height 27.4 inches
Dry Weight TBD pounds
Fuel Capacity 5.3 gallons

OTHER

Emissions
  • Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Colors
  • Black
  • Dark Blue Metallic/Met. Silver
  • Black/Red
Model ID VTX1800T1

2008 VTX1800T

Overview
  • The VTX1800T is the perfect cruiser built for the perfect road trip, combining a massive 106-hp 1795cc V-twin with all the touring touches you could ever need — roomy saddlebags, big windscreen, cozy passenger backrest. Hear that? It’s the open road calling.
  • Classic Retro Fender Style
  • Classic-Style Seating
  • Fully Equipped for Touring

Engine

Engine Type 1795cc liquid-cooled 52° V-twin
Bore and Stroke 101mm x 112mm
Compression Ratio 9.0: 1
Valve Train SOHC; three valves per cylinder
Fuel Delivery PGM-FI with automatic choke
Ignition Digital, two spark plugs per cylinder

Drivetrain

Transmission 5-speed
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm inverted fork; 5.1 inches travel
Rear Suspension Dual shocks with five-position spring preload adjustability; 3.9 inches travel
Front Brakes Dual 296mm disc with LBS three-piston calipers
Rear Brakes Single 316mm disc with LBS twin-piston caliper
Front Tires 150/80R-17 radial
Rear Tires 180/70R-16 radial

DIMENSION

Rake (Caster Angle): 32.0°
Trail 163mm (6.4 inches)
Wheelbase 67.5 inches
Seat Height 27.4 inches
Curb Weight 800 pounds
Fuel Capacity 5.3 gallons

OTHER

Colors
    • Black
    • Black/Candy Black Cherry
    • Black/Metallic Blue
  • Warranty One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

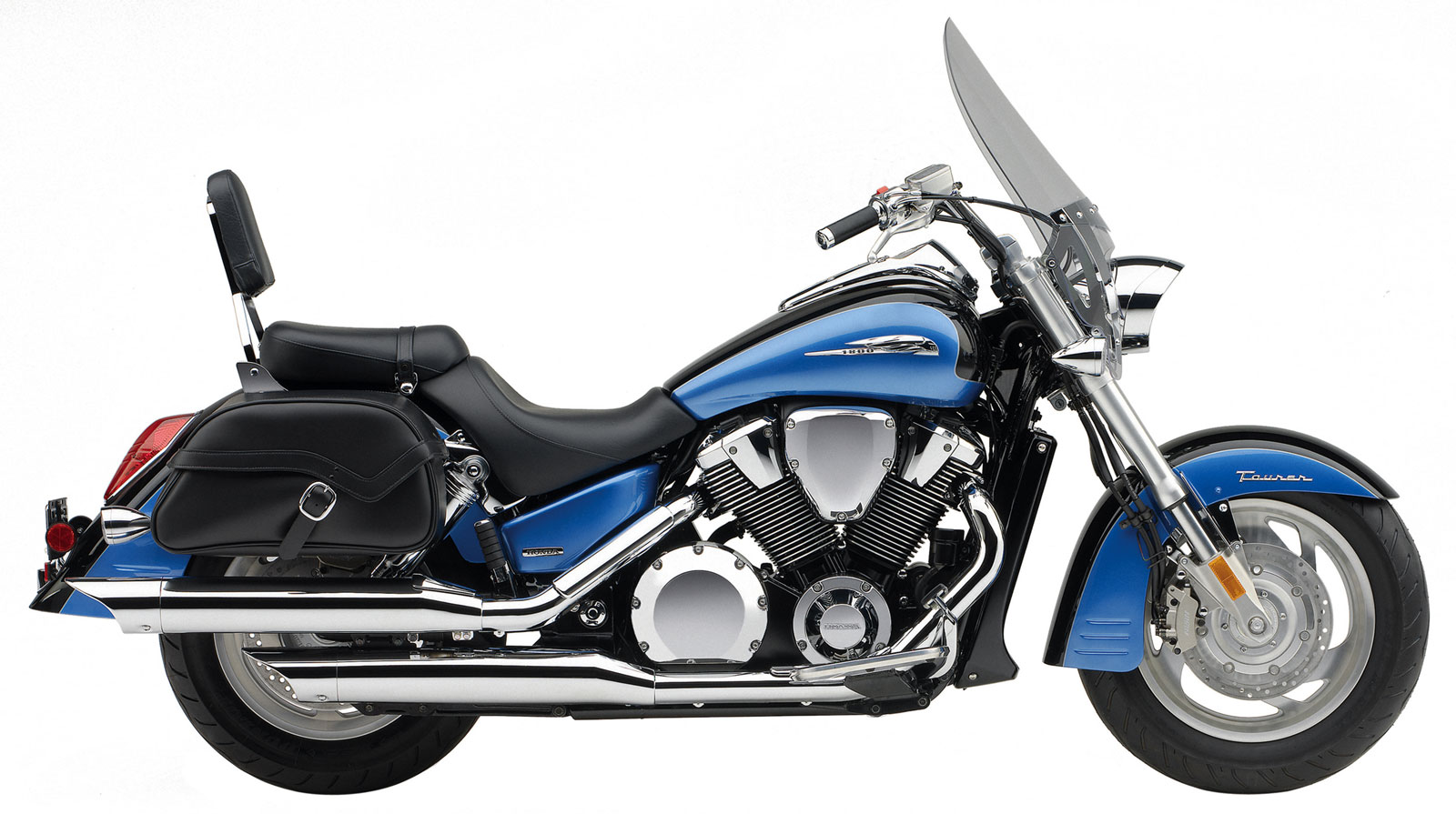

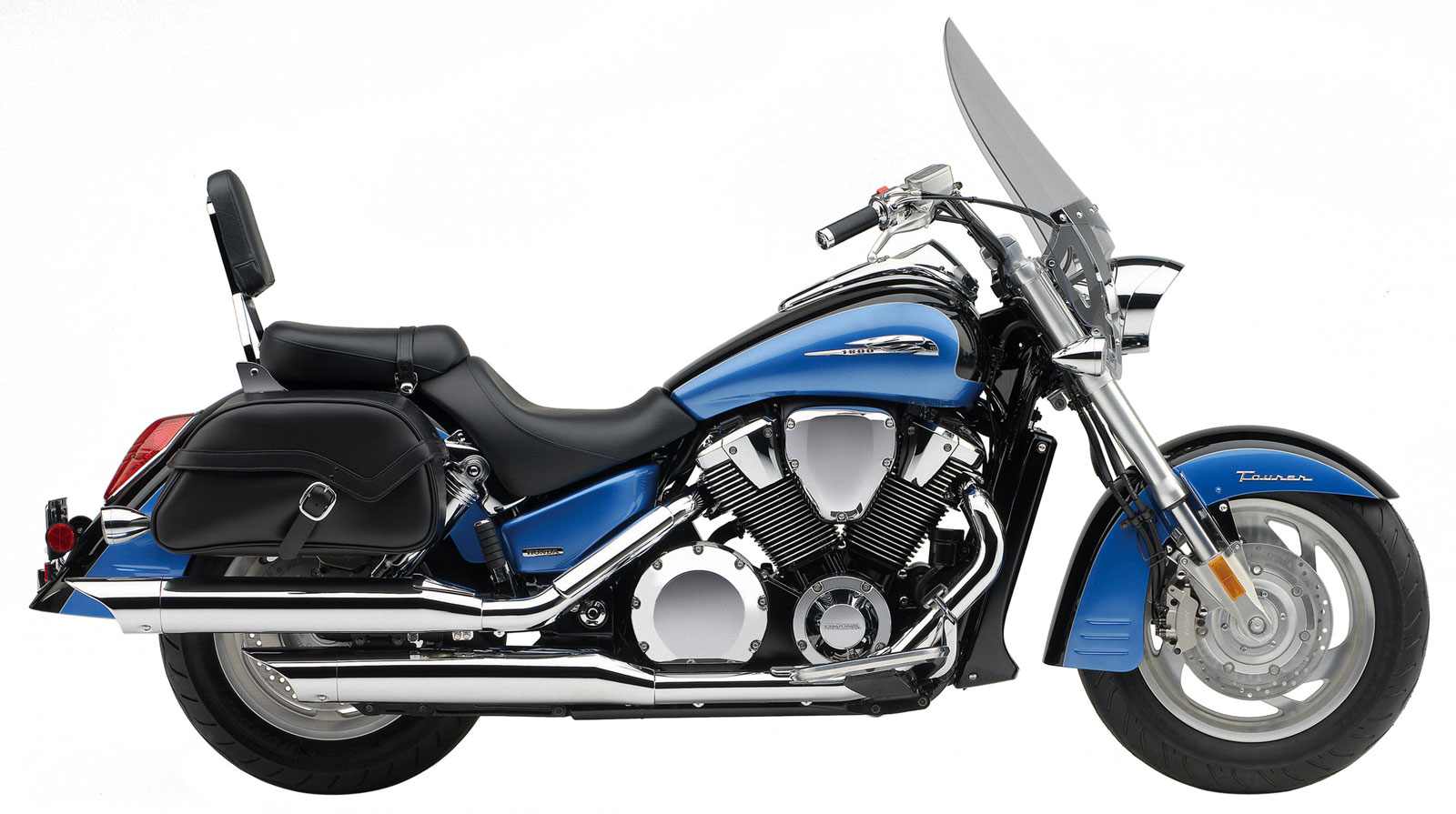

VTX1800T Image Gallery
