2004 VTX1300C
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Valves |
SOHC; three valves per cylinder |
| Displacement |
670cc |
| Compression Ratio |
9.2:1 |
| Fuel Delivery |
Single 38mm CV |
| Ignition System |
Solid-state digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire |
110/90-19 M/C |
| Rear Tire |
170/80-15 M/C |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
DIMENSION
|
|
| Wheelbase |
65.45 inche |
| Seat height |
27.0 inches |
| Fuel capacity |
4.8 gallons, including 1.0-gallon reserve |
| Dry weight |
641.0 pounds |
| Rake |
32.0 degrees |
| Trail |
149.0mm (5.9 inches) |
OTHER
|
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Color |
Colors |
| Model ID |
VTX1300C |
| Warranty |
1 year |
2005 VTX1300C
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Valves |
SOHC; three valves per cylinder |
| Compression Ratio |
9.2:1 |
| Fuel Delivery |
Single 38mm CV |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire |
110/90-19 M/C |
| Rear Tire |
170/80-15 M/C |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
DIMENSION
|
|
| Wheelbase |
65.45 inche |
| Seat height |
27.0 inches |
| Fuel capacity |
4.8 gallons, including 1.0-gallon reserve |
| Dry weight |
641.0 pounds |
| Rake |
32.0 degrees |
| Trail |
149.0mm (5.9 inches) |
OTHER
|
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Color |
- Black
- Bright Blue Metallic
- Titanium
- Candy Red
|
| Model ID |
VTX1300C |
| Warranty |
1 year |
2006 VTX1300C
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Valves |
SOHC; three valves per cylinder |
| Compression Ratio |
9.2:1 |
| Fuel Delivery |
Single 38mm CV |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire |
110/90-19 M/C |
| Rear Tire |
170/80-15 M/C |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
DIMENSION
|
|
| Wheelbase |
65.45 inche |
| Seat height |
27.0 inches |
| Fuel capacity |
4.8 gallons, including 1.0-gallon reserve |
| Dry weight |
641.0 pounds |
| Rake |
32.0 degrees |
| Trail |
149.0mm (5.9 inches) |
OTHER
|
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Color |
- Black
- Candy Black Cherry
- Candy Orange
- Dark Gray Metallic
|
| Model ID |
VTX1300C |
2007 VTX1300C
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Valves |
SOHC; three valves per cylinder |
| Compression Ratio |
9.2:1 |
| Fuel Delivery |
Single 38mm CV |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire |
110/90-19 M/C |
| Rear Tire |
170/80-15 M/C |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
DIMENSION
|
|
| Wheelbase |
65.45 inches |
| Seat height |
27.46 inches |
| Fuel capacity |
4.8 gallons, including 1.0-gallon reserve |
| Dry weight |
641.0 pounds |
| Rake |
32.0 degrees |
| Trail |
149.0mm (5.9 inches) |
OTHER
|
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Color |
- Black
- Dark Red
- Pearl White
- Pearl Dark Blue
- Pearl Bright Green
|
| Model ID |
VTX1300C |
2008 VTX1300C
Overview:
- Think of the VTX1300C as the patriarch of the VTX1300 family. With its classic styling and clean lines, this bike is serious about its VTX heritage. Check out its new-for-2008 slash-cut dual pipes. Then let your gaze take in its beefy 1312cc V-twin and sleek shaft final drive. Custom cast wheels and meaty tires wrapped in bobbed fenders complete the picture of a machine that was meant to rule.
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Valves |
SOHC; three valves per cylinder |
| Compression Ratio |
9.2:1 |
| Fuel Delivery |
Single 38mm CV |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.6-inch travel |
| Front Tire |
110/90-19 M/C |
| Rear Tire |
170/80-15 M/C |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
DIMENSION
|
|
| Wheelbase |
65.45 inches |
| Seat height |
27.46 inches |
| Fuel capacity |
4.8 gallons, including 1.0-gallon reserve |
| Curb weight |
678 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Rake |
(Caster Angle): 32.0° |
| Trail |
149mm (5.9 inches) |
OTHER
|
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Color |
- Metallic Black
- Metallic Silver
- Candy Red
- Pearl Yellow
|
| Model ID |
VTX1300C |
One year Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
2009 VTX1300C
Engine
|
|
| Engine Type |
1312cc |
| Engine Detail |
iquid-cooled 52° V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Valves |
SOHC; three valves per cylinder |
| Compression Ratio |
9.2:1 |
| Fuel Delivery |
Single 38mm constant-velocity carburetor |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
DRIVETRAIN
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1 inches travel |
| Rear Suspension |
Rear: Dual shocks with five-position spring-preload adjustability; 3.6 inches travel |
| Front Tire |
110/90-19 M/C |
| Rear Tire |
170/80-15 M/C |
| Front Brakes |
Single 336 mm disc with twin-piston caliper |
| Rear Brakes |
Single 296 mm disc with single-piston caliper |
DIMENSION
|
|
| Wheelbase |
65.45 in. |
| Seat height |
27.46 in. |
| Fuel capacity |
4.8 gal. |
| Curb weight |
678 lbs. |
OTHER
|
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Color |
- Dark Blue Metallic
- Metallic Red
- Black
- Titanium
|
| Warranty |
1 Year |

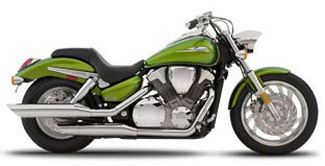

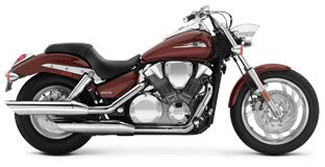

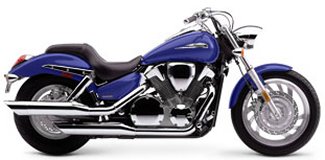

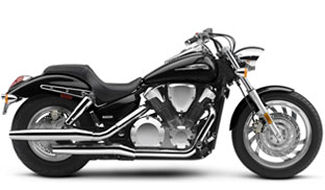

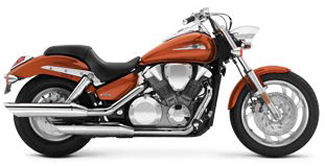

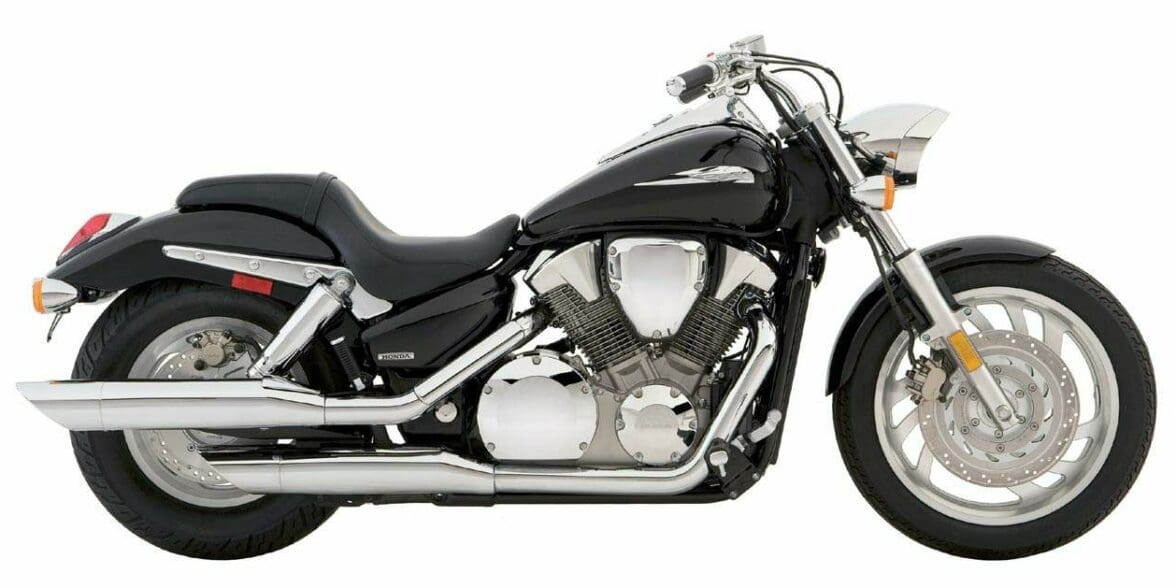

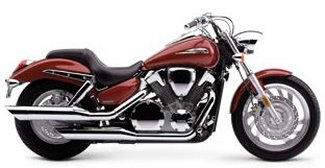

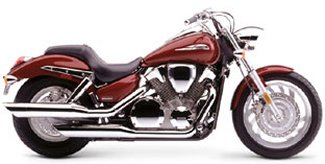

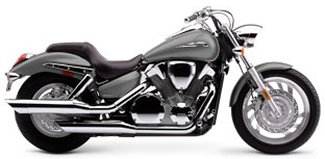

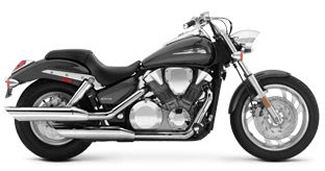

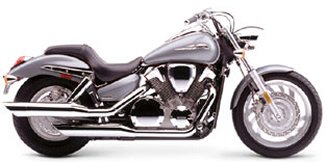

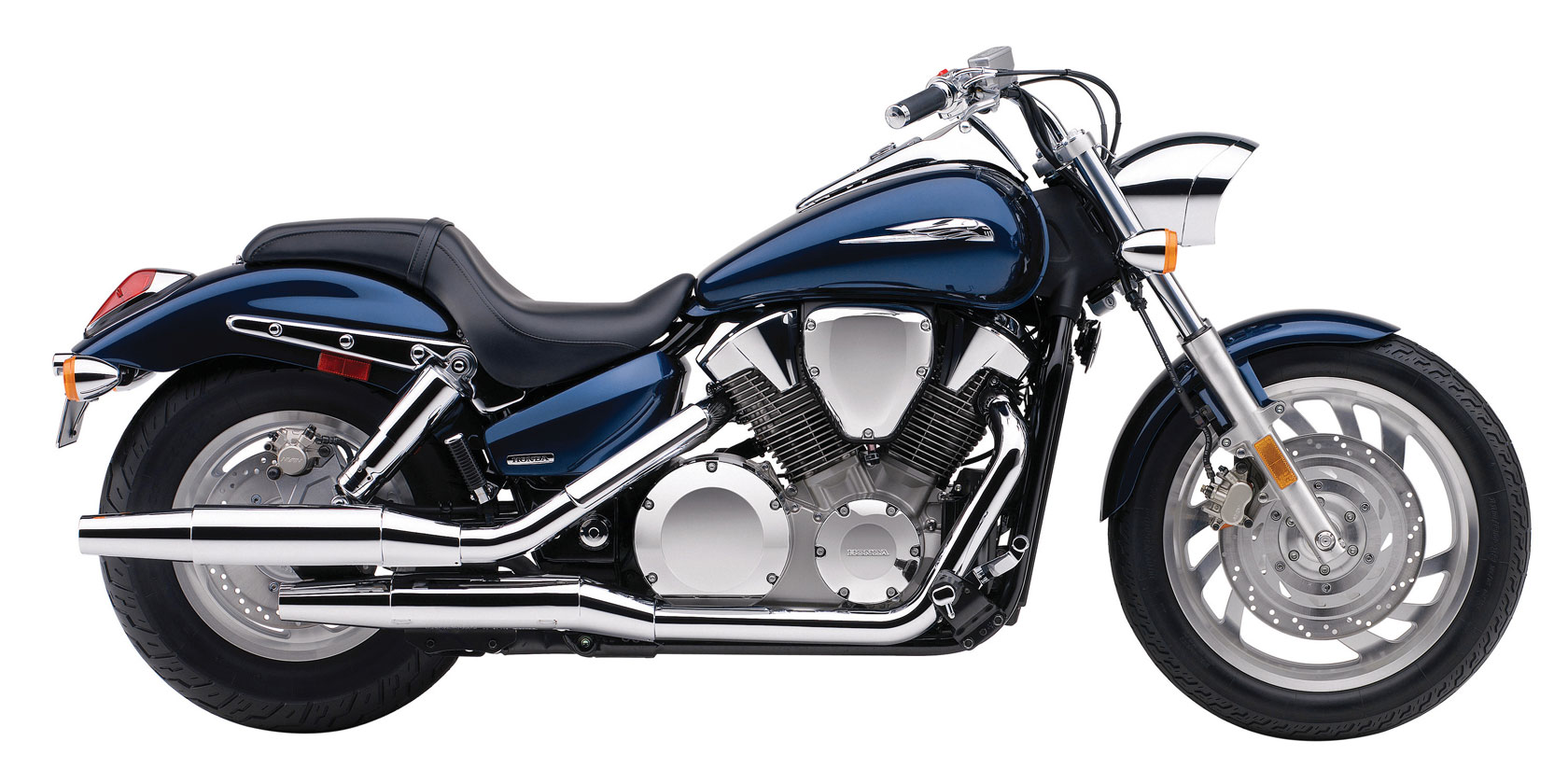

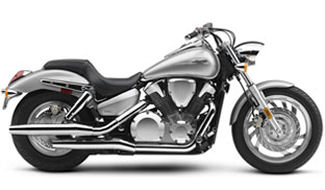

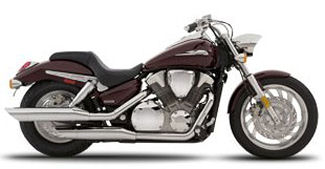

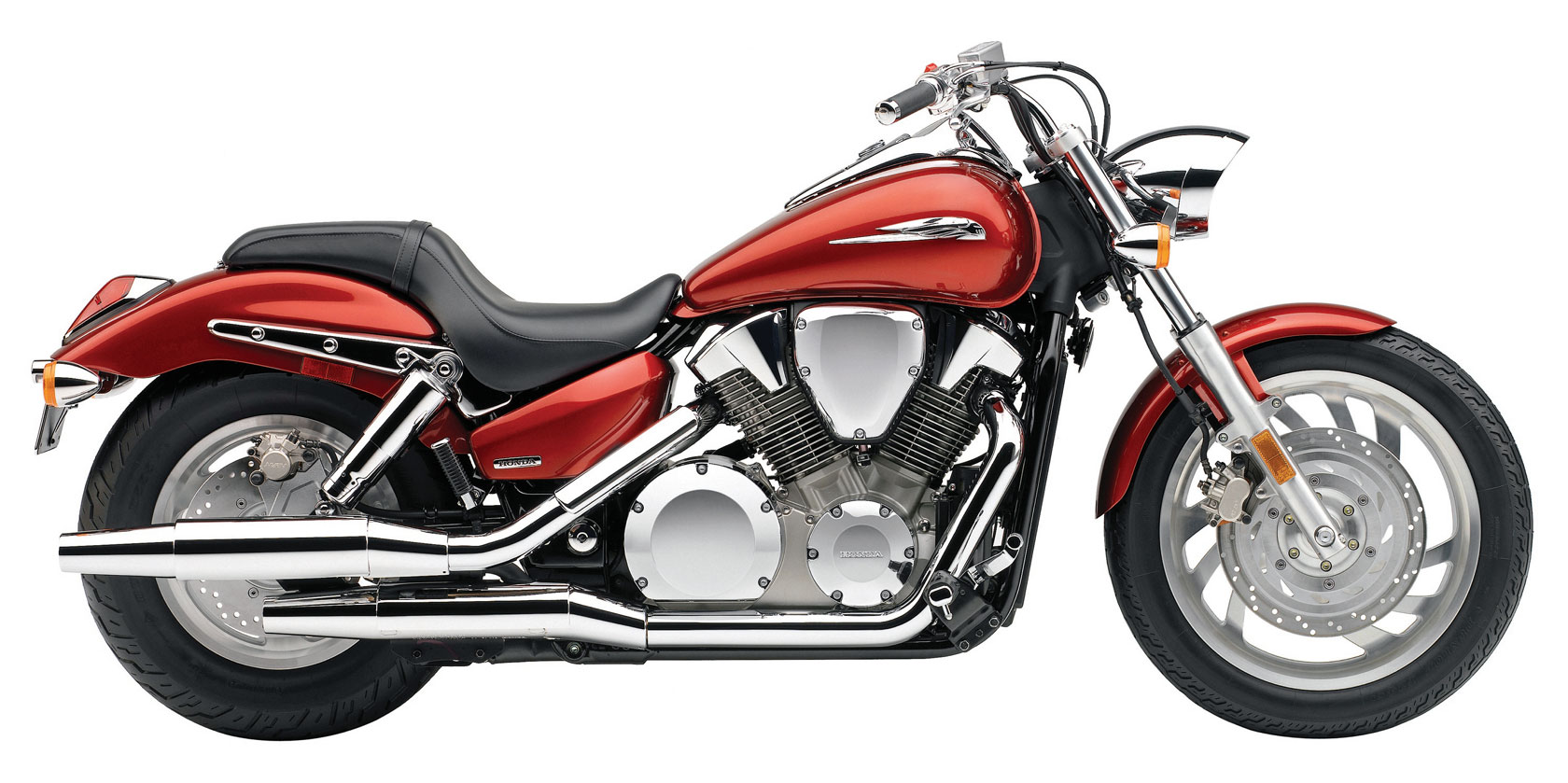

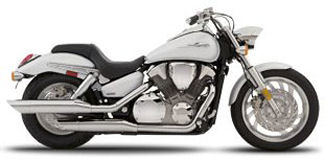

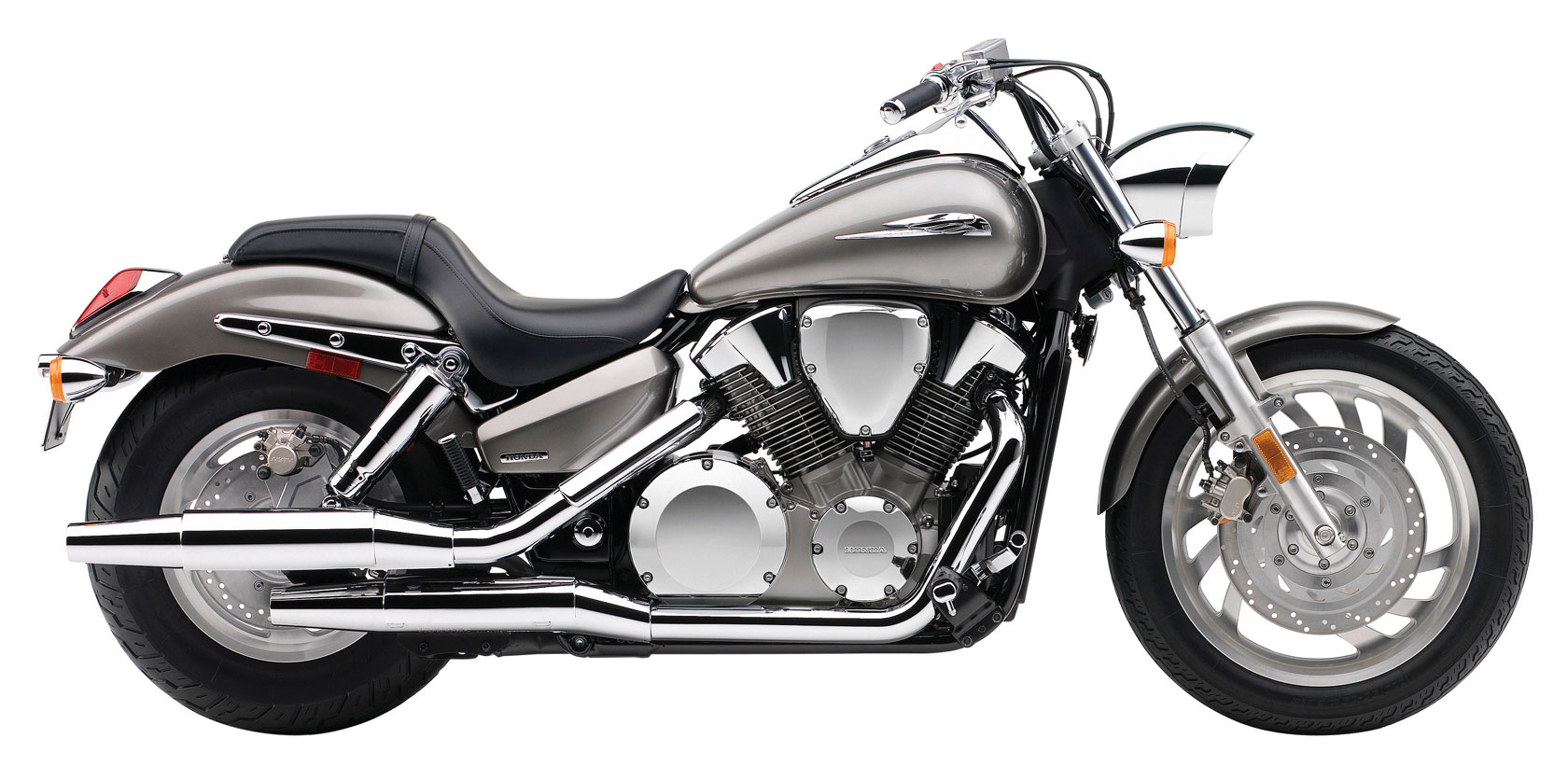

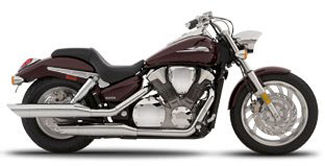

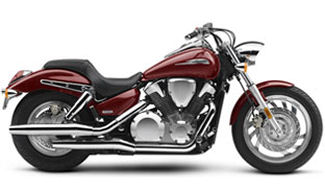

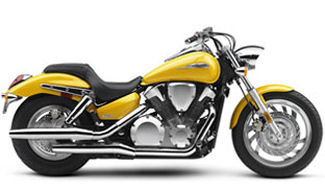

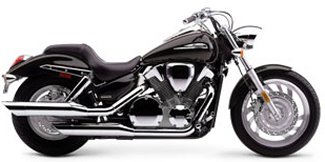

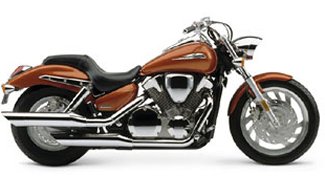

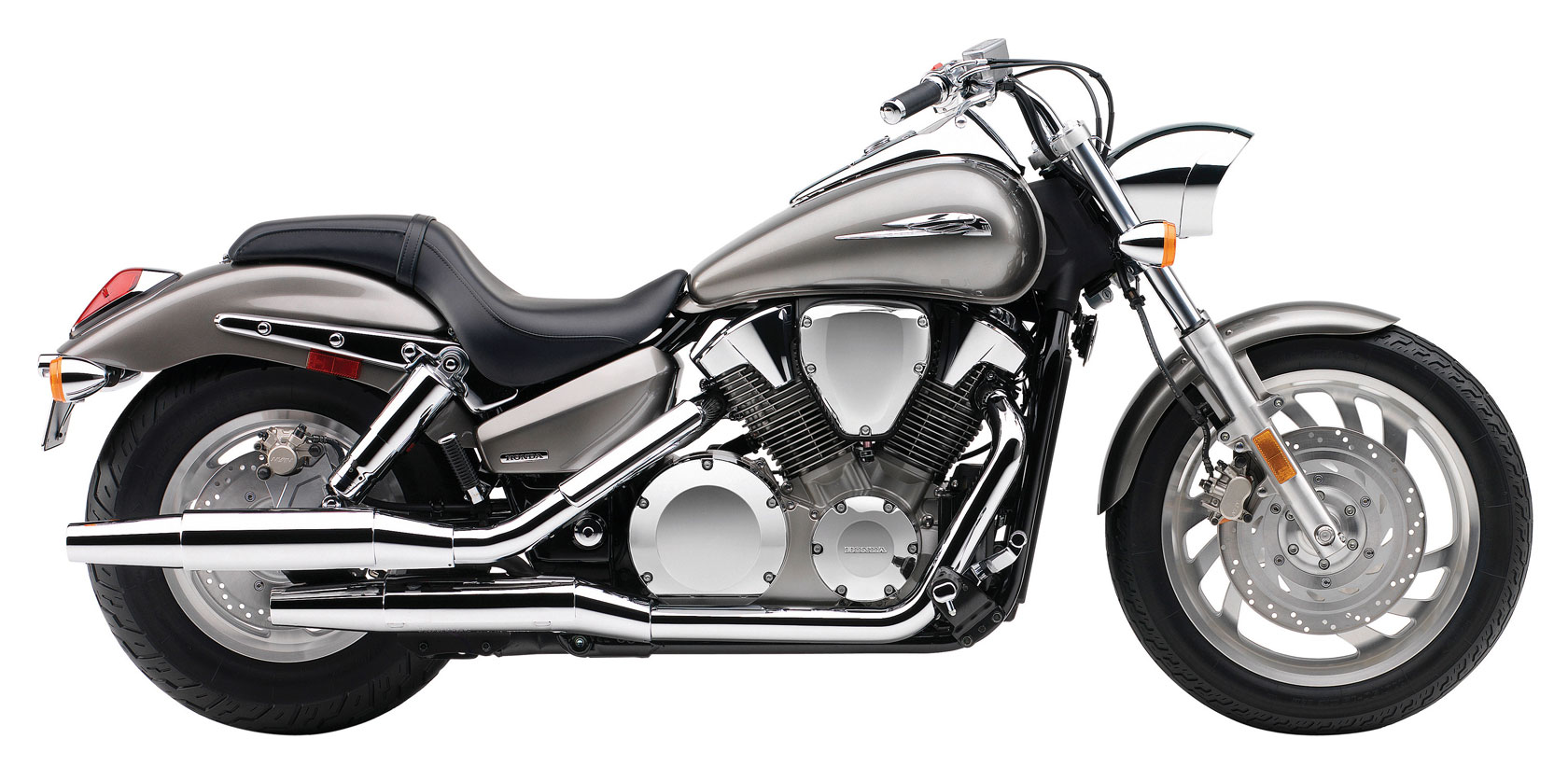

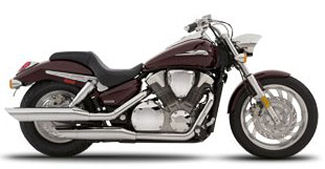

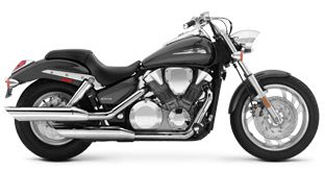

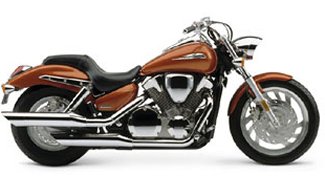

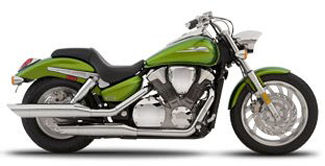

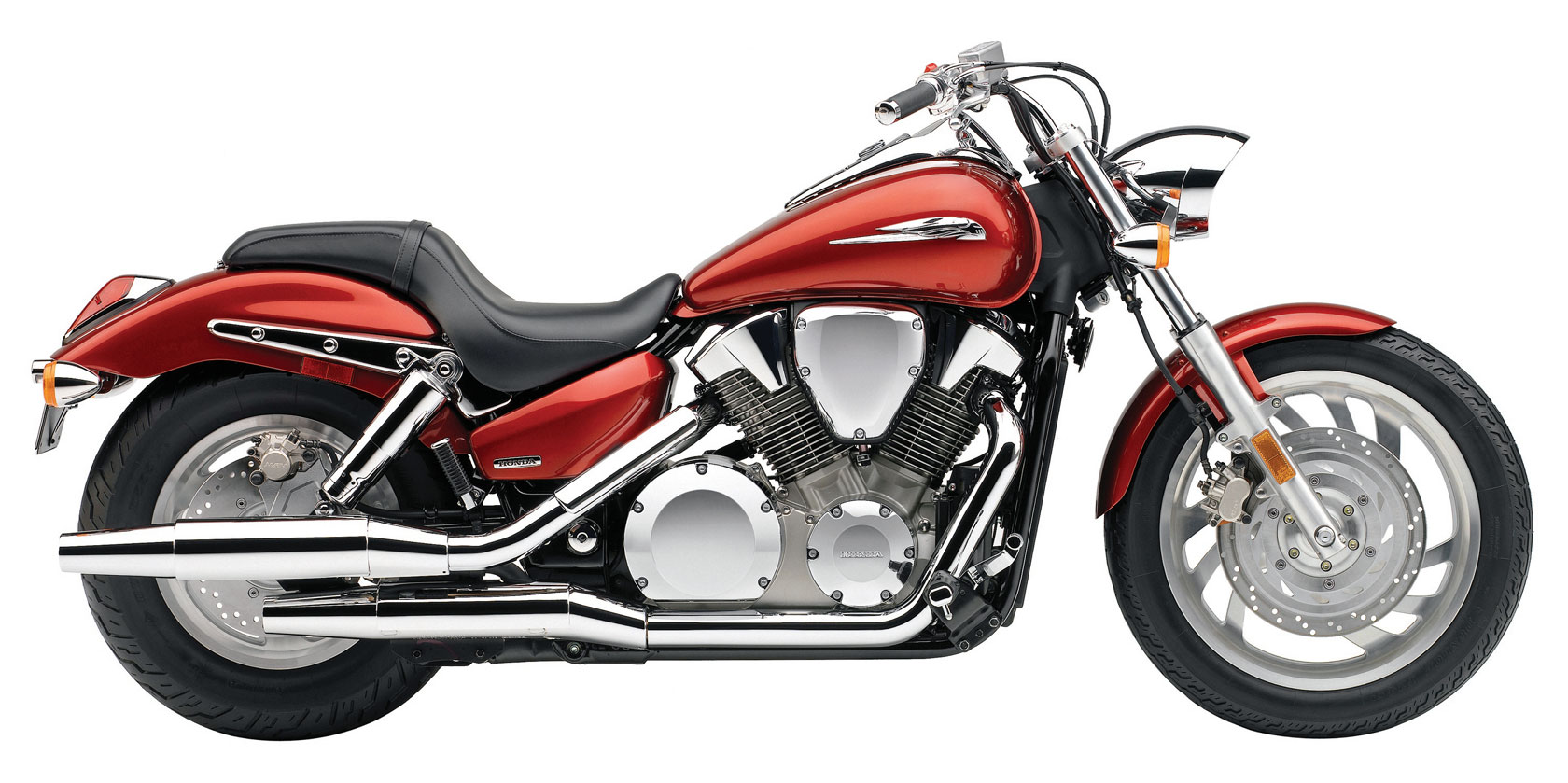

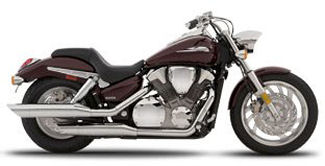

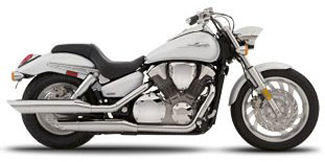

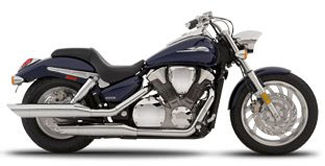

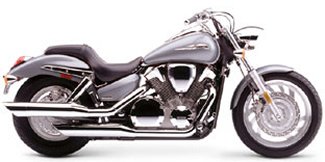

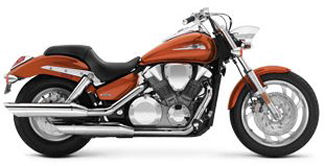

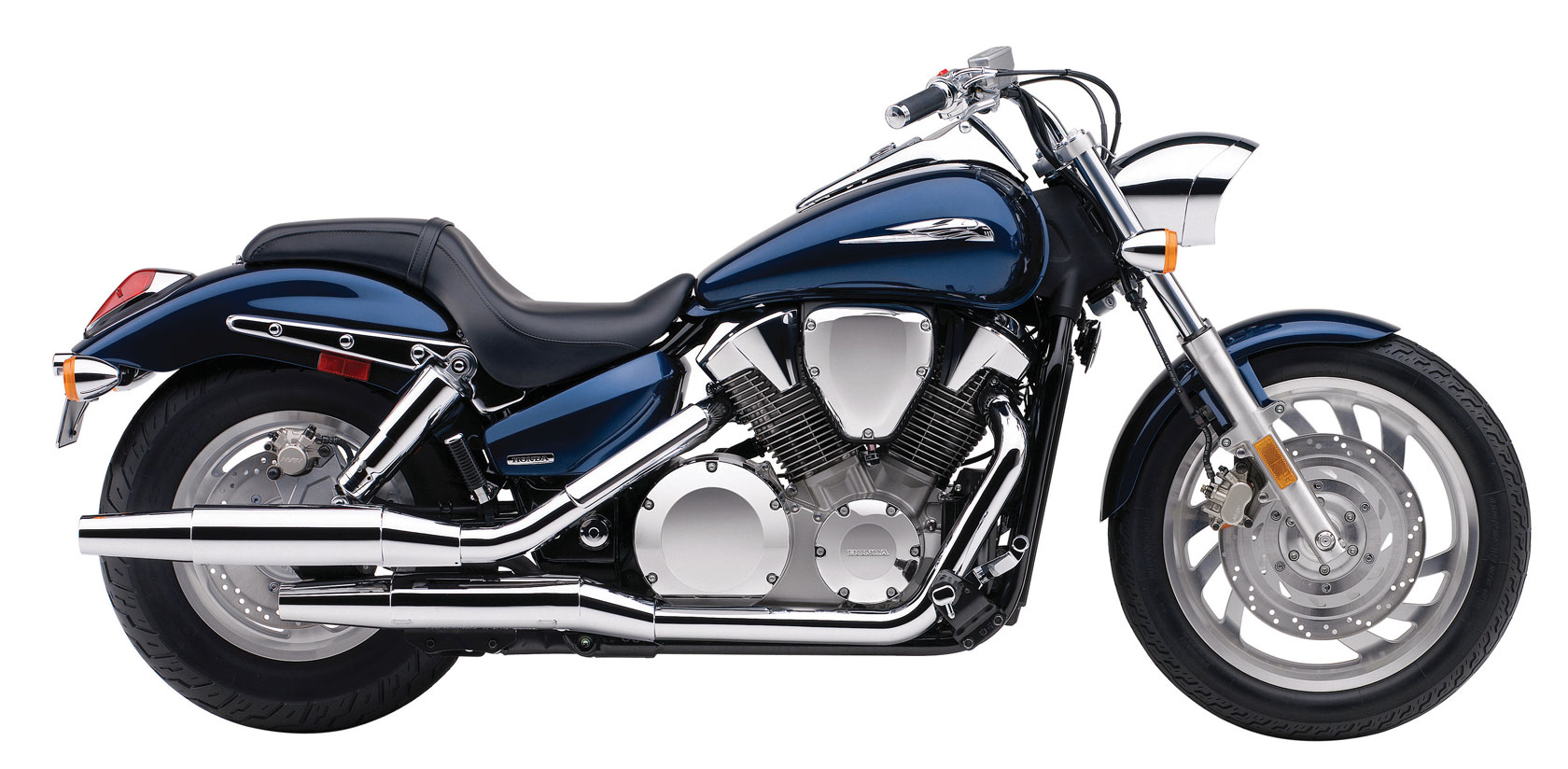

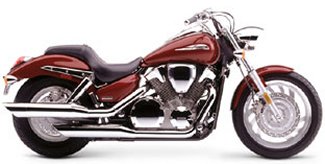

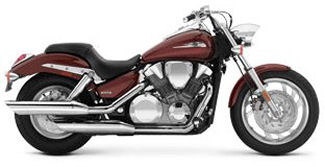

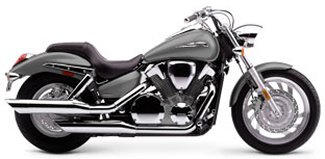

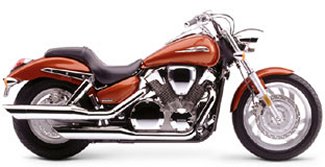

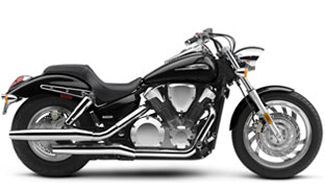

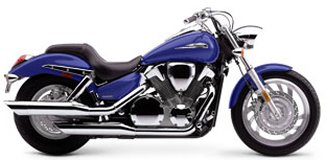

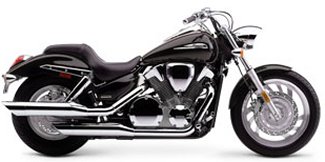

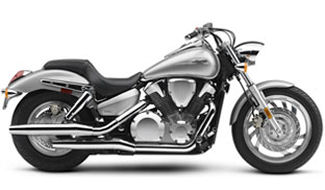

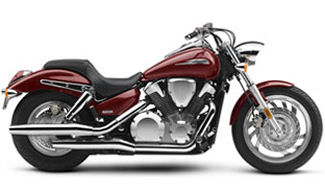

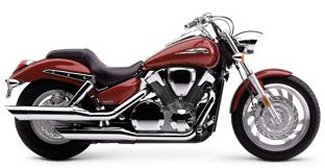

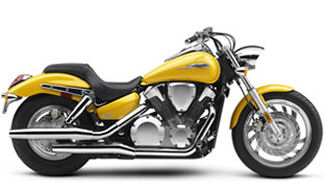

VTX1300C Image Gallery
