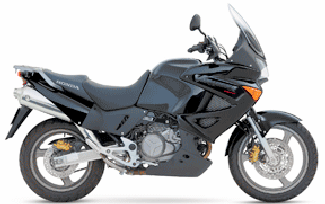

Honda Varadero 1000 (XL1000V) Motorcycles


2004 Varadero XL1000V

Engine

Engine Type Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Displacement 996cc
Bore and Stroke 98 x 66mm
Compression ratio 9.8 :1
Fuel Delivery PGM-FI electronic fuel injection
Max. Power Output 93 bhp at 8,000 rpm
Max. Torque 98Nm at 6,000 rpm
Ignition Computer-controlled digital transistorised with electronic advance and HISS
Starting system electric
Starter Electric

Drivetrain

Transmission 6-speed
Final Drive ‘O’-Ring sealed chain
Front Wheel 19 x MT2.50 Hollow-section triple-spoke cast aluminum
Rear Wheel 17 x MT4.00 Hollow-section triple-spoke cast aluminum

CHASSIS / SUSPENSION / BRAKES

Front Brakes ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Rear Brakes ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
Front Suspension 43mm telescopic fork, 155mm axle travel
Rear Suspension Pro-link with spring preload adjustable damper, 145mm axle travel
Front tire 110/80-R19 59H
Rear tire 150/70-R17 69H

DIMENSION

Overall Length 2295mm (90.4 inches)
verall Width 925mm (36.4 inches)
Overall Height 1500mm (59 inches)
Wheelbase 1,560mm (61.4 inches)
Seat Height 838mm (33 inches)
Ground Clearance 181mm (7.1 inches)
Fuel Capacity 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve]
Dry Weight
    • 241.5kg (531 lb)
  • OTHER

OTHER

2005 Varadero XL1000

Engine

Engine Type Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Displacement 996cc
Bore and Stroke 98 x 66mm
Compression ratio 9.8 :1
Fuel Delivery PGM-FI electronic fuel injection
Max. Power Output 93 bhp at 8,000 rpm
Max. Torque 98Nm at 6,000 rpm
Ignition Computer-controlled digital transistorised with electronic advance and HISS
Starting system electric
Starter Electric

Drivetrain

Transmission 6-speed
Final Drive ‘O’-Ring sealed chain
Front Wheel 19 x MT2.50 Hollow-section triple-spoke cast aluminum
Rear Wheel 17 x MT4.00 Hollow-section triple-spoke cast aluminum

CHASSIS / SUSPENSION / BRAKES

Front Brakes ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Rear Brakes ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
Front Suspension 43mm telescopic fork, 155mm axle travel
Rear Suspension Pro-link with spring preload adjustable damper, 145mm axle travel
Front tire 110/80-R19 59H
Rear tire 150/70-R17 69H

DIMENSION

Overall Length 2295mm (90.4 inches)
verall Width 925mm (36.4 inches)
Overall Height 1500mm (59 inches)
Wheelbase 1,560mm (61.4 inches)
Seat Height 838mm (33 inches)
Ground Clearance 181mm (7.1 inches)
Fuel Capacity 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve]
Dry Weight 241.5kg (531 lb)

OTHER

2007 XL1000V VARADERO

Engine

Engine Type Liquid-cooled 90-degree V-twin
Displacement 996cc
Bore and Stroke 98 x 66mm
Compression ratio 9.8 :1
Fuel Delivery PGM-FI electronic fuel injection
Valve Train Chain-driven DOHC, 4 valves per cylinder
Starter Electric

Drivetrain

Transmission 6-speed
Final Drive ‘O’-Ring sealed chain
Front Wheel 19 x MT2.50 Hollow-section triple-spoke cast aluminum
Rear Wheel 17 x MT4.00 Hollow-section triple-spoke cast aluminum

CHASSIS / SUSPENSION / BRAKES

Front Brakes ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Rear Brakes ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
Front Suspension 43mm telescopic fork, 155mm axle travel
Rear Suspension Pro-link with spring preload adjustable damper, 145mm axle travel
Front tire 110/80-R19 59H
Rear tire 150/70-R17 69H

DIMENSION

Overall Length 2295mm (90.4 inches)
verall Width 925mm (36.4 inches)
Overall Height 1500mm (59 inches)
Wheelbase 1,560mm (61.4 inches)
Seat Height 838mm (33 inches)
Ground Clearance 181mm (7.1 inches)
Fuel Capacity 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve]
Dry Weight 241.5kg (531 lb)

OTHER

2010 XL1000V VARADERO



Engine

Engine Type Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Displacement 996cc
Bore and Stroke 98 x 66mm
Compression ratio 9.8 :1
Fuel Delivery Fuel Delivery:
Starter Electric

Drivetrain

Transmission Six-speed
Final Drive O-ring-sealed chain; 16T/47T

CHASSIS / SUSPENSION / BRAKES

Rear Brakes Pro-Link single shock with spring preload and rebound-damping adjustability; 145 mm (5.7 in.) travel
Front Suspension 43 mm telescopic fork; 155 mm (6.1 in.) travel
Rear Suspension Pro-link with spring preload adjustable damper, 145mm axle travel
Front tire 110/80R�19 radial front; 150/70R�17 radial rear
Brakes Front dual 296 mm discs with triple-piston calipers and Combined Braking System with ABS; rear 256 mm disc with triple-piston caliper and Combined Braking System with ABS

DIMENSION

Overall Height 1500mm (59 inches)
Wheelbase 1,560 mm (61.4 in.)
Seat Height 838 mm (33 in.)
Ground Clearance N/A
Fuel Capacity 25 litres
Curb Weight 277 kg (611 lb) including required fluids and full tank of gas � ready to ride

OTHER

Color Concours Black Pearl
MSRP $13,199
Warranty 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus

2012 XL1000V VARADERO

Engine

Engine Type Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin
Displacement 996cc
Bore and Stroke 98 x 66mm
Compression ratio 9.8 :1
Fuel Delivery PGM-FI electronic fuel injection
Ignition Computer-controlled digital transistorised with electronic advance
Starter Electric
Max. Power Output 69kW/7,500min-1 (95/1/EC)
Max. Torque 98Nm/6,000min-1 (95/1/EC)

Drivetrain

Transmission 6-speed
Final Drive ‘O’-Ring sealed chain
Front Wheel Hollow-section triple-spoke cast aluminium, 19M/C x MT2.5
Rear Wheel Hollow-section triple-spoke cast aluminium, 17M/C x MT4

CHASSIS / SUSPENSION / BRAKES

Front Brakes ABS 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads
Rear Brakes ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads
Front Suspension 43mm telescopic fork, 155mm axle travel
Rear Suspension Pro-Link damper with 40-step spring preload (and stepless rebound damping) adjustment, 145mm axle travel
Front tire 110/80-R19 59H
Rear tire 150/70-R17 69H

DIMENSION

Overall Length 2,300mm (90.5 inches)
Overall Width 930mm (36.6 inches)
Overall Height 1465mm (57.7 inches)
Wheelbase 1,560mm (61.4 inches)
Seat Height 838mm (33 inches)
Ground Clearance 181mm (7.1 inches)
Fuel Capacity 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve]
Seat Height 838mm (33 inches)

OTHER

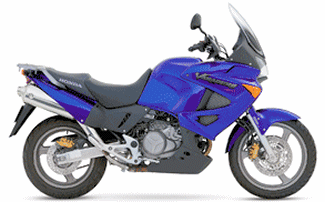

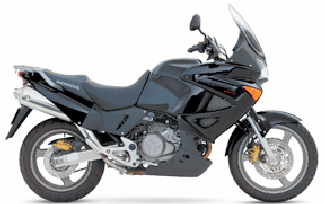

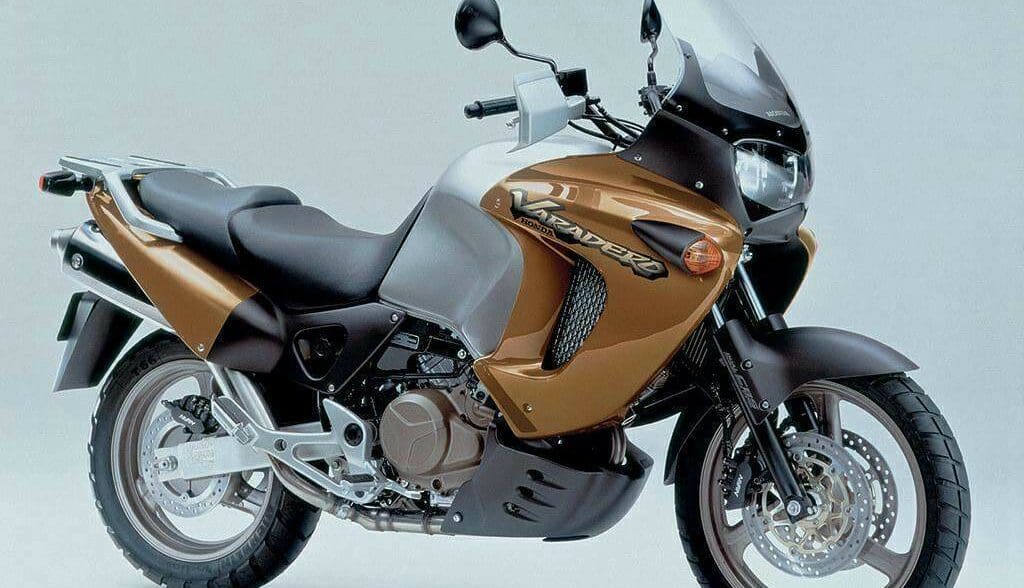

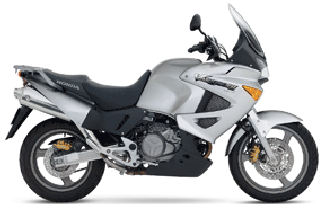

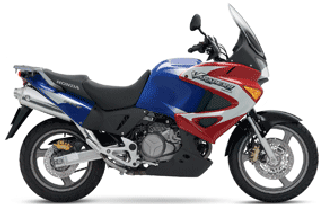

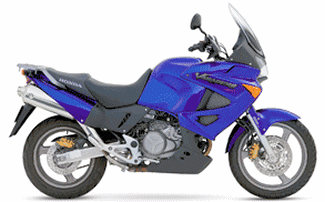

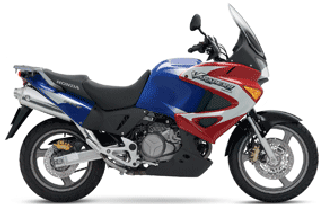

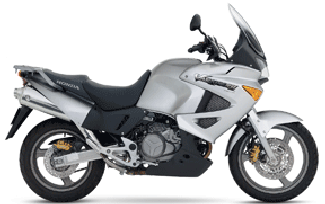

000 (XL1000V) Image Gallery
