Honda 650 Turbo (CX650T) Motorcycles


1983 CX650T’83 650 Turbo



Engine

Engine Type Liquid-cooled,turbo-charged, transverse V-Twin
Bore and Stroke 82.5mm x 63mm
Valves Chain driven SOHC, 4 valves per cylinder
Displacement 670cc
Compression Ratio 7.8:1
Fuel Delivery Computerized fuel injection
Ignition System High-energy transistorized
Fuel type Regular gasoline
Starter Electric

DRIVETRAIN

Transmission Five-speed constant mesh
Final Drive Shaft
Clutch Wet, multi-plate
Wheels ComStarTM

CHASSIS / SUSPENSION / BRAKES

Front Suspension Air-assisted telescopic with TRACTM anti-dive
Rear Suspension Pro-LinkTM air-assisted single shock
Front Tire 100/90V18
Rear Tire 120/90V17
Front Brakes Dual discs, Double piston calipers
Rear Brakes Single disc, Double piston calipers

DIMENSION

Wheelbase 1495mm (58.9 in.)
Seat height 790mm (31.1 in.)
Fuel capacity 20 liters (5.3 GalUS)
Dry weight: 235 kg (518 lb)
Overall length 2220mm (87.4 in.)
Overall width 775mm (30.5 in.)

OTHER

Color Pearl Shell White with Candy Aleutian Blue.
  • The body stripes were red and blue.
  • The “CX650 TURBO” decal was white.
  • The wheels were silver.
  • The fork legs were black.
  • The serial number began JH2RC160*DM000024.

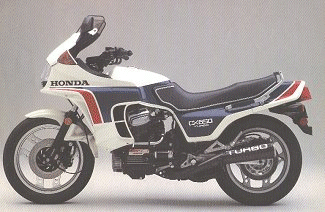

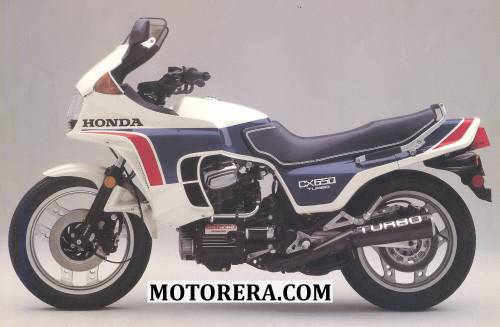

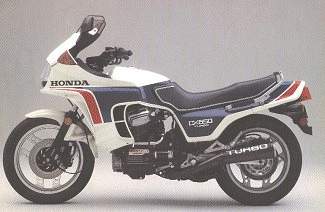

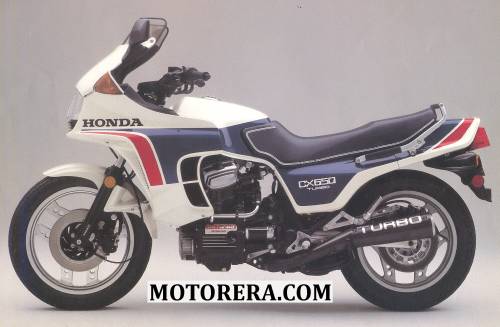

(CX650T) Image Gallery
