Honda Super Sport 1100 (CB1100) Motorcycles


1983 CB1100F’83 Super Sport

Engine

Engine Type Four cylinder 16-valve DOHC
Engine Displacement 1062cc
Bore and Stroke 70mm x 69mm
Compression Ratio 9.7:1
Exhaust system Four into Two
Fuel Delivery Four 33mm CV-type Carburetors
Ignition Transistorized pointless
Starting Electric
Fuel type Regular gasoline
Oil cooler Large capacity

Drivetrain

Transmission Five-speed constant mesh
Clutch Wet multi-plate
Final Drive chain
Wheels ComstarTM

CHASSIS / SUSPENSION / BRAKES

Front suspension Air-assisted telescopic with TRACTM Anti-Dive
Rear suspension Box section swing arm with 30-way adjustable shocks
Front brakes Double piston caliper dual disc
Rear brakes Double piston caliper disc
Front Tire 100/90V18
Rear Tire 130/90V17

DIMENSION

Wheelbase 1520mm (59.8 in.)
Dry weight 243kg (535.6 lb)
Overall length 2175mm (85.6 in.)
Overall width 805mm (31.7 in.)
Seat height 820mm (32.3 in.)
Fuel capacity 20 Litres (5.3 GalUS)
Colors:
  • Candy Pearl Maui Red with Pearl Shell White
  • Candy Pearl Capiolani Blue with Pearl Shell White

OTHER

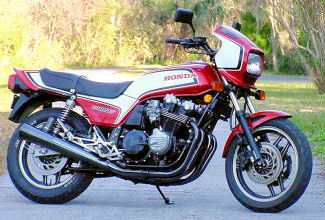

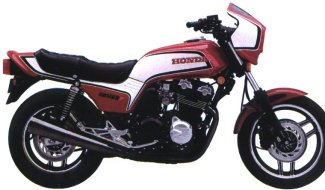

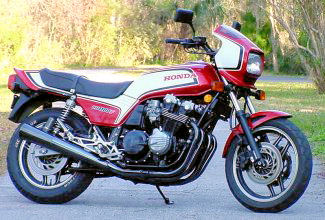

  • On the red bike, the panels were white while the striping was black

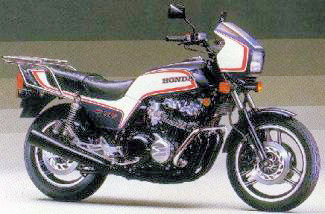

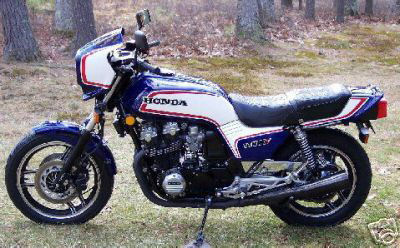

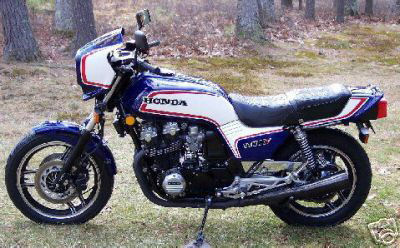

  • On the blue bike, the panels were white while the striping was red.
  • The 4-into-2 exhaust system was black chrome.

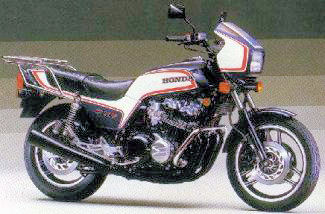

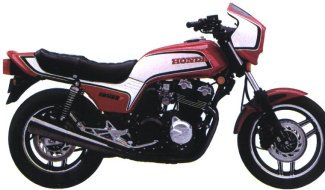

  • In North America, the headlight was rectangular with a fork mounted sport fairing.

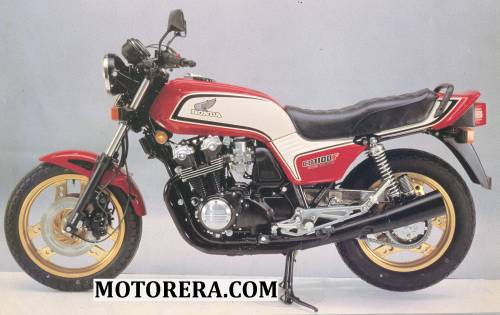

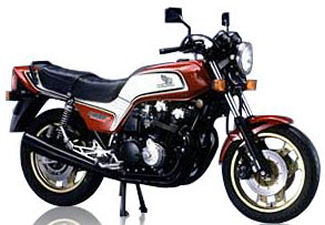

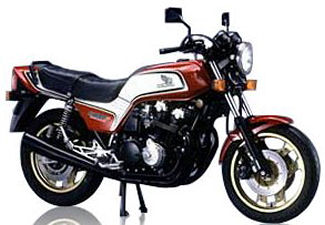

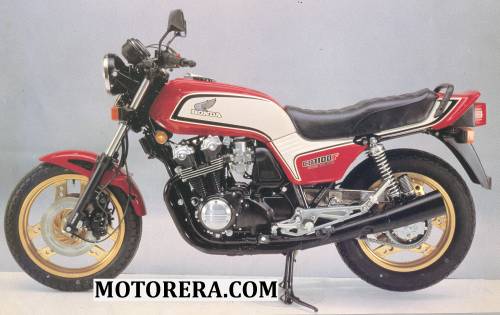

  • In UK, the headlight was round with no fairing
  • The serial number began JH2SC110*DM000020.

1100 (CB1100) Image Gallery
