Honda Super Sport CB125 Motorcycles

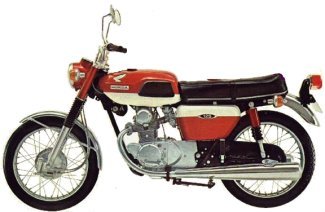

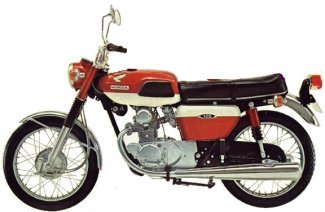

1968 CB125

  • ENGINE
    • Engine Type: 122cc OHC single cylinder with a one-piece cylinder head
    • The ignition used breaker points
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Similar to the 1968 CB175
    • Knee pads on the fuel tank

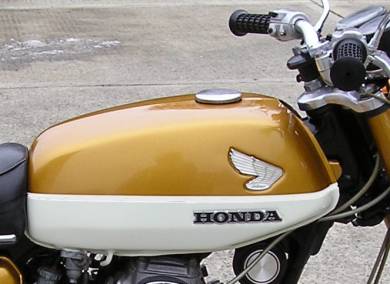

    • Wing and “HONDA” are on the upper half of the tank
    • Side cover is two-tone

1969 CB125

Engine

Engine Type
  • 122cc OHC single cylinder with a one-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Similar to the 1969 CB175
  • Knee pads on the fuel tank
  • Wing is on the upper half of the tank
  • “HONDA” is on the lower half of the tank
  • Side cover is monochrome and smaller than the previous year

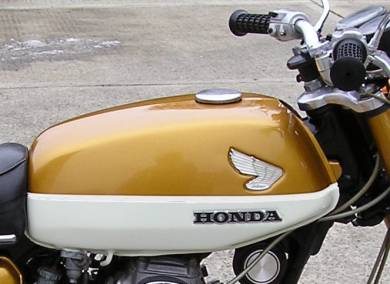

1970 CB125

Engine

Engine Type
  • 122cc OHC single cylinder with a one-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Similar to the 1970 CB175
  • No knee pads on the fuel tank
  • Wing is on the upper half of the tank
  • “HONDA” is on the lower half of the tank
  • Side cover is monochrome

1971 CB125

Engine

Engine Type
  • 122cc OHC single cylinder with a one-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Similar to the 1971 CB175
  • No knee pads on the fuel tank
  • Wing is on the upper half of the tank
  • “HONDA” is on the lower half of the tank
  • Pinstripe on the top of the lower half of the tank
  • Side cover is monochrome

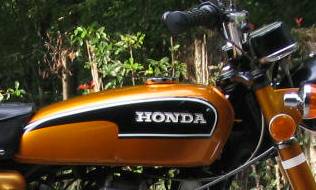

1972 CB125

Engine

Engine Type
  • 122cc OHC single cylinder with a one-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

1973 CB125S0

Engine

Engine Type
  • 122cc OHC single cylinder with a one-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Colors:
    • Candy Topaz Orange
    • Candy Peacock Green

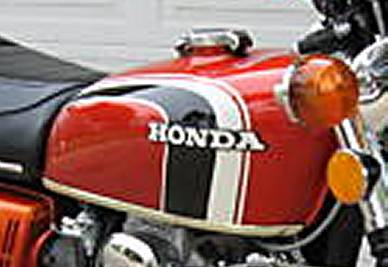

  • The gas tank decal stripe was white letters on black and white background
  • The fenders were chrome
  • The front brake was a drum brake
  • The instrument was only a speedometer
  • The ignition used breaker points
  • The serial number began CB125S-1021922.

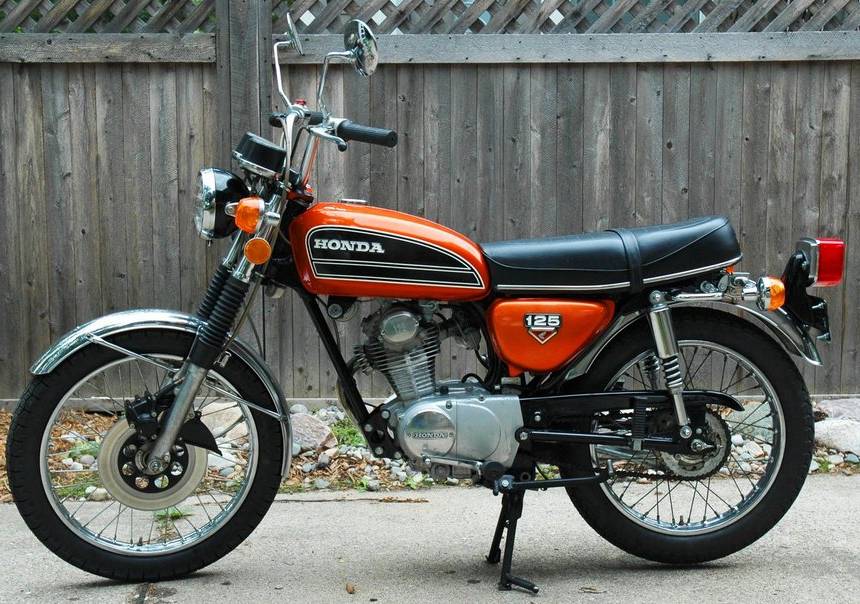

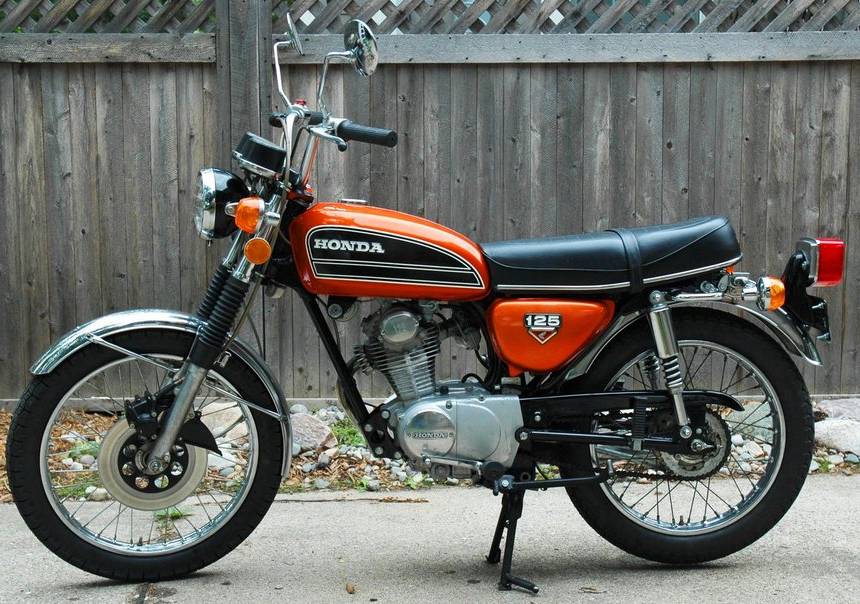

1974 CB125S1

Engine

Engine Type
  • 122cc OHC single cylinder with a one-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed
Final Drive N/A

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

OTHER

  • Color: just one color: Candy Topaz Orange
  • The gas tank had a black panel with white pinstripes
  • The diamond-shaped side cover wing emblem was red
  • The front brake was a mechanical actuated disc
  • The fenders were chrome
  • The instruments now had both a speedometer and a tachometer
  • The serial number began CB125S-1021922.

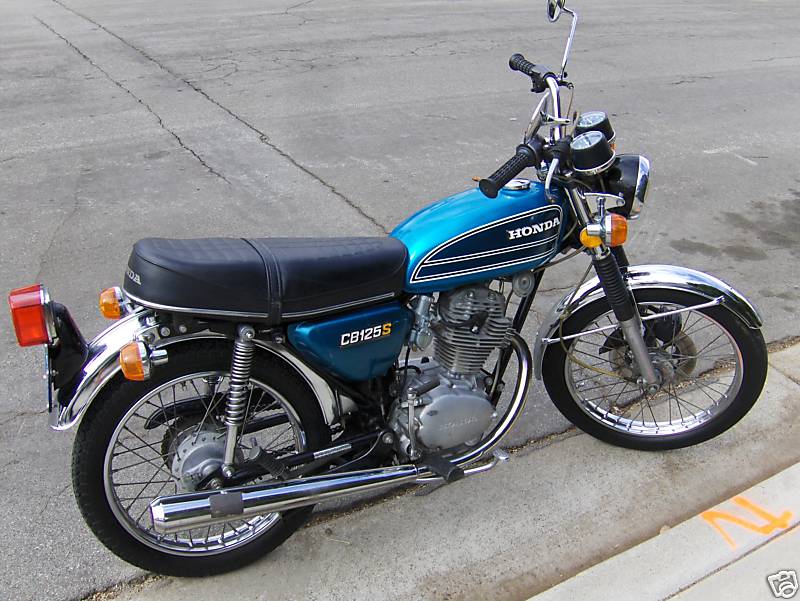

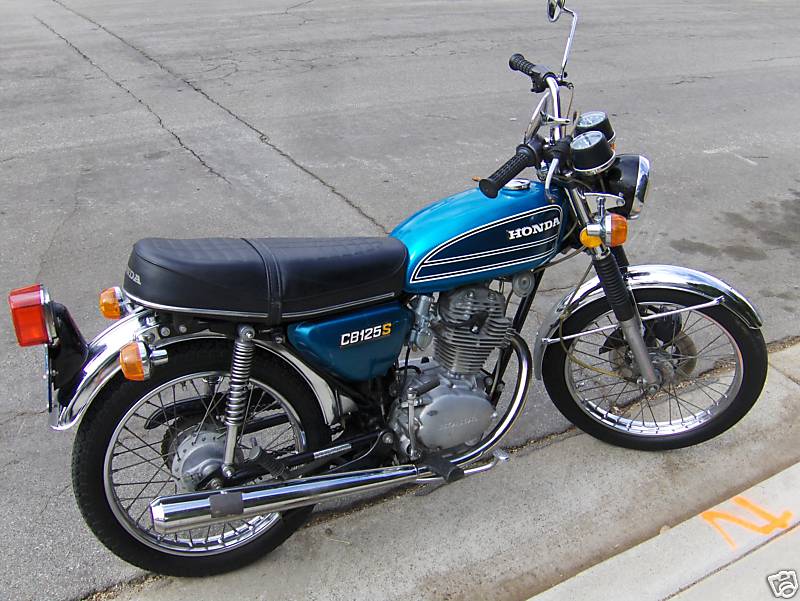

1975 CB125S2

Engine

Engine Type
  • 122cc OHC single cylinder with a one-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed
Final Drive N/A

CHASSIS / SUSPENSION / BRAKES

N/A
The front brake was a mechanical actuated disc

DIMENSION

N/A

OTHER

  • Color: just one color: Candy Riviera Blue
  • The gas tank had a black panel with white pinstripes
  • The “CB125” side cover emblem was white and yellow
  • The chrome rear shock cover was deleted
  • The fenders were chrome
  • The instruments now had both a speedometer and a tachometer
  • The serial number began CB125S-1021922.

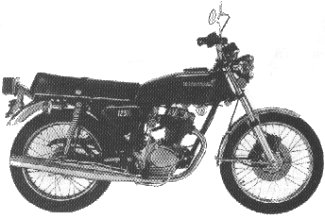

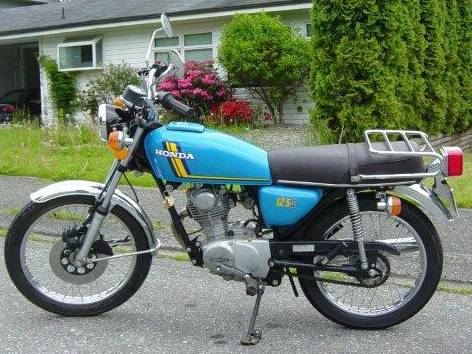

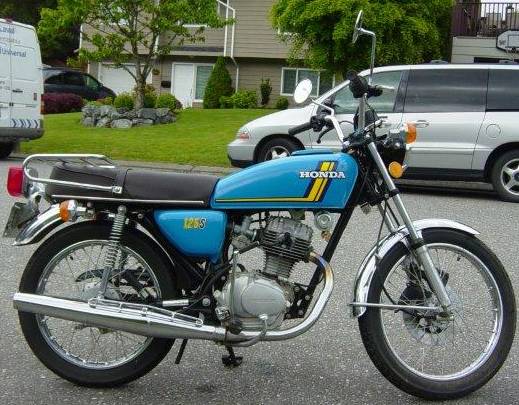

1976 CB125S’76

Engine

Engine Type Air cooled, single cylinder, OHC, with a 2-piece cylinder head
Valving 2 valves per cylinder
Displacement 124cc
Bore and Stroke 56.5 x 49.5 mm
Compression Ratio 9.4:1
Fuel Delivery 22mm Keihin Slide Carburetor
Ignition Breaker Points
Starter Kickstart

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Oil-damped telescopic forks
Rear Suspension Swinging arm
Front Brakes mechanical actuated disc
Rear Brakes Drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (251 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Color: just one color: Aquarius Blue
  • The “HONDA” gas tank decal was red with a white outline
  • The “125S” side cover decal was white and red
  • The seat color was dark brown
  • The instruments had just a speedometer
  • The fenders were chrome
  • The serial number began CB125S-1300009.

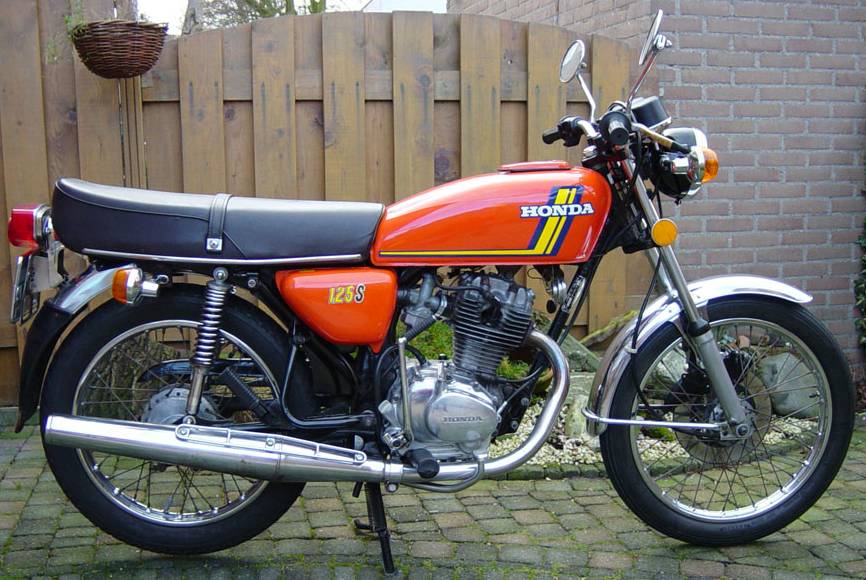

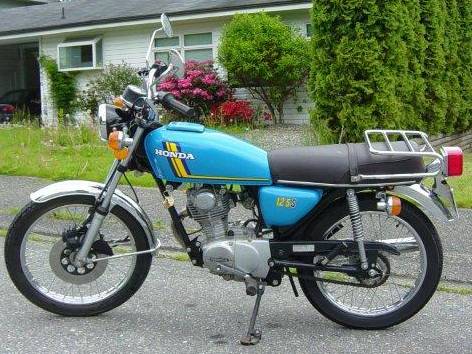

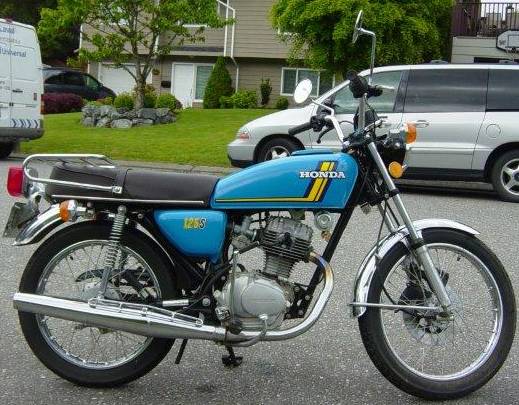

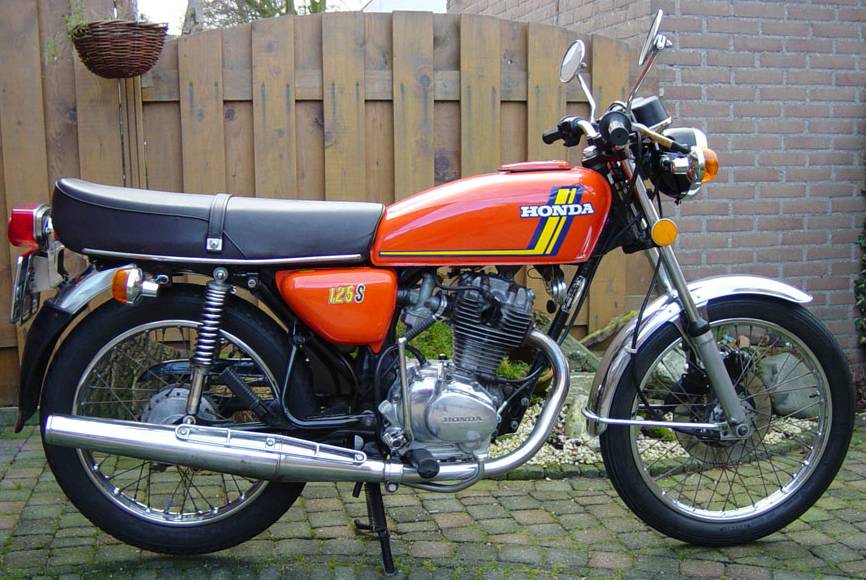

1977 CB125S

Engine

Engine Type 124cc OHC single cylinder with a 2-piece cylinder head
Ignition breaker points
Battery 6N6-3B

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Brakes mechanical actuated disc

DIMENSION

N/A

OTHER

  • Color:
    • Aquarius Blue
    • Orange
  • The “HONDA” gas tank decal was red with a white outline
  • The “125” side cover decal was yellow; the “S” was blue, outlined in yellow
  • The seat color was dark brown
  • The instruments had just a speedometer
  • The fenders were chrome
  • The serial number began CB125S-1400000.

1978 CB125S’78

Engine

Engine Type 124cc OHC single cylinder with a 2-piece cylinder head
Ignition breaker points
Battery 6N6-3B

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Brakes mechanical actuated disc

DIMENSION

N/A

OTHER

  • Color:
    • Fire Red
    • Orange
  • The gas tank stripe was orange, yellow, white, and black
  • The “CB125” side cover decal was yellow; the “S” was blue outlined in white
  • The fenders were chrome
  • The front brake was a mechanical actuated disc
  • The instruments had just a speedometer
  • The serial number began CB125S-1500003.

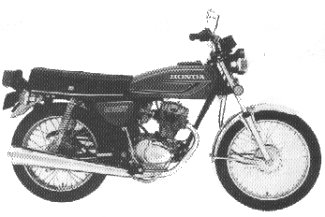

1979 CB125S’79

Engine

Engine Type
  • 124cc OHC single cylinder with a 2-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

Transmission 5-speed

CHASSIS / SUSPENSION / BRAKES

Front Brakes single leading shoe

DIMENSION

N/A

OTHER

  • Color: one color: Light Ruby Red
  • The gas tank stripe was red and black
  • The “CB125S” side cover decal was red and black
  • The fenders were chrome
  • The instruments had just a speedometer
  • The serial number began CB125S-5000001.

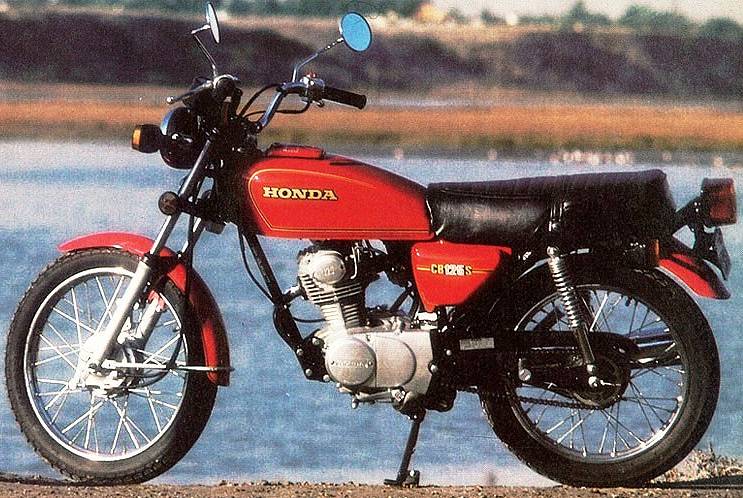

1980 CB125S’80

Engine

Engine Type
  • 124cc OHC single cylinder with a 2-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

N/A

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Color: one color: Light Ruby Red
  • The “HONDA” decal and stripe were gold with a black outline
  • The “CB125S” side cover decal was gold and red with a black outline
  • The fenders were also Red
  • The turn signal housings were black plastic
  • The instruments had just a speedometer
  • The serial number began JC04-5100001.

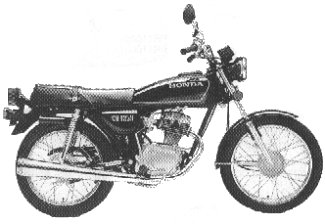

1981 CB125S’81

Engine

Engine Type
  • 124cc OHC single cylinder with a 2-piece cylinder head
  • The ignition used breaker points

DRIVETRAIN

N/A

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

N/A

OTHER

  • Color: just one color: Black
  • The gas tank stripes were red and gold
  • The “HONDA” and “CB125S” decals were solid red
  • The instruments had just a speedometer
  • The turn signal housings were black plastic
  • The serial number began JH2JC040*BK700005.

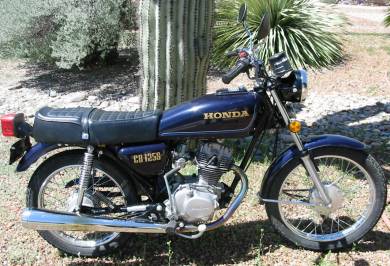

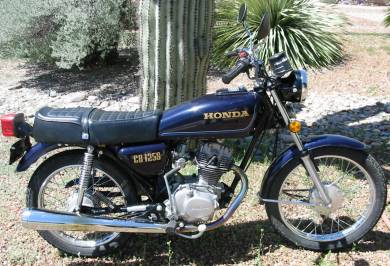

1982 CB125S’82

  • ENGINE
    • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
    • The electrical system used a CD ignition
  • DRIVETRAIN
    • Transmission: 5-speed
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • Color: just one color: Candy Imperial Blue
    • The gas tank stripes were light blue and dark blue
    • The “HONDA” and “CB125S” decals were gold
    • The instruments had just a speedometer
    • The turn signal housings were black plastic
    • The serial number began JH2JC040*CK800002.

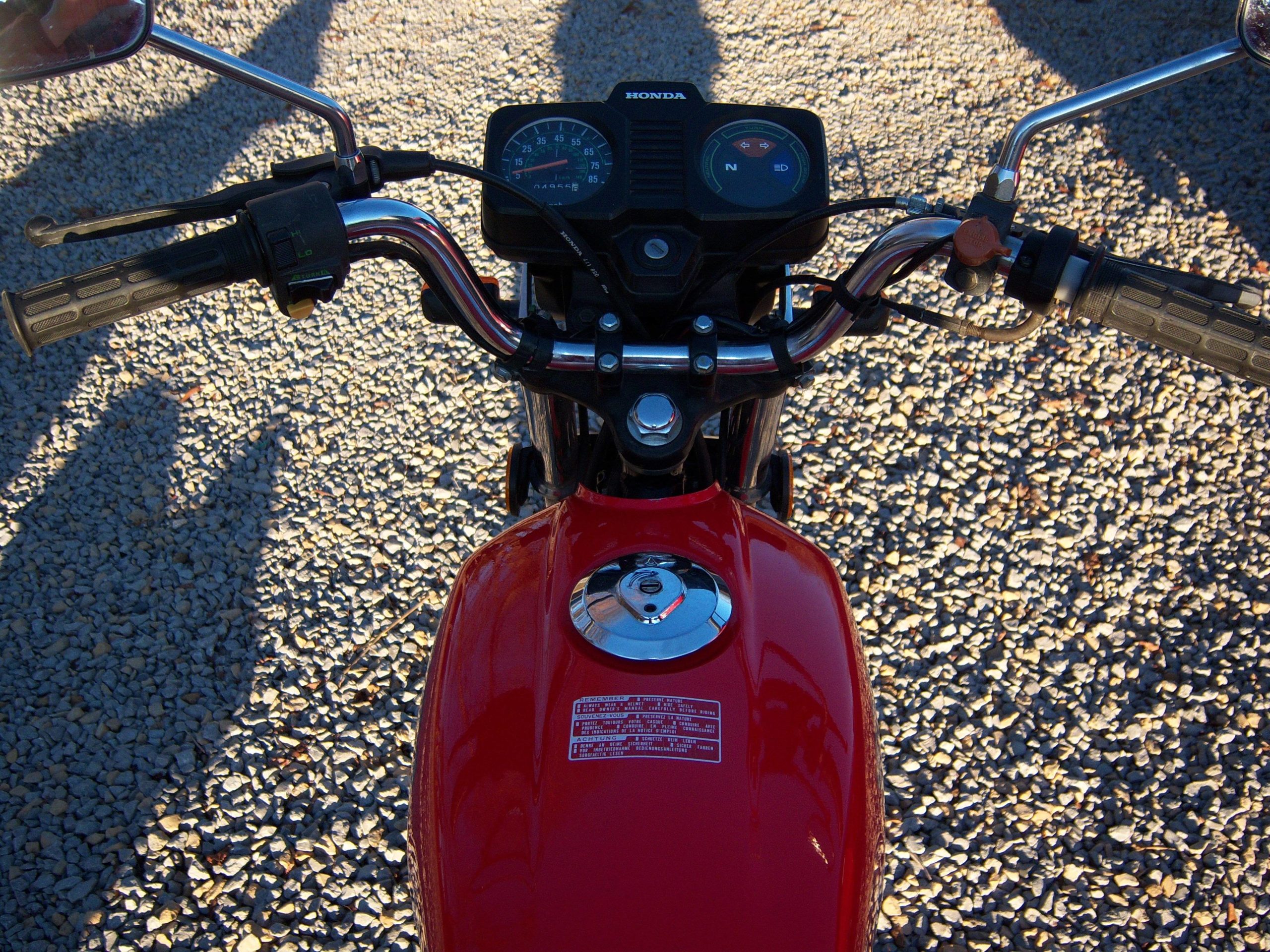

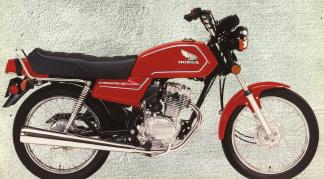

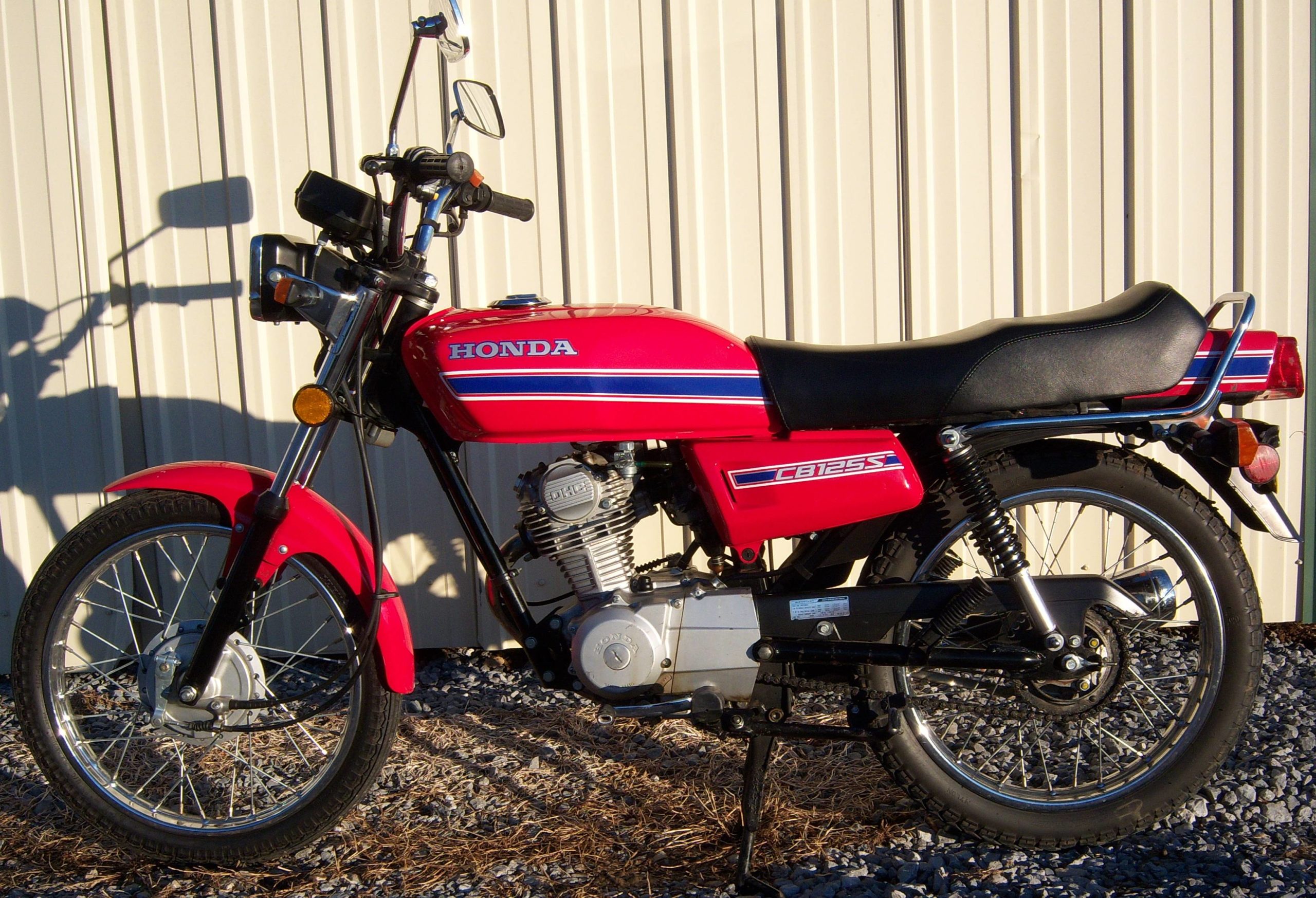

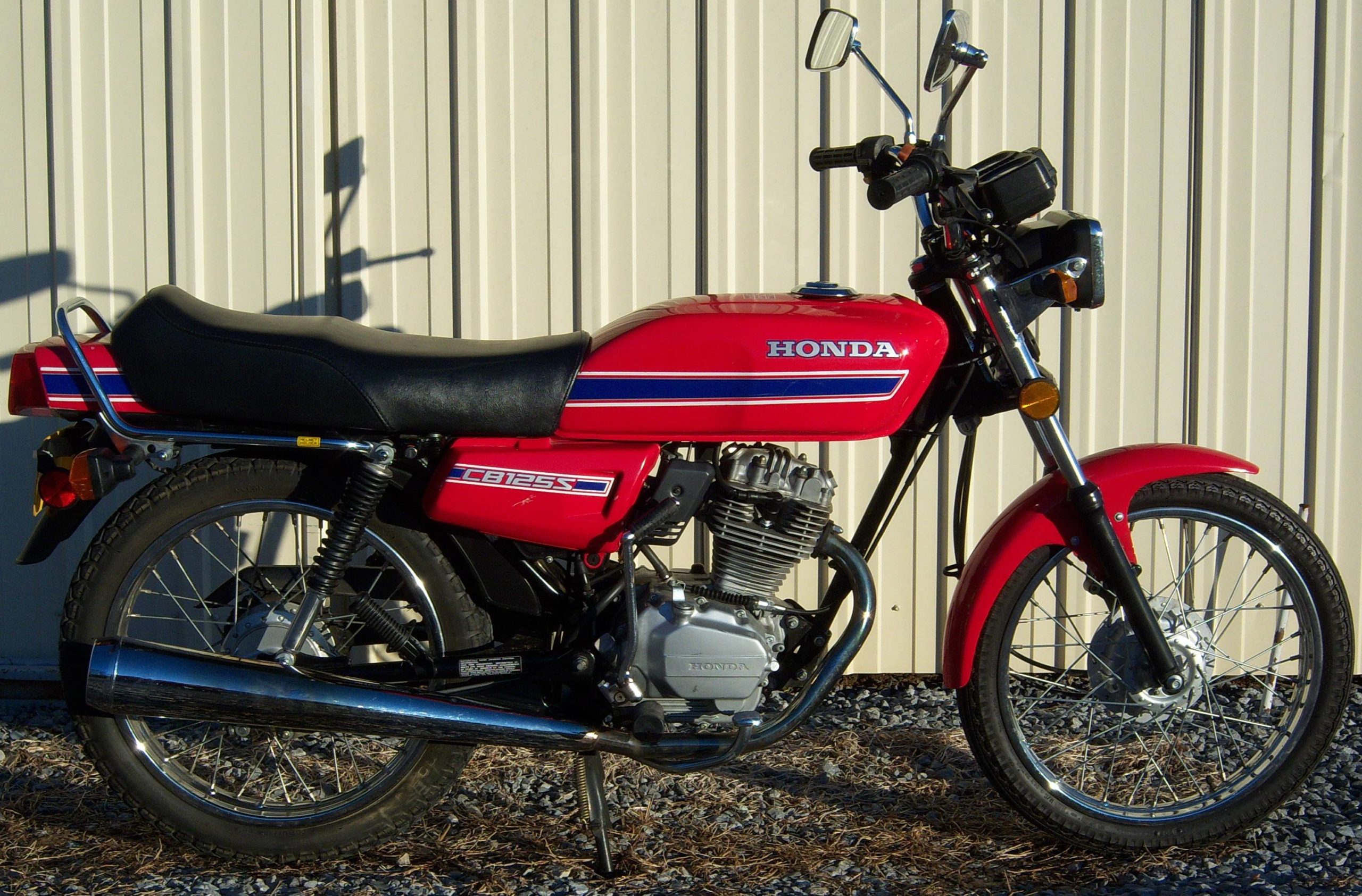

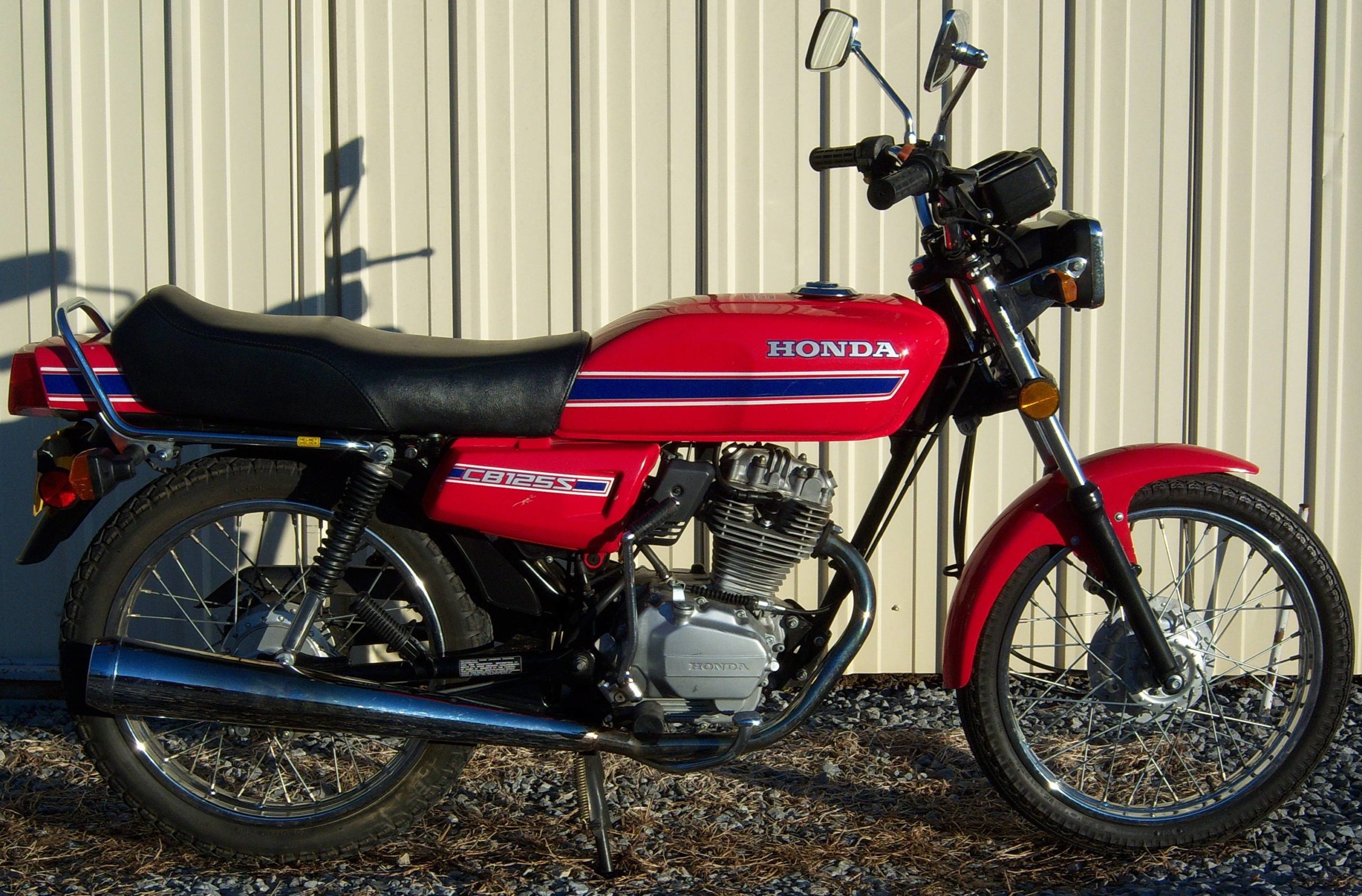

      1985 CB125S’85

      • ENGINE
        • Engine Type: 124cc OHC single cylinder with a 2-piece cylinder head
        • The high tension electrical system used a CD ignition
        • The electrical system was now a 12 volt
      • DRIVETRAIN
        • Transmission: 5-speed
      • CHASSIS / SUSPENSION / BRAKES
        • N/A
      • DIMENSION
        • N/A
      • OTHER
        • Color: one color: Turuna Red
        • The tank, side cover, and rear fender stripes were blue and white
        • The “HONDA” and “CB125S” decals were white
        • The headlight was rectangular

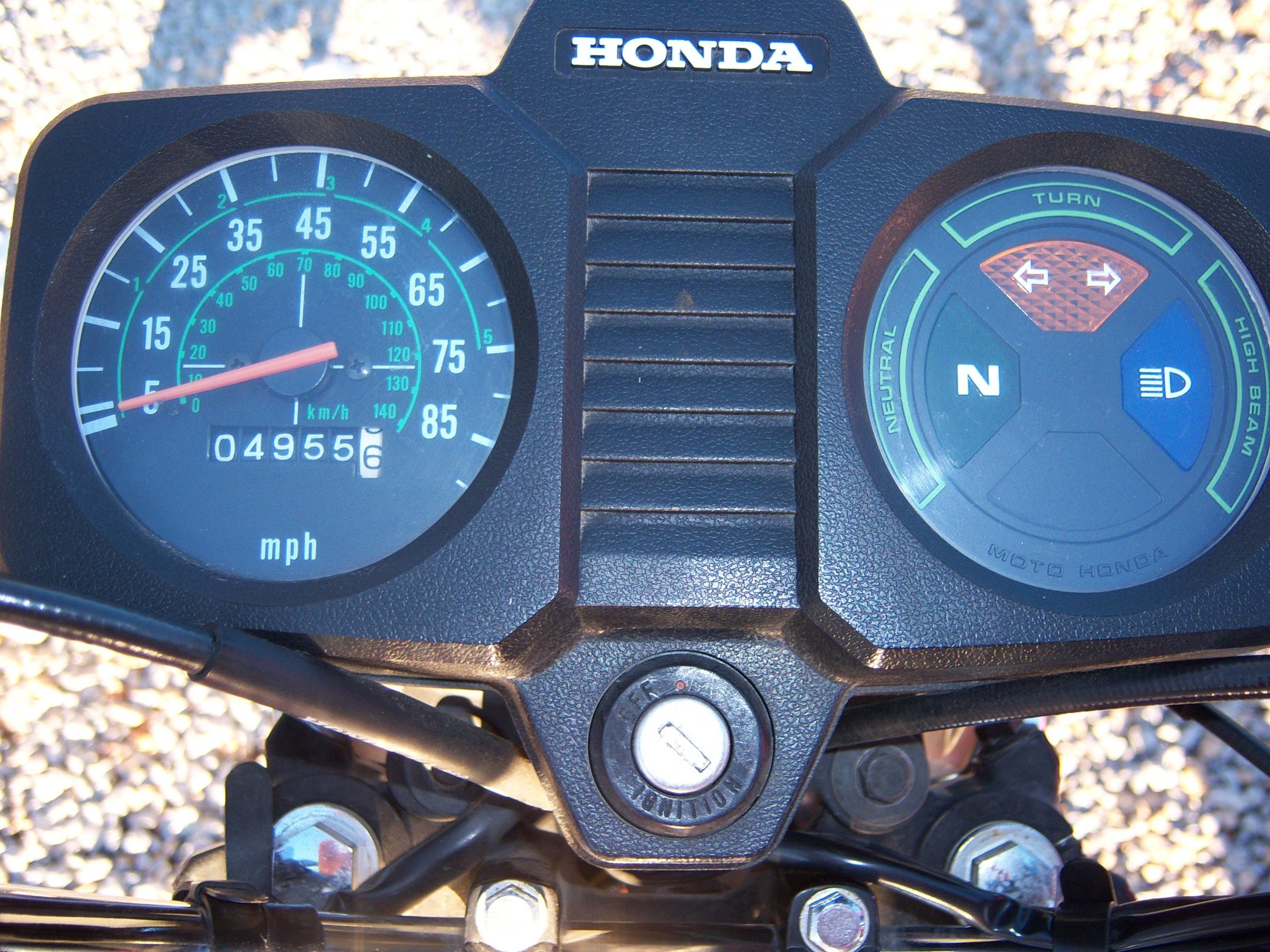

        • The instruments had just a speedometer
        • The turn signal housings were black plastic
        • The serial number began 9C2JC1308FR110001.
