Honda Super Sport CB125 Twin Motorcycles


1969 CB125

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 X 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

1968 CB125

Engine

Engine Type N/A
Displacement N/A
Bore and Stroke N/A
Compression Ratio N/A
Fuel Delivery N/A

DRIVETRAIN

Transmission N/A
Final Drive N/A

CHASSIS / SUSPENSION / BRAKES

Front Brakes N/A
Rear Brakes N/A
Front Tire N/A
Rear Tire N/A

DIMENSION

Dry-Weight N/A
Fuel Capacity N/A

OTHER

  • Similar to the 1968 CB175
  • Knee pads on the fuel tank
  • Wing and “HONDA” are on the upper half of the tank
  • Side cover is two-tone

1969 CB125

Engine

Engine Type Air cooled, twin cylinder, SOHC
Displacement 124cc
Bore and Stroke 44 X 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Similar to the 1969 CB175
  • Knee pads on the fuel tank
  • Wing is on the upper half of the tank
  • “HONDA” is on the lower half of the tank
  • Side cover is monochrome and smaller than the previous year

1969 CB125

Engine

Engine Type Air cooled, twin cylinder, SOHC
Displacement 124cc
Bore and Stroke 44 X 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Similar to the 1970 CB175
  • No knee pads on the fuel tank
  • Wing is on the upper half of the tank
  • “HONDA” is on the lower half of the tank
  • Side cover is monochrome

1971 CB125

Engine

Engine Type Air cooled, twin cylinder, SOHC
Displacement 124cc
Bore and Stroke 44 X 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

  • Similar to the 1971 CB175
  • No knee pads on the fuel tank
  • Wing is on the upper half of the tank
  • “HONDA” is on the lower half of the tank
  • Pinstripe on the top of the lower half of the tank
  • Side cover is monochrome

1972 CB125

Engine

Engine Type Air cooled, twin cylinder, SOHC
Displacement 124cc
Bore and Stroke 44 X 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke

DRIVETRAIN

Transmission 5-speed
Final Drive #428 Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shock absorbers
Front Brakes Drum
Rear Brakes Drum
Front Tire 2.50-18
Rear Tire 2.75-18

DIMENSION

Dry-Weight 133 kg (293 lb)
Fuel Capacity 9 Litres (2.4 Gal)

OTHER

NA

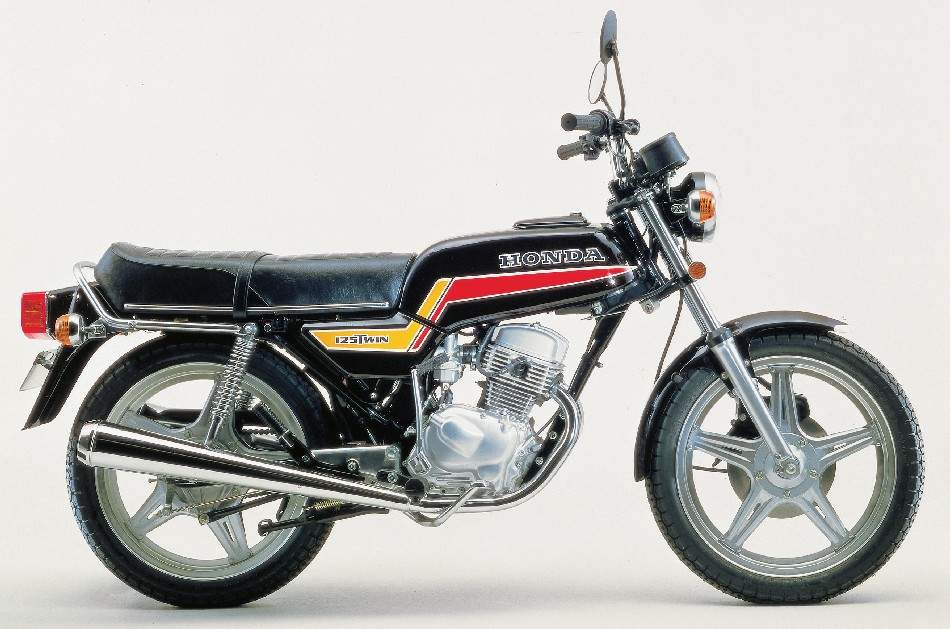

1978 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 56 x 49mm
Max Power 14 bhp @ 10000rpm
Top Speed 108 km/h (67mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1979 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 56 x 49mm
Max Power 14 bhp @ 10000rpm
Top Speed 108 km/h (67mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1980 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1981 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1982 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1983 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1984 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1985 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke
Ignition CDI
Starter Electric
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1990 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA

1991 CB125T

Engine

Engine Type Air cooled, twin cylinder, OHC
Displacement 124cc
Bore and Stroke 44 x 41mm
Compression Ratio 9.4:1
Fuel Delivery 26mm Keihin Carbs, manual choke
Max Power 16.5 bhp @ 11,000rpm
Max Torque 12 Nm @ 9000 rpm
Top Speed 129 km/h (80 mph)

DRIVETRAIN

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 31mm oil-damped telescopic forks
Rear Suspension Pivoted fork, 2 coil spring, hydraulically damped, 5 preload settings
Front Brakes Single 240mm disc
Rear Brakes 130mm drum
Front Tire 2.75-18
Rear Tire 3.00-18

DIMENSION

Dry-Weight 114 kg (230 lb)
Fuel Capacity 11.5 Litres (3.0 Gal.)

OTHER

NA
