Honda Super Sport CB100 Motorcycles

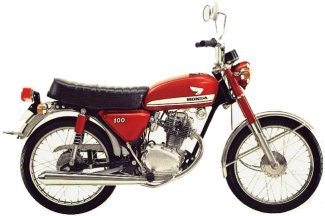

1970 Super Sport 100 (CB100K0)

Engine

Engine Type 99 cc, air cooled, single cylinder, 4-stroke
Bore and Stroke 50.5 mm x 49.5 mm
Valves 2 valves/cylinder
Horsepower 11.5 hp (85.8 kW) @ 11000 rpm
Battery 6N6-3B — 6 volt

DRIVETRAIN

Transmission 5 speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Tire 2.50-18
Rear Tire 2.75-18
Front Brakes 110 mm drum
Rear Brakes 110 mm drum

DIMENSION

Fuel capacity 7.5 litres (2 gal. US)
Dry weight 95 kg (209.4 pounds)

OTHER

  • Colors:
    • Candy Blue Green with white stripes
    • Candy Ruby Red with white stripes
    • Candy Gold with white stripes
  • The front fork cover and rear shock cover as well as the headlight shell were the same as the basic color
  • The fenders were chrome
  • The serial number began CB100-100001.

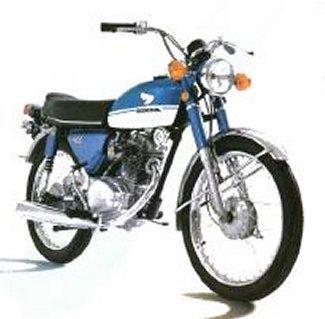

1971 Super Sport 100 (CB100K1)

Engine

Engine Type 99 cc, air cooled, single cylinder, 4-stroke
Bore and Stroke 50.5 mm x 49.5 mm
Valves 2 valves/cylinder
Horsepower 11.5 hp (85.8 kW) @ 11000 rpm
Battery 6N6-3B — 6 volt

DRIVETRAIN

Transmission 5 speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Tire 2.50-18
Rear Tire 2.75-18
Front Brakes 110 mm drum
Rear Brakes 110 mm drum

DIMENSION

Fuel capacity 7.5 litres (2 gal. US)
Dry weight 95 kg (209.4 pounds)

OTHER

  • Colors:
    • Crystal Blue Metallic
    • Candy Ruby Red
    • Candy Gold
  • The bottom half of the fuel tank was white
  • The “CB100” side cover emblem was molded plastic
  • The seat had a chrome trim
  • The front fork cover and rear shock cover as well as the headlight shell were the same as the basic color
  • The fenders were chrome
  • The serial number began CB100-200001.

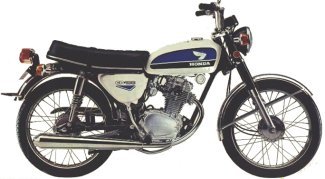

1972 CB100K2 Super Sport 100

Engine

Engine Type 99 cc, air cooled, single cylinder, 4-stroke
Bore and Stroke 50.5 mm x 49.5 mm
Valves 2 valves/cylinder
Horsepower 11.5 hp (85.8 kW) @ 11000 rpm
Battery 6N6-3B — 6 volt

DRIVETRAIN

Transmission 5 speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Tire 2.50-18
Rear Tire 2.75-18
Front Brakes 110 mm drum
Rear Brakes 110 mm drum

DIMENSION

Fuel capacity 7.5 litres (2 gal. US)
Dry weight 95 kg (209.4 pounds)

OTHER

  • Colors:
    • White with Light Scarlet Red
    • White with Aquarius Blue
  • The upper gas tank panel was red or blue and the lower part was black
  • The triangular side cover emblem was also matching red or blue
  • The front forks and headlight shell was black
  • The shock covers were chrome
  • The serial number began CB100-1200001.

1973 CB100K3 Super Sport 100

Engine

Engine Type 99 cc, air cooled, single cylinder, 4-stroke
Bore and Stroke 50.5 mm x 49.5 mm
Valves 2 valves/cylinder
Horsepower 11.5 hp (85.8 kW) @ 11000 rpm

DRIVETRAIN

Transmission 5 speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Tire 2.50-18
Rear Tire 2.75-18
Front Brakes 110 mm drum
Rear Brakes 110 mm drum

DIMENSION

Fuel capacity 7.5 litres (2 gal. US)
Dry weight 95 kg (209.4 pounds)

OTHER

Not sold in North America

1974 CB100K4 Super Sport 100

Engine

Engine Type 99 cc, air cooled, single cylinder, 4-stroke
Bore and Stroke 50.5 mm x 49.5 mm
Valves 2 valves/cylinder
Horsepower 11.5 hp (85.8 kW) @ 11000 rpm

DRIVETRAIN

Transmission 5 speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Tire 2.50-18
Rear Tire 2.75-18
Front Brakes 110 mm drum
Rear Brakes 110 mm drum

DIMENSION

Fuel capacity 7.5 litres (2 gal. US)
Dry weight 95 kg (209.4 pounds)

OTHER

1975 CB100K5 Super Sport 100

Engine

Engine Type 99 cc, air cooled, single cylinder, 4-stroke
Bore and Stroke 50.5 mm x 49.5 mm
Valves 2 valves/cylinder
Horsepower 11.5 hp (85.8 kW) @ 11000 rpm

DRIVETRAIN

Transmission 5 speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Tire 2.50-18
Rear Tire 2.75-18
Front Brakes 110 mm drum
Rear Brakes 110 mm drum

DIMENSION

Fuel capacity 7.5 litres (2 gal. US)
Dry weight 95 kg (209.4 pounds)

OTHER

1976 CB100K6 Super Sport 100

Engine

Engine Type 99 cc, air cooled, single cylinder, 4-stroke
Bore and Stroke 50.5 mm x 49.5 mm
Valves 2 valves/cylinder
Horsepower 11.5 hp (85.8 kW) @ 11000 rpm

DRIVETRAIN

Transmission 5 speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Tire 2.50-18
Rear Tire 2.75-18
Front Brakes 110 mm drum
Rear Brakes 110 mm drum

DIMENSION

Fuel capacity 7.5 litre (2 gal. US)
Dry weight 95 kg (209.4 pounds)

OTHER

Not sold in North America

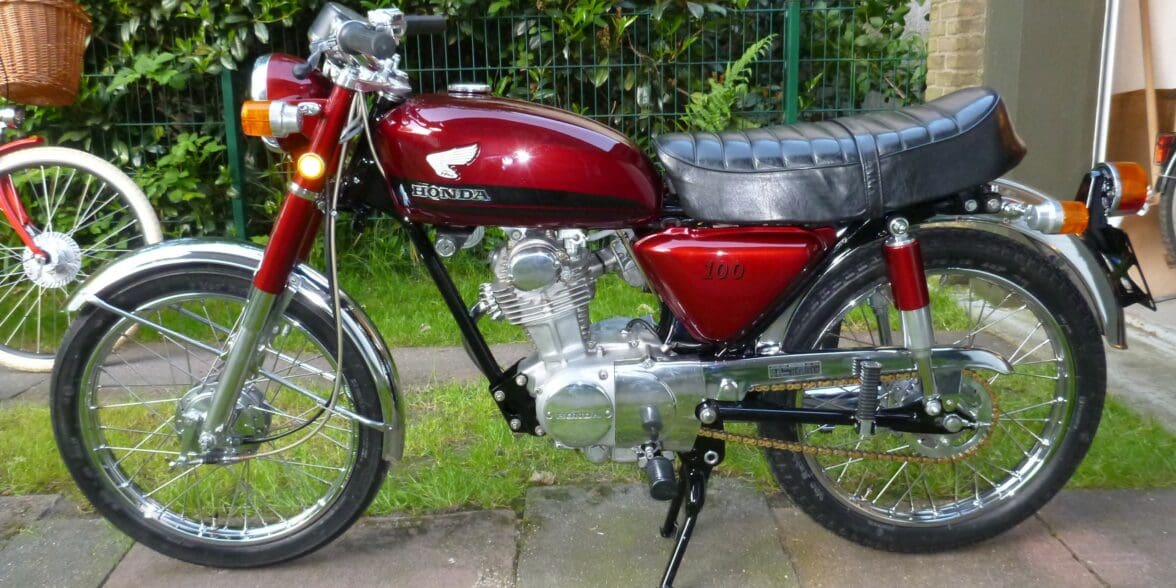

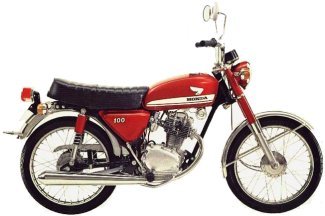

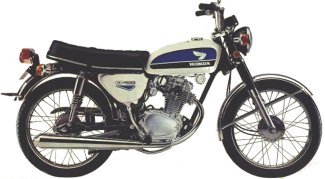

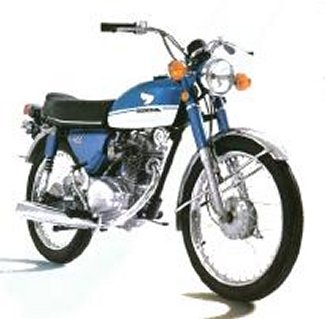

CB100 Image Gallery
