Honda Shadow Spirit 1100 (VT1100C) Motorcycles

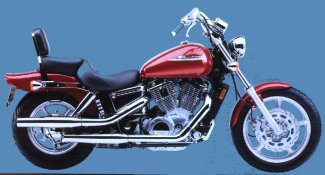

2001 VT1100C’01 SHADOW SPIRIT 1100

Engine

Engine Type Liquid cooled, 45° V-twin, dual offset pin crank
Engine Displacement 1099cc
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8:1
Valve Train SOHC, 3 valve per cylinder, self-adjusting hydraulic
Fuel Delivery Twin 36mm, diaphragm-type CV

Drivetrain

Transmission Wide-Ratio, 5-speed
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork, 160mm travel
Rear Suspension Dual shocks with 5-way spring preload adjustment, 100mm travel
Front Brakes Single 336 mm disc with twin-piston caliper
Front Brake Single 336mm disc with twin piston caliper
Rear Brakes Mechanical drum
Rear Brake Single 296 mm disc with single-piston caliper
Front Tires 110/90H-19
Rear Tires 170/80H-16

DIMENSION

Seat Height 730mm (28.7″)
Wheelbase 1651mm (65.0″)
Dry Weight 251 kg (553 lb)
Fuel Capacity 15.8 liters

OTHER

Colour:
  • Blue
  • Red
  • Black

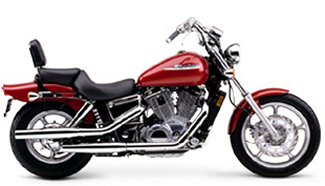

2003 VT1100C’03

Engine

Engine Type 1099cc liquid-cooled, 45-degree V-twin, dual off-set crankpin
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8.0: 1
Valve Train SOHC; three valves per cylinder, self adjusting hydraulic
Fuel Delivery Two 36mm diaphragm-type CV

Drivetrain

Transmission Five-speed wide ratio
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 160mm travel
Rear Suspension Dual shocks with five-position spring preload adjustability; 100mm travel
Front Brakes Single 336mm disc with twin-piston caliper
Rear Brakes Drum
Rear Brake Single 296 mm disc with single-piston caliper
Front Tires 110/90-19
Rear Tires 170/80-15

DIMENSION

Seat Height 730mm (28.7 in.)
Wheelbase 1650mm (65.0 in.)
Dry Weight 251kg (553 lbs.)
Fuel Capacity 15.8 Litres (4.2 GalUS)

OTHER

Colour:
  • Pearl Dark Red
  • Black

2004 Shadow Spirit 1100

Engine Type 1099cc liquid-cooled 45-degree V-twin
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8.0:1
Valve Train SOHC; three valves per cylinde
Fuel Delivery Two 36mm CV
Ignition Solid-state digital, two spark plugs per cylinder
Transmission Five-speed
Final Drive Shaft
Front Suspension 41mm fork; 6.3-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brake Single disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/90-19
Rear Tire 170/80-15
Wheelbase 65.0 inches
Seat Height 28.7 inches
Dry Weight 553.0 pounds
Fuel Capacity 4.2 gallons, including 0.6-gallon reserve
Emissions California version differs slightly due to emissions equipment.
Colors
  • Black
  • Pearl Blue
Model ID VT1100C
Warranty 1 year

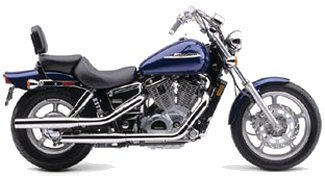

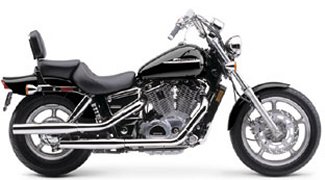

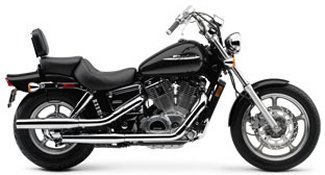

2005 Shadow Spirit 1100

Engine Type 1099cc liquid-cooled 45-degree V-twin
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8.0:1
Valve Train SOHC; three valves per cylinde
Fuel Delivery Two 36mm CV
Ignition Digital, two spark plugs per cylinder
Transmission Five-speed
Final Drive Shaft
Front Suspension 41mm fork; 6.3-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brake Single disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/90-19
Rear Tire 170/80-15
Wheelbase 65.0 inches
Seat Height 28.7 inches
Dry Weight 553.0 pounds
Fuel Capacity 4.2 gallons, including 0.6-gallon reserve
Emissions California version differs slightly due to emissions equipment.
Colors
  • Black
  • Pearl Blue
Model ID VT1100C
Warranty 1 year

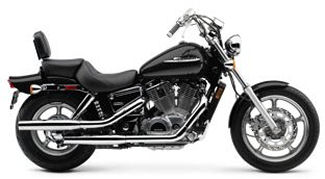

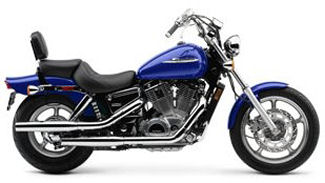

2006 VT1100C Shadow Spirit

Engine Type 1099cc liquid-cooled 45-degree V-twin
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8.0:1
Valve Train SOHC; three valves per cylinde
Fuel Delivery Two 36mm CV
Ignition Digital, two spark plugs per cylinder
Transmission Five-speed
Final Drive Shaft
Front Suspension 41mm fork; 6.3-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brake Single disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/90-19
Rear Tire 170/80-15
Rake 32-degrees 40′
Trail 152.5mm (6.0 inches)
Wheelbase 65.0 inches
Seat Height 28.7 inches
Dry Weight 556.0 pounds
Fuel Capacity 4.2 gallons, including 0.6-gallon reserve
Emissions California version differs slightly due to emissions equipment.
Colors
  • Black
  • Bright Blue Metallic
Model ID VT1100C

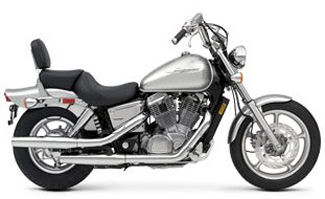

2007 VT1100C Shadow Spirit

Overview: Taking its styling cues straight from classic cruisers of old, the Shadow Spirit boasts a seamless blend of retro panache and modern-day performance. With its bobbed rear fender, pullback handlebar and low seat complementing classic 2-into-2 “shorty” pipes and a beefy 1099cc V-twin, the Spirit is a beauty unlike few others.

Engine Type 1099cc liquid-cooled 45-degree V-twin
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8.0:1
Valve Train SOHC; three valves per cylinder
Fuel Delivery Two 36mm CV
Ignition Digital, two spark plugs per cylinder
Transmission Five-speed
Final Drive Shaft
Front Suspension 41mm fork; 6.3-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brake Single disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/90-19
Rear Tire 170/80-15
Rake 32-degrees 40′
Trail 152.5mm (6.0 inches)
Wheelbase 65.0 inches
Seat Height 28.7 inches
Dry Weight 556.0 pounds
Fuel Capacity 4.2 gallons, including 0.6-gallon reserve
Emissions California version differs slightly due to emissions equipment.
Colors
  • Black
  • Metallic Silver
Model ID VT1100C

2008 VT1100C Shadow Spirit

Engine Type 1099cc
Bore and Stroke 87.5mm x 91.4mm
Compression Ratio 8.0:1
Valve Train SOHC; three valves per cylinder
Fuel Delivery Two 36mm CV
Ignition Digital, two spark plugs per cylinder

DRIVETRAIN

Transmission Five-speed
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 6.3-inch travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9-inch travel
Front Brake Single disc with twin-piston caliper
Rear Brake Drum
Front Tire 110/90-19
Rear Tire 170/80-15

DIMENSION

Wheelbase 65.0 in.
Seat Height 28.7 in.
Dry Weight N/A lbs.
Fuel Capacity 4.2 gal.

OTHER

Colors Black, Metallic Silver
Price $8699
Warranty  1 Year

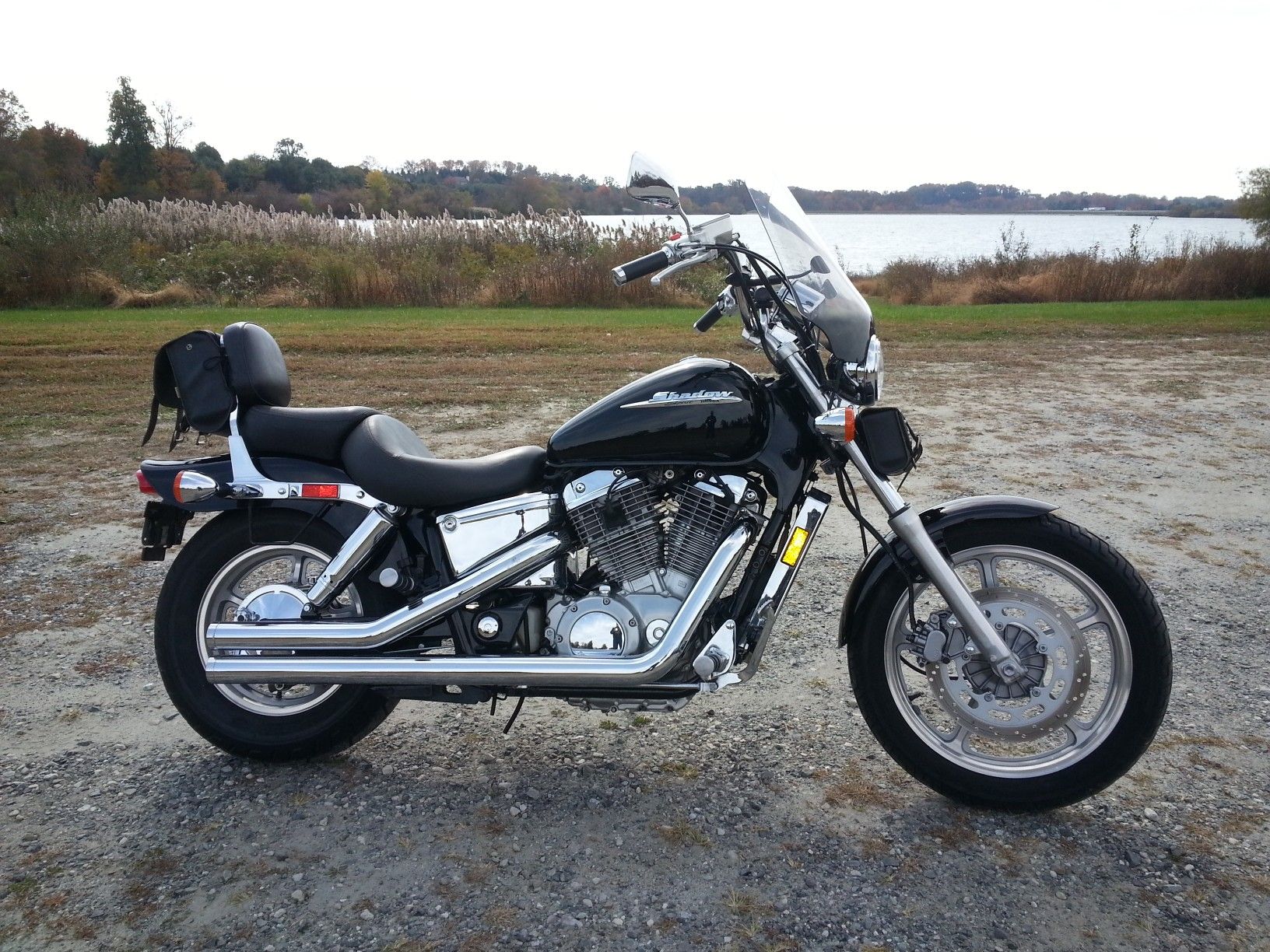

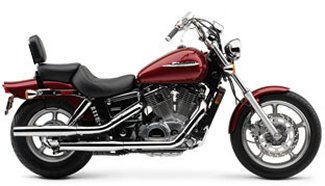

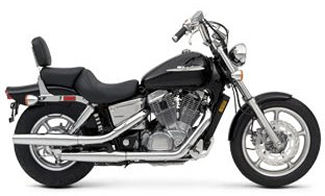

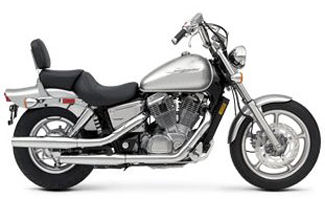

VT1100C Image Gallery
