Honda Shadow VT125C Motorcycles

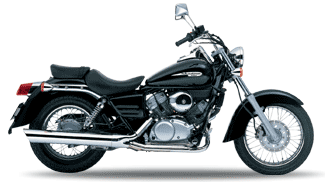

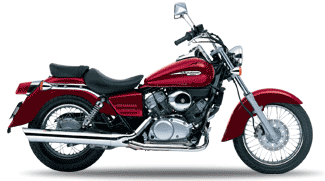

2004 Shadow VT125C

Engine

Engine Type Liquid-cooled 4-stroke 4-valve SOHC 90° V-twin
Displacement 125cc
Bore and Stroke 42 x 45mm
Compression Ratio 11.8:1
Fuel Delivery 22mm VP-type x 2
Ignition Digital transistorised with electronic advance
Max. Power Output 15 bhp at 11,000 rpm
Max. Torque 10.5Nm at 9,000 rpm

DRIVETRAIN

Transmission 5-speed
Final Drive Roller chain

CHASSIS / SUSPENSION / BRAKES

N/A

DIMENSION

Seat Height 680mm
Wheelbase 1,530mm
Dry Weight 145kg
Fuel Capacity 14 litres (including 2.1 litre reserve)
Ground Clearance 145mm

OTHER

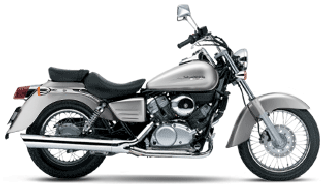

2007 VT125C SHADOW

Engine

Engine Type Liquid-cooled 4-stroke 4-valve SOHC 90° V-twin
Displacement 125cc
Bore and Stroke 42 x 45mm
Compression Ratio 11.8:1
Fuel Delivery 22mm VP-type x 2
Ignition Digital transistorised with electronic advance
Max. Power Output 15 bhp at 11,000 rpm
Max. Torque 10.5Nm at 9,000 rpm

DRIVETRAIN

Transmission 5-speed
Final Drive Roller chain

CHASSIS / SUSPENSION / BRAKES

N/A
Front Suspension 35mm telescopic fork, 110mm axle travel
Rear Suspension Dual dampers with adjustable preload, 80mm axle travel
Front Brakes 240mm hydraulic disc with dual-piston caliper
Rear Brakes 130mm leading/trailing drum
Front Tire 110/90-17 (55P)
Rear Tire 130/90-15M/C (66P)

DIMENSION

Length x Width x Height 2,300 x 890 x 1,110mm
Seat Height 680mm
Wheelbase 1,530mm
Dry Weight 145kg
Fuel Capacity 14 litres (including 2.1 litre reserve)
Ground Clearance 145mm

OTHER

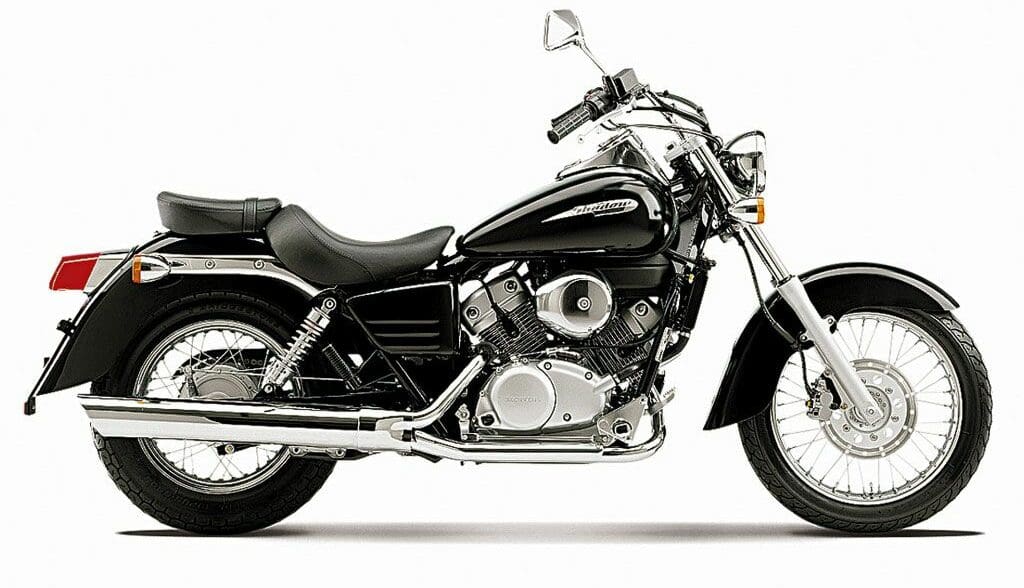

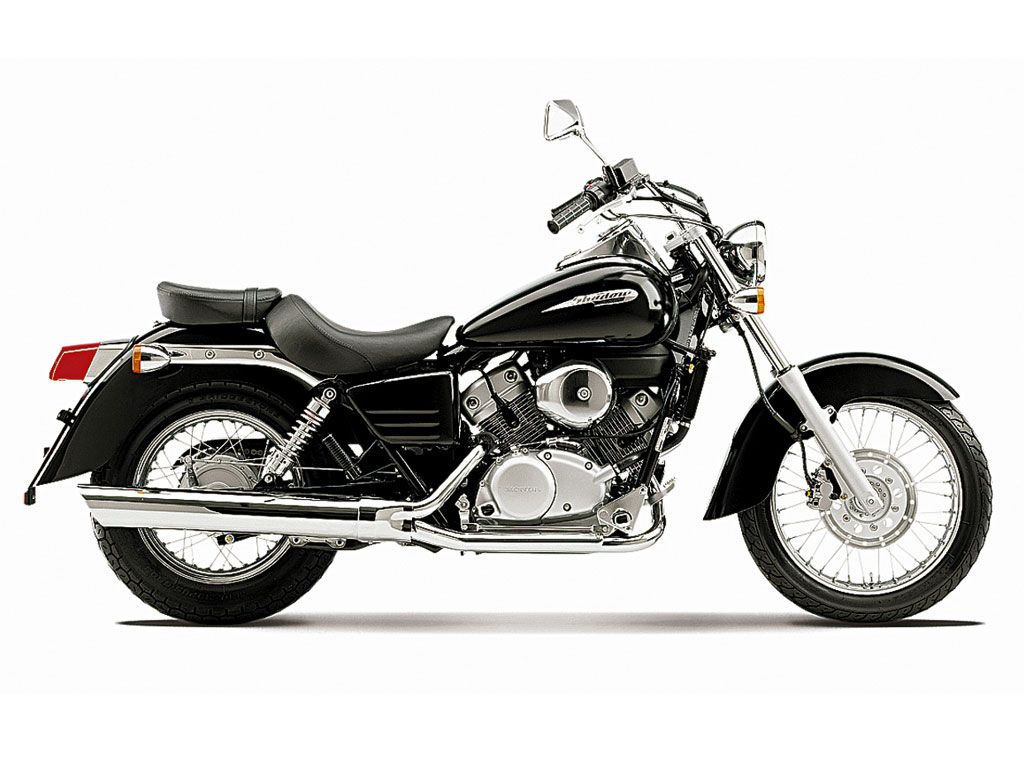

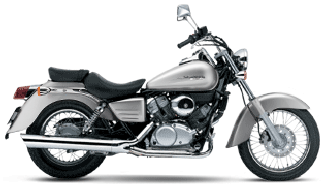

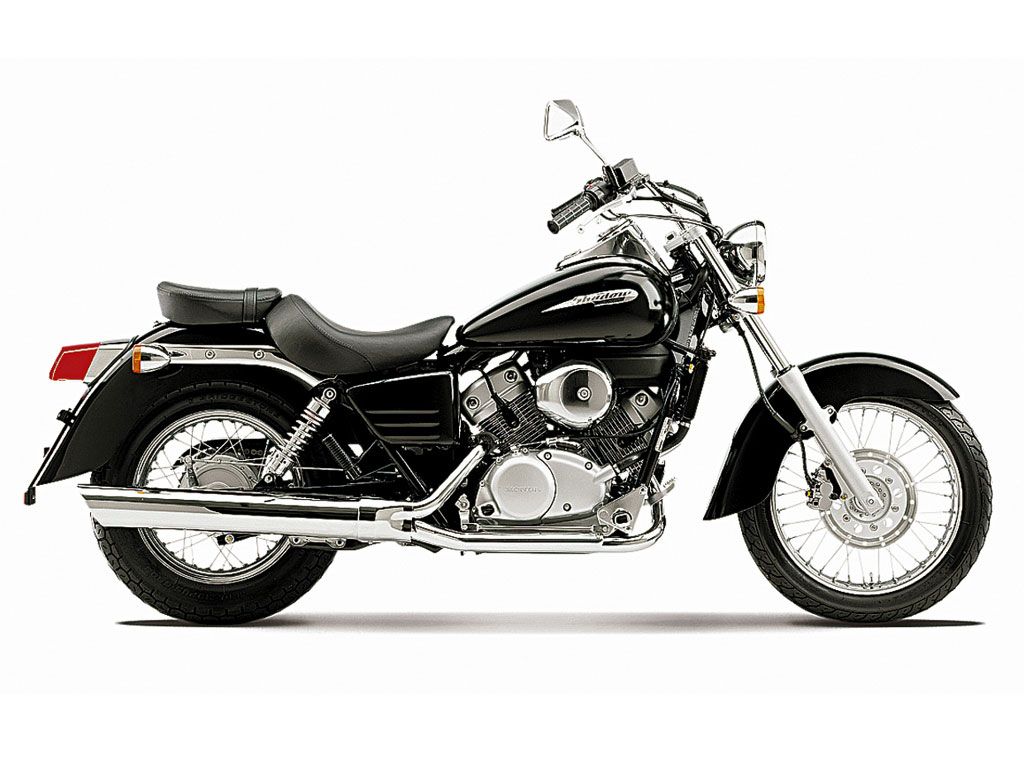

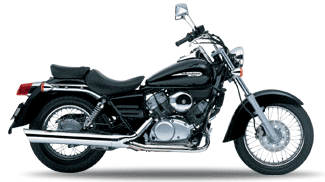

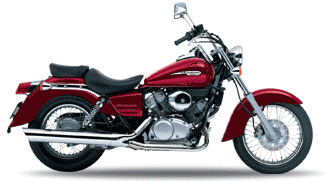

VT125C Image Gallery
