Honda Super Hawk CB77 Motorcycles


1961-68 Honda Super Hawk 305 (CB77)

Engine

Engine Type Air cooled, four stroke, parallel twin cylinder SOHC
Displacement 305cc
Bore and Stroke 60 x 54 mm
Compression Ratio 9.5:1
Carburetors Twin
Starter Kickstart
Max Power 16.8 KW (23.8 hp) @ 7500 rpm
Max Torque 23.1 NM @ 6000 rpm

DRIVETRAIN

Transmission 4-speed
Clutch Wet multi-plate
Final drive  chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Hydra lick forks
Rear Suspension Dual chocks
Front Brakes Drum
Rear Brakes Drum
Tires 3.25-16
Brakes 3.25-16

DIMENSION

Seat Height 785 mm (30.9 in.)
Dry Weight 169 kg (372 lb)
Fuel Capacity N/A

OTHER

Colors
  • Blue
  • Scarlet Red
  • Black
  • White
  • The fuel tank, forks, headlight shell, and frame were painted one of the basic colors
  • The fenders and side covers were silver
  • The lower front forks on early models were painted one of the basic colors, but later they were silver
  • The tank panel was chrome with rubber knee pads
  • The early models had a flat handlebar, but the later models had a low rise handlebar
  • The serial number began CB77-100001.

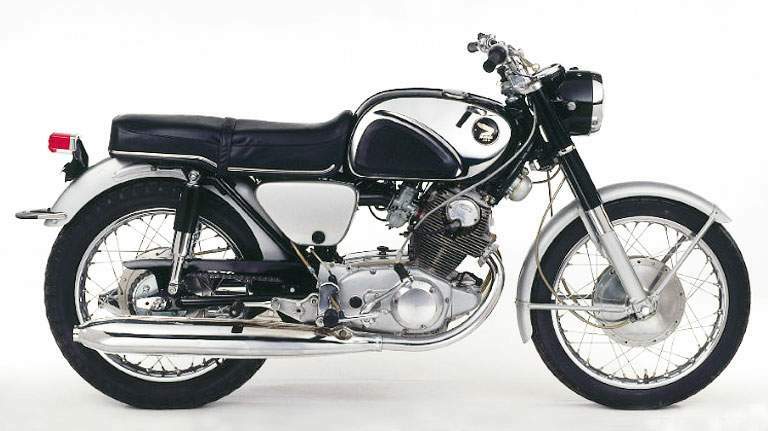

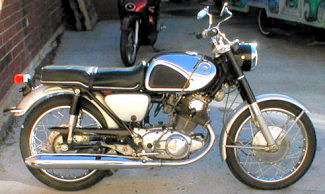

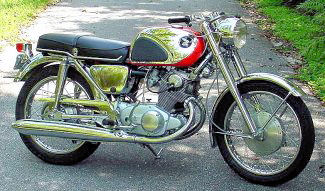

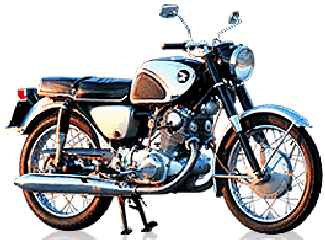

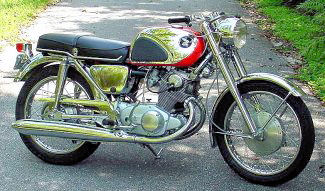

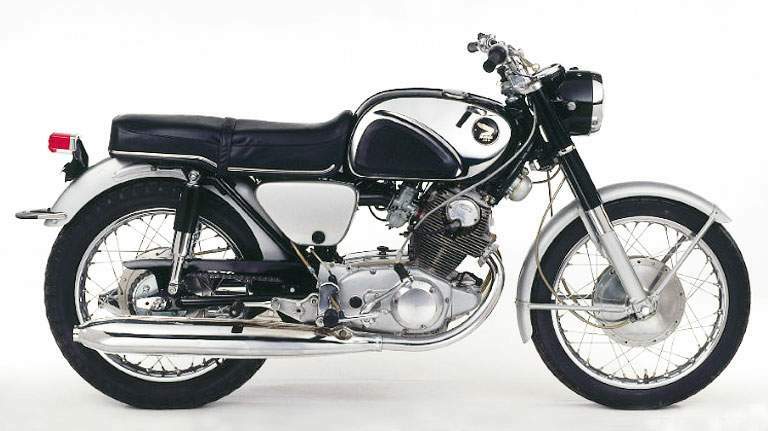

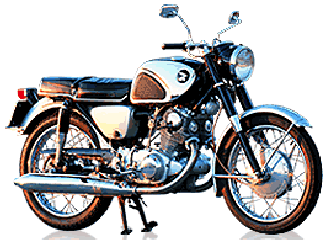

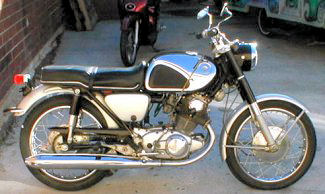

CB77 Image Gallery
