Honda Gold Wing GL1800 Motorcycles


2001 GL1800 Gold Wing

Engine

Engine 1832cc Liquid-cooled, horizontally opposed, 6-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Valve Train Hy-Vo chain driven, SOHC, shim-under-bucket 2 valve
Fuel Delivery PGM-FI with auto choke, auto idle, and dual throttle bodies

Drivetrain

Transmission Wide-ratio, 5-speed + electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm fork with anti-dive, 140mm travel
Rear Suspension Pro-link, single-sided-swingarm, with electro/hydraulic, 2 memory spring preload adjustment, 104mm travel
Front Brakes Dual 296mm floating discs with LBS. triple piston calipers and ABS
Rear Brakes Single 316mm disc with LBS. triple piston caliper and ABS
Front Tires 130/70R – 18
Rear Tires 180/60R – 16

DIMENSION

Wheelbase 1692mm (66.6″)
Seat Height 740mm (29.1″)
Dry Weight  362 kg (799.0 lb.)
Fuel Capacity 25 litres (5.5 Imp. gal.)

OTHER

Colors

2002 GL1800 Gold Wing

Engine

Engine 1832cc Liquid-cooled, horizontally opposed, 6-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Valve Train SOHC; two valves per cylinder
Fuel Delivery PGM-FI sequential electronic fuel injection with twin 40mm throttle bodies

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm cartridge fork with anti-dive system; 140mm travel
Rear Suspension Pro Arm single-sided swingarm with Pro-Link single shock with electronically controlled spring preload adjustment with two memory presets; 105mm travel
Front Brakes Dual full-floating 296mm discs with three-piston calipers, linked with the rear brake. Anti-lock brakes.
Rear Brakes Single ventilated 316mm disc with three-piston caliper, linked with the front brake. Anti-lock brakes.
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Wheelbase 1692mm (66.6 in.)
Seat Height 740mm (29.1″)
Dry Weight 363 kg. (799 lb.)
Fuel Capacity 25 litres (5.5 Imp. gal.)

OTHER

Colors

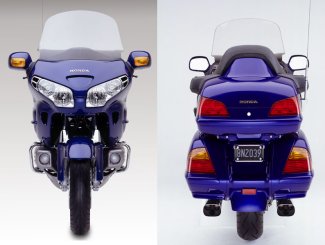

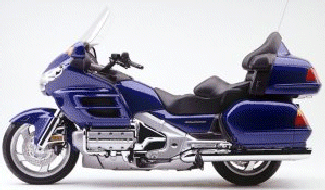

2003 GL1800 Gold Wing

Engine

Engine 1832cc liquid cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Valve Train SOHC; two valves per cylinder
Fuel Delivery PGM-FI sequential electronic fuel injection with twin 40mm throttle bodies

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm fork with anti-dive system; 5.5 inches of travel
Rear Suspension Pro Arm single-sided swingarm with Pro-Link; electronically controlled spring-preload adjustment with two memory presets; 4.1 inches of travel
Front Brakes Dual full-floating 296mm discs with three-piston calipers, linked with the rear brake. Anti-lock brakes.
Rear Brakes Single ventilated 316mm disc with three-piston caliper, linked with the rear brake. Anti-lock brakes.
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Wheelbase 1692mm (66.6 in.)
Seat Height 740mm (29.1″)
Dry Weight 363 kg. (799 lb.)
Fuel Capacity 25 litres (5.5 Imp. gal.)

OTHER

Colors
  • Candy Red
  • Illusion Blue
  • Candy Orange
  • Pearl Yellow
  • Metallic Silver
  • Black
Sound system Panasonic® audio system with two enclosed 25-watt peak power speakers, 12 FM and 6 AM station presets, weatherband radio, station auto-select, ambient audio enhancement, auto volume control, audio mute, headset-ready intercom, and ergonomically designed controls mounted on left handlebar.

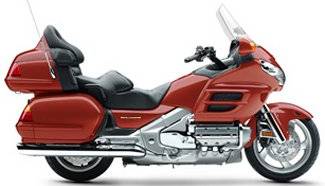

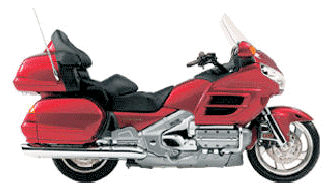

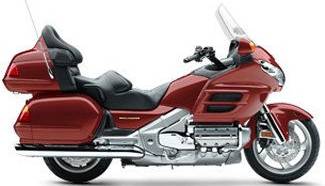

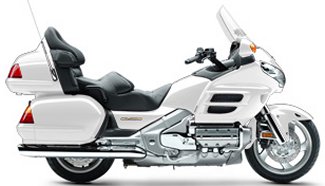

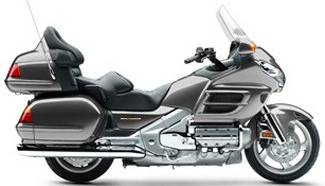

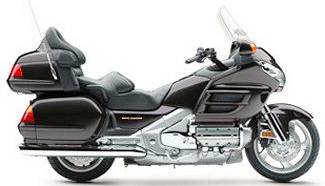

2004 GL1800 Gold Wing (ABS = GL1800A)

Engine

Engine 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital with three-dimensional mapping
Valve Train SOHC; two valves per cylinder
Fuel Delivery Programmed Fuel Injection (PGM-FI) with automatic choke

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes Dual full-floating 296mm discs with LBS three-piston calipers with ABS
Rear Brakes Single ventilated 316mm disc with LBS three-piston caliper with ABS
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Rake 29.25 degrees
Trail 109mm (4.3 inches)
Wheelbase 66.6 inches
Seat Height 29.1 inches
Dry Weight 792.0 pounds (799.0 pounds for ABS model)
Fuel Capacity 6.6 US gallons

OTHER

Colors
  • Black
  • Red
  • Candy Black Cherry
  • Candy Red
  • Magenta Metallic

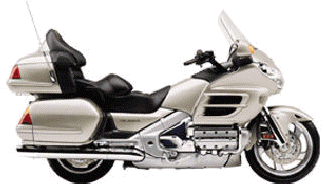

  • Titanium
Model ID GL1800 (ABS model=GL1800A)

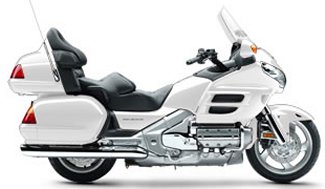

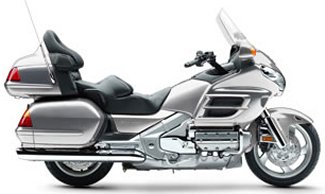

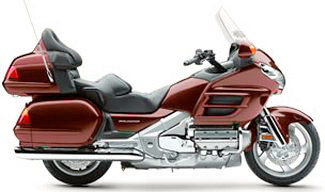

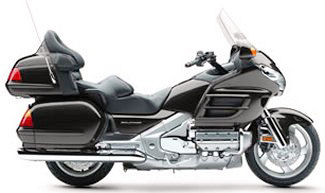

2005 GL1800 Gold Wing(GL1800A=ABS model)

Engine

Engine 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital with three-dimensional mapping
Valve Train SOHC; two valves per cylinder
Fuel Delivery Programmed Fuel Injection (PGM-FI) with automatic choke

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes Dual full-floating 296mm discs with LBS three-piston calipers with ABS
Rear Brakes Single ventilated 316mm disc with LBS three-piston caliper with ABS
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Rake 29.25 degrees
Trail 109mm (4.3 inches)
Wheelbase 66.6 inches
Seat Height 29.1 inches
Dry Weight 792.0 pounds (799.0 pounds for ABS model)
Fuel Capacity 6.6 US gallons

OTHER

Colors
  • Metallic Silver

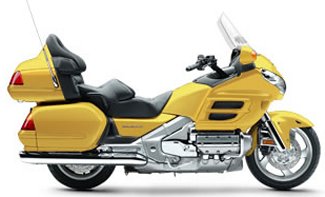

  • Pearl Yellow

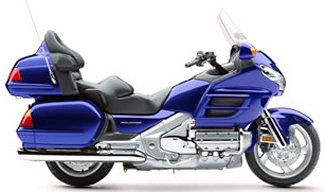

  • Bright Blue Metallic
  • Candy Black Cherry
  • Dark Gray Metallic
  • White
Model ID GL1800 (GL1800A = ABS model)
Warranty 3 years

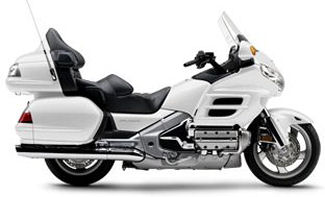

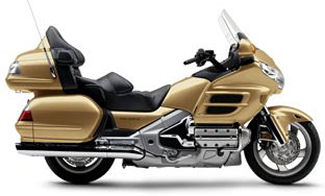

2006 GL1800 Gold Wing (GL1800A = ABS model)

Engine

Engine 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital with three-dimensional mapping
Valve Train SOHC; two valves per cylinder
Fuel Delivery Programmed Fuel Injection (PGM-FI) with automatic choke

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes Dual full-floating 296mm discs with LBS three-piston calipers with (Anti-Lock Braking System(R) (ABS(R)))
Rear Brakes Single ventilated 316mm disc with LBS three-piston caliper with ABS (Anti-Lock Braking System(R) (ABS(R)))
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Rake 29.25 degrees
Trail 109mm (4.3 inches)
Wheelbase 66.6 inches
Seat Height 29.1 inches
Dry Weight 822 pounds (799.0 lb for ABS model)
Fuel Capacity 6.6 US gallons

OTHER

Colors
  • Black
  • White

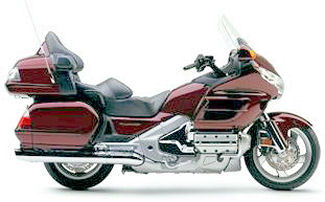

  • Dark Red
  • Titanium
  • Gold
Model ID GL1800 (GL1800A = ABS model)
Warranty 3 years

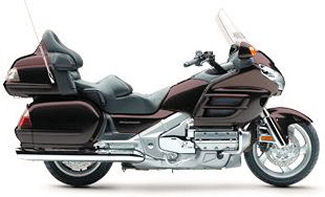

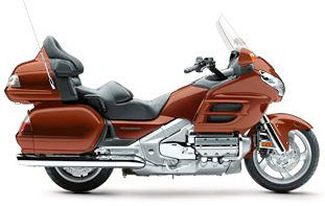

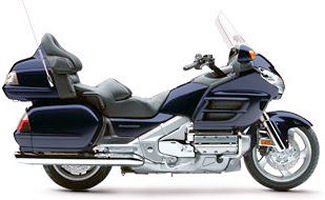

2007 GL1800 Gold Wing

OVERVIEW

  • Airbag option (GL18B): With its unrivaled combination of power, luxury and sporting capability, the 1832cc Gold Wing continually redefines the touring class. New for 2007, the airbag-equipped model is the greatest revolution in motorcycle technology since the introduction of the Gold Wing itself. It’s in a class of its own.
  • Premium Audio model (GL18P): With its unrivaled combination of power, luxury and sporting capability, the 1832cc Gold Wing continually redefines what a touring motorcycle can be. The Gold Wing Premium Audio model features six speaker elements and an 80-watts-per-channel external amplifier. You can even add an optional six-disc CD player. It’s in a class of its own.
  • Premium Audio, Comfort Package & Navi model (GL18HPN): With its unrivaled combination of power, luxury and sporting capability, the 1832cc Gold Wing continually redefines what a touring motorcycle can be. The Gold Wing Premium Audio, Comfort Package & Navi features a fully integrated, flash-card based Honda Satellite-Linked Navigation™ System. Available only on the Gold Wing. It’s in a class of its own.

Engine

Engine 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital with three-dimensional mapping
Valve Train SOHC; two valves per cylinder
Fuel Delivery Programmed Fuel Injection (PGM-FI) with automatic choke

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes Dual full-floating 296mm discs with LBS three-piston calipers with (Anti-Lock Braking System(R) (ABS(R)))
Rear Brakes Single ventilated 316mm disc with LBS three-piston caliper with ABS (Anti-Lock Braking System(R) (ABS(R)))
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Rake 29.25 degrees
Trail 109mm (4.3 inches)
Wheelbase 66.5 inches
Seat Height 29.1 inches
Dry Weight 792 pounds (799.0 lb for ABS model; 860 lb for GL18B)
Fuel Capacity 6.6 US gallons

OTHER

Emissions Exceeds 2008 CARB standards
Colors
  • Metallic Black
  • Metallic Silver
  • Dark Orange Metallic
  • Dark Red Metallic
  • Dark Blue Metallic
Model ID GL1800 (GL1800A = ABS model)
Warranty 3 years

2008 GL1800 Gold Wing

OVERVIEW

  • Airbag option (GL18B): It’s only natural that a revolutionary machine such as the Gold Wing should never rest on its laurels, striving instead to redefine its class at every opportunity. The Gold Wing set yet another industry benchmark by introducing production motorcycling’s first-ever Airbag System. Proof once again that when it comes to touring, the Gold Wing stands alone at the top.
  • Premium Audio Model (GL18P): Power, luxury, sporting performance… with its unparalleled combination of class-leading features, the 1832cc Gold Wing continues to redefine what a touring motorcycle can be. Now add the Gold Wing’s six speaker elements and an 80-watts-per-channel external amplifier, and you’ll not only be rolling down the highway in unbeatable style — you’ll be rocking, too.
  • Premium Audio, Comfort Package & Navi model (GL18HPN): Premium sound, cold-weather comfort features and Hondas patented, Flash-card-based Satellite-Linked Navigation™ System … is there any place the Gold Wing Premium Audio, Comfort Package & Navi model cant take you, surrounded by luxury and performance? The answer to that, and to whether theres a better motorcycle in the touring class, would be “no.” A resounding “no.”



Engine

Engine 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital with three-dimensional mapping
Valve Train SOHC; two valves per cylinder
Fuel Delivery Programmed Fuel Injection (PGM-FI) with automatic choke

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brakes Single ventilated 316.0mm disc with LBS three-piston caliper (optional ABS)
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Rake 29.15 degrees
Trail 109mm (4.3 inches)
Wheelbase 66.5 inches
Seat Height 29.1 inches
Dry Weight N/A
Fuel Capacity 6.6 US gallons

OTHER

Colors
  • Black
  • Titanium
  • Pearl White
  • Metallic Red
  • Dark Red Metallic
Model ID GL1800
Warranty Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

2009 Gold Wing

Engine

Engine 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital with three-dimensional mapping
Valve Train
Fuel Delivery Programmed Fuel Injection (PGM-FI)

Drivetrain

Transmission Five-speed including Overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes Dual full-floating 296 mm discs with LBS three-piston calipers
Rear Brakes Single ventilated 316 mm disc with LBS three-piston caliper
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Rake
Trail
Wheelbase 66.5 inches
Seat Height 29.1 inches
Dry Weight 895 – 928 lbs.
Fuel Capacity 6.6 US gallons

OTHER

Colors Candy Black Cherry, Pearl Yellow, Metallic Silver, Deep Blue Metallic, Metallic Titanium
Price $25559
Warranty 3 years

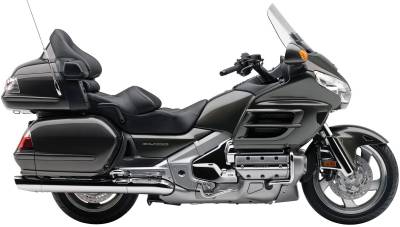

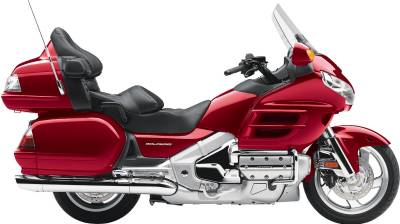

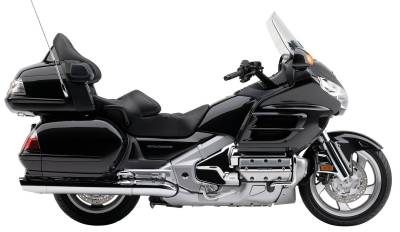

2010 GL1800

Engine

Engine 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital with three-dimensional mapping
Valve Train SOHC; two valves per cylinder
Fuel Delivery Programmed Fuel Injection (PGM-FI) with automatic choke

Drivetrain

Transmission Five-speed including overdrive, plus electric reverse
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel
Front Brakes Dual full-floating 296mm discs with CBS three-piston calipers
Rear Brakes Single ventilated 316mm disc with CBS three-piston caliper
Front Tires 130/70R-18
Rear Tires 180/60R-16

DIMENSION

Rake 29.15 degrees
Trail 109mm (4.3 inches)
Wheelbase 1690 mm (66.5 inches)
Seat Height 740 mm (29.1 inches)
Dry Weight 407-422 kg (895-928 lb), depending on option packages selected (Includes all standard equipment, required fluids and full tank of fuel – ready to ride.)
Fuel Capacity  25 litres (6.6 GalUS)

OTHER

Fuel Consumption 6.5 L/100km (36 mpgUS)
Emissions Meets current CARB and EPA standards.
Colors
  • Metallic Red
  • Metallic Black
  • Pearl Yellow
  • Metallic Titanium
  • Nebulous Black Metallic
  • Caliente Red Metallic
Model ID GL1800
Warranty Three Years: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

2012 GL1800

Engine

Engine 1832cc Liquid-cooled 4-stroke 12-valve SOHC flat-6 cylinder (i.e., horizontally opposed)
Bore and Stroke 74mm X 71mm
Compression Ratio 9.8 :1
Ignition Computer-controlled digital transistorised with electronic advance and three-dimensional mapping
Valve Train SOHC; two valves per cylinder
Max. Power Output 87kW/5,500min-1 (95/1/EC)
Max. Torque 167Nm/4,000min-1 (95/1/EC)
Fuel Delivery PGM-FI electronic fuel injection with automatic choke
Starter Electric

Drivetrain

Transmission  5-speed (including overdrive, plus electric reverse)
Final Drive Enclosed shaft
Front Wheels Hollow-section 5-spoke cast aluminium
Rear Wheels Hollow-section triple-spoke cast aluminium

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm air-assist telescopic cartridge fork with anti-dive, 140mm (4.8 in.) travel/stroke
Rear Suspension  Pro-Link® Pro-Arm® with electronically-controlled spring preload adjustment with two memory presets, 105mm (4.1 in.) axle travel
Front Brakes Dual full-floating 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers, ABS, floating rotors and sintered metal pads
Rear Brakes Single 316 x 11mm ventilated disc with Combined 3-piston caliper, ABS and sintered metal pads
Front Tires 130/70-R18 (63H)
Rear Tires 180/60-R16 (74H)

DIMENSION

Rake 29.15 degrees
Trail 109mm (4.3 inches)
Wheelbase 1690 mm (66.5 inches)
Overall Length  2630mm (103.5 inches)
Overall Width 945mm (37.2 inches)
Overall Height 1455mm (57.3 inches)
Seat Height 740 mm (29.1 inches)
Dry Weight 421 kg (926 lb)

  • Front: 189 kg (416 lb)
  • Rear: 232 kg (510 lb)
Fuel Capacity 25 Litres (6.6 GalUS) (including 4-Litre (1 Gal) warning light reserve)

OTHER

Fuel Consumption 6.5 L/100km (9.5 miles/litre) (35.9 mpg-US) (43.2 mpg-imp)
Emissions Meets current California Air Resources Board (CARB) and EPA standards.
Colors
  • Candy Red
  • Pearl White
  • Ultra Blue Metallic
  • Black
Model ID GL1800
Warranty Three Years; Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

Honda VTX1800S Motorcycles Photo Gallery

No Comment

Leave a reply

Your email address will not be published. Required fields are marked *
