Honda Super Sport CJ360T Motorcycles


1976 CJ360T’76

Engine

Engine Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder,
Displacement 357cc
Bore x Stroke 67.0 x 50.6 mm
Compression Ratio 9.3:1
Fuel Delivery 2 CV carburetors
Ignition Breaker points and condenser
Starter Electric and kickstart
Max Power 24.8 KW (34 hp) @ 9000 rpm

Drivetrain

Transmission 6-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shocks
Front Brakes Single disc (hydraulic)
Rear Brakes Drum
Front Tires 3.00-18
Rear Tires 3.50-18

DIMENSION

Fuel Capacity 11 Litres (2.9 Gal)

OTHER

Colors Candy Antares Red
  • The gas tank, front fender, and rear cowl were red
  • The side cover was black
  • The “360T” side cover decal was white and yellow
  • It had a 2-into-1 exhaust system
  • The serial number began CJ360T-2000001.

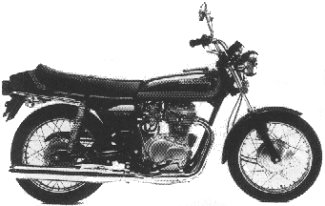

1977 CJ360T’77

Engine

Engine Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder
Displacement 357cc
Bore x Stroke 67.0 x 50.6 mm
Compression Ratio 9.3:1
Fuel Delivery 2 CV carburetors
Ignition Breaker points and condenser
Starter Electric and kickstart
Max Power 24.8 KW (34 hp) @ 9000 rpm

Drivetrain

Transmission 6-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shocks
Front Brakes Drum
Rear Brakes Drum
Front Tires 3.00-18
Rear Tires 3.50-18

DIMENSION

Fuel Capacity 11 Litres (2.9 Gal)

OTHER

Colors Candy Antares Red
  • The gas tank, front fender, and rear cowl were red
  • The gas tank and rear cowl stripes were orange
  • The side cover was black
  • The “360T” side cover decal was blue and red
  • It had a 2-into-1 exhaust system
  • The engine was a 356cc OHC parallel twin linked to a 5-speed transmission
  • The serial number began CJ360T-2100001.

Super Sport CJ360T Photo Gallery
