Honda CB450S Motorcycles

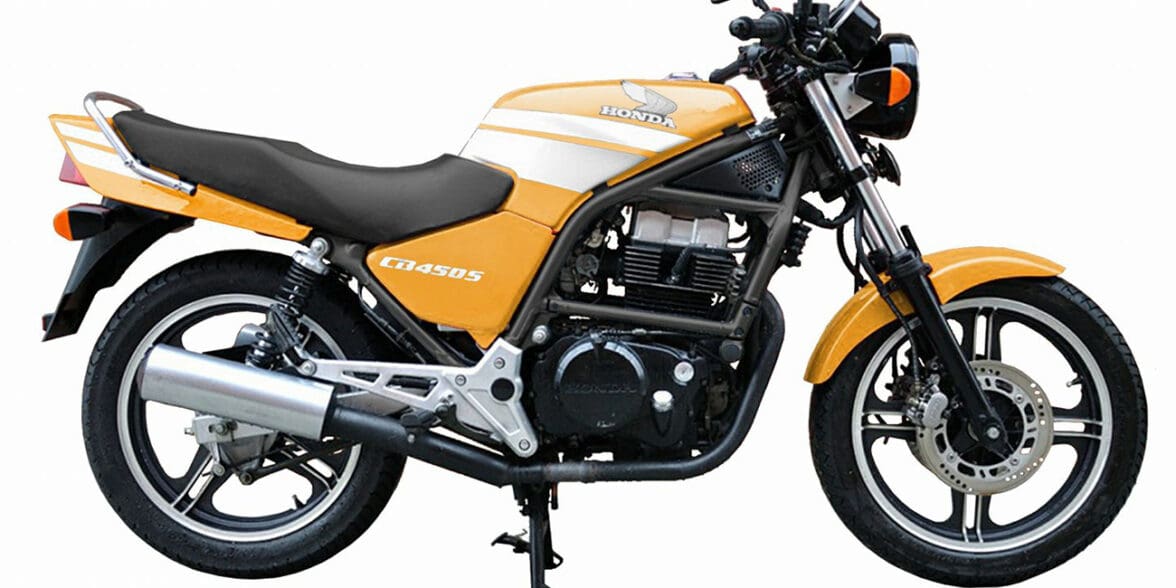

1987 Honda CB450S

Engine

Engine Type Air cooled, parallel twin cylinder, four stroke, SOHC, 3 valves per cylinder, 360� crankshaft and twin balance-shafts
Displacement 447cc (27 cid)
Bore and Stroke 75 X 50.6mm
Compression Ratio 9.1:1
Fuel Delivery Two 30mm Keihin CV
Ignition CDI
Starter Electric
Max Power 45 hp 32.8 KW @ 9000 rpm
Max Torque 33 Nm @ 7500 rpm

Drivetrain

Transmission 6-speed
Final drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescopic forks 124.5mm wheel travel
Rear Suspension Swing arm 97mm wheel travel
Front Brakes Two 260mm disc 2 piston calipers
Rear Brakes 140mm Drum
Front Tire 100/90-18
Rear Tire 110/90-18

DIMENSION

Fuel capacity 17 Litres (4.5 Gal.)
Dry weight 169 kg (372 lb)

OTHER

Sold only in Germany
