Honda Super Sport CB360, CB360T Motorcycles


1975 CB360T0

Engine

Engine Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder,
Displacement 357cc
Bore x Stroke 67.0 x 50.6 mm
Compression Ratio 9.3:1
Fuel Delivery 2 CV carburetors
Ignition Breaker points and condenser
Starter Electric and kickstart
Max Power 24.8 KW (34 hp) @ 9000 rpm

Drivetrain

Transmission 6-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension  Adjustable shocks
Front Brakes Single disc (hydraulic)
Rear Brakes Drum
Front Tires 3.00-18
Rear Tires 3.50-18

DIMENSION

Fuel Capacity 11 Litres (2.9 Gal)

OTHER

Colors
  • Candy Riviera Blue Metallic
  • Light Ruby Red
  • The gas tank stripes were black and white
  • The “CB360T” side cover emblem was white and yellow
  • The breaker points cover was black
  • The front brake was a hydraulic disc
  • The engine was a 356cc OHC parallel twin linked to a 6-speed transmission
  • The serial number began CB360T-2000001.

1976 CB360T’76

Engine

Engine Air cooled, parallel twin cylinder, SOHC, 2 valve per cylinder,
Displacement 357cc
Bore x Stroke 67.0 x 50.6 mm
Compression Ratio 9.3:1
Fuel Delivery 2 CV carburetors
Ignition Breaker points and condenser
Starter Electric and kickstart
Max Power 24.8 KW (34 hp) @ 9000 rpm

Drivetrain

Transmission 6-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension Telescoping forks
Rear Suspension Adjustable shocks
Front Brakes Single disc (hydraulic)
Rear Brakes Drum
Front Tires 3.00-18
Rear Tires 3.50-18

DIMENSION

Fuel Capacity 11 Litres (2.9 Gal)

OTHER

Colors
  • Candy Sapphire Blue
  • Candy Ruby Red
  • The gas tank pinstripes were black and white
  • The breaker points cover was silver
  • The front brake was a hydraulic disc
  • The engine was a 356cc OHC parallel twin linked to a 6-speed transmission
  • The serial number began CB360T-2200001.

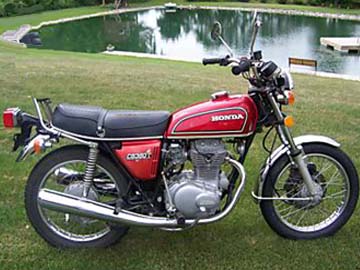

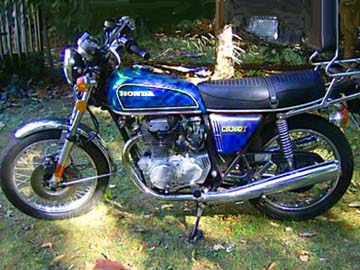

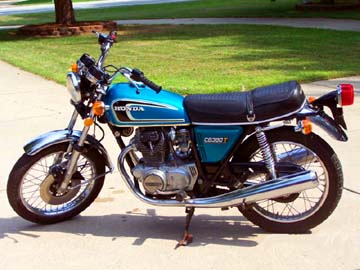

CB360T Photo Gallery
