Honda CB1300F Motorcycles

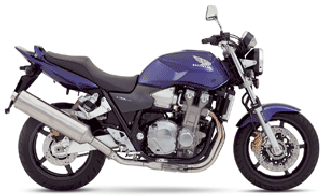

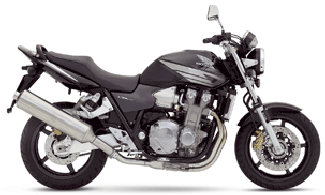

2007 CB1300F

Engine Type Liquid-cooled 4-stroke 16-valve DOHC inline-4
Engine Displacement 1284 cc
Bore and Stroke 78 x 67.2 mm
Compression Ratio 9.6:1
Carburation PGM-FI electronic fuel injection
Max. Power Output 114 bhp at 7,500 rpm
Max. Torque 117Nm at 5,500 rpm
Ignition Computer-controlled digital transistorised with electronic advance
Starter Electric
Gearbox 5-Speed
Final Drive #530 O-ring sealed chain
Length x Width x Height: 2,220 x 790 x 1,120 mm
Wheelbase 1,515 mm
Seat Height 790 mm
Ground Clearance 135 mm
Dry Weight 230 kg
Wheels Front U-section 5-spoke cast aluminium
Wheels Rear U-section 5-spoke cast aluminium
Tires Front 120/70 ZR17M/C (58W)
Tires Rear 18/55 ZR17M/C (73W)
Suspension Front 43 mm cartridge-type telescopic fork with adjustable compression and rebound damping, 109 mm axle travel
Suspension Rear Dual conventional dampers with 5-step adjustable spring preload and rebound damping, 116 mm axle travel
Brakes Front 310 x 4.5 mm dual disc with 4-piston calipers ABS and sintered metal pads
Brakes Rear 256 x 6 mm dual-piston caliper disc with ABS and sintered metal pads
