Honda CB1300 Motorcycles


1999 CB1300

Engine

Engine Type 1284 cc, 4 Stroke – Liquid Cooled – Inline Four
Bore and Stroke 78 mm x 67.2 mm
Compression Ratio 9.6:1
Valve Train DOHC, 4 valves/cylinder
Fuel Delivery VEPC
Ignition System Full transistor type battery Ignition System
Horsepower 100 hp (74.6 kW) @ 7500 rpm
Maximum Torque 120 Nm (88.5 ft. lbs) @ 5000 rpm

Drivetrain

Transmission Five-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Front Brakes dual 310 mm discs with 4-piston calipers
Rear Brakes single 276 mm disc with 2-piston calipers
Front Tires 130/70-17
Rear Tires 190/60-17

DIMENSION

Overall Length 2200 mm (86.6 inches)
Overall Width 780 mm (30.7 inches)
Overall Height 1165 mm (45.9 inches)
Seat Height 790 mm (31.1 inches)
Wheelbase 1545 mm (60.8 inches)
Fuel Capacity 21 litres (5.5 Gal)
Dry weight (without fluids): 246 kg (542.3 pounds)

OTHER

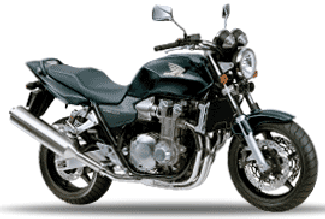

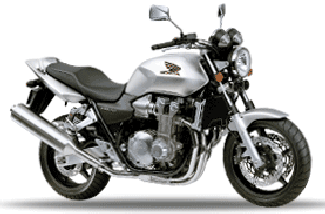

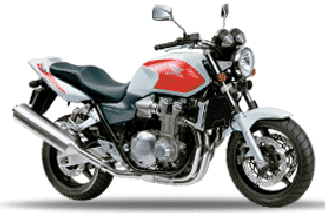

2004 CB1300

Engine

Engine Type Liquid-cooled 4-stroke 16-valve DOHC inline-4
Engine Displacement 1284 cc
Bore and Stroke 78 x 67.2mm
Compression Ratio 9.6:1
Fuel Delivery PGM-FI electronic fuel injection
Max. Power Output 114 bhp at 7500 rpm
Max. Torque 117Nm at 6000 rpm
Ignition Computer-controlled digital transistorised with electronic advance
Starter Electric

Drivetrain

Transmission 5-speed
Final Drive O’- Ring sealed chain
Front Wheel 17 x MT3.50 U-section 5- spoke cast aluminum
Rear Wheel 17 x MT5.50 U-section 5- spoke cast aluminum

CHASSIS / SUSPENSION / BRAKES

Front Suspension 43mm cartridge-type telescopic fork, 120mm axle travel
Rear Suspension Dual conventional dampers with 5-step adjustable spring preload, 116mm axle travel
Front Brakes 310 x 4.5mm dual disc with 4- piston calipers and sintered metal pads
Rear Brake 256 x 6mm single-piston caliper disc with sintered metal pads
Front Tires 120/70 ZR17M/C (58W) (Pressure 250kPa)
Rear Tires 180/55 ZR17M/C (73W) (Pressure 290kPa)

DIMENSION

Length x Width x Height 2220 x 790 x 1120mm
Wheelbase 1515mm
Seat Height 790mm
Ground Clearance 135mm
Fuel Capacity 21 litres (including 4-litre warning light reserve)
Dry Weight 224kg

OTHER

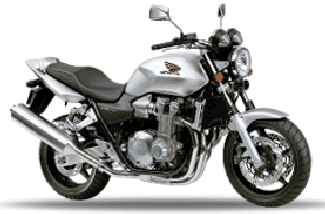

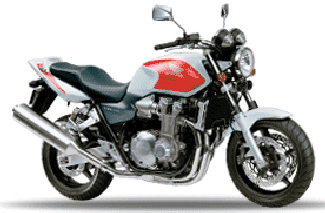

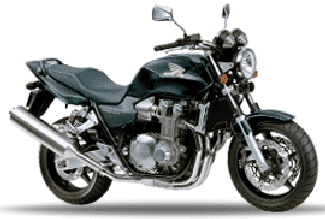

CB1300 Image Gallery
