Honda Shadow ACE 750 (VT750CO3) Motorcycles

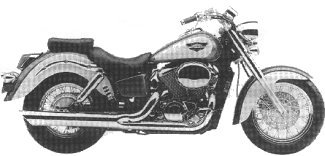

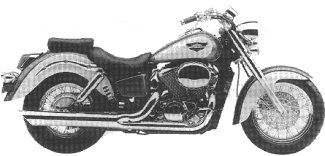

1998 VT750CD’98 Shadow American Classic Edition (ACE) 750 Deluxe

  • ENGINE
    • N/A
  • DRIVETRAIN
    • N/A
  • CHASSIS / SUSPENSION / BRAKES
    • N/A
  • DIMENSION
    • N/A
  • OTHER
    • It came in one of three color schemes: Black, Black with Pearl Canyon Copper, or Pearl Sedona Red with Pearl Ivory Cream
    • The upper fork legs have chrome covers
    • This model has more chrome than the VT750C’98
    • The serial number began JH2RC443*WM000001.

2000 VT750CO3 SHADOW ACE DELUXE 750

Engine

Engine Type 745cc liquid-cooled, 52-degree, V-twin, single pin crank
Bore and Stroke 79mm x 76mm
Compression Ratio 9.0: 1
Valve Train SOHC; three valves per cylinder
Fuel Delivery Two 36mm diaphragm-type CV

DRIVETRAIN

Transmission Wide-ratio five-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 140mm travel
Rear Suspension Dual shocks with five-position spring preload adjustability; 90mm travel
Front Tire 120/90-17
Rear Tire 170/80-15
Front Brakes Single 296mm disc with twin-piston caliper
Rear Brakes Drum

DIMENSION

Wheelbase 1618mm (63.6 in.)
Seat Height 700mm (27.6 in.)
Dry Weight 229 kg (504.9 lbs.)
Fuel Capacity 14 litres (3.2 Imp. gal.)

OTHER

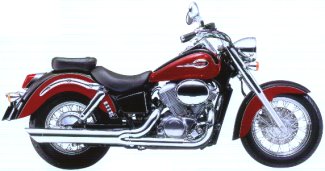

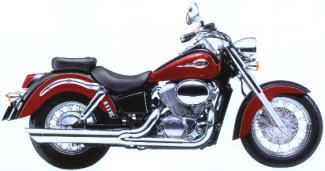

2001 VT750CO3’01 SHADOW ACE DELUXE 750

Engine

Engine Type Liquid cooled, 52° V-twin, single pin crank
Displacement 745cc
Bore and Stroke 79mm x 76mm
Compression Ratio 9.0: 1
Valve Train SOHC; three valves per cylinder
Fuel Delivery Two 36mm diaphragm-type CV

DRIVETRAIN

Transmission Wide-ratio five-speed
Final Drive O-ring-sealed chain

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 140mm travel
Rear Suspension Dual shocks with five-position spring preload adjustability; 90mm travel
Front Tire 120/90-17
Rear Tire 170/80-15
Front Brakes Single 296mm disc with twin-piston caliper
Rear Brakes Drum

DIMENSION

Wheelbase 1618mm (63.6 in.)
Seat Height 700mm (27.6 in.)
Dry Weight 229 kg (504.9 lbs.)
Fuel Capacity 14.0 liters

OTHER

Color
  • Red/Black
  • Black/White

750 (VT750CO3) Image Gallery
