MV Agusta has always been known as a powerhouse in the world of motorcycles, and 2023 is no exception with the F3 RR and F3 RC (or Reparto Corse) models in the 2023 MV Agusta lineup. While the platform is similar in these models, each has some unique features. To start, both bikes feature an in-line three, four-stroke engine with a displacement of 798 cc. The RR has 147 horsepower but if you’re looking for more power and exclusivity, you can opt for the RC with the race kit to bump you up to 155 horsepower. They share a 6-speed gearbox, a chain final drive, and a wet, multi-disc slipper clutch.

These bikes feature the best in technology and braking and include Brembo radial-type monobloc calipers with 4 pistons, a ride-by-wire throttle assembly, and a reinforced wiring harness. They also boast a 5.5″ TFT display with connectivity, so you can record and share trips, customize the bike directly from your smartphone, and take advantage of turn-by-turn navigation.

The frame, suspension, brakes, and wheels are identical for both bikes. They both use an ALS Steel Tubular Trellis frame and a Marzocchi hydraulic fork for front suspension. The rear suspension on both bikes is a Progressive Sachs, single shock

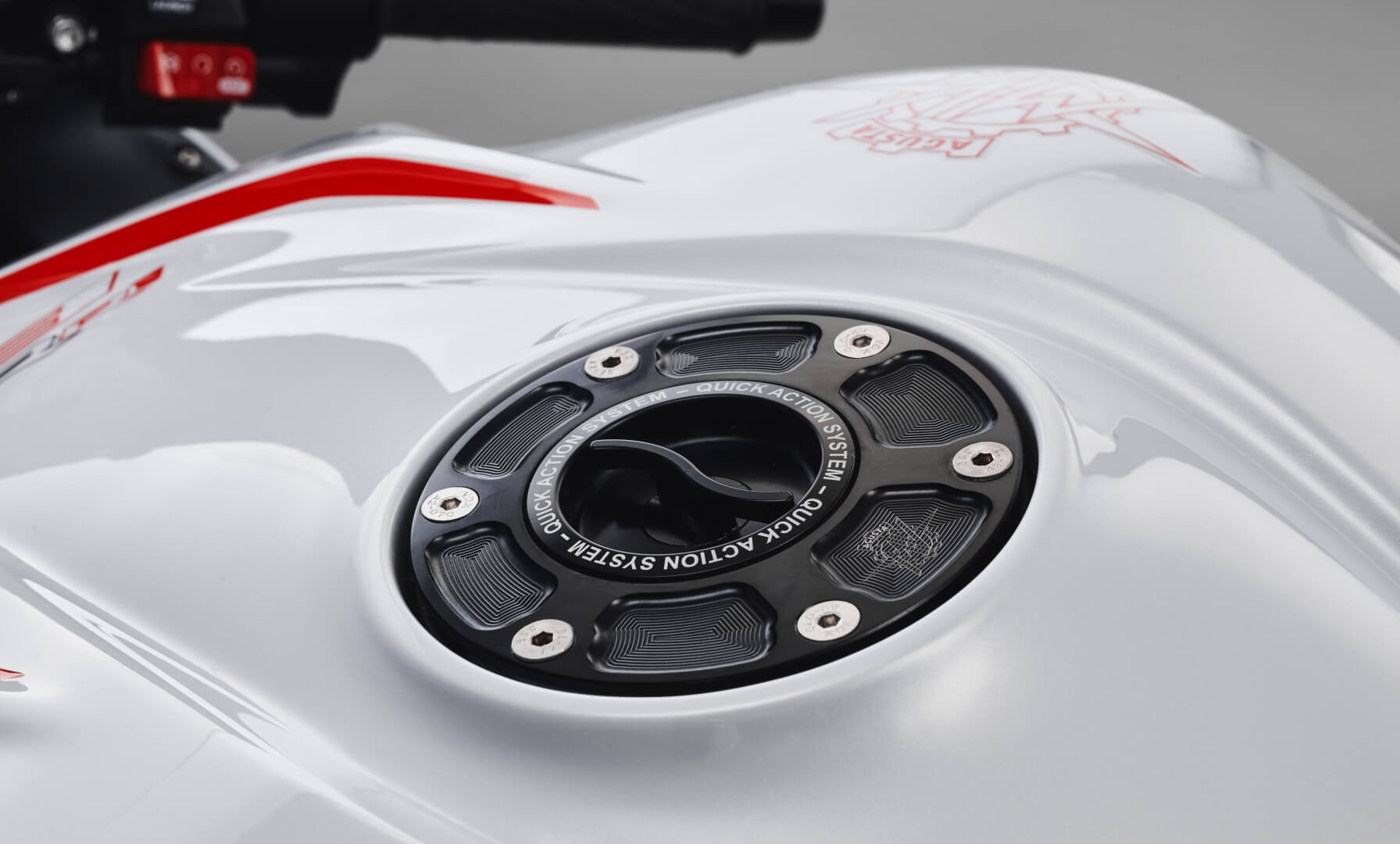

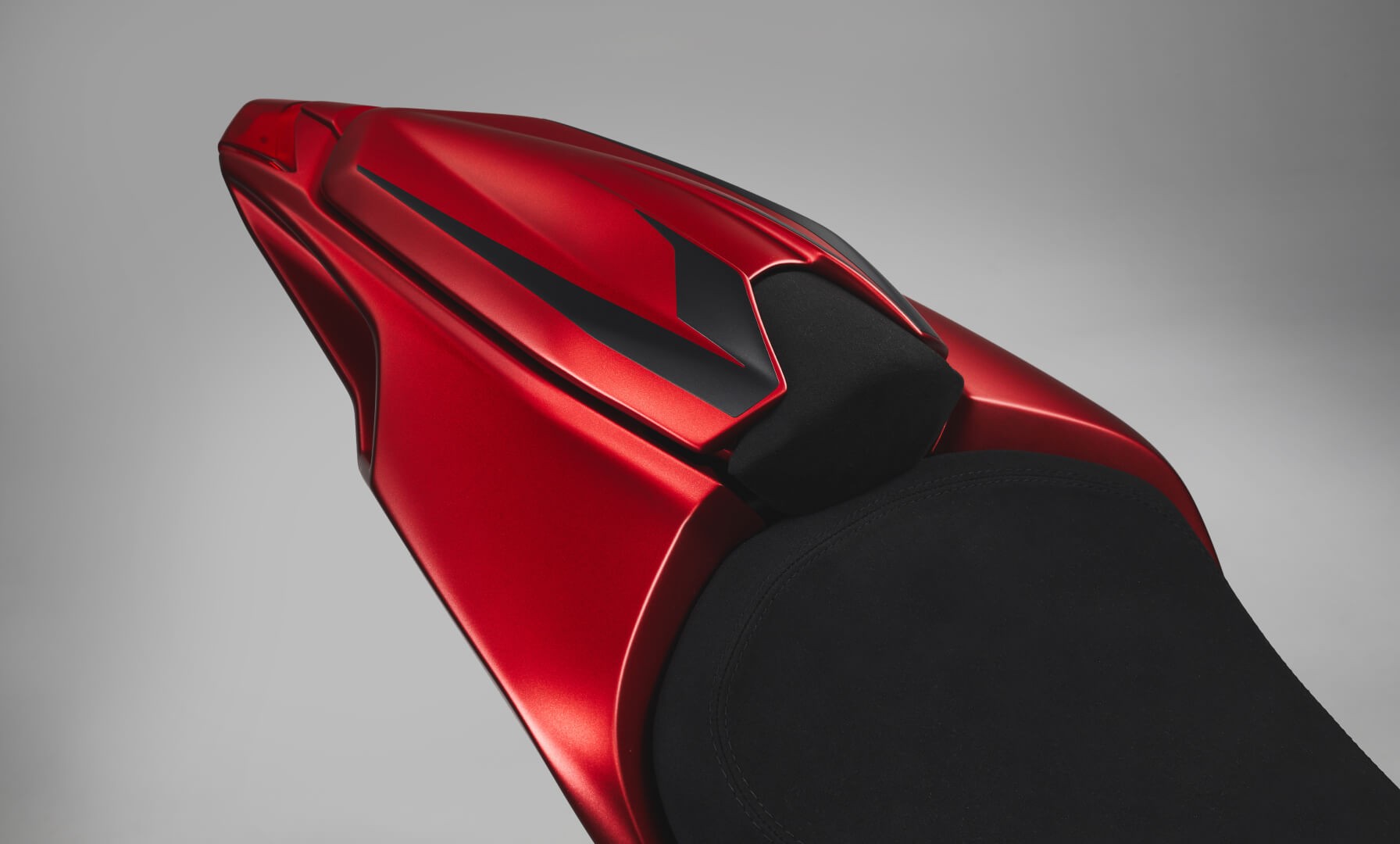

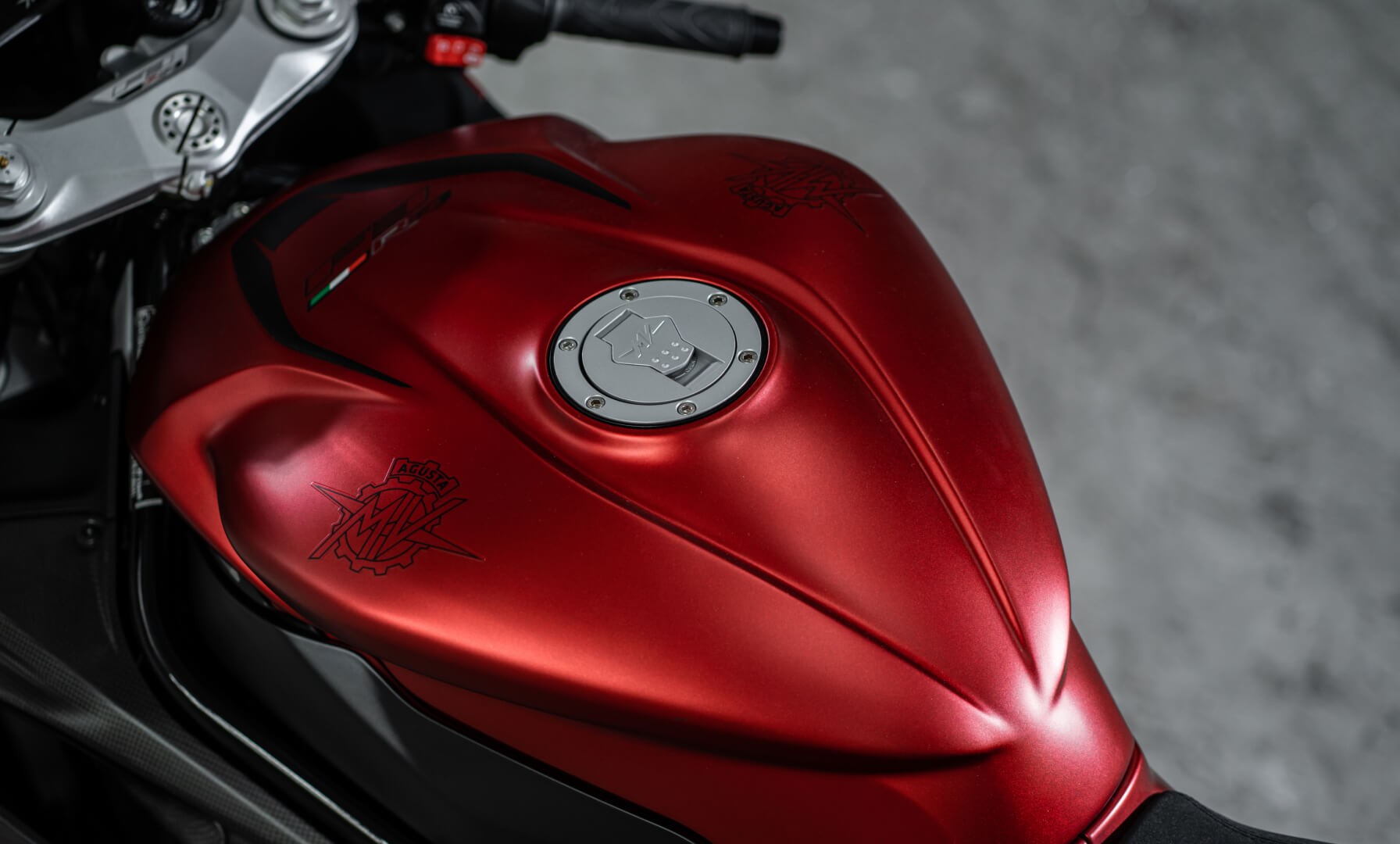

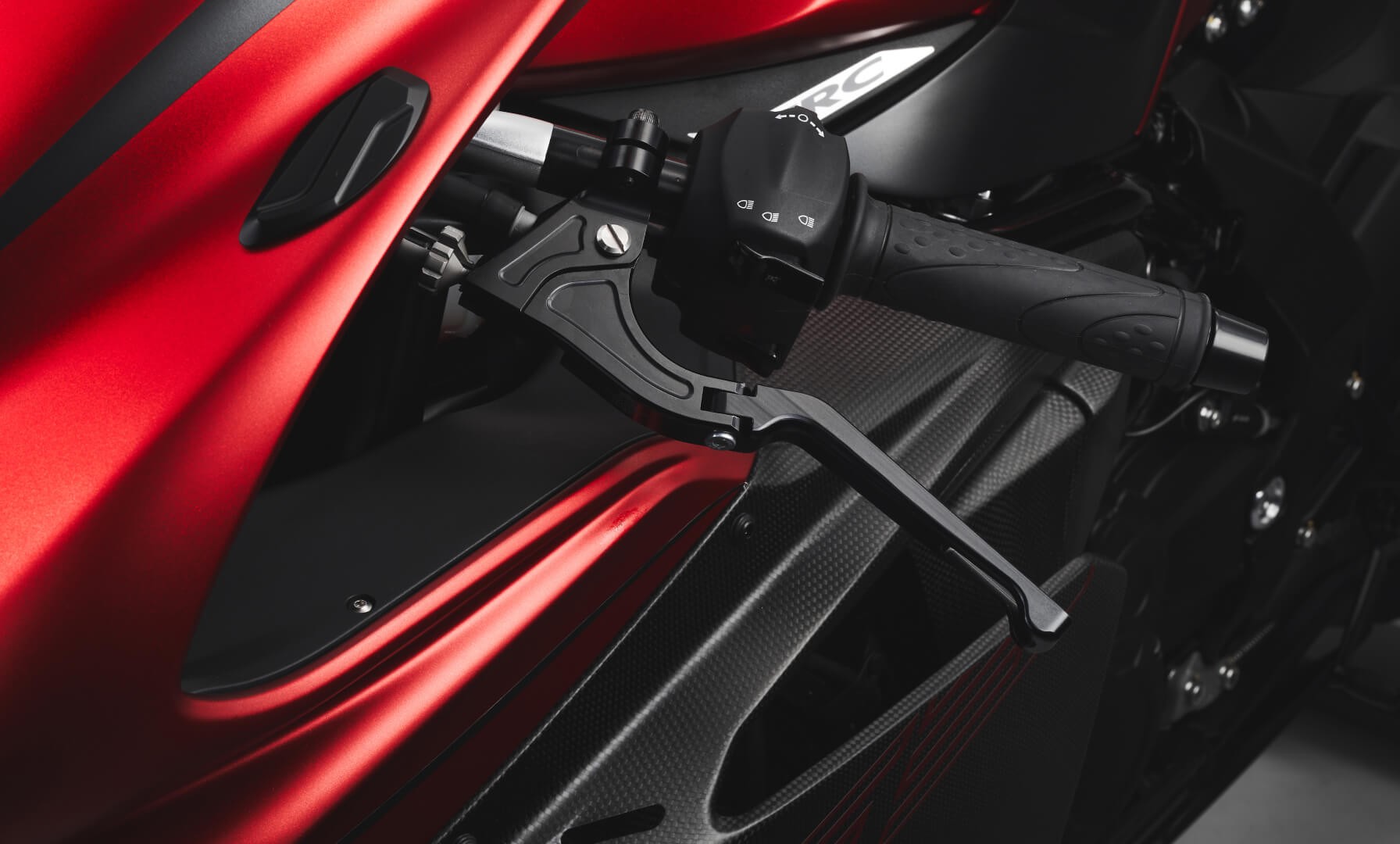

Though neither bike is heavy, the F3 RC is 18 lbs lighter than its counterpart and has the option of a racing kit that adds 8 horsepower, and includes a CNC fuel cap, fiberglass passenger seat cover, Akrapovic titanium exhaust silencer, control unit with racing map, and a carbon fiber silencer cover. CNC brake and clutch levers are also included

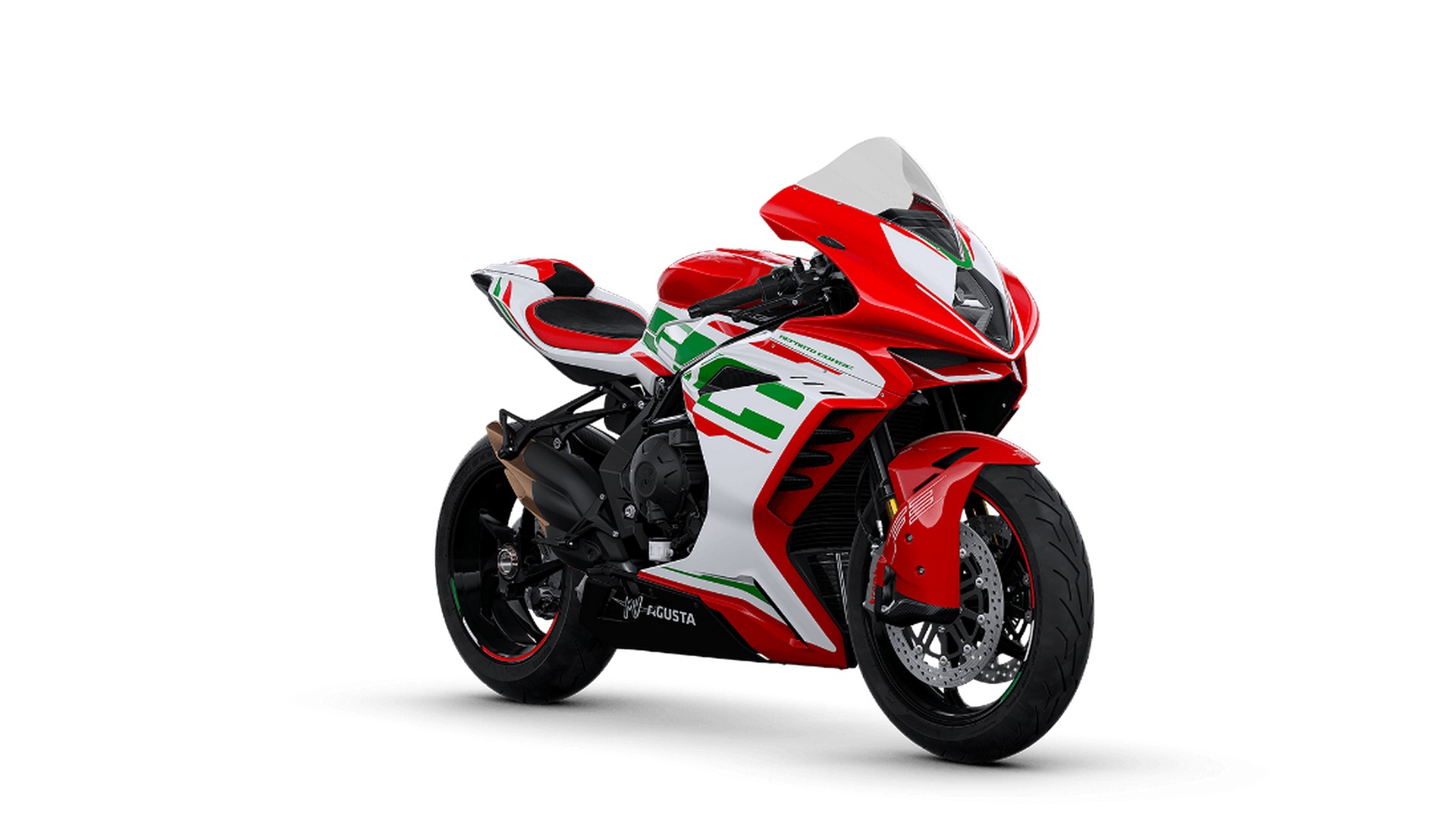

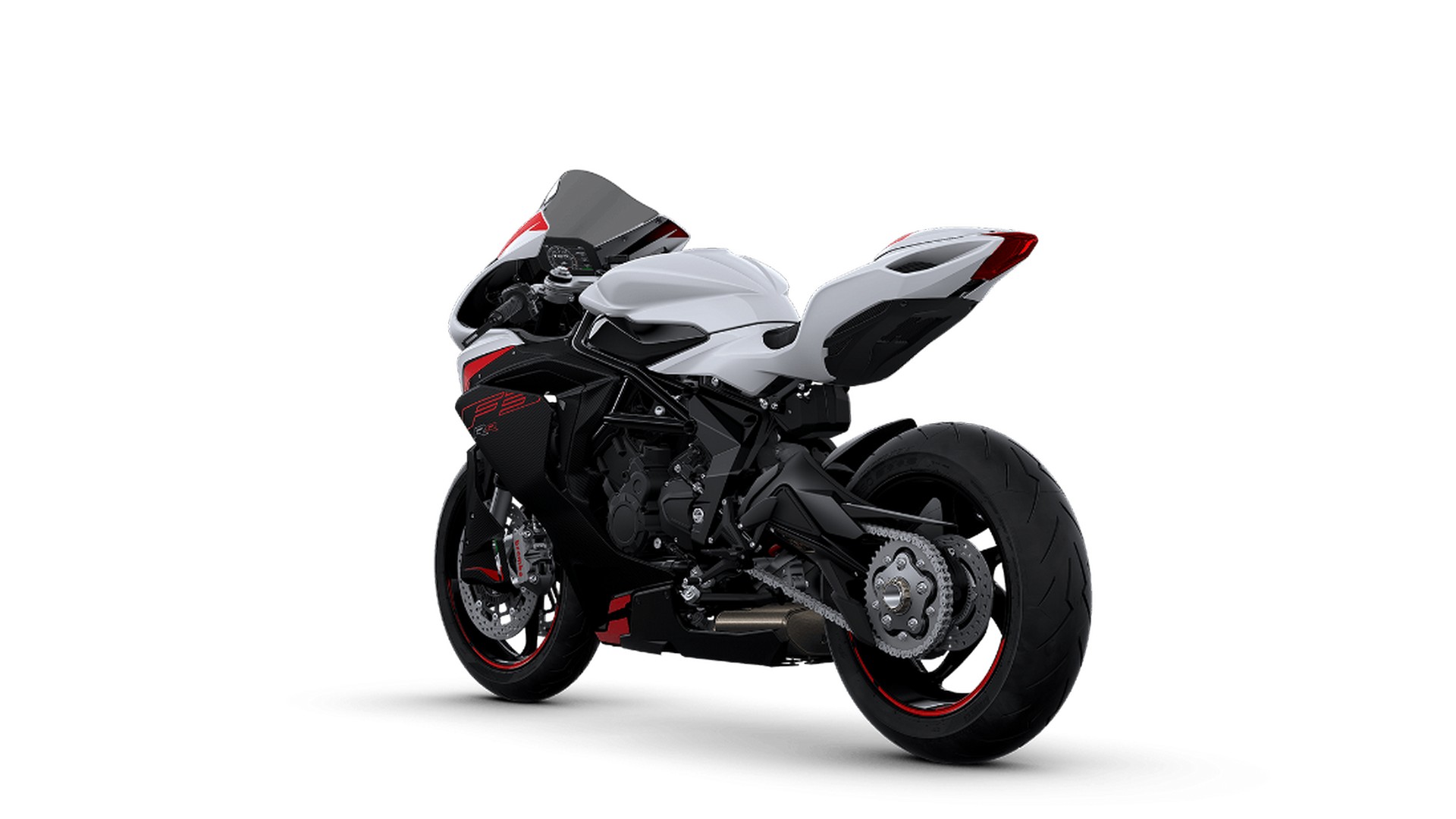

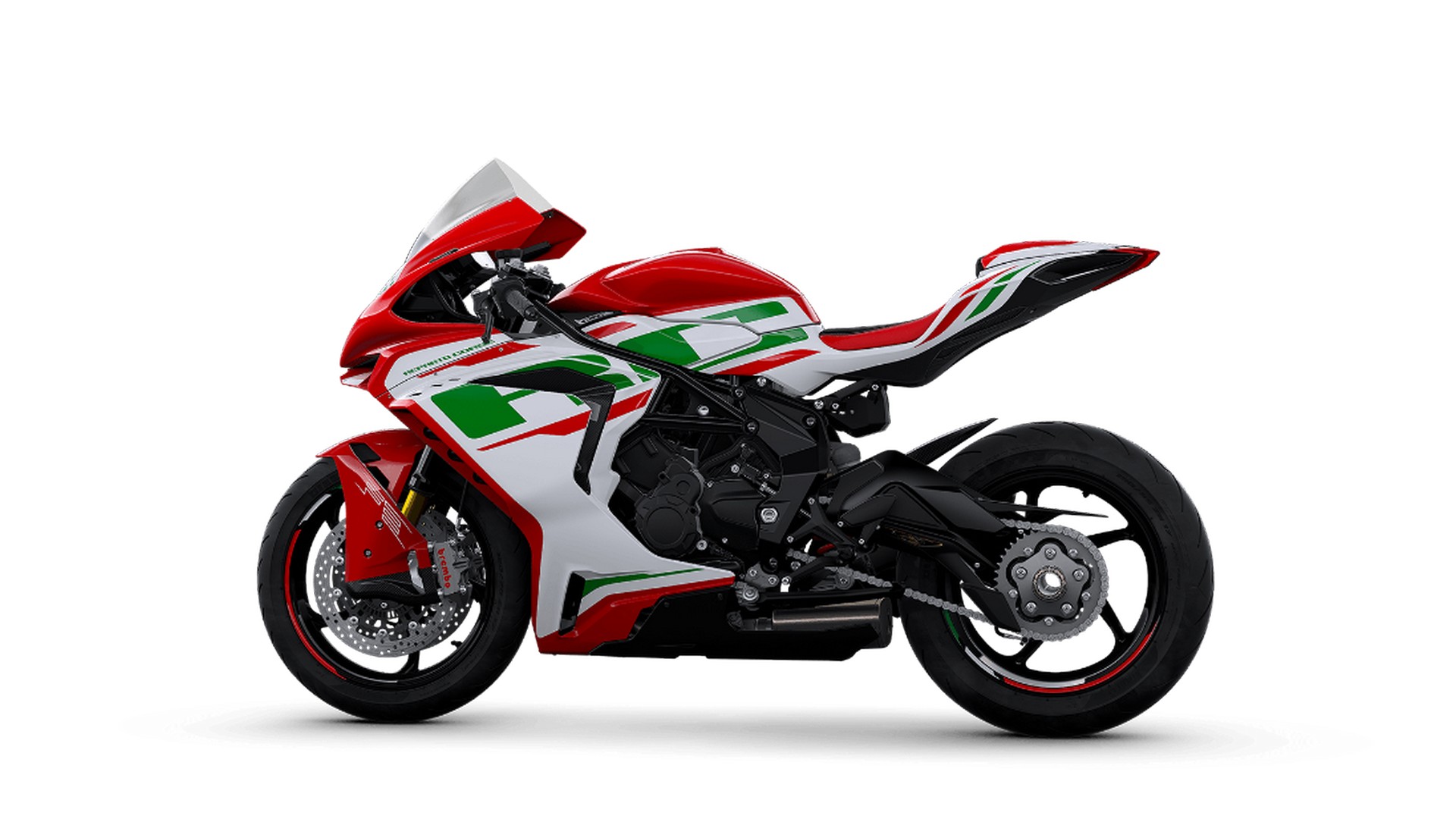

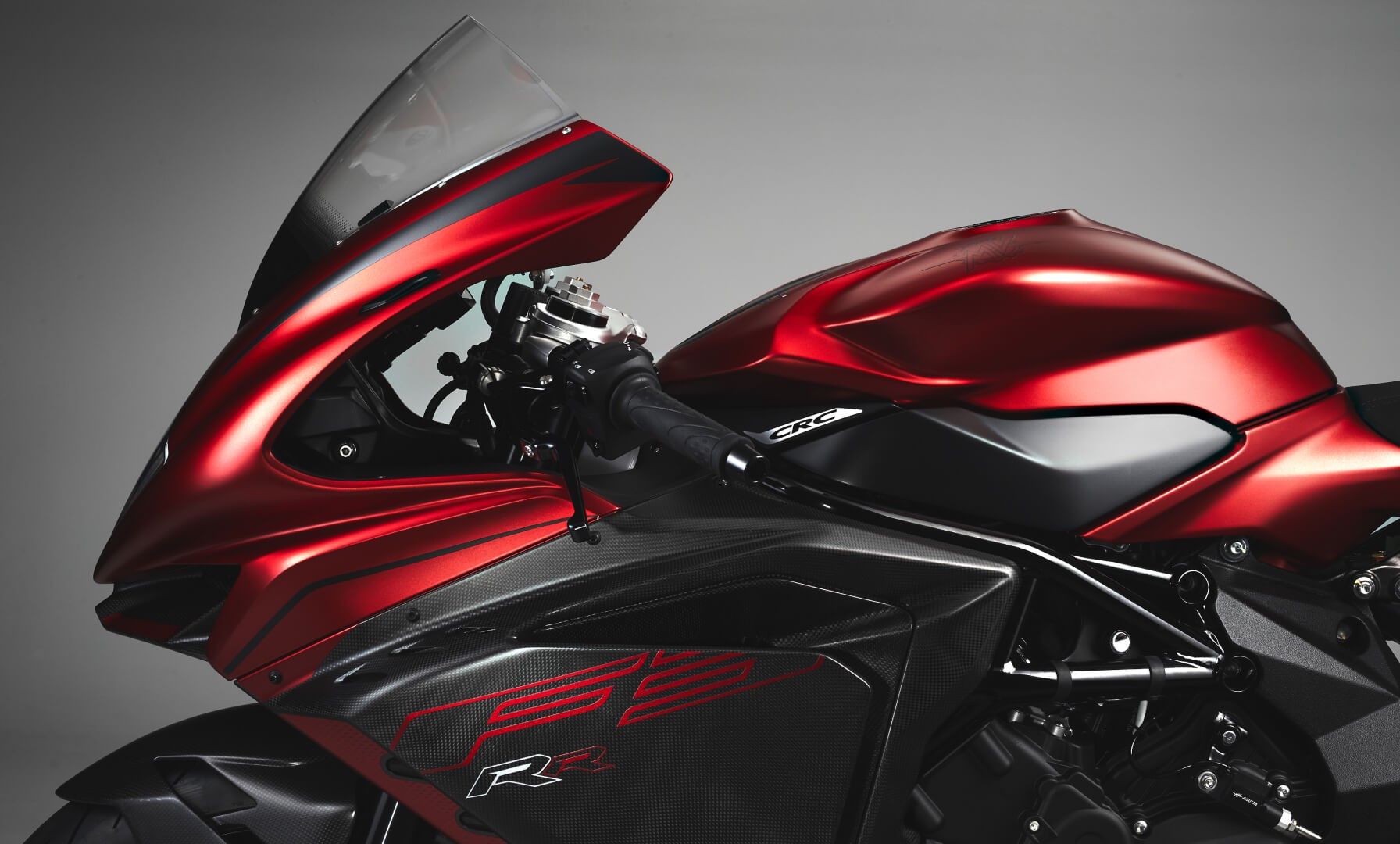

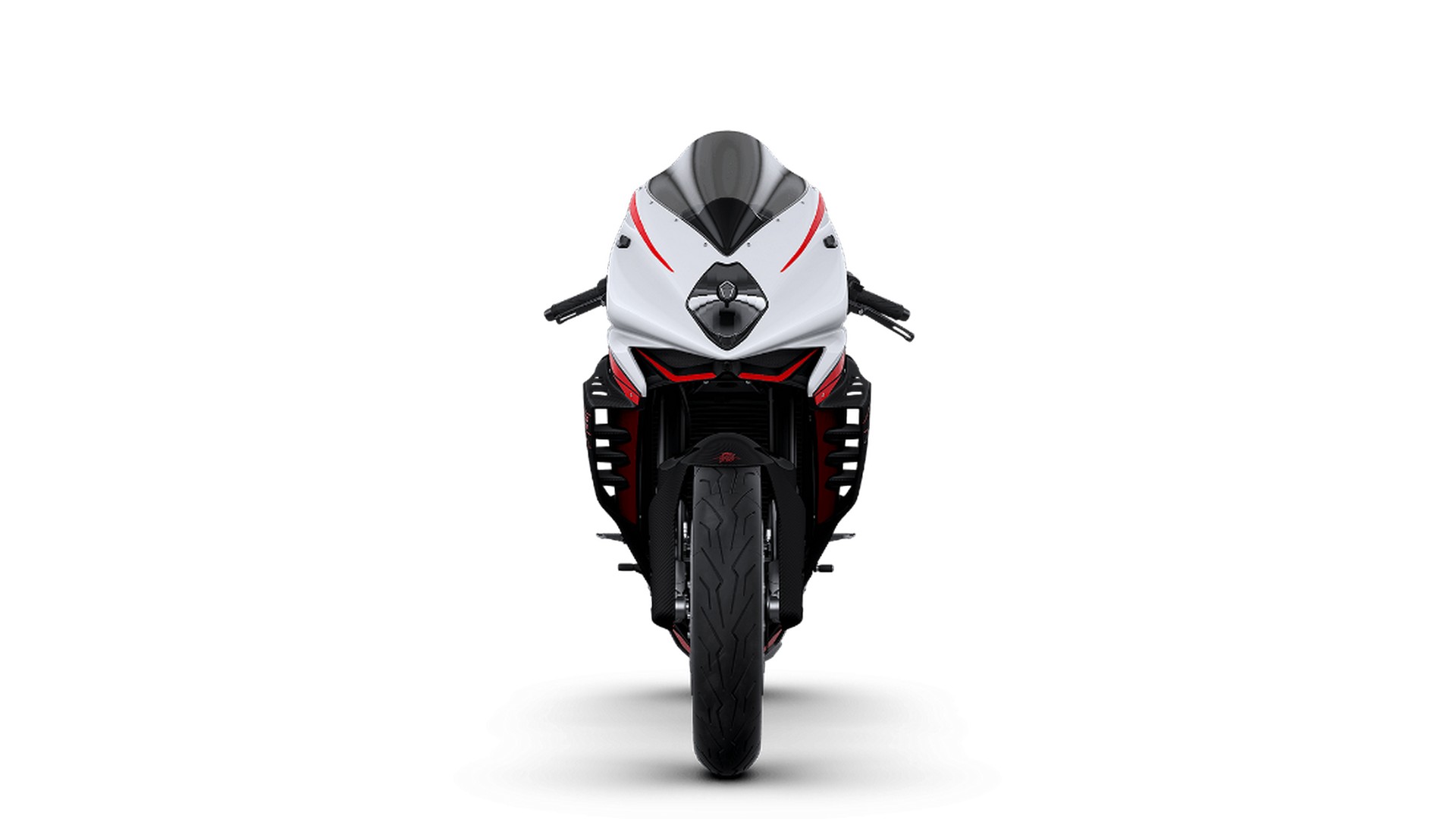

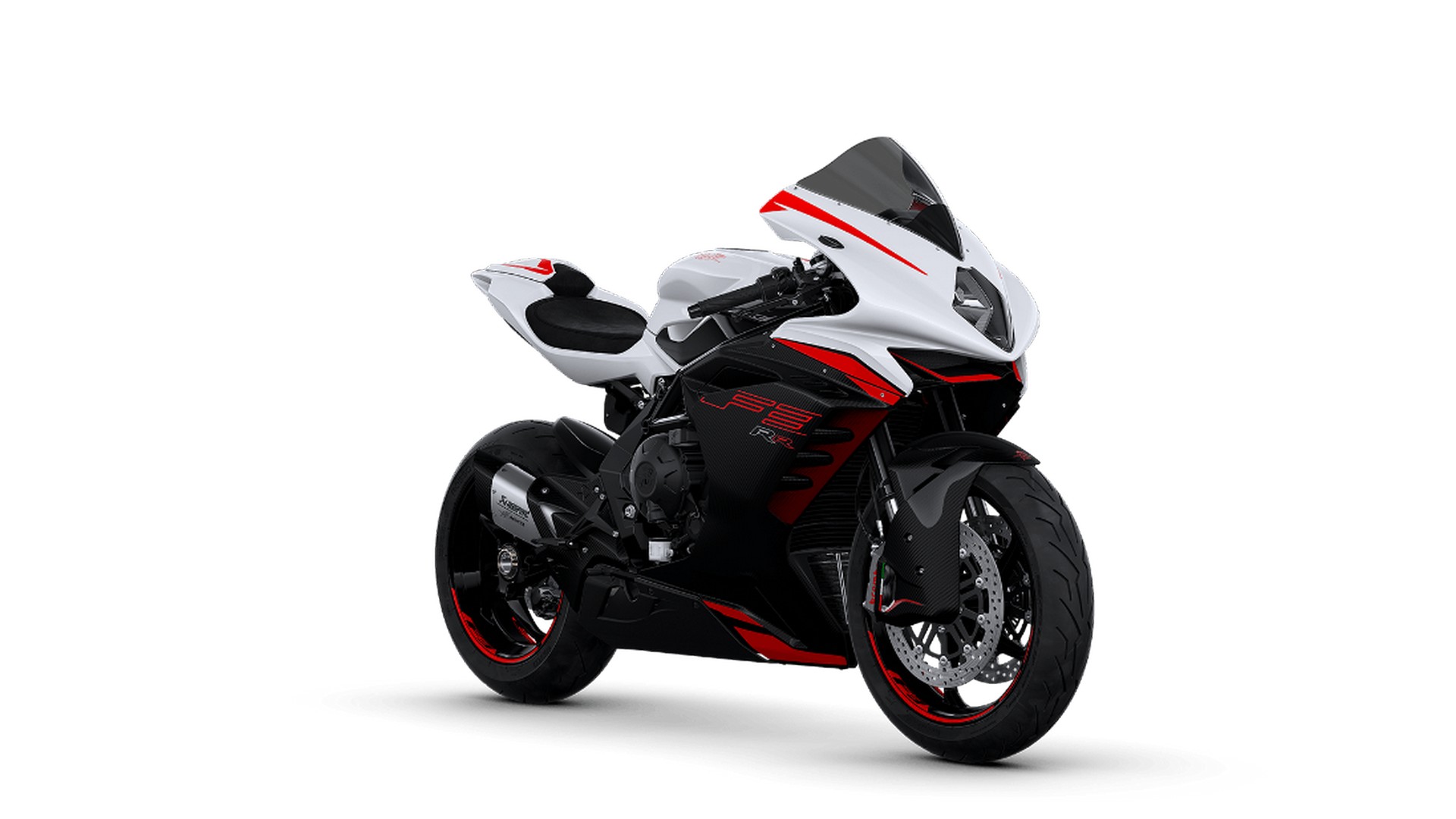

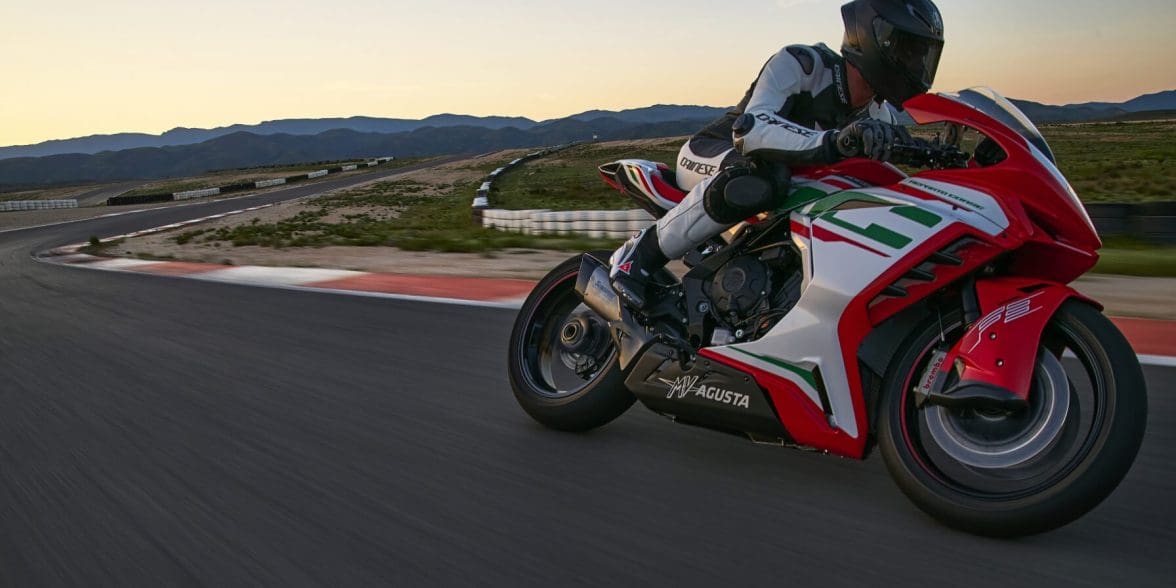

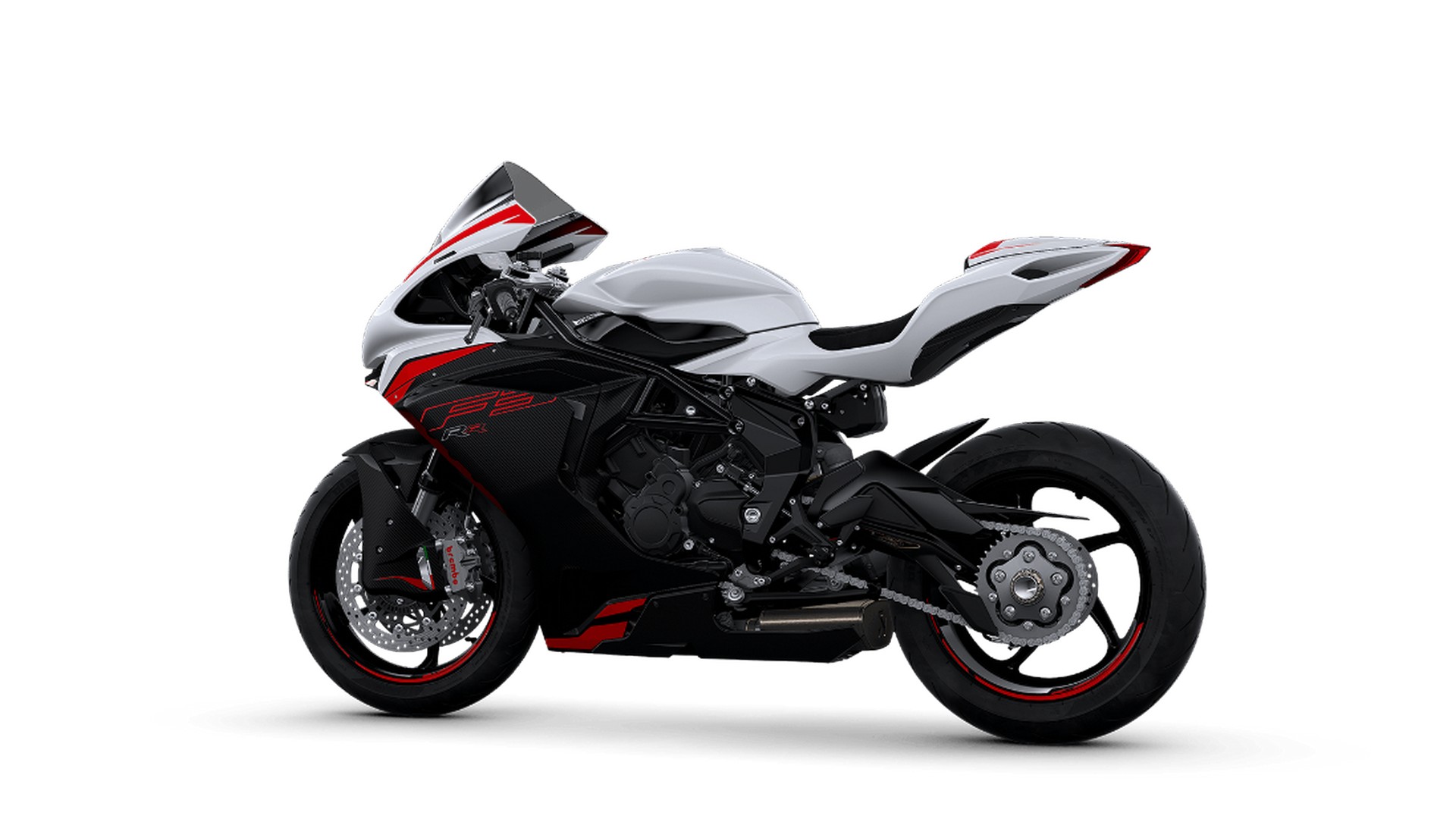

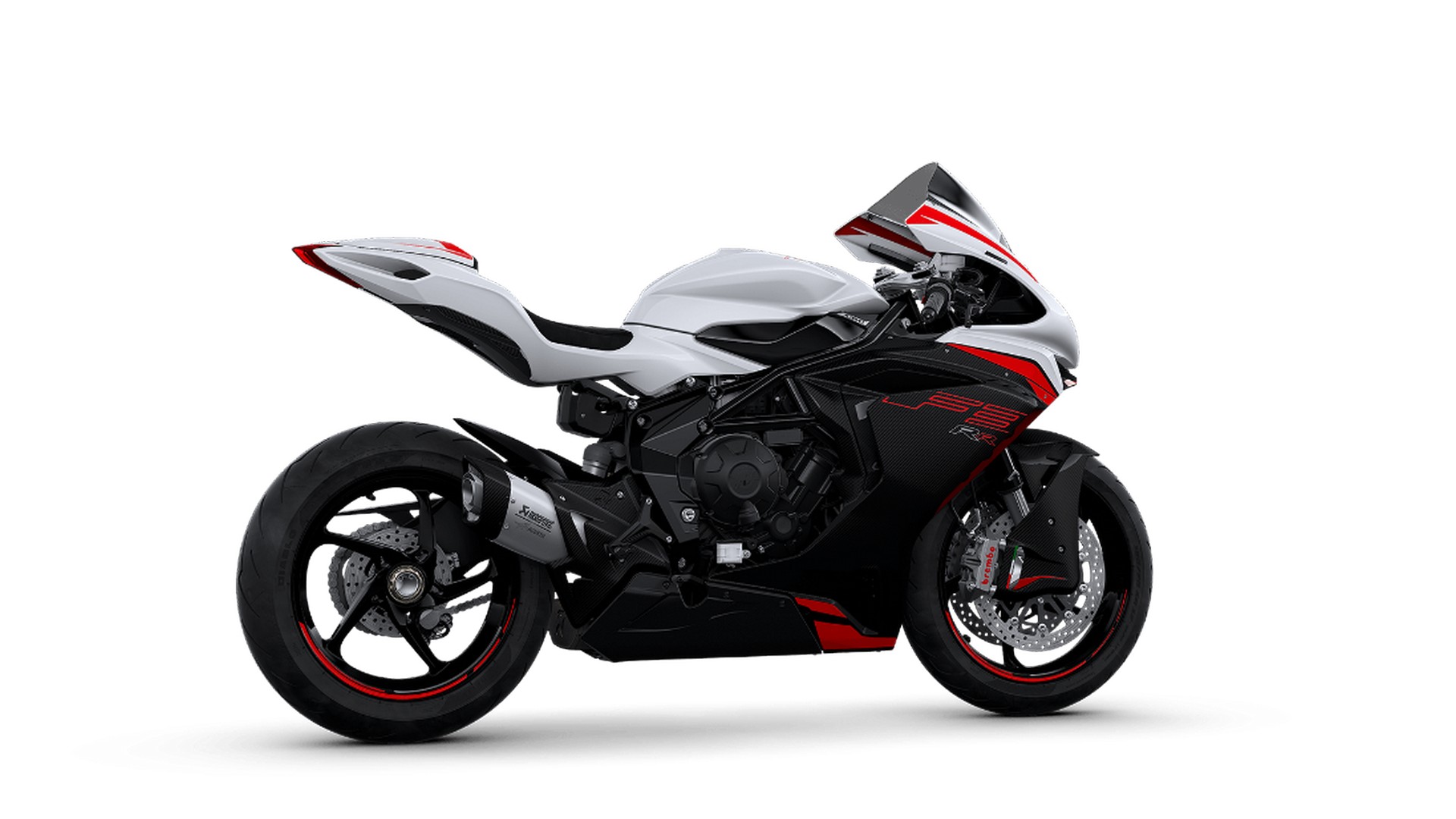

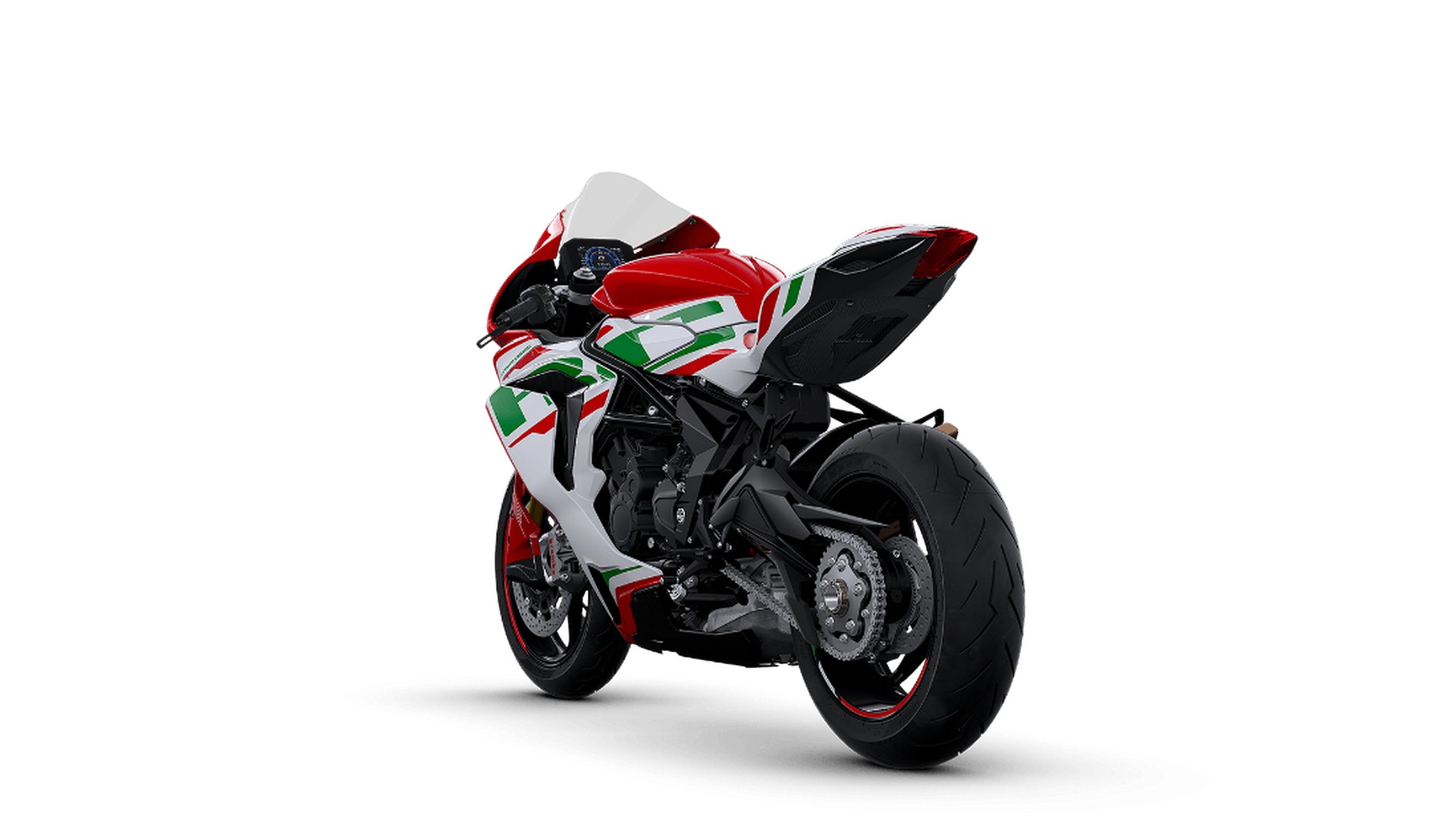

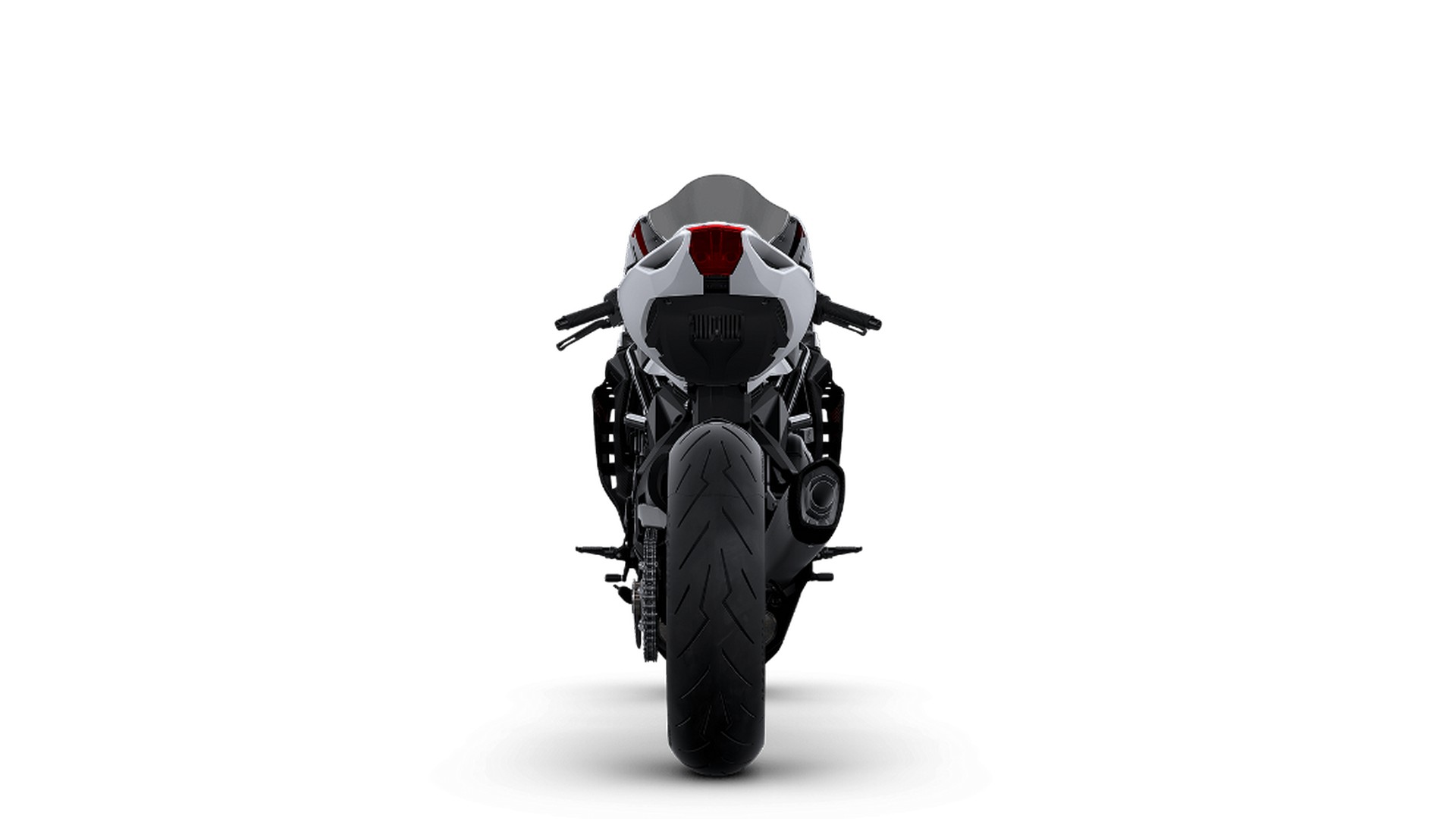

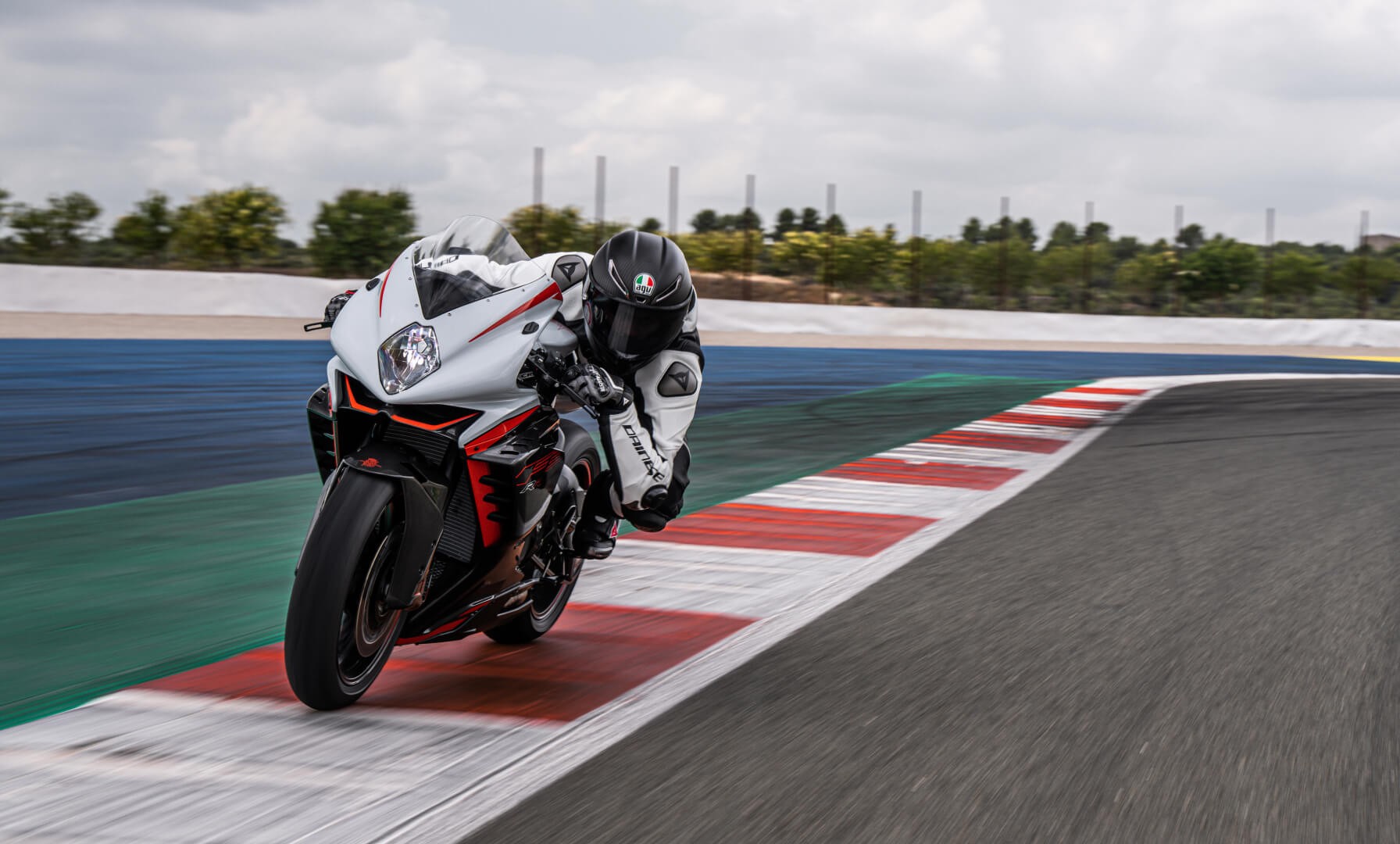

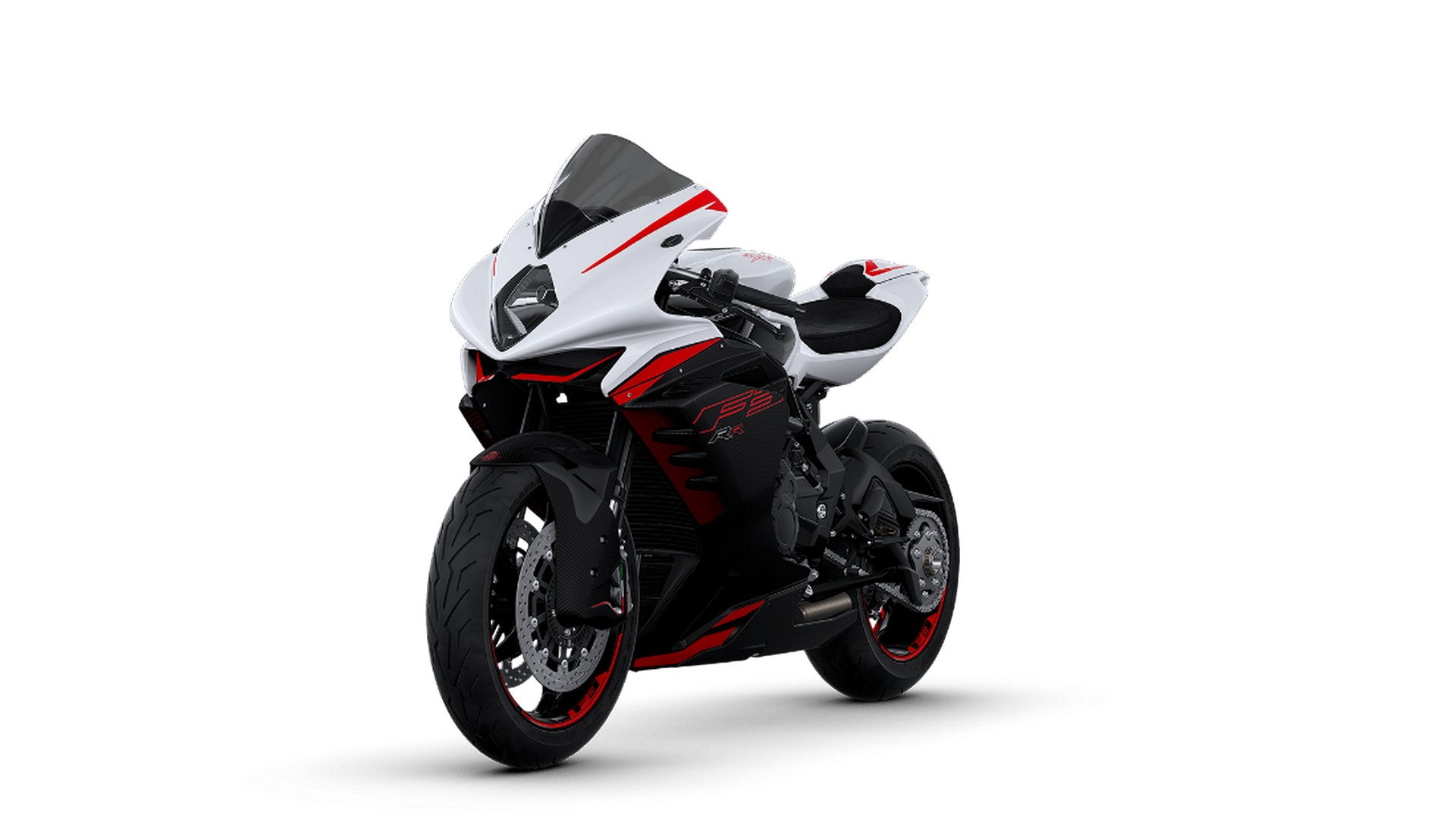

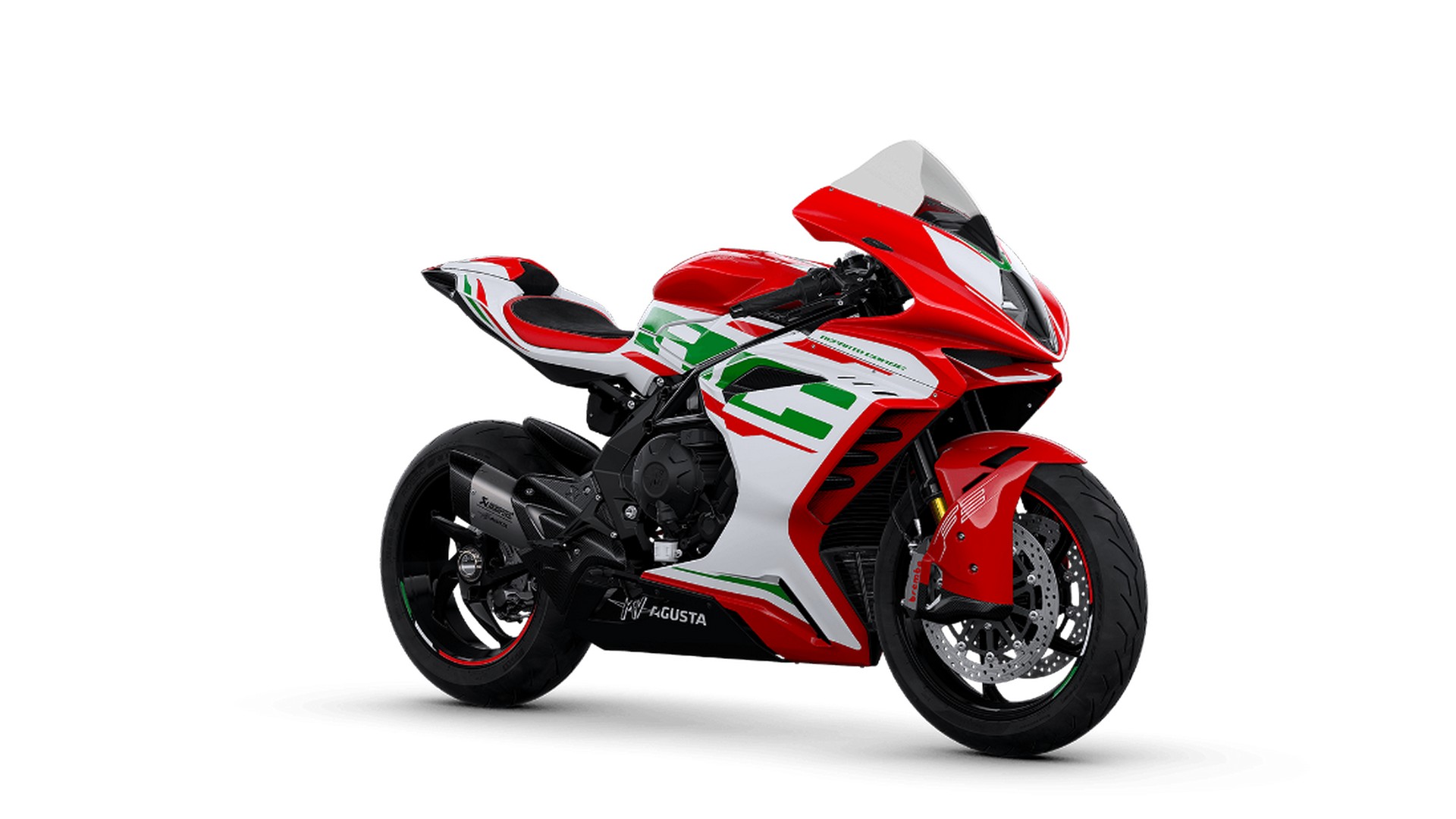

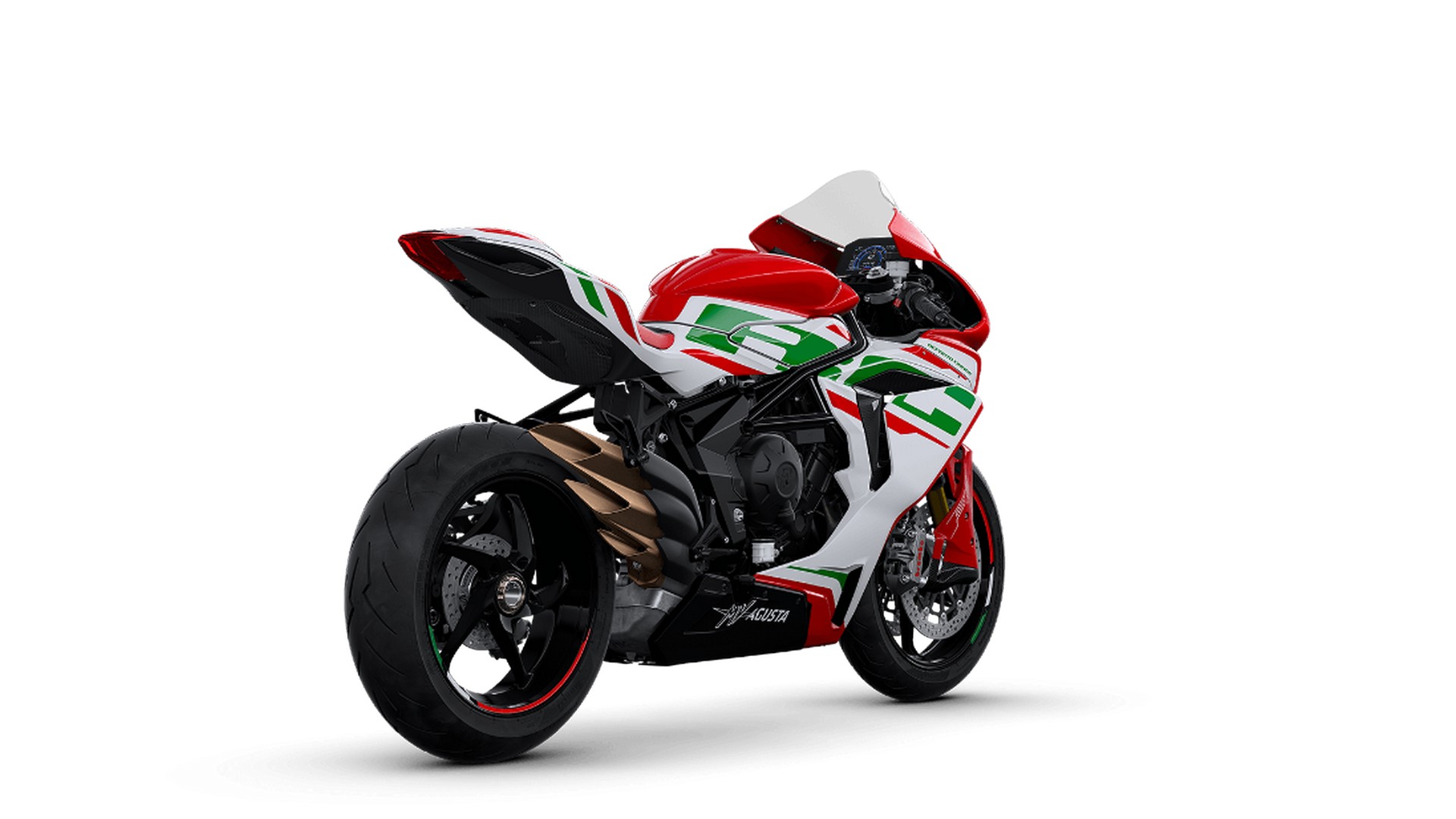

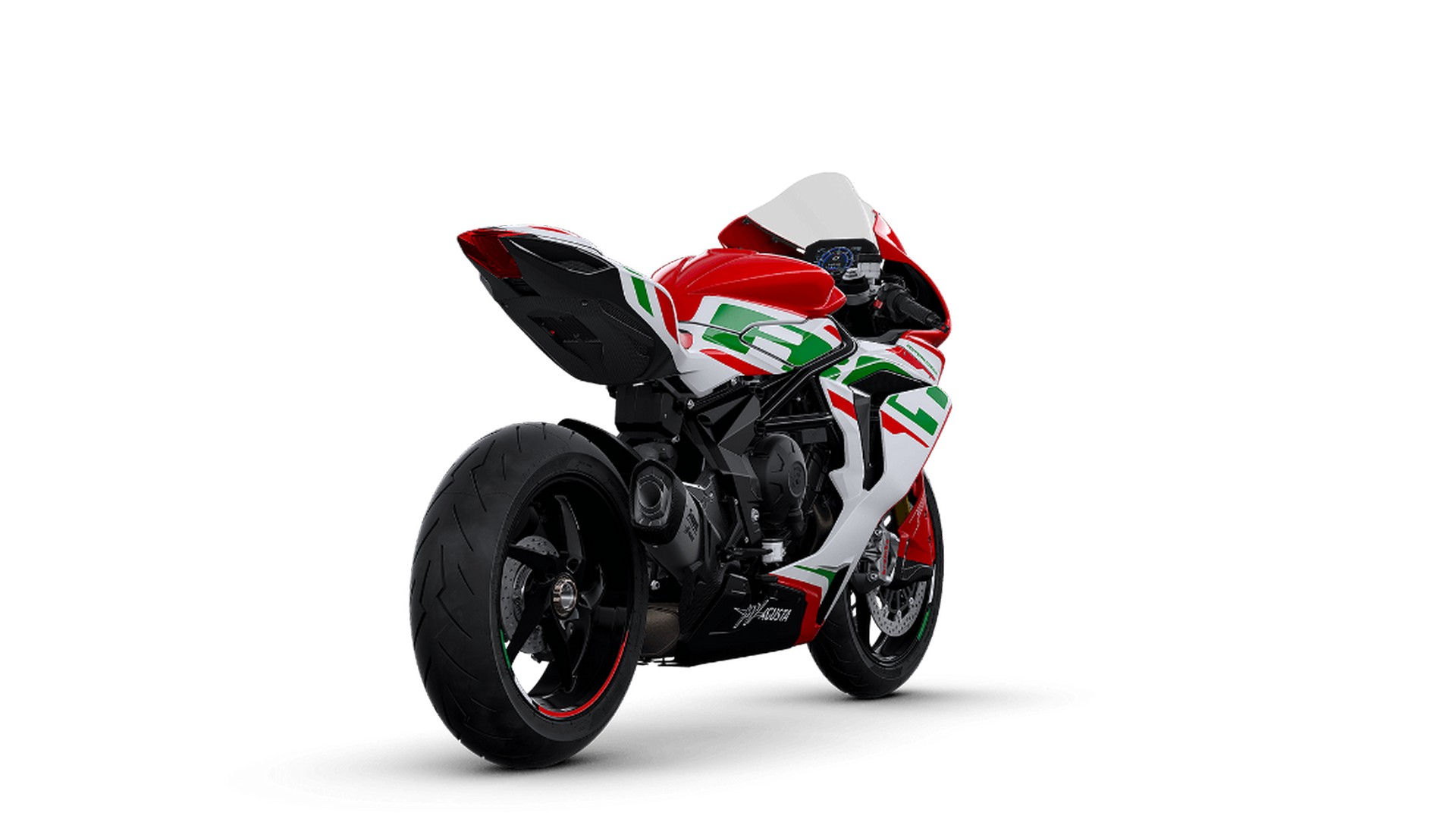

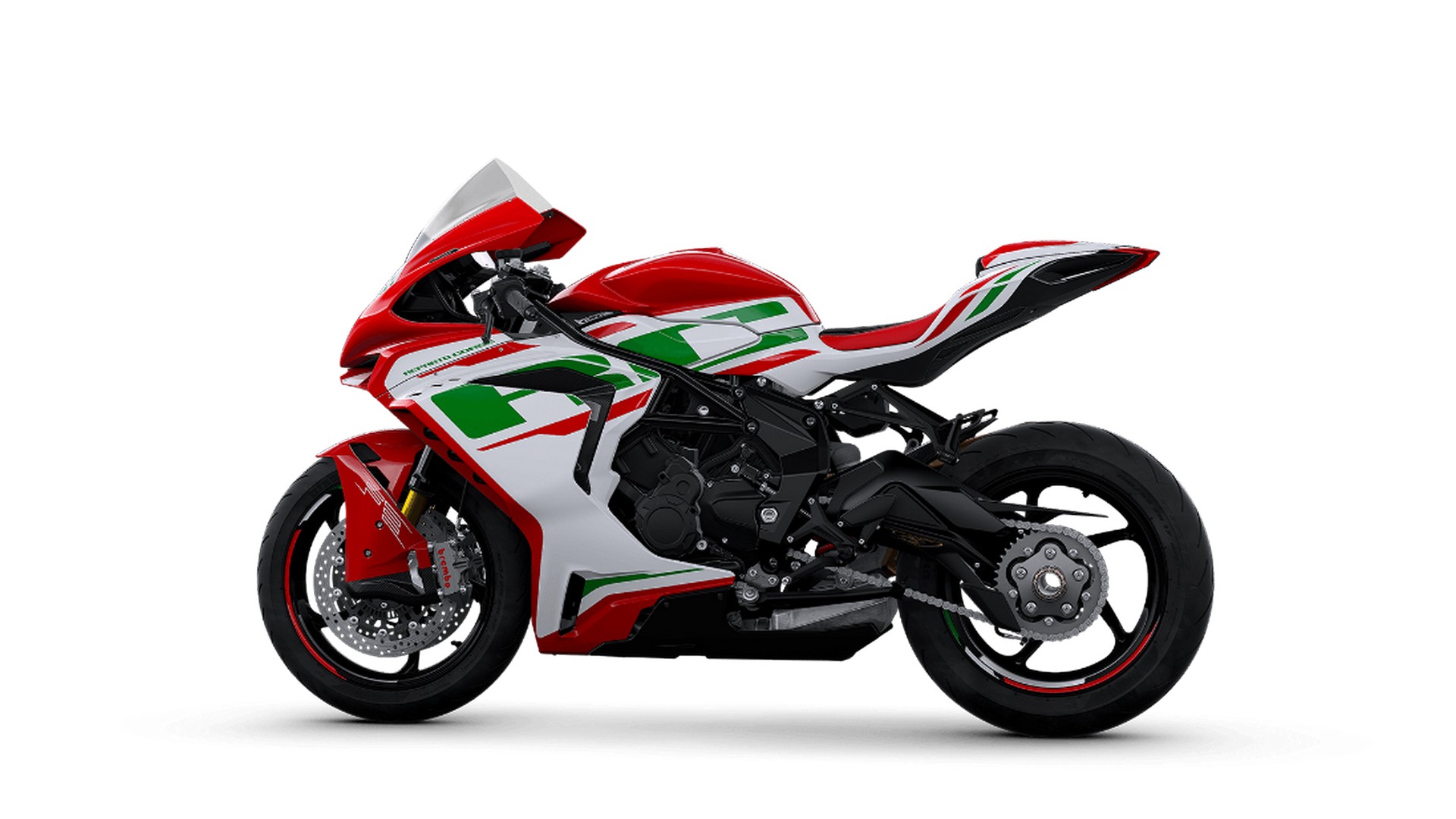

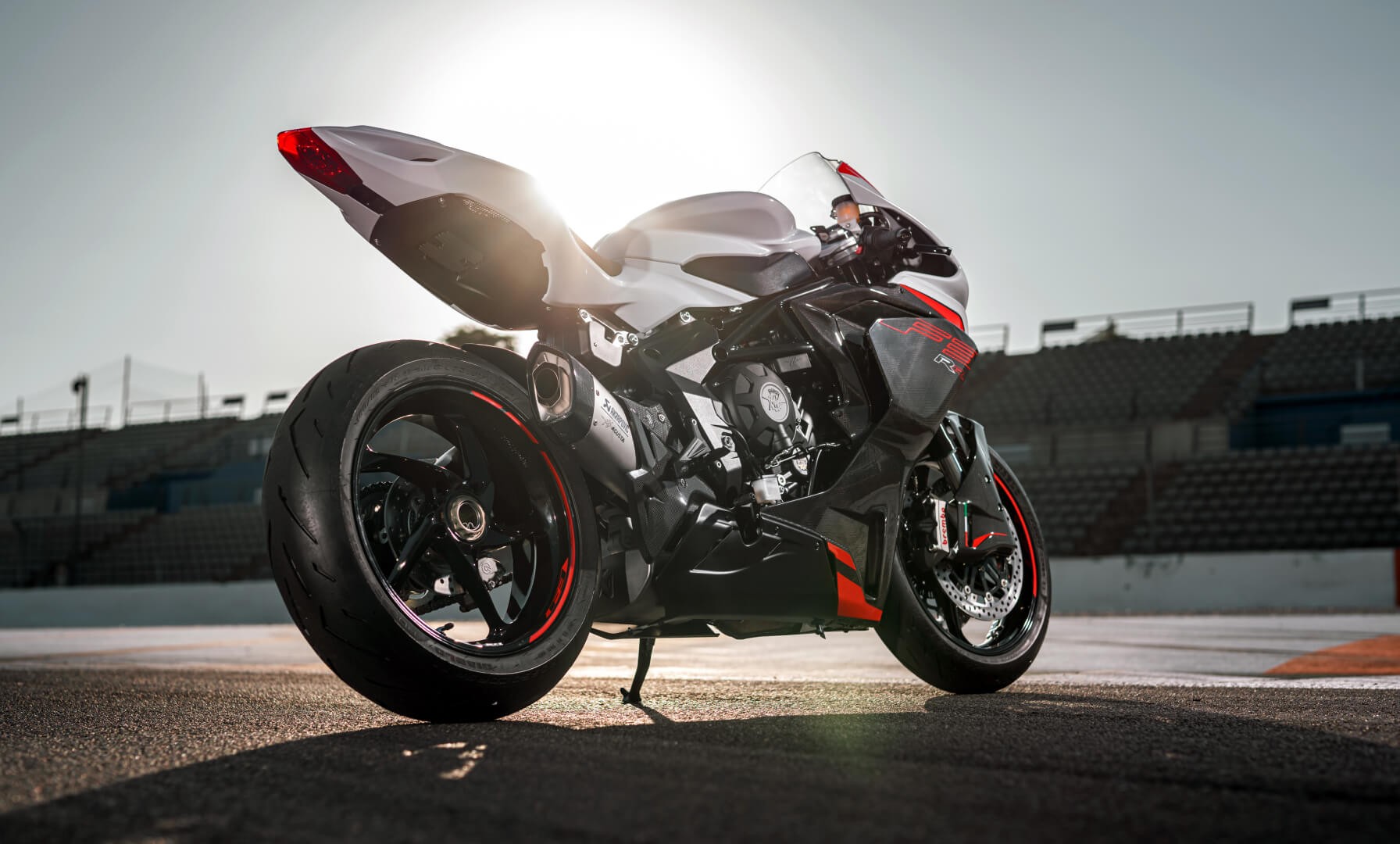

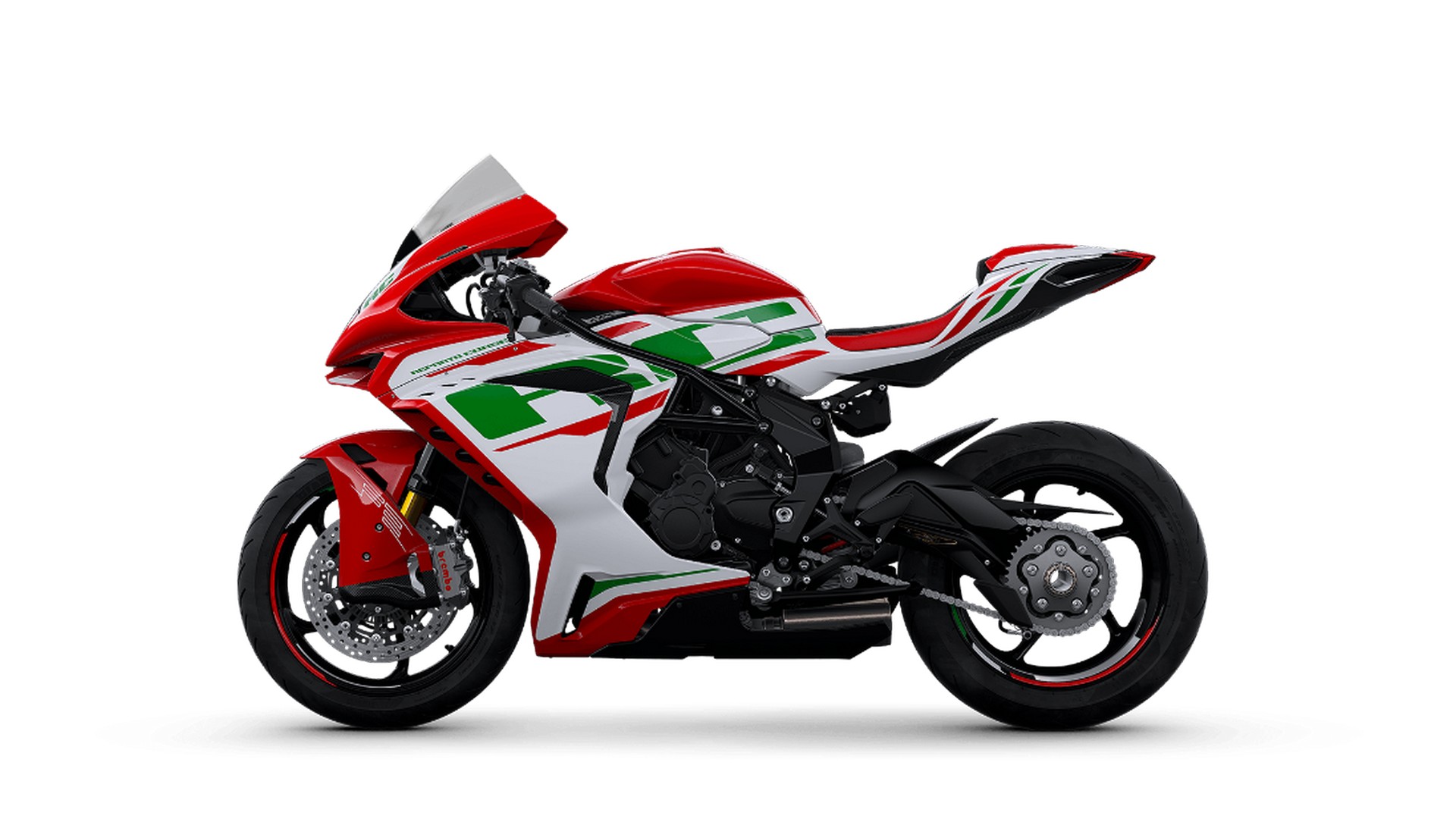

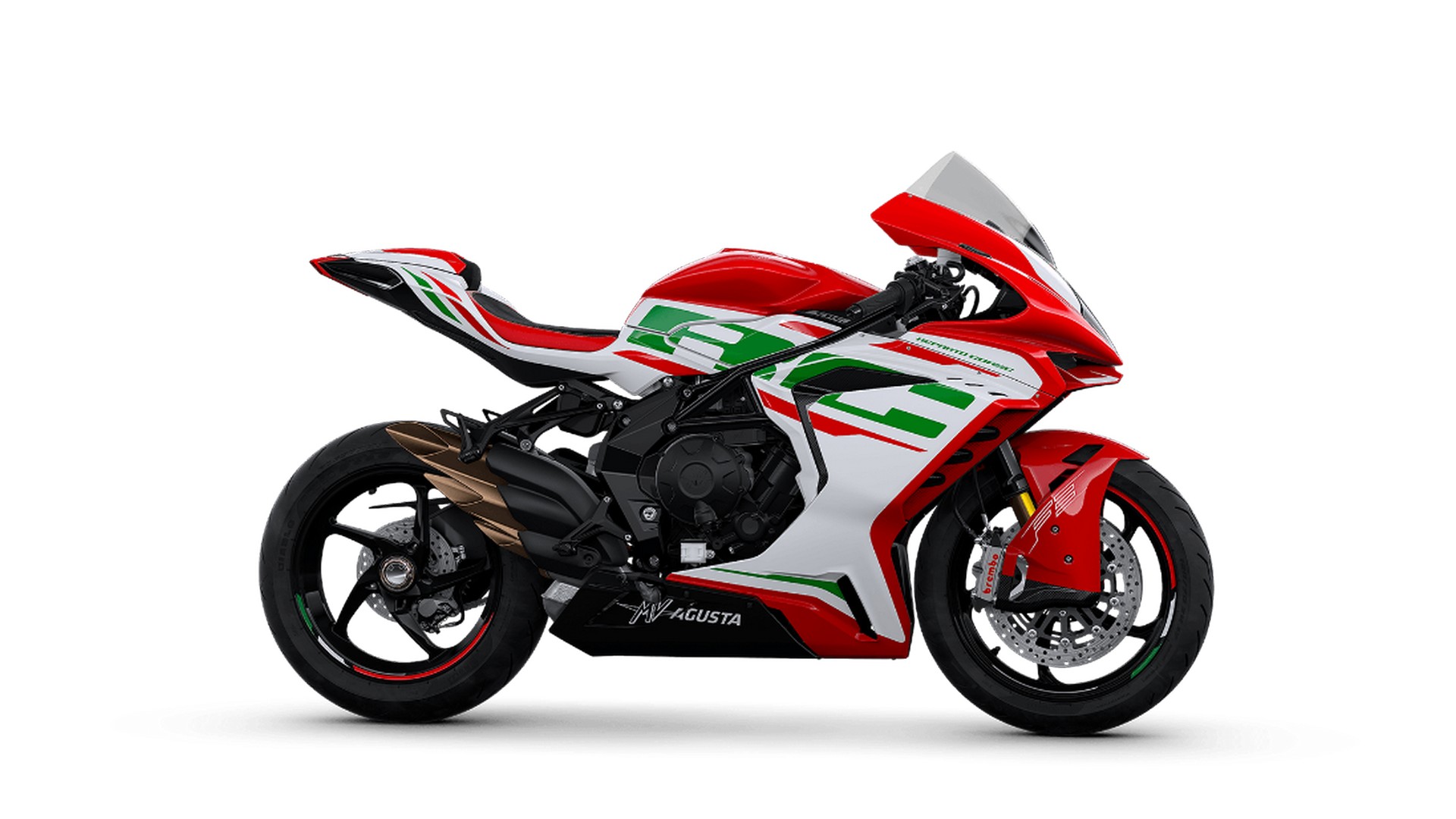

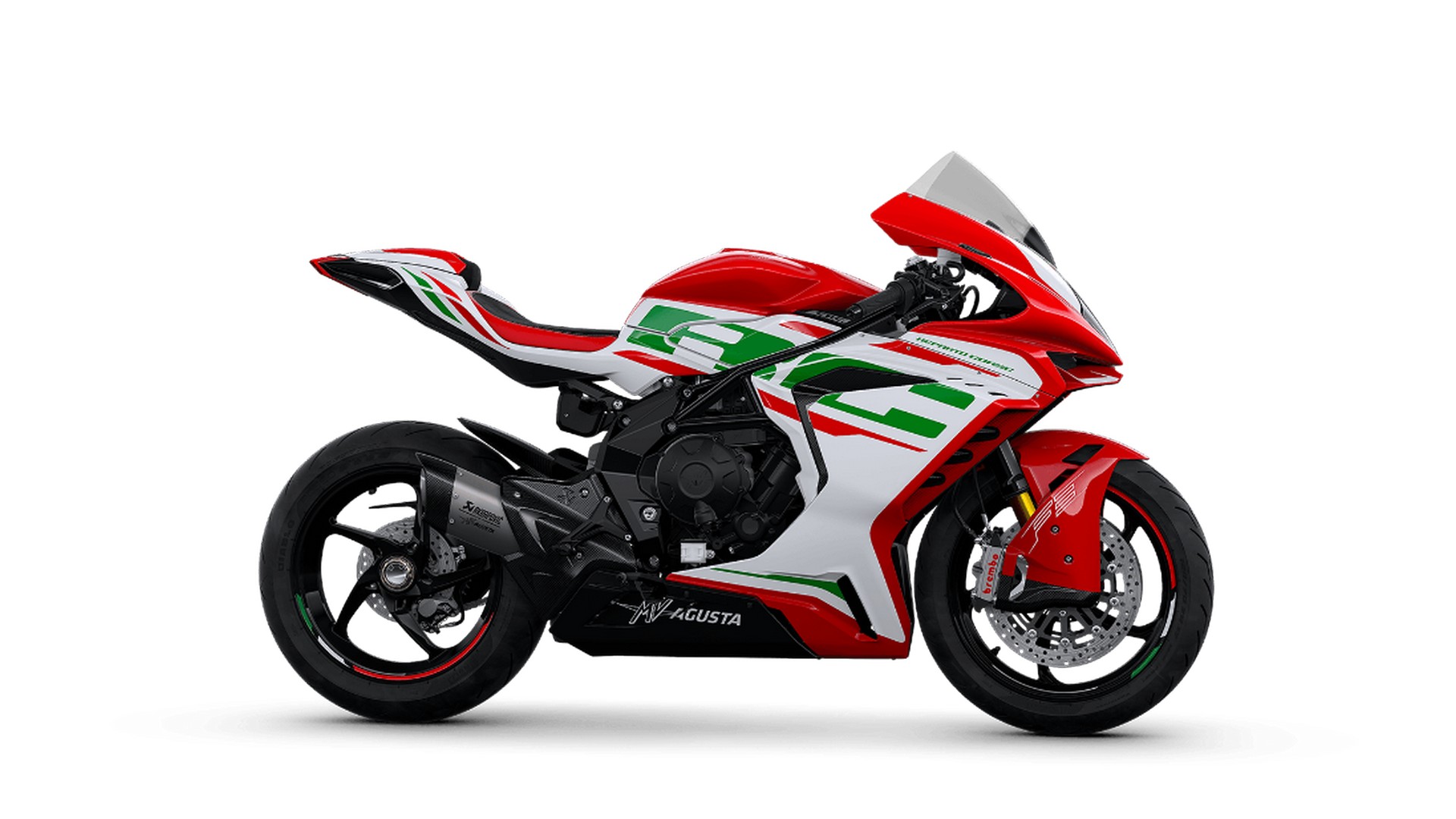

Keeping the tradition of Italian motorcycle manufacturers, these bikes look amazing and each model has its own color scheme available. The F3 RR offers color options of Surreal White Gloss/Mamba Red Gloss and Fire Red Matt/Metallic Dark Gray Matt. In contrast, the F3 RC offers only the Pearl White/Ago Red/Emerald Green option.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 MV Agusta F3 RR / RC in one place.

Model Overview

General Info

Price: RR $26,998 USD, RC $28,498 USD / RR $29,148 CAD, RC $30,748 CAD
Key Features:
- 5.5″ TFT dashboard
- Continental ABS system with cornering function
- MV EAS 3.0 (Electronically Assisted Shift Up & Down)
- Marzocchi upside down fork with rebound/compression/spring preload

Main Specs

Engine: 798 cc Three cylinder, 4 stroke, 12 valve
Power: 147 horsepower
Torque: 64 ft-lbs
Weight: RR 381 lbs (173 kgs), RC 363 lbs (165 kgs)
Seat Height: 32.6 inches (830 mm)

Competitors

2023 MV Agusta F3 RR / RC Specifications

From MV Agusta

ENGINE
Engine	798 cm3 (48.7 cu. in.), Three cylinders, 4 stroke, 12 valves
Power	147 Hp
Bore x Stroke	79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Compression Ratio	13.3:1
Timing system	“D.O.H.C” with mechanical chain tensioner and DLC tappet
Starter	Electric
Color
DRIVETRAIN
Clutch	Wet, multi-disc slipper clutch
Transmission	Cassette style; six speed, constant mesh
Final Drive Ratio	17/43
CHASSIS
Suspension Front	Marzocchi “upside-down” telescopic hydraulic fork with TiN low friction treatment; external compression, rebound and spring preload adjustment
Suspension Rear	Progressive, Sachs single shock absorber with rebound and compression damping and spring preload adjustment
Brakes Front	Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange
Brakes Rear	Single steel disc with Ø 220 mm (Ø 8.66 in.) dia
Tires Front	120/70 – ZR 17 M/C (58 W)
Tires Rear	180/55 – ZR 17 M/C (73 W)
Fuel Tank Capacity	16,5 l (4.36 U.S. gal.)
ABS System	Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
ELECTRICAL
Battery	12 V – 8.6 Ah
Voltage	12 V
Alternator	350 W at 5.000 r.p.m.
Headlight
Tail Light
DIMENSIONS
Overall Length	2.030 mm (79.92 in.)
Overall Width	730 mm (28.74 in.)
Trail	99 mm (3.89 in.)
Wheelbase	1.380 mm (54.33 in.)
Ground Clearance	120 mm (4.72 in.)
Seat Height	830 mm (32.68 in.)
Dry Weight	173 kg (381.4 lbs.) – 165 kg (363,8 lbs.)
WARRANTY
Warranty
Extension

2023 MV Agusta F3 RR / RC Features

The electronics of the F3 RR exploit an advanced IMU inertial platform, conceived exclusively for MV Agusta and intended to provide all the data required for the efficient operation of the numerous controls, based on the lean angle and many other parameters. So safety and performance are always one and the same.

The bike-rider interface gains a throttle control with counter rotation to make control in mid turn more natural and to cancel out the on-off effect. The instrumentation with a 5.5″ TFT panel dialogues with the MV Ride app, which lets you record and share trips, personalise your bike from your smartphone and obtain turn by turn navigation.

The ABS, provided by Contine tal, features a cornering function to ensure safety even in turns. The traction control intervenes in a particularly precise way, also bas on the bike’s lean angle. The FLC (front lif control) not only prevents tipping over but, based on the angular velocity, it manages wheelies to provide fun, safety and performance.
