2023 MV Agusta F3 Rosso [Specs, Features, Photos]

Last updated:July 21, 2023

MV Agusta F3 Rosso 2023: A Masterclass In Performance And Style

Model Overview
Specifications
Features
Photos
Videos
Links

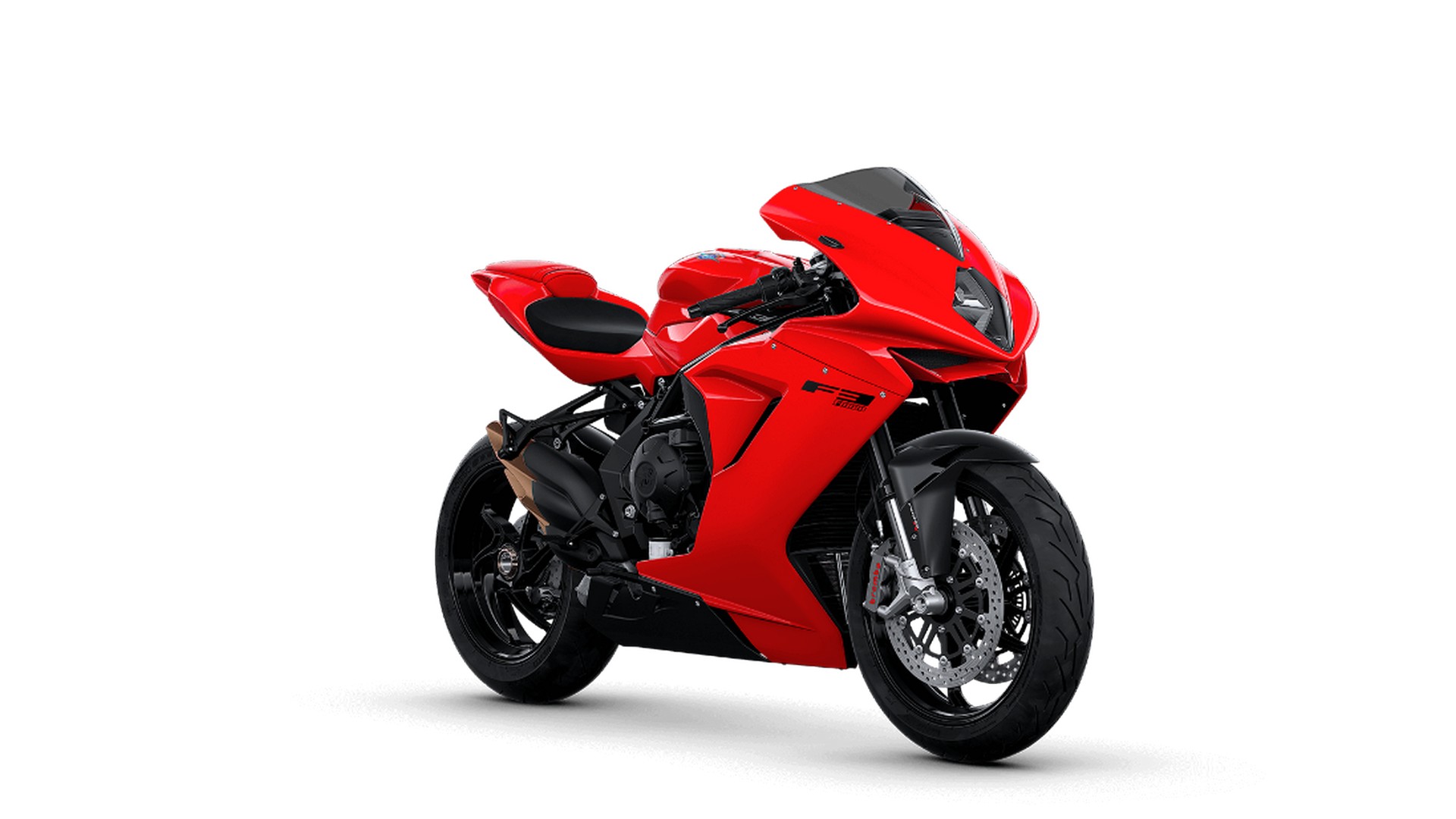

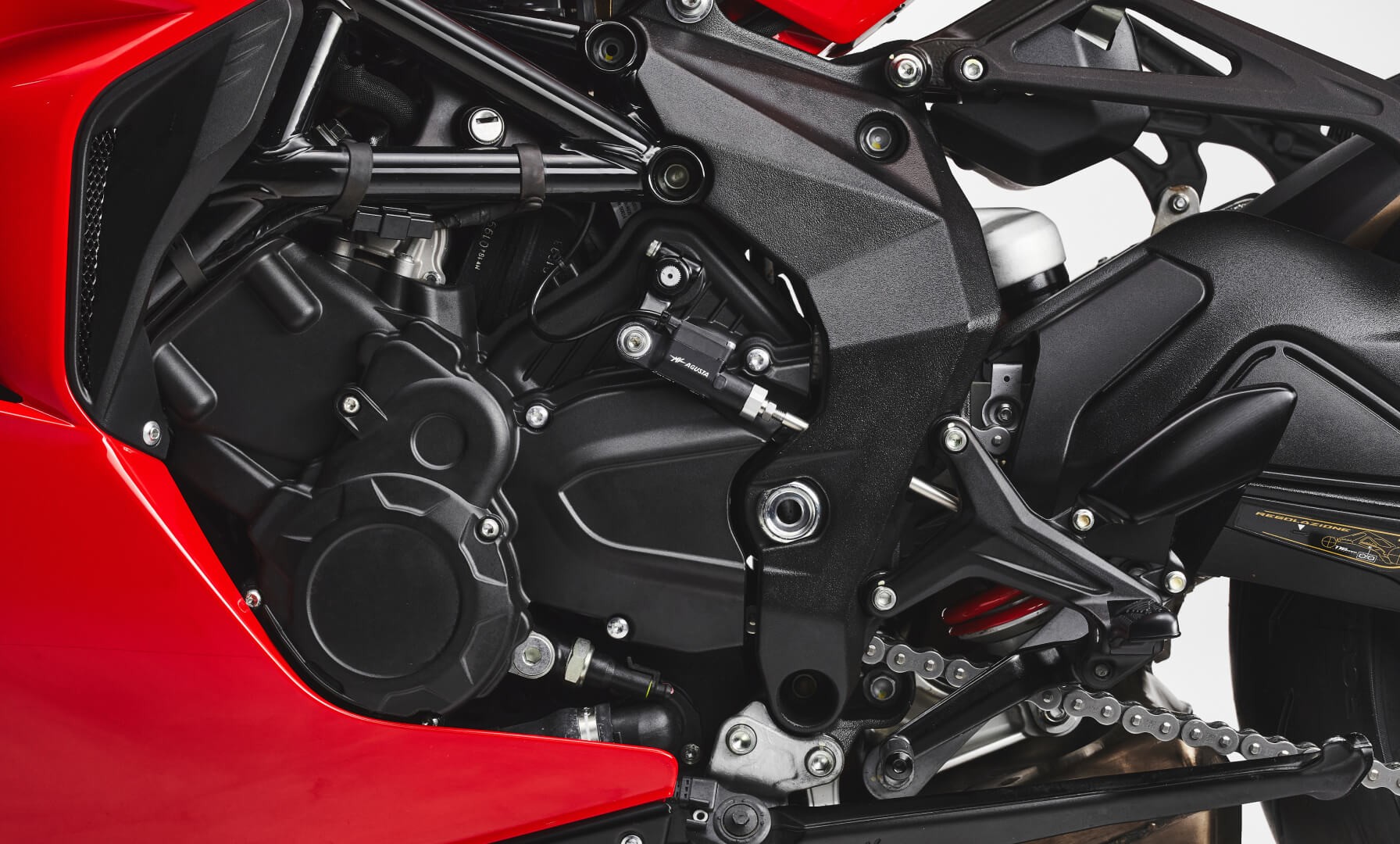

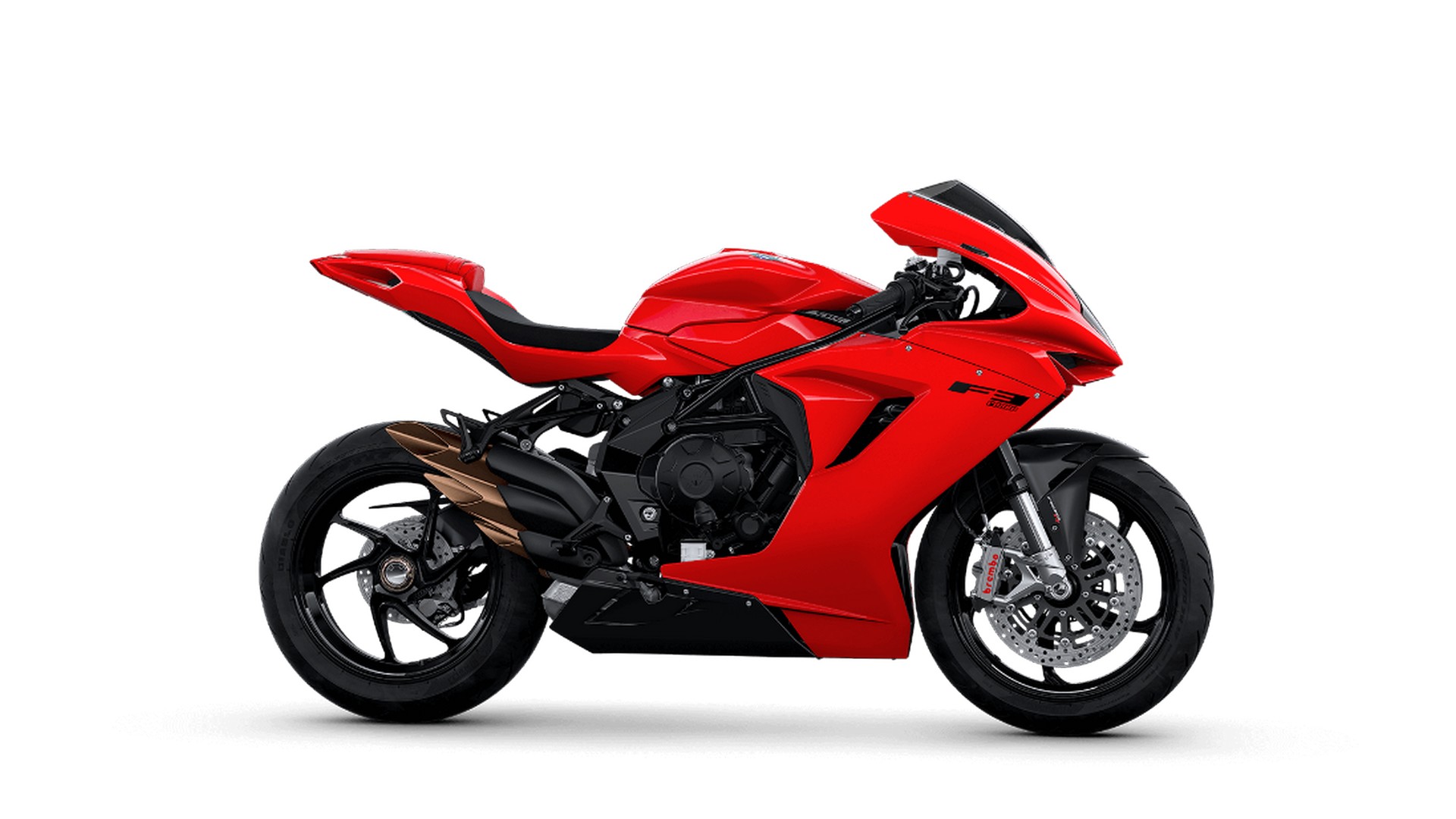

For 2023 MV Agusta has included their legendary racing bike, the F3. The Rosso version is a motorcycle that’s as much a work of art as the Italian bikes are known for and is an engineering marvel. Starting with the engine which is a three-cylinder, four-stroke, 12-valve powerhouse putting out 147 horsepower. The engine management system is an amazing collection of technology, featuring an integrated ignition-injection system and six injectors. The liquid and oil cooling system ensures the engine performs optimally, while the integrated ignition-injection system provides smooth and responsive power delivery. The F3 Rosso also features an electronic quick-shift system, which allows for seamless gear shifting both up and down of the cassette-style, six-speed transmission.

The bike is built around an ALS steel tubular trellis frame, with rear swing arm pivot plates made from aluminum alloy for a strong and rigid structure. The front suspension is a Marzocchi upside down fork, while the rear suspension features a progressive Sachs single shock. The single-sided swing arm is also made from aluminum alloy, providing a sturdy yet lightweight construction.

The braking system is equally impressive, with a double floating disc at the front and a single steel disc at the rear, both fitted with Brembo calipers. The Continental ABS system, complete with a cornering function, ensures the bike stays stable and safe, even in high-speed corners. It’s also equipped with a Continental MK100 ABS system with RLM and cornering function, enhancing safety on both roads and track.

Using technology found in other bikes in the MV lineup, the F3 Rosso features an impressive 5.5-inch TFT dashboard, cruise control, launch control, Bluetooth, GPS, and the MV Ride App for navigation mirroring and rider aids setup. This makes it easier for riders to manage riding parameters and choose engine maps. The wide range of information available, the ease of selection, and the possibility of managing numerous parameters directly from a smartphone via the MV Ride App contribute to a fun and engaging ride.

The 2023 MV Agusta F3 Rosso starts at $18,998 USD/$20,448 CAD

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 MV Agusta F3 Rosso in one place.

Model Overview

General Info

Price: $18,998 USD/$20,448 CAD
Key Features:
- 5.5″ TFT dashboard
- Continental ABS system with cornering function
- MV EAS 3.0 (Electronically Assisted Shift Up & Down)
- Marzocchi upside down fork with rebound/compression/spring preload

Main Specs

Engine: 798 cc Three cylinder, 4 stroke, 12 valve
Power: 147 horsepower
Torque: 64 ft-lbs
Weight: 381 lbs (173 kgs)
Seat Height: 32.6 inches (830 mm)

Competitors

2023 MV Agusta F3 Rosso Specifications

From MV Agusta

ENGINE
Engine	798 cm3 (48.7 cu. in.), Three cylinders, 4 stroke, 12 valves
Power	147 Hp
Bore x Stroke	79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Compression Ratio	13.3:1
Timing system	“D.O.H.C” with mechanical chain tensioner and DLC tappet
Starter	Electric
Color
DRIVETRAIN
Clutch	Wet, multi-disc slipper clutch
Transmission	Cassette style; six speed, constant mesh
Final Drive Ratio	17/43
CHASSIS
Suspension Front	Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Suspension Rear	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Brakes Front	Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and flange
Brakes Rear	Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Tires Front	120/70 – ZR 17 M/C (58 W)
Tires Rear	180/55 – ZR 17 M/C (73 W)
Fuel Tank Capacity	16,5 l (4.36 U.S. gal.)
ABS System	Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
ELECTRICAL
Battery	12 V – 8.6 Ah
Voltage	12 V
Alternator	350 W at 5.000 r.p.m.
Headlight
Tail Light
DIMENSIONS
Overall Length	2.030 mm (79.92 in.)
Overall Width	730 mm (28.74 in.)
Trail	99 mm (3.89 in.)
Wheelbase	1.380 mm (54.33 in.)
Ground Clearance	120 mm (4.72 in.)
Seat Height	830 mm (32.68 in.)
Dry Weight	173 kg (381.4 lbs.)
WARRANTY
Warranty
Extension

2023 MV Agusta F3 Rosso Features

The electronics have undergone a radical evolution, thanks to the new Made in Italy inertial platform and Continental ABS with cornering function. Traction control is even more sensitive and precise, as well as the wheelie control, which allows you to easily and efficiently manage the exuberance of the bike.

The instrumentation is rich, with a 5.5″ TFT dashboard as the interface between the electronics and the rider. The wide range of information available, the ease of selection and the possibility of managing numerous parameters directly from the smartphone via the MV Ride App contribute to making both riding and choosing engine maps and adjustments even more fun.

The ability to avoid locking even in corners makes the Continental ABS with cornering function a valuable ally on the road and on the track, gives the F3 Rosso all the safety possible, accompanied by braking performance on par with the best supersport bikes.
