2022 Triumph Bonneville T120 [Specs, Features, Photos]

2022 Triumph Bonneville T120

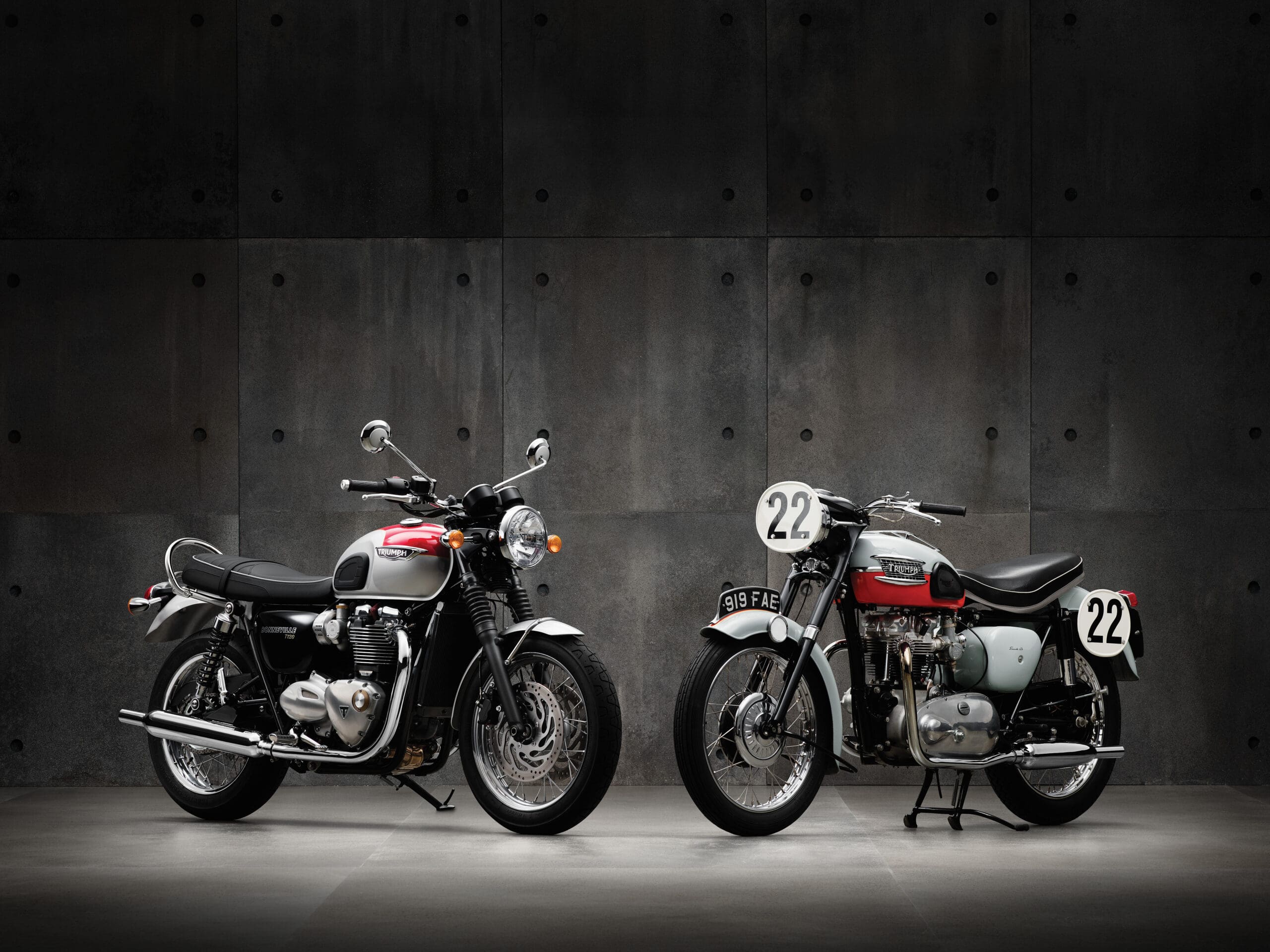

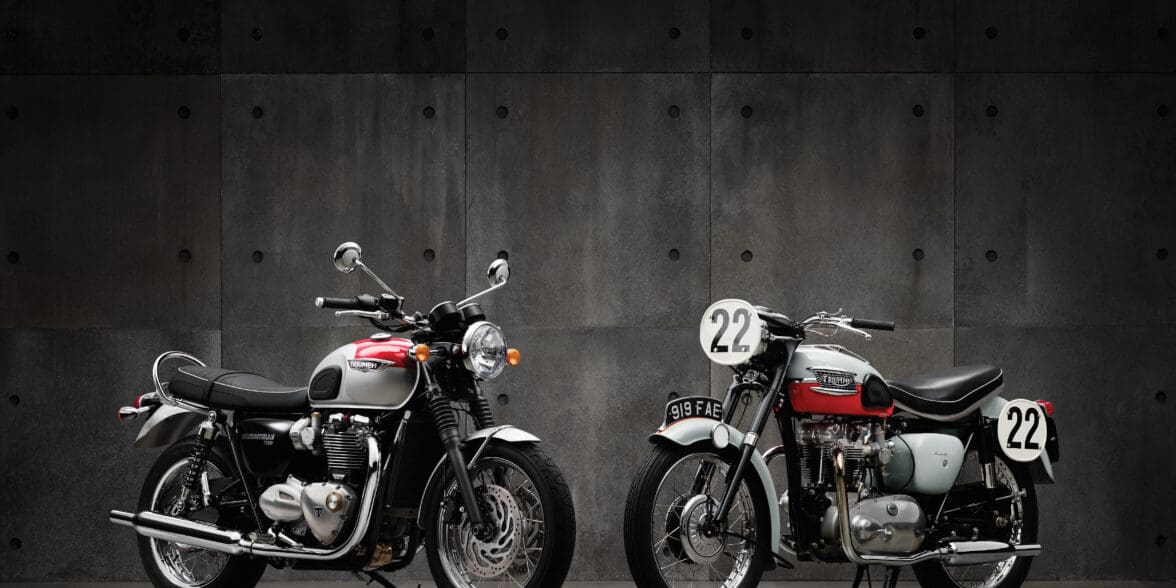

The 2022 Triumph Bonneville T120 Is as Close as It Gets to the Original Bonneville

The Triumph Bonneville T120 perfectly embodies the timeless style and iconic character of the original 1959 Triumph Bonneville while incorporating modern-day rider aids and technology. The Bonneville T120 sits above the Bonneville T100 in the 2022 Triumph line-up and is a true modern classic.

Triumph has equipped the range-topping Bonneville T120 with a 1,200cc twin-cylinder that produces 79 hp and 77.4 lb-of torque. The British manufacturer has tuned this to deliver high torque through the rev band.

The 2022 Triumph Bonneville T120 comes with cruise control as standard and two riding modes — Road and Rain — that alter traction control levels. Other features include a torque-assisted clutch that enables more effortless lever operation, reducing fatigue in heavy, slow-moving traffic.

For 2022, the Bonneville T120 is available in three classic-looking color schemes — Jet Black, Cordovan Red and Silver Ice, and the Cobalt Blue and Silver Ice.

The bike is also available in a ‘Black’ edition with several cosmetic changes. The Bonneville T120 Black features blacked-out components and details, including wheel rims, grab rail, engine covers, mirrors, headlamp bezel, indicators, and exhaust.

The 2022 Triumph Bonneville T120 starts at $12,395 USD / $13,845 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Triumph Bonneville T120 in one place.

2022 Triumph Bonneville T120


Model Overview

General Info

  • Price: $12,395 USD / $13,845 CAD
  • Key Features:
    • 1,200cc High-Torque parallel-twin with an iconic silhouette
    • Over 116 genuine Triumph accessories
    • Three classic color schemes

Main Specs

  • Engine: 1,200cc parallel-twin
  • Power: 79 hp
  • Torque: 77.4 lb-ft
  • Wet Weight: 520 lb (236 kg)
  • Seat Height: 31.1 in (790 mm)

2022 Triumph Bonneville T120


2022 Triumph Bonneville T120 Specifications

From Triumph

ENGINE

Engine 1200CC, Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Power 79 HP
Bore x Stroke 97.6 X 80
Compression Ratio 10.0:1
Fuel System Multipoint sequential electronic fuel injection
Starter Electric
Exhaust Chromed 2 into 2 exhaust system with twin chrome silencers

DRIVETRAIN

Clutch Wet, multi-plate torque assist clutch
Transmission 6-Speed
Final Drive Chain

CHASSIS

Suspension Front Ø41mm cartridge forks
Suspension Rear Twin RSU’s, with pre-load adjustment
Brakes Front Twin 310mm discs, Brembo 2 piston floating caliper, ABS
Brakes Rear Single 255mm disc, Nissin 2 piston floating caliper, ABS
Tires Front 100/90-18
Tires Rear
150/70 R17
Fuel Tank Capacity 3.8 US gal (14.5 litres)
Color

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Width Handlebars 30.7 in (780 mm)
Height Without Mirror 43.7 in (1100 mm)
Wheelbase 57.1 in (1450 mm)
Trail 4.1 in (105.2 mm)
Seat Height 31.1 in (790 mm)
Wet Weight 520 lb (236 kg)

WARRANTY

Warranty
Extension

2022 Triumph Bonneville T120


2022 Triumph Bonneville T120 Features

IMPROVED 1200CC HIGH TORQUE BONNEVILLE ENGINE

The most responsive Bonneville T120 twin yet. Weight reductions throughout the engine give the 2021 Bonneville a faster throttle pick-up with a much sharper feel.

With a strong, torque-rich delivery that starts low in the rev range and climbs smoothly to a sizeable peak of 77 LB-FT at just 3,500rpm, and with peak power of 78 HP arriving at 6,550rpm, the flexible T120 is equally at home lazily surfing the torque or enthusiastically blasting between corners on your favorite back road.

The latest evolution of the T120 engine incorporates cutting-edge technical features, such as ride-by-wire throttle that gives the perfect connection between the rider’s right hand and the powertrain, for a smooth, glitch-free power delivery at any engine speed, wherever you are in the slick six-speed gearbox.

The new 1200cc Bonneville engine is lighter and more responsive, and exceeds the expectations of everyone who rides it.

SIGNIFICANTLY-ENHANCED

Triumph’s trademark neutral, easy-handling and engaging Bonneville riding experience just got better. With a substantial, overall weight saving throughout the revised engine, together with new, lighter wheels, it’s our best handling T120 ever.
The reduced inertia from the lighter, classic 32-spoke aluminum rim wheels makes the 2021 Bonneville T120 nimbler through fast direction changes and gives a noticeable increase in acceleration.
Roadholding is assured with 41mm cartridge front forks and 4.7 in (120mm) of travel. Twin rear suspension units allow adjustment for preload to find the perfect ride for solo, pillion and luggage. Beautifully matched, the front and rear suspension give Triumph’s signature ride dynamics of agility and stability, comfort and control.

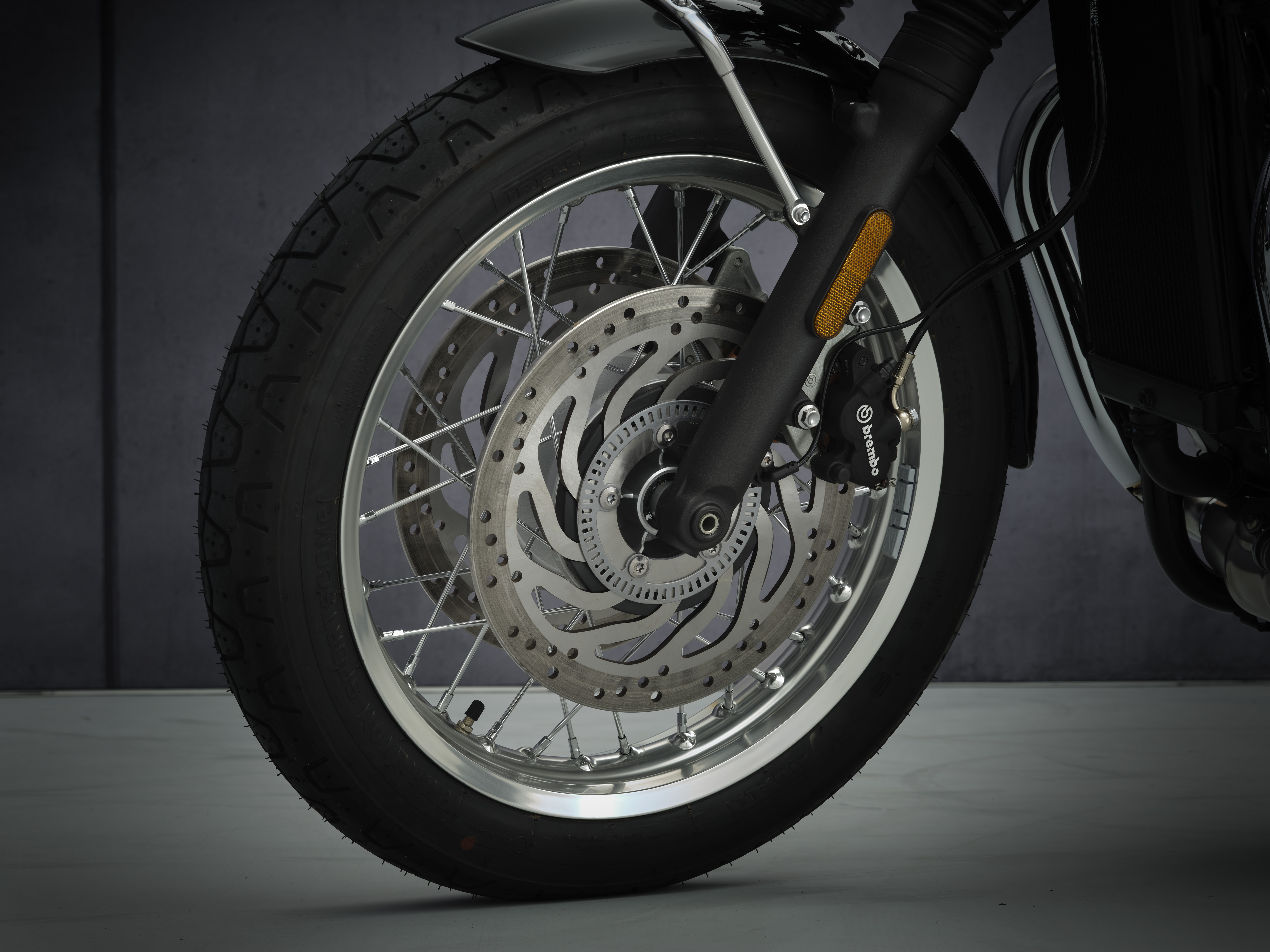

New Brembo twin-piston floating front calipers and dual 310mm discs give superb feel for confident braking in all conditions, with the added safety of the latest generation of ABS. Pirelli Phantom Sportscomp tires, developed specifically for the T120, feature a classic tread design with modern levels of performance, offering superb rider feel and reassuring all-weather grip.

HIGHER

A whole host of additional modern technology was beautifully incorporated to the T120 and T120 Black, including cruise control with easy-to-use, single-button operation which helps to increase comfort and reduce rider fatigue on long journeys.
The riding modes were also enhanced, with the Road and Rain modes now adjusting the engine mapping and traction control settings for the ideal throttle response, whatever the riding conditions. As with the cruise control, the riding mode button is neatly incorporated into the new left-hand switchcube for easy operation and an uncluttered look to the Bonneville’s ‘bars.
Standard-fit technology includes the latest generation of anti-lock braking system and a switchable traction control system for enhanced control and safety. With the Bonneville’s clean, classic styling always at the forefront of Triumph’s designers’ minds, these latest technological rider aids are compact, responsive and unobtrusive.

REAL WORLD PRACTICALITY

A high level of standard equipment and a premium specification brings real world practicality to Triumph’s most famous modern classic.
The comfortable low 31.1 in seat and relaxed riding position make all-day rides effortless, while the daily commute is more grin and less grind with the torque-assist clutch that gives a light feel to the clutch lever without compromising feel and take-up on those stop/start urban rides. For peace-of-mind, an engine immobilizer is built into the ignition key for enhanced security.

A conveniently-located USB charging point is fitted beneath the seat so, whether you’re running low on phone battery or using a navigational device for your next big road trip, you can plug and play your way to your destination.
Further practicalities such as a center stand kit for ease of maintenance, heated grips for those chilly rides and a passenger grab handle for improved comfort and safety are all available as Accessories and can be easily configured at the point of purchase.

PREMIUM STYLE AND FINISH

Attention to detail and commitment to a premium finish are evident in both the T120 and T120 Black.

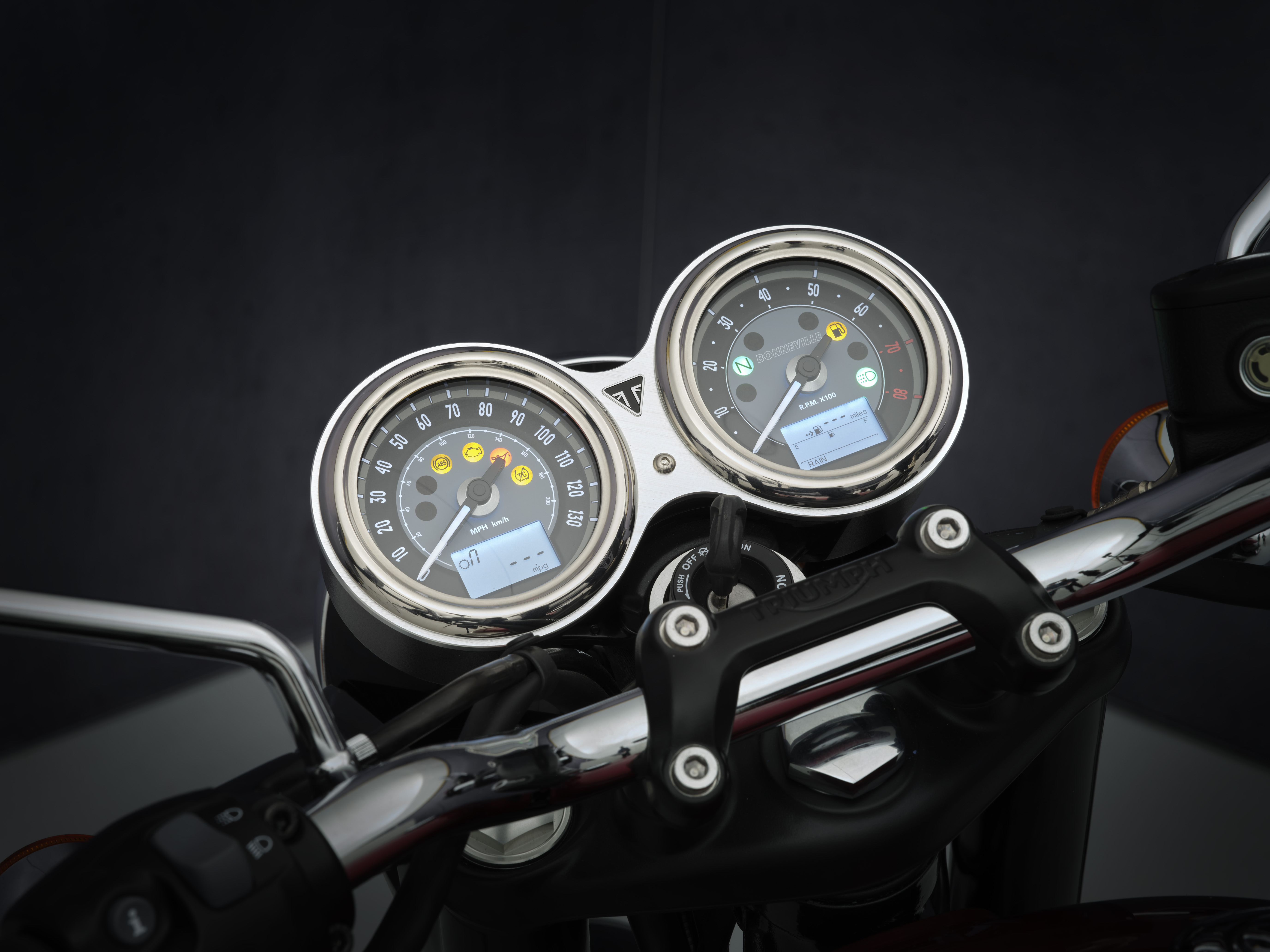

Both T120 models are enhanced by contemporary parts perfectly engineered for the ultimate modern classic. New Bonneville-branded clock faces clearly display a mix of analogue and digital information. A key design signature of the Bonneville, the 3.8 gal litre fuel tank, now gets new 3-bar chromed classic metal tank badges and traditional hand-painted coach lining for a premium finish that’s both unique and unmistakably Triumph.

The deep, lustrous paint finish and chrome detailing on the T120 are paired with beautiful brushed aluminium engine casings. The T120 Black benefits from equally durable, high-quality finishes, but with much more attitude. Set off by the distinctive dark brown seat, the blacked-out engine and exhaust are matched to black rims and headlamp bezel. Dark and foreboding, the moody and sophisticated color options give the Black a completely different presence.

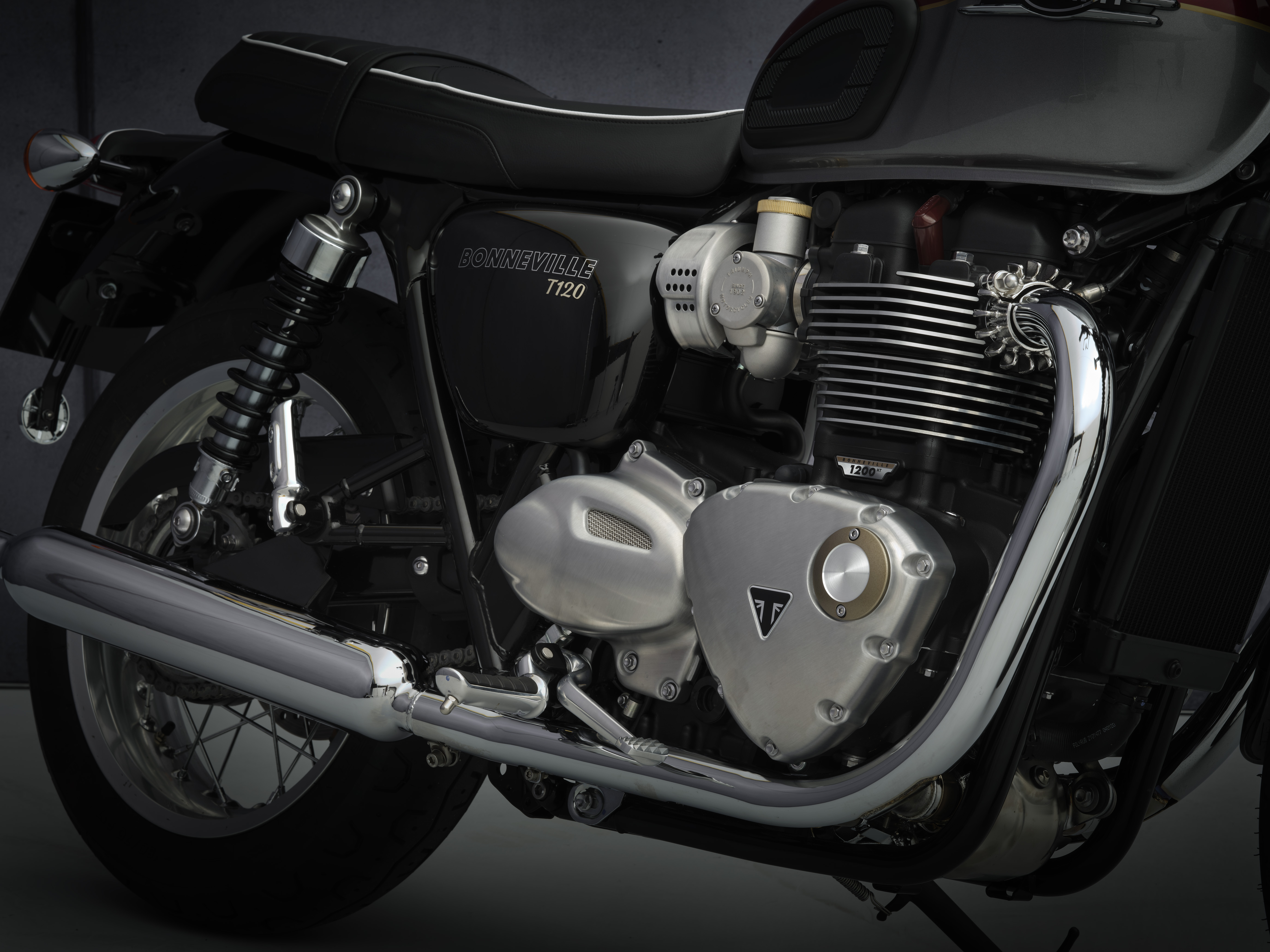

Crafted and refined details include machined cooling fins on the cylinder head and a high quality twin-skin brushed exhaust, which hides the innovative catalyst under the bike, whilst maintaining its beautiful flowing lines.
