2022 Harley Davidson Forty-Eight [Specs, Features, Photos]

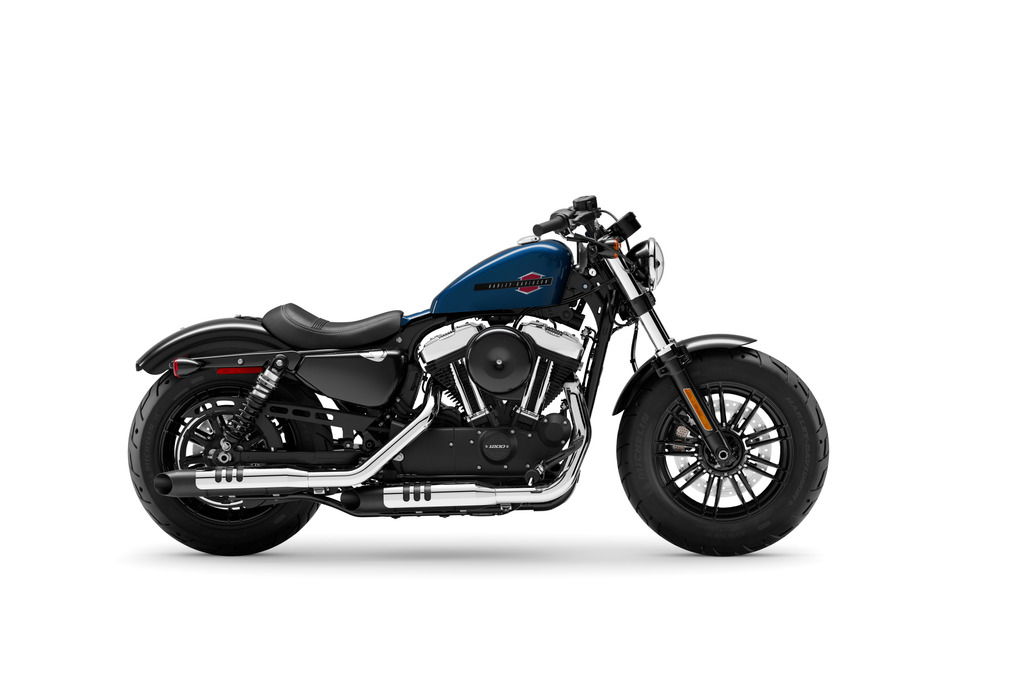

2022 Harley Davidson Forty-Eight
Last updated:

The 2022 Harley Davidson Forty-Eight: Part Bobber, Part Bulldog

The big evolution engine powers the Forty-Eight as a member of the 2022 Harley Davidson lineup. The last remaining bike running the air-cooled, blacked-out, 1200cc Evolution™ Engine, it churns out a solid 60 hp and 73 lb-ft of torque.

The Forty-Eight is fitted with a 2.1-gallon peanut tank, sitting above the fat tire out front, the bike has an aggressive bulldog stance. In keeping with its American-made heritage, the Forty-Eight brings the stance, style, and sound expected from a Harley Davidson.

3 Color choices for the 2022 Harley Davidson Forty-Eight: Vivid Black, Reef Blue, White Sand Pearl.

The 2022 Harley Davidson Forty-Eight starts at $12,299 USD / $13,999 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2022 Harley Davidson Forty-Eight in one place.

2022 Harley Davidson Forty-Eight


Model Overview

General Info

  • Price: $12,299 USD / $13,999 CAD
  • Key Features:
    • Fat MT90 Front Tire
    • Solo Seat
    • 1200cc Evolution™ Engine
    • Foundation Brake System

Main Specs

  • Engine: 1200cc V-twin
  • Power: 60 HP (estimated)
  • Torque: 73 lbs-ft @ 3500 RPM
  • Wet Weight: 556 lbs (252 kg)
  • Seat Height: 26.2 inches (710 mm)

2022 Harley Davidson Forty-Eight


2022 Harley Davidson Forty-Eight Specifications

From Harley-Davidson

ENGINE

Engine 1200cc V-twin, Air-cooled, Evolution®
Engine Power 60 HP (estimated)
Bore x Stroke 3.5 in x 3.8 in.
Compression Ratio
10.1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Starter Electric
Exhaust Black, staggered exhaust with slash-cut mufflers

DRIVETRAIN

Clutch
Transmission 5-speed
Primary Drive
Gear, 38/57 ratio

CHASSIS

Wheels, Front Type
Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
Wheels, Rear Type
Black, Split 9-Spoke Cast Aluminum w/ Machined Highlights
Brakes Front
Dual-piston front
Brakes Rear Dual-piston rear
Tires Front
130/90B16 73H
Tires Rear
150/80B16 77H
Fuel Tank Capacity 2.1 gal.
Color Reef Blue, White Sand Pearl, Vivid Black

ELECTRICAL

Ignition
Spark Plugs
Headlight Quartz Halogen, 55-watt low beam, 60-watt high beam Headlamp
Tail Light LED

DIMENSIONS

Length
85.2 in.
Trail
5.3 in.
Rake 30.2
Wheelbase
58.9 in.
Ground Clearance
4.3 in.
Seat Height
26.2 in.
Weight, As Shipped
545 lb.

WARRANTY

Warranty
Extension




2022 Harley Davidson Forty-Eight Features

1200 CC AIR-COOLED EVOLUTION® ENGINE

An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminum heads and cylinders improve air-cooling efficiency.

FAT FRONT WHEEL

Custom rubber for a beefy front end with a tall, fat MT90 tire that gives the bike a dominating presence and a smooth ride.

EMULSION REAR SHOCK WITH SCREW ADJUSTER

Rear shock features a screw pre-load adjuster that easily adjusts to fit your riding style.

FOUNDATION BRAKE SYSTEM

An innovative, high-performing system that gives riders more confidence on the road and more power and predictability when you squeeze the brakes.

ICONIC 2.1 GALLON FUEL TANK

A classic peanut fuel tank design that adds to the machine’s low, powerful bulldog look, showing off the solid mass of the engine and the rawboned style of the lean Sportster® frame.

2022 Harley Davidson Forty-Eight Photos


2022 Harley Davidson Forty-Eight Videos

2022 HARLEY DAVIDSON Forty Eight Sportster FINAL EDITION:

Pure [RAW] sound – Forty Eight 48 – Harley Davidson:
