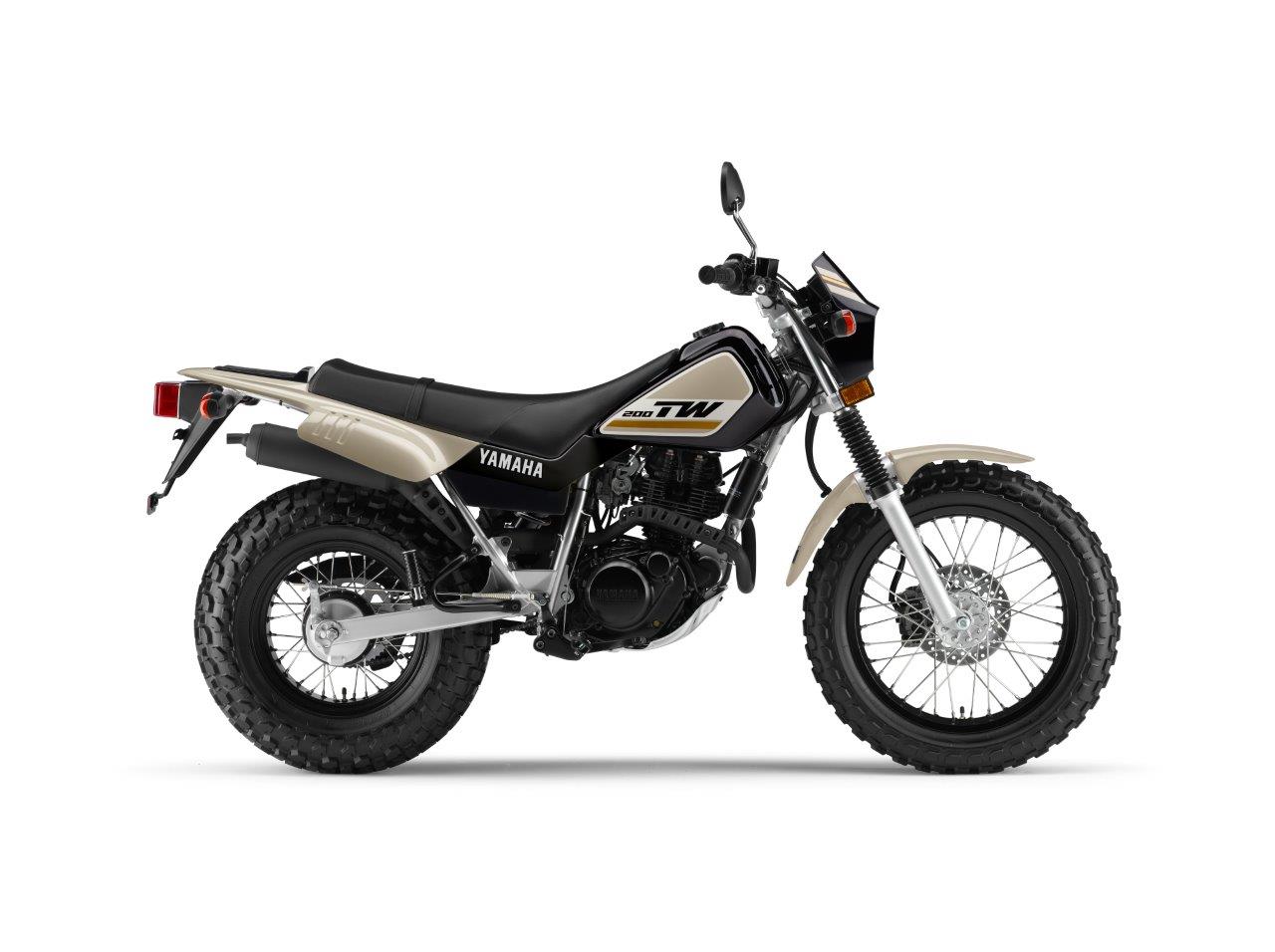

2020 Yamaha TW200

The 2020 Yamaha TW200 is a strange but successful motorcycle, having been in production since 1987. Throughout that storied history, the same engine has been used with only a few modifications, a 196cc 2 valve single that produces 16 crank HP and 11 lbs-ft of crank torque. Of those modifications, the most significant was in 2001 when an electronic starter was added, removing the need for kickstarts.

The other major engine modification was the introduction of a counterbalancer inside the engine to reduce vibrations through the frame and into the rider. Apart from that, the 2020 TW200 is another of those dual-sport bikes that is at home on the road and on the dirt, although Yamaha themselves state that it’s meant more for the road than dirt.

The 2020 Yamaha TW200 starts at $4,599 US/$5,399 CA.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Yamaha TW200 in one place.

2020 Yamaha TW200


Model Overview

General Info

  • Price: $4,599 US / $5,399 CA
  • Key Features:
    • Low Seat Height
    • Lightweight Swingarm
    • Disc Brake

Key Specs

  • Engine type: 196cc air-cooled SOHC 4-stroke
  • Power: 16 Hp
  • Wet weight: 278 lb
  • Seat height: 31.1 in

Key Competitors

2020 Yamaha TW200


2020 Yamaha TW200 Specifications

From Yamaha

ENGINE

Engine 196cc air-cooled SOHC 4-stroke; 2 valves
Power 16 Hp
Bore x Stroke 67.0mm x 55.7mm
Compression Ratio 9.5:1
Fuel System Mikuni® 28mm
Starter Electric
Lubrication

DRIVETRAIN

Clutch Multiplate wet clutch
Transmission Constant-mesh 5-speed
Final Drive Chain

CHASSIS

Suspension Front Telescopic fork; 6.3-in travel
Suspension Rear Single shock; 5.9-in travel
Brakes Front Single disc, 220mm
Brakes Rear Drum, 110mm
Tires Front 130/80-18
Tires Rear 180/80-14
Fuel Tank Capacity 6.8 L (1.8 US gal.)
Color Sandy Beige

ELECTRICAL

Ignition CDI
Spark Plugs
Headlight Flex-mounted
Tail Light Flex-mounted

DIMENSIONS

Overall Length
Overall Width
Overall Height
Wheelbase 52.2 in (1325 mm)
Ground Clearance 10.4 in (264 mm)
Seat Height 31.1 in (790 mm)
Curb Weight 278 lbs (126 kg)

WARRANTY

Warranty 1 Year (Limited Factory Warranty)
Extension

2020 Yamaha TW200


2020 Yamaha TW200 Features

TOP FEATURES

  • Terrain-Conquering Tires
    Those big fat tires deliver great traction and rider comfort over a wide range of terrain, and they make the TW200 the most distinctive-looking, dual-purpose machine around.
  • Low Seat Height
    A low seat and compact chassis help inspire confidence in anybody who rides the TW200, making it one of the most user-friendly on/off-road bikes on the market.
  • Electric Start
    Electric start and full street equipment mean it’s super convenient to ride the TW200 just about wherever you need to go.

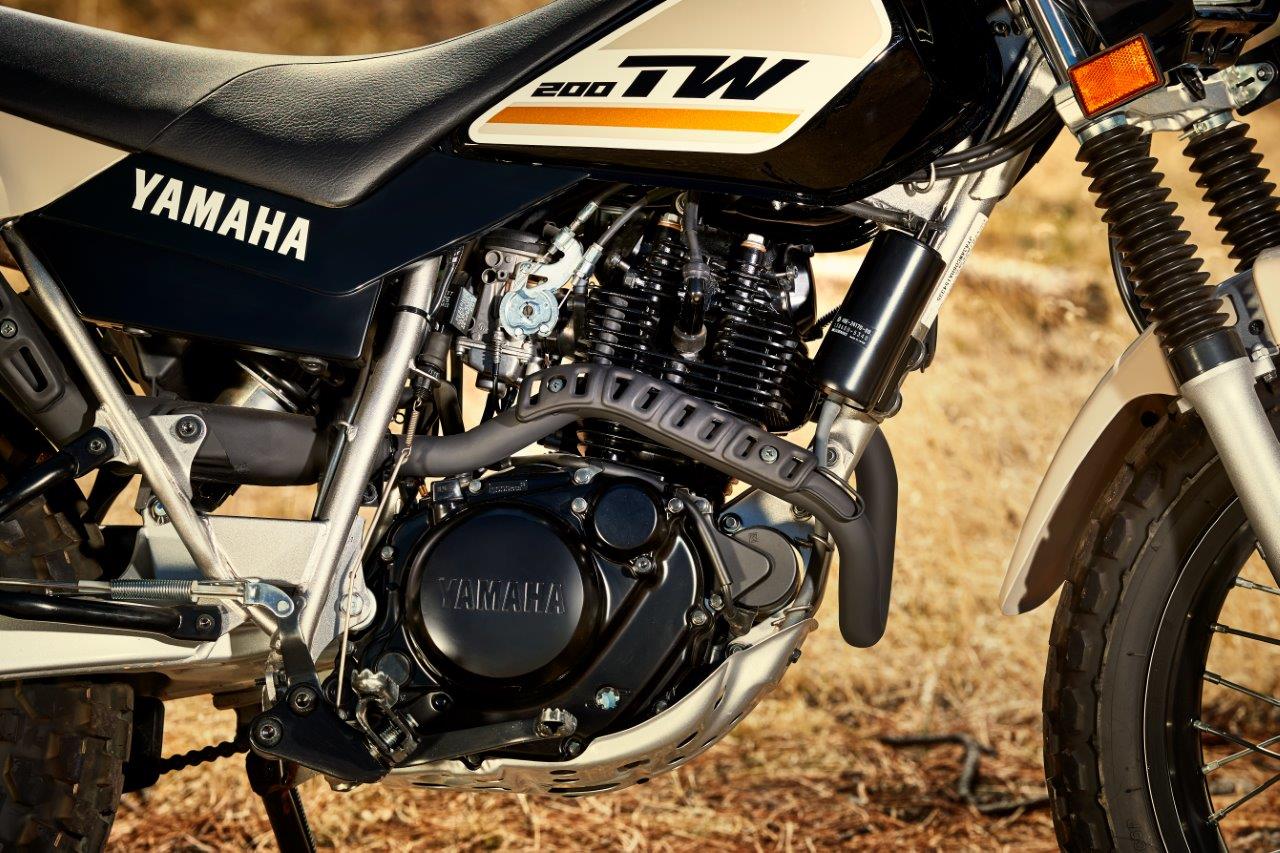

ENGINE

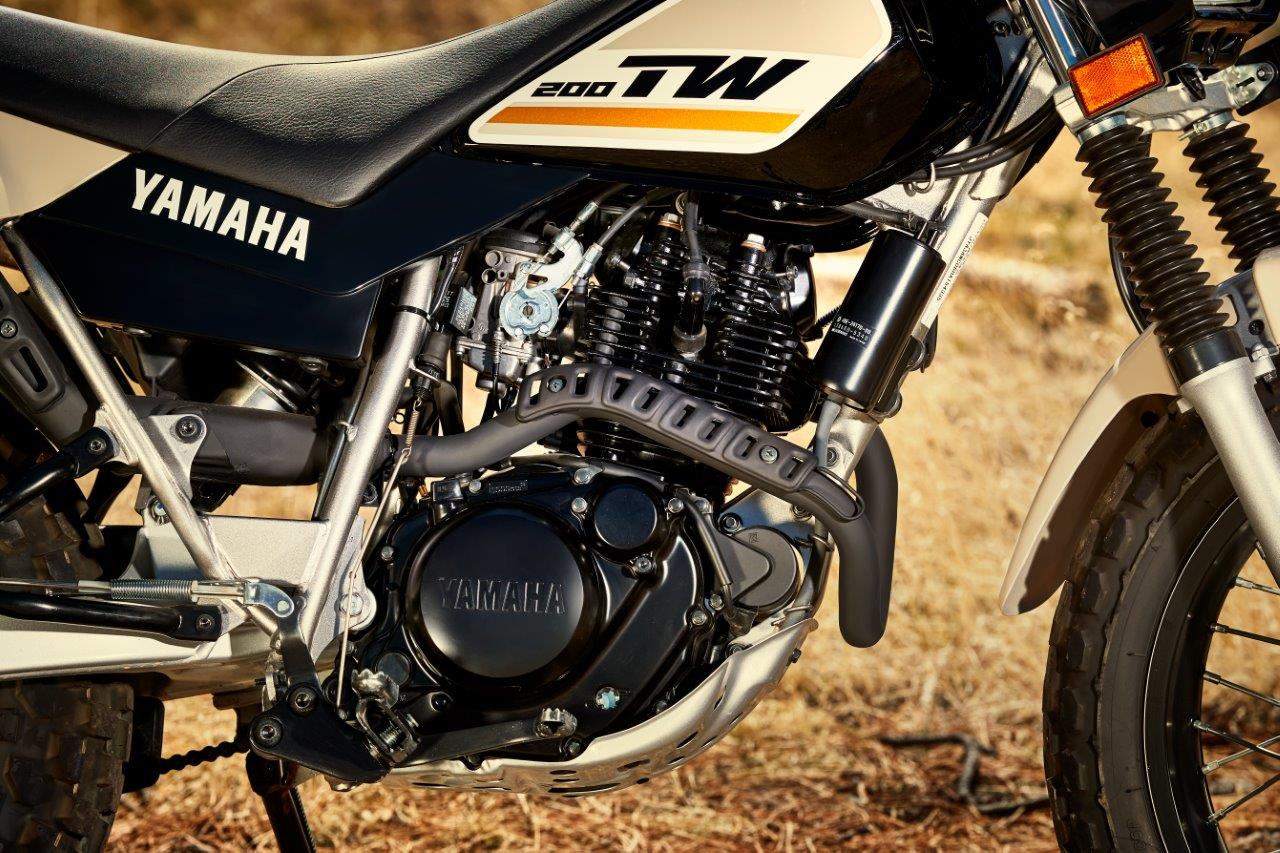

  • Torquey Powerplant
    Strong-pulling 196cc air-cooled, four-stroke single delivers torquey low-and mid-range power perfectly suited to off-road exploring.
  • 5-Speed Transmission
    Smooth-shifting five-speed transmission with manual clutch puts potent powerband to the ground for maximum on- and off-road performance.
  • Smooth, Counterbalanced Engine
    Internal engine counterbalancer keeps vibrations down for greater all-day comfort.
  • Digital Ignition
    Maintenance-free CDI ignition system ensures precise, reliable spark for peak engine performance at all rpm.
  • Electric Start
    Easy, reliable pushbutton electric starting.
  • Low Maintenance Engine
    Automatic cam chain tensioner means minimal maintenance and longer engine life.

CHASSIS/SUSPENSION

  • Plush, Long-Travel Suspension
    33mm telescopic front fork with 6.3 inches of travel soaks up the bumps for a plush ride.

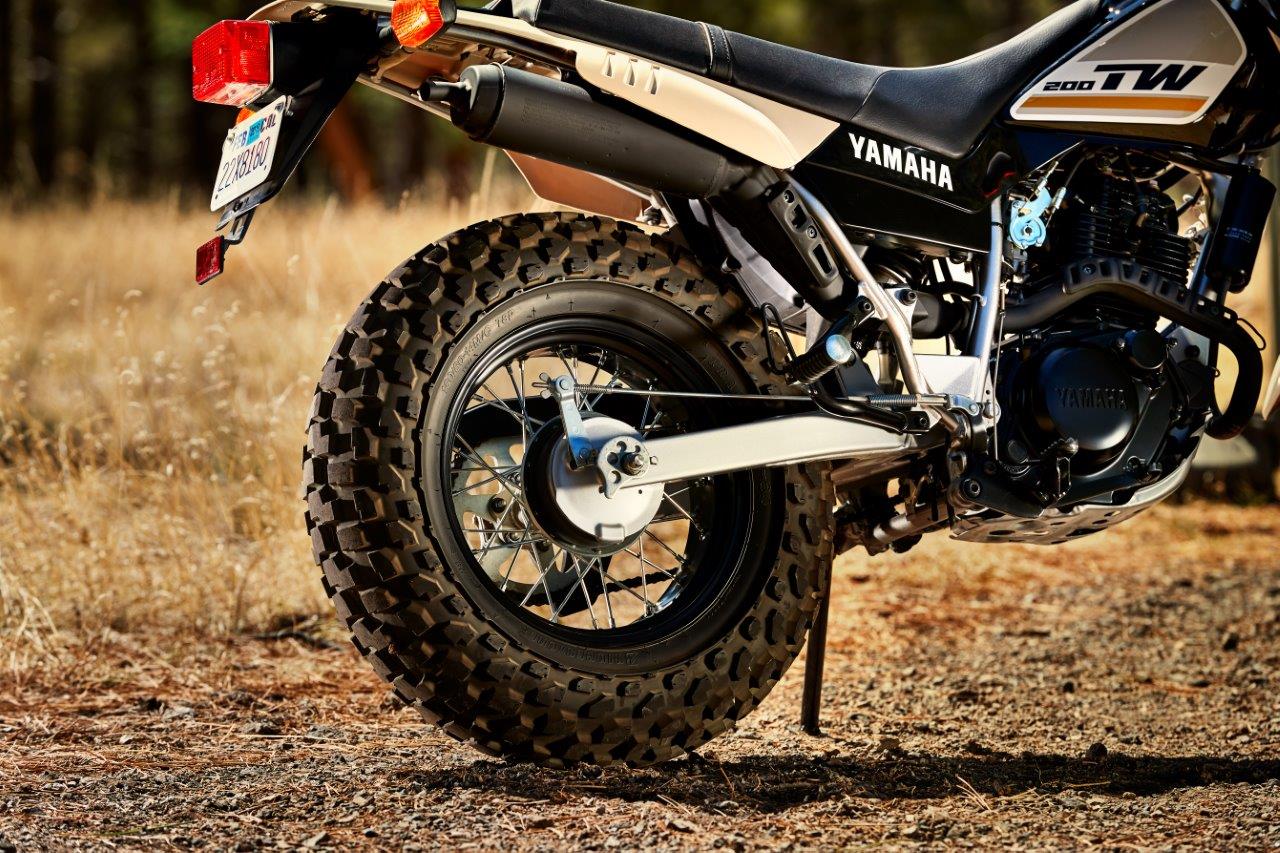

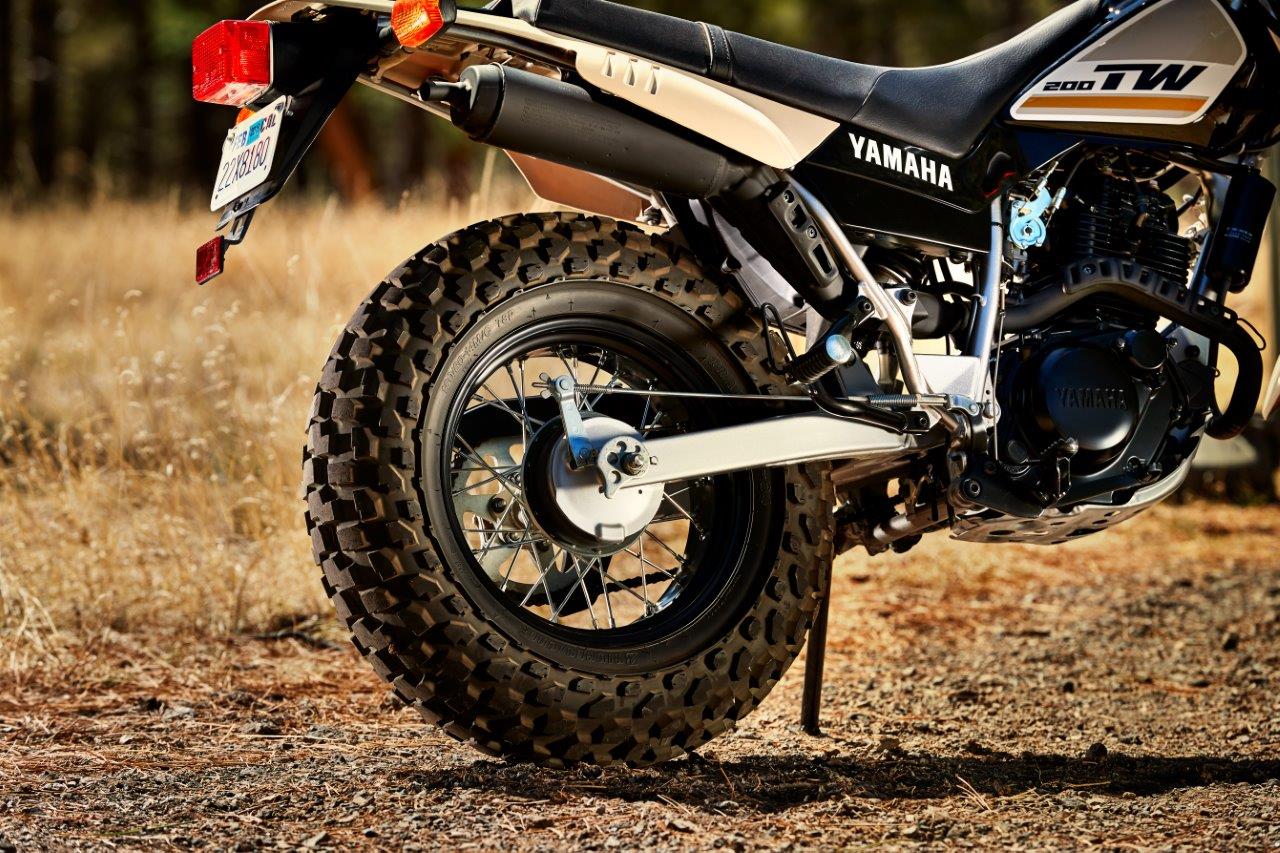

  • Terrain-Conquering Tires
    Fat 130/80-18 front and 180/80-14 rear tires provide excellent traction, control, and the TW200’s unique dual-purpose style.
  • Lightweight Swingarm
    Lightweight box-section swingarm and single rear shock with 5.9 inches of travel help enhance handling and overall comfort both on- and off-road.
  • Disc Brake
    Hydraulic front disc brake ensures greater stopping power with less effort.

ADDITIONAL FEATURES

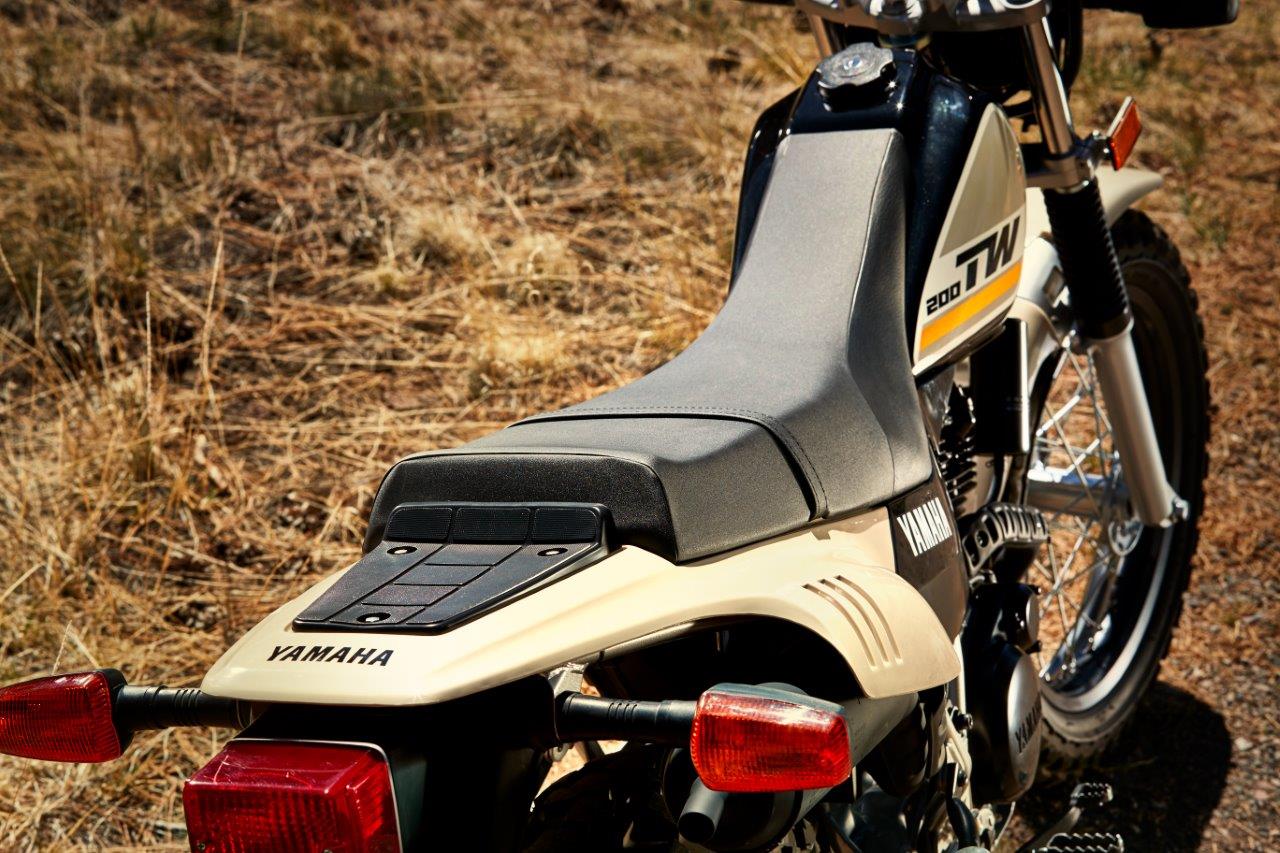

  • Comfortable Saddle
    Long, two-tone, motocross-style seat creates a balanced riding position for optimal rider movement and comfort.
  • Protective Fenders
    Durable and wide front fender is designed to keep mud and dirt off the rider off-road.
  • Passenger-Ready
    Frame-mounted passenger footpegs provide two-up riding capability.
  • Bright Illumination
    Enduro-style, 60/55-watt halogen headlight features high/low beams.
  • Dual Sport Lighting
    Flex-mounted turn indicators offer greater durability against breakage.
  • Fork Protection
    Durable fork shrouds help prevent rocks and debris from damaging fork sliders.

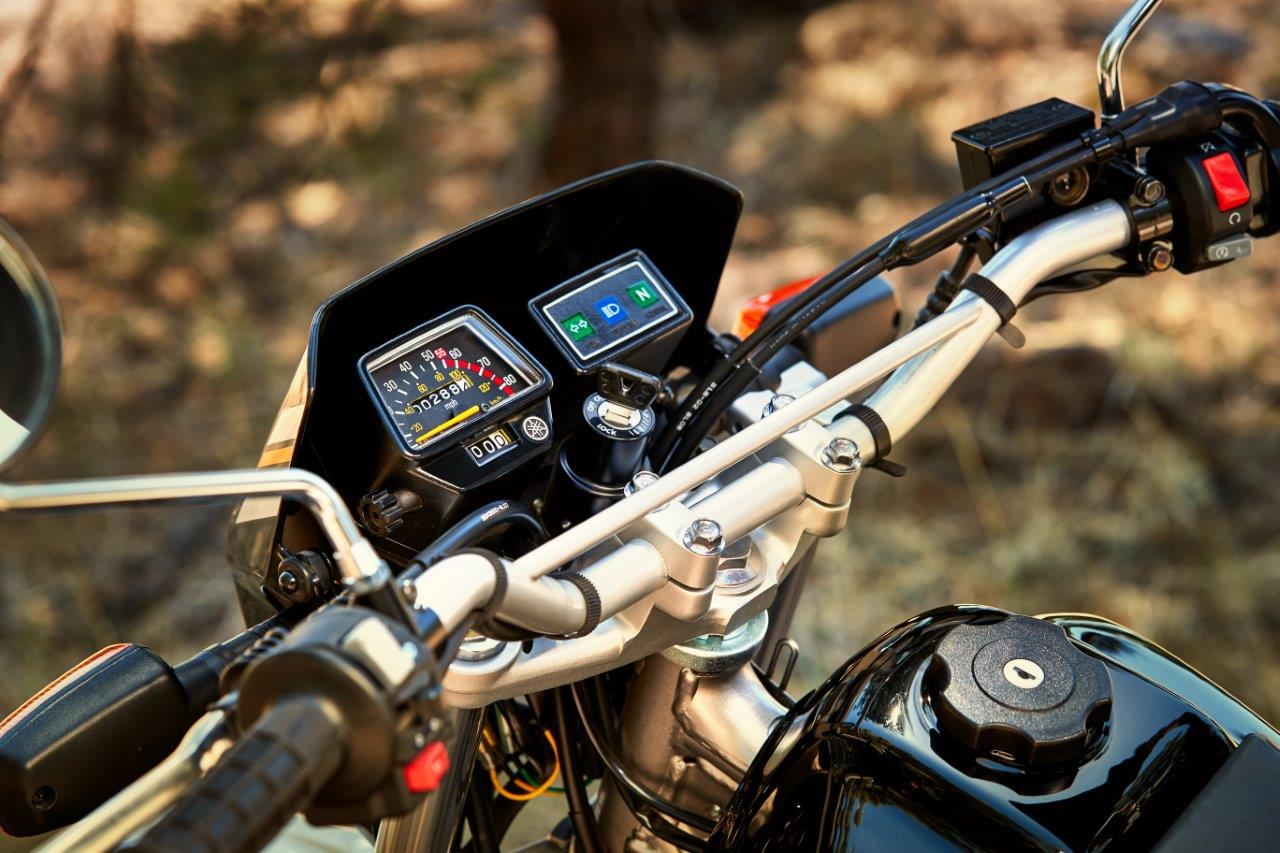

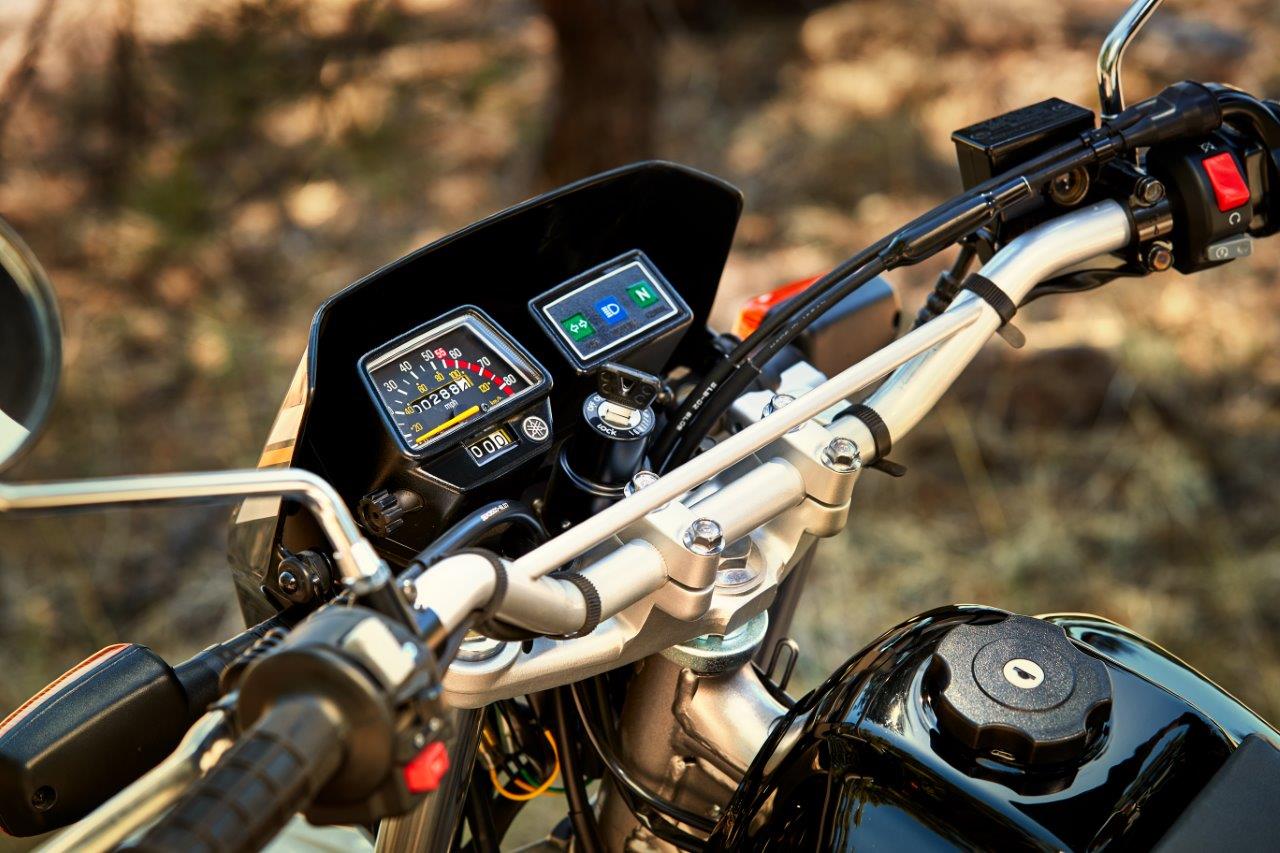

  • Complete Instruments
    Standard instrumentation includes a speedometer with odometer and resettable tripmeter as well as indicator lights for neutral, high beam and turn signals.
  • Modern Battery
    Dependable, low-maintenance battery.

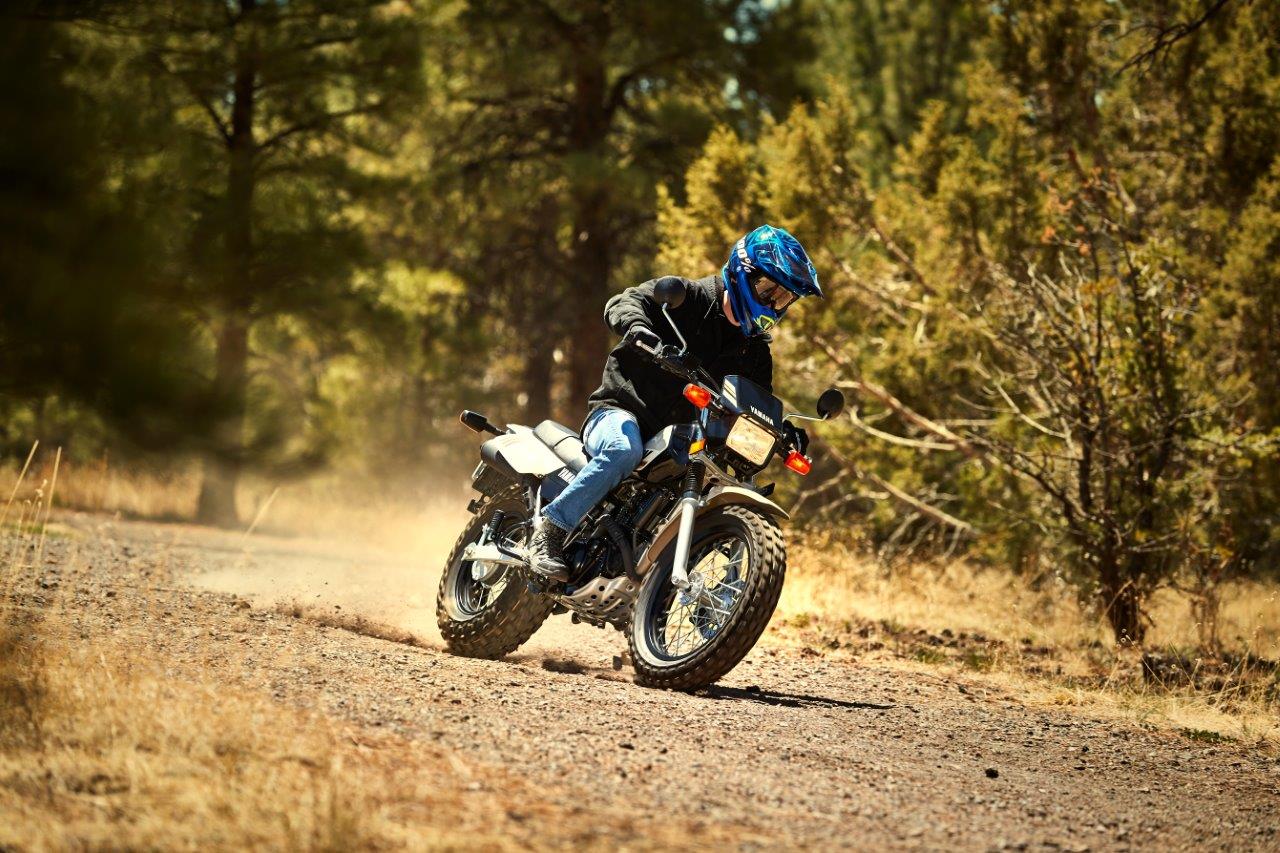

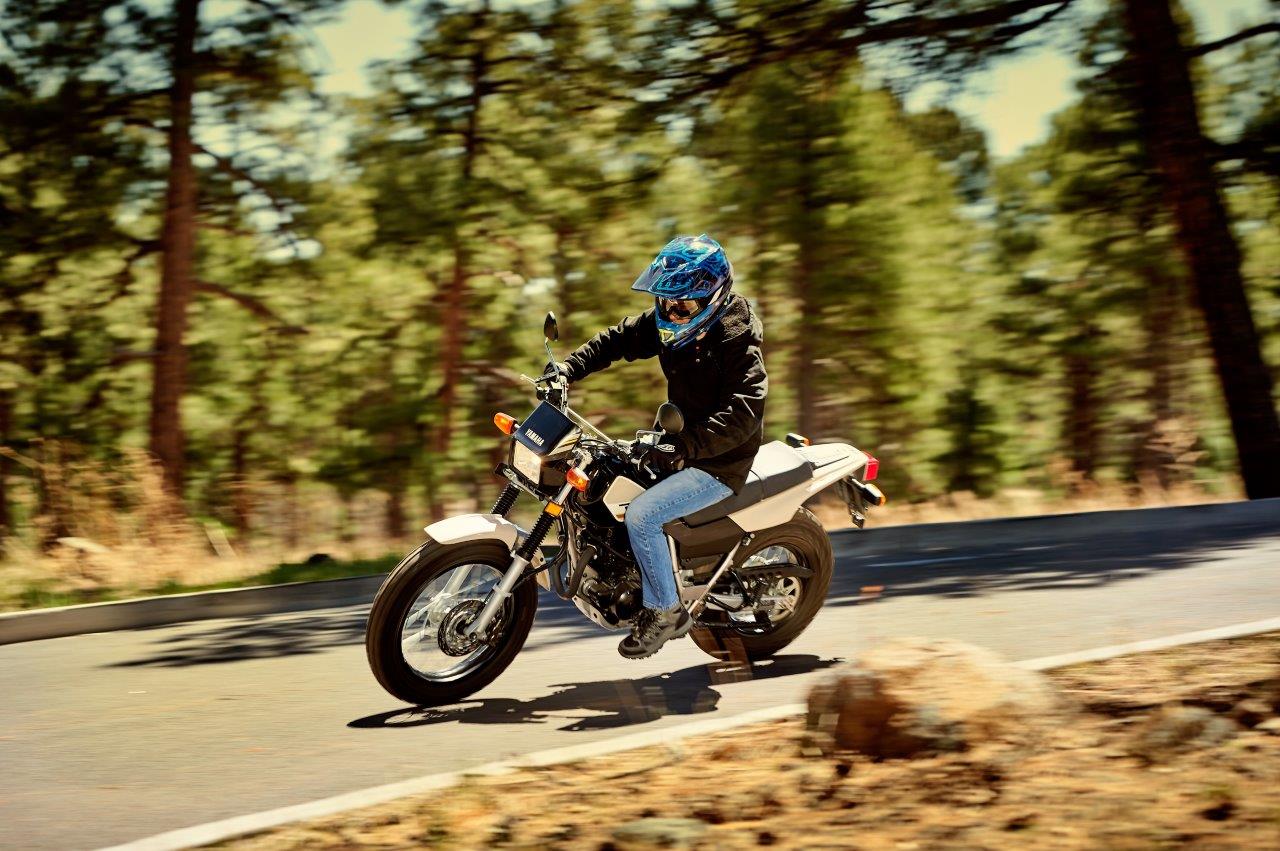

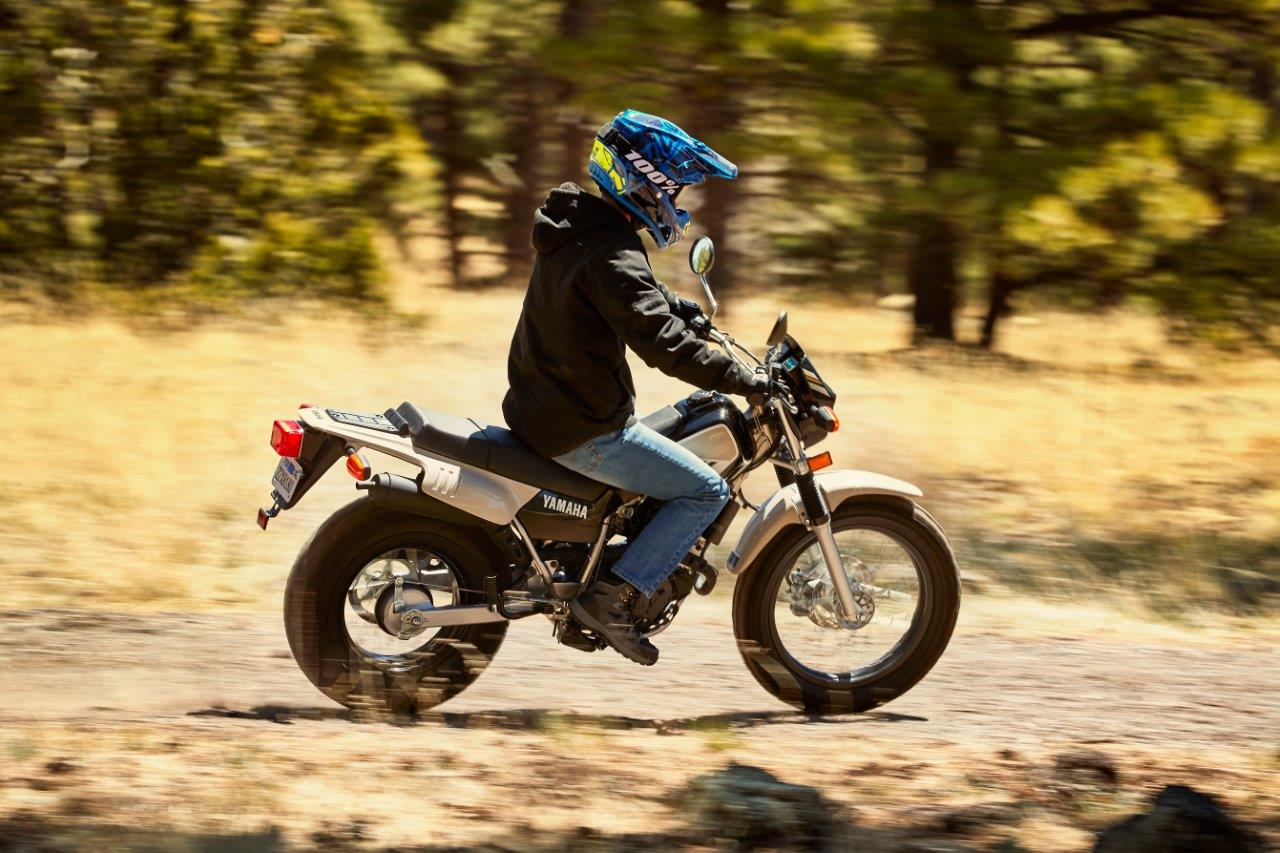

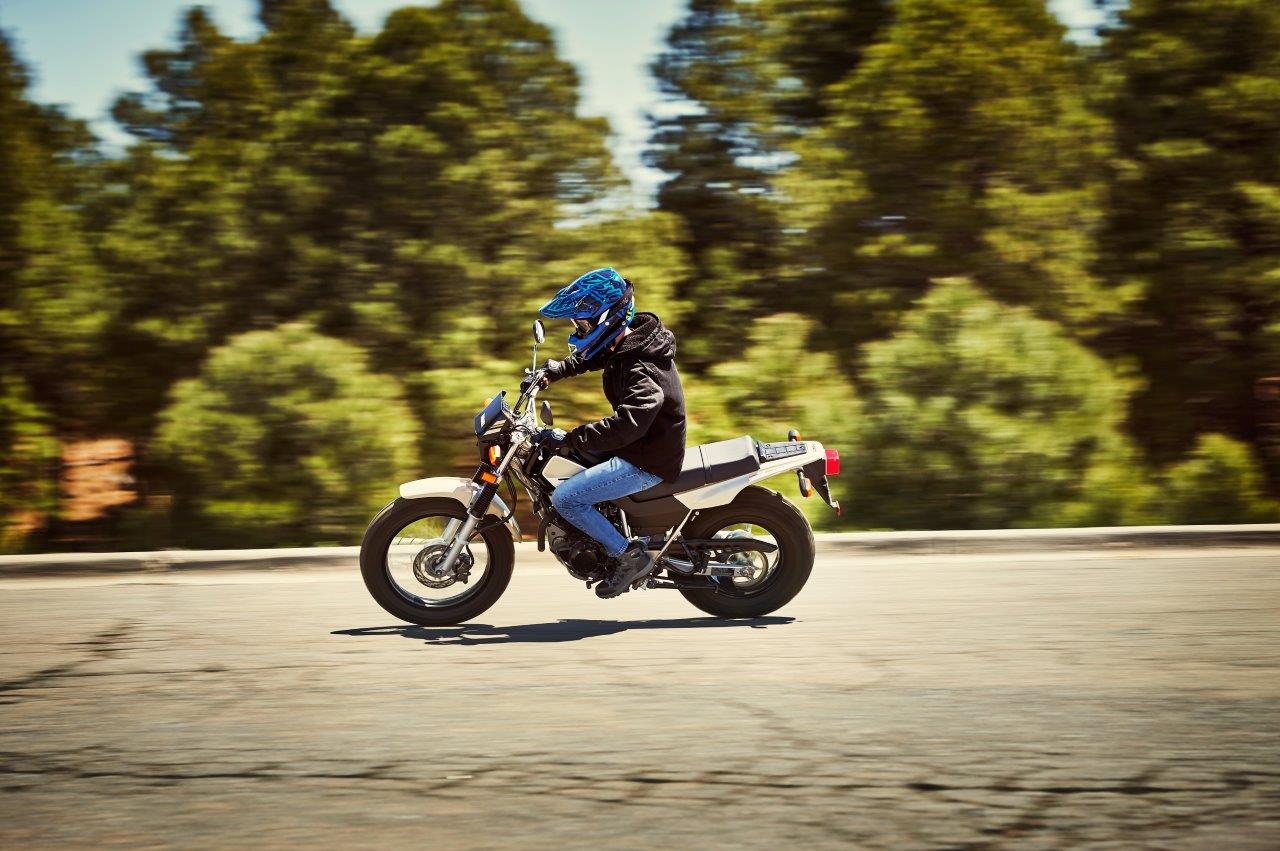

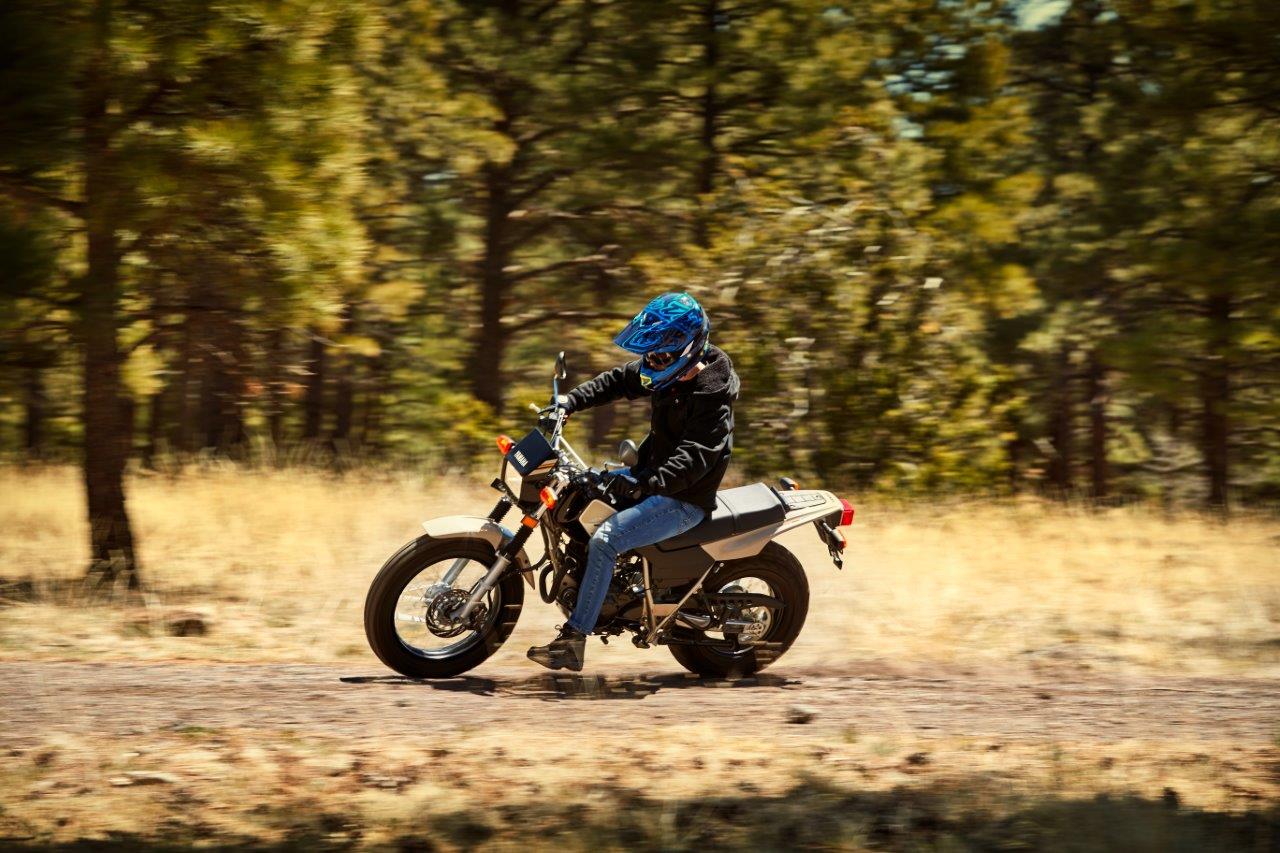

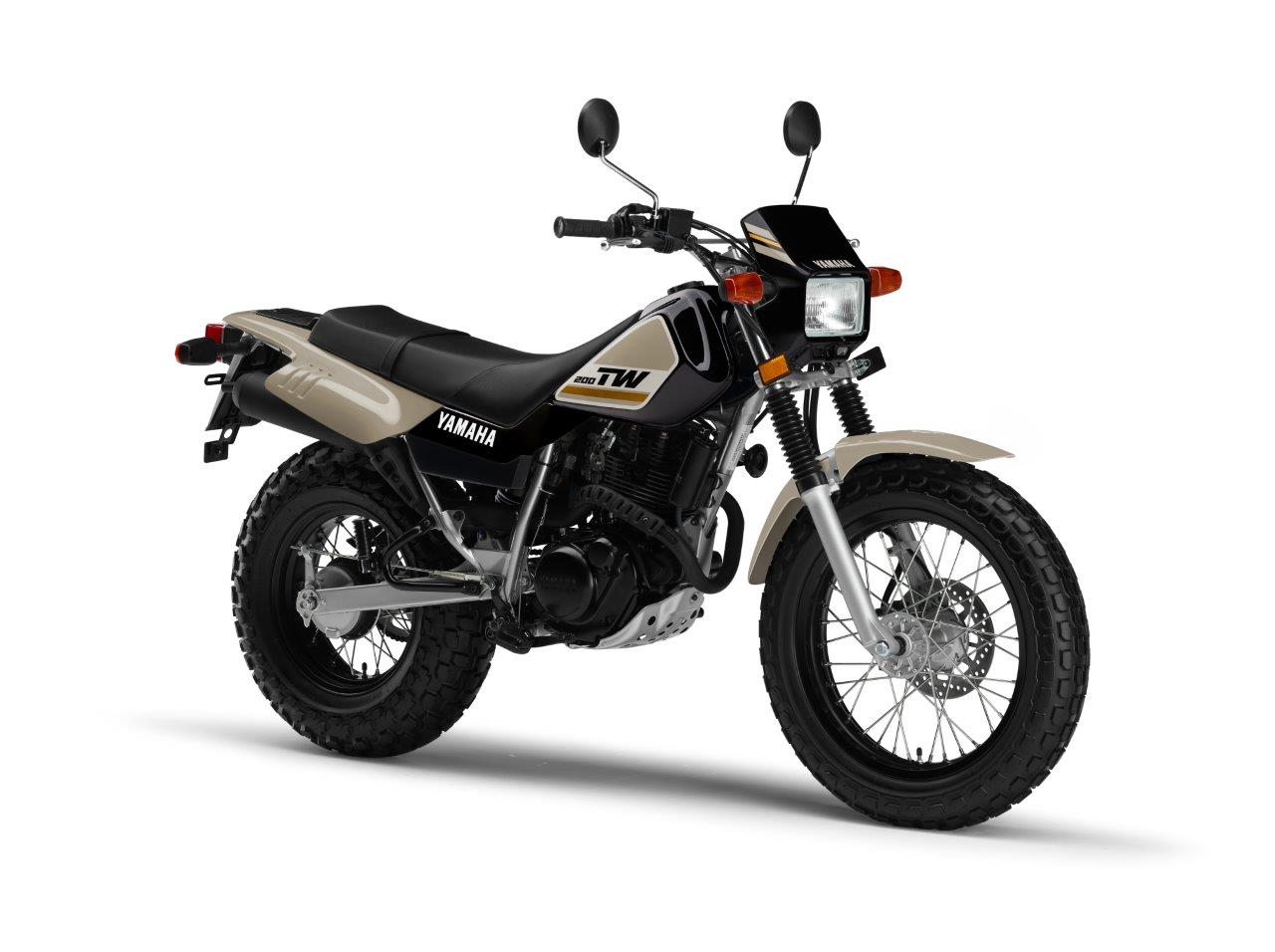

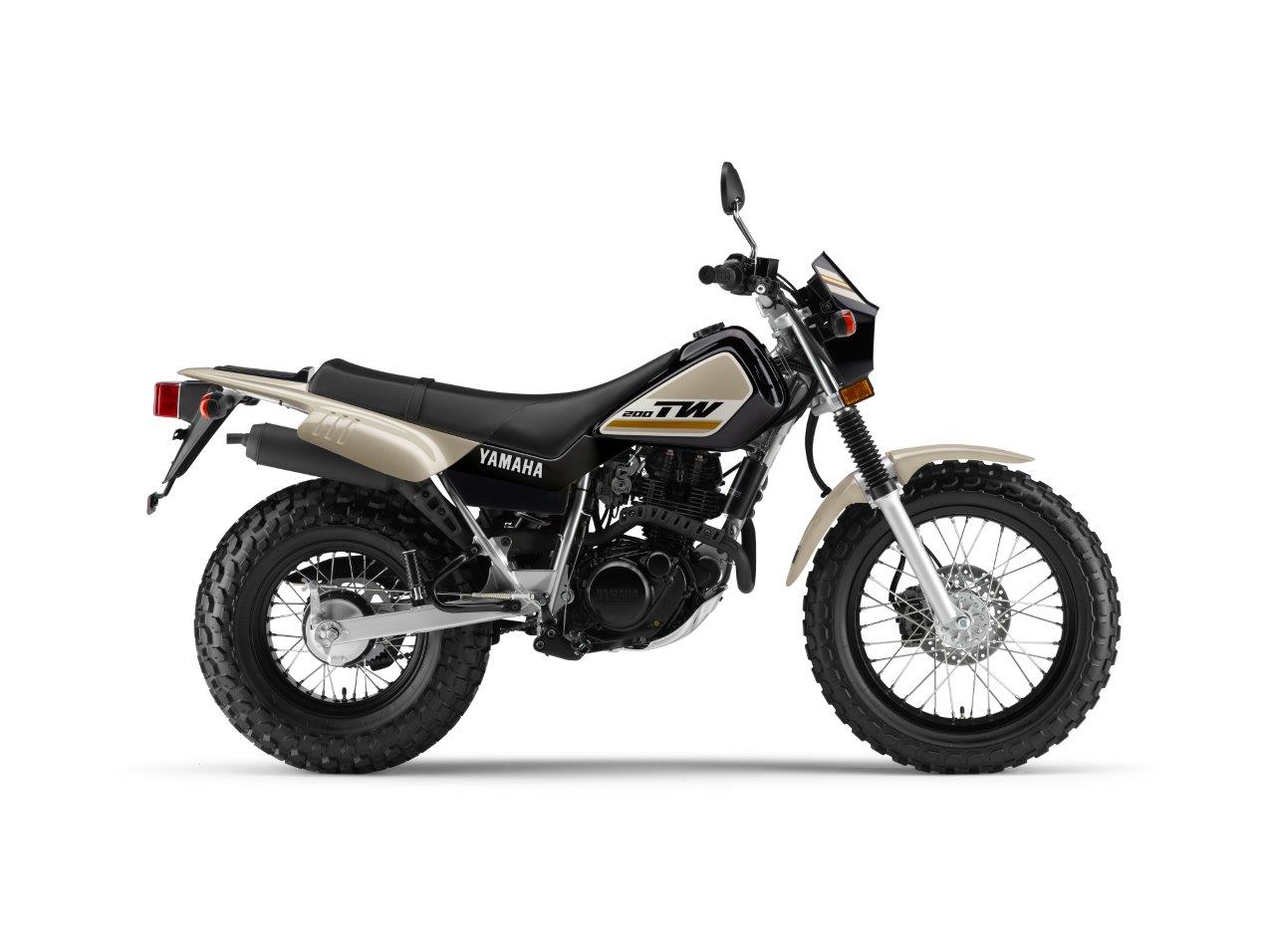

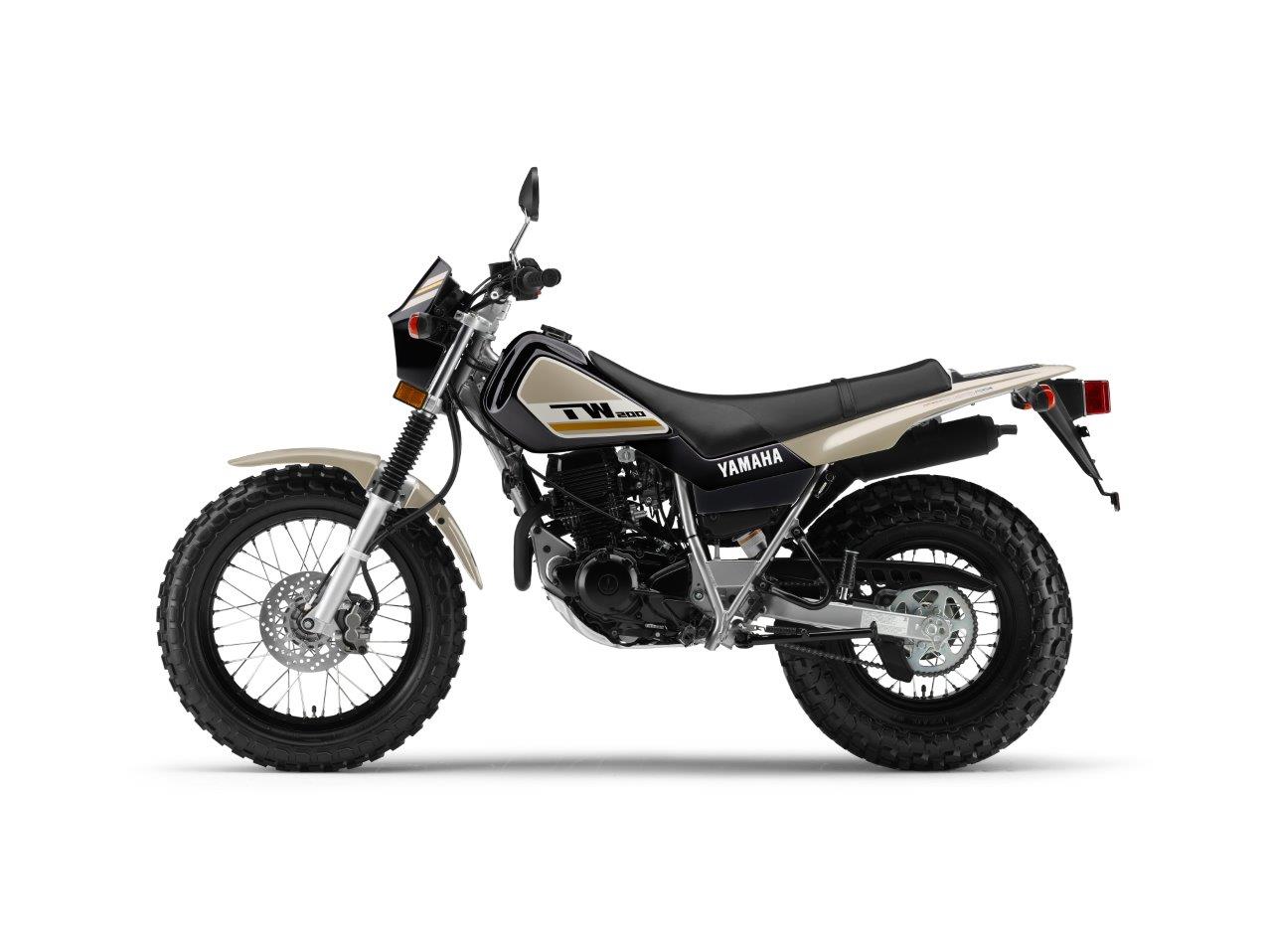

2020 Yamaha TW200 Photos
