2020 Triumph Tiger 800 XCx / 800 XCa [Model Overview]

2020 Triumph Tiger 800 XCx / 800 XCa

2020 Triumph Tiger 800 XC Models

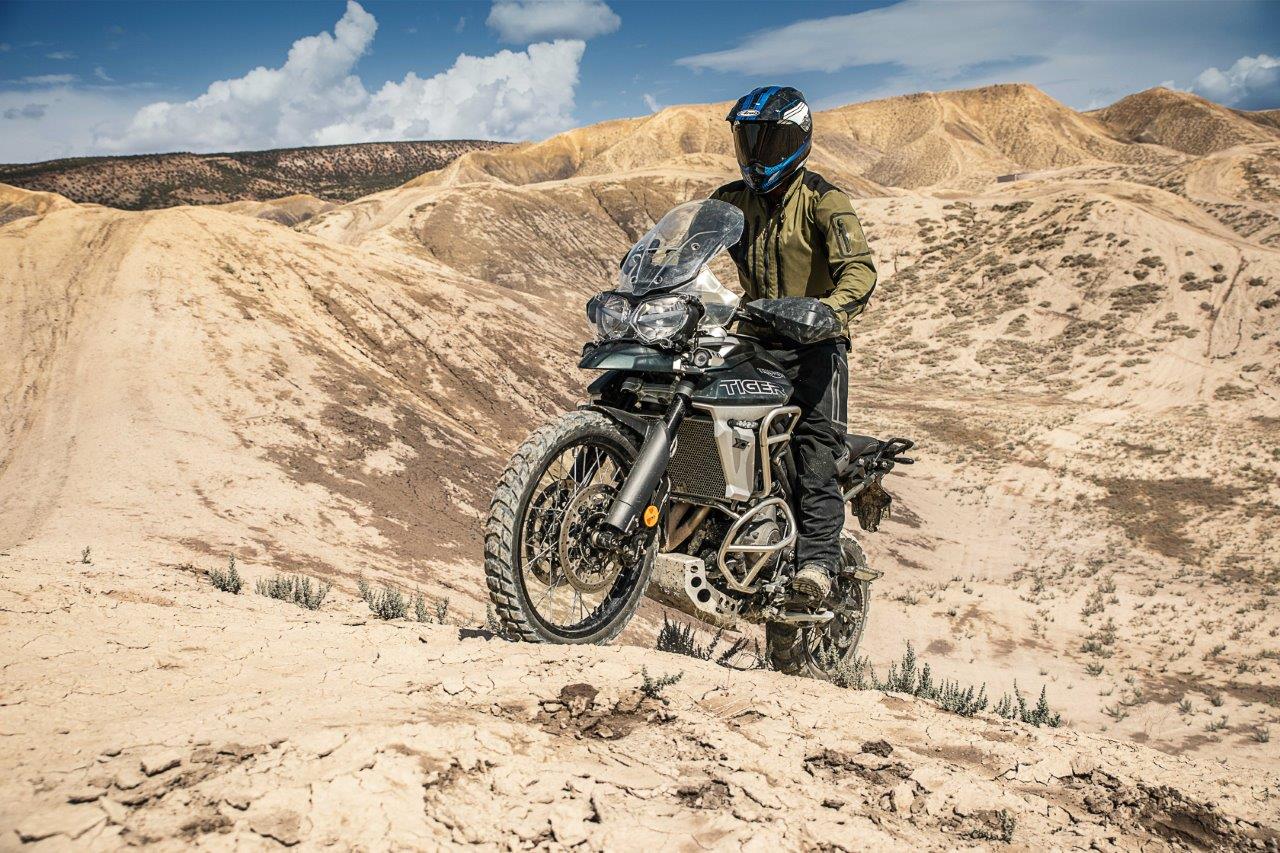

The 2020 Triumph Tiger 800 XC models are the kind of bikes you would probably want to have if you wanted to do a multiple day trip across some unfriendly landscapes. As with all submodels of the Tiger 800 model line, these bikes share the same 800cc DOHC liquid-cooled inline triple that produces 95 HP and 58 lbs-ft of torque, passing through a 6-speed transmission.

The Tiger 800 XCx is the base model here, with a slew of features designed to devour landscapes. WP front and rear shocks are fully adjustable, the ergonomics are adjustable to make the bike fit perfectly, and a 5 inch TFT gets you the information you need on the spot. LED daytime running lights keep you visible, and adding to the safety are off-road rated Brembo premium brakes. Built in handguards, an aluminum sump guard, and a radiator guard are also standard.

The Tiger 800 XCa is the uprated model, which has all the features of the XCx, but adds on LED lighting all around, 6 different dash modes for the TFT, heated grips and seats, a center stand, and a user customizable sixth riding mode for the mode selector switch.

The 2020 Triumph Tiger 800 XCx starts at $14,600 US/$16,900 CDN. The 2020 Triumph Tiger 800 XCa starts at $16,200 US/$18,900 CDN.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Triumph Tiger 800 XC in one place.

2020 Triumph Tiger 800 XCx / 800 XCa


Model Overview

General Info

  • Price: $ 14,600 US/$16,900 CDN
  • Key Features:
    • LED Lighting
    • ABS
    • Fuel-injected

Key Specs

  • Engine type: 800 cc, Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
  • Power: 95 HP
  • Wet weight: 439 Lbs (199 kg)
  • Seat height: 31.88 in

2020 Triumph Tiger 800 XCx / 800 XCa


2020 Triumph Tiger 800 XC Specifications

From Triumph

ENGINE

Engine 800 cc, Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Power 95 HP
Bore x Stroke 74.5 mm x 61.9 mm
Compression Ratio 11.3:1
Fuel System Multipoint sequential electronic fuel injection
Starter Electric
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel muffler

DRIVETRAIN

Clutch Wet, multi-plate
Transmission 6 Speed
Final Drive O-ring chain

CHASSIS

Suspension Front Showa 1.69 in (43 mm) upside down forks, 7.09 in (180 mm) travel
Suspension Rear Showa monoshock with hydraulically adjustable preload, 6.69 in (170 mm) rear wheel travel
Brakes Front Twin 12 in (305 mm) floating discs, Nissin 2­piston sliding calipers, switchable ABS
Brakes Rear Single 10.04 in (255 mm) disc, Nissin single piston sliding caliper, switchable ABS
Tires Front 100/90­-19
Tires Rear
150/70 R17
Fuel Tank Capacity 5 US gal
Color

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Width Handlebars 31.3 in (795 mm)
Height Without Mirror 53.15 in (1,350 mm)
Wheelbase 60.24 in (1,530 mm)
Trail 3.41 in (86.6 mm)
Seat Height 31.88 – 32.67 in (810 – 830 mm)
Dry Weight 439 Lbs (199 kg)

WARRANTY

Warranty
Extension

2020 Triumph Tiger 800 XCx / 800 XCa


2020 Triumph Tiger 800 XC Features

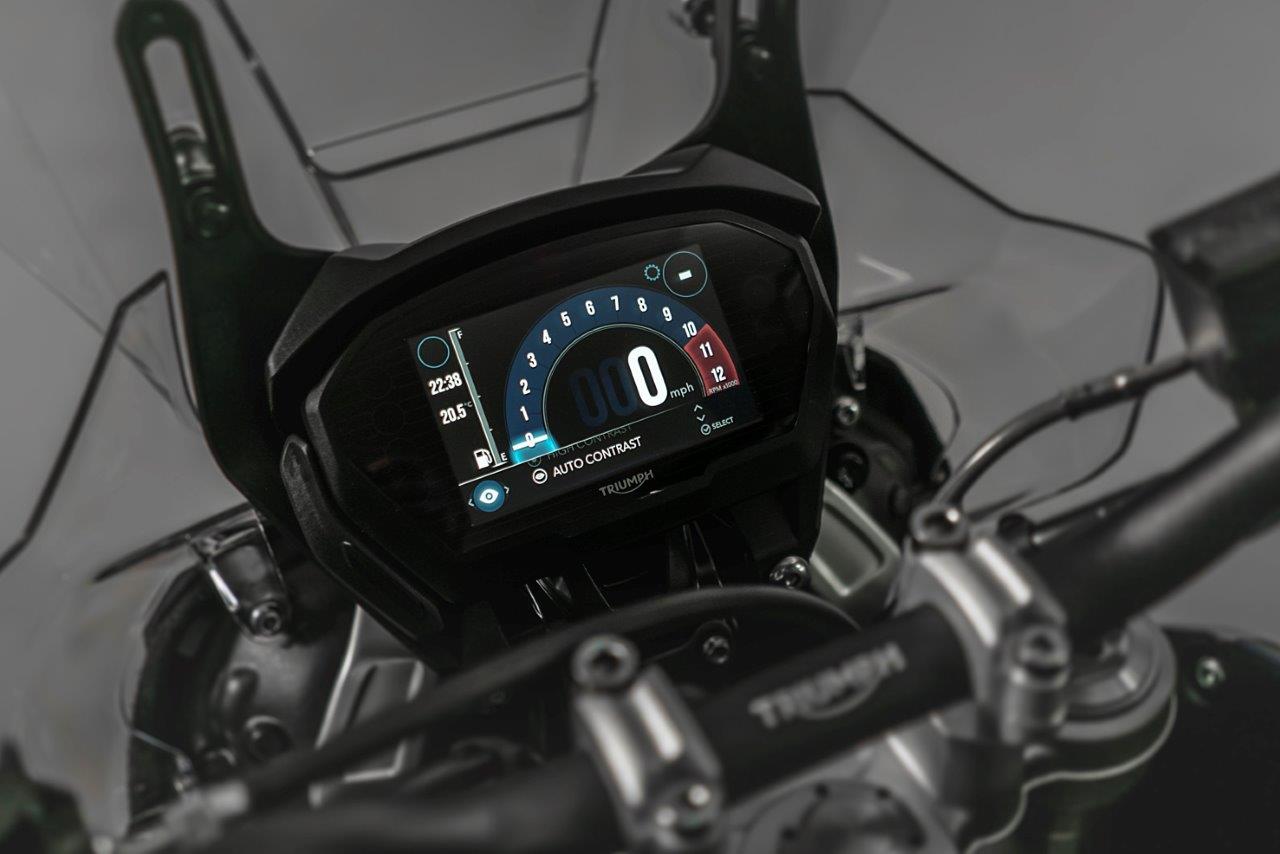

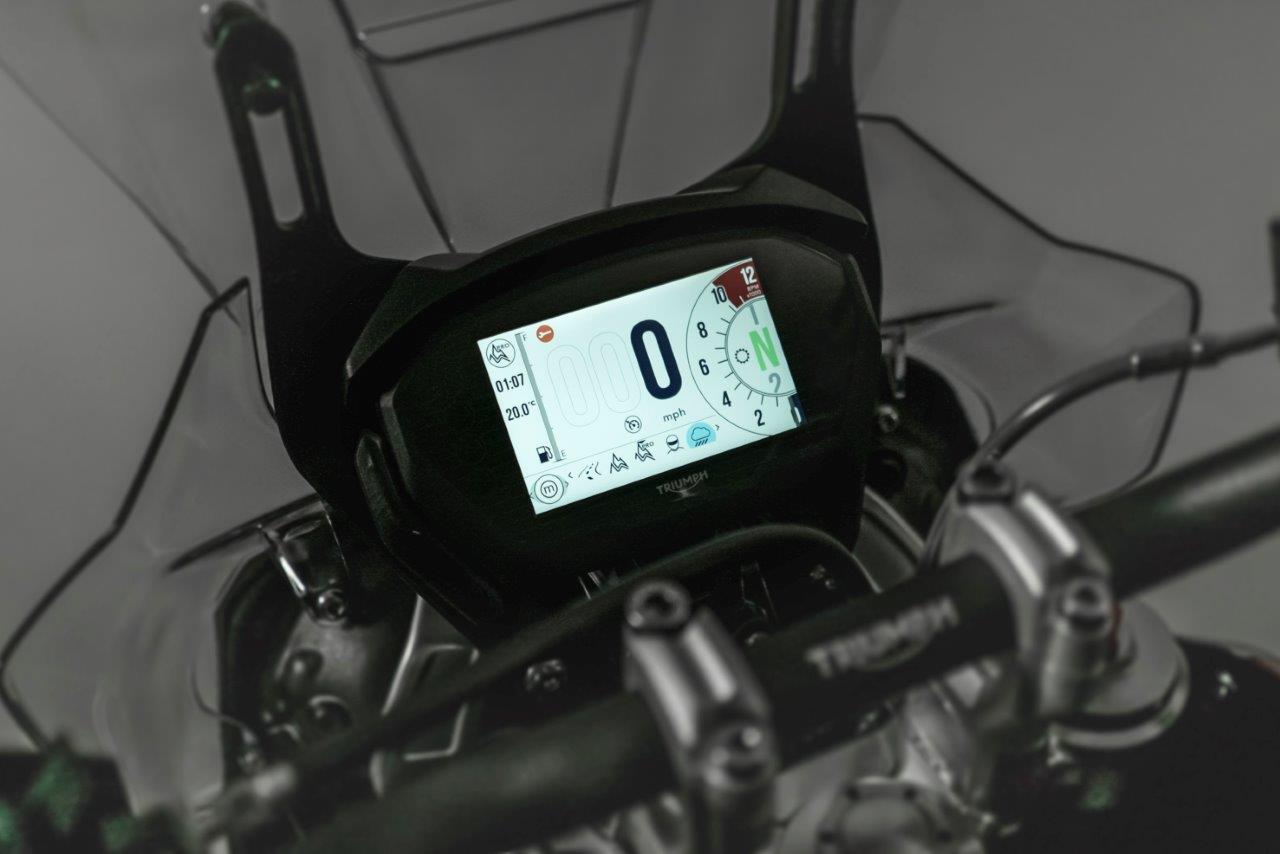

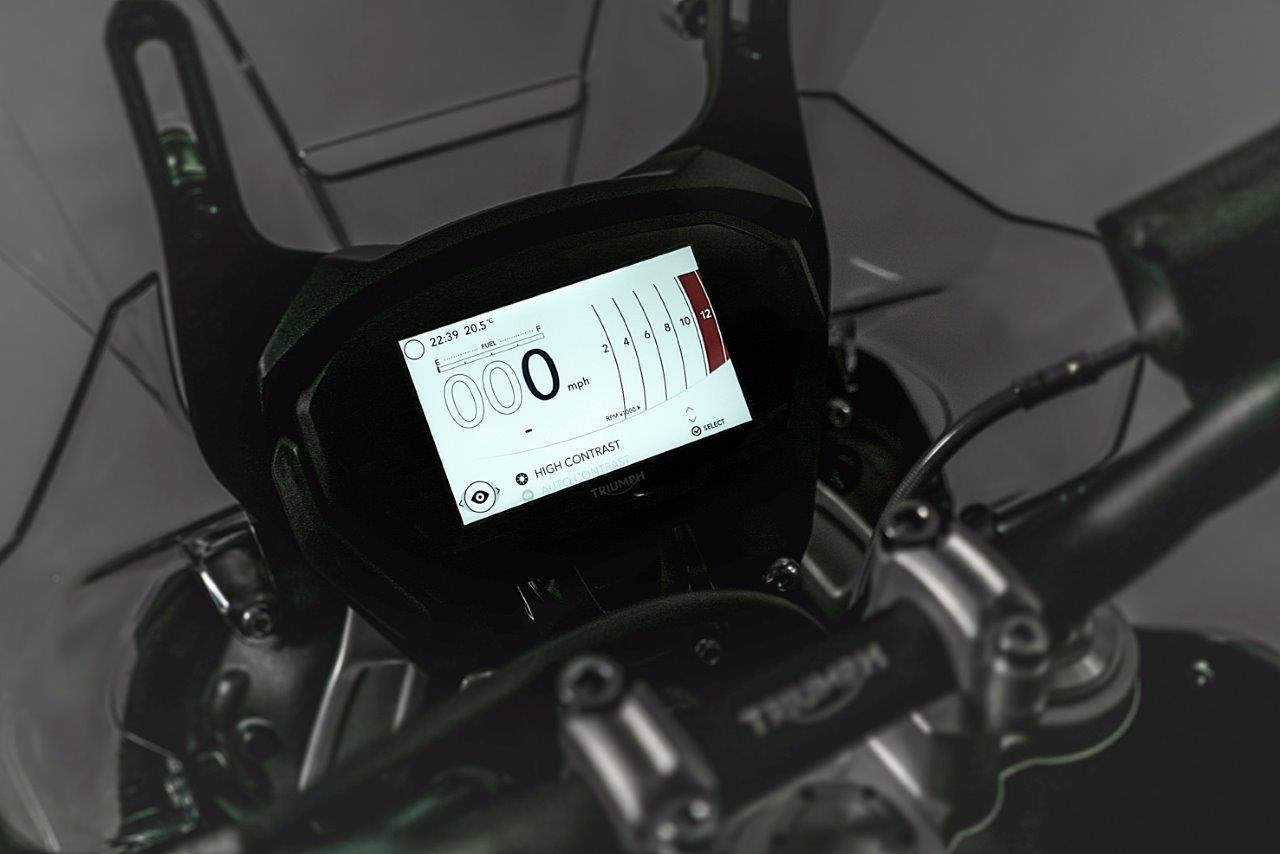

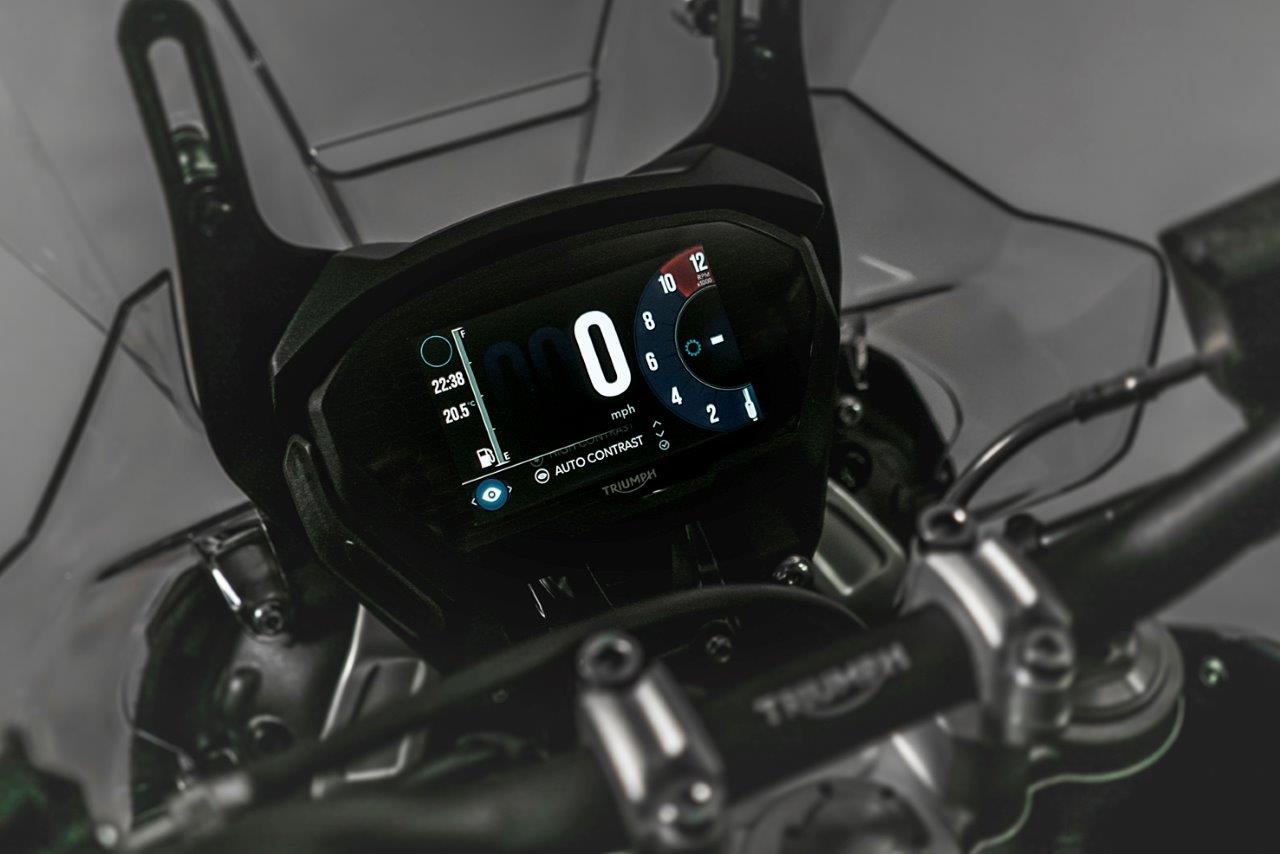

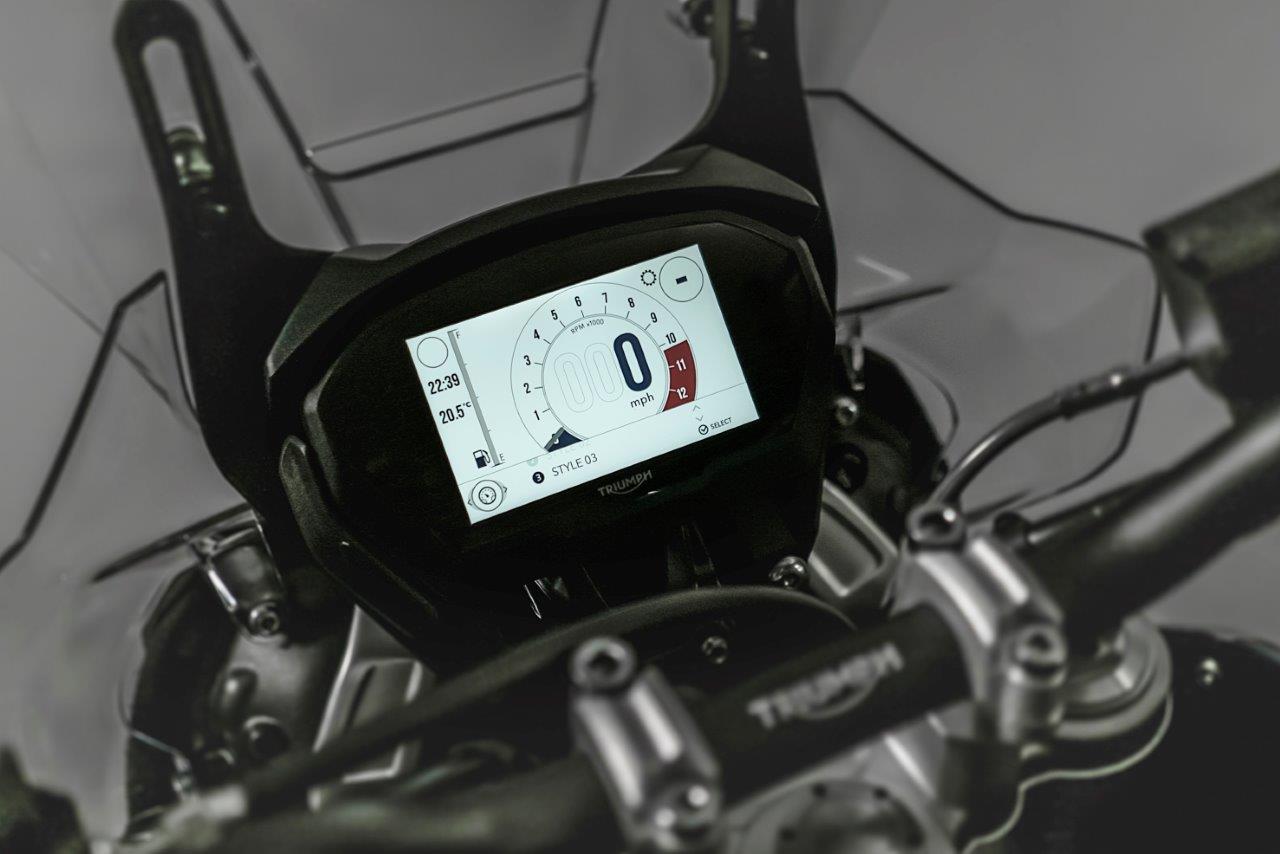

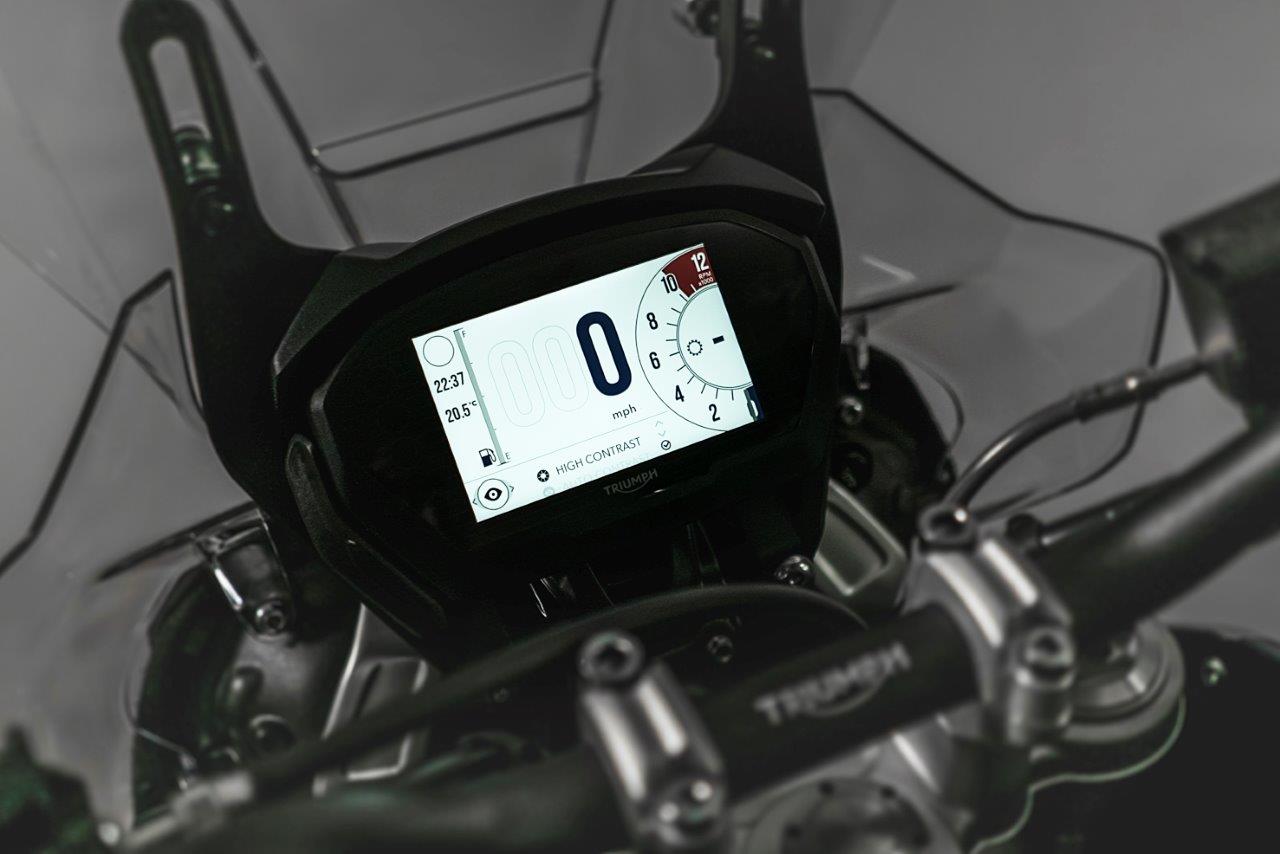

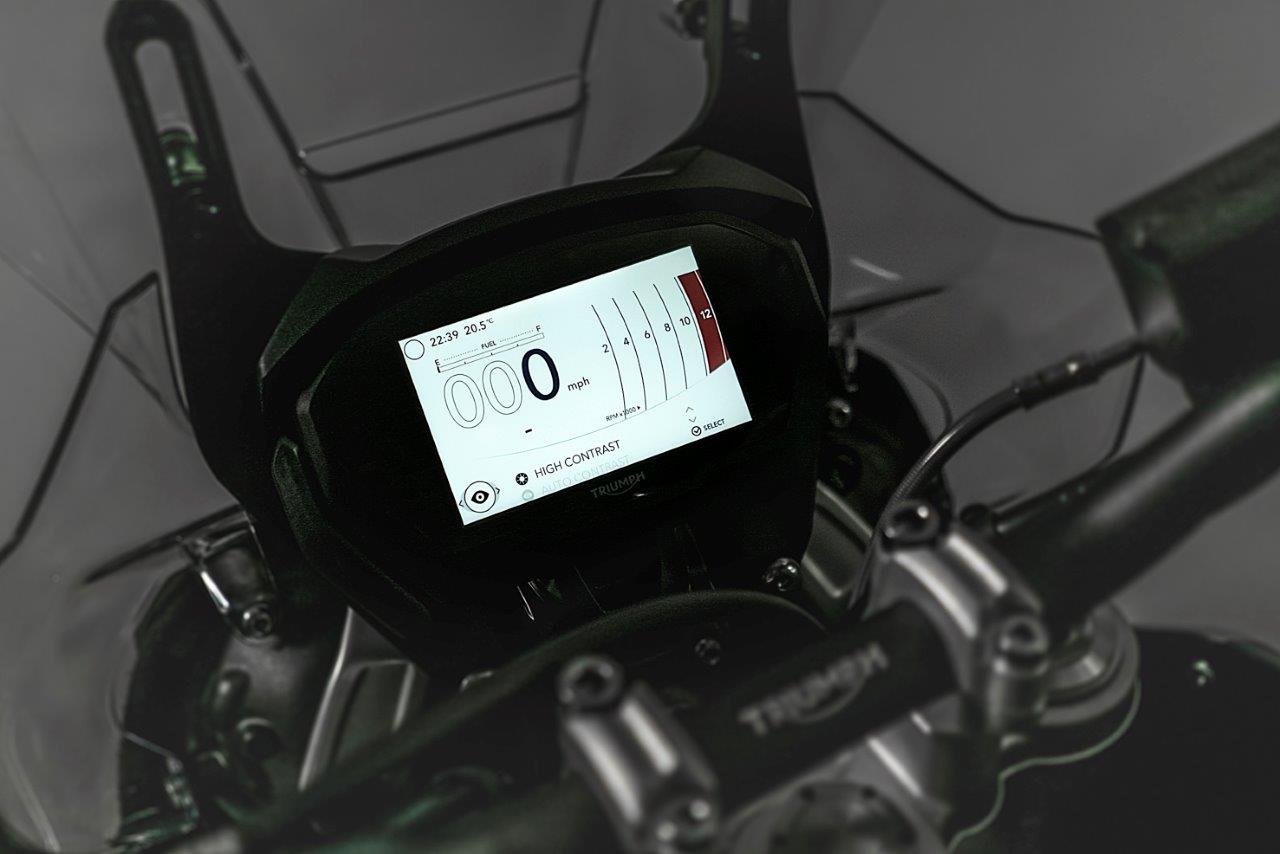

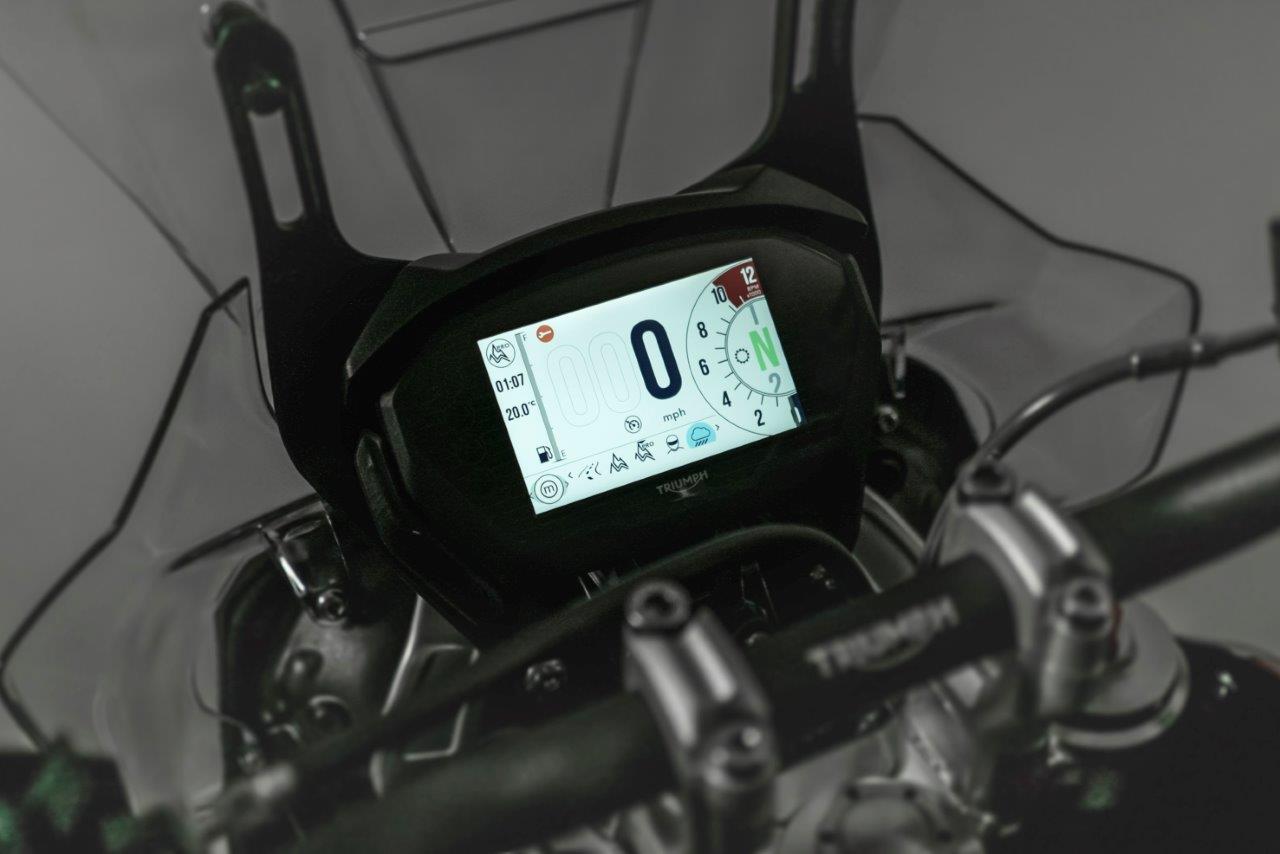

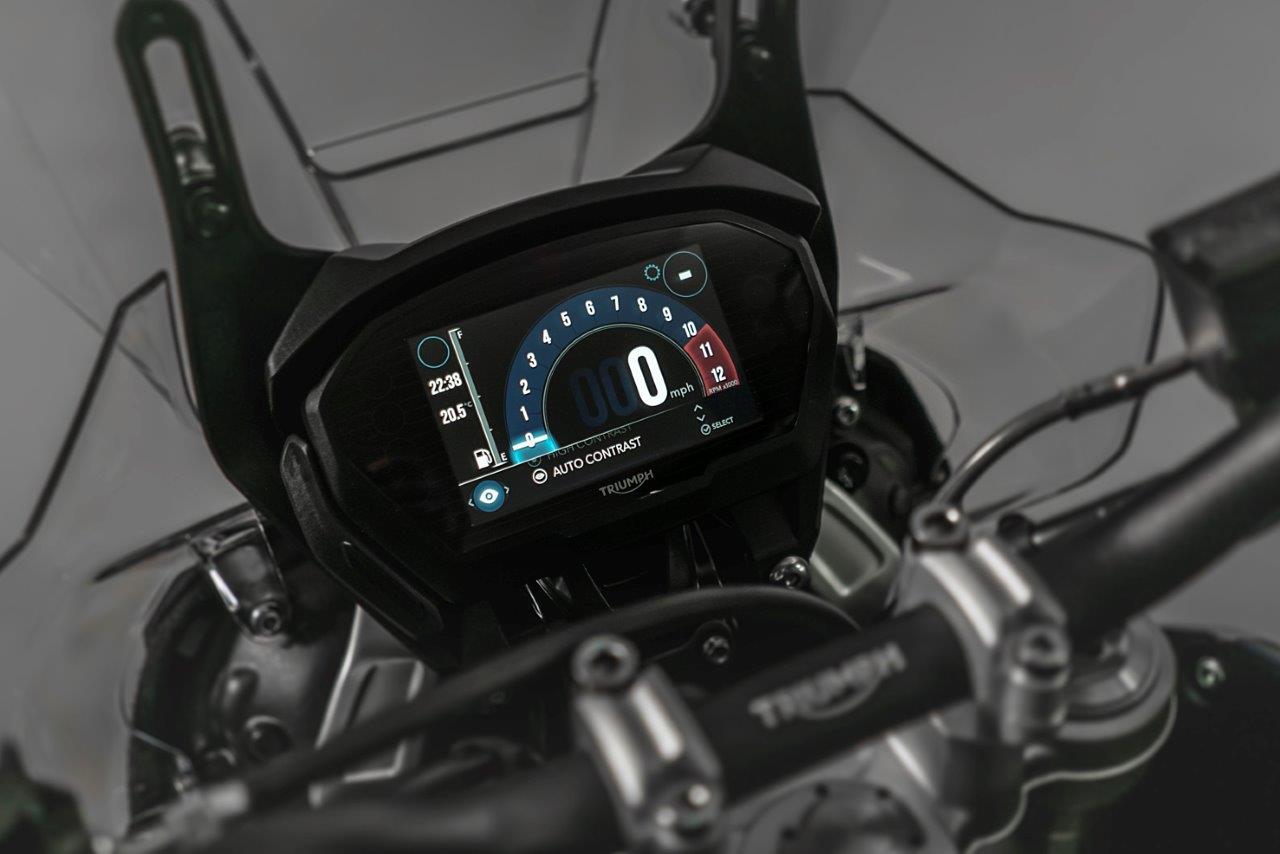

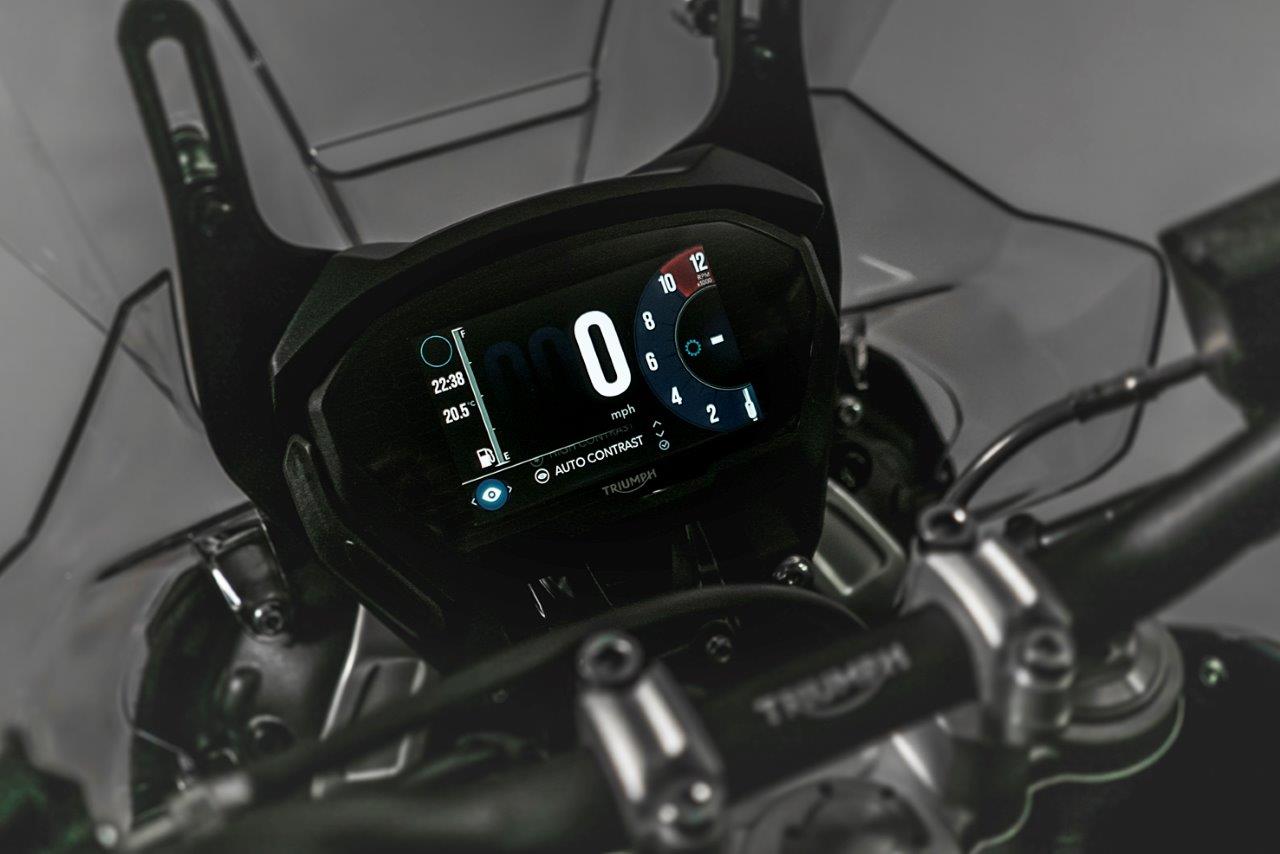

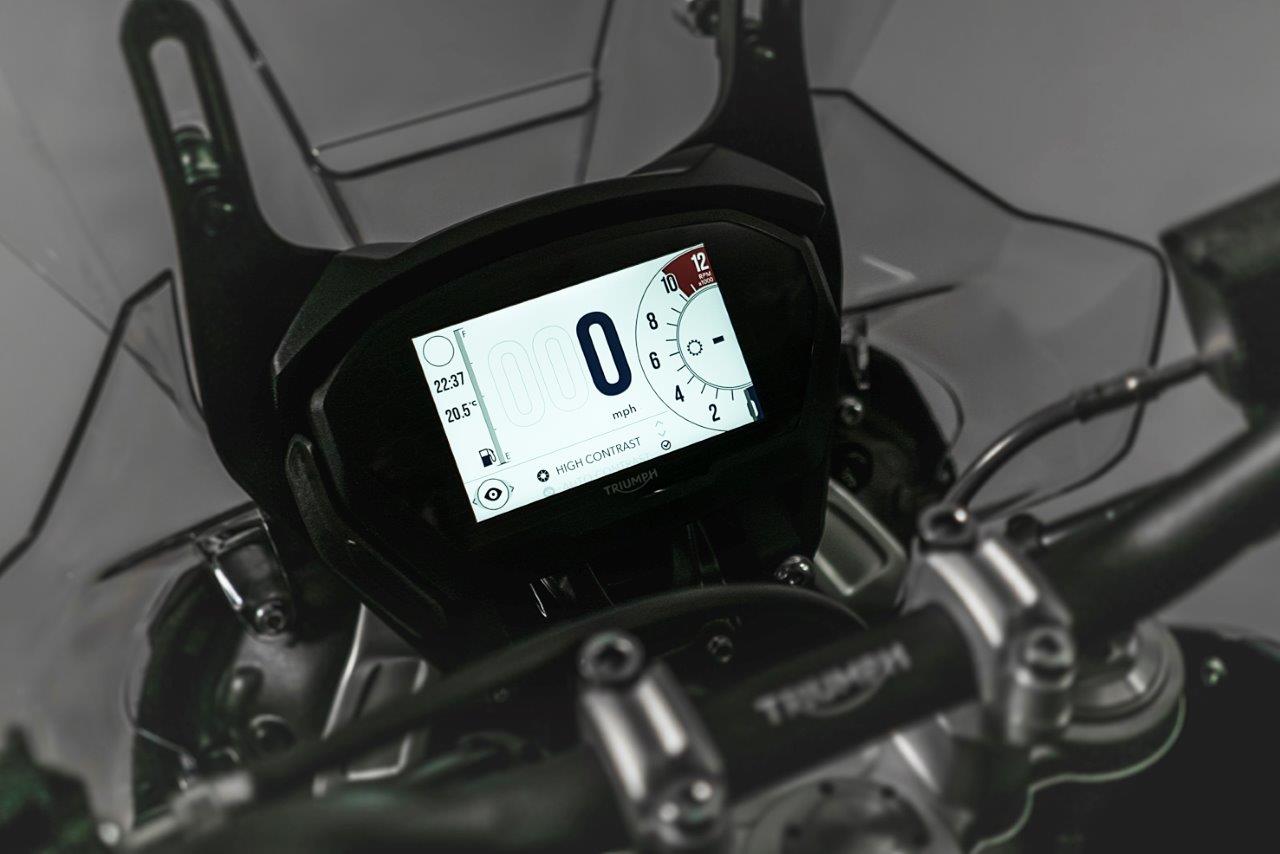

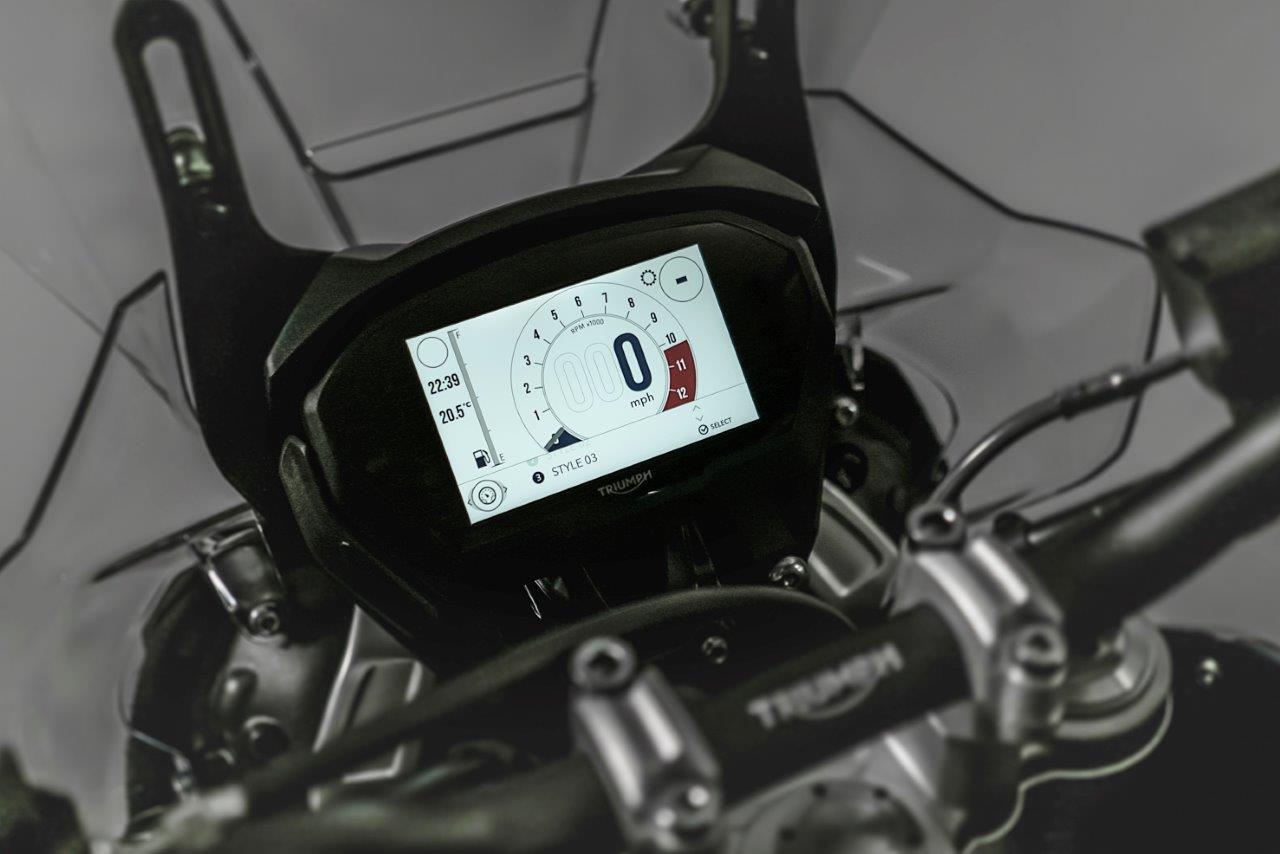

NEW FULL-COLOR TFT INSTRUMENTS & ILLUMINATED SWITCHGEAR

Higher spec Tiger 800s include new angle-adjustable, full color 5’’ TFT instruments for access to all rider-focused technology via new ergonomically designed switchcubes and 5-way joystick with premium illuminated backlit buttons.

MORE RESPONSIVE ENGINE & SHORTER RATIO FIRST GEAR

The thrilling new generation mass-optimized 800cc Triple engine delivers 94 HP with even more responsiveness and acceleration, and a new shorter ratio first gear delivers more low-speed traction and instant responsiveness.

UP TO SIX RIDING MODES, INCLUDING NEW ‘OFF-ROAD PRO’ MODE

To suit every type of environment and riding style, riding modes include: ‘Road’, ‘Rain’, ‘Off-Road’, ‘Sport’, ‘Rider programmable’ and an all-new ‘Off-Road Pro’ mode for advanced off-road fun.

NEW SIGNATURE LED LIGHTING

LED lights and fog lights are included on high specification models, as well as Triumph’s signature Daytime Running Light (DRL) system for maximum safety and minimal maintenance.

ENHANCED RIDER ERGONOMICS

Incorporating a new seat compound with extra foam & 3D-net technology, and revised handlebar geometry to suit a wider range of riders gaining a more commanding riding position and enhanced long distance comfort.

NEW FIVE-POSITION ADJUSTABLE SCREEN

For superior wind protection the mid and top specification Tigers come with an all-new five-position adjustable screen, and new aero diffusers delivering greater rider and pillion comfort.

NEW BREMBO FRONT BRAKES

High specification Brembo front brakes now come as standard on the mid and top spec Tigers, bringing premium braking capability off-road and on.

HIGH SPECIFICATION SUSPENSION AND RIDER SYSTEMS

Showa suspension on the XR models (including new adjustable set-up on the top spec XRT), off-road focused WP long travel suspension on XC models and switchable ABS and traction control as standard.

EVEN MORE TIGER STYLE

More premium bodywork and the highest-ever level of finish and detailing gives each Tiger 800 a more dynamic stance that reflects the road and off-road bias of each model.

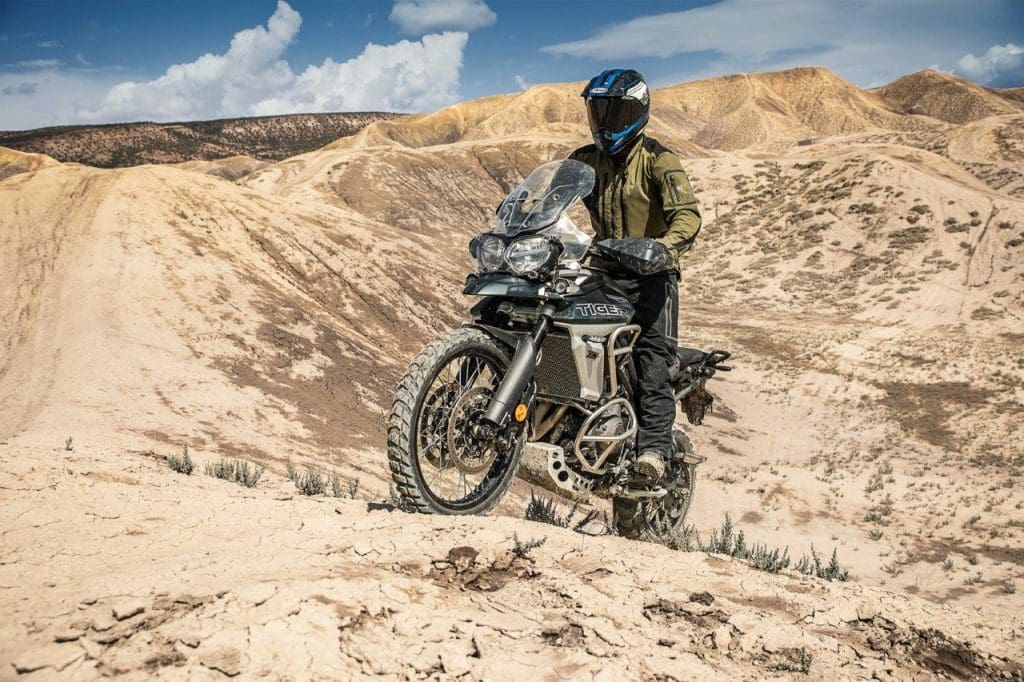

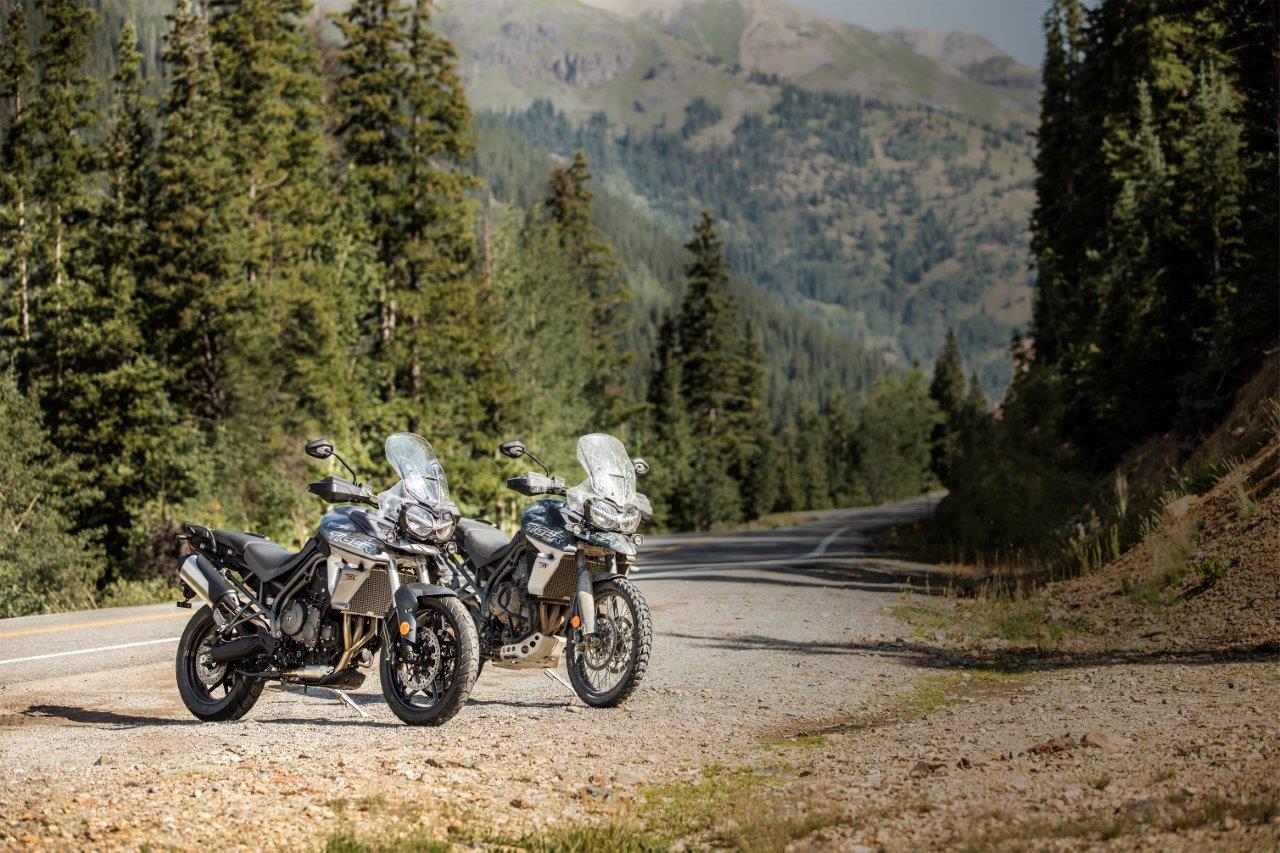

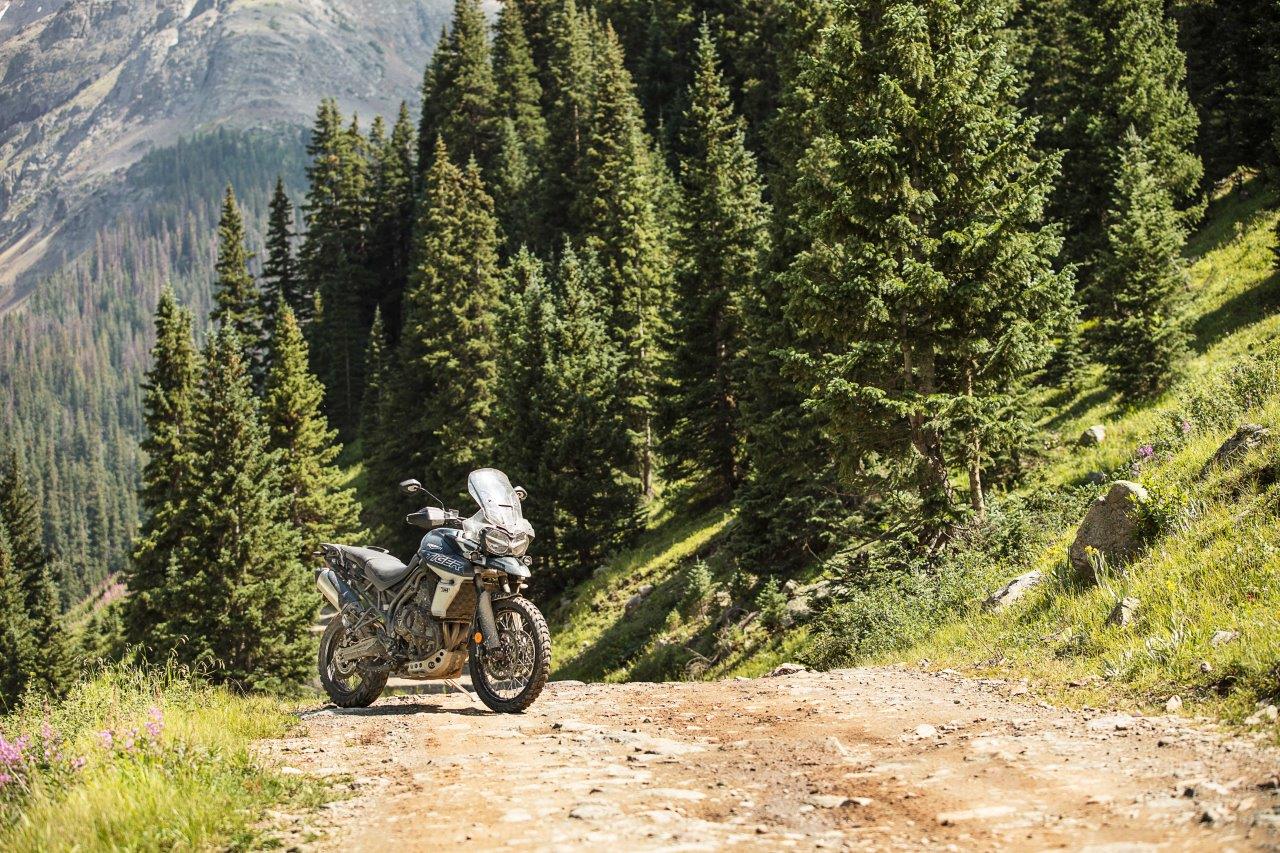

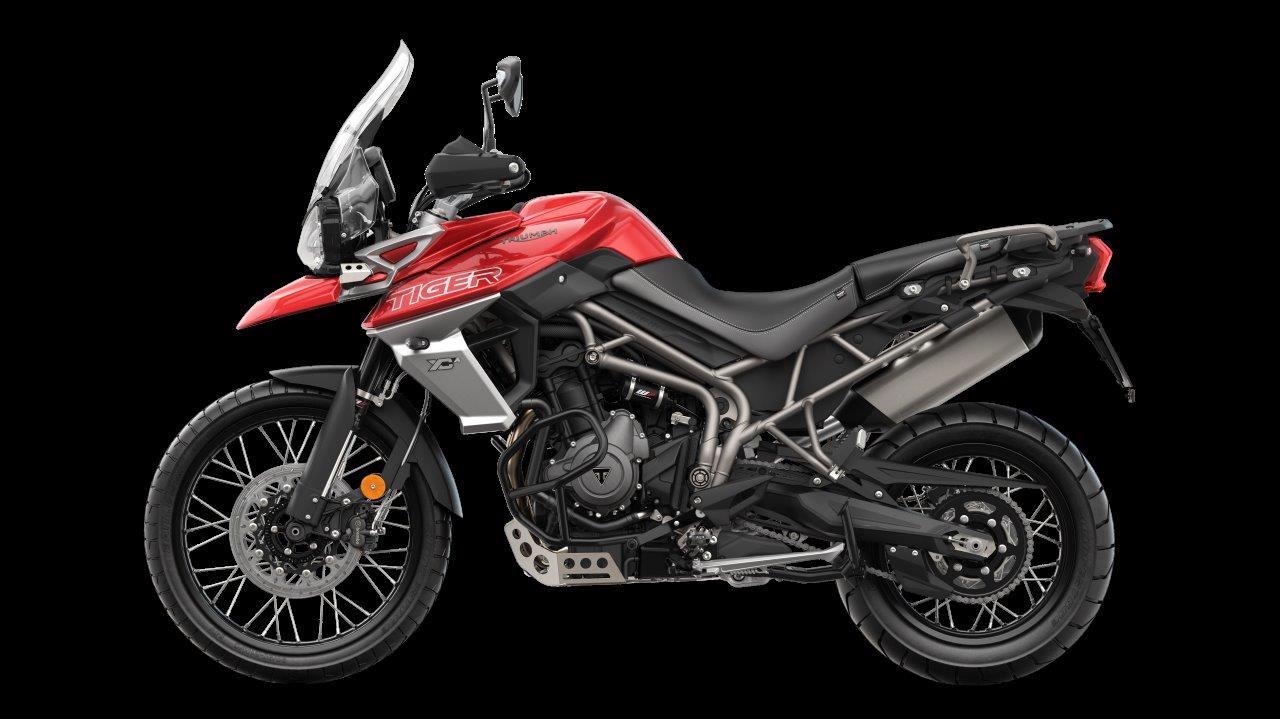

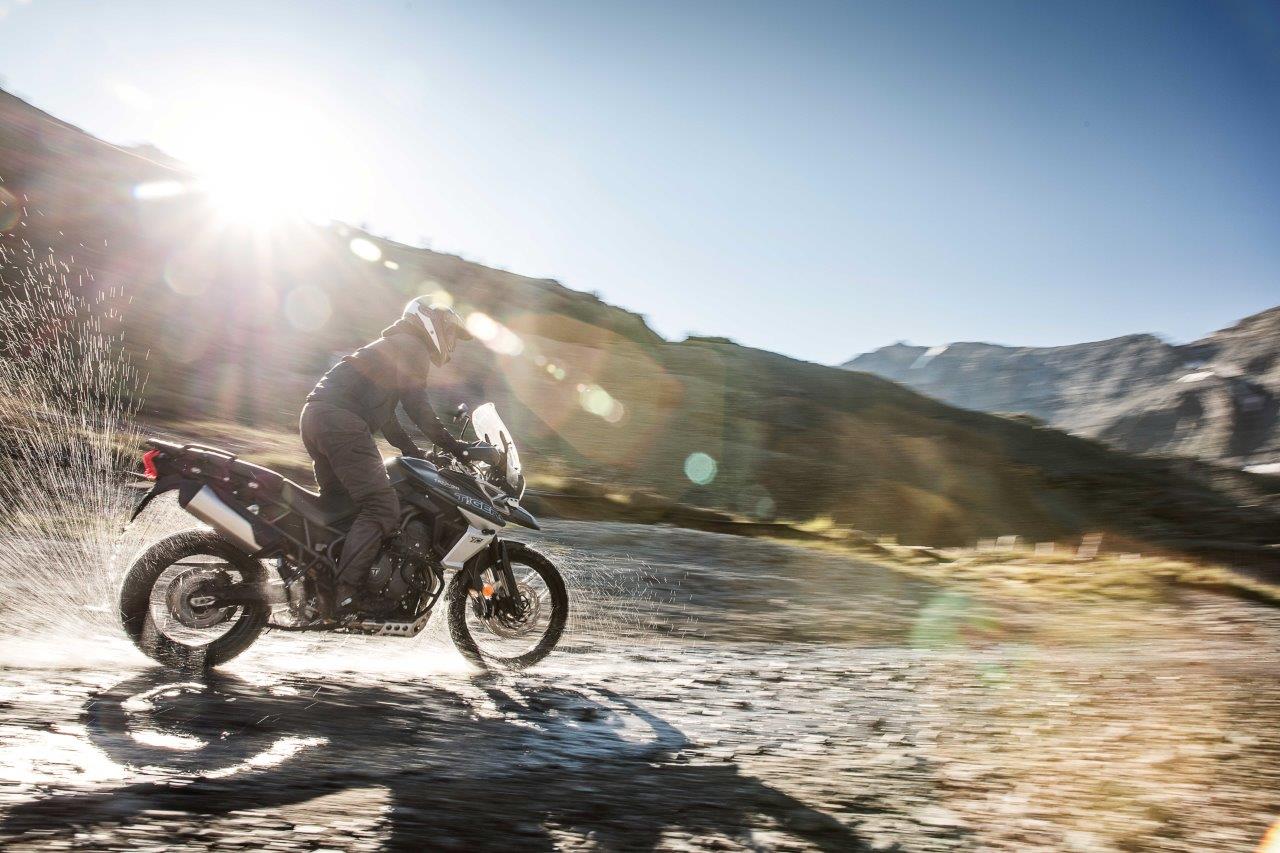

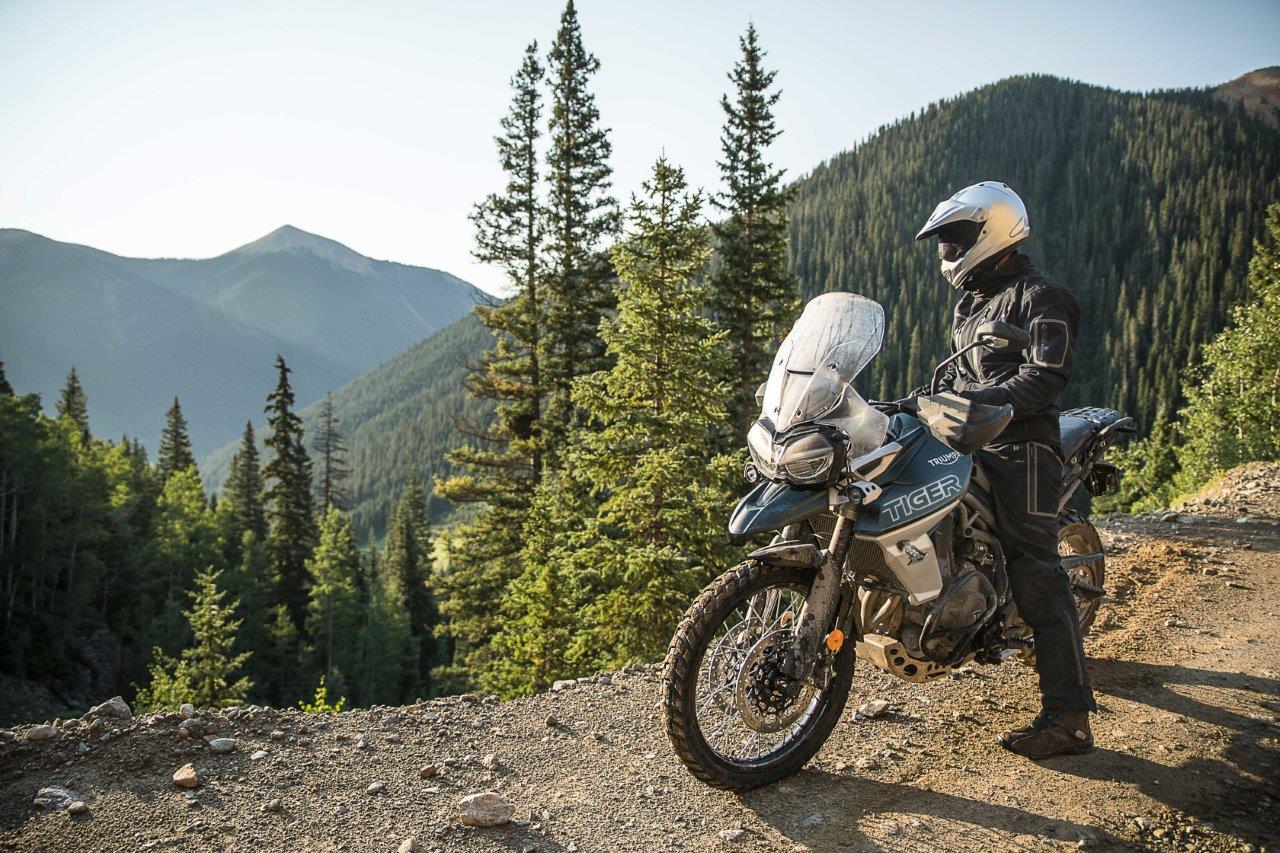

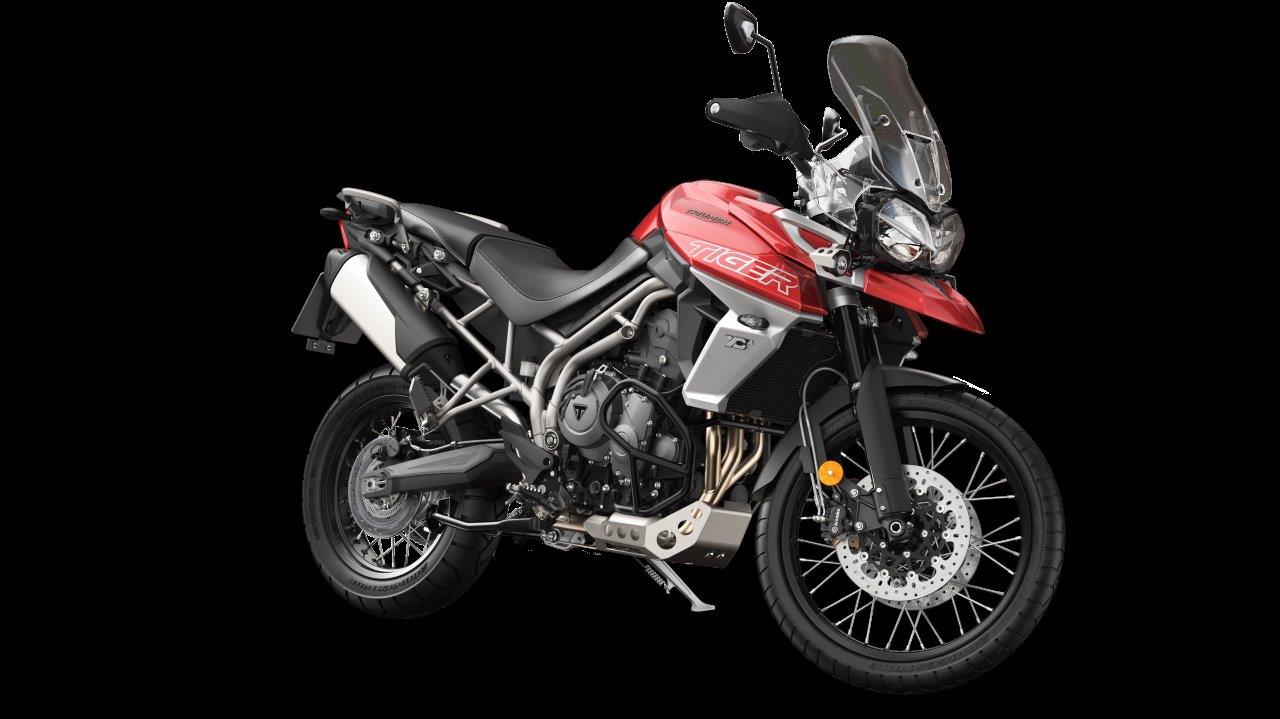

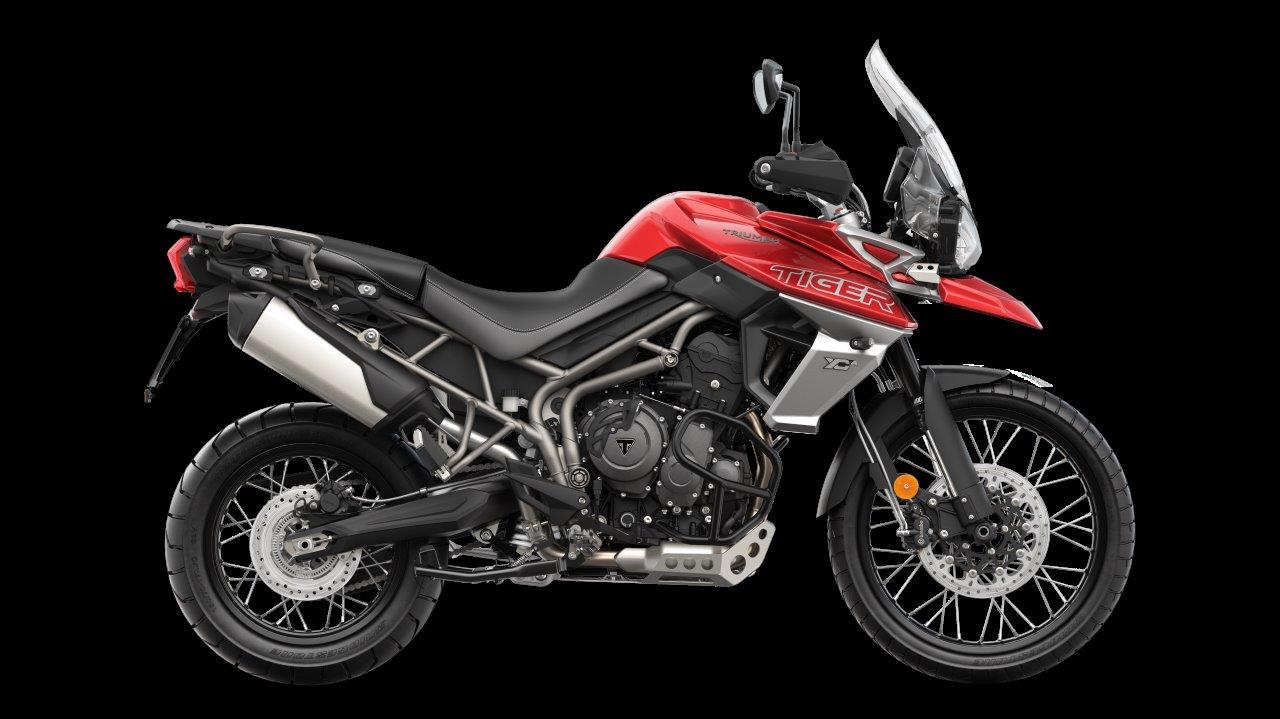

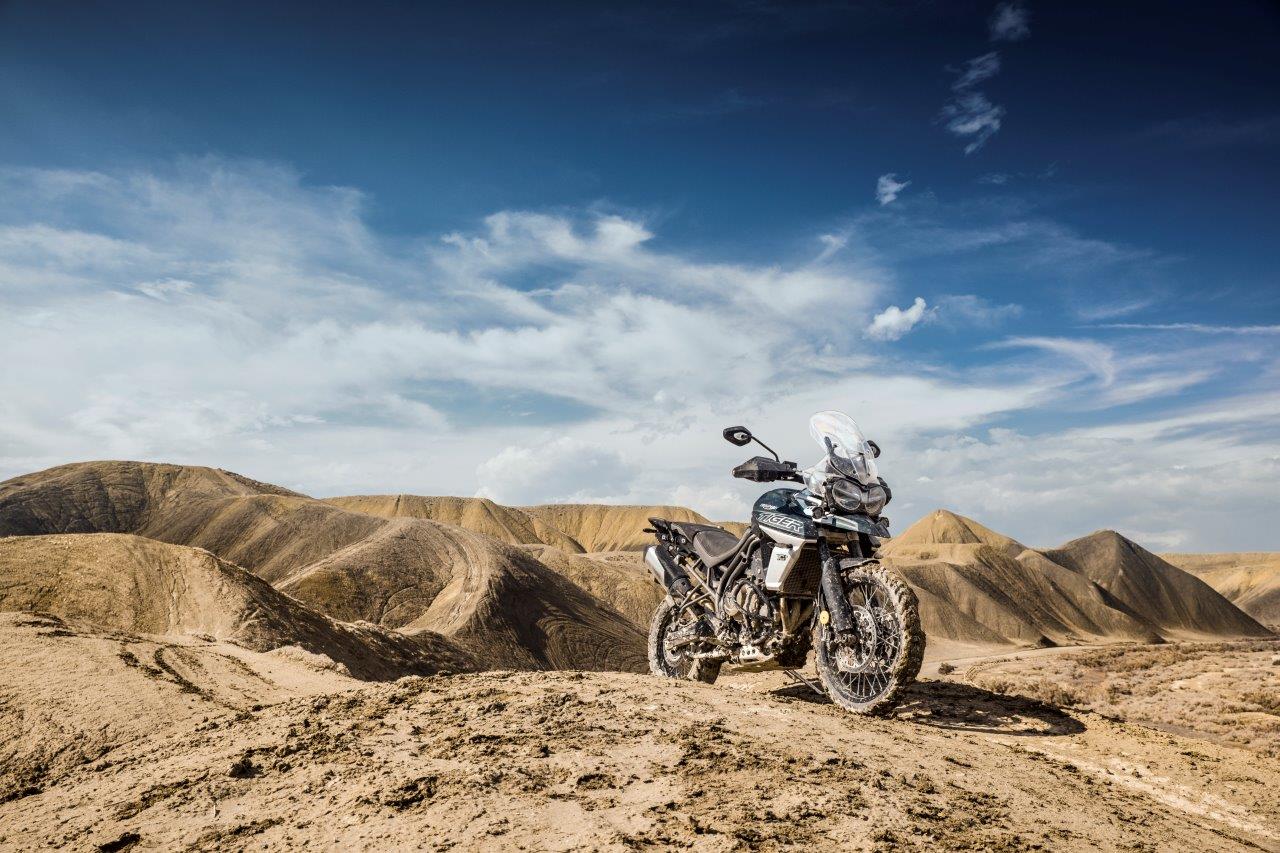

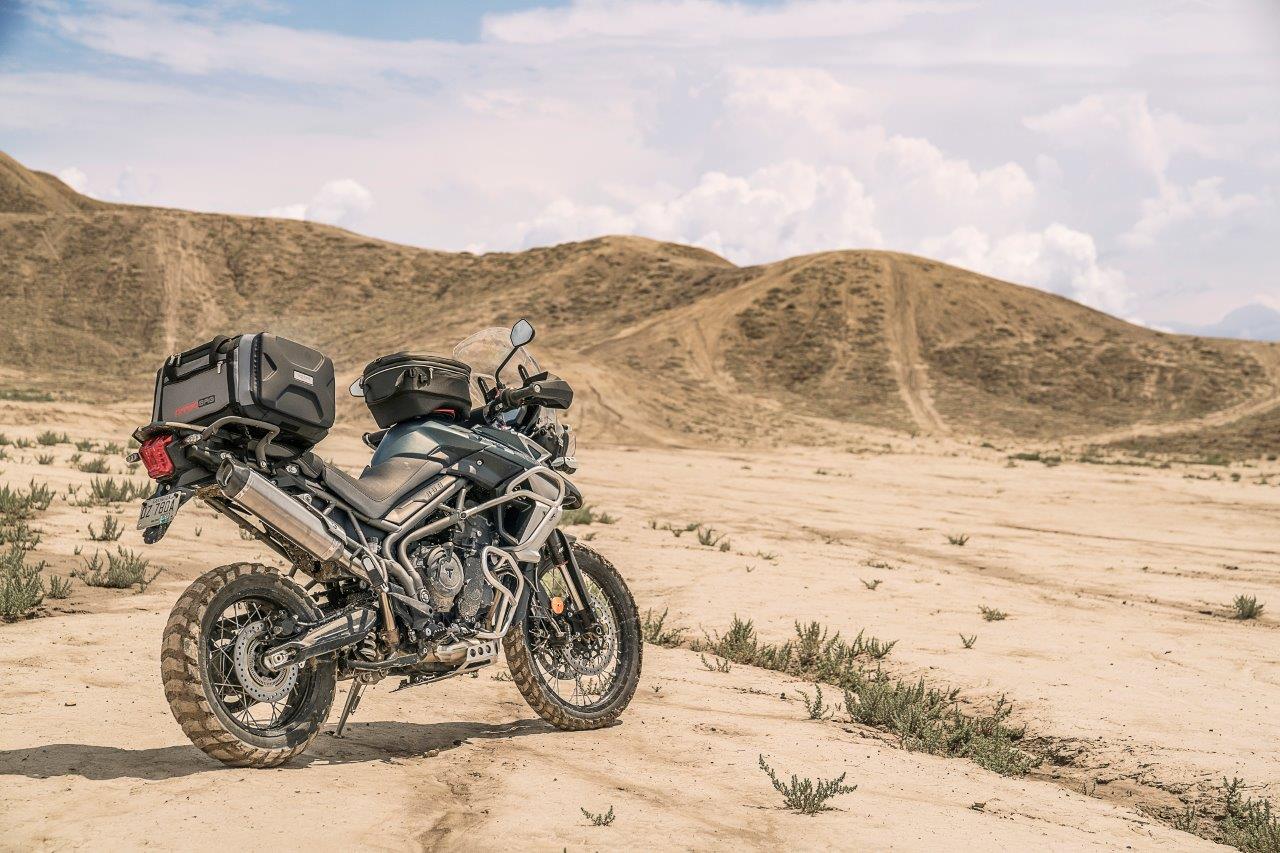

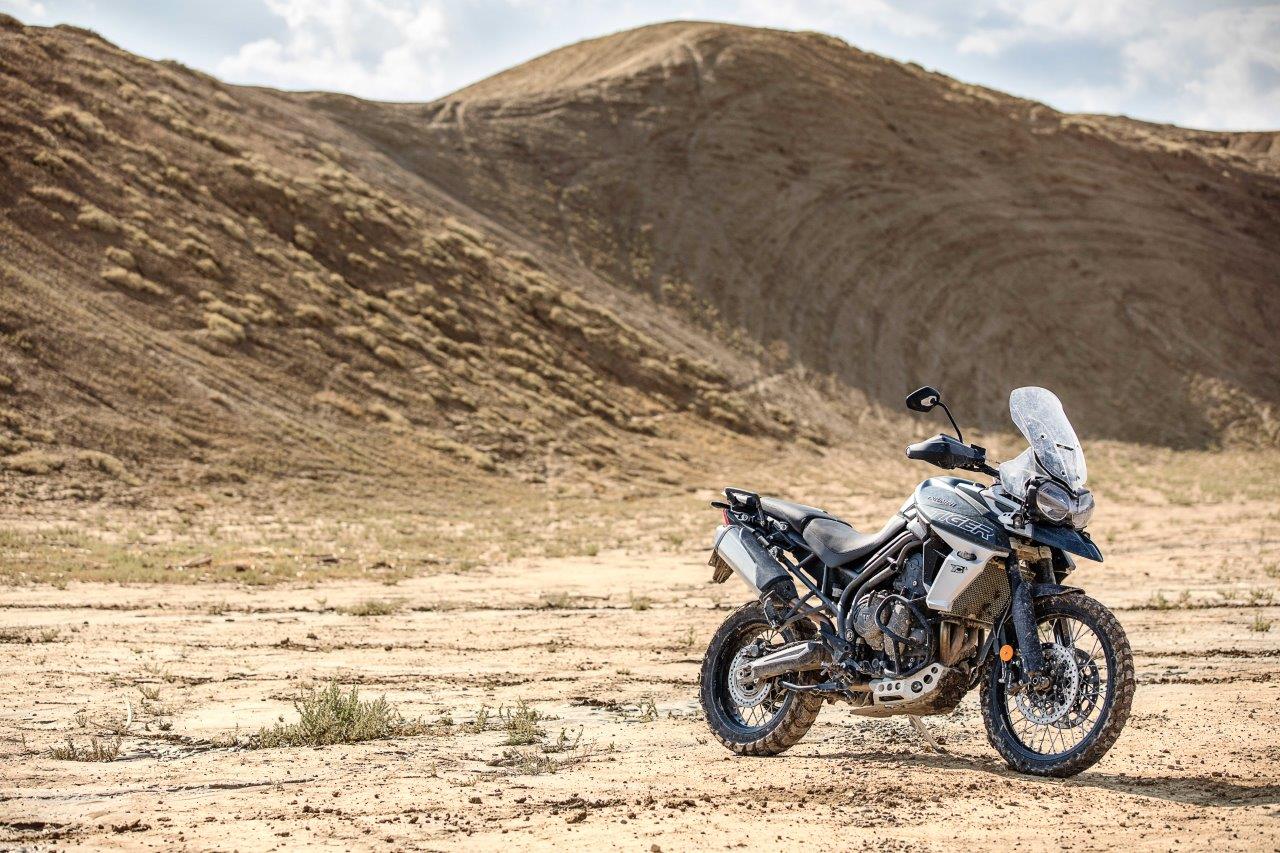

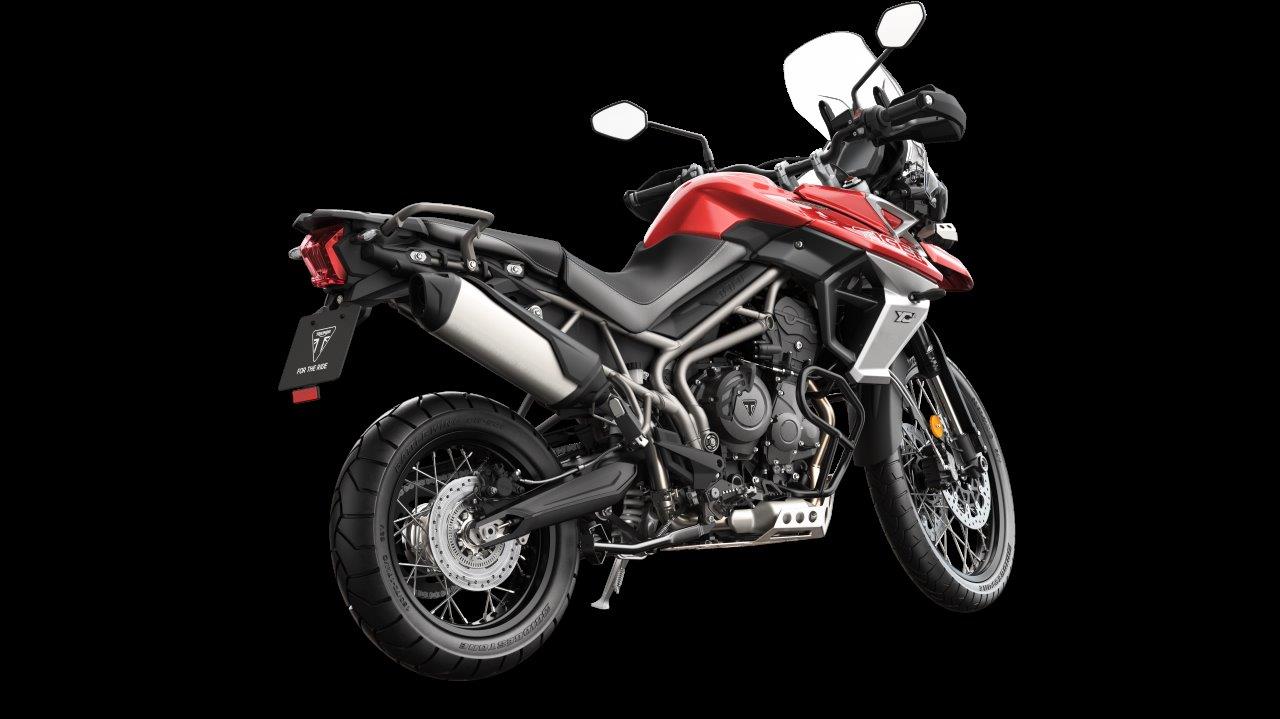

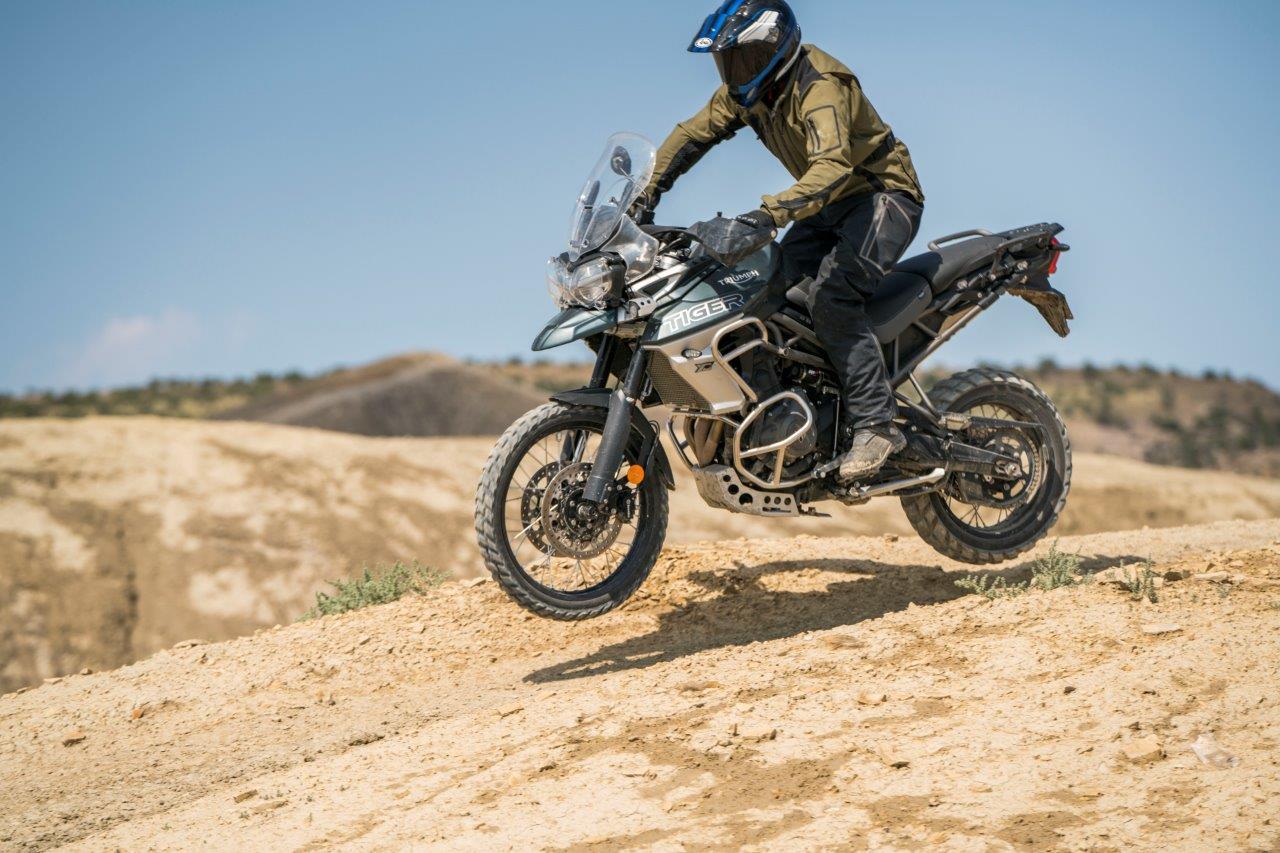

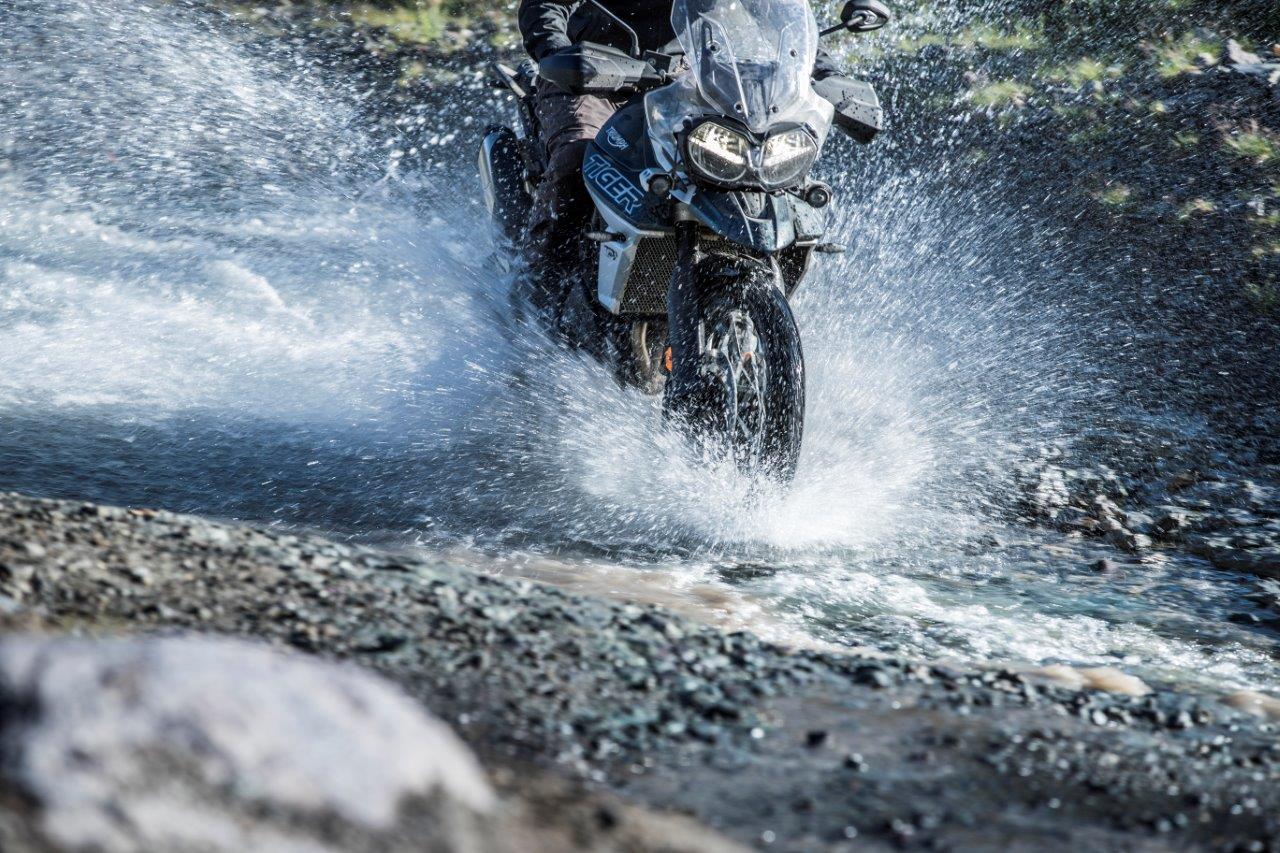

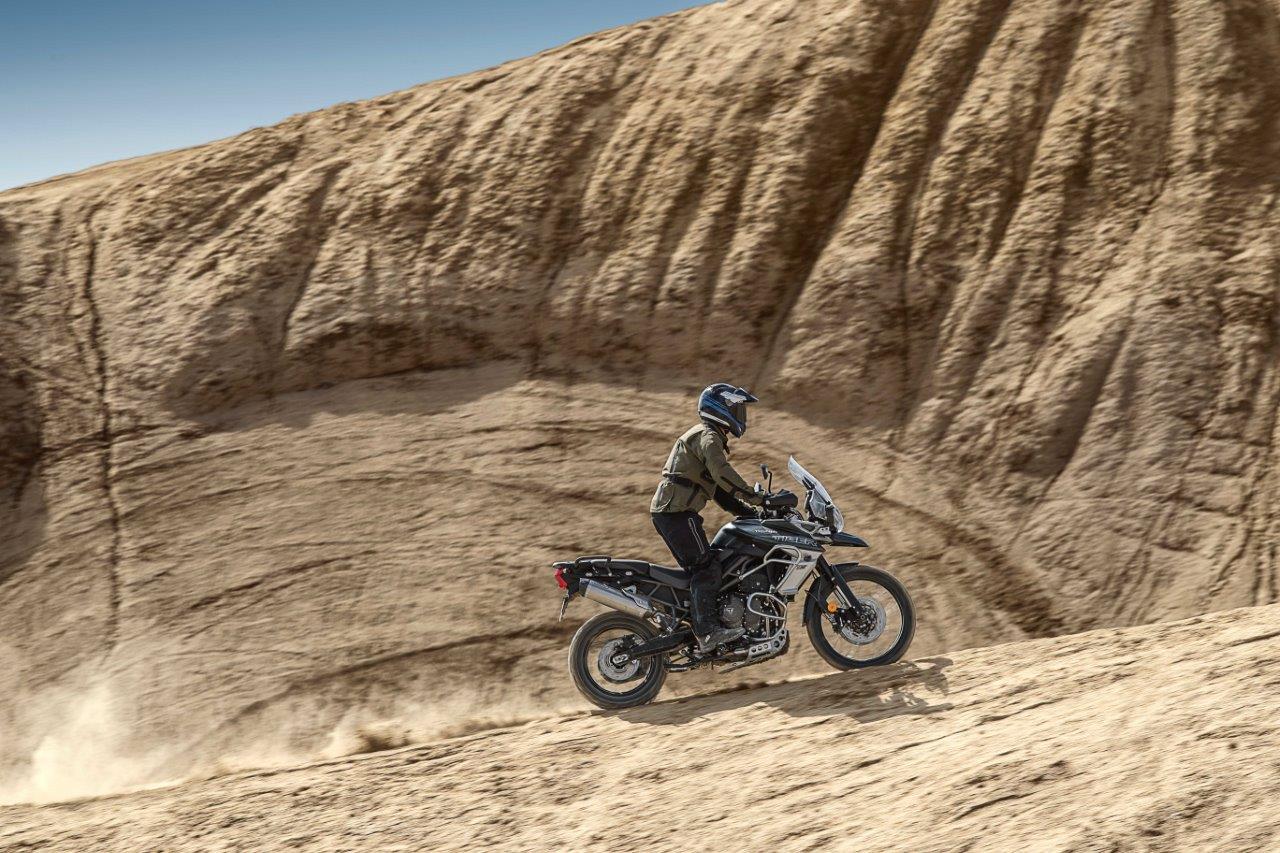

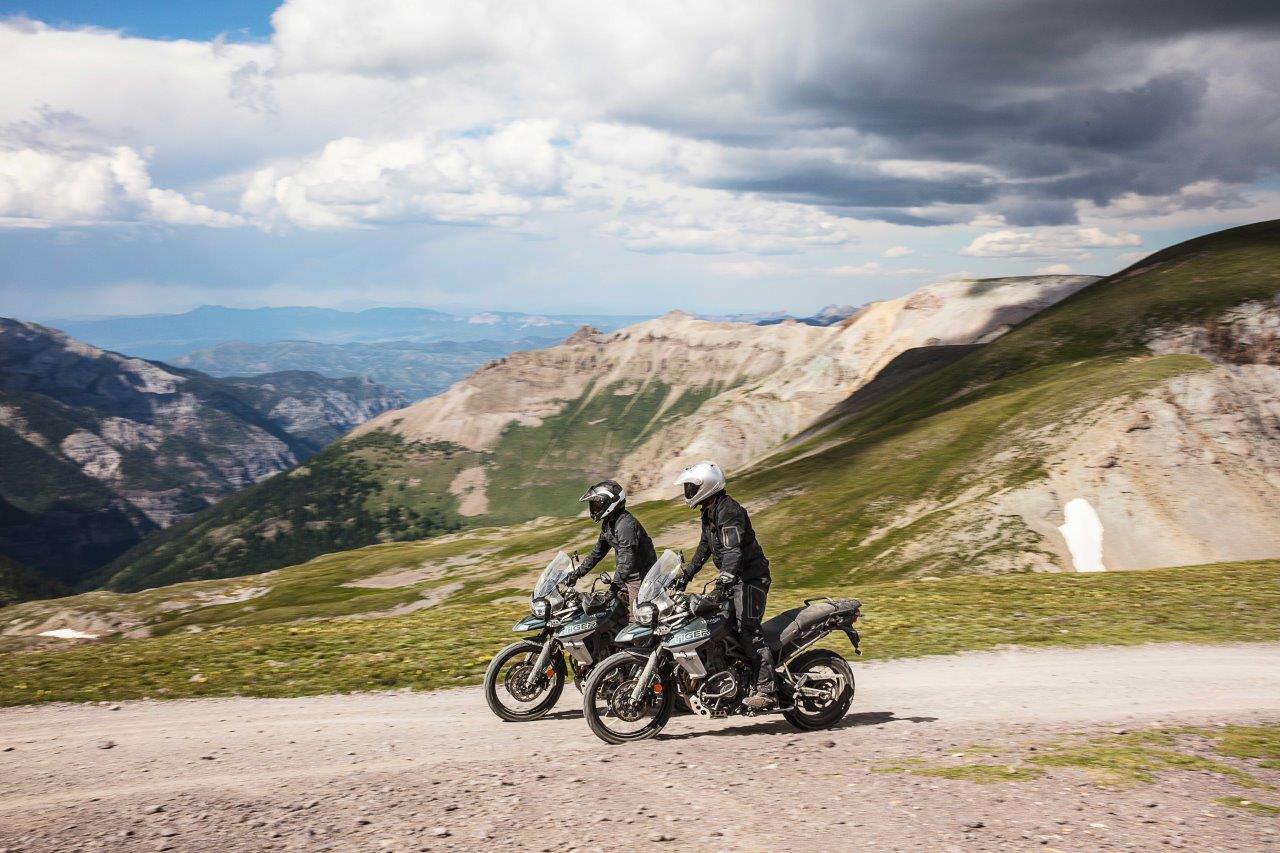

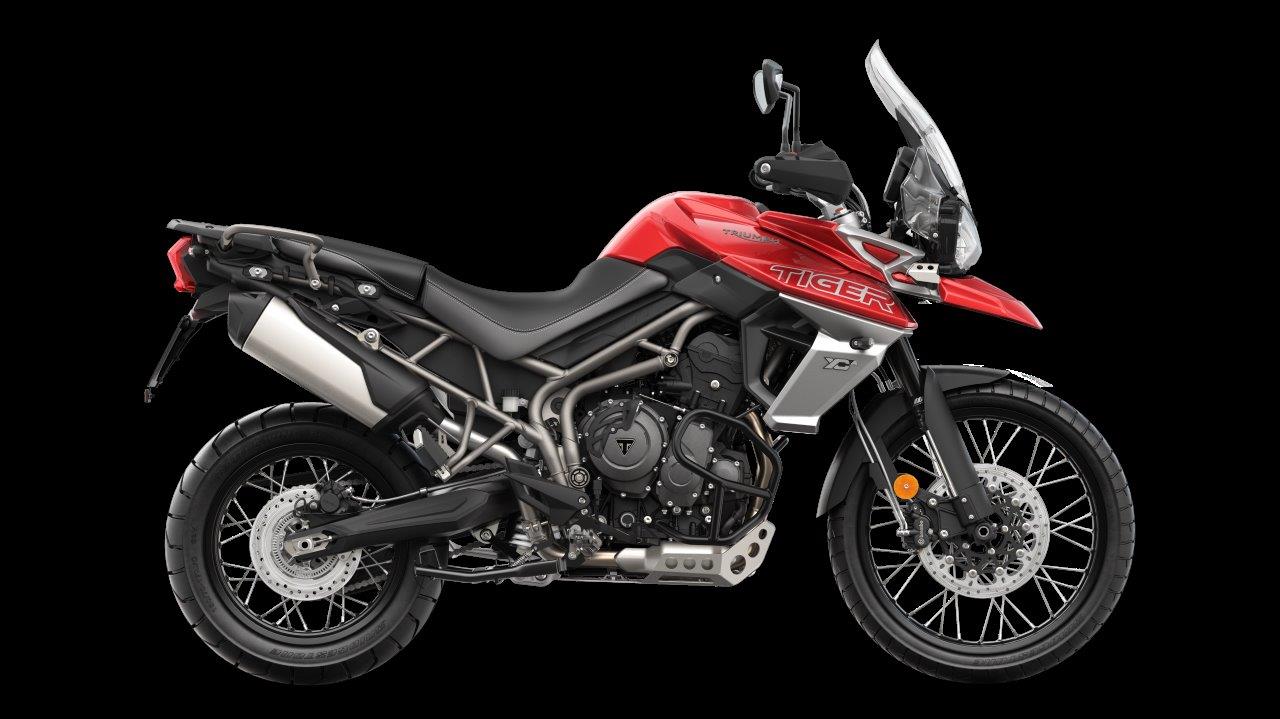

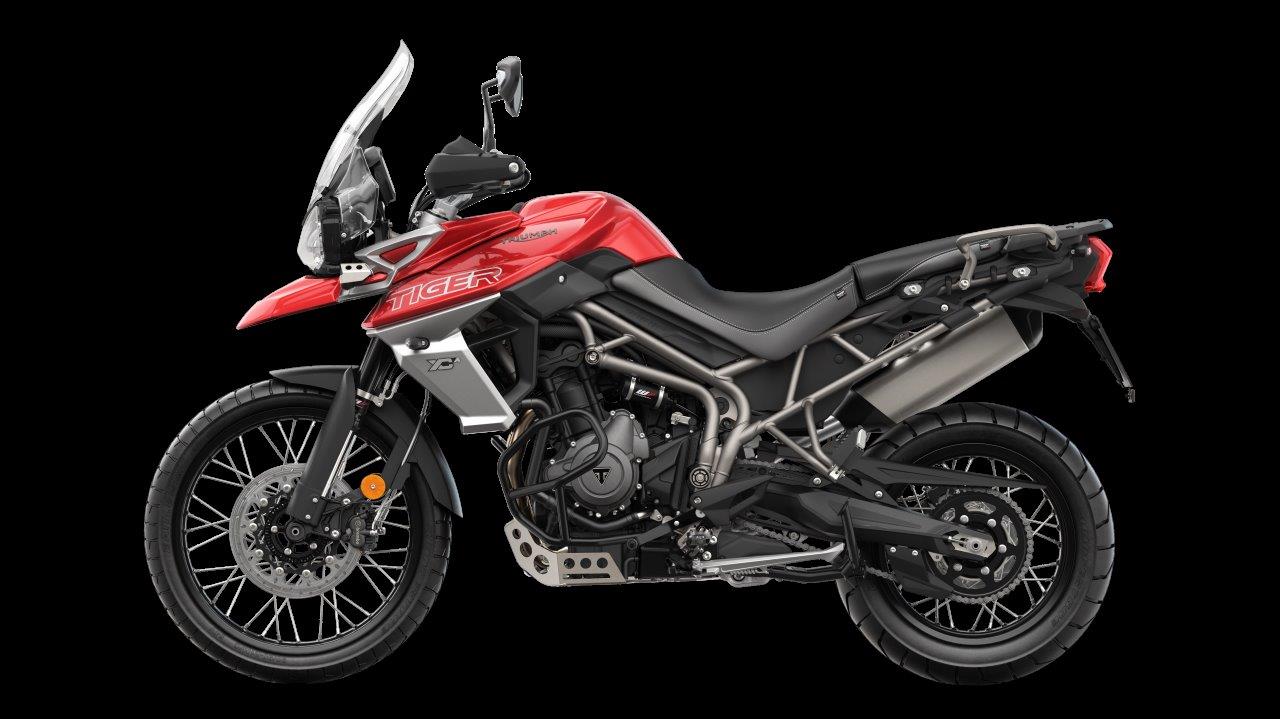

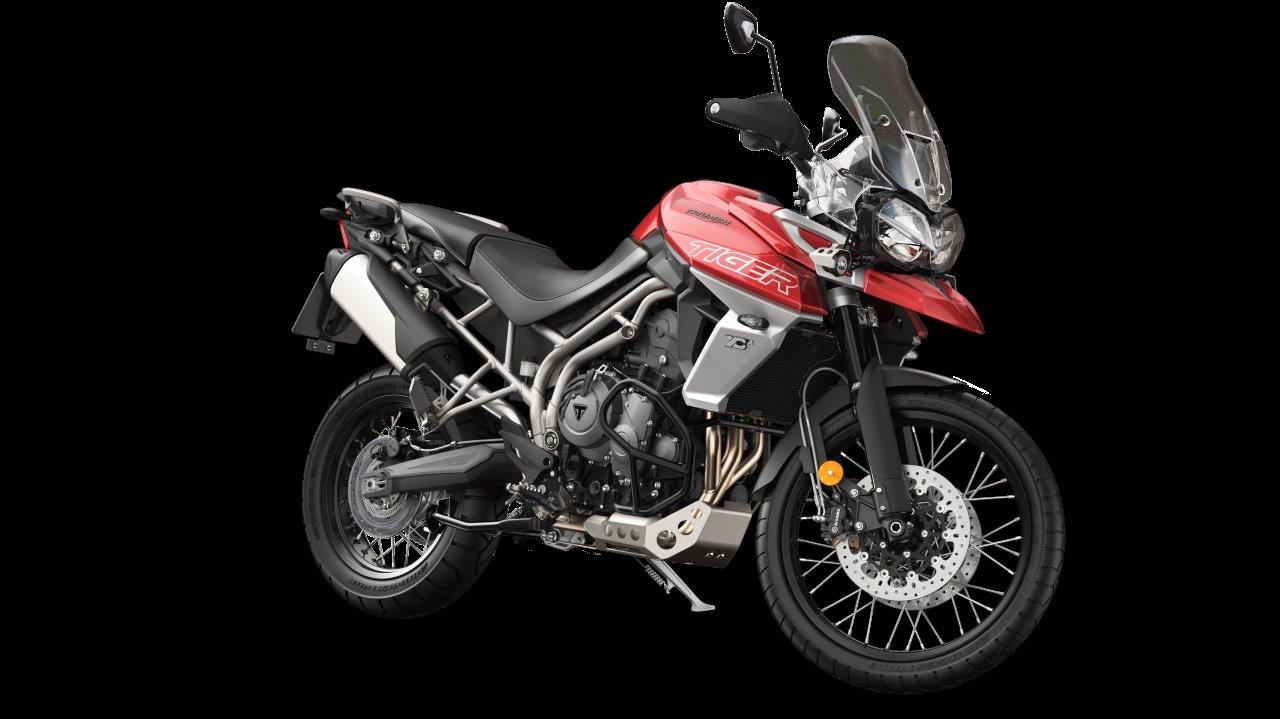

2020 Triumph Tiger 800 XC Photos
